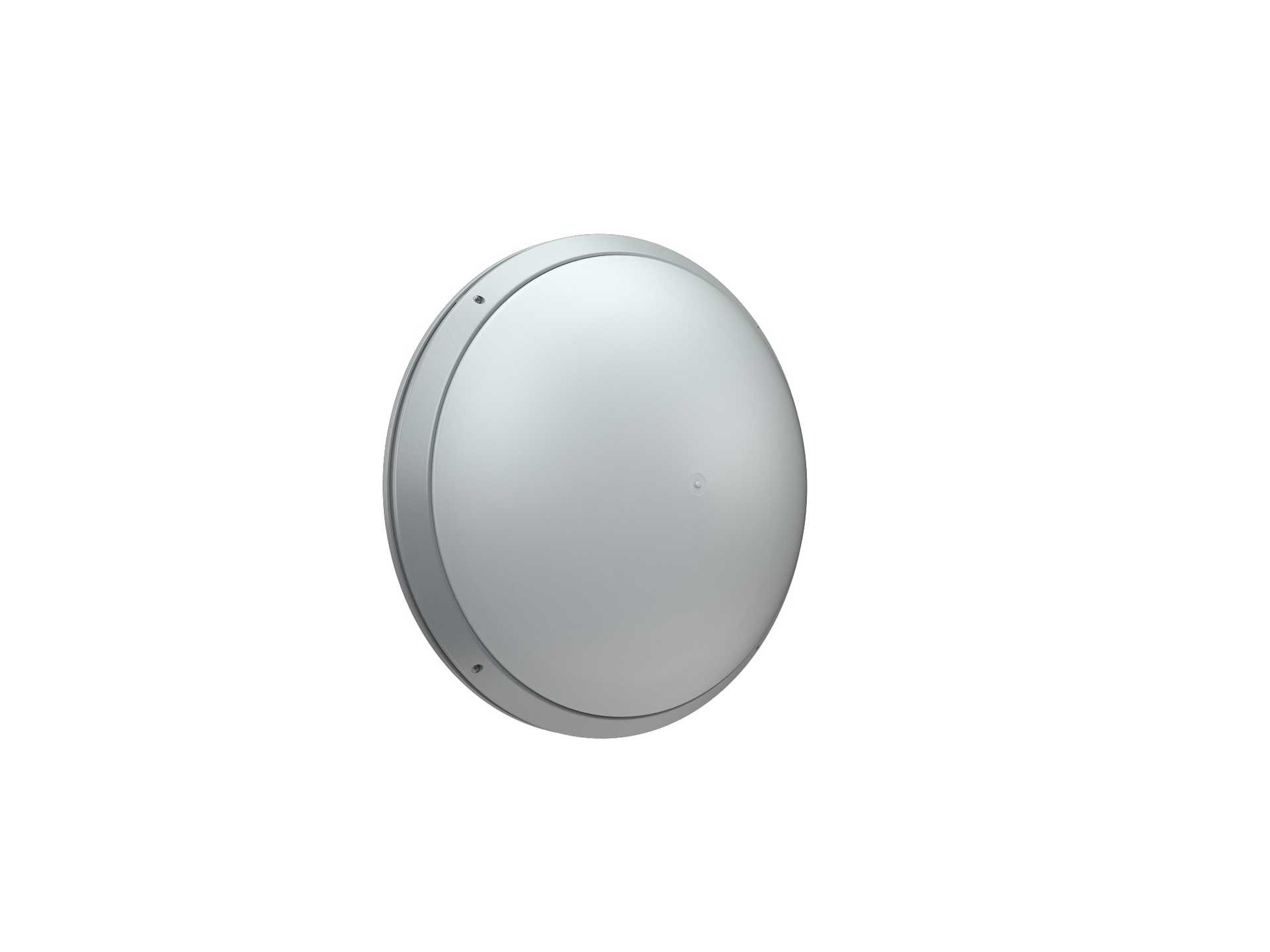

CD LED 13 MS 4000K
CD LED 13 MS 4000K
12 Wluminaire power
1200 lmlight flow
100 lm/Wenergy efficiency
code1134000490
color temperature4000
beam angleD120
number of lamps1
performance factor100
options
свернуть все
electricalconstructionalcommonilluminatingLMS options
starting current
43 Astarting current pulse time, µs
2.28 mksrated supply voltage, alternating current
230 Vsupply voltage, alternating current
198-264 Vluminaire power
12 Welectric shock protection
IIpower factor
> 0,98supply voltage
230 Velectrical
starting current
43 A
starting current pulse time, µs
2.28 mks
rated supply voltage, alternating current
230 V
supply voltage, alternating current
198-264 V
luminaire power
12 W
electric shock protection
II
power factor
> 0,98
supply voltage
230 V
constructional
maximum cross-section of the connected cable, sq. mm
0.75
ingress protection (IP)
IP65
climatic performance
УХЛ2*
material
Поликарбонат
weight
1.95 kg
diameter, mm
390 mm
height, mm
144 mm
housing color
Белый
installation diameter, mm
255 mm
shock resistance (IK)
IK02/0,2 Дж
lamp socket
LED
number of lamps
1
ballast
Драйвер
common
ETIM class
Настенно-потолочный светильник
warranty
36 month
temperature range
от -20 до +40 C
energy efficiency class
A+
service life, hour
50 000 h
code
1134000490
illuminating
color rendition index (CRI)
>80
light flow
1200 lm
flickering factor
<2%
energy efficiency
100 lm/W
beam angle
D120
color temperature
4000
light source type
LED
emission color
Белый
LMS options
dimming
Microwave motion sensor / light sensor
model files
model files

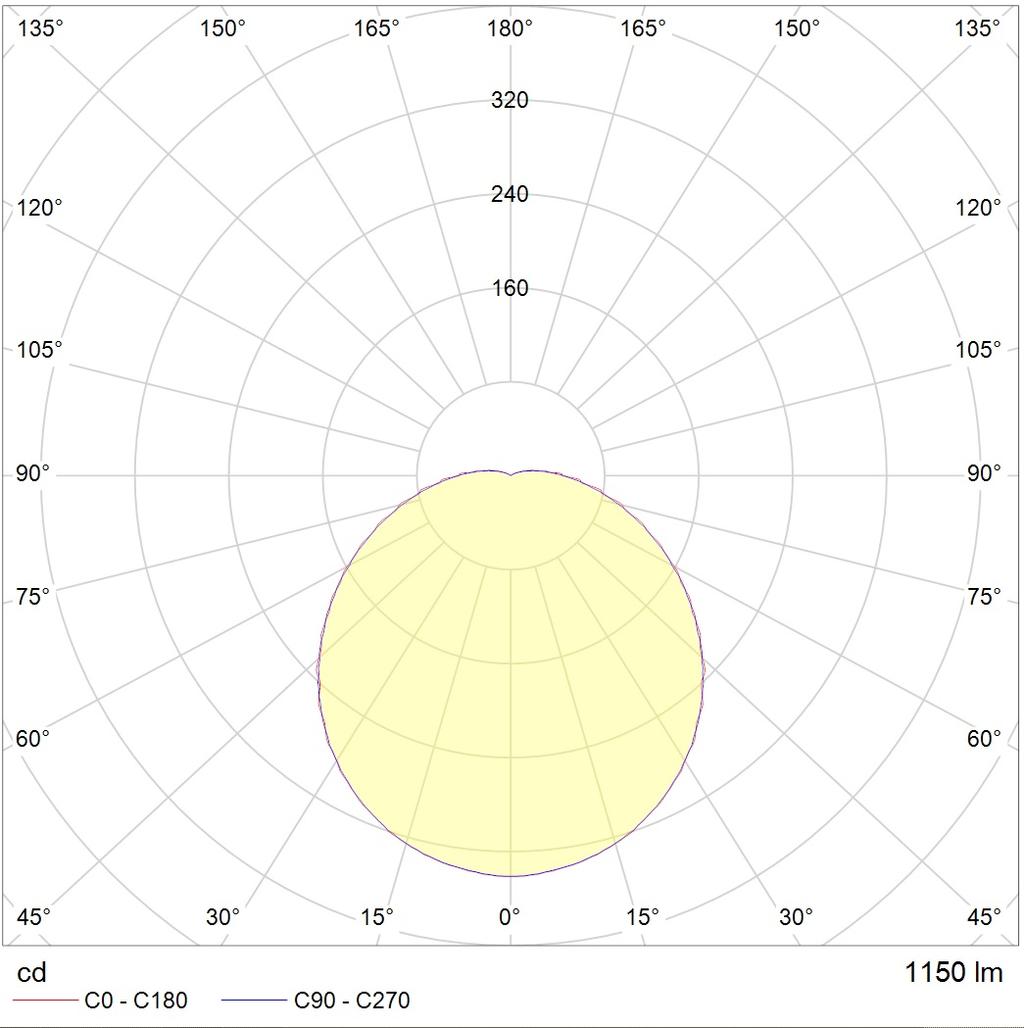

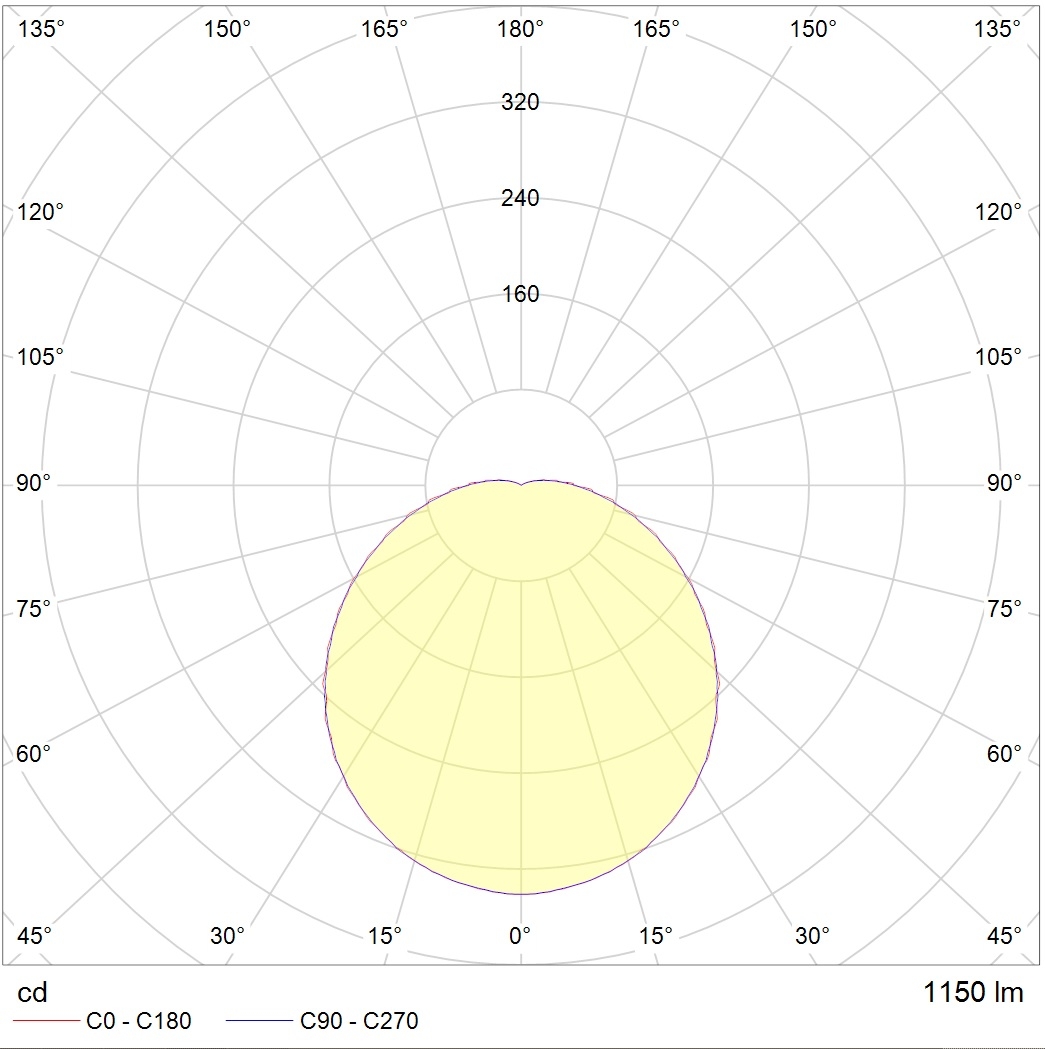

photometric files
documents
сертификаты
photometric files
ies134.1 kB
jpg146.4 kB
ldt103 kB
csv406 B
documents
passport1.7 mB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20113.2 mB
Declaration of Conformity EAEU TR 037/2016588 kB
Fire Safety Certificate2.5 mB
