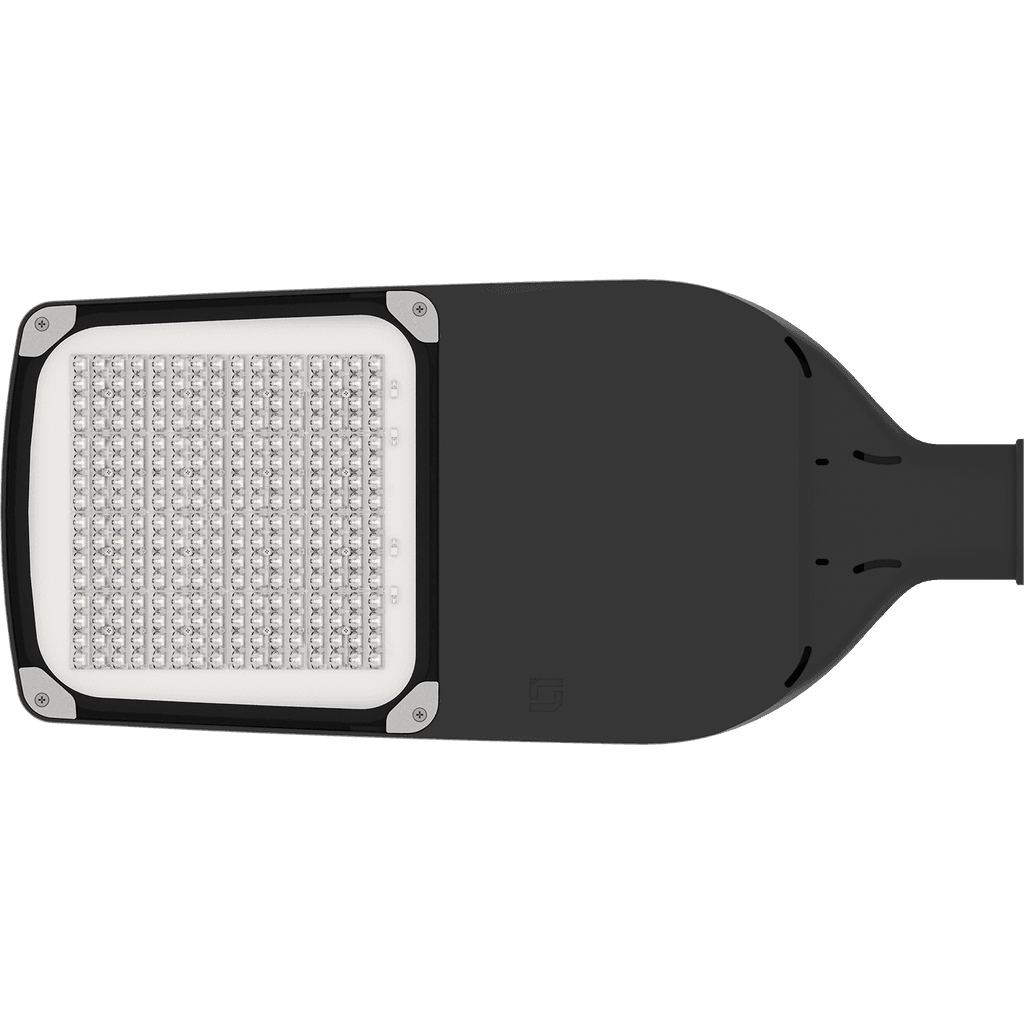

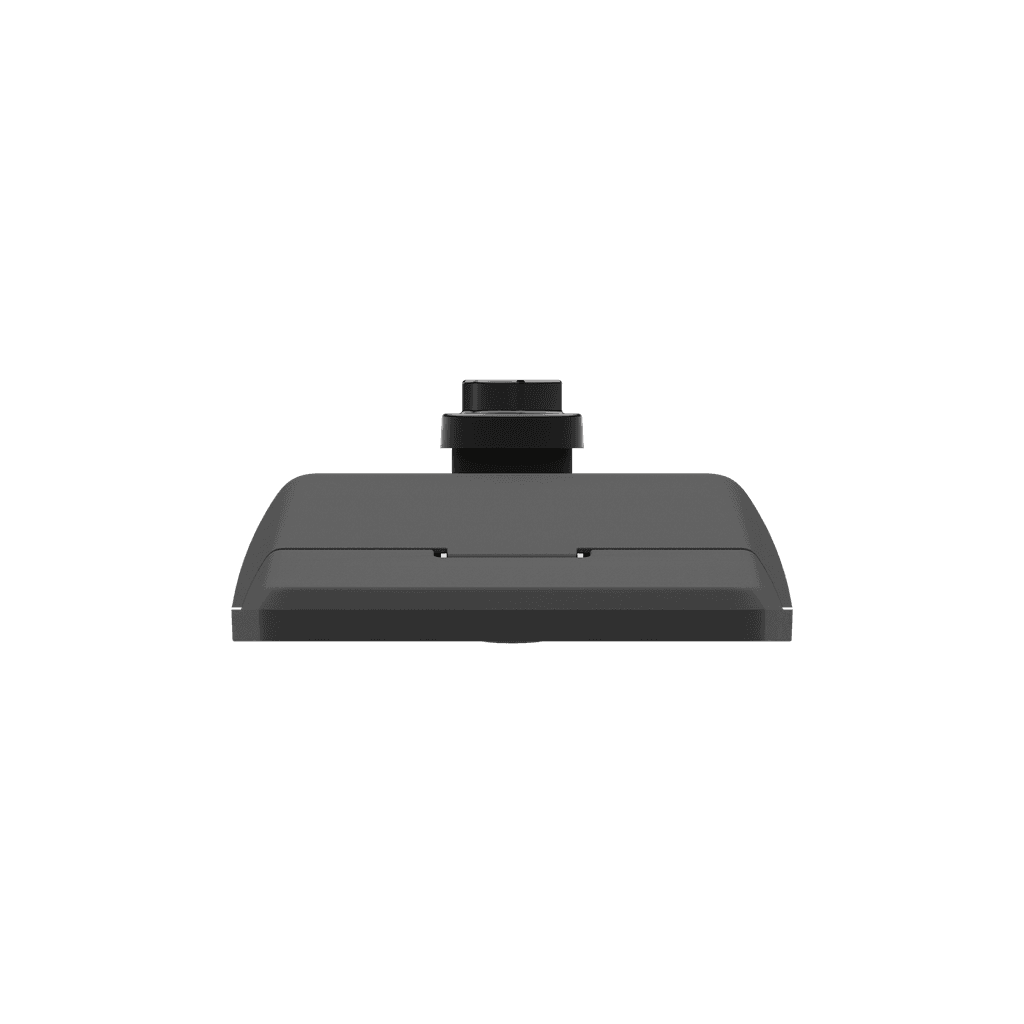

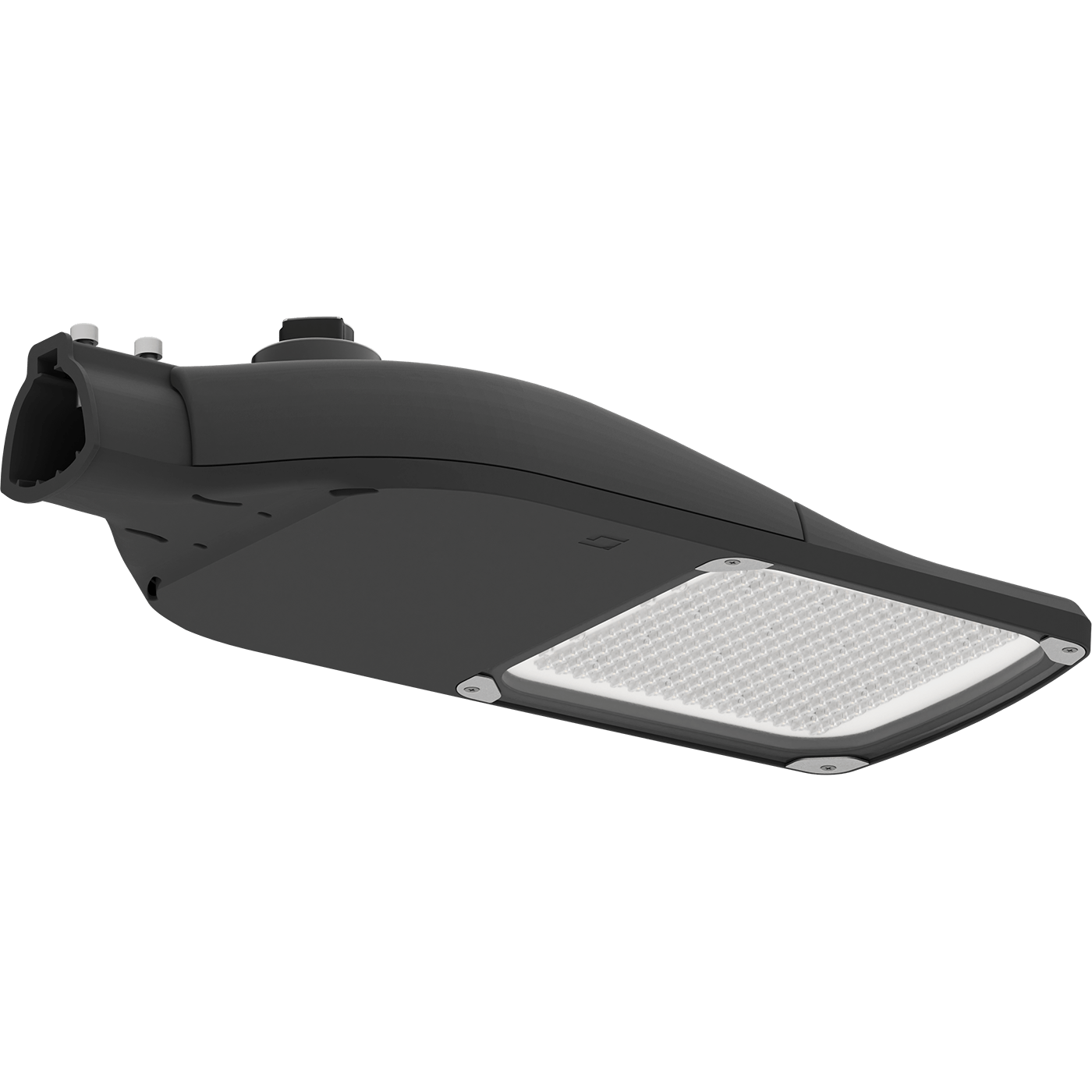

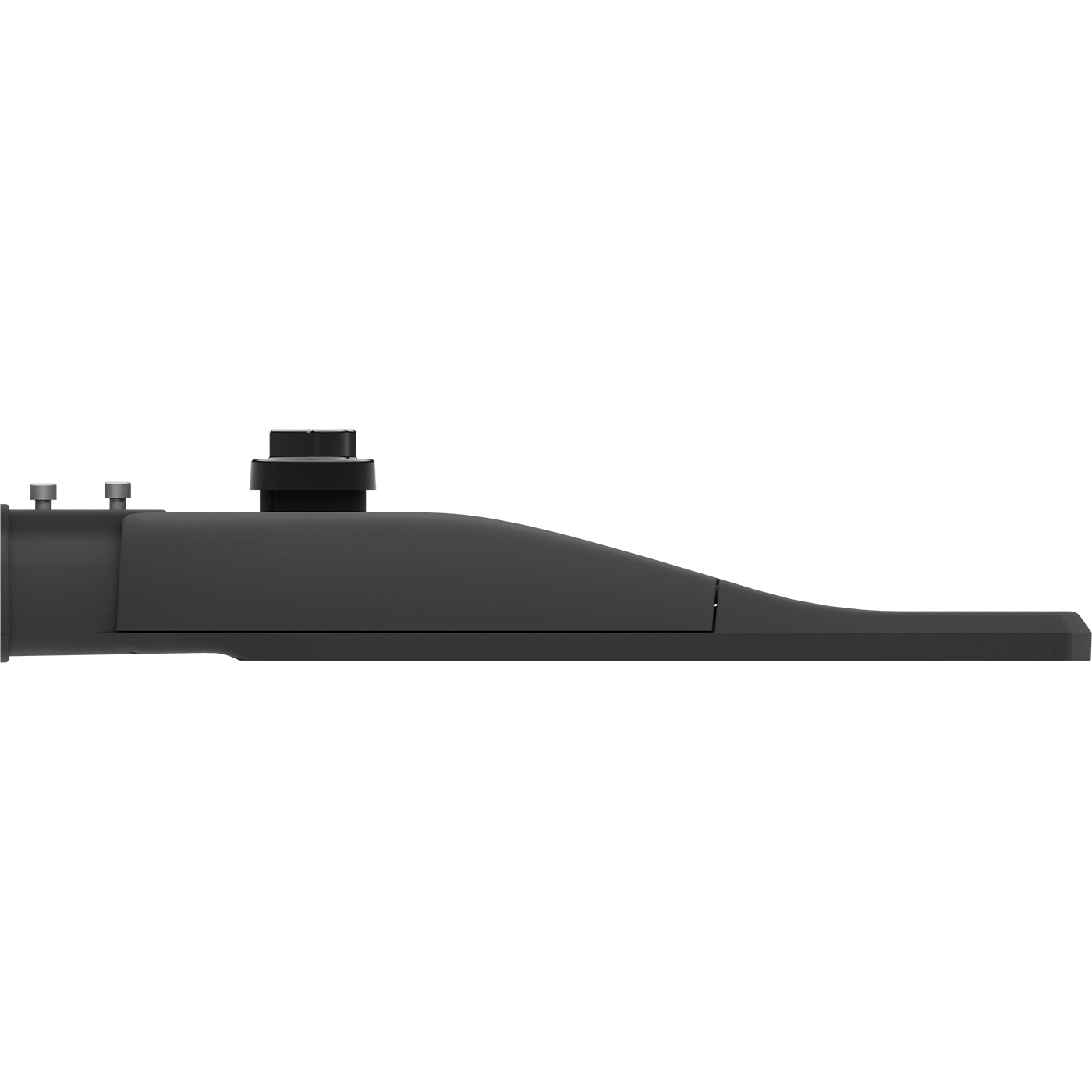

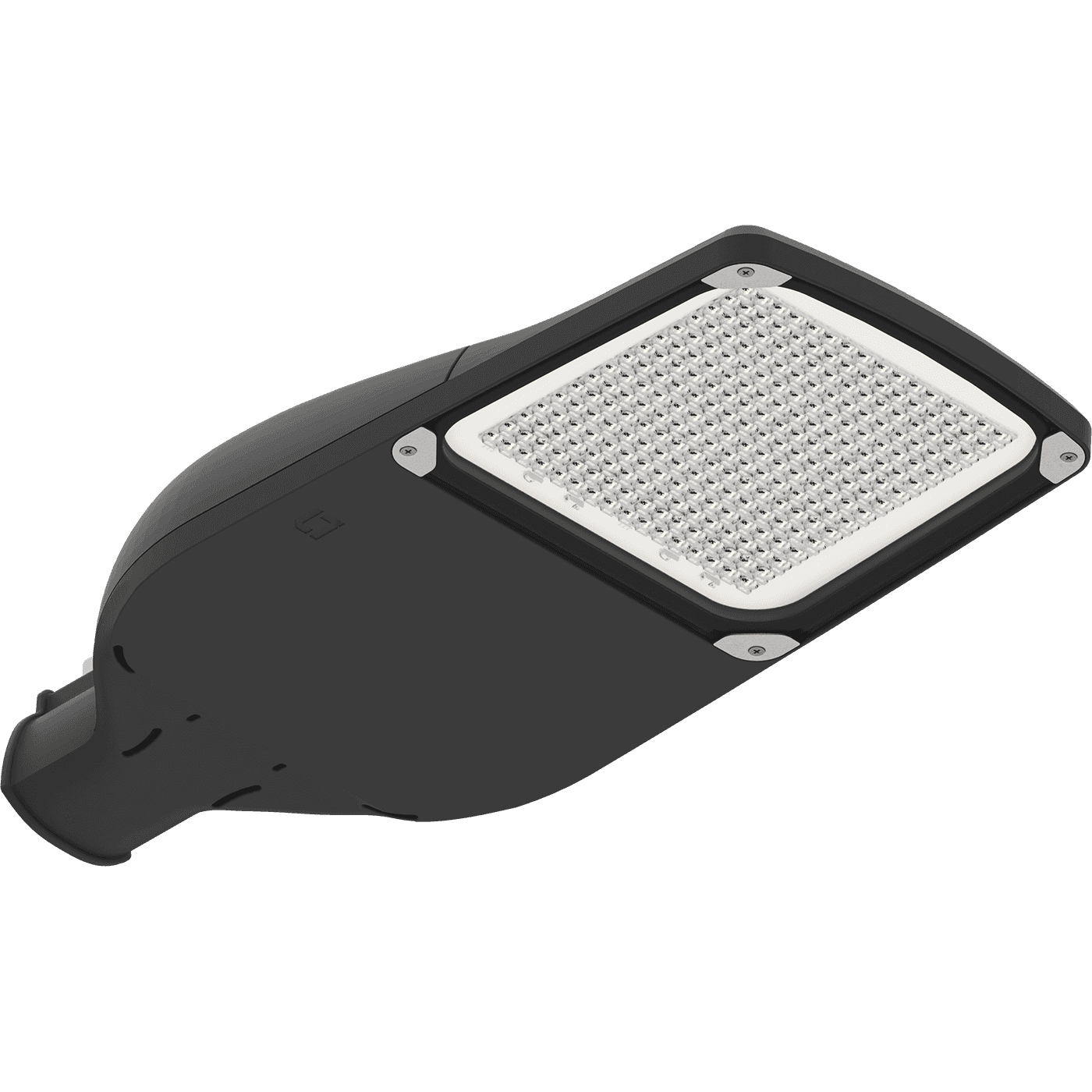

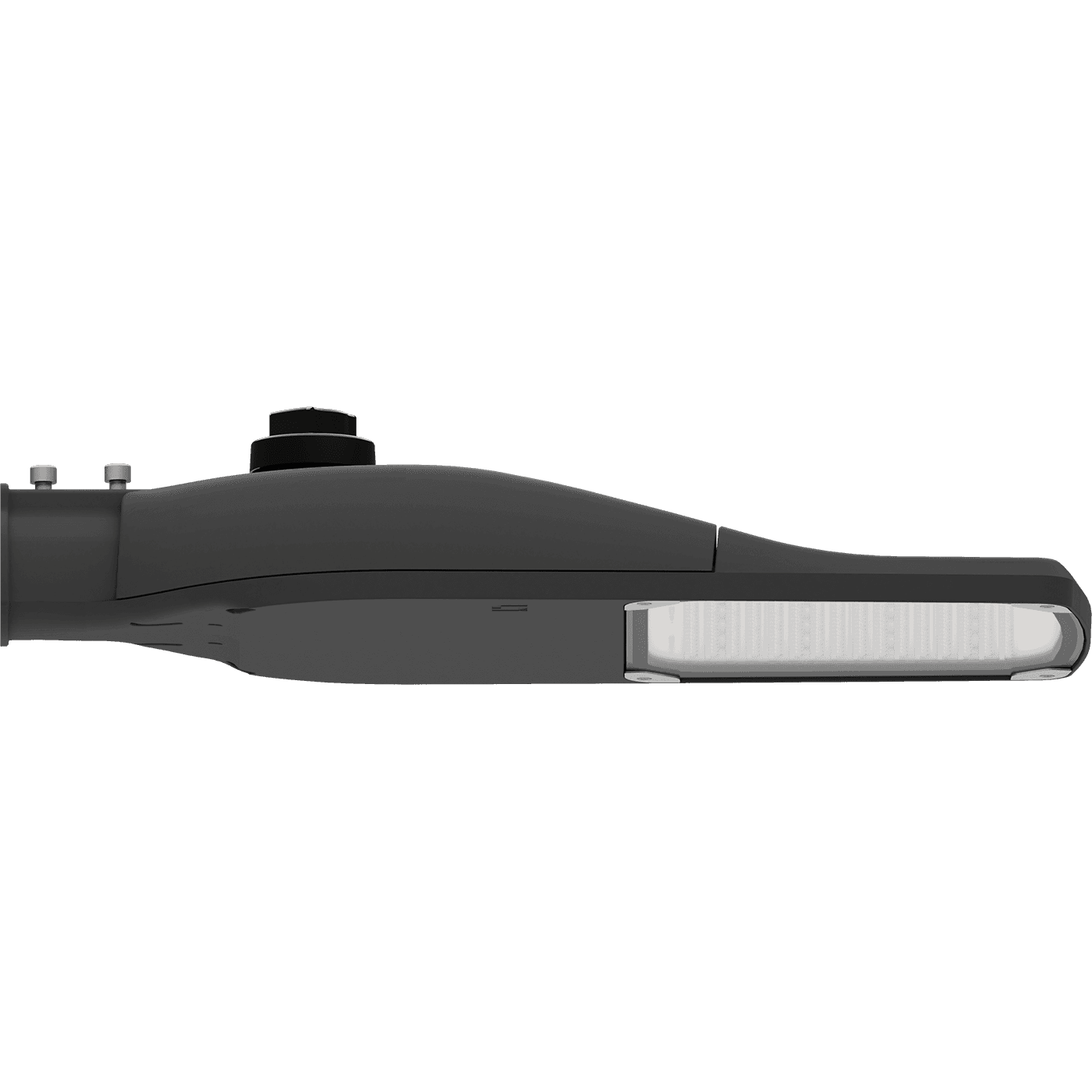

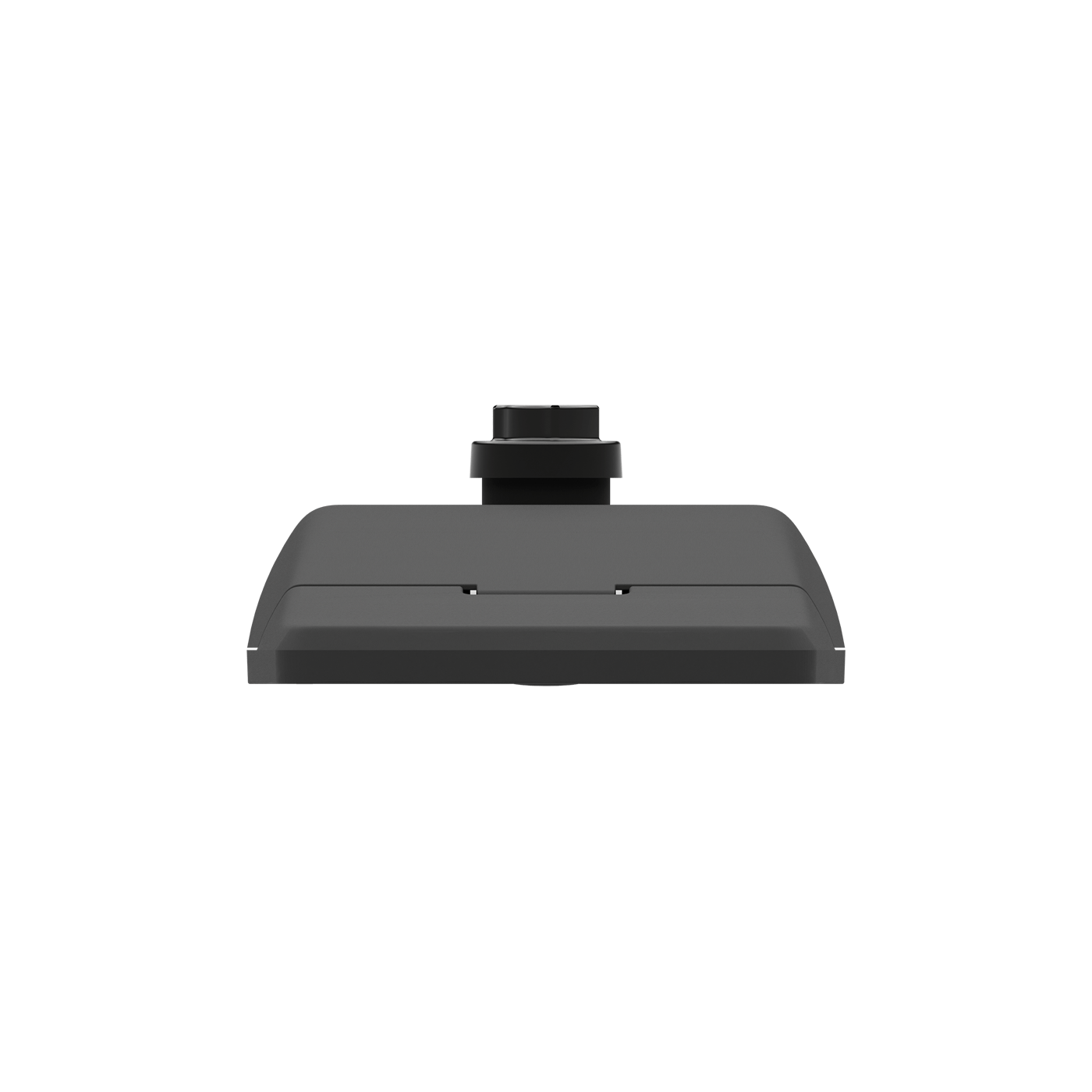

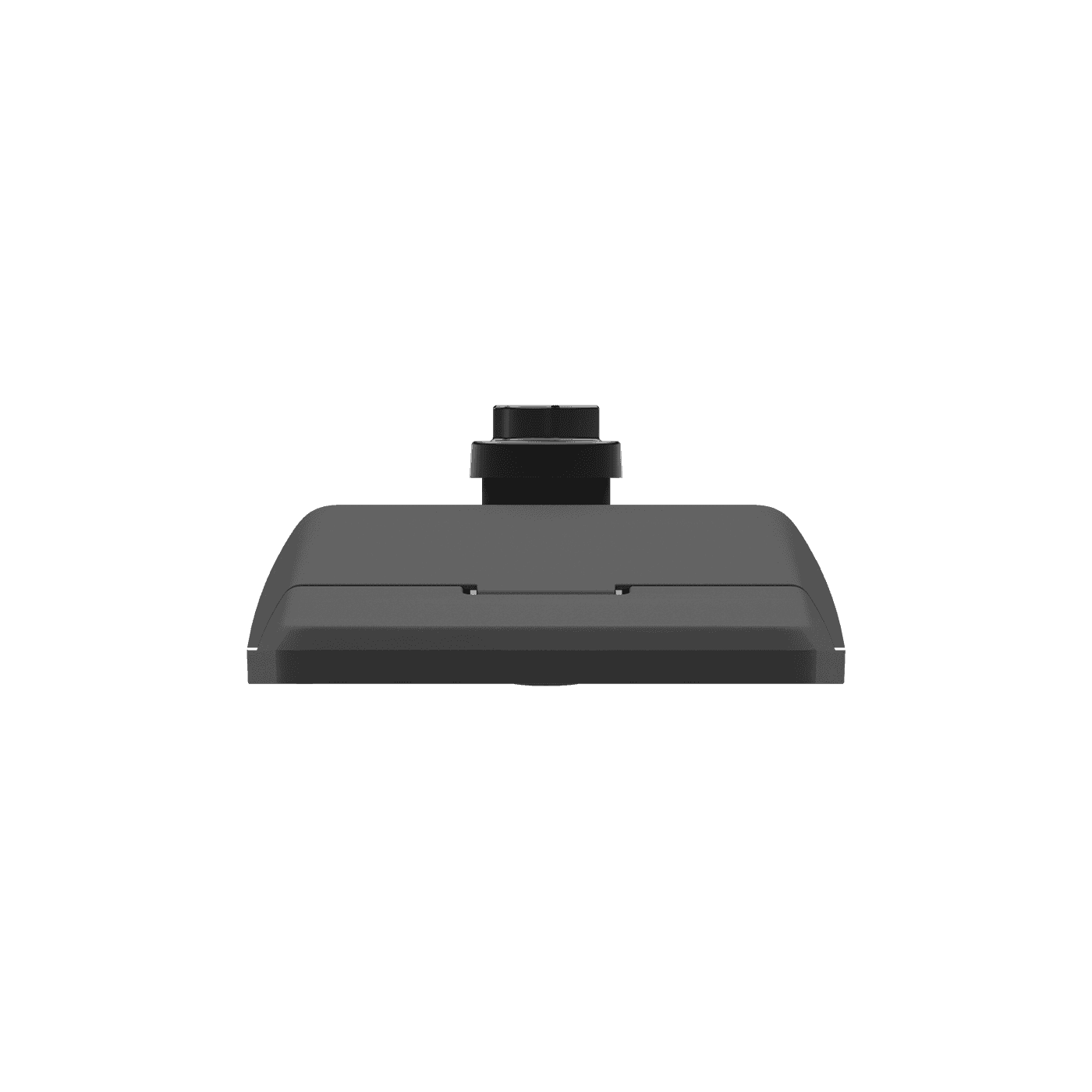

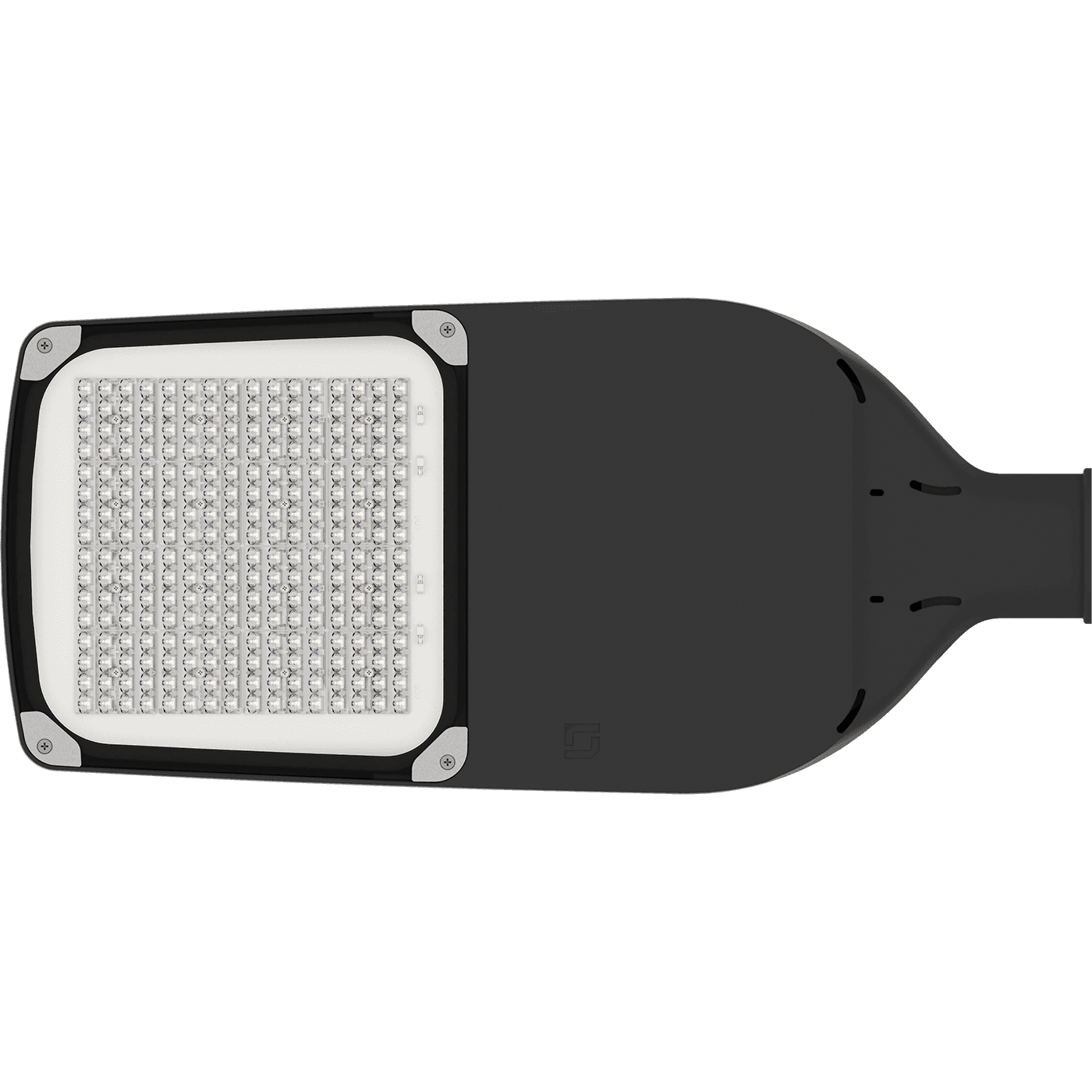

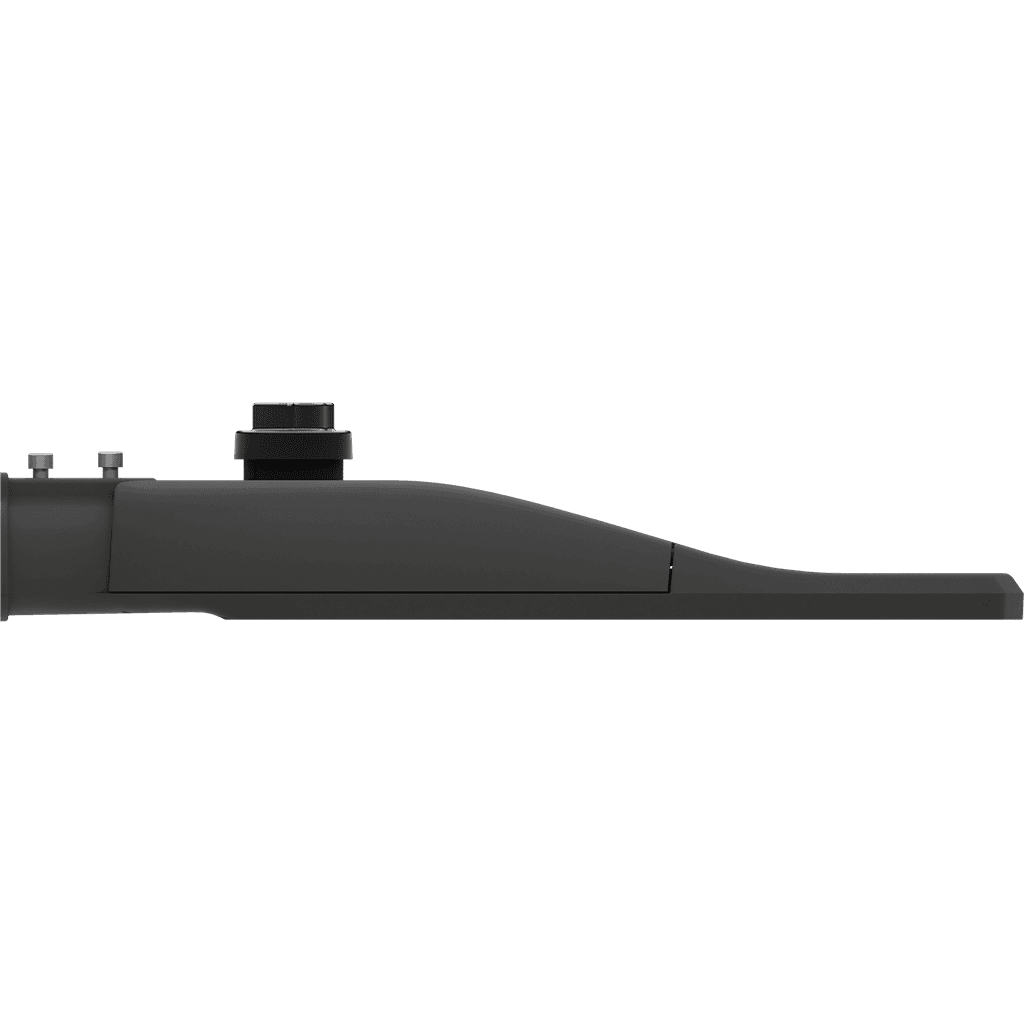

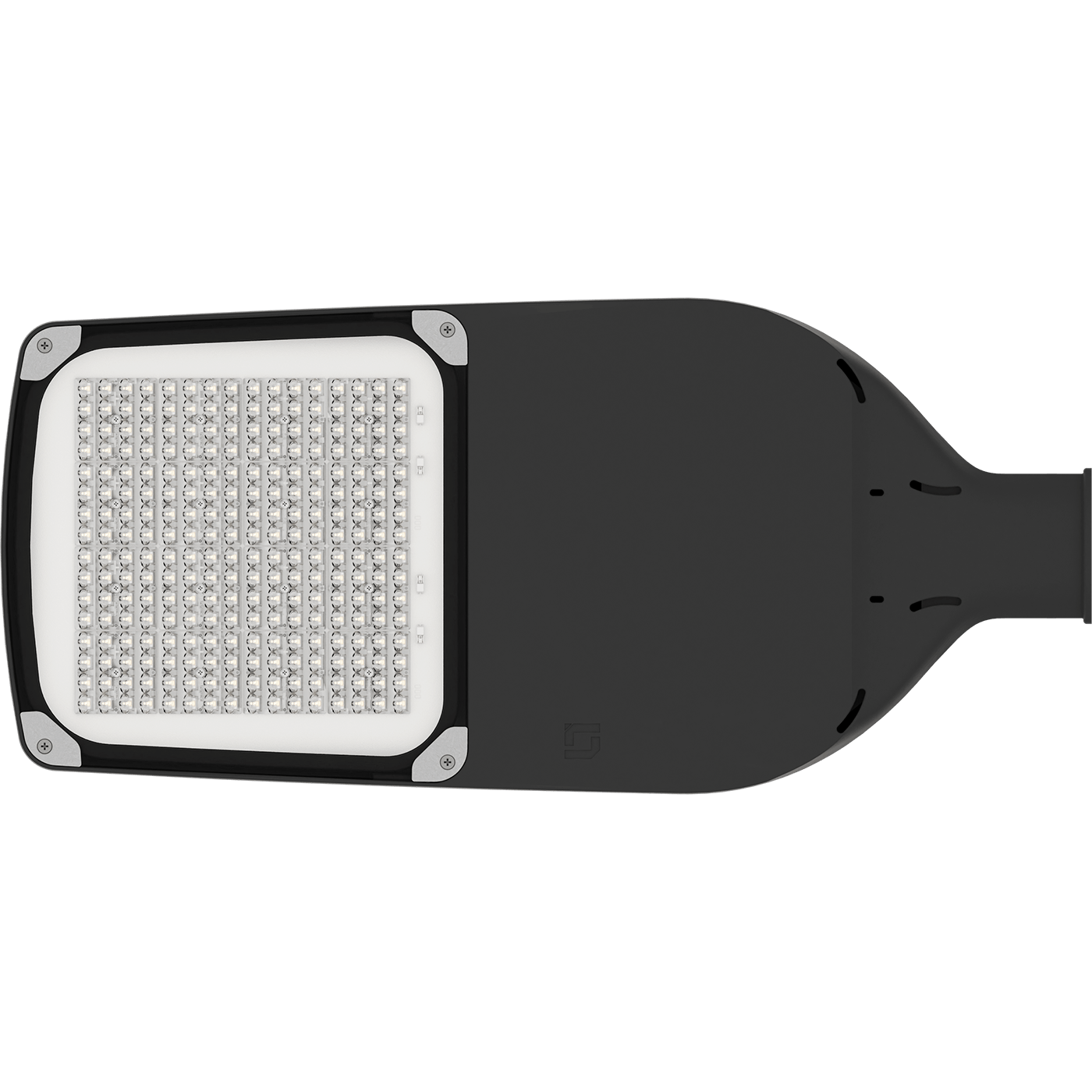

CARAVELLA G2 40W DW1 827 RAL9005 QUL
CARAVELLA G2 40W DW1 827 RAL9005 QUL
40 Wluminaire power
4600 lmlight flow
115 lm/Wenergy efficiency
code1354001420
beam angleD145/65
color temperature2700
weight8.965 kg
options
свернуть все
electricalconstructionalcommonilluminatingLMS options
starting current
50 Astarting current pulse time, µs
350 mksrated supply voltage, alternating current
230 Vrated supply voltage, direct current
230 Vsupply voltage, alternating current
90-305 Vsupply voltage, direct current
142-431 Vluminaire power
40 Welectric shock protection
Ipower factor
> 0,95supply voltage
230 Velectrical
starting current
50 A
starting current pulse time, µs
350 mks
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
supply voltage, alternating current
90-305 V
supply voltage, direct current
142-431 V
luminaire power
40 W
electric shock protection
I
power factor
> 0,95
supply voltage
230 V
constructional
ingress protection (IP)
IP66
fire safety class
П-ІІІ
material
Алюминий
weight
8.965 kg
length, mm
660 mm
width, mm
300 mm
height, mm
95 mm
housing color
Черный
climatic performance
УХЛ1*
maximum cross-section of the connected cable, sq. mm
2.5
shock resistance (IK)
IK09/10 Дж
installation diameter, mm
60 mm
lamp socket
LED
number of lamps
1
ballast
Драйвер 0-10В
common
code
1354001420
ETIM class
Светильник для освещения улиц и площадей
warranty
60 month
temperature range
от -40 до +40 C
energy efficiency class
A+
service life, hour
50 000 h
illuminating
energy efficiency
115 lm/W
color rendition index (CRI)
>80
light flow
4600 lm
flickering factor
<1%
beam angle
D145/65
color temperature
2700
light source type
LED
emission color
Белый
LMS options
dimming
PLC
model files
model files
photometric files
documents
сертификаты
photometric files
ies263.2 kB
ldt70.1 kB
documents
passport1.4 mB
сертификаты
Russian origin277 kB
Certificate of conformity TRTS 020/2011, TRTS 004/20112 mB
Declaration of Conformity EAEU TR 037/2016616.5 kB
