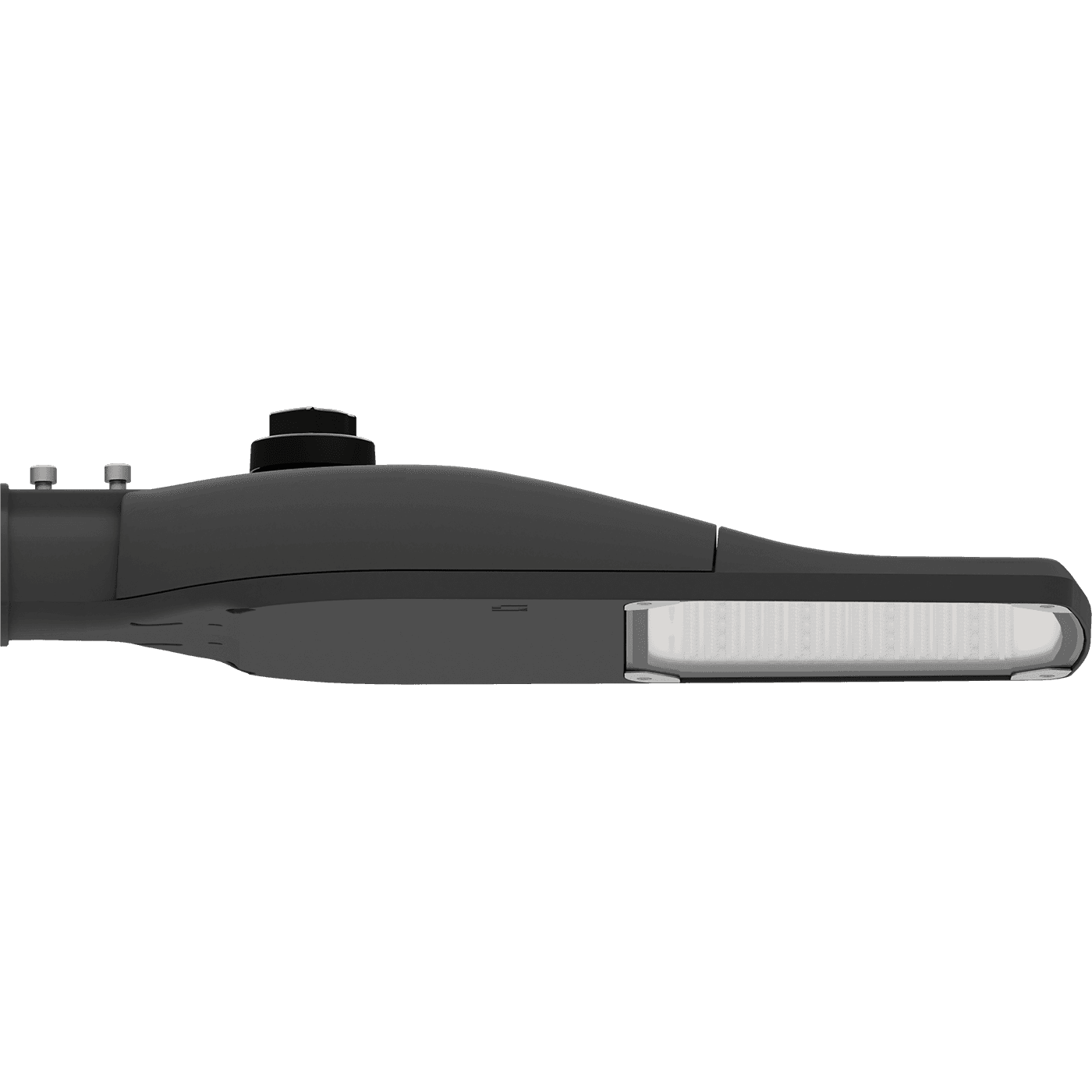

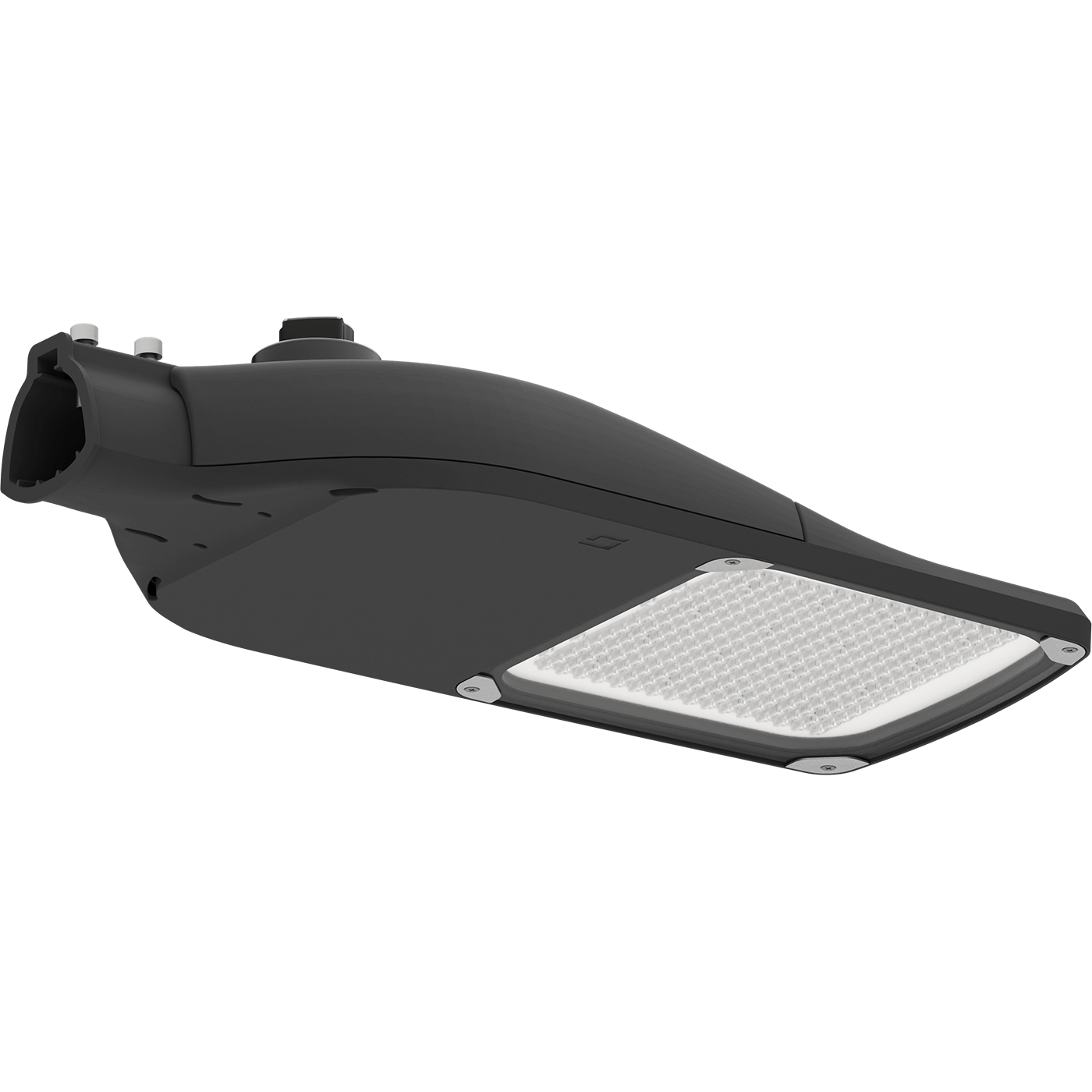

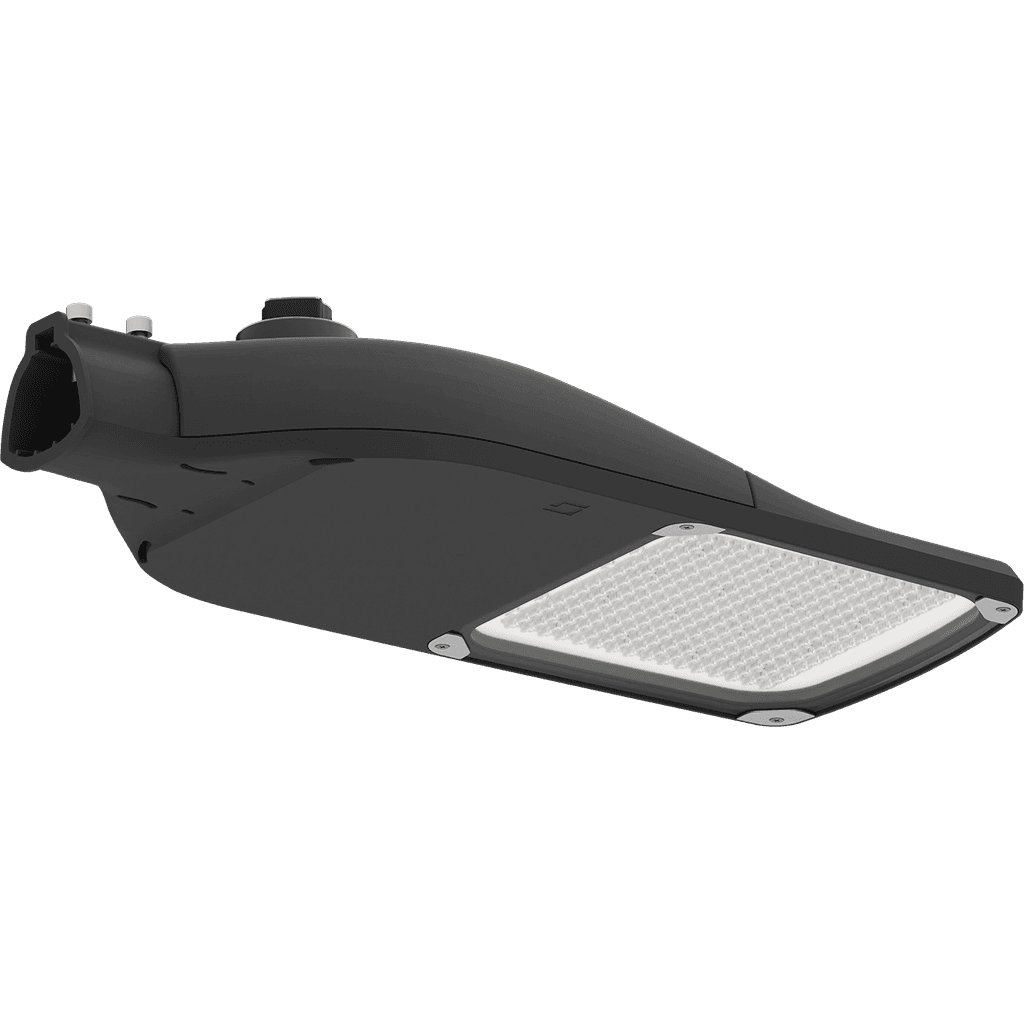

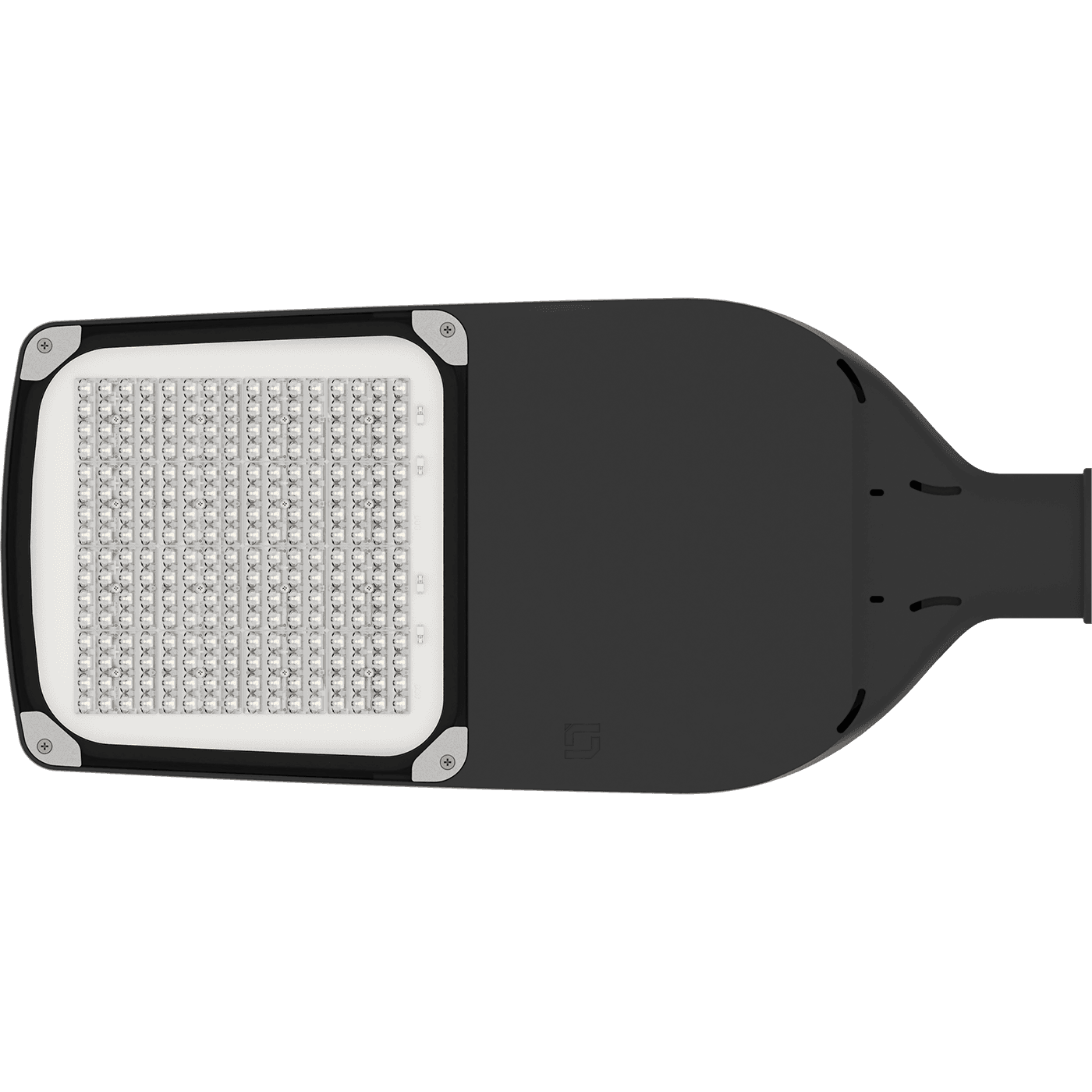

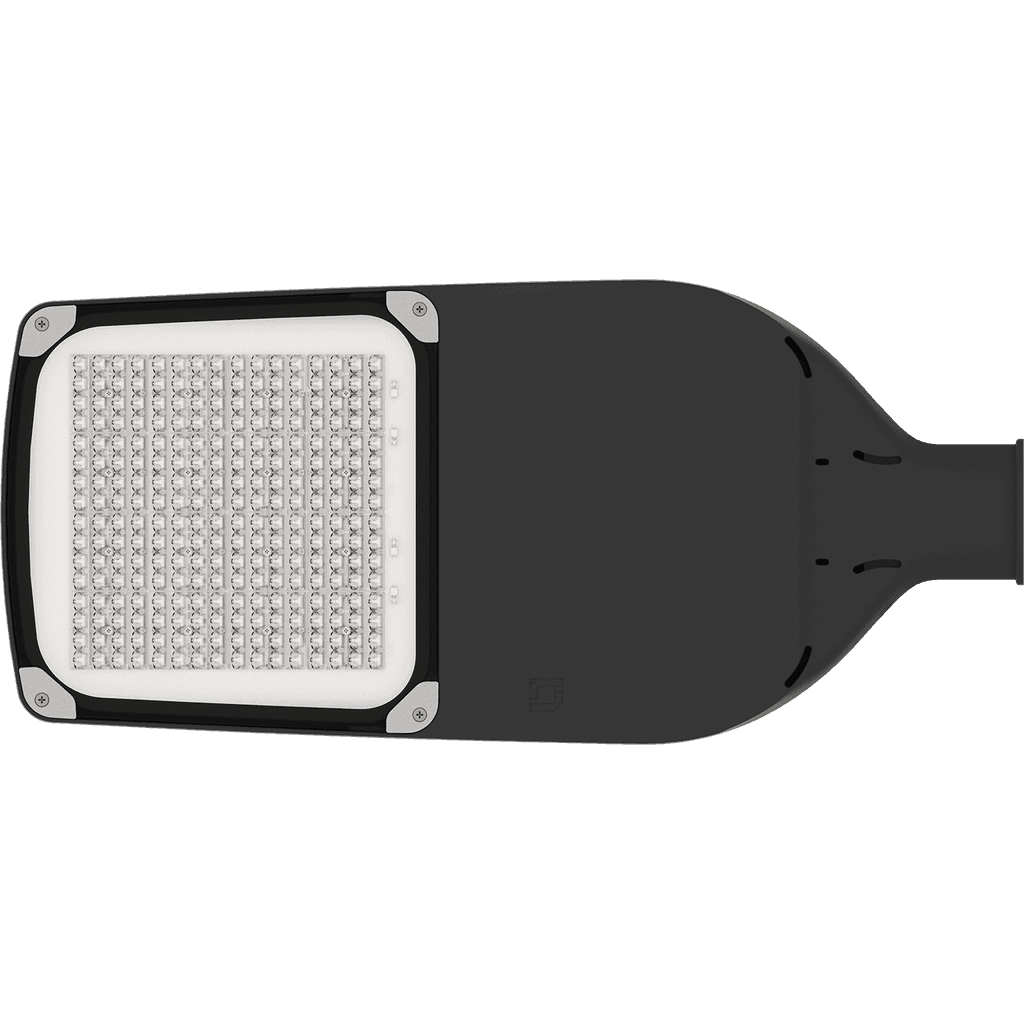

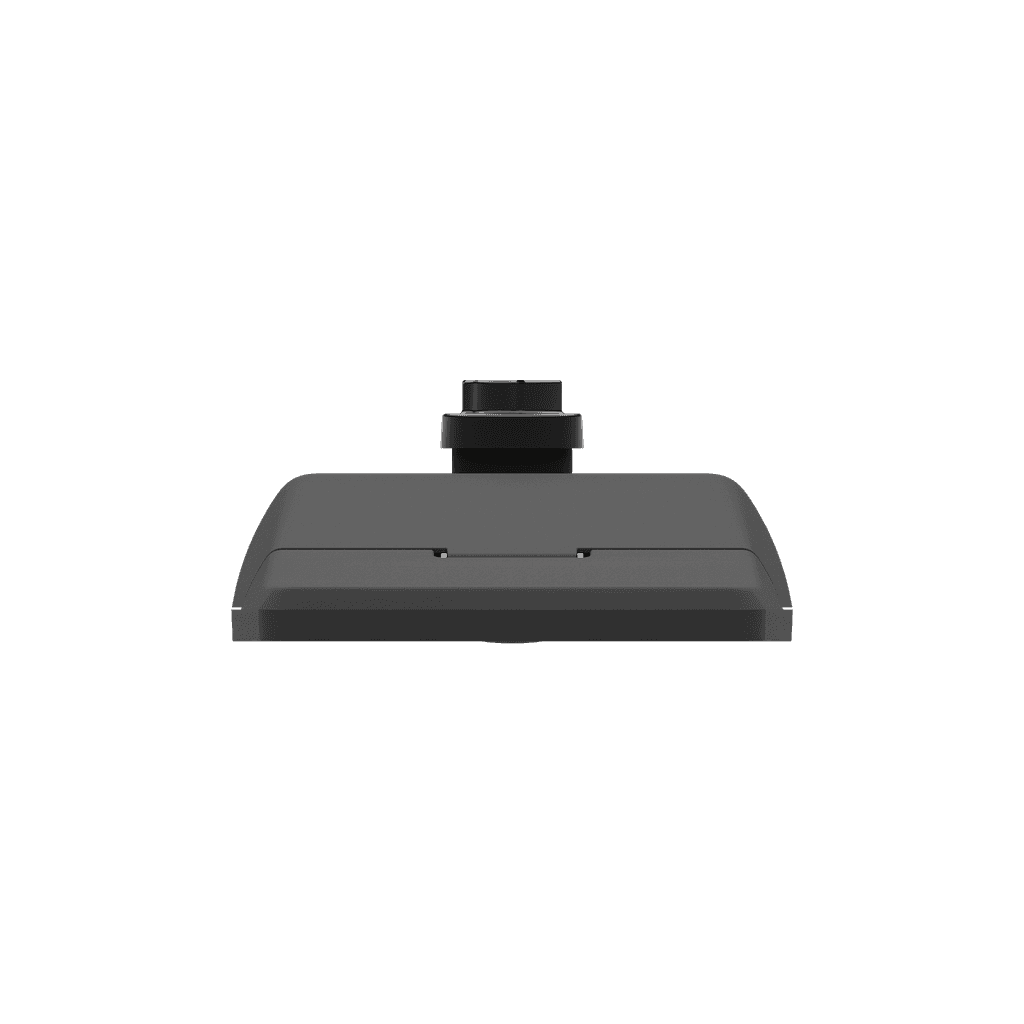

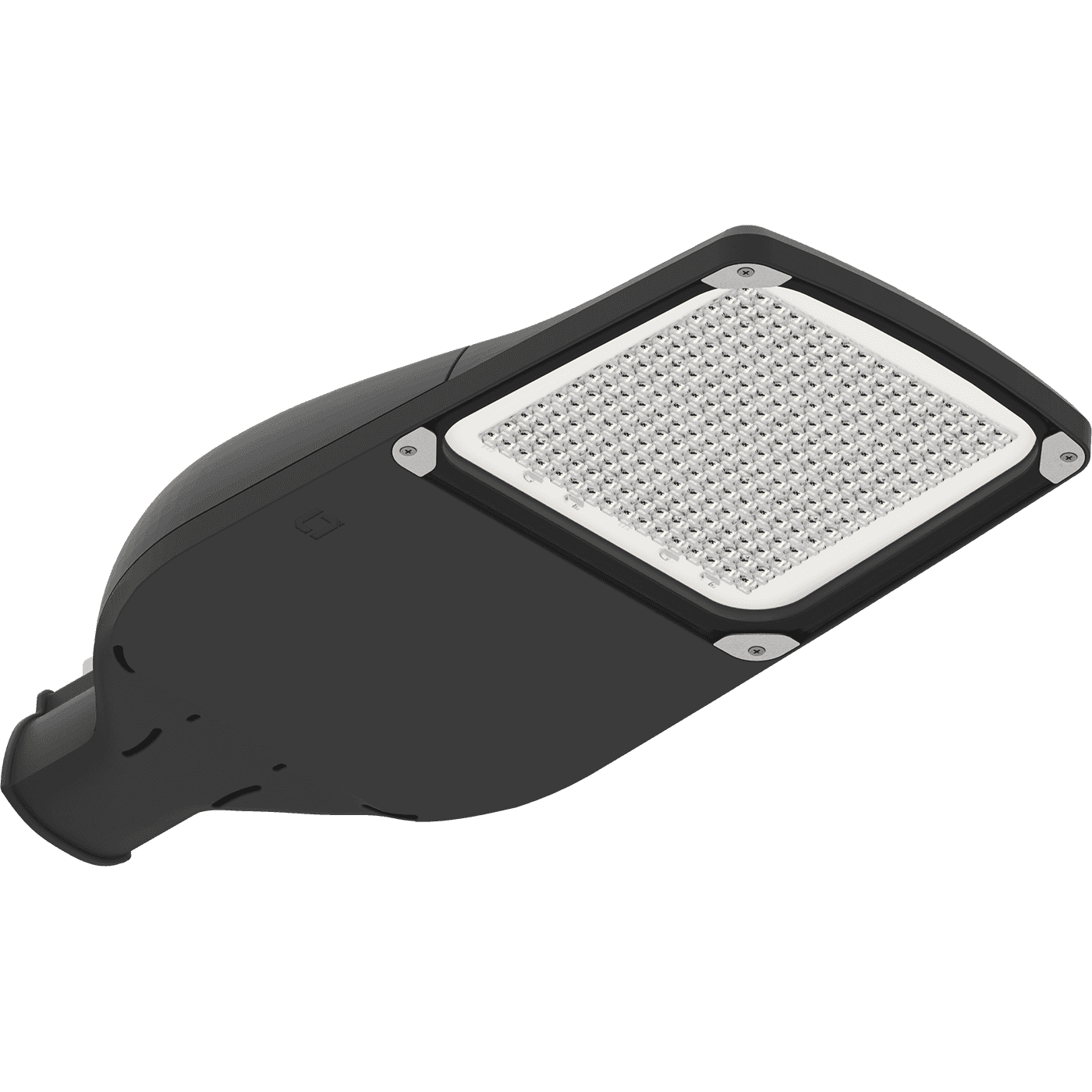

CARAVELLA G2 100W DW1 827 RAL9005 QUL
CARAVELLA G2 100W DW1 827 RAL9005 QUL
100 Wluminaire power
13400 lmlight flow
134 lm/Wenergy efficiency
code1354001470
beam angleD150/80
color temperature2700
weight8.965 kg
options
свернуть все
illuminatingelectricalconstructionalLMS optionscommon
energy efficiency
134 lm/Wcolor rendition index (CRI)
>80light flow
13400 lmflickering factor
<1%beam angle
D150/80color temperature
2700light source type
LEDemission color
Белыйilluminating
energy efficiency
134 lm/W
color rendition index (CRI)
>80
light flow
13400 lm
flickering factor
<1%

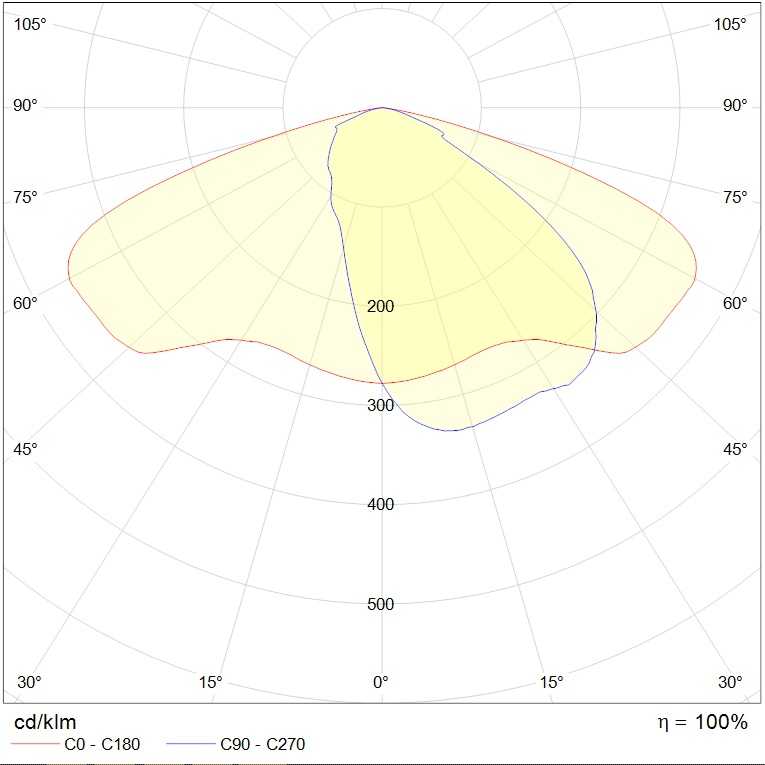

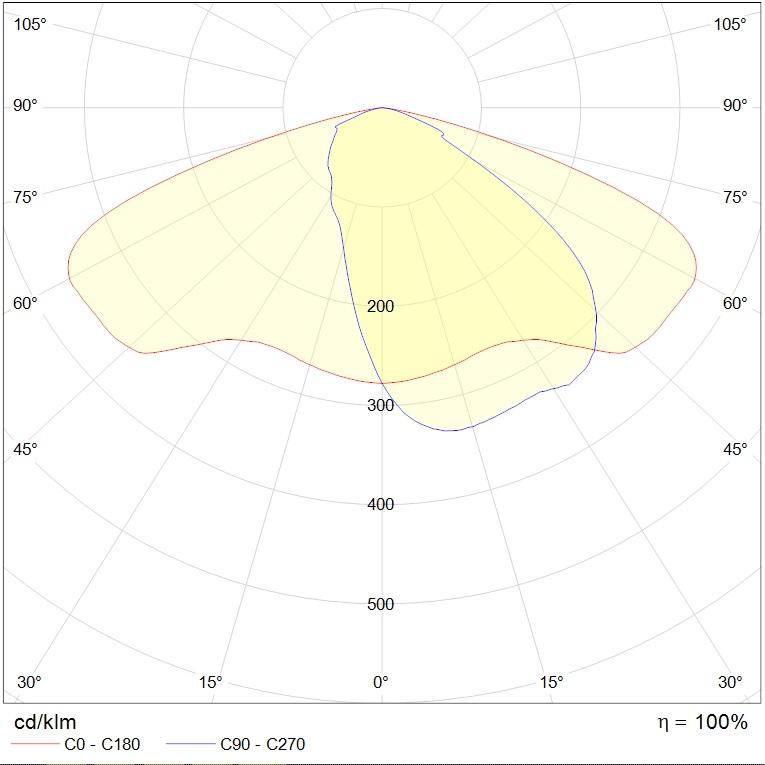

beam angle
D150/80
color temperature
2700
light source type
LED
emission color
Белый
electrical
luminaire power
100 W
electric shock protection
I
supply voltage
230 V
maximum cross-section of the connected cable, sq. mm
2.5
power factor
> 0,95
constructional
climatic performance
УХЛ1*
fire safety class
П-ІІІ

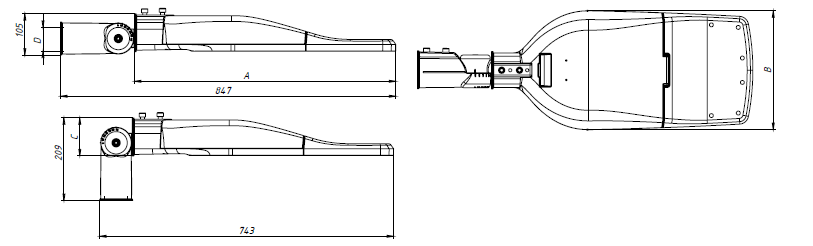

width, mm
300 mm
height, mm
133 mm
installation diameter
60 mm
housing color
Черный
lamp socket
LED
number of lamps
1
ballast
Драйвер 0-10В
length, mm
660 mm
material
Алюминий
ingress protection (IP)
IP66
shock resistance (IK)
IK08/5 Дж
weight
8.965 kg
LMS options
dimming
PLC
common
code
1354001470
warranty
60 month
energy efficiency class
A+
temperature range
от -40 до +40 C
service life, hour
50 000 h
ETIM class
Светильник для освещения улиц и площадей
model files
model files
photometric files
сертификаты
photometric files
ies134.1 kB
jpg84.6 kB
ldt81.7 kB
сертификаты
Russian origin277 kB
Certificate of conformity TRTS 020/2011, TRTS 004/20112 mB
Declaration of Conformity EAEU TR 037/2016616.5 kB
