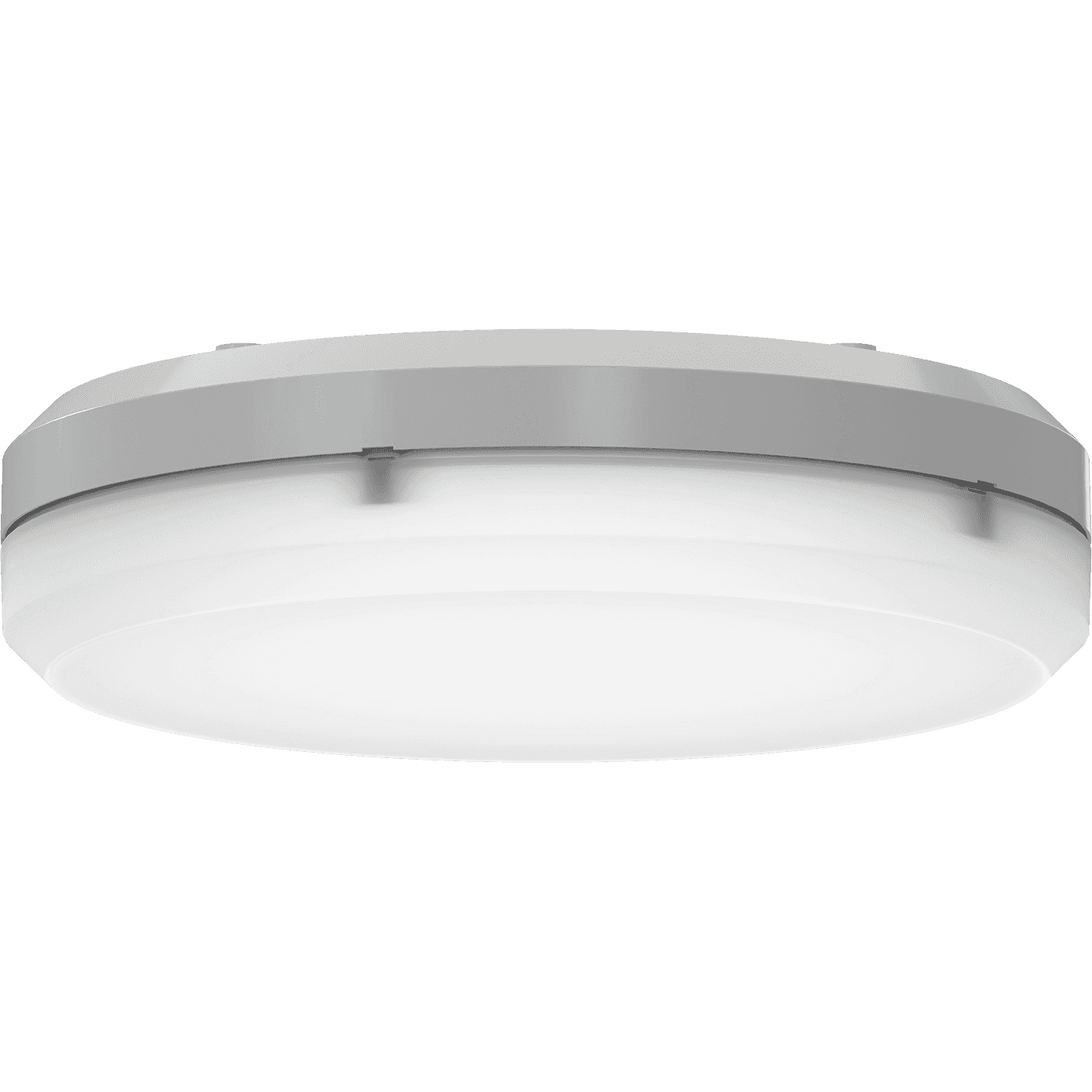

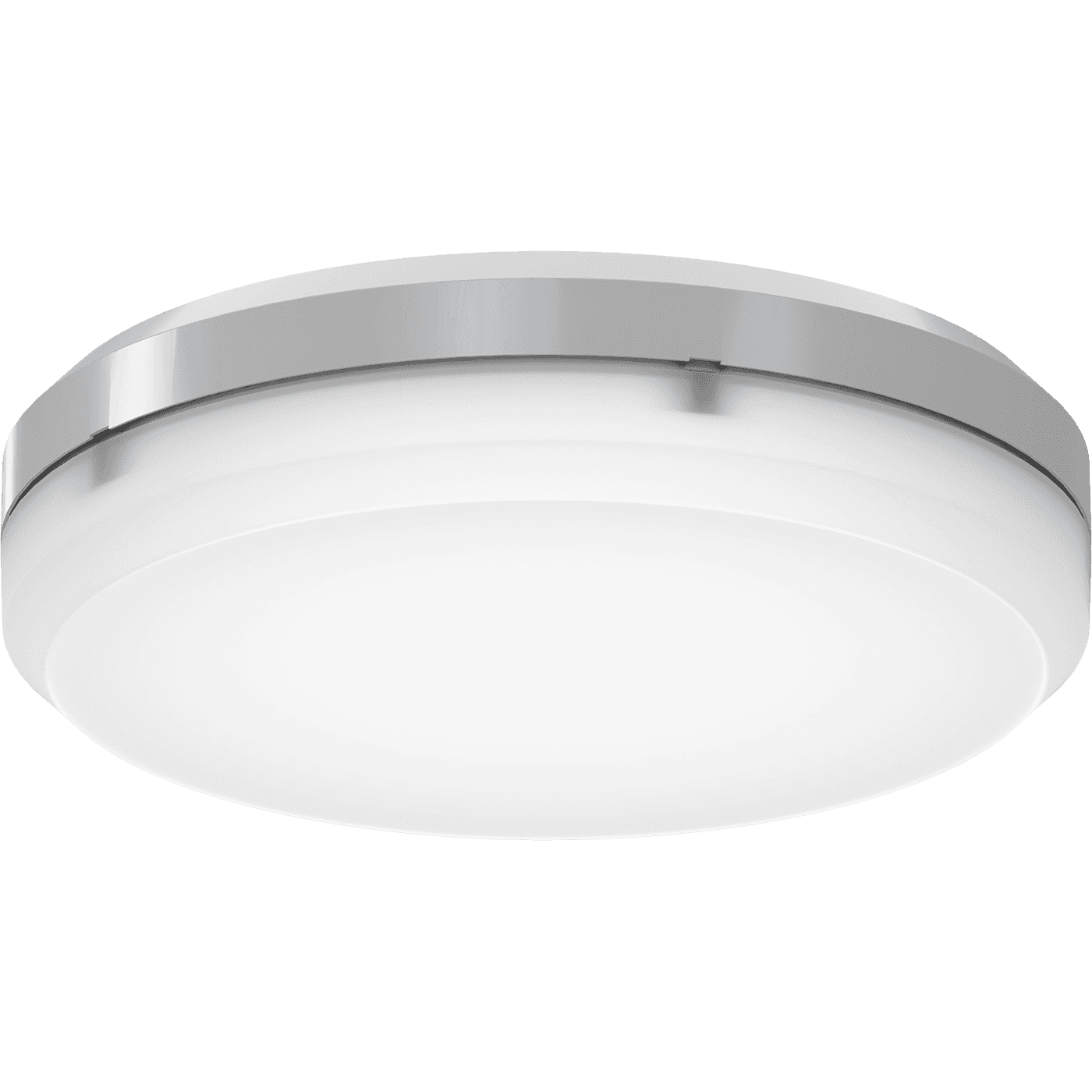

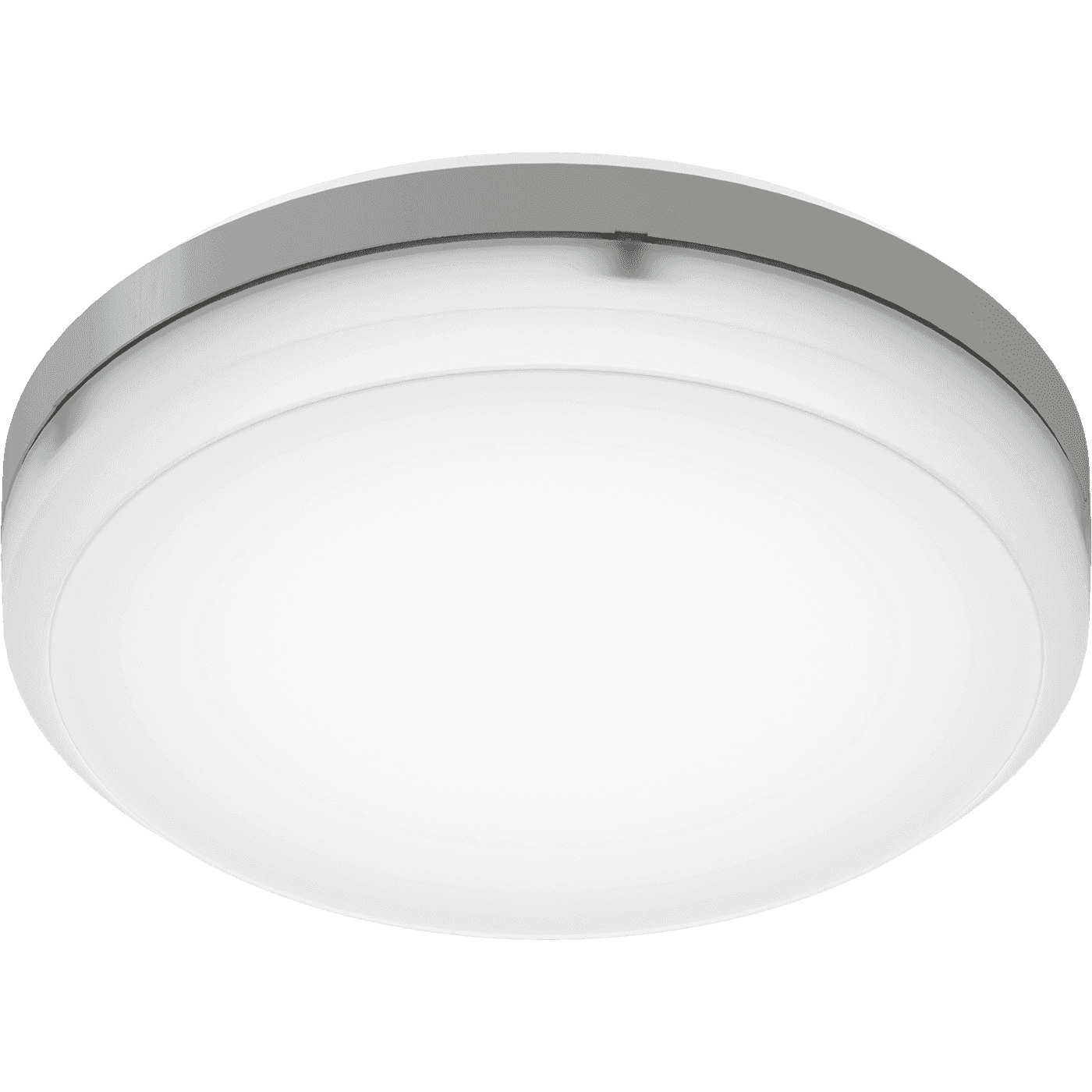

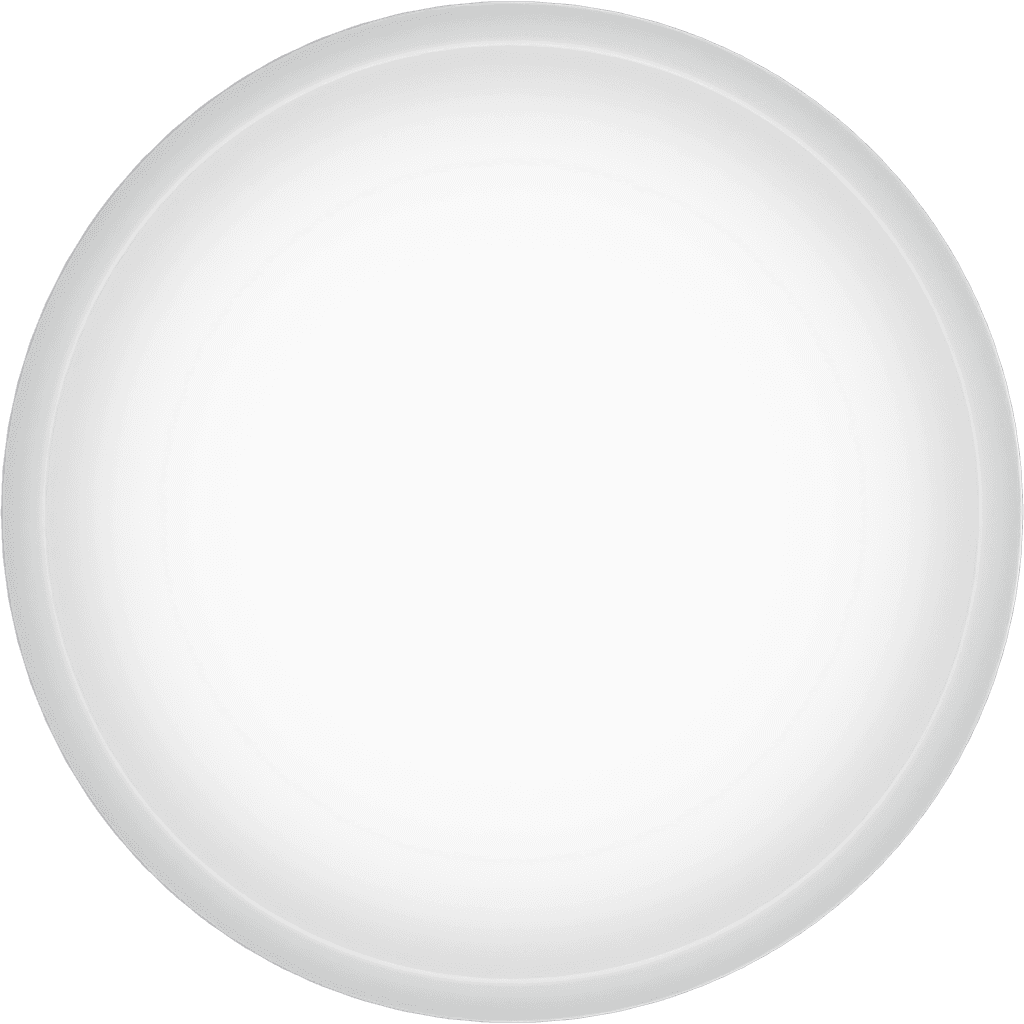

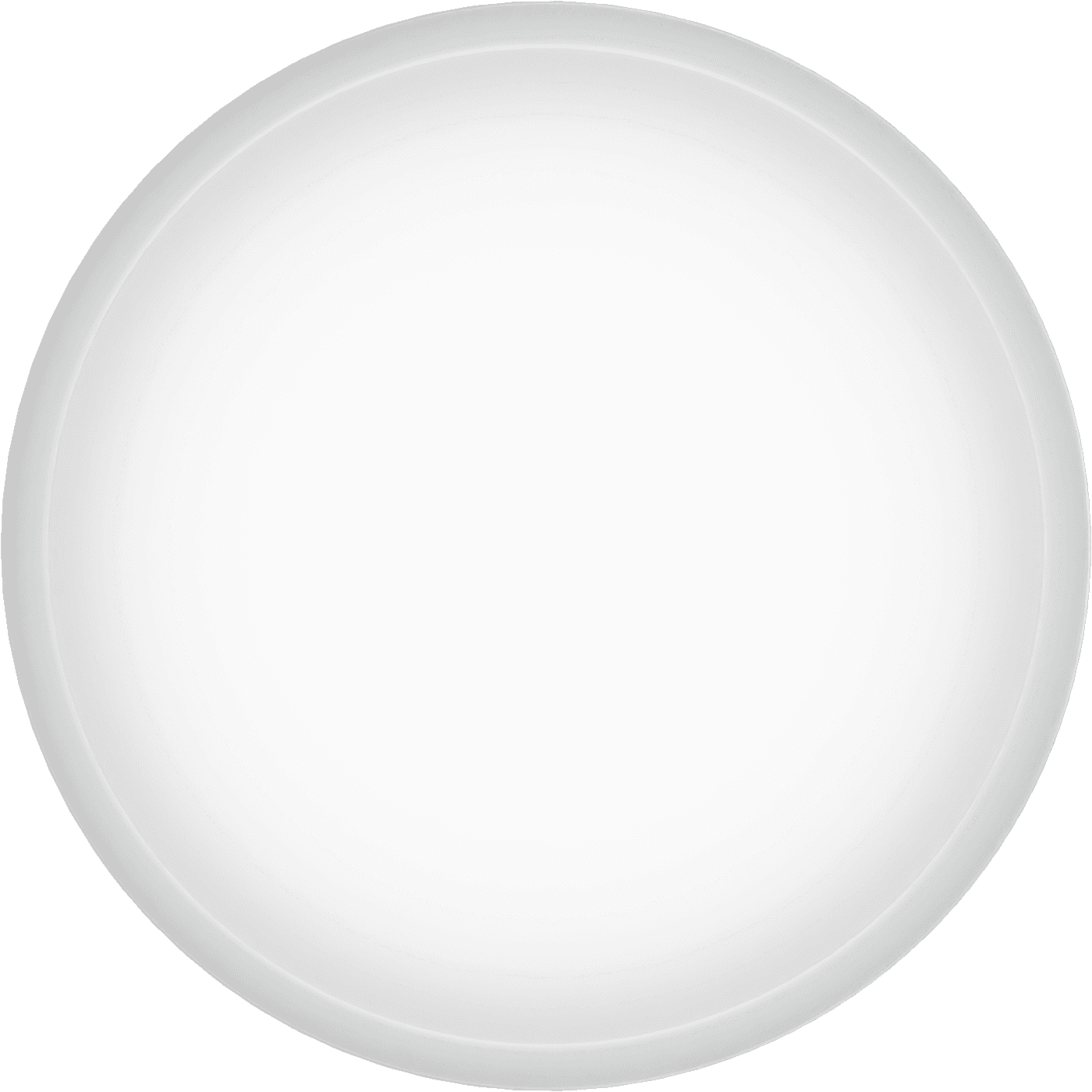

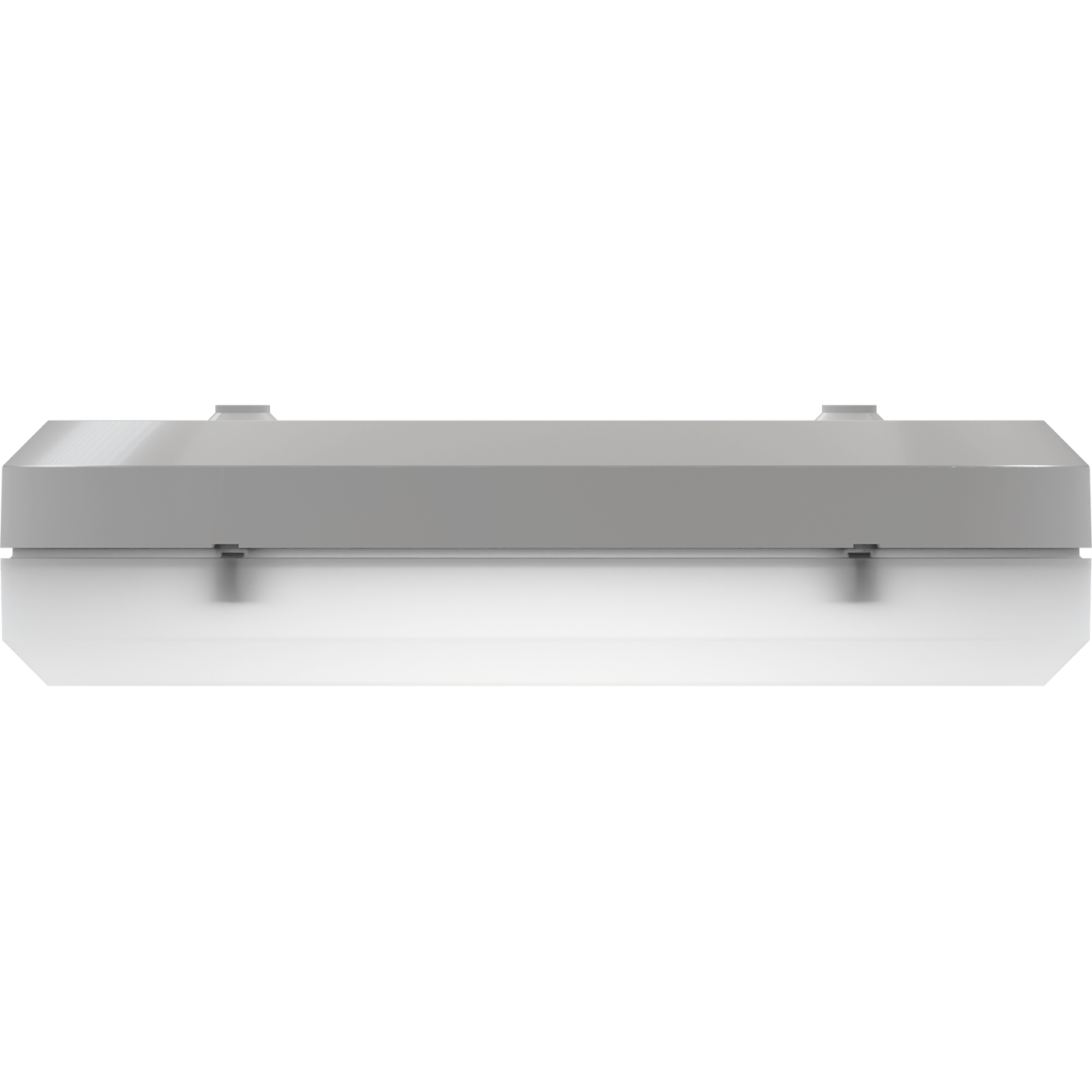

C 360/118 HF ES1
C 360/118 HF ES1
18 Wluminaire power
1200 lmlight flow
29 lm/Wenergy efficiency
code1131000030
number of lamps1
performance factor43
options
свернуть все
electricalconstructionalcommonilluminatingemergency
rated supply voltage, alternating current
230 Vsupply voltage, alternating current
230-240 Vluminaire power
18 Welectric shock protection
Ipower factor
> 0,96supply voltage
230 Velectrical
rated supply voltage, alternating current
230 V
supply voltage, alternating current
230-240 V
luminaire power
18 W
electric shock protection
I
power factor
> 0,96
supply voltage
230 V
constructional
maximum cross-section of the connected cable, sq. mm
2.5
ingress protection (IP)
IP54
climatic performance
УХЛ2*
material
Полиамид
weight
3 kg
diameter, mm
360 mm
height, mm
83 mm
housing color
Белый
installation diameter, mm
200 mm
shock resistance (IK)
IK02/0,2 Дж
lamp socket
2G11
number of lamps
1
ballast
ЭПРА
common
ETIM class
Настенно-потолочный светильник
warranty
36 month
temperature range
от +5 до +40 C
energy efficiency class
B…A+
service life, hour
24 000 h
code
1131000030

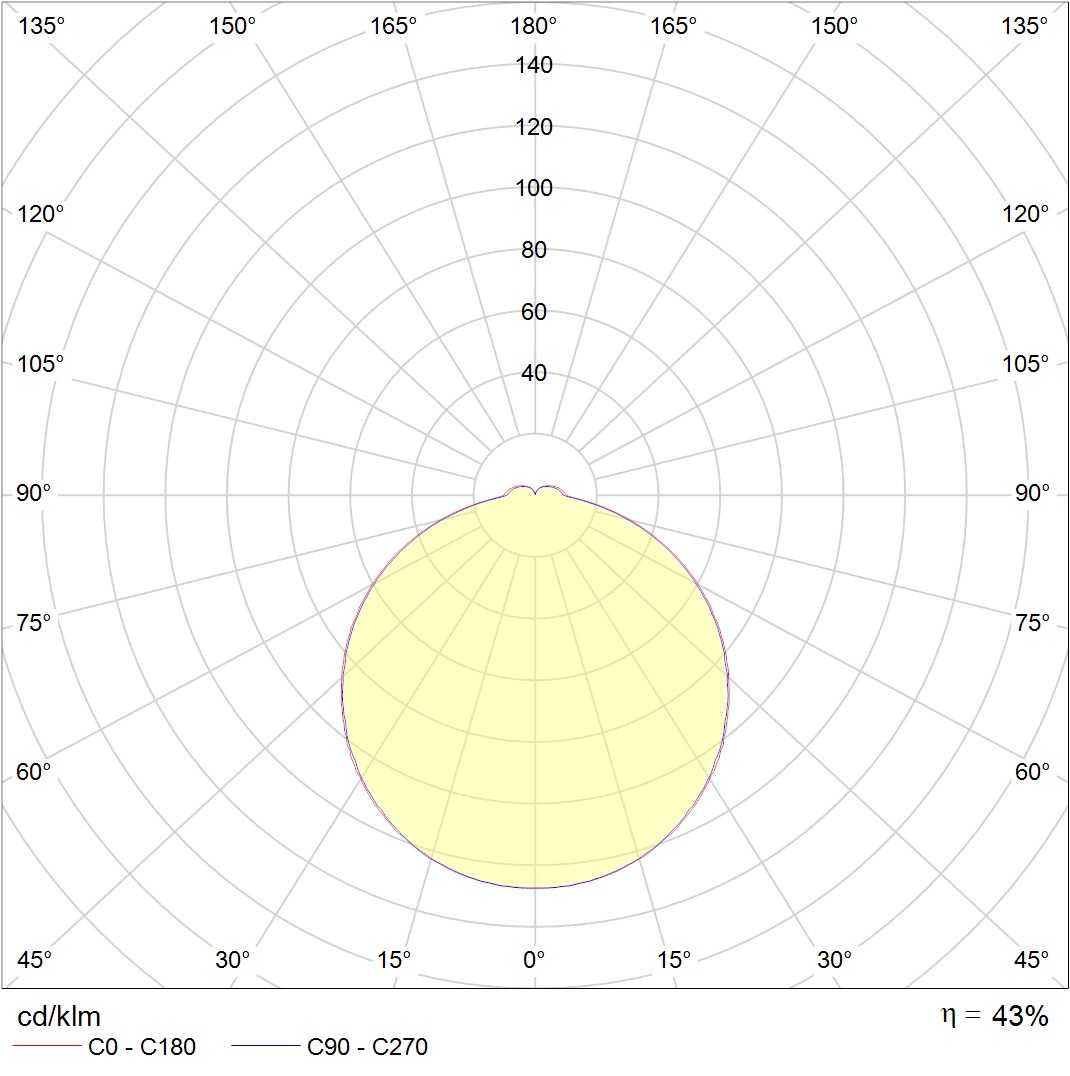

illuminating
light flow
1200 lm
flickering factor
<5%
energy efficiency
29 lm/W
light source type
КЛЛ
emission color
Белый
emergency
operating time in emergency mode, hours
3 h
luminous flux in emergency mode
11% lm
model files
model files
CAD/BIM files
photometric files
documents
сертификаты
CAD/BIM files
CAD model 3DS24.1 kB
model 3dMax788 kB

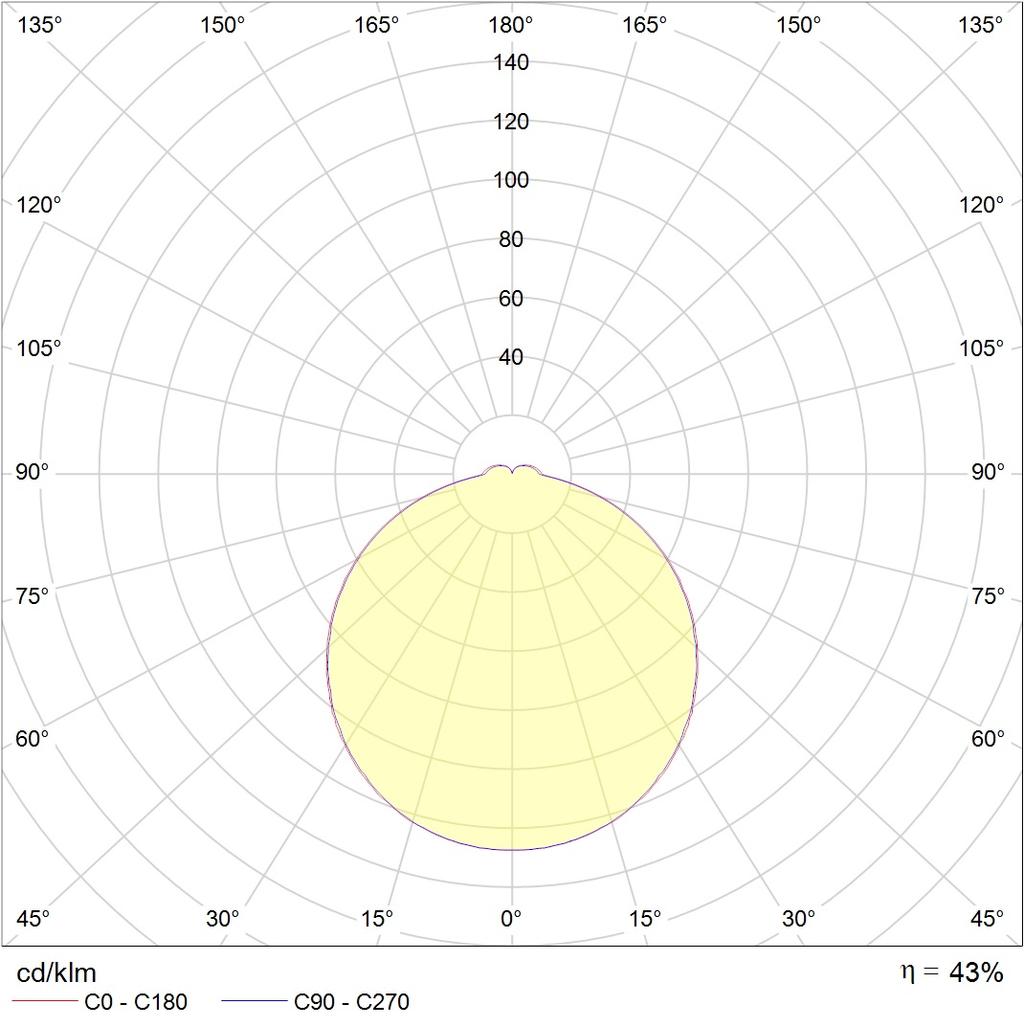

photometric files
ies134.1 kB
jpg173.2 kB
ldt86.8 kB
documents
passport1.3 mB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20113.2 mB
Declaration of Conformity EAEU TR 037/2016588 kB
Fire Safety Certificate2.5 mB
