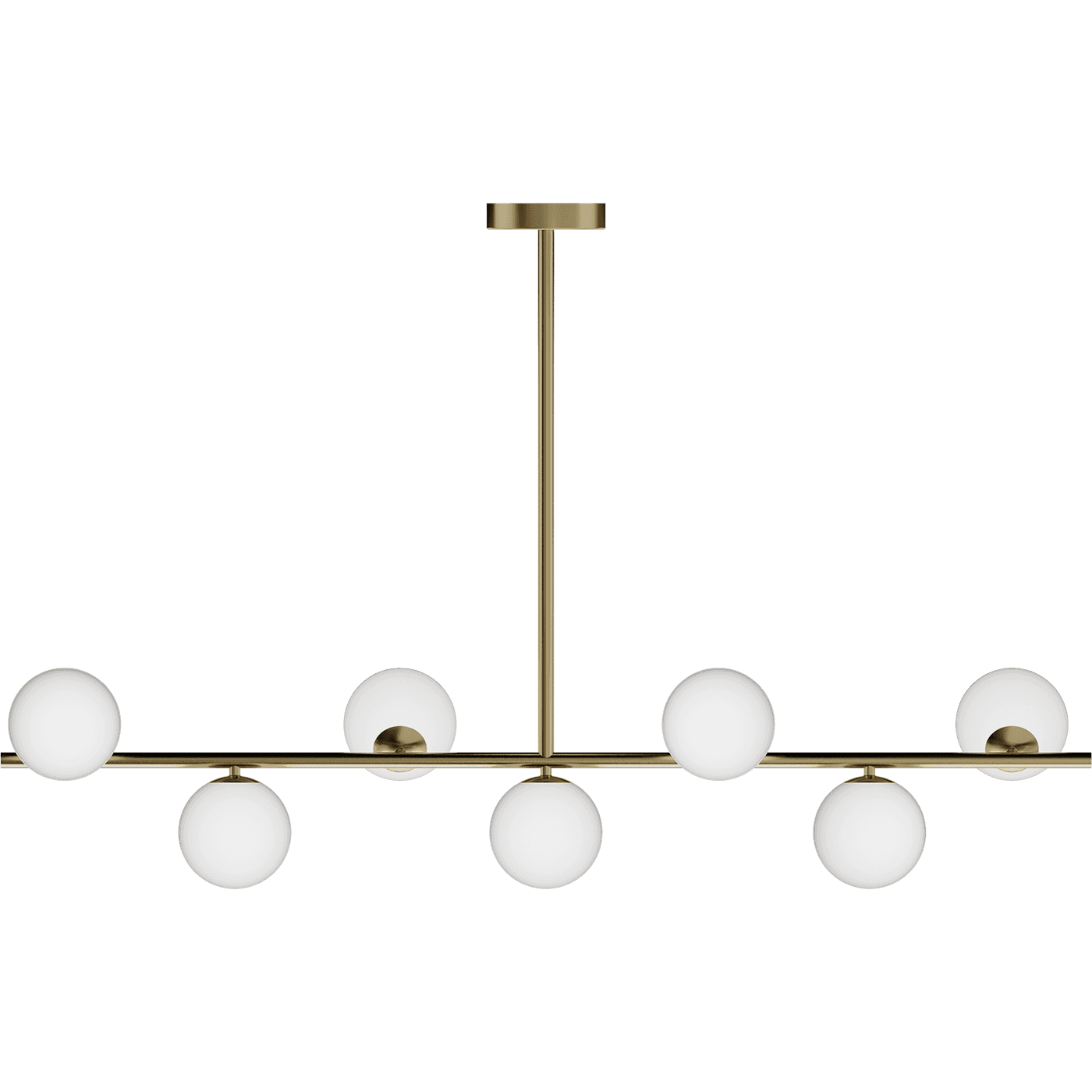

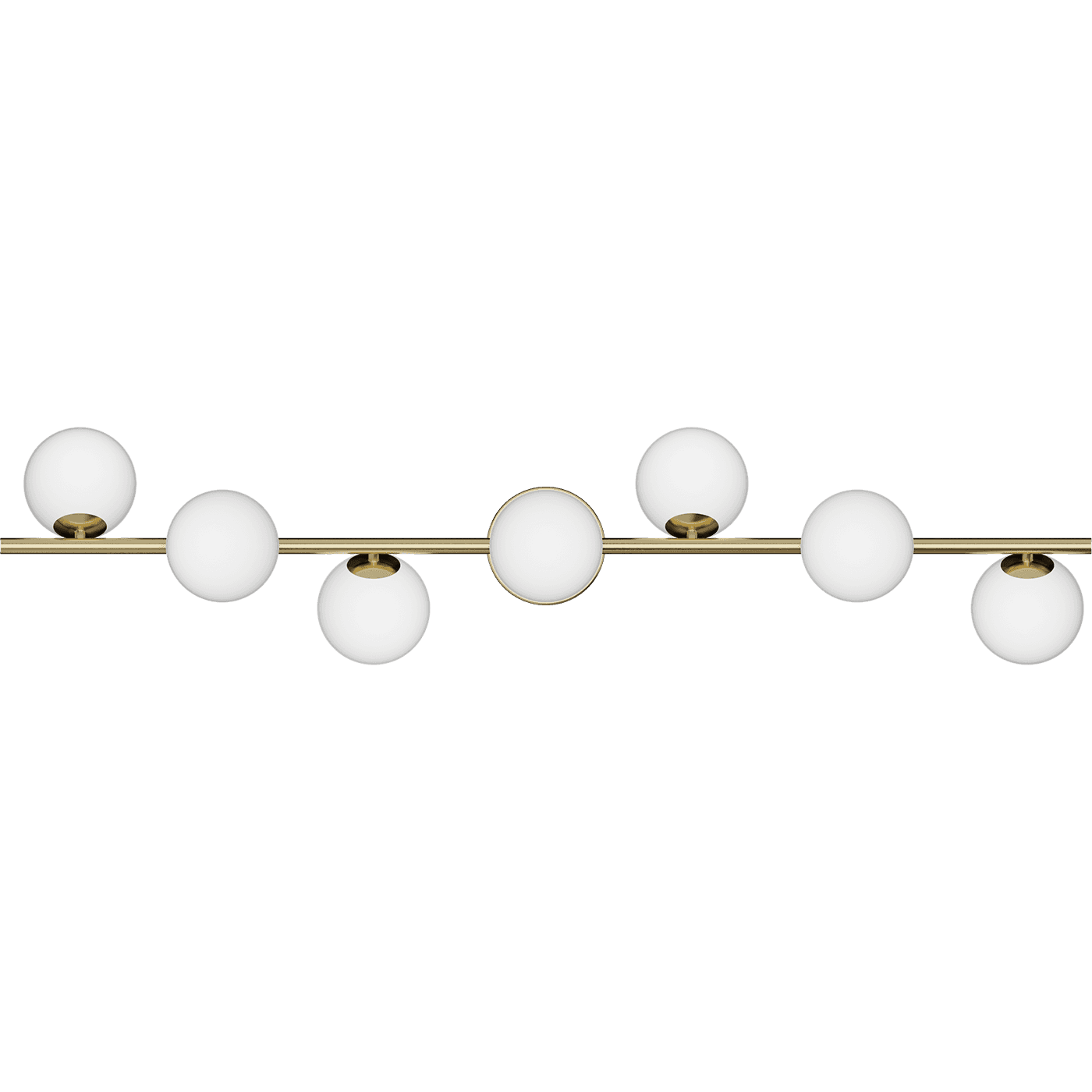

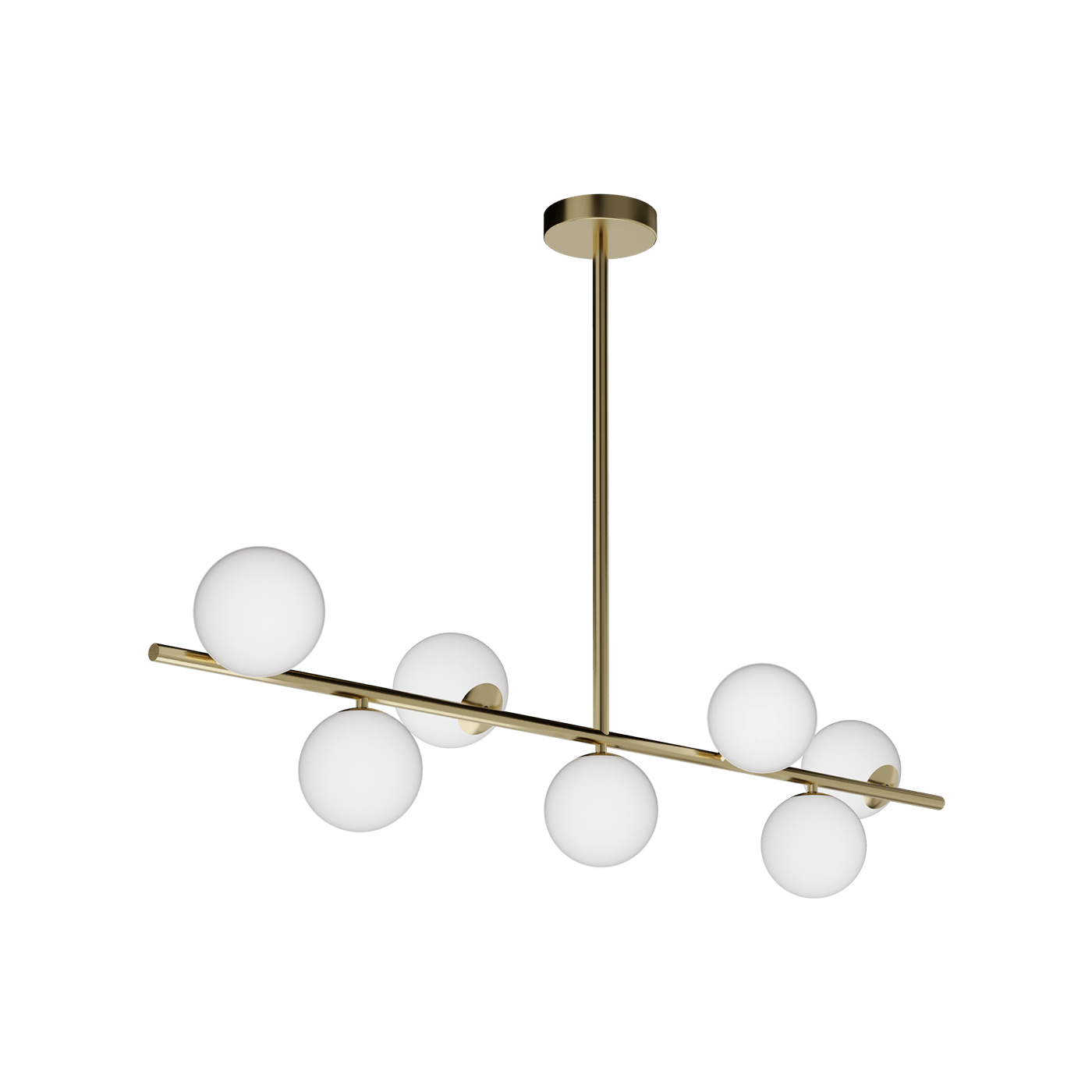

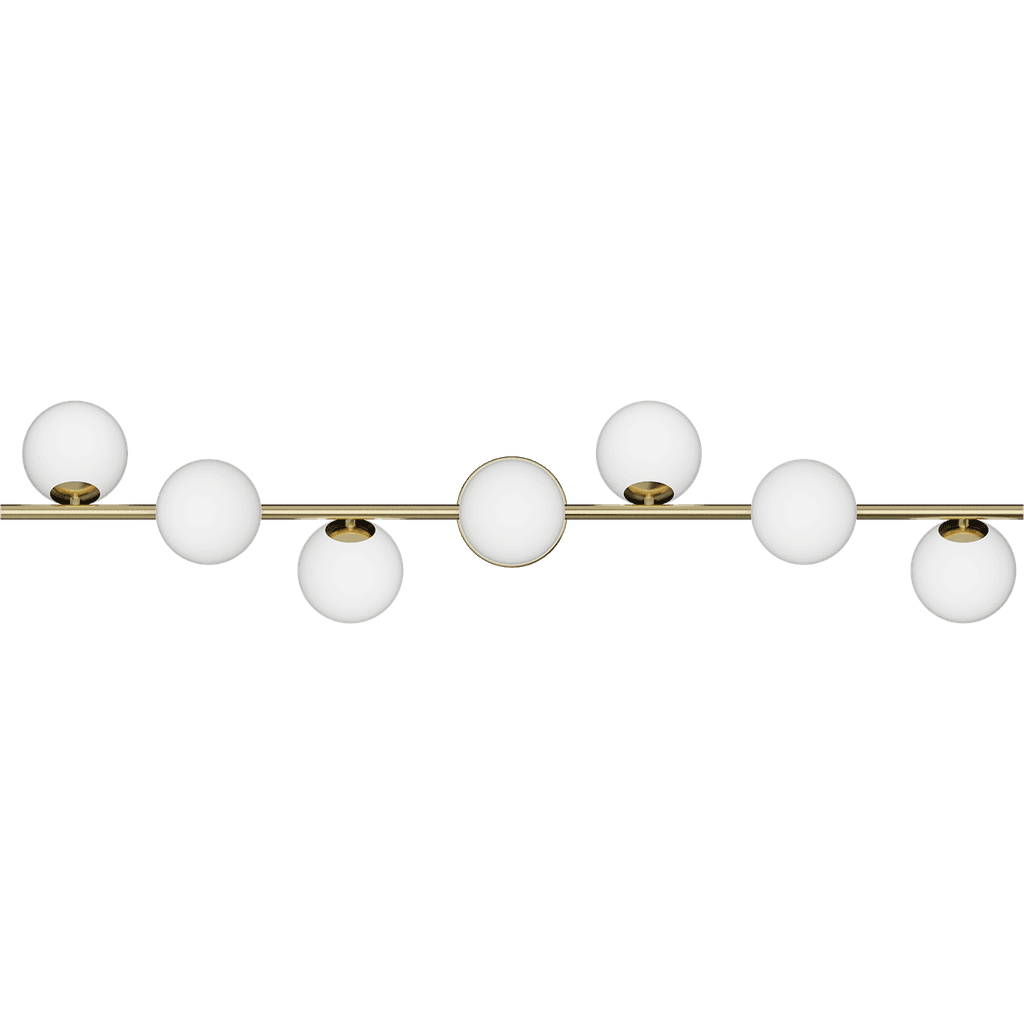

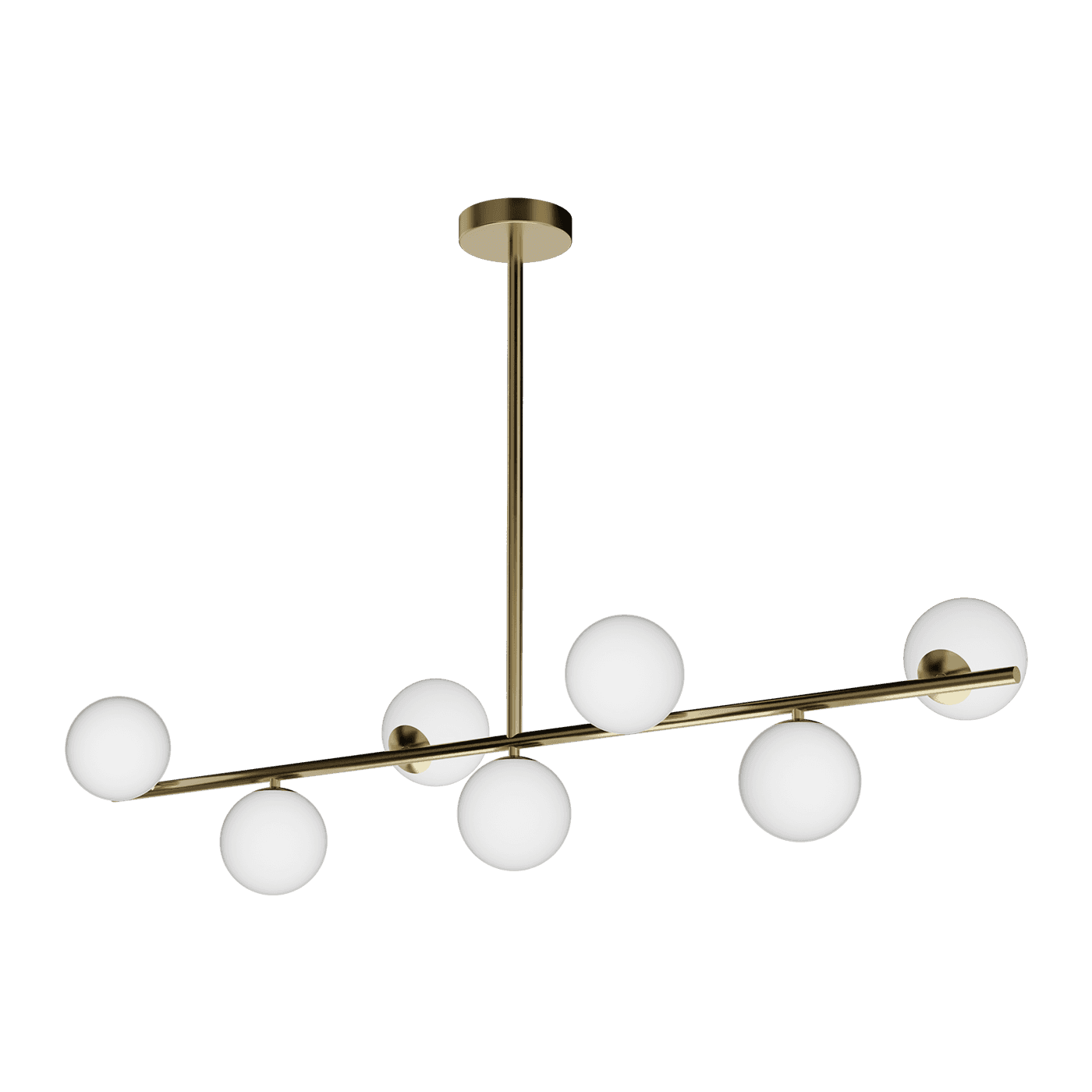

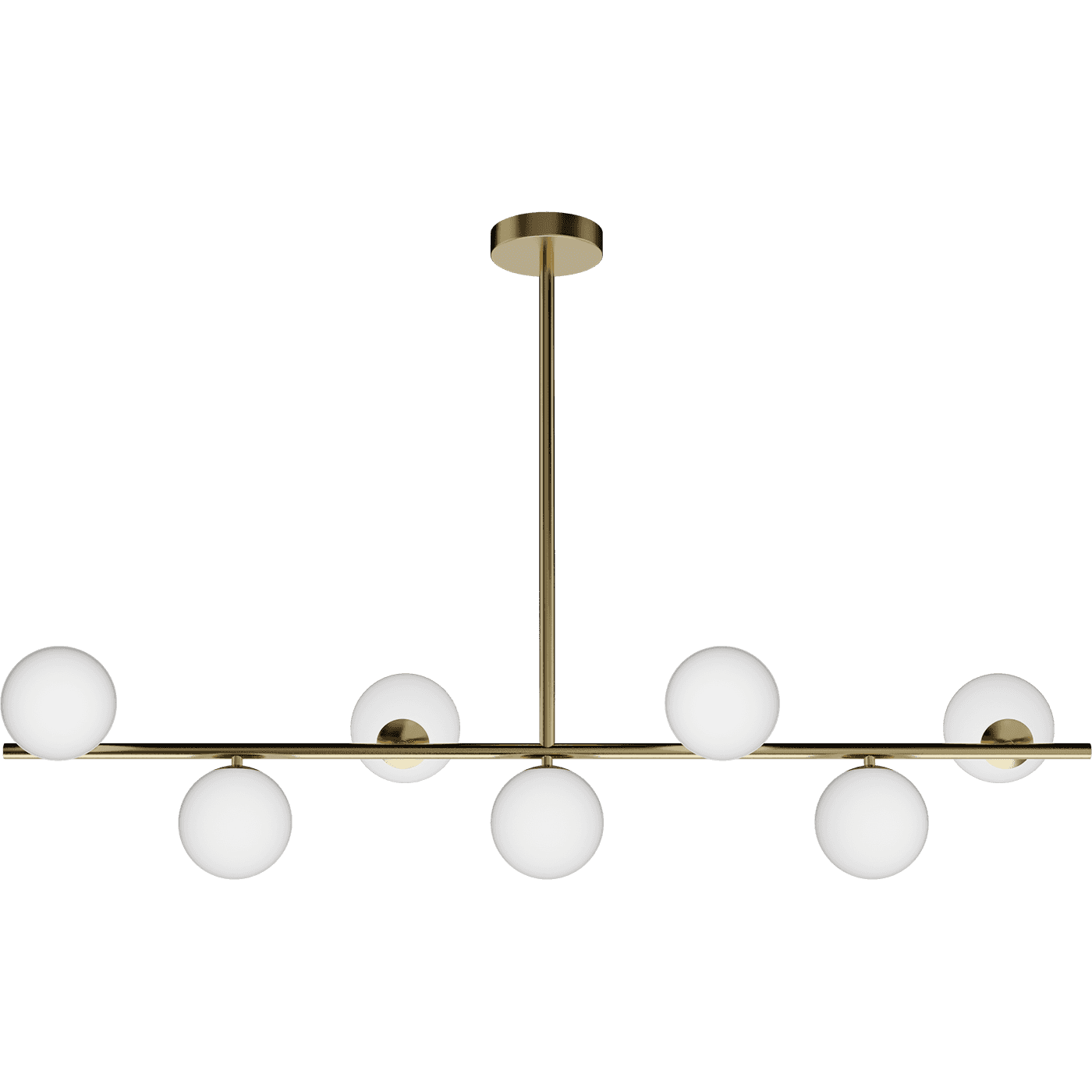

BBLLINE/P G9x7 GL
BBLLINE/P G9x7 GL
420 Wluminaire power
2400 lmlight flow
40 lm/Wenergy efficiency
code
1904000010
performance factor
100
options
свернуть все
illuminatingelectricalconstructionalemergencycommonpackage
energy efficiency
40 lm/Wlight flow
2400 lmflickering factor
<1%light source type
LEDemission color
Белыйilluminating
energy efficiency
40 lm/W
light flow
2400 lm
flickering factor
<1%
light source type
LED
emission color
Белый
electrical
luminaire power
420 W
electric shock protection
I
supply voltage
230 V
rated supply voltage, alternating current
230 V

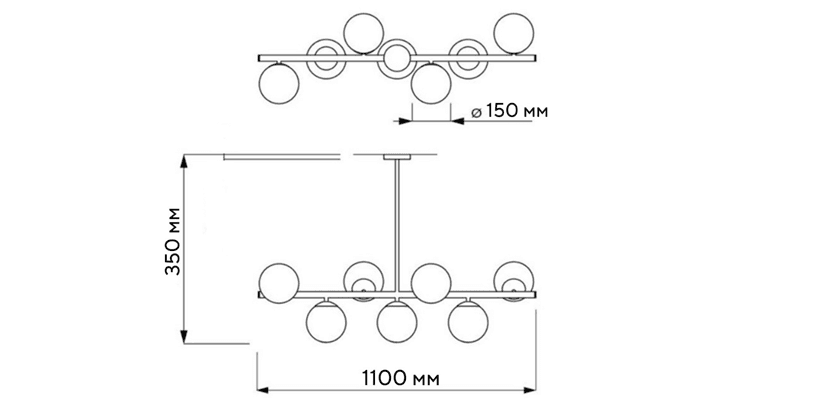

constructional
length
1100 mm
width
300 mm
height
400 mm
weight
1.9 kg
ingress protection (IP)
IP40
shock resistance (IK)
IK02/0,2 Дж
climatic performance
УХЛ4*
fire safety class
П-I,II,ІІІ
material
Металл, стекло
housing color
Золотой
mounting type
lamp socket
G9
number of lamps
7
ballast
Без ПРА
Type roof
emergency
emergency power supply
Нет
common
temperature range
от +5 до +35 C
service life
24 000 h
ETIM class
Светильник подвесной
warranty
36 month
energy efficiency class
B
code
1904000010
package
Package contents
Светильник - 1 шт.
Паспорт - 1 шт.
Упаковка - 1 шт.
model files
model files

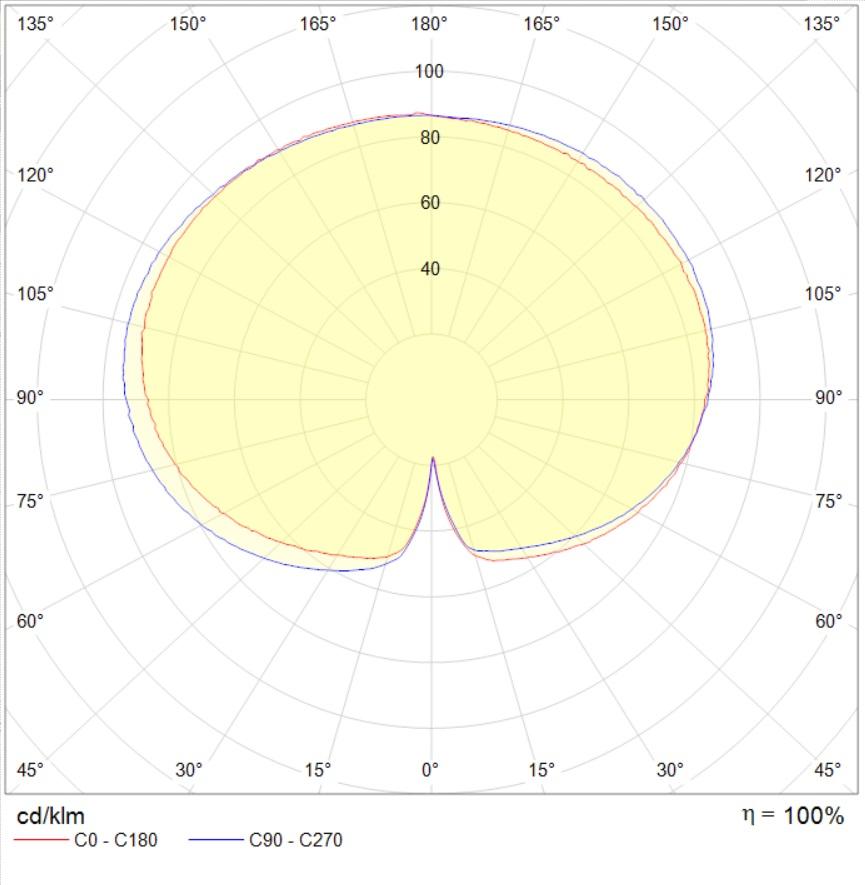

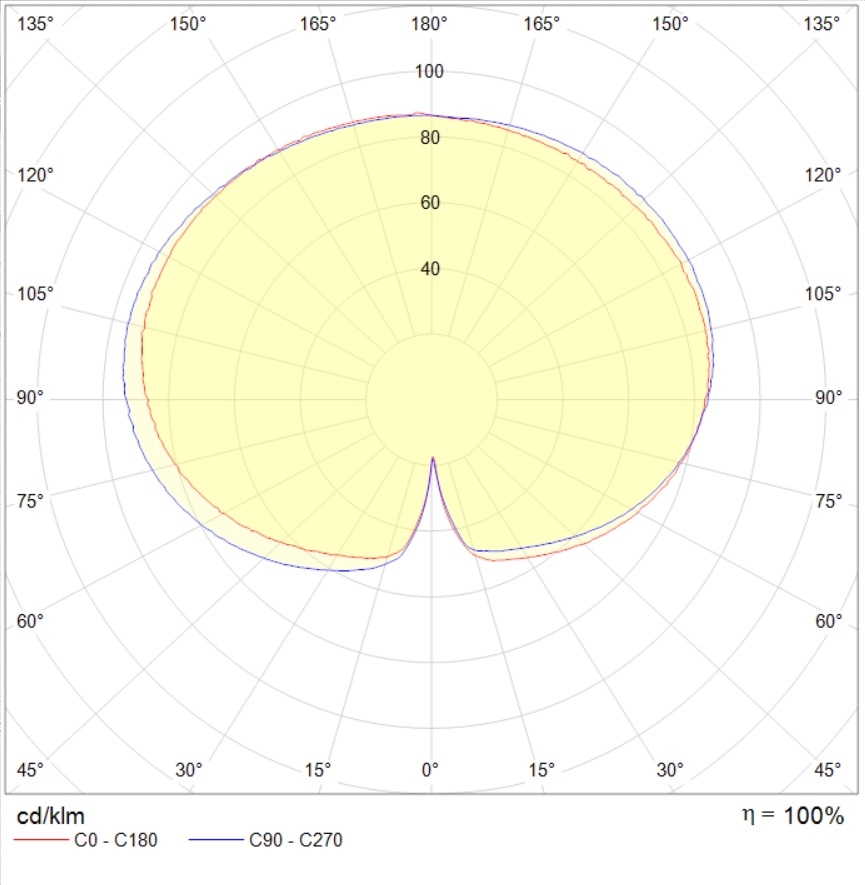

photometric files
documents
сертификаты
photometric files
ies263.2 kB
jpg108.7 kB
ldt228 kB
csv408 B
documents
passport973.5 kB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20112 mB
Declaration of Conformity EAEU TR 037/2016535.9 kB
