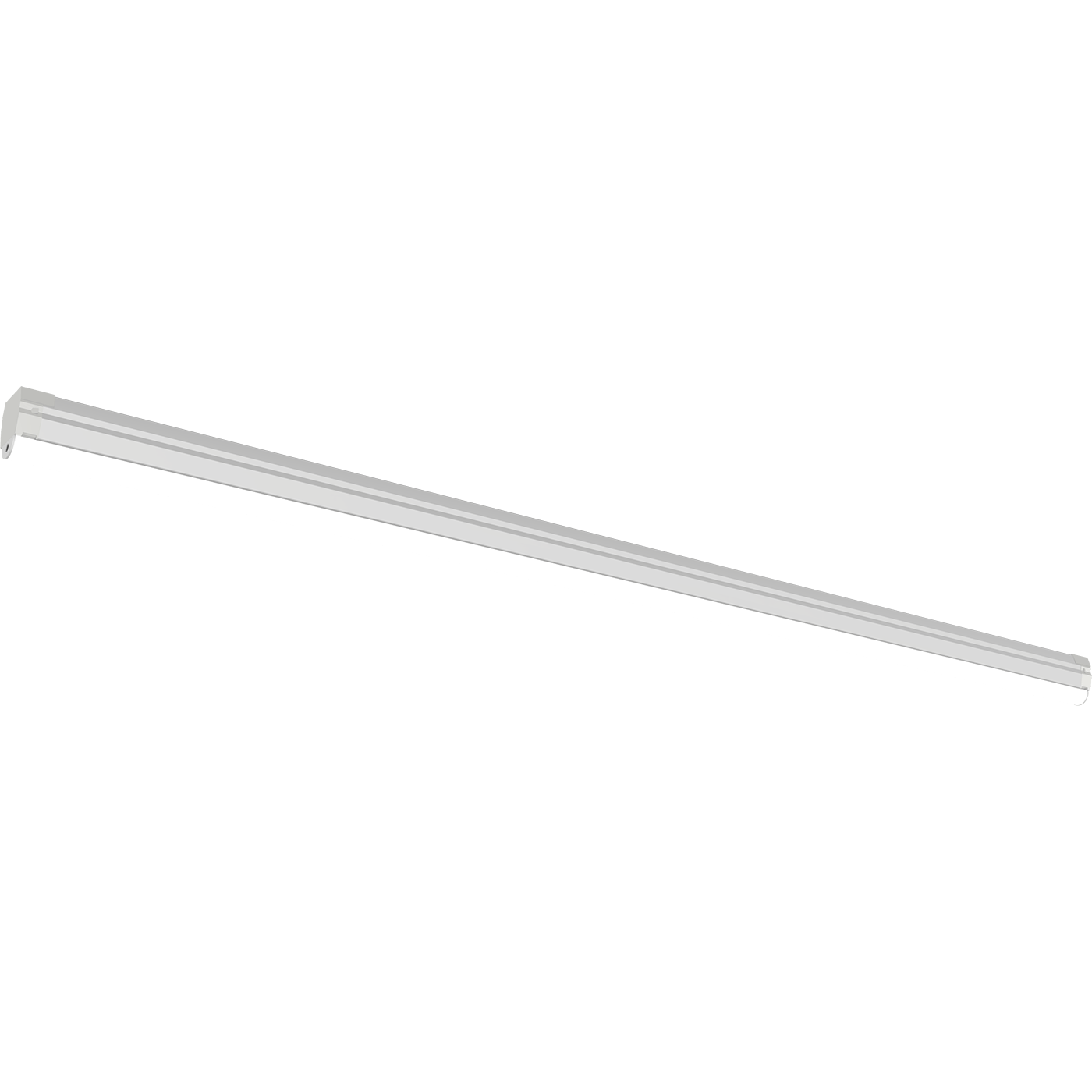

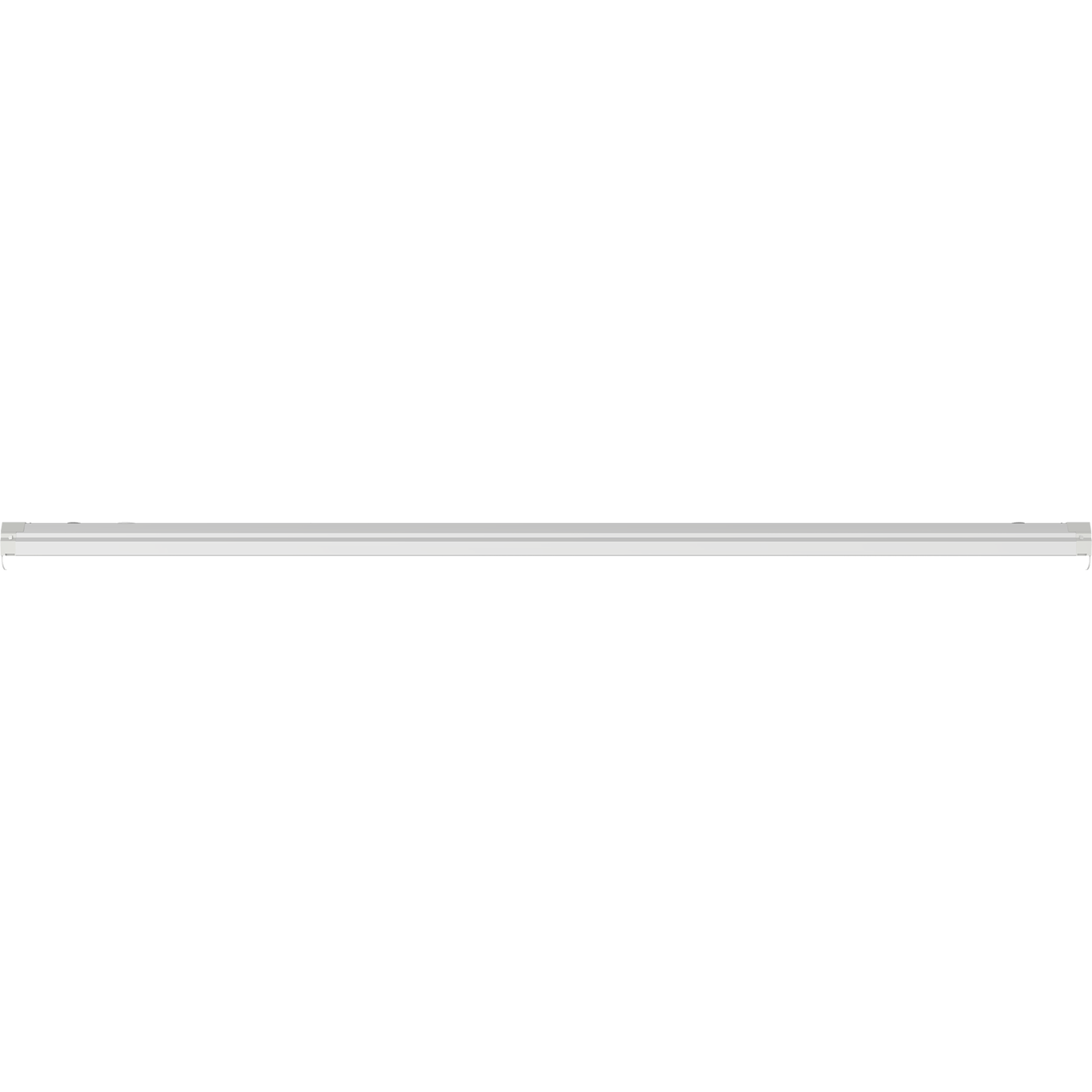

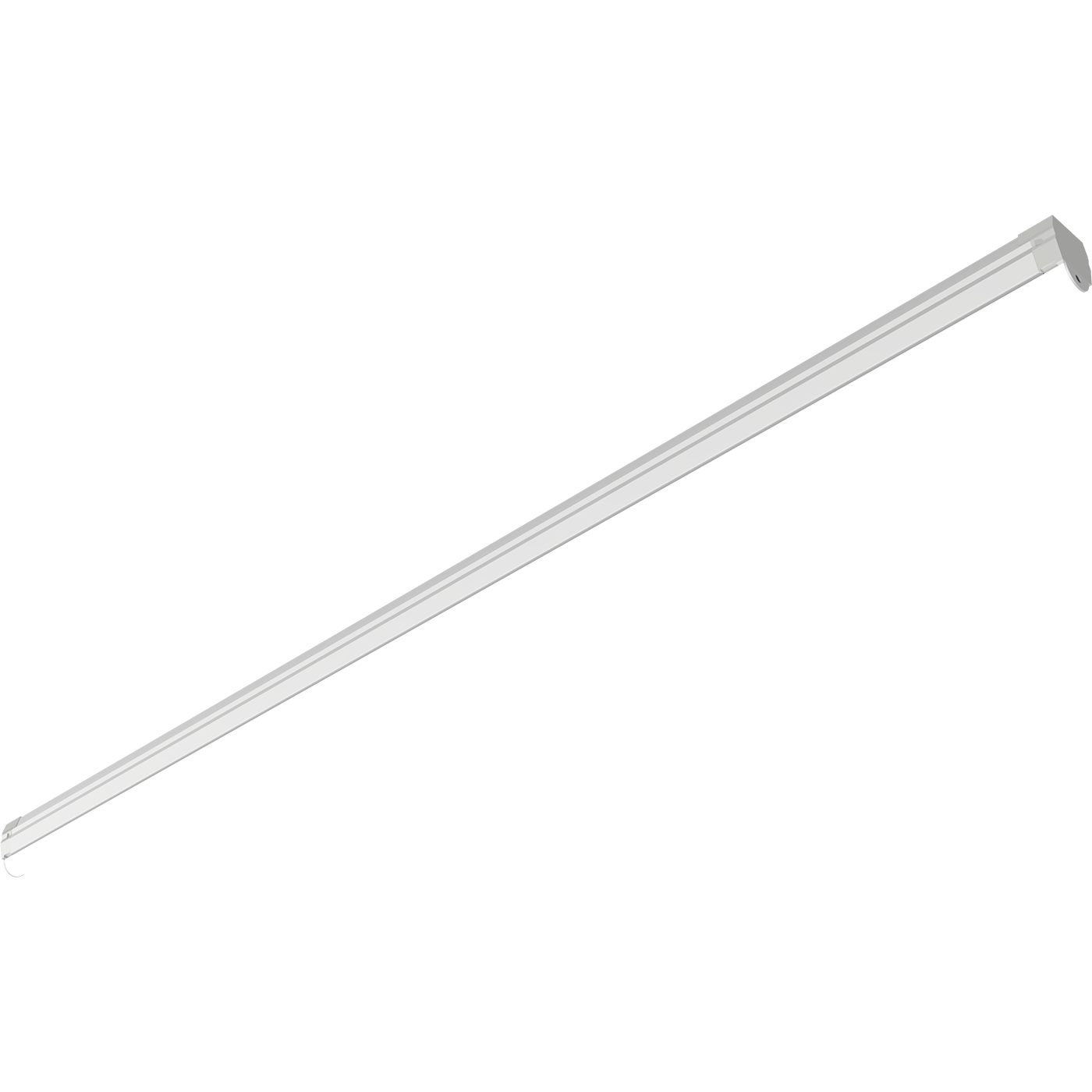

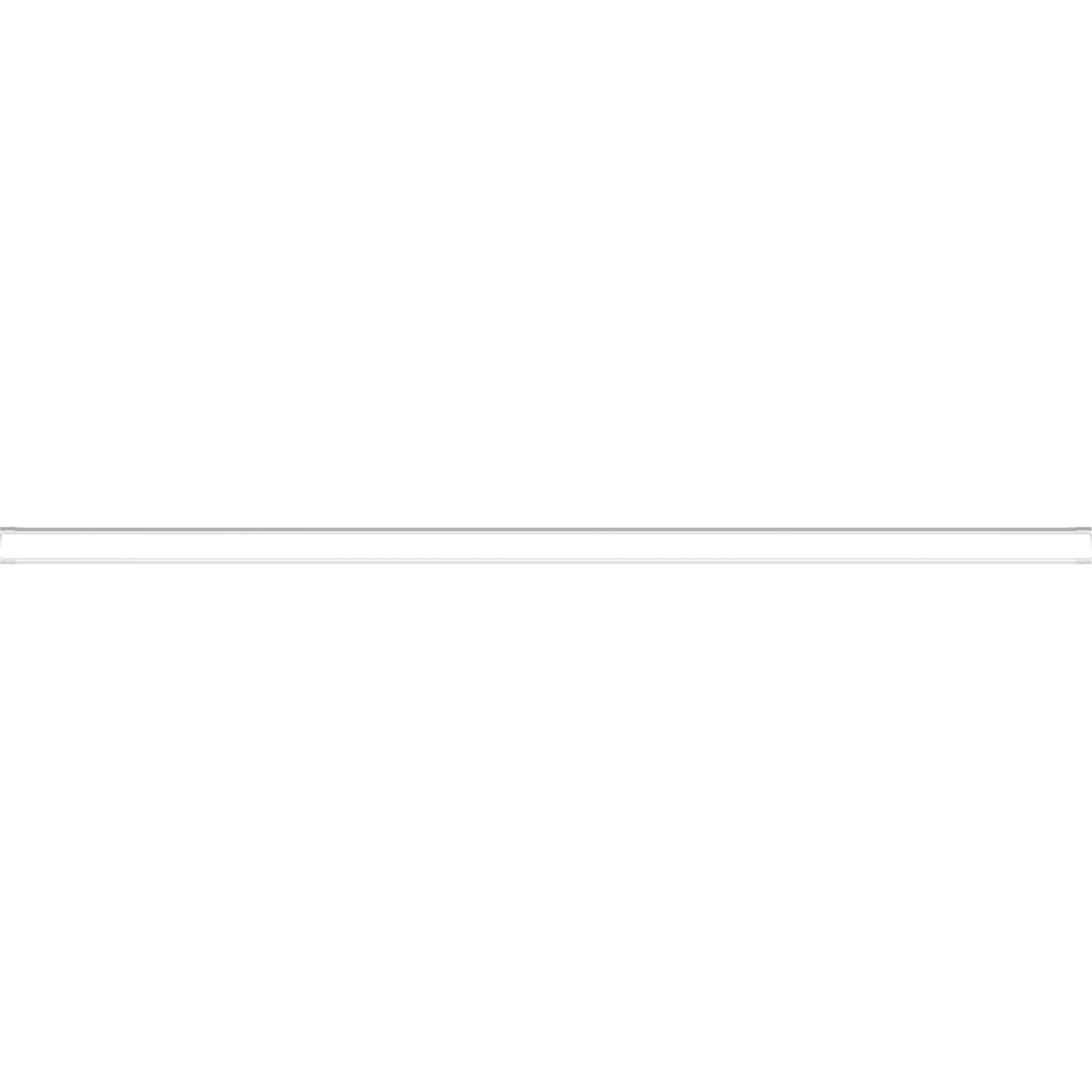

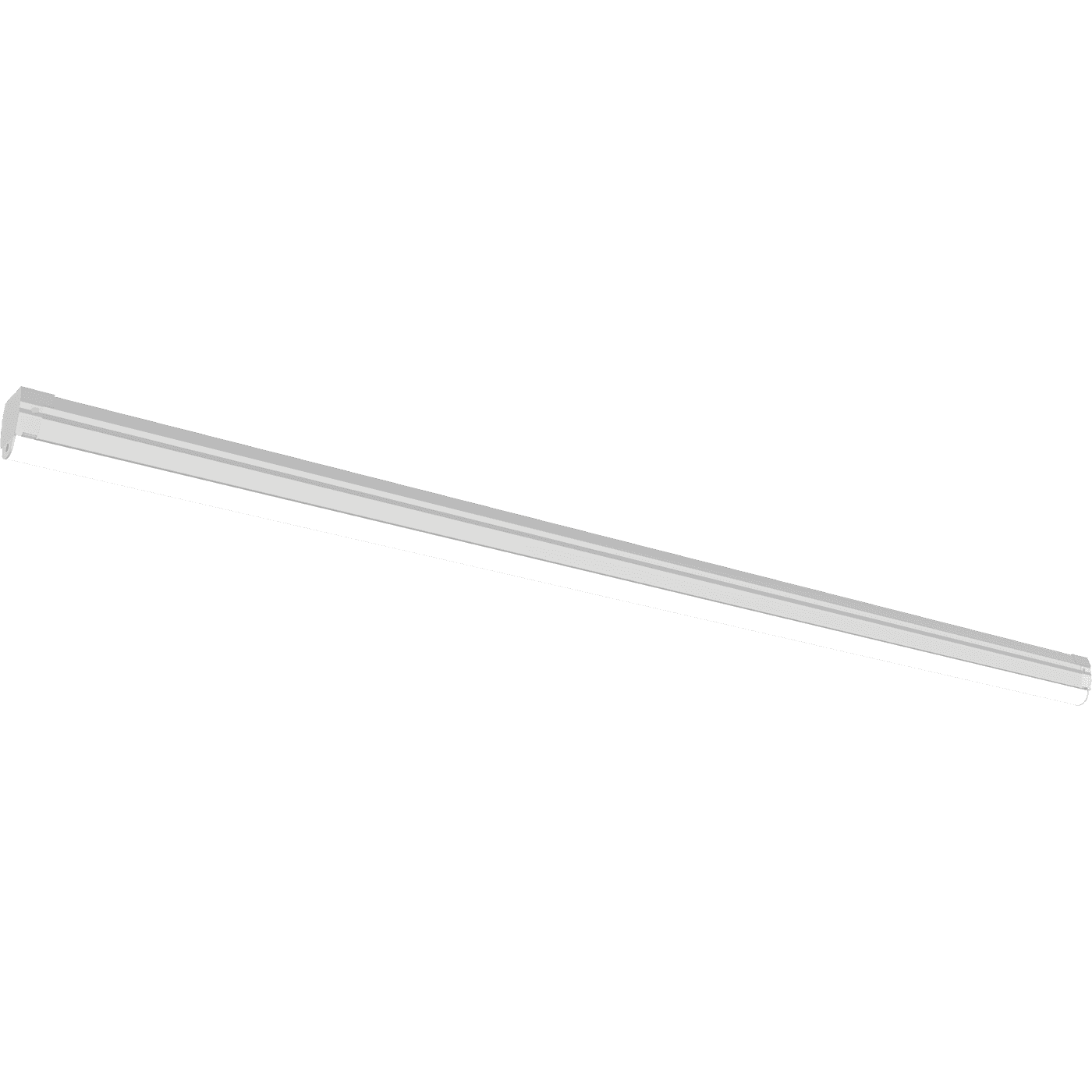

BAT UNI LED 1500 AS 4000K
BAT UNI LED 1500 AS 4000K
26 Wluminaire power
2800 lmlight flow
108 lm/Wenergy efficiency
code1008000260
color temperature4000
beam angleD120
performance factor100
options
свернуть все
illuminatingelectricalconstructionalcommon
energy efficiency
108 lm/Wcolor rendition index (CRI)
>80light flow
2800 lmflickering factor
<5%beam angle
D120color temperature
4000light source type
LEDemission color
Белыйilluminating
energy efficiency
108 lm/W
color rendition index (CRI)
>80
light flow
2800 lm
flickering factor
<5%
beam angle
D120
color temperature
4000
light source type
LED
emission color
Белый
electrical
starting current pulse time, µs
352 mks
electric shock protection
I
luminaire power
26 W
supply voltage
230 V
power factor
> 0,98
maximum cross-section of the connected cable, sq. mm
2.5
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
starting current
23 A
constructional
length, mm
1488 mm
width, mm
124 mm
height, mm
75 mm
installation length, mm
1100 mm
weight
3.7 kg
ingress protection (IP)
IP20
shock resistance (IK)
IK02/0,2 Дж
climatic performance
УХЛ4*
material
Сталь
housing color
Белый
lamp socket
LED
number of lamps
1
ballast
Драйвер
common
warranty
36 month
temperature range
от +5 до +35 C
service life, hour
50 000 h
energy efficiency class
A+
ETIM class
Светильник линейный реечного типа
code
1008000260
model files
model files
CAD/BIM files
photometric files
documents
сертификаты
CAD/BIM files
model 3dMax192 kB

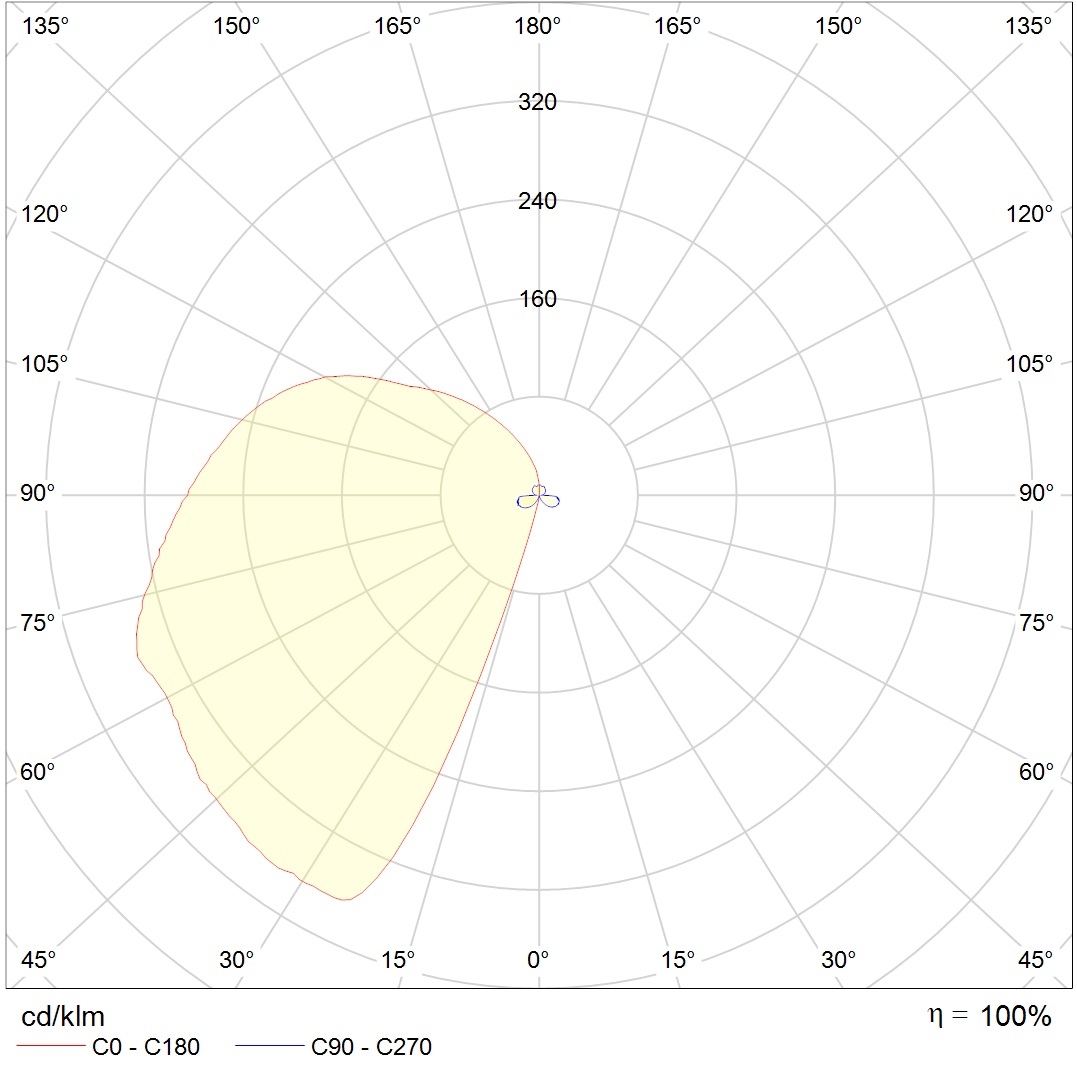

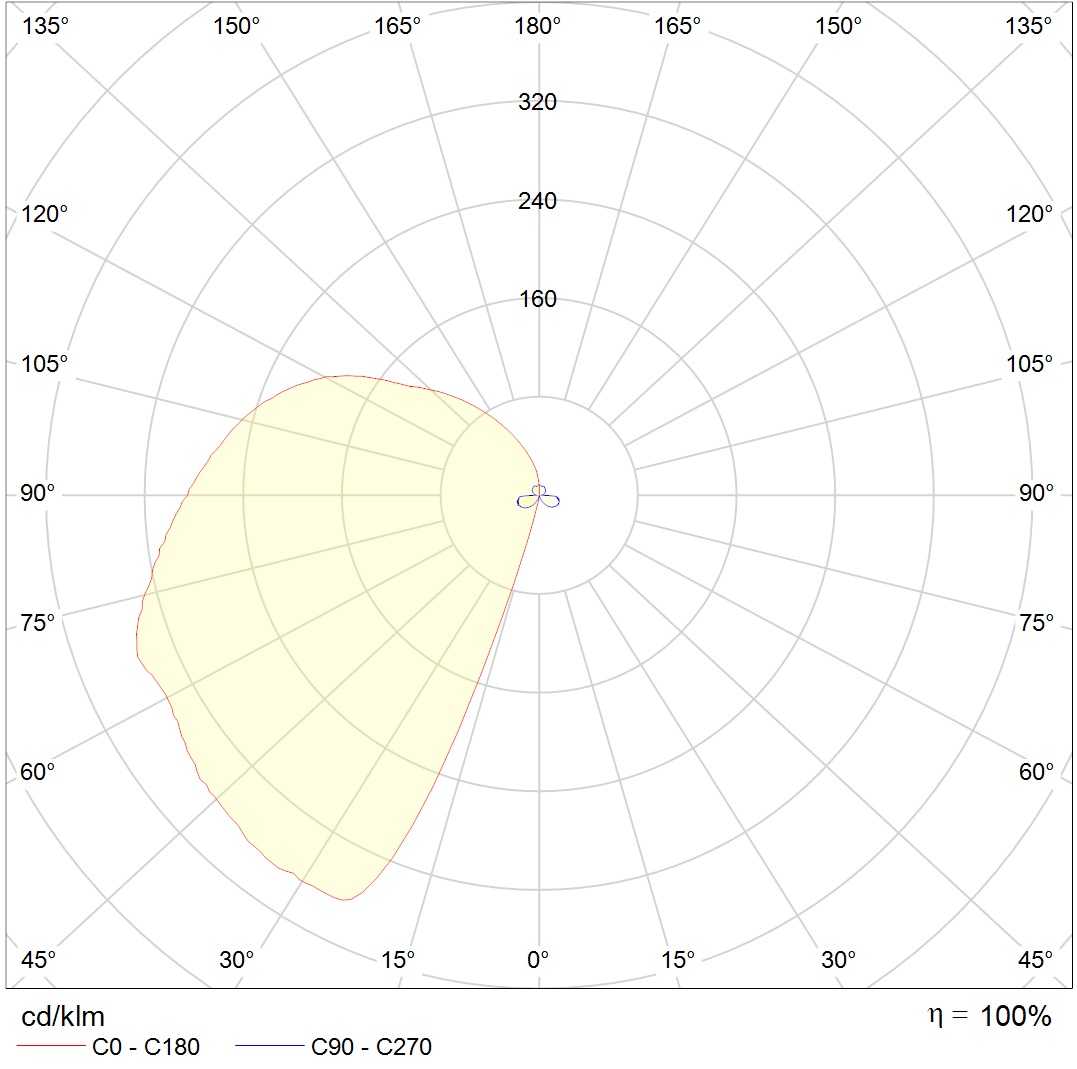

photometric files
ies263.2 kB
jpg153.9 kB
ldt205.4 kB
documents
passport867 kB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20113.2 mB
Declaration of Conformity EAEU TR 037/2016658.3 kB
Fire Safety Certificate2.5 mB
accessories

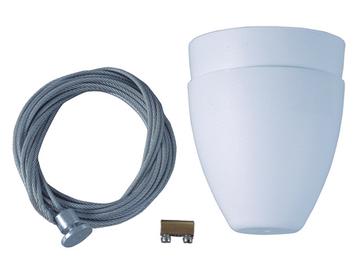

Suspension kit 5m (modular) (1 kit)0.076kgarticle: 2301000230
Suspension kit 3m (modular) (1 kit)0.028kgarticle: 2301000220
Modular suspension0.035kgarticle: 2301000210
