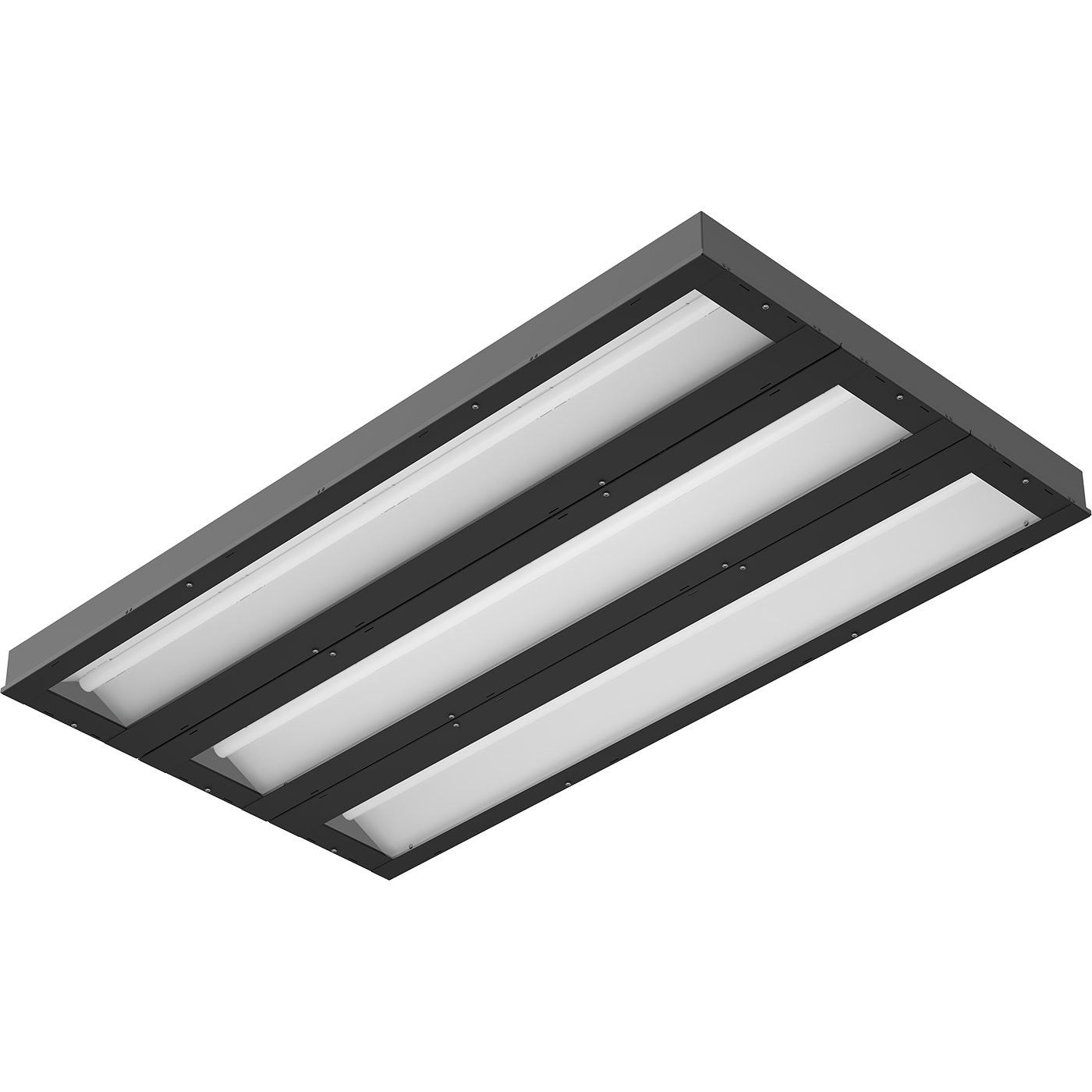

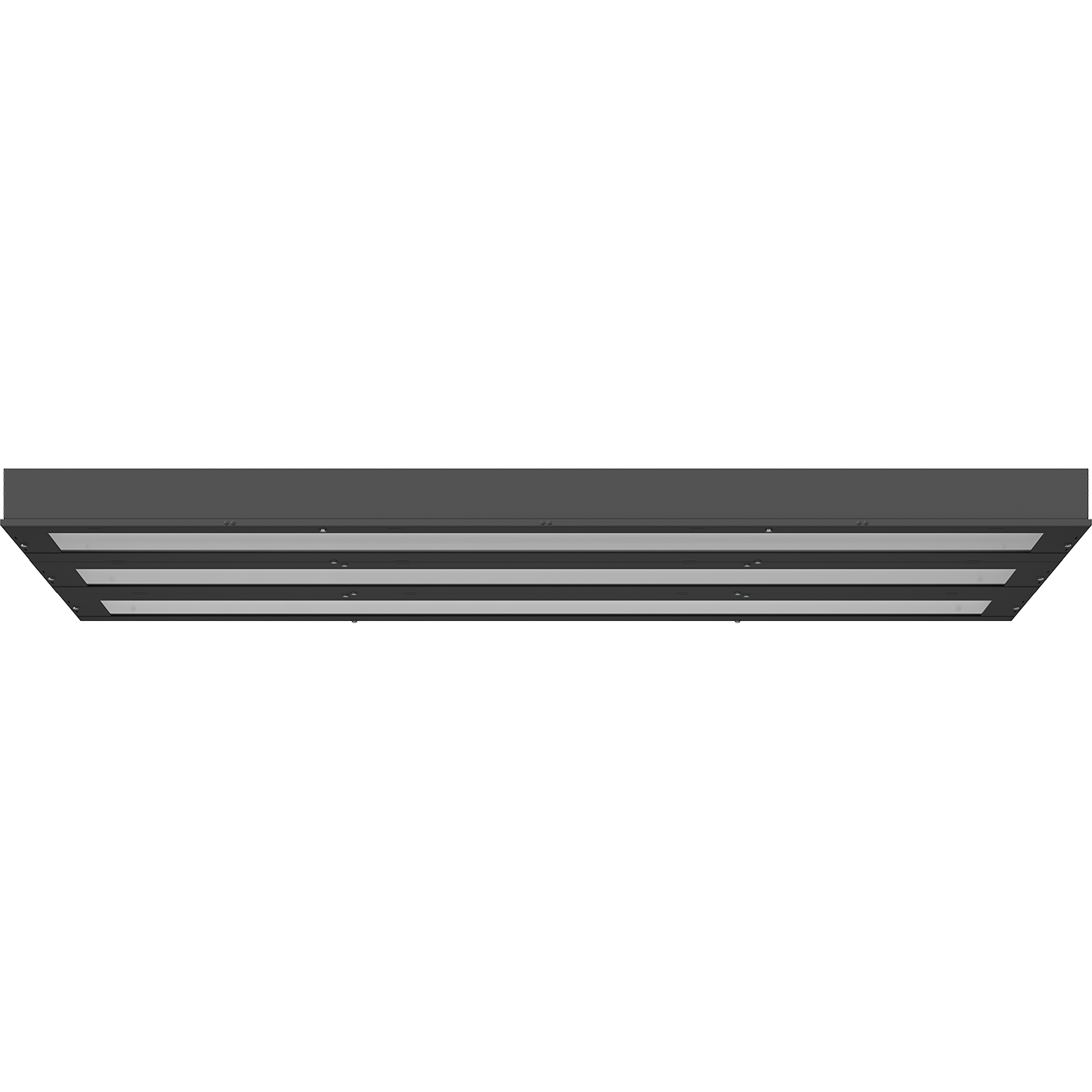

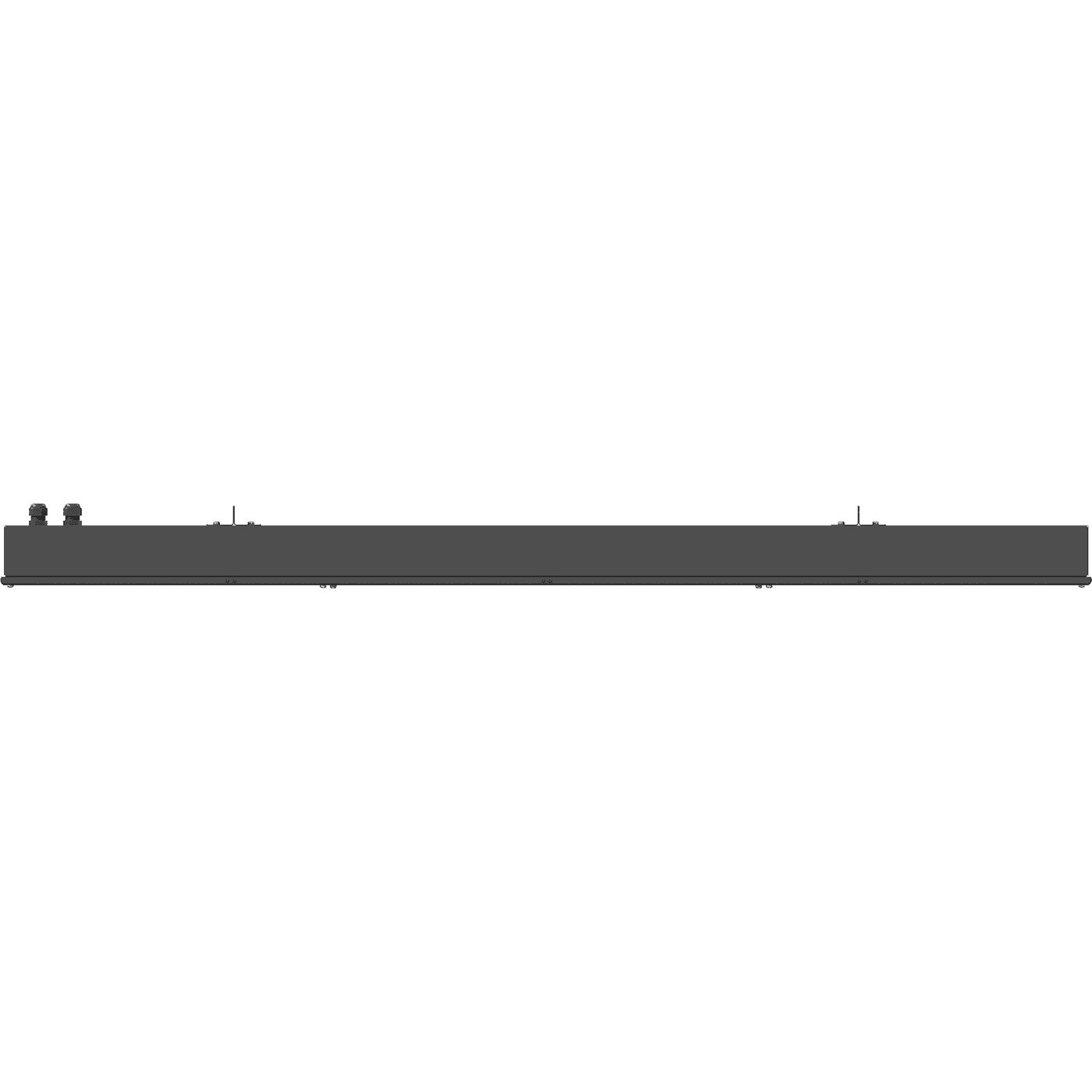

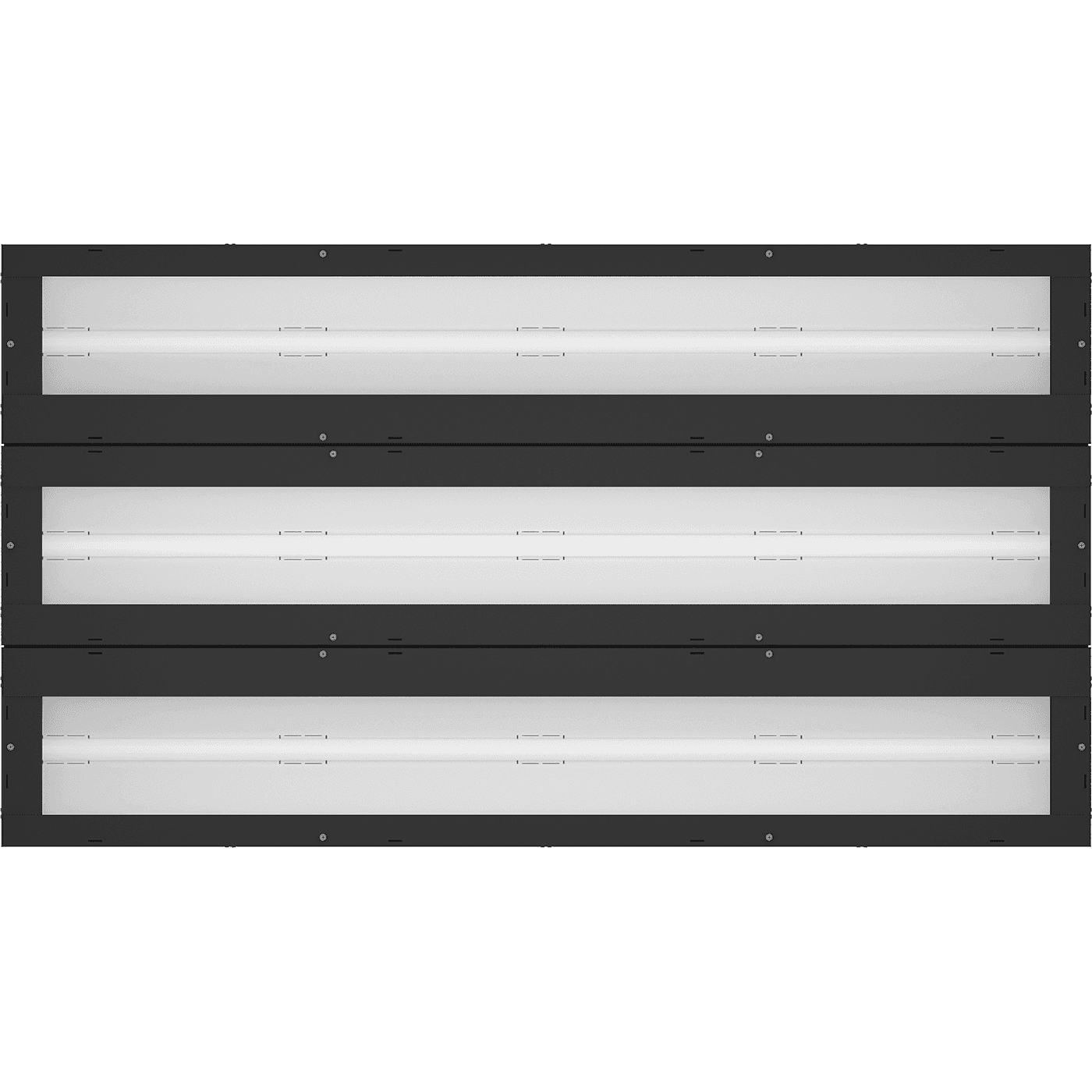

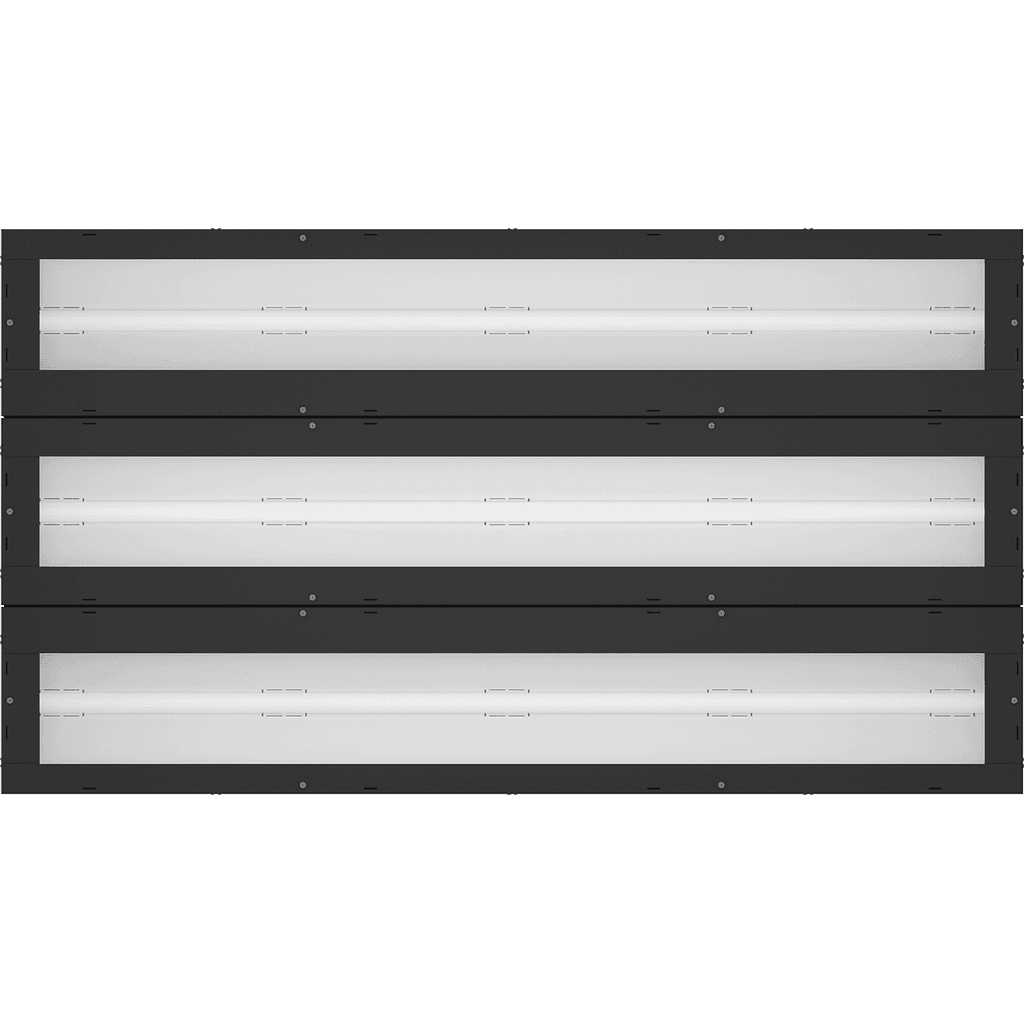

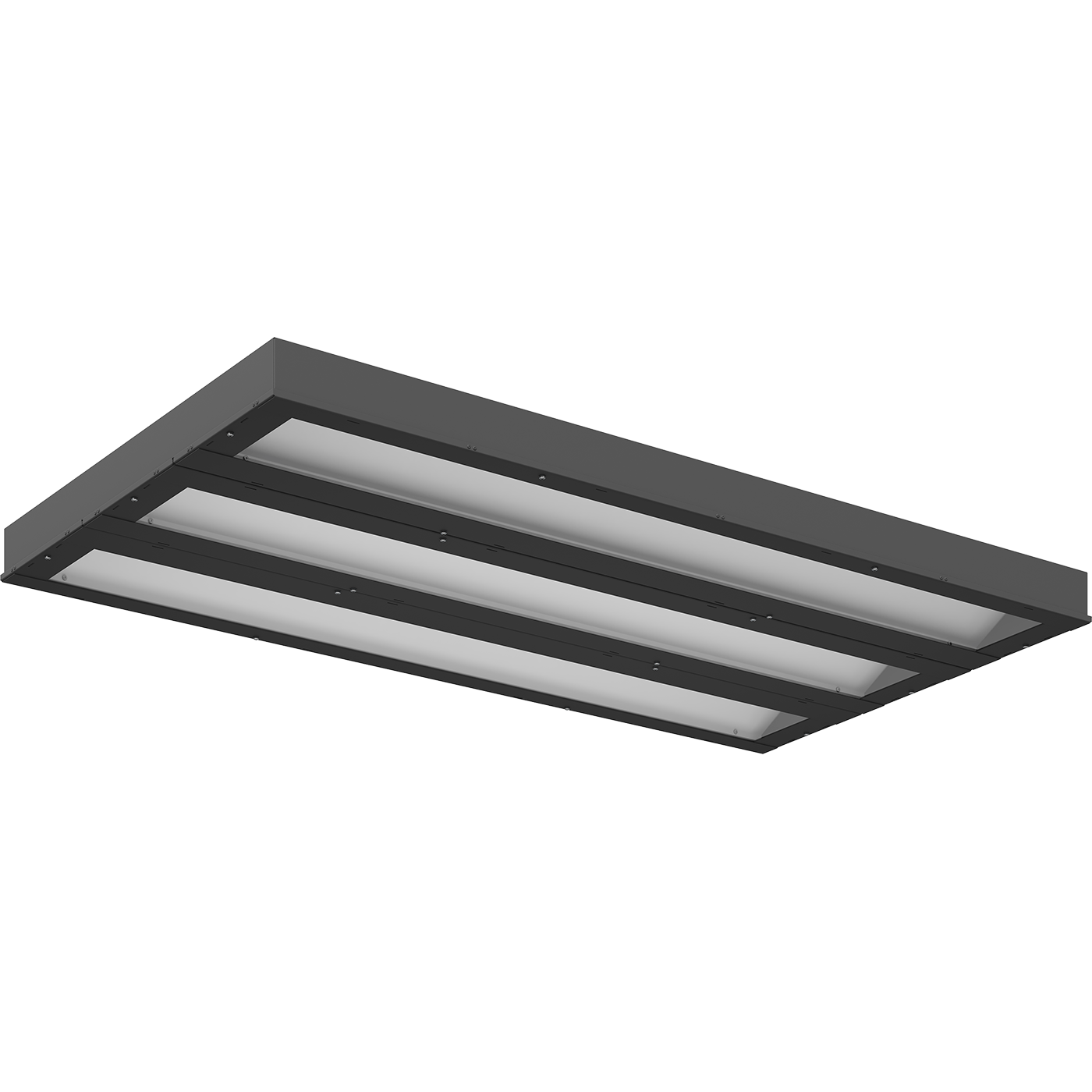

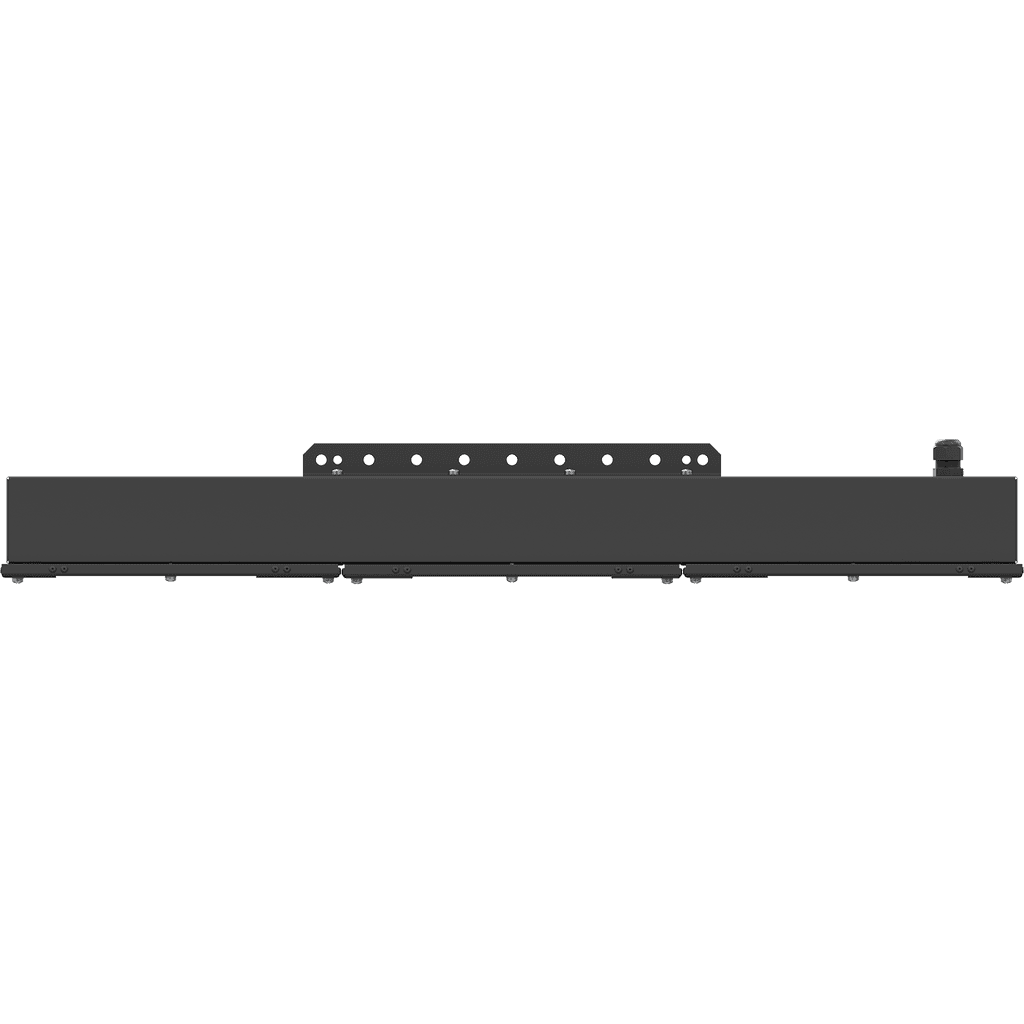

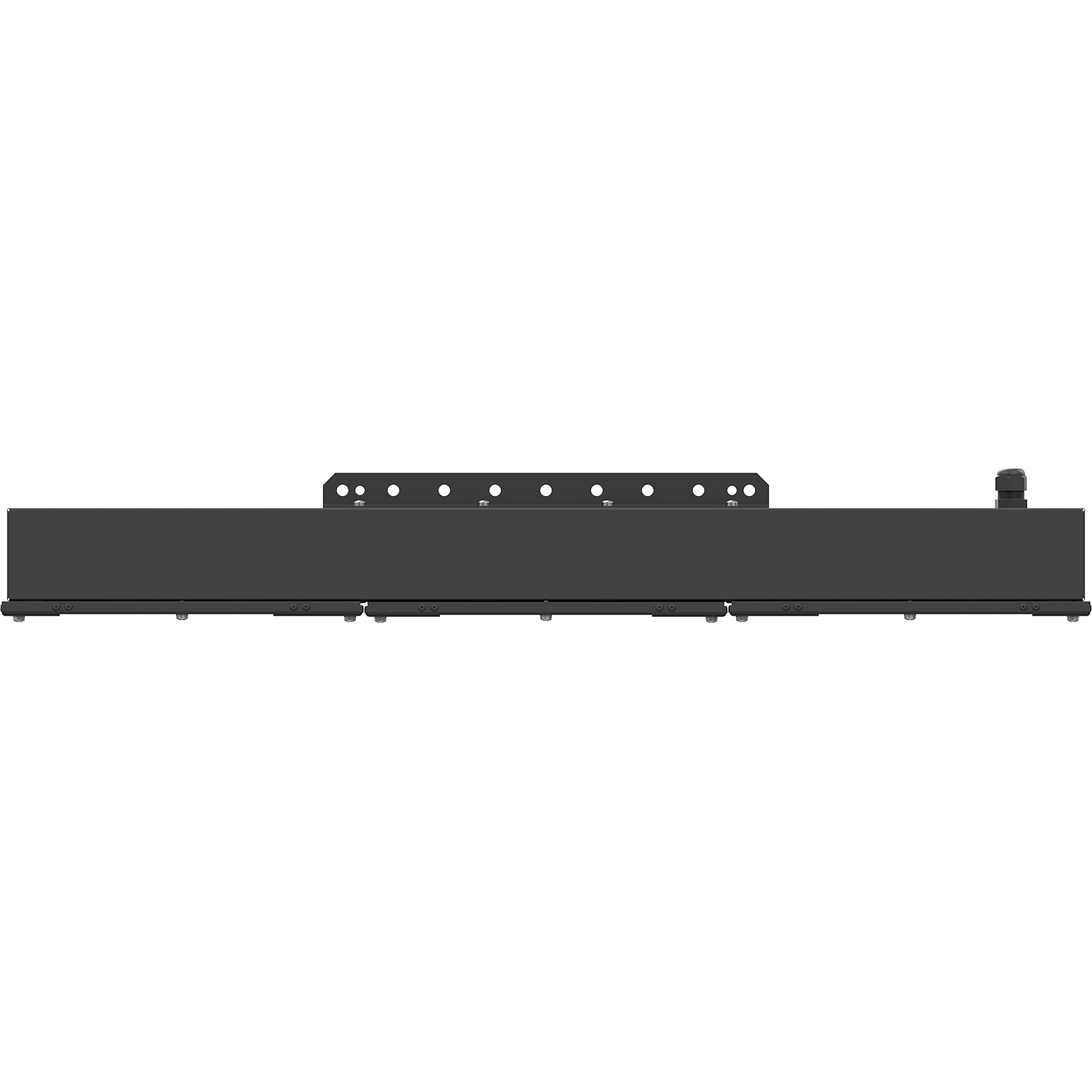

AUTOZEBRA LED 4
archive
archive
AUTOZEBRA LED 4
125 Wluminaire power
13000 lmlight flow
104 lm/Wenergy efficiency
code1789000010
color temperature5000
beam angleD120
number of lamps1
performance factor100
options
свернуть все
electricalcommonilluminatingconstructional
starting current
30 Astarting current pulse time, µs
250 mksrated supply voltage, alternating current
230 Vrated supply voltage, direct current
230 Vsupply voltage, alternating current
176-264 Vsupply voltage, direct current
176-264 Vluminaire power
125 Welectric shock protection
Ipower factor
> 0,99supply voltage
230 Velectrical
starting current
30 A
starting current pulse time, µs
250 mks
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
supply voltage, alternating current
176-264 V
supply voltage, direct current
176-264 V
luminaire power
125 W
electric shock protection
I
power factor
> 0,99
supply voltage
230 V
common
ETIM class
Настенно-потолочный светильник
warranty
60 month
temperature range
от -40 до +55 C
energy efficiency class
A+
service life, hour
50 000 h
code
1789000010
illuminating
color rendition index (CRI)
>80
light flow
13000 lm
flickering factor
<5%
energy efficiency
104 lm/W
beam angle
D120
color temperature
5000
light source type
LED
emission color
Белый
constructional
ingress protection (IP)
IP54
climatic performance
УХЛ2*
fire safety class
П-I,II,ІІІ
material
Сталь
length, mm
1676 mm
width, mm
537 mm
height, mm
114 mm
housing color
Черный
shock resistance (IK)
IK07/2 Дж
lamp socket
LED
number of lamps
1
ballast
Драйвер
model files
model files
photometric files
сертификаты
photometric files
ies107 kB
jpg126.4 kB
ldt69.2 kB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20111.6 mB
Declaration of Conformity EAEU TR 037/2016595.1 kB
Fire Safety Certificate2.5 mB
