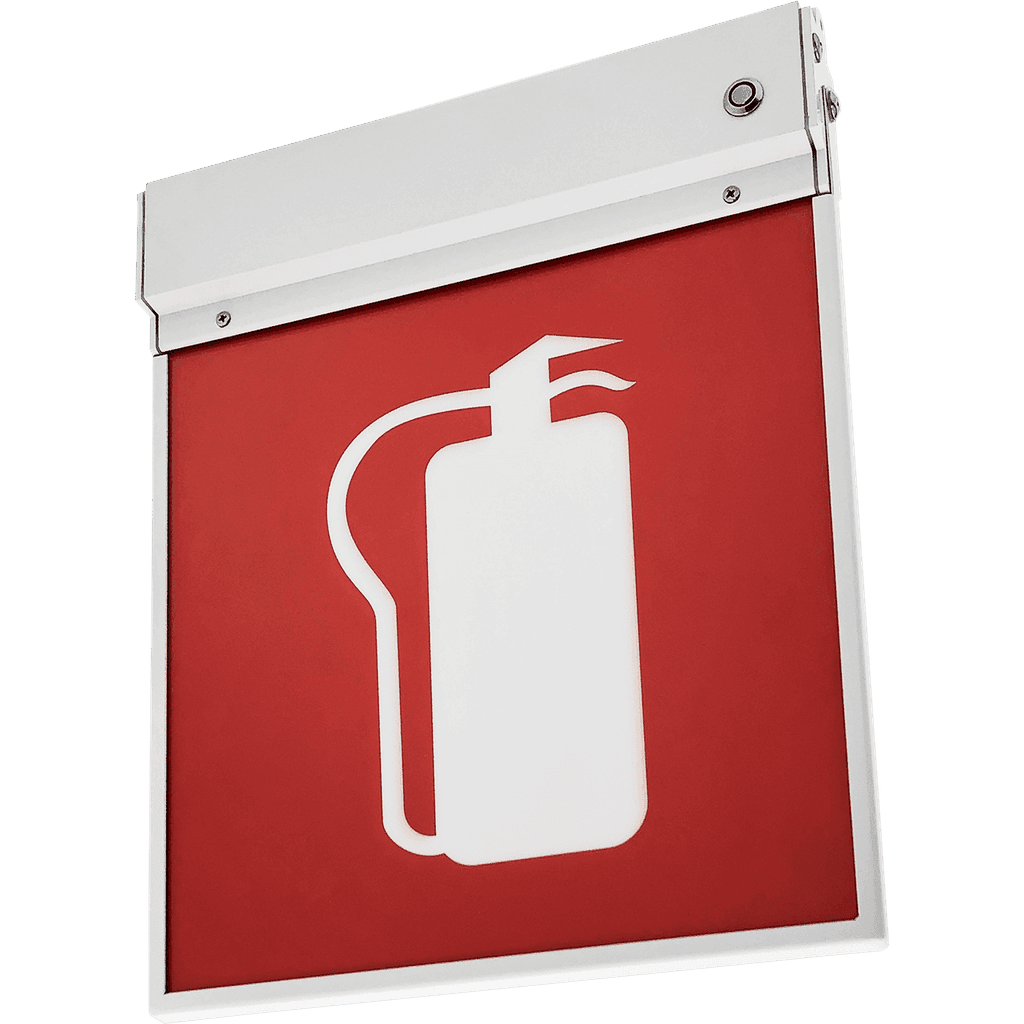

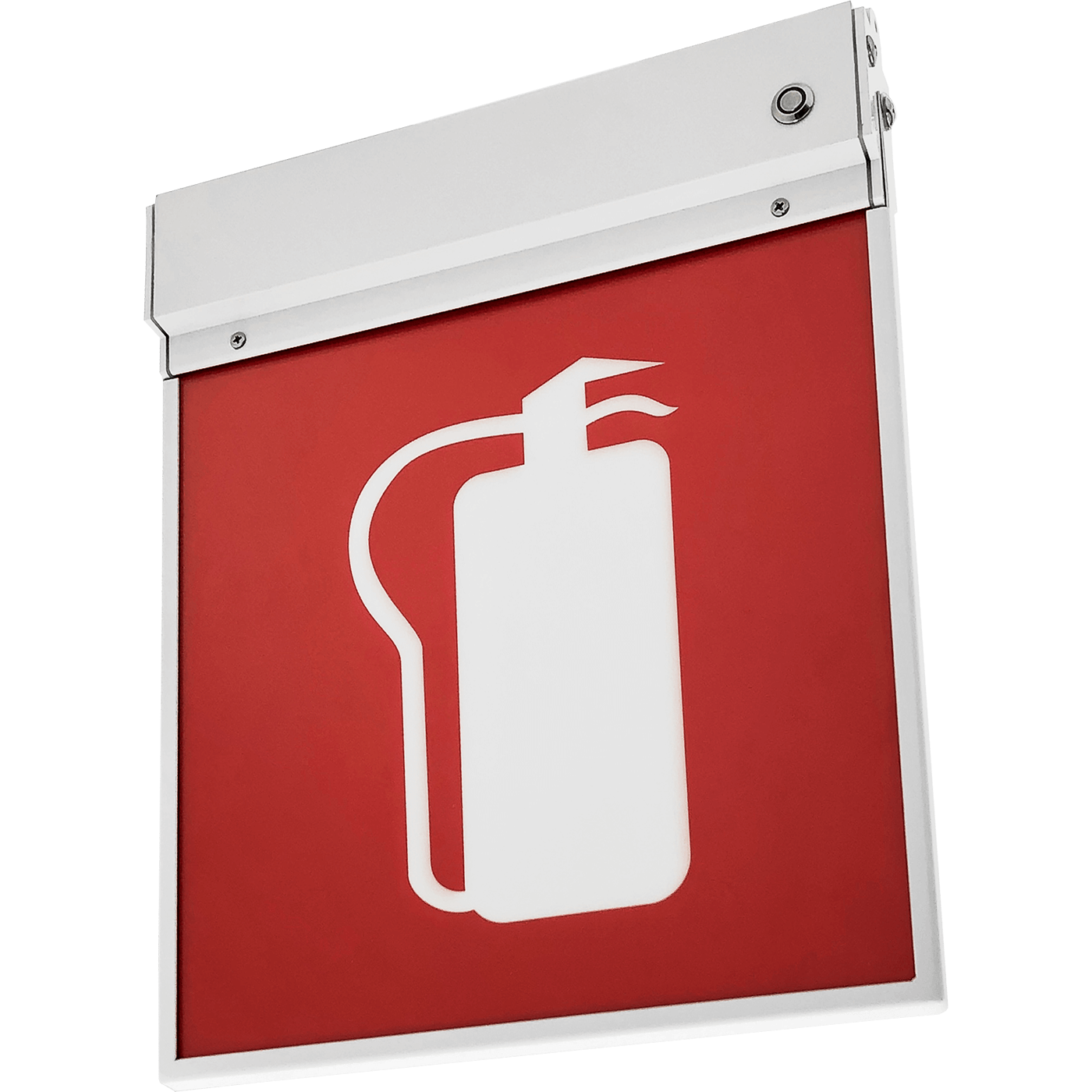

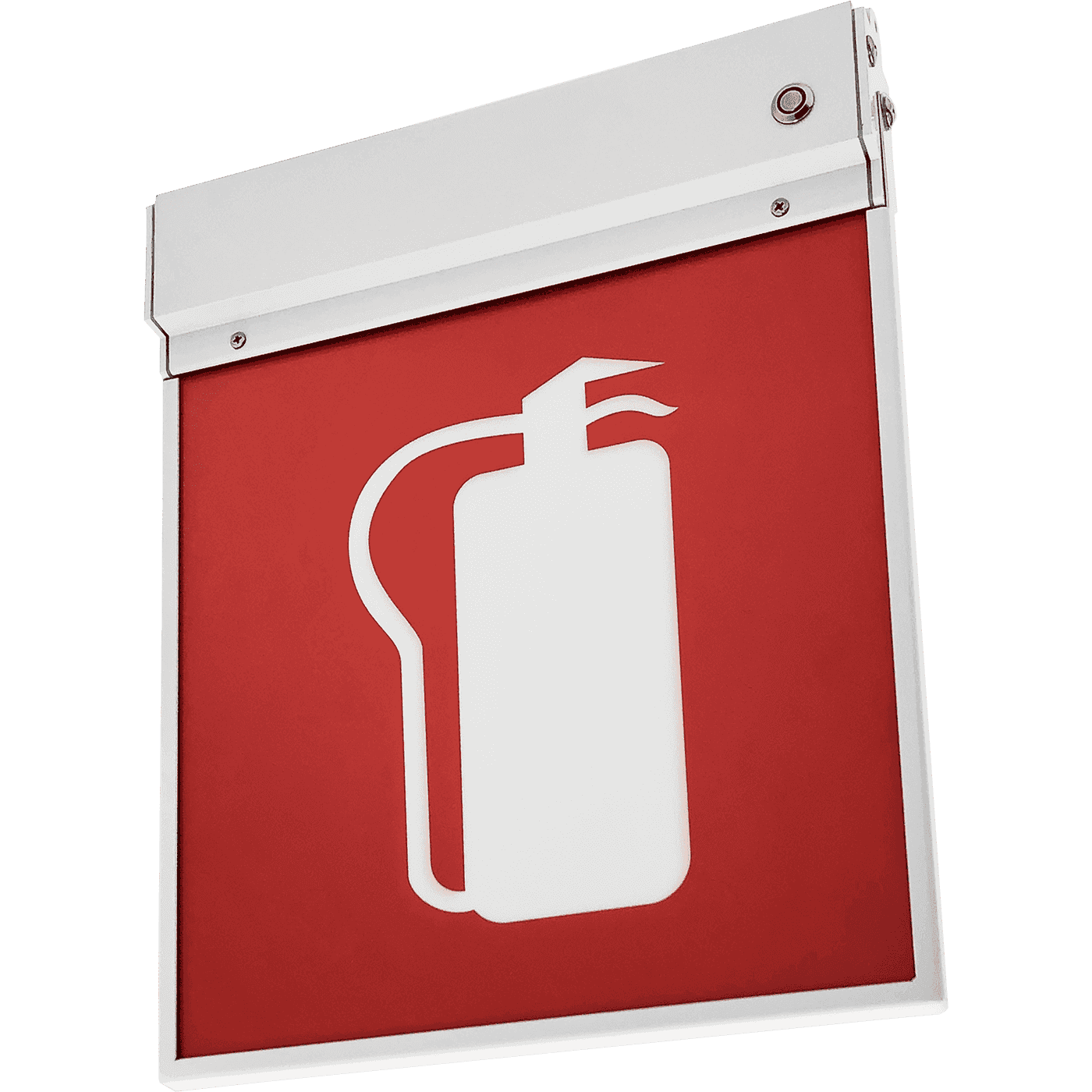

ATOM 6523-4 LED S AT FP

ATOM 6523-4 LED S AT FP
add to favorites
4 Wluminaire power
200 kd/m2average luminance
code4502004220
operating time in emergency mode3 h
battery / battery Ni-CdRB 3,2 V 1,5 A*h LiFePO4
type of operation / type of operation of the emergency luminaireпостоянного действия
  1. main page
  2. catalog
  3. by product type
  4. emergency lighting
  5. evacuation signs
  6. ATOM LED
  7. ATOM 6523-4 LED S AT FP
options
свернуть все
illuminatingelectricalconstructionalemergencycommon
average luminance
200 kd/m2
flickering factor
<5%
light source type
LED
emission color
Белый
illuminating
average luminance
200 kd/m2
flickering factor
<5%
light source type
LED
emission color
Белый
electrical
maximum cross-section of the connected cable
2.5 mm2
supply voltage
230 V
supply voltage, alternating current
230 V
constructional
material
Алюминий
ballast
Без драйвера
weight
2 kg
length
314 mm
width
35 mm
height
220 mm
fire safety class
П-ІІа
shock resistance (IK)
IK02/0,2 Дж
ingress protection (IP)
IP65
climatic performance
УХЛ4
emergency
battery / battery Ni-Cd
RB 3,2 V 1,5 A*h LiFePO4
type of operation / type of operation of the emergency luminaire
постоянного действия
operating time in emergency mode
3 h
common
ETIM class
Светильник аварийный
warranty
36 month
temperature range
от 0 до +40 C
code
4502004220
model files
model files
photometric files
ies263.2 kB
ldt223.3 kB
documents
passport756.6 kB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/2011301.5 kB
Declaration of Conformity EAEU TR 037/2016297.5 kB
photometric files
ies263.2 kB
ldt223.3 kB
documents
passport756.6 kB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/2011301.5 kB
Declaration of Conformity EAEU TR 037/2016297.5 kB
accessories
ПЭУ 007 По лестнице вверх налево (306х169) PC-M /комплект, 2шт./ ATOM S пиктограмма0.0099kgarticle: 2502006070
ПЭУ 021 Место сбора МГН (306х169) PC-M /комплект, 2шт./ ATOM S пиктограмма0.0182kgarticle: 2502006310
ППБ 0004 Насосная станция пожаротушения (306х169) PC-M /комплект, 2шт./ ATOM S пиктограмма0.0182kgarticle: 2502006280
