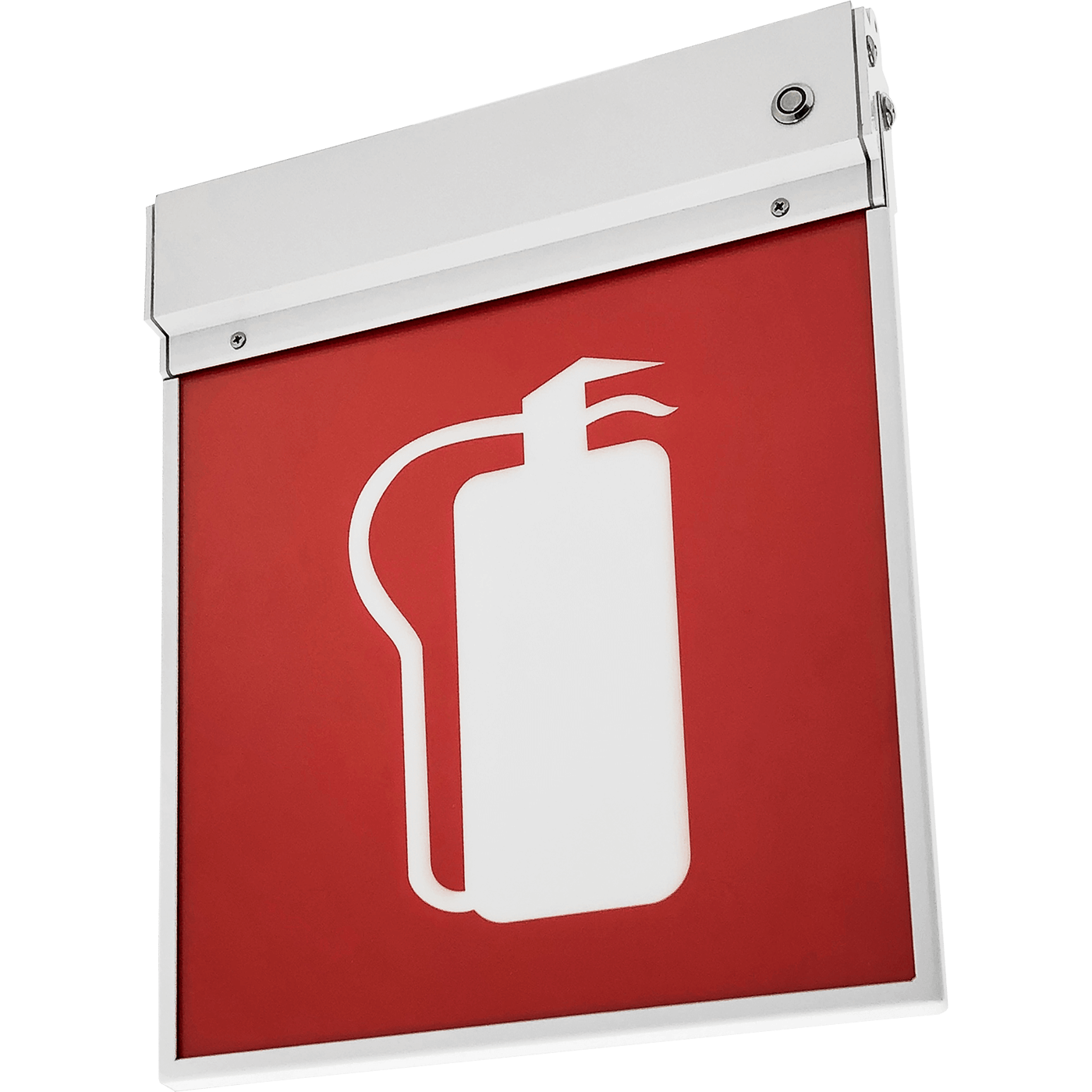

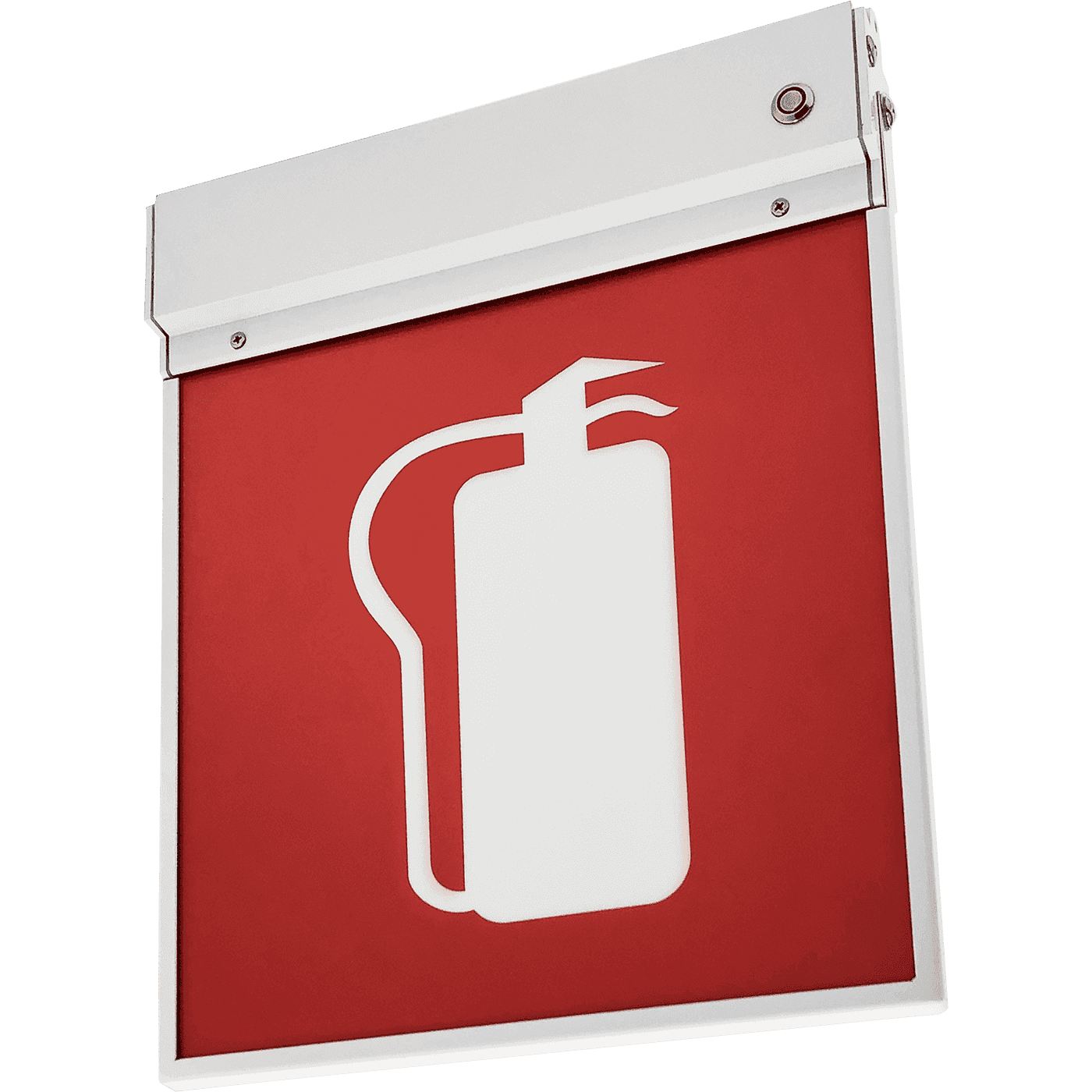

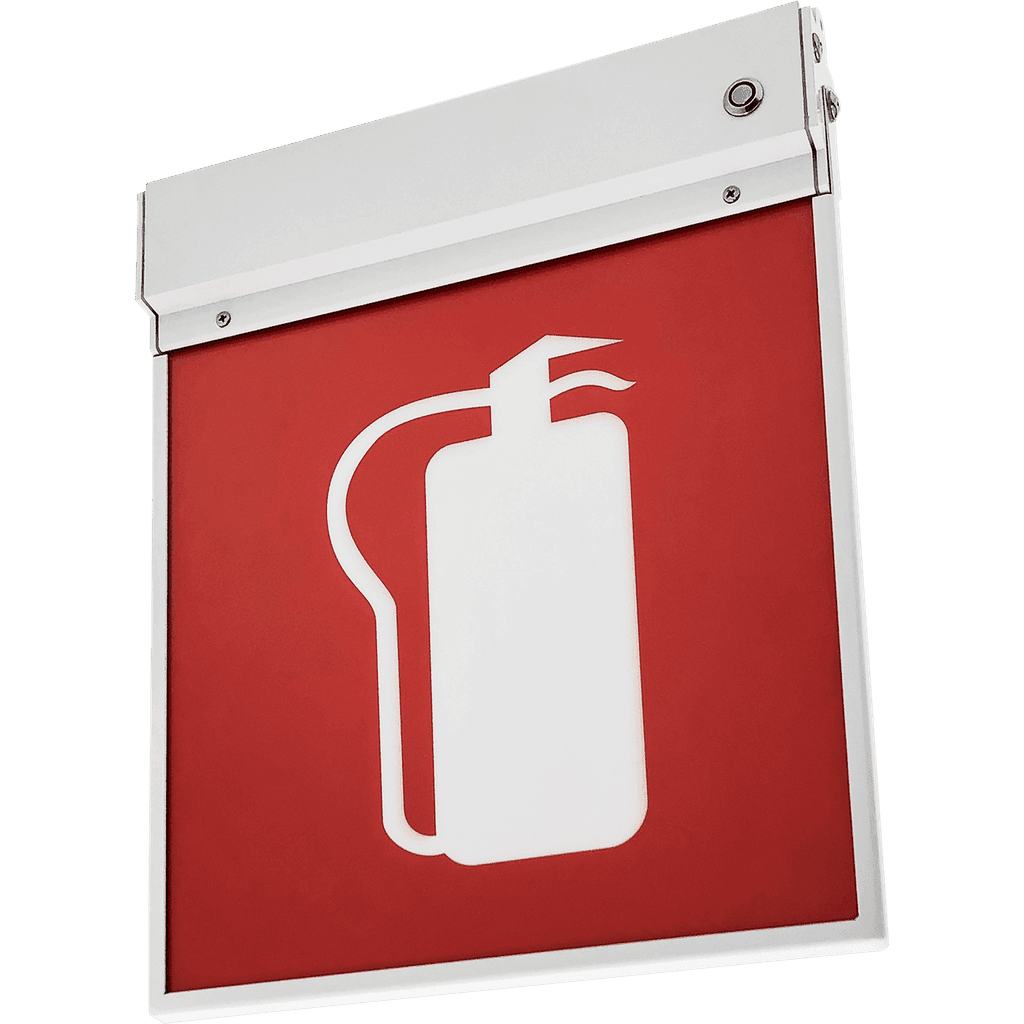

ATOM 6523-3 LED SI AT FP
ATOM 6523-3 LED SI AT FP
3 Wluminaire power
200 average luminance
code4502004230
operating time in emergency mode, hours3 h
battery / battery Ni-CdRB 3,2 V 1,5 A*h LiFePO4
type of operation / type of operation of the emergency luminaireпостоянного действия
options
свернуть все
electricalconstructionalcommonilluminatingemergency
rated supply voltage, alternating current
220 Vsupply voltage, alternating current
230 Vluminaire power
3 Welectric shock protection
IImaximum cross-section of the connected cable, sq. mm
2.5supply voltage
230 Velectrical
rated supply voltage, alternating current
220 V
supply voltage, alternating current
230 V
luminaire power
3 W
electric shock protection
II
maximum cross-section of the connected cable, sq. mm
2.5
supply voltage
230 V
constructional
ingress protection (IP)
IP65
fire safety class
П-ІІа
material
Алюминий
weight
1.6 kg
length, mm
264 mm
width, mm
35 mm
height, mm
320 mm
housing color
Белый
climatic performance
УХЛ4
shock resistance (IK)
IK02/0,2 Дж
ballast
Без драйвера
common
ETIM class
Светильник аварийный
warranty
36 month
temperature range
от 0 до +40 C
service life, hour
50 000 h
code
4502004230
illuminating
average luminance
200
flickering factor
<5%
light source type
LED
emission color
Белый
emergency
type of operation / type of operation of the emergency luminaire
постоянного действия
battery / battery Ni-Cd
RB 3,2 V 1,5 A*h LiFePO4
operating time in emergency mode, hours
3 h
model files
model files

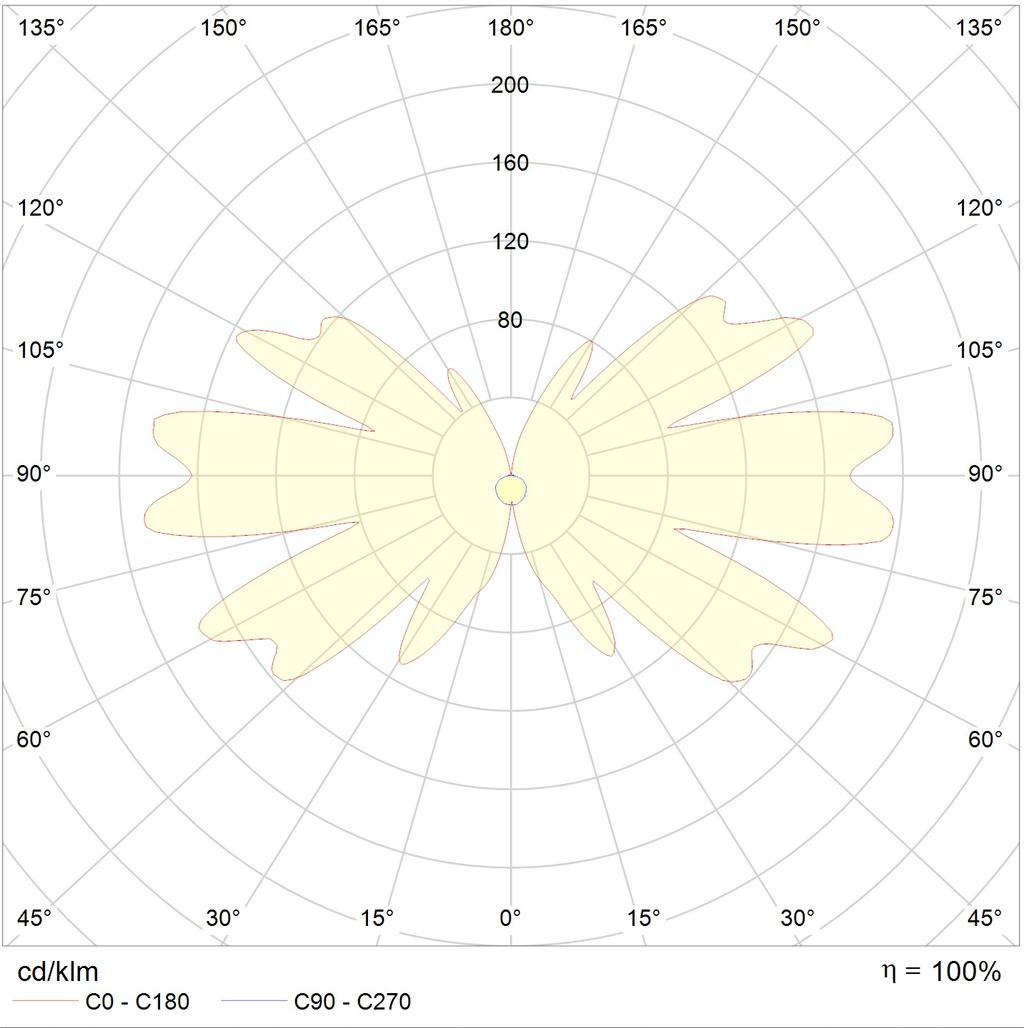

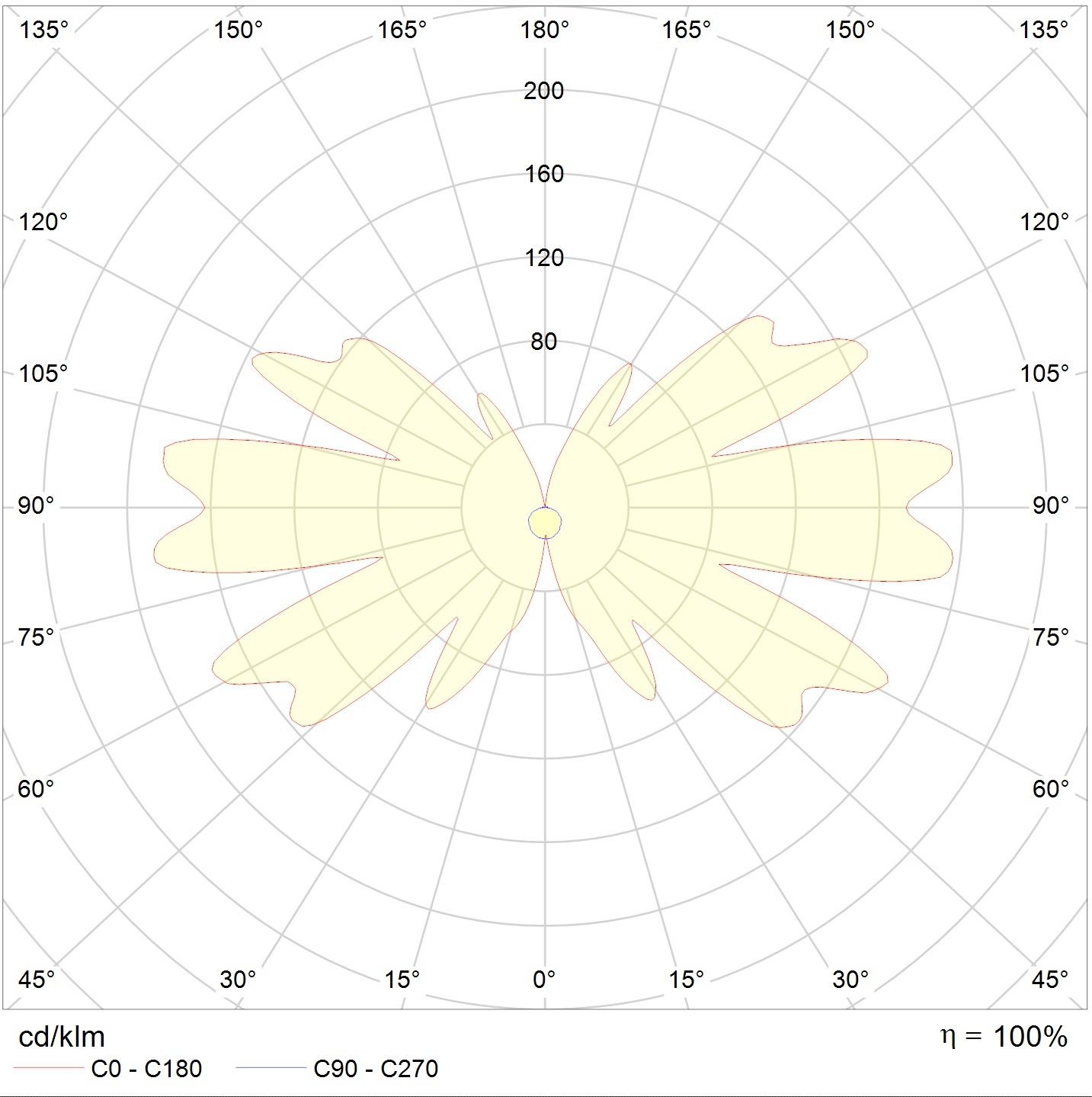

photometric files
documents
photometric files
ies263.2 kB
ldt223.3 kB
documents
passport756.6 kB
accessories
ПЭУ 001/002 Выход налево/направо (256х269) РС-M /комплект, 2шт./ ATOM SI пиктограмма0.0099kgarticle: 2502005940
ПЭУ 003 Указательная стрелка (256х269) РС-M /комплект, 2шт./ ATOM SI пиктограмма0.0099kgarticle: 2502005970
ПЭУ 004 По лестнице вниз направо(256х269) РС-M /комплект, 2шт./ ATOM SI пиктограмма0.0099kgarticle: 2502006000
