ATLAS ECO LED Ex/PL 15W D120 850 HG

ATLAS ECO LED Ex/PL 15W D120 850 HG
add to favorites
14 Wluminaire power
2200 lmlight flow
157 lm/Wenergy efficiency
code1585000410
color temperature5000 K
gas marking1 Ex db IIC T6 Gb
dust markingEx tb IIIC T80 C Db
beam angleD120
weight4.2 kg
  1. main page
  2. catalog
  3. by product type
  4. explosion-proof equipment
  5. explosion-proof lamps
  6. zone 1
  7. ATLAS ECO LED Ex
  8. ATLAS ECO LED Ex/PL 15W D120 850 HG
options
свернуть все
illuminatingelectricalconstructionalexplosion-proofcommon
Synchronization of flashing mode
Нет
color rendition index (CRI)
>80
light flow
2200 lm
energy efficiency
157 lm/W
flickering factor
<1%
beam angle
D120
color temperature
5000 K
light source type
LED
emission color
Белый
illuminating
Synchronization of flashing mode
Нет
color rendition index (CRI)
>80
light flow
2200 lm
energy efficiency
157 lm/W
flickering factor
<1%
beam angle
D120
color temperature
5000 K
light source type
LED
emission color
Белый
electrical
electric shock protection
I
supply voltage, direct current
127-300 V
supply voltage, alternating current
90-305 V
maximum cross-section of the connected cable
2.5 mm2
luminaire power
14 W
power factor
> 0,95

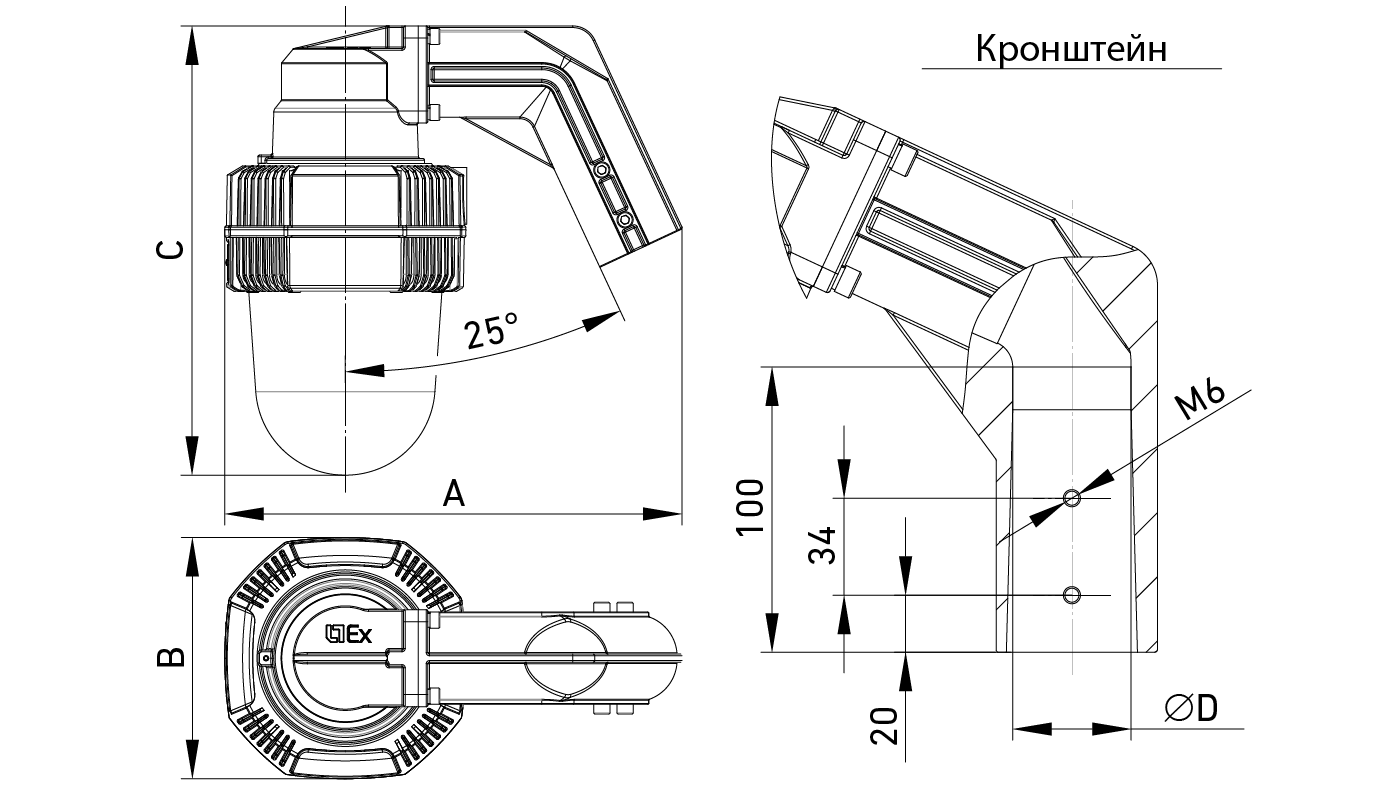

constructional
weight
4.2 kg
length
283 mm
width
150 mm
height
278 mm
installation length
42 mm
installation width
90 mm
material
Сплав алюминиевый
fire safety class
П-ІІа
climatic performance
УХЛ1*
shock resistance (IK)
IK08/7 Дж
housing color
Серый
explosion-proof
gas marking
1 Ex db IIC T6 Gb
dust marking
Ex tb IIIC T80 C Db
gas explosion-proof (type)
Ex db
gas explosion-proof (zones)
1
gas explosion-proof (groups of equipment)
IIC
T6 - temperature class
T6
common
code
1585000410
warranty
36 month
temperature range
от -60 до +60 C
energy efficiency class
A++
service life
50 000 h
ETIM class
Светильник взрывобезопасный/взрывозащищенный стационарный (фиксиров. установки)
model files
model files
photometric files
ies28 kB
jpg134.6 kB
ldt19.7 kB
сертификаты
Russian origin243.9 kB
Certificate of Russian maritime register of shipping1.5 mB
Certificate of conformity TRTS 012/2011412.2 kB
Declaration of Conformity TRTS 020/2011201.4 kB
Certificate of seismic resistance834.7 kB
Declaration of Conformity EAEU TR 037/2016197.5 kB
photometric files
ies28 kB
jpg134.6 kB
ldt19.7 kB
сертификаты
Russian origin243.9 kB
Certificate of Russian maritime register of shipping1.5 mB
Certificate of conformity TRTS 012/2011412.2 kB
Declaration of Conformity TRTS 020/2011201.4 kB
Certificate of seismic resistance834.7 kB
Declaration of Conformity EAEU TR 037/2016197.5 kB
accessories
Муфта переходная М25(П)/М20(М) LT-B-RA2M1MBN 0.1kgarticle: 2327017820color: Неокрашенный
Ввод кабельный взрывозащищенный М20х1,5 DSA1SMXS0.15kgarticle: 2327010140color: Неокрашенныйø cable internal: 6,5-10,5ø cable external: 9,0-16,0
