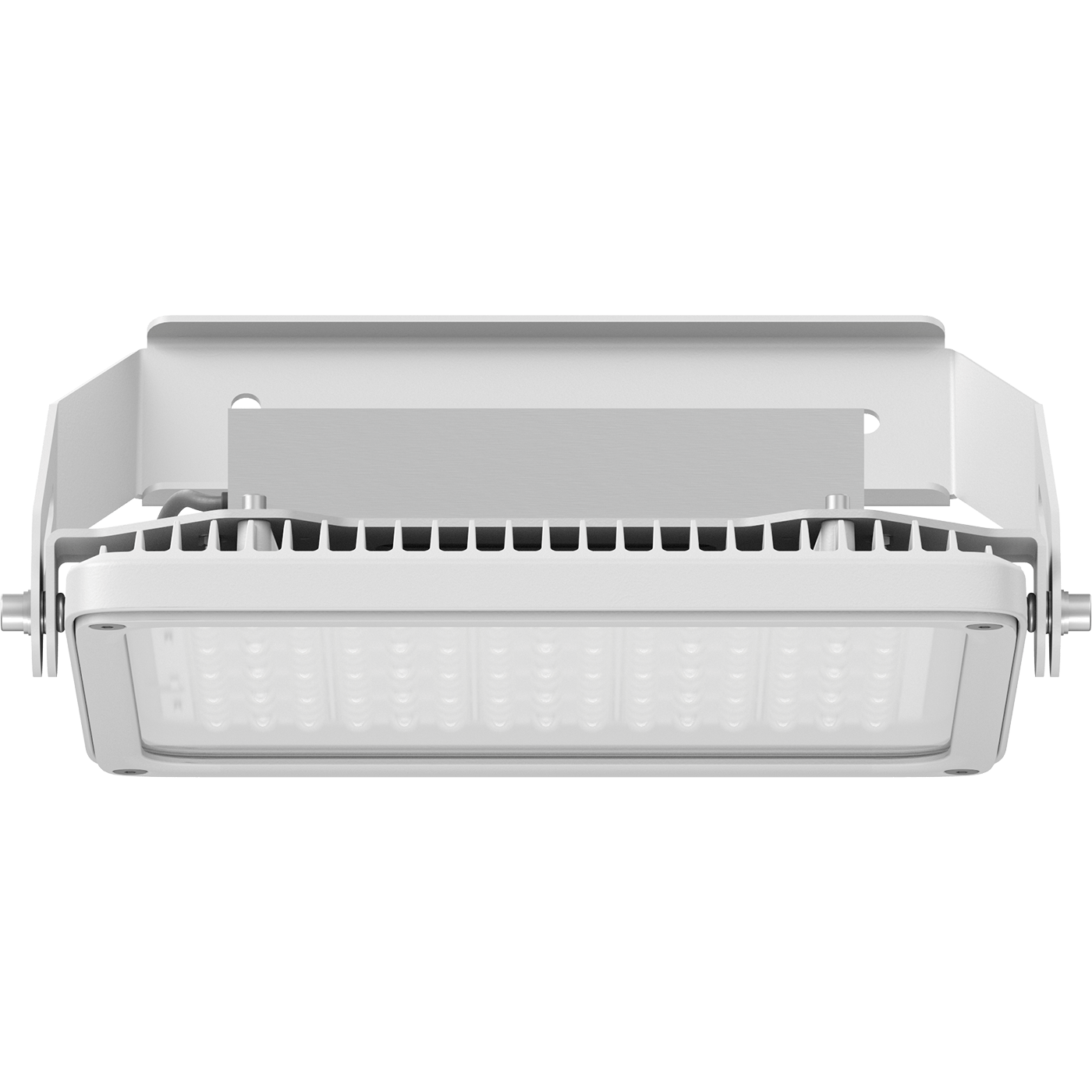

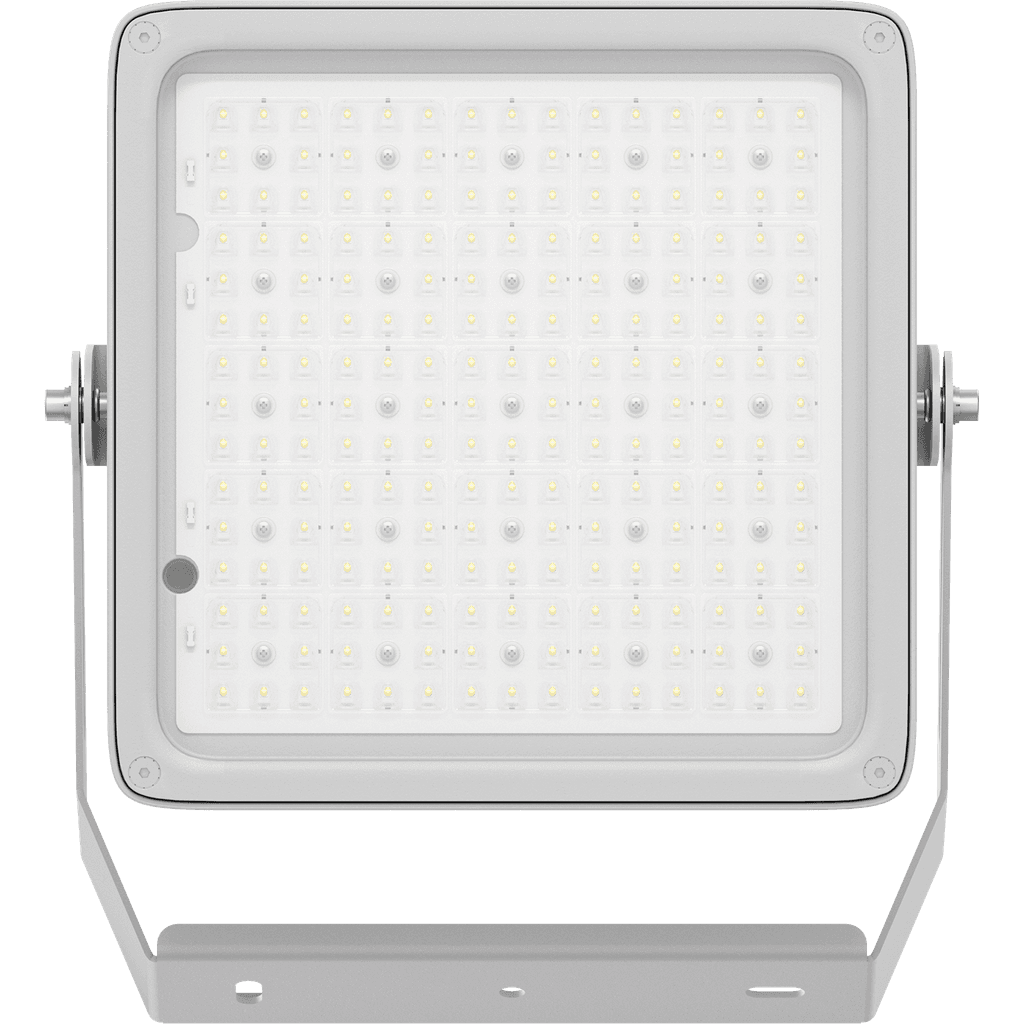

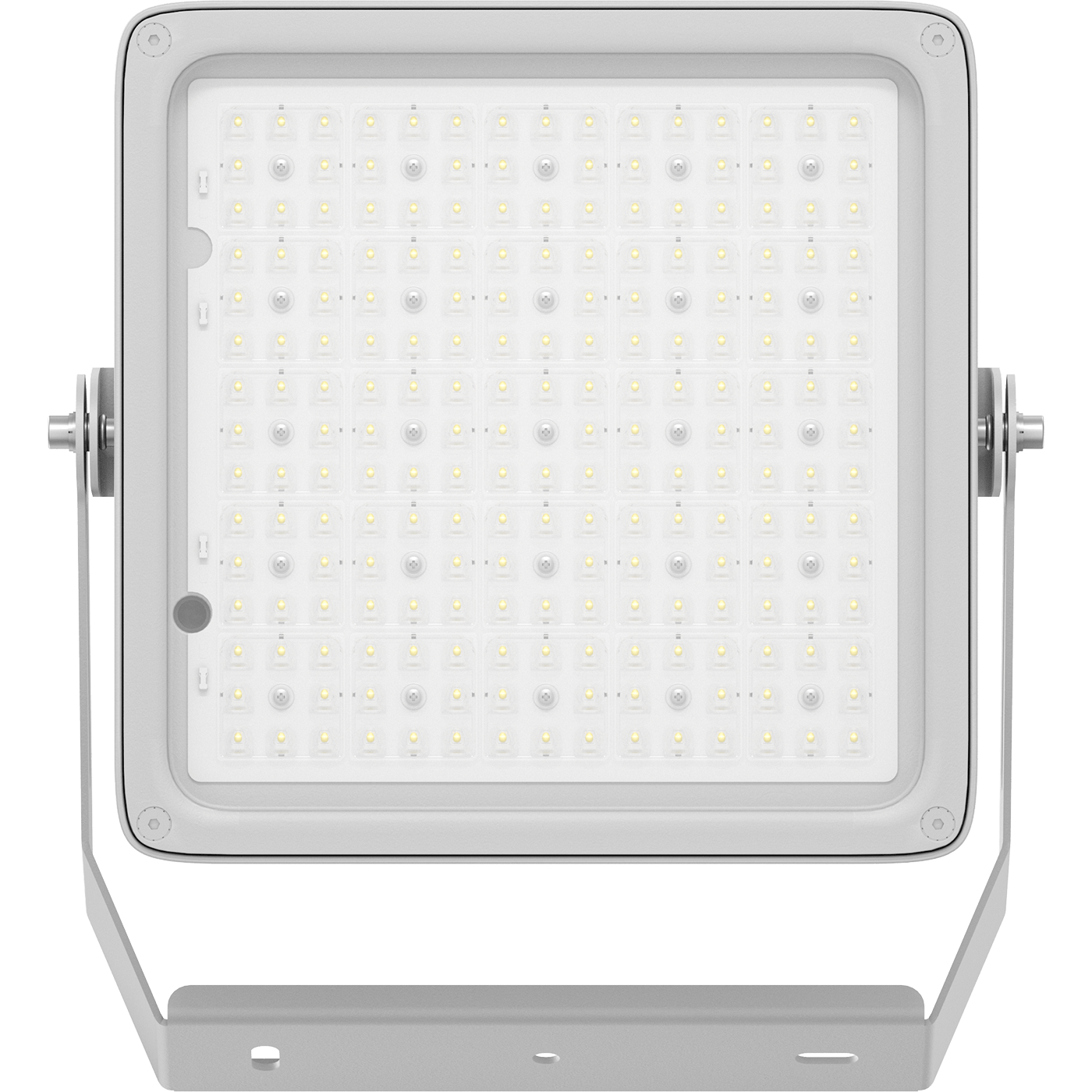

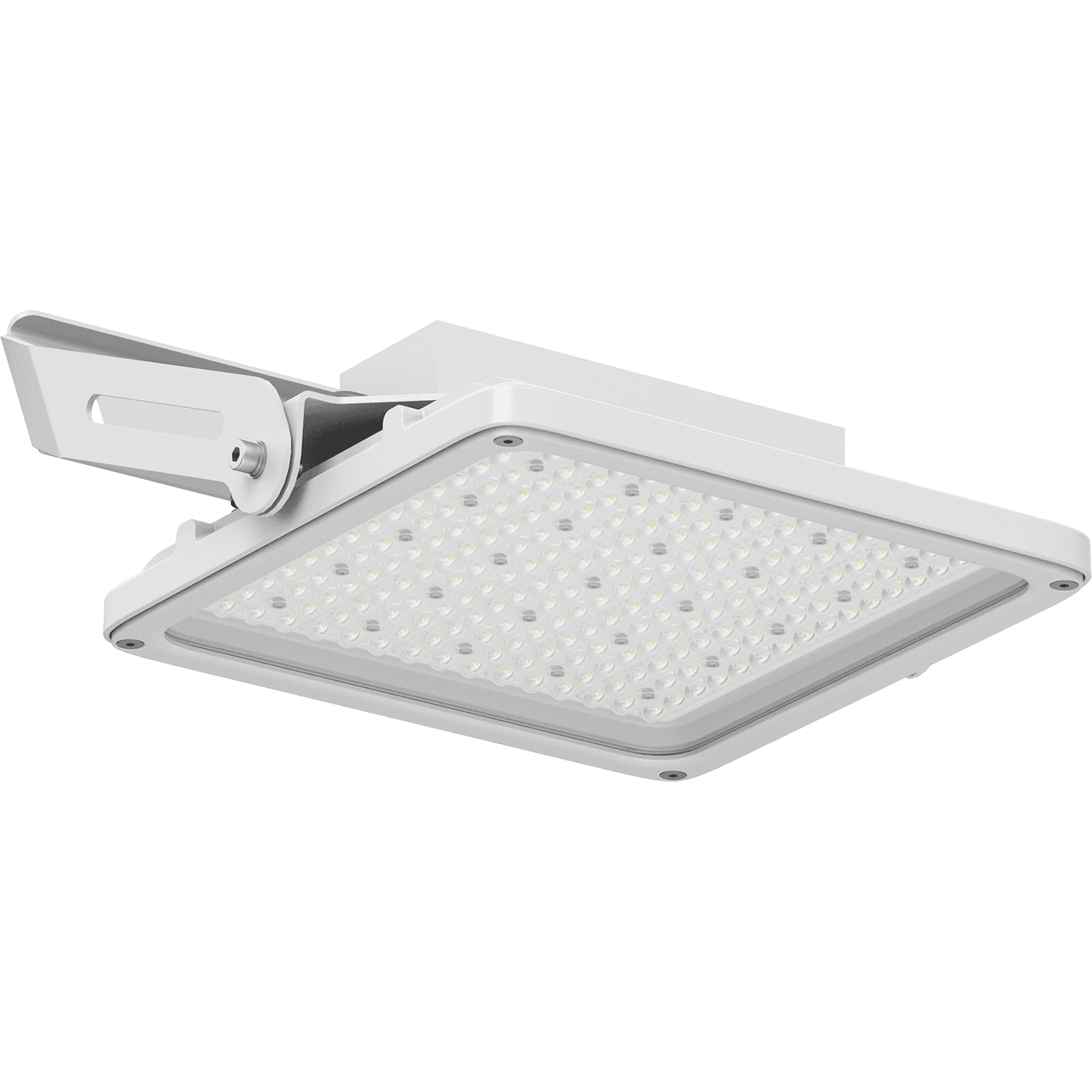

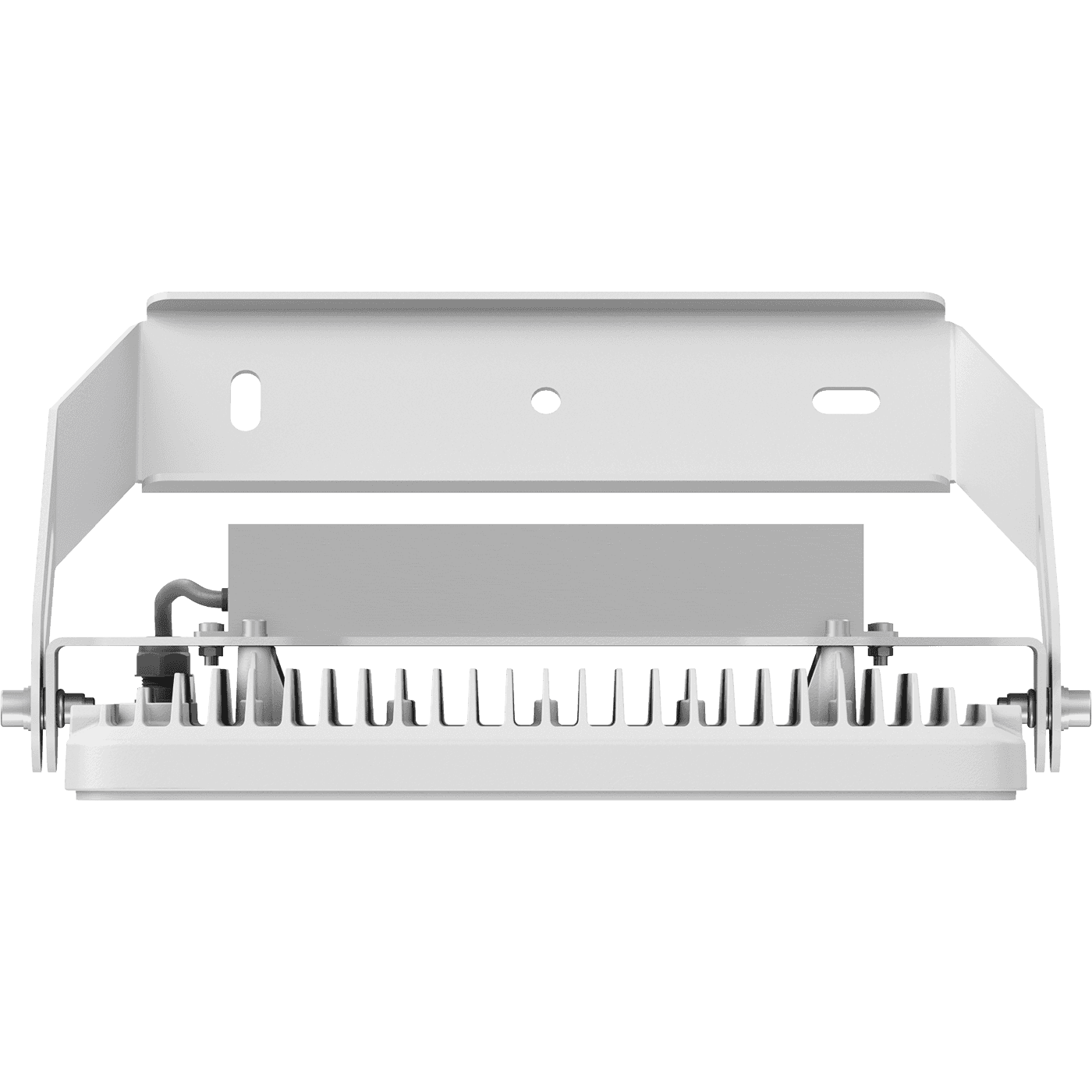

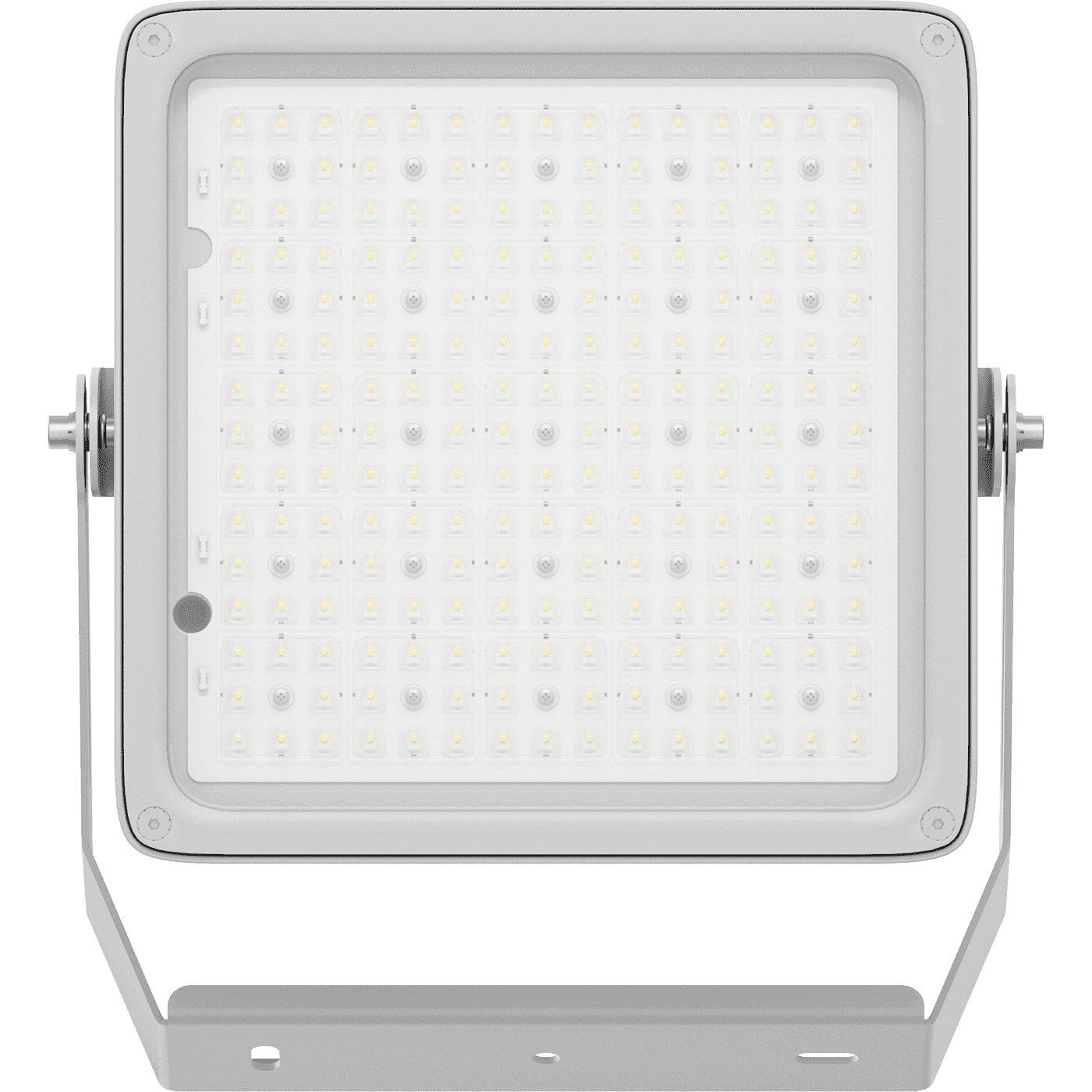

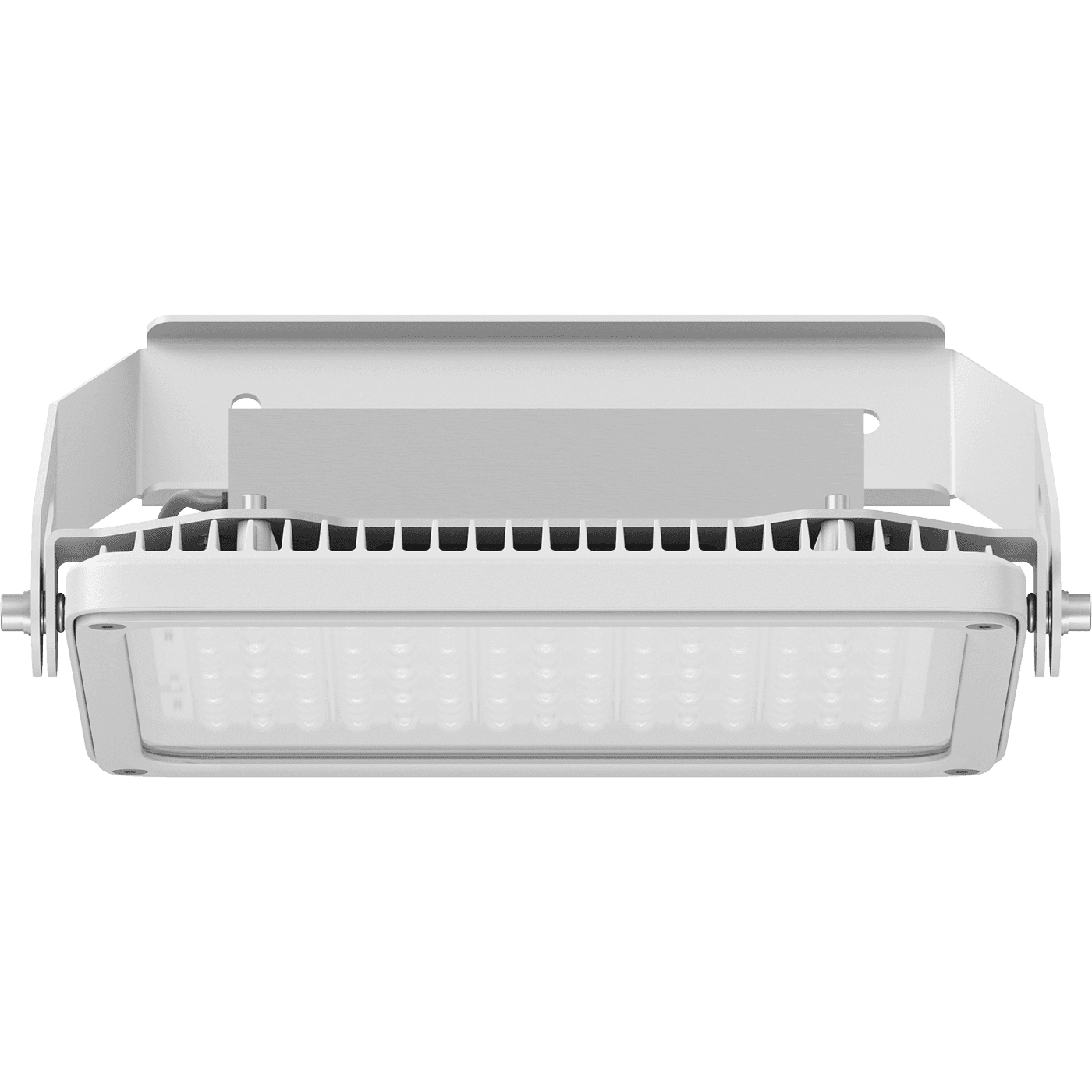

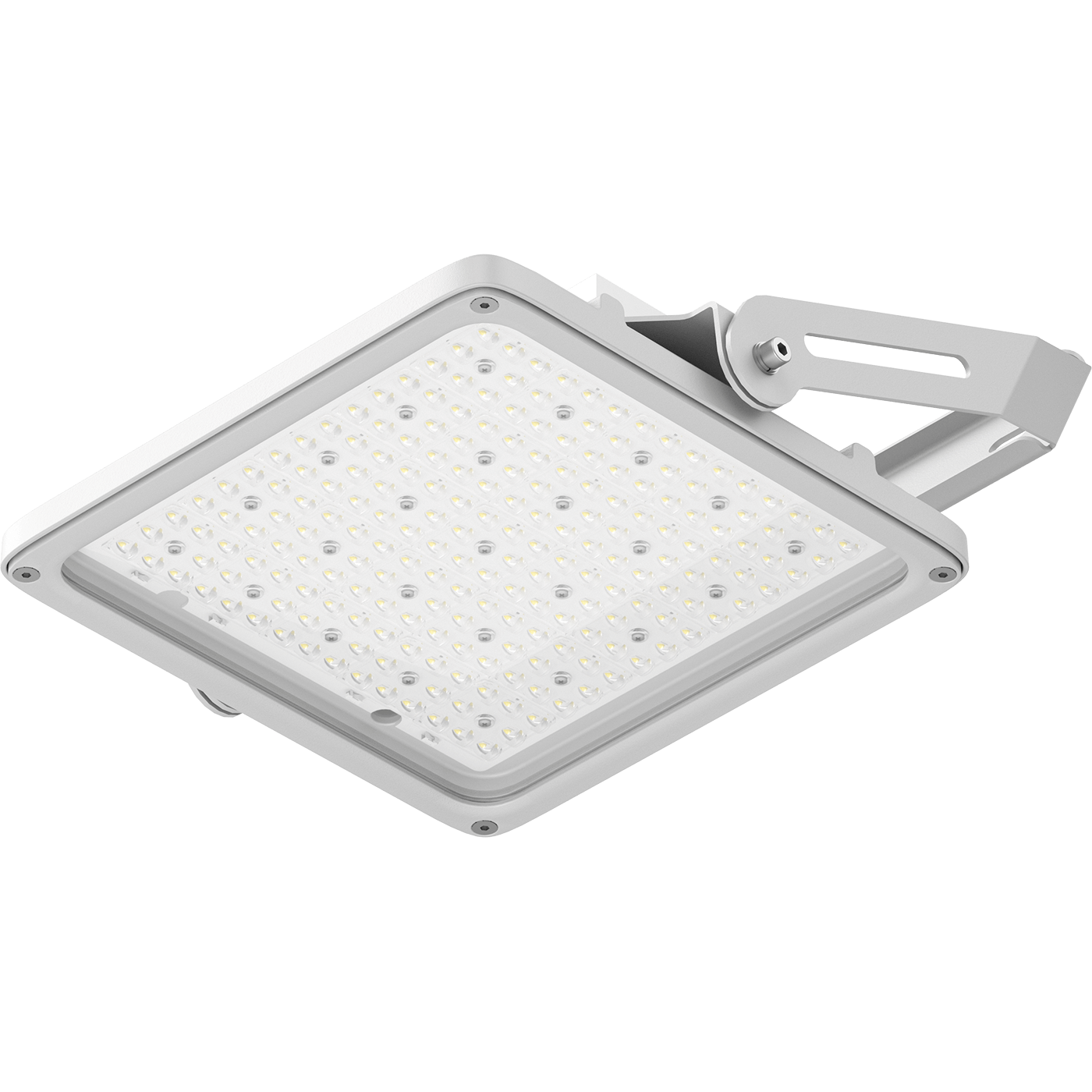

ATHLET 70W D120 840 WH SBL
ATHLET 70W D120 840 WH SBL
76 Wluminaire power
11600 lmlight flow
153 lm/Wenergy efficiency
code1875002370
beam angleD120
color temperature4000
weight8 kg
options
свернуть все
electricalconstructionalcommonilluminating
starting current
50 Astarting current pulse time, µs
300 mksrated supply voltage, alternating current
230 Vrated supply voltage, direct current
230 Vsupply voltage, alternating current
100-305 Vsupply voltage, direct current
142-431 Vluminaire power
76 Welectric shock protection
Ipower factor
> 0,96supply voltage
230 Velectrical
starting current
50 A
starting current pulse time, µs
300 mks
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
supply voltage, alternating current
100-305 V
supply voltage, direct current
142-431 V
luminaire power
76 W
electric shock protection
I
power factor
> 0,96
supply voltage
230 V
constructional
ingress protection (IP)
IP66
fire safety class
П-I,II,IIa,ІІІ
material
Алюминий
weight
8 kg
length, mm
385 mm
width, mm
410 mm
height, mm
215 mm
housing color
Белый
climatic performance
УХЛ1*
maximum cross-section of the connected cable, sq. mm
2.5
shock resistance (IK)
IK07/2 Дж
installation length, mm
220 mm
lamp socket
LED
number of lamps
1
ballast
Драйвер
common
code
1875002370
ETIM class
Прожектор / Светильник направленного света
warranty
60 month
temperature range
от -40 до +60 C
energy efficiency class
A++
service life, hour
100 000 h
illuminating
energy efficiency
153 lm/W
color rendition index (CRI)
>80
light flow
11600 lm
flickering factor
<2%
beam angle
D120
color temperature
4000
light source type
LED
emission color
Белый
model files
model files

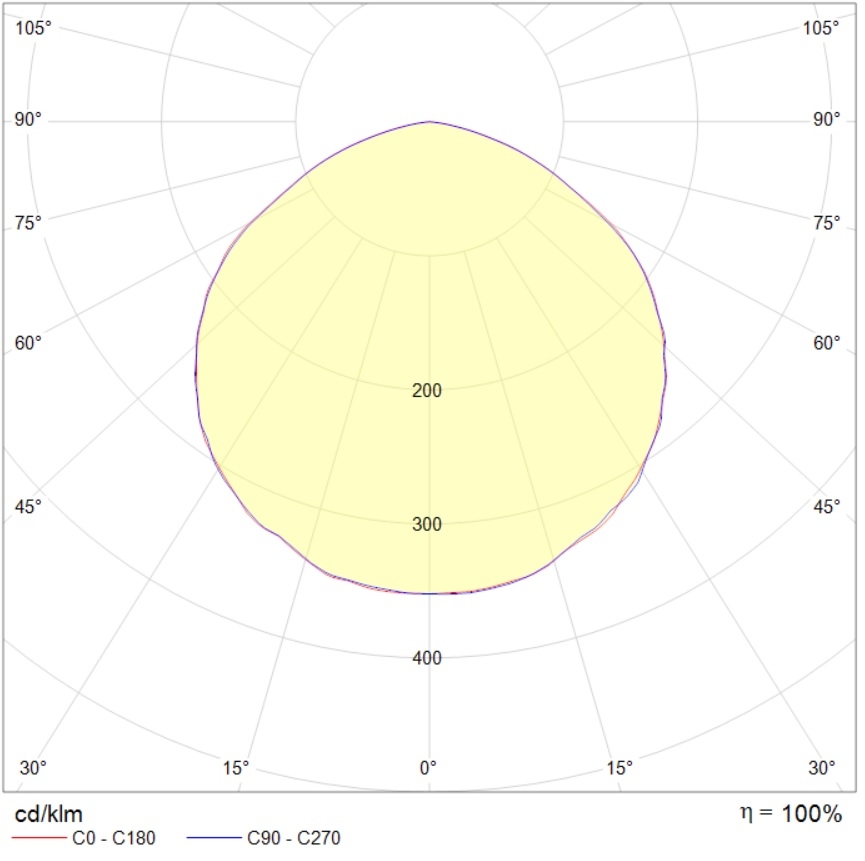

photometric files
сертификаты
media
photometric files
ies107 kB
jpg76.5 kB
ldt72 kB
сертификаты
Russian origin279.6 kB
Certificate of conformity TRTS 020/2011, TRTS 004/20111.2 mB
Declaration of Conformity EAEU TR 037/2016505.1 kB
media
brochure4.9 mB
