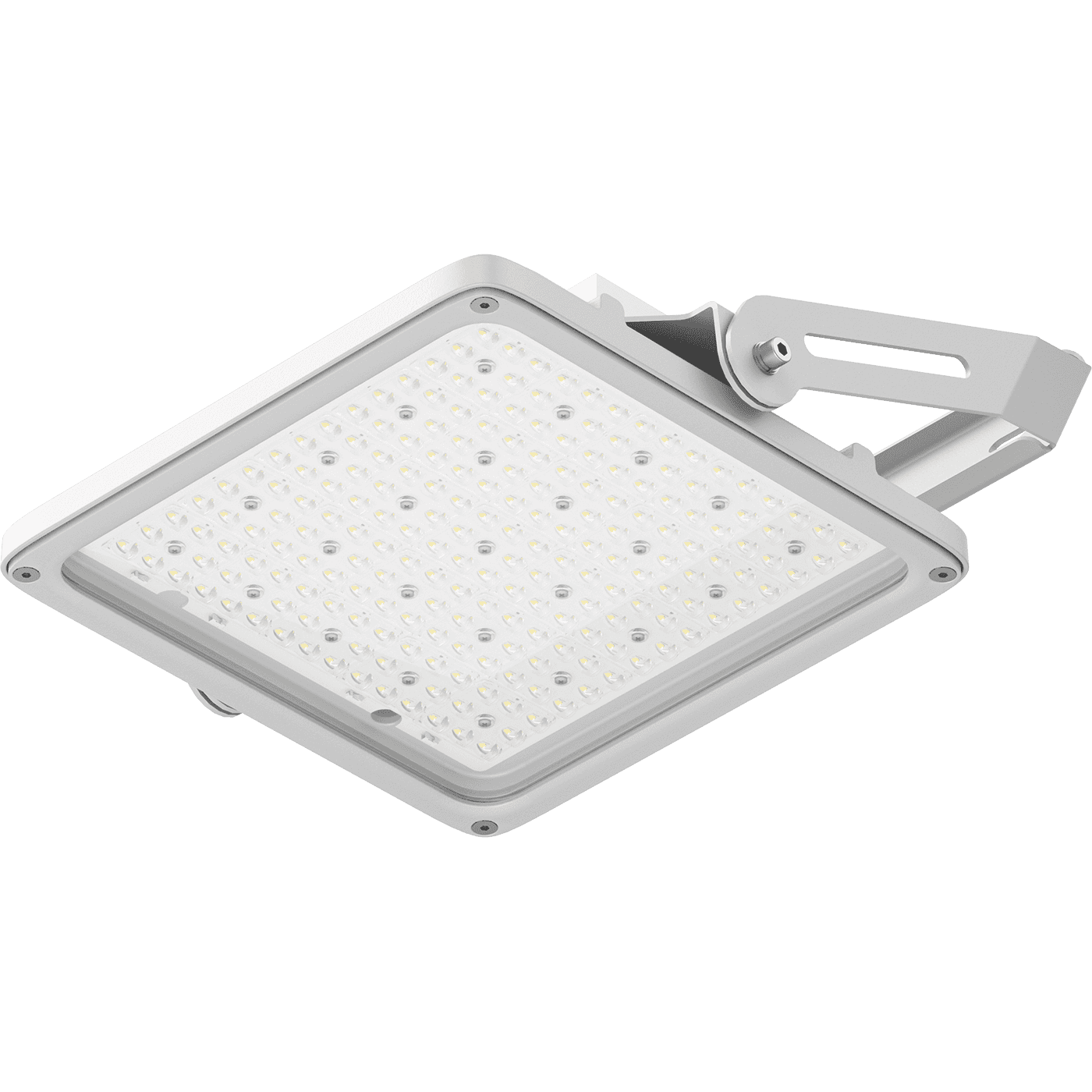

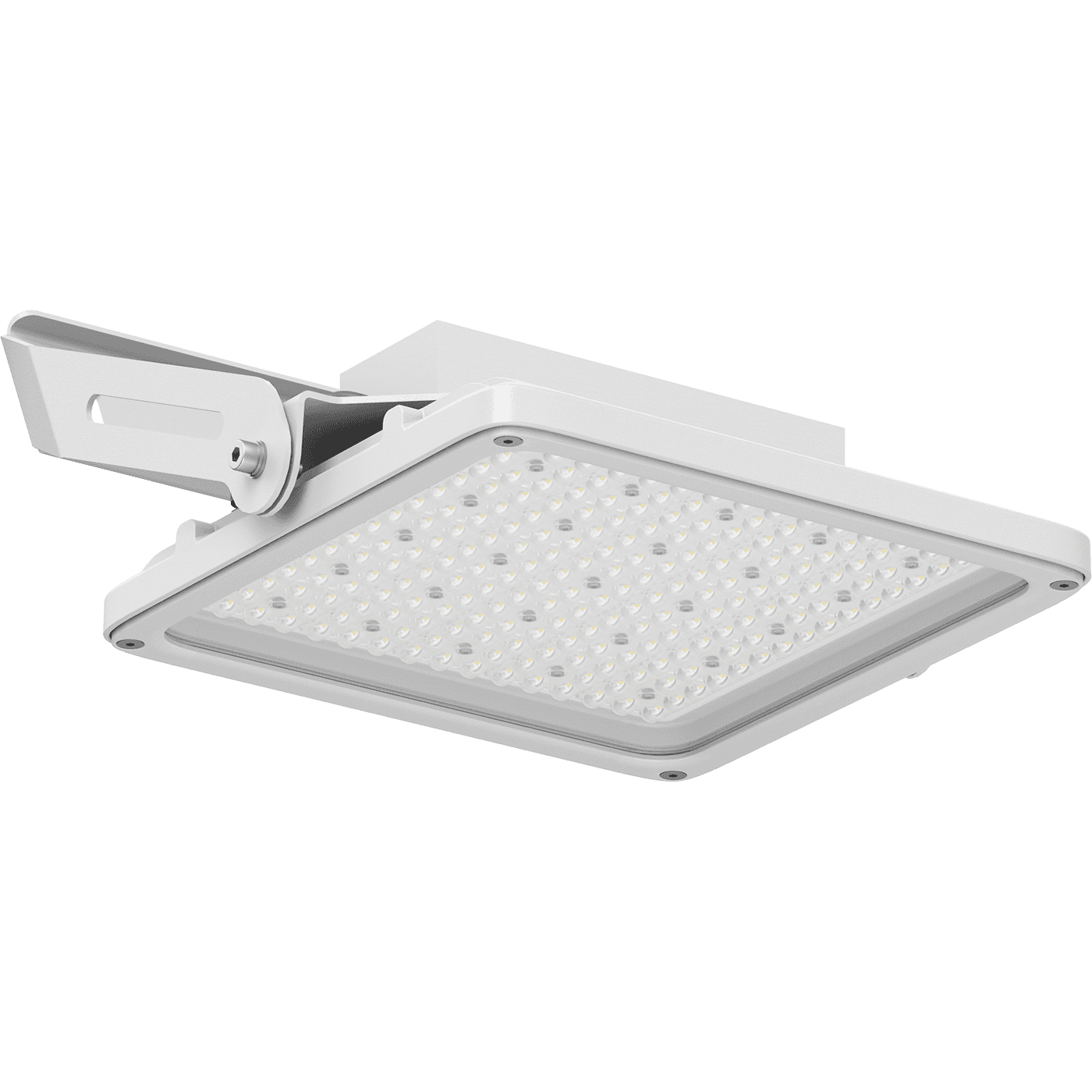

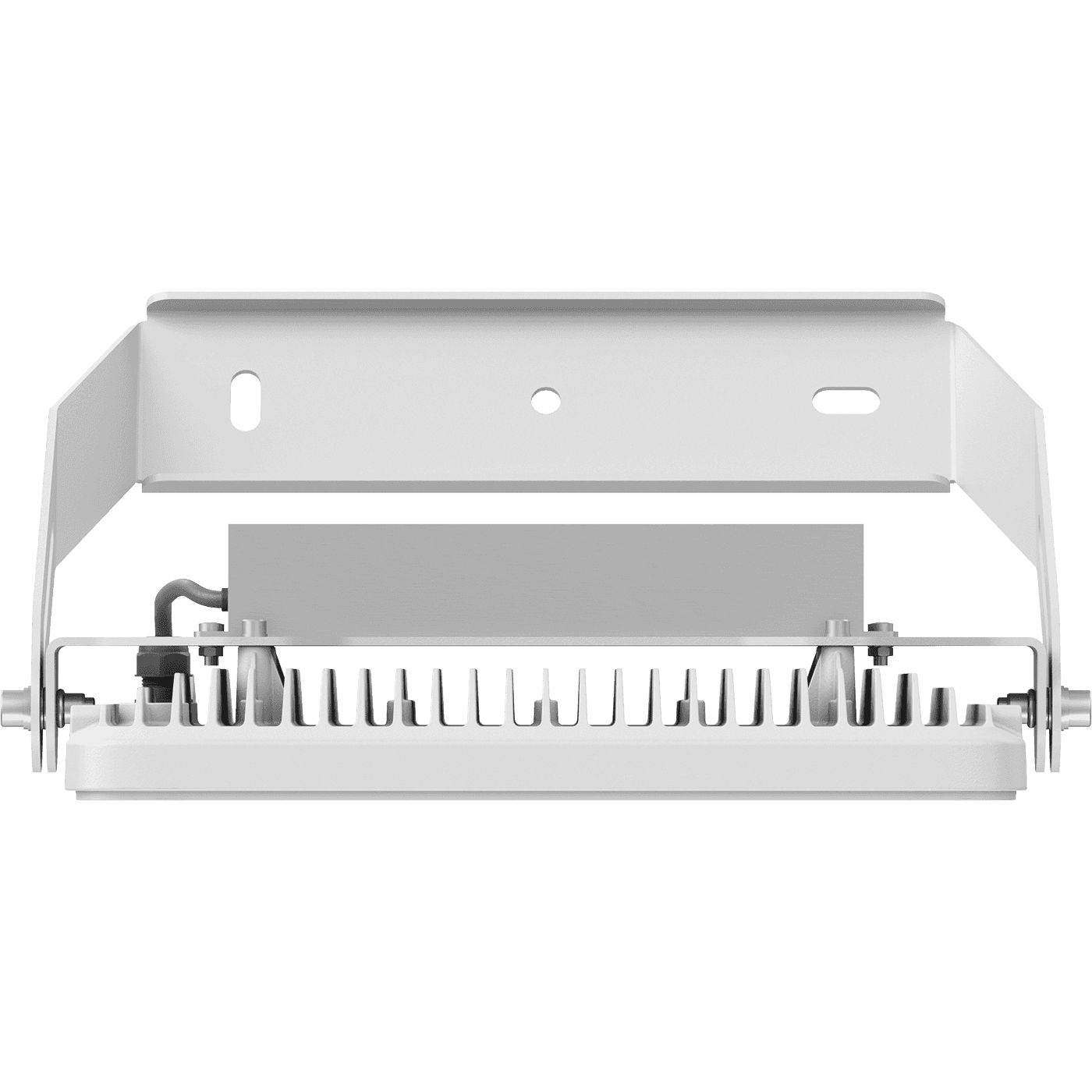

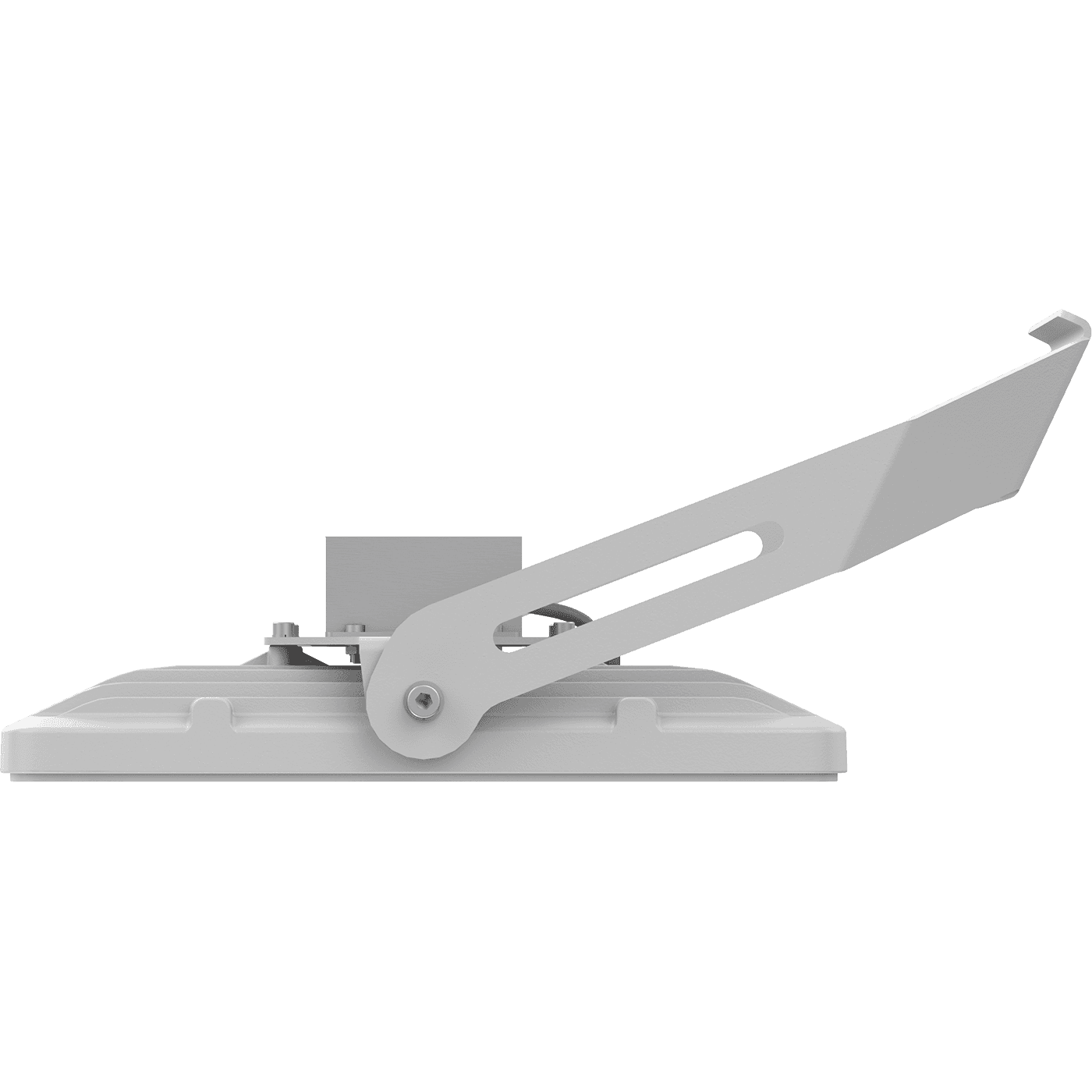

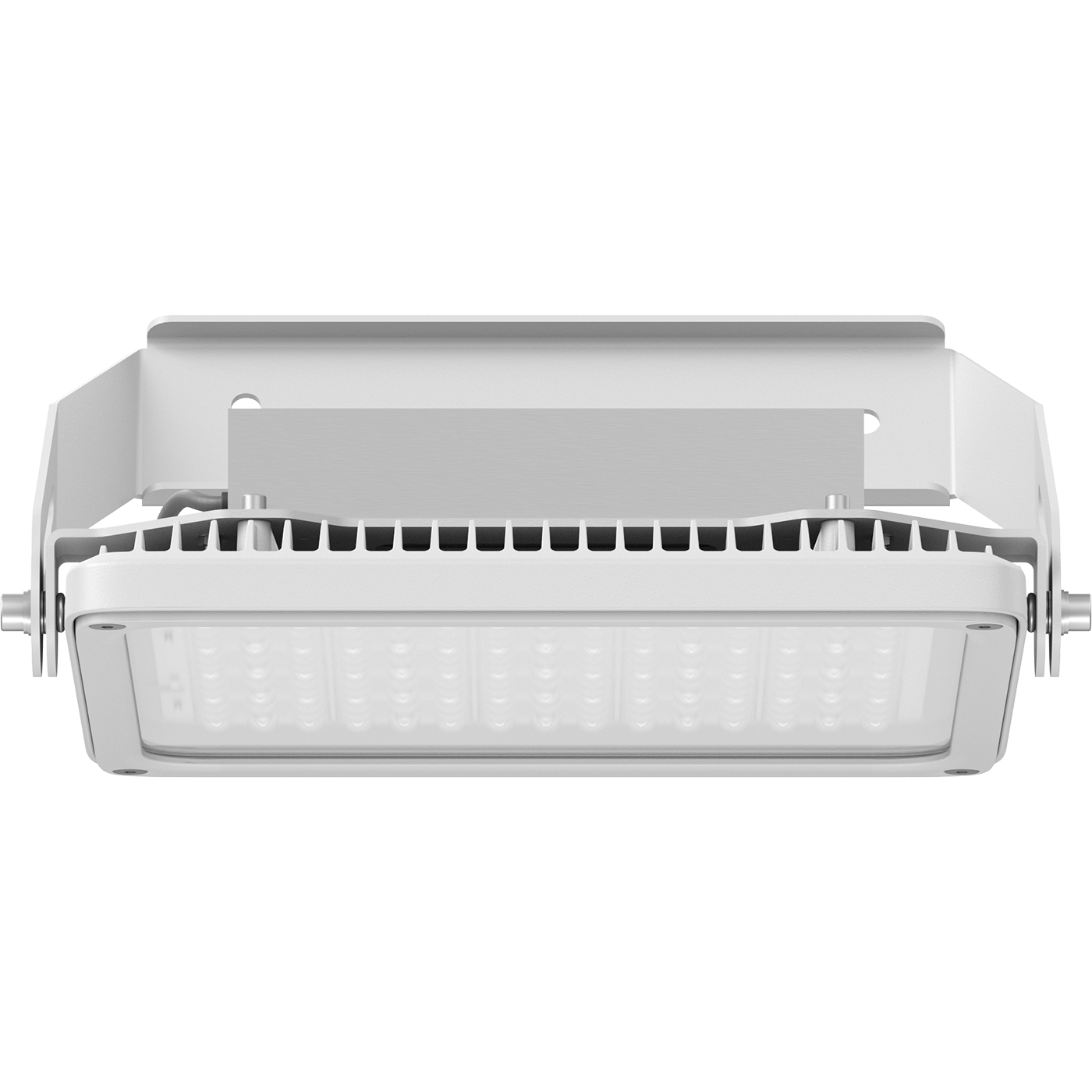

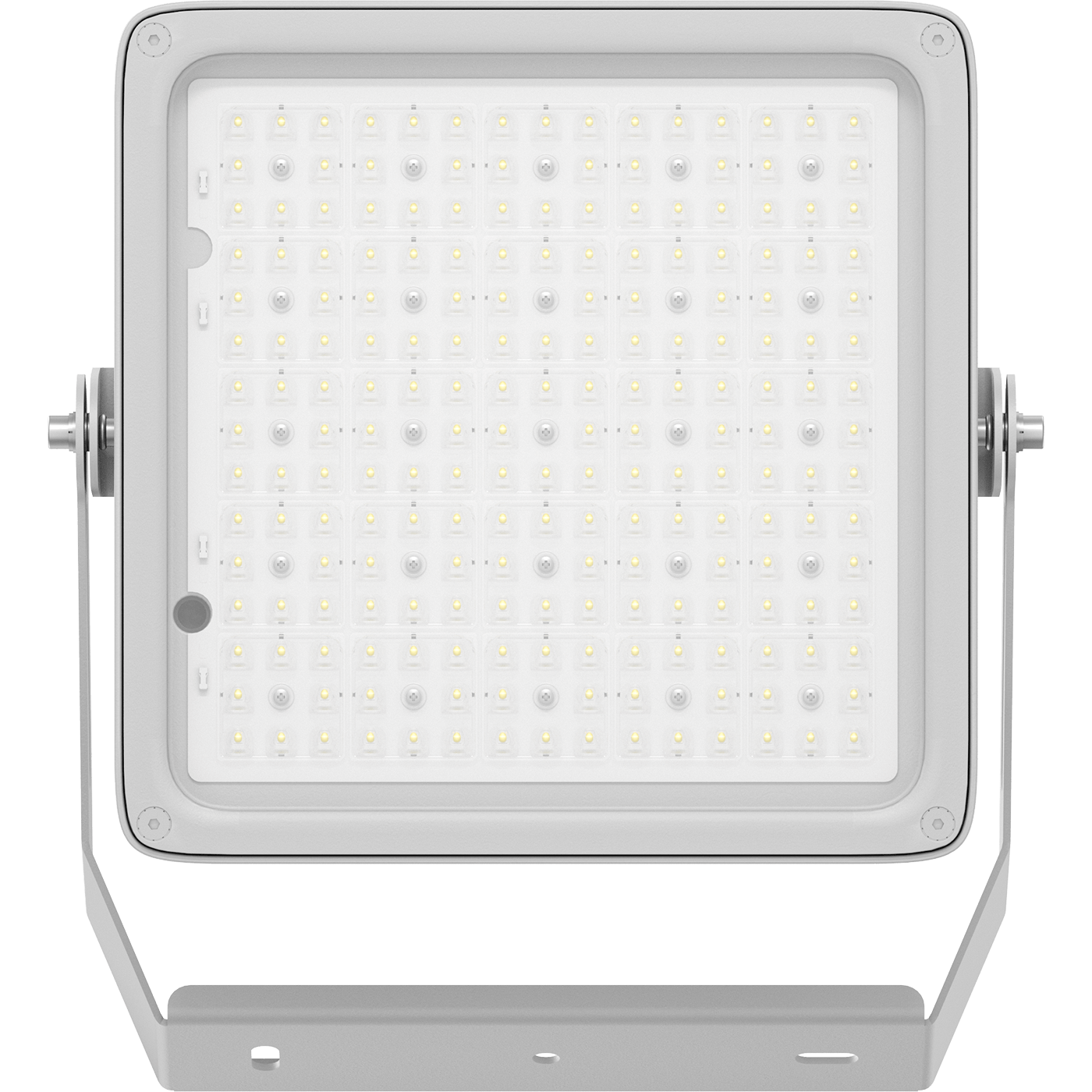

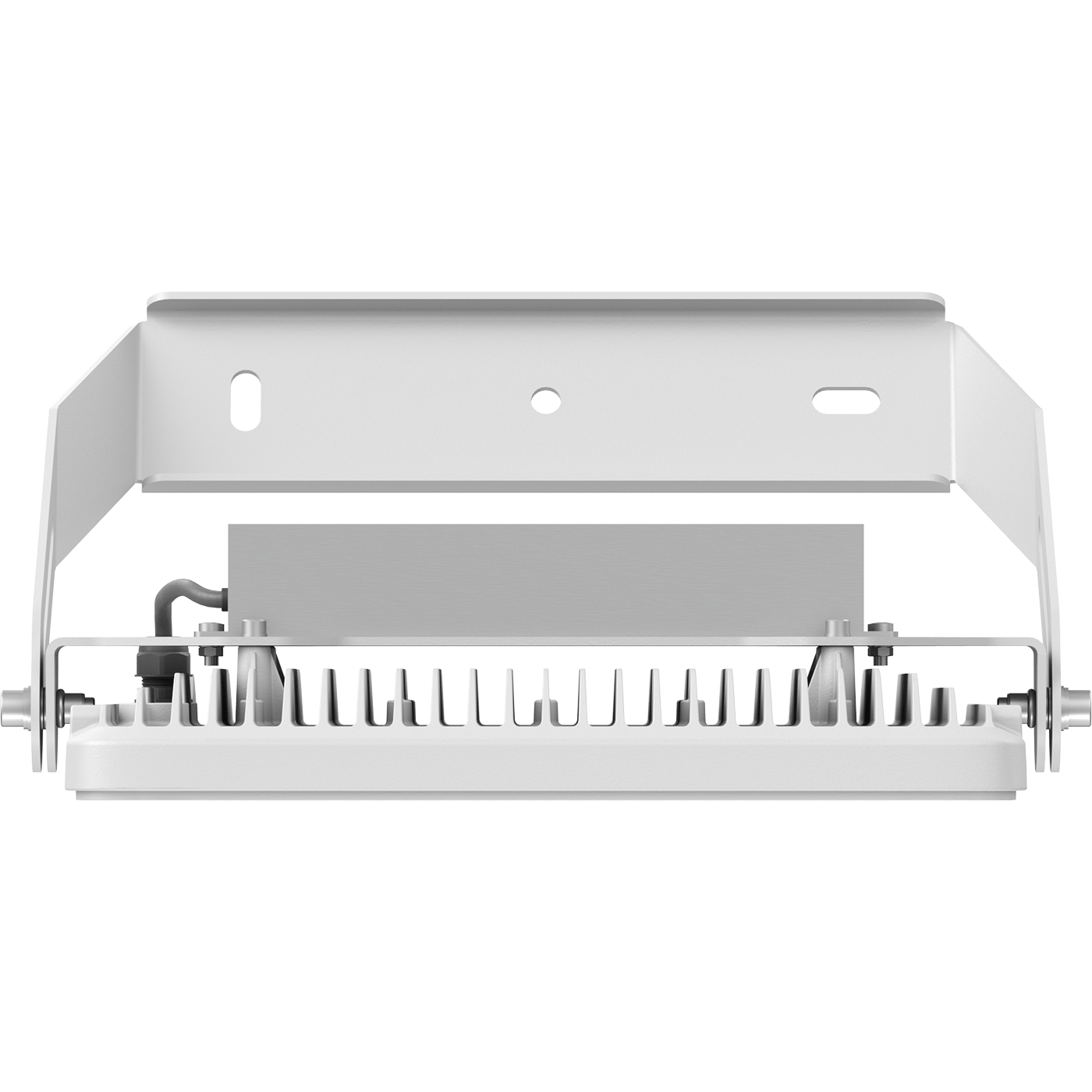

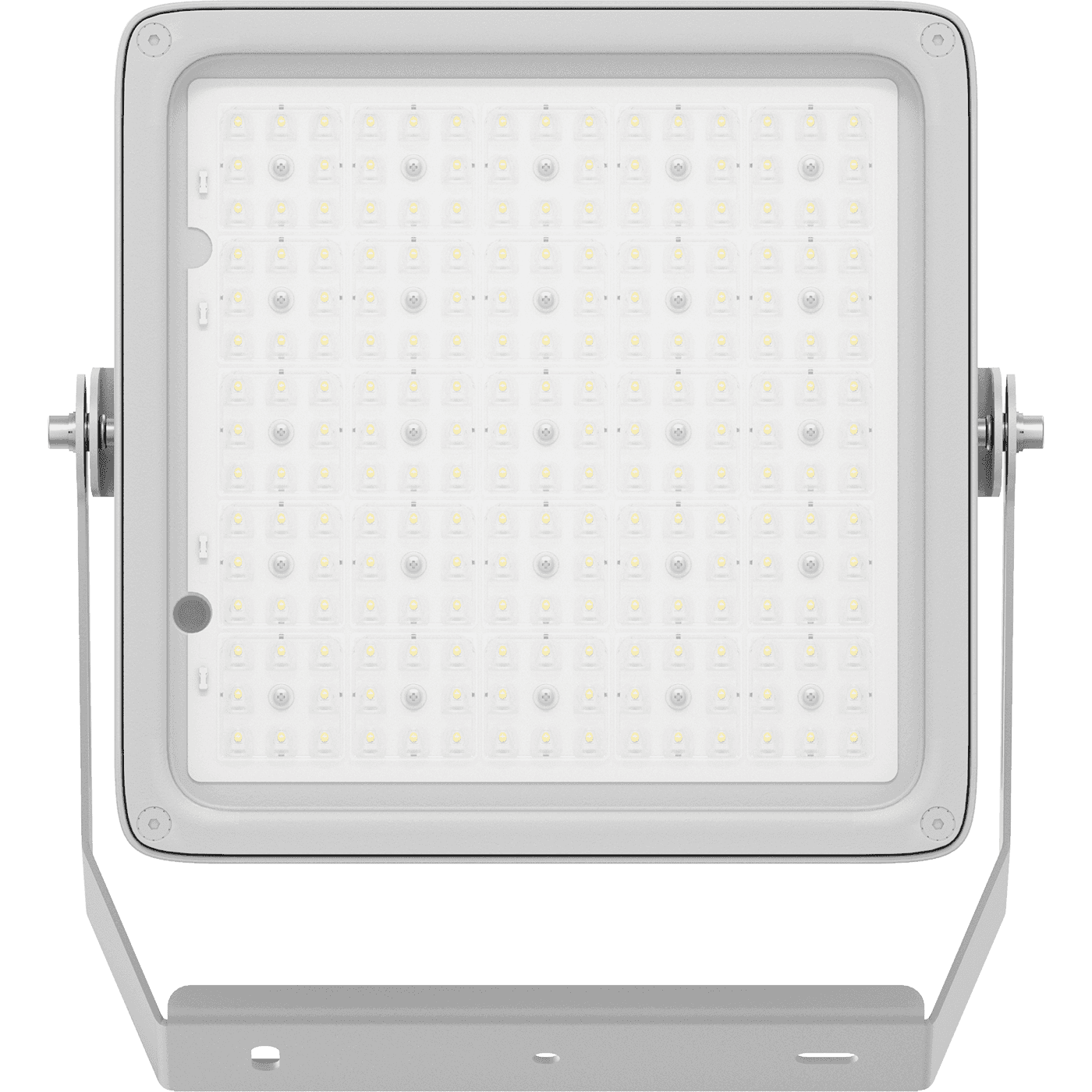

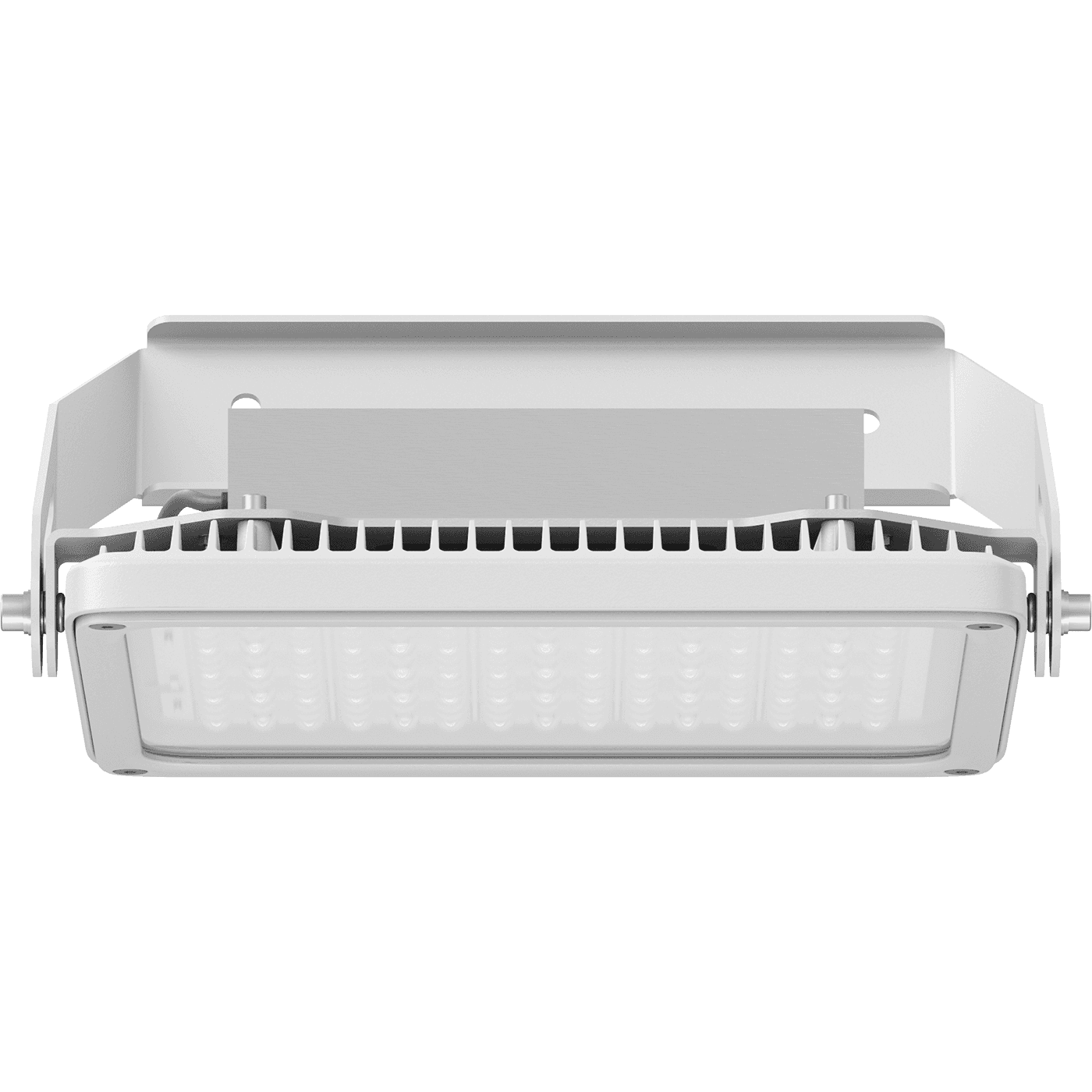

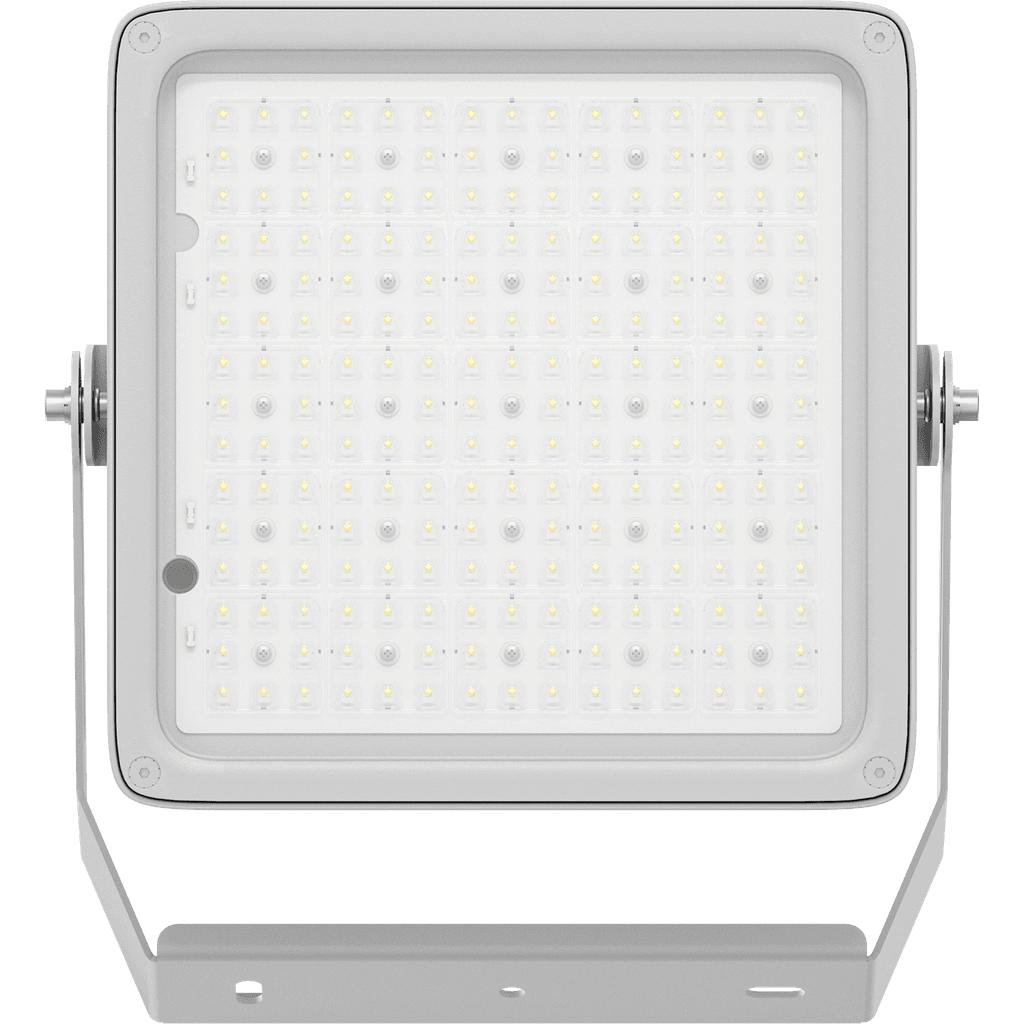

ATHLET 260W D90 840 WH SBL
ATHLET 260W D90 840 WH SBL
270 Wluminaire power
39000 lmlight flow
144 lm/Wenergy efficiency
code1875000270

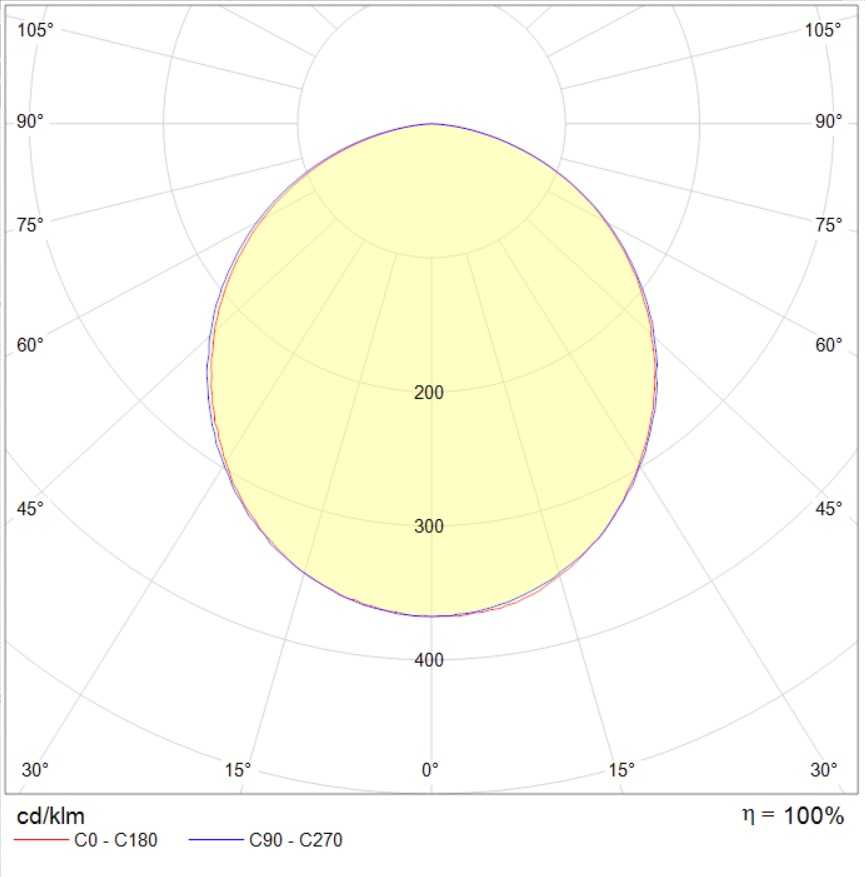

beam angleD90
color temperature4000 K
weight8 kg
options
свернуть все
illuminatingelectricalconstructionalcommon
energy efficiency
144 lm/Wcolor rendition index (CRI)
>80light flow
39000 lmflickering factor
<5%beam angle
D90color temperature
4000 Klight source type
LEDemission color
Белыйilluminating
energy efficiency
144 lm/W
color rendition index (CRI)
>80
light flow
39000 lm
flickering factor
<5%
beam angle
D90
color temperature
4000 K
light source type
LED
emission color
Белый
electrical
luminaire power
270 W
electric shock protection
I
starting current pulse time
400 µs
rated supply voltage, alternating current
230 V
supply voltage
230 V
starting current
100 A
maximum cross-section of the connected cable
2.5 mm2
supply voltage, direct current
128-431 V
supply voltage, alternating current
90-305 V
power factor
> 0,96
constructional
climatic performance
УХЛ1*
fire safety class
П-I,II,IIa,ІІІ
width
410 mm
height
215 mm
installation length
220 mm
housing color
Белый
lamp socket
LED
number of lamps
1
ballast
Драйвер
length
385 mm
material
Алюминий
ingress protection (IP)
IP66
shock resistance (IK)
IK07/2 Дж
weight
8 kg
common
code
1875000270
warranty
60 month
energy efficiency class
A++
temperature range
от -40 до +40 C
service life
50 000 h
ETIM class
Прожектор / Светильник направленного света
