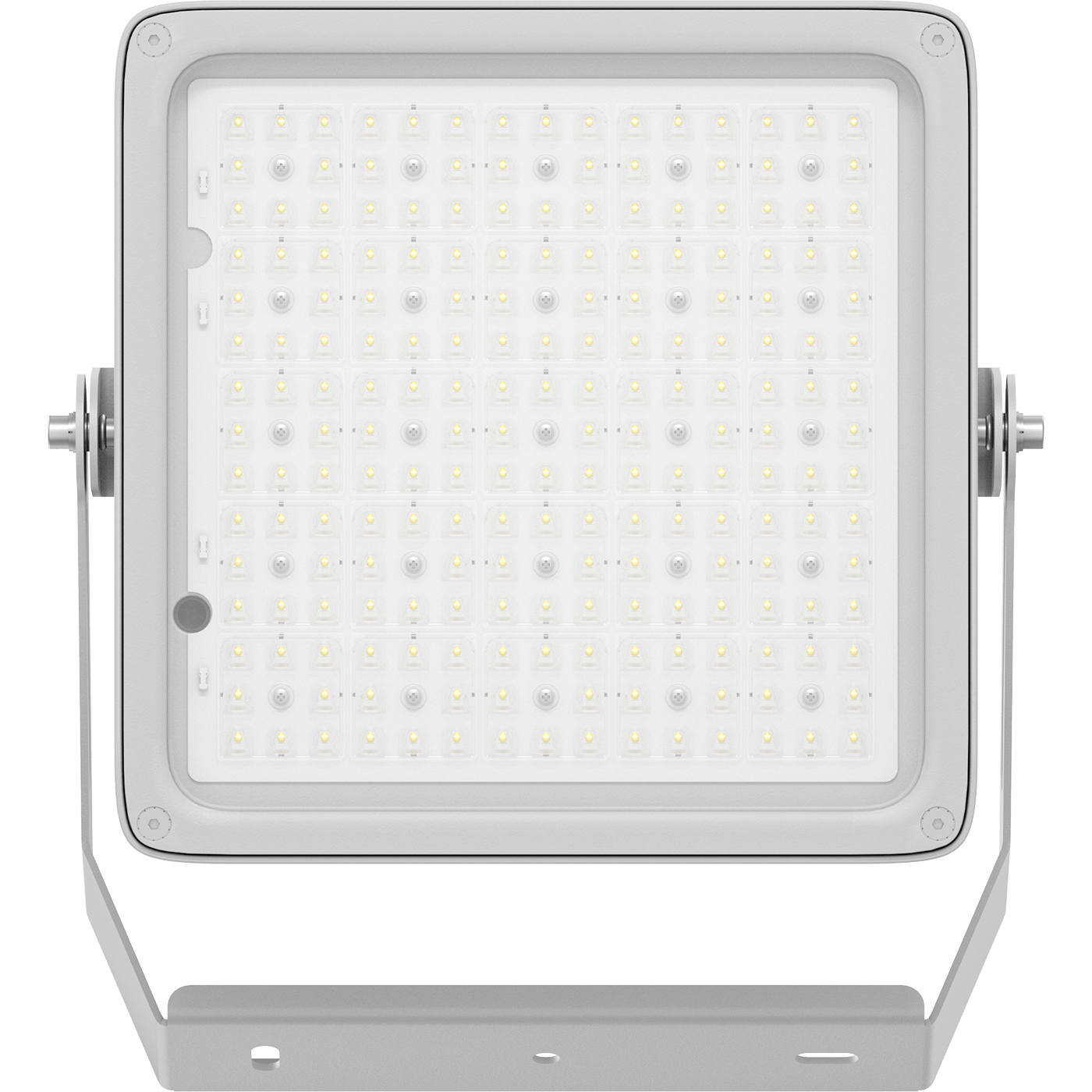

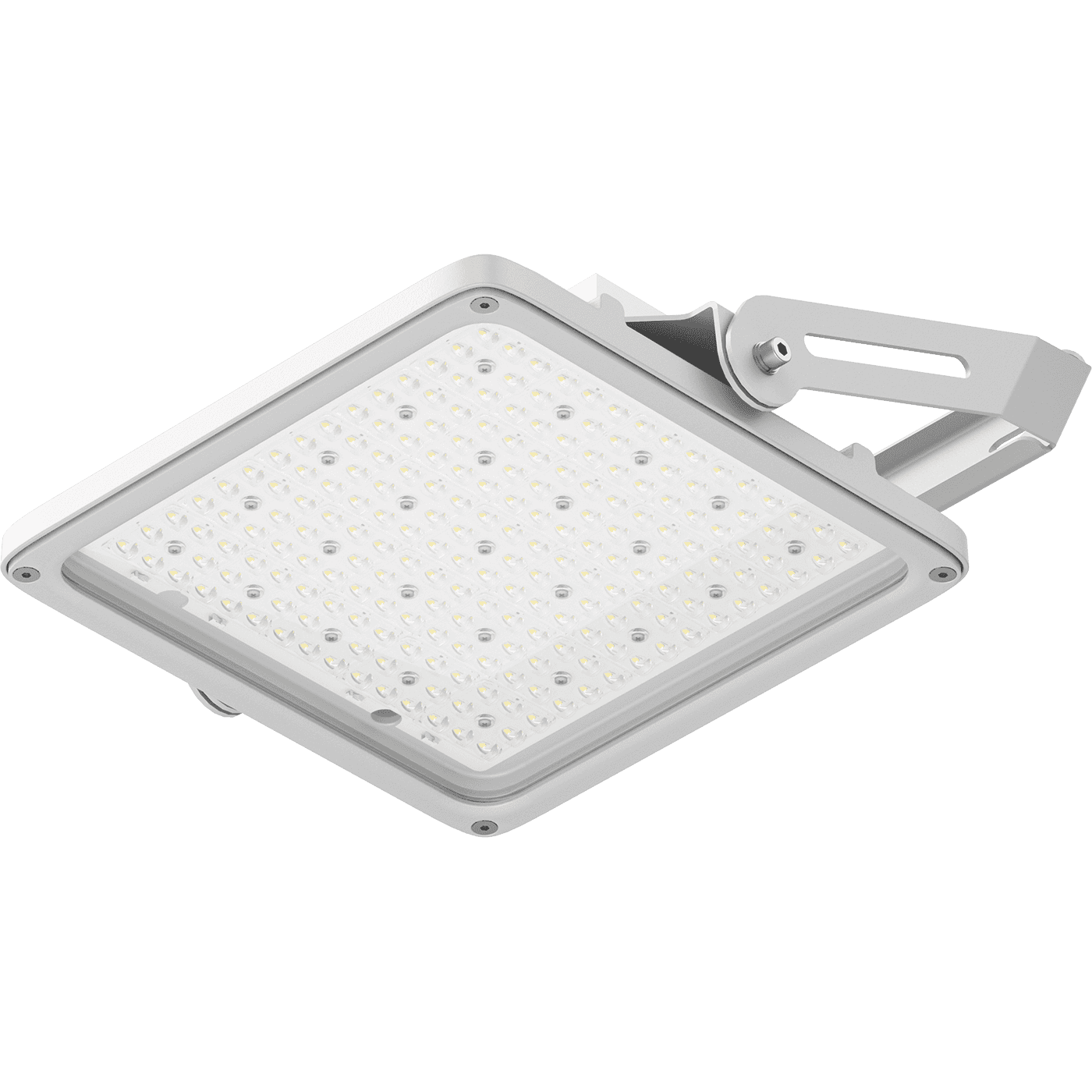

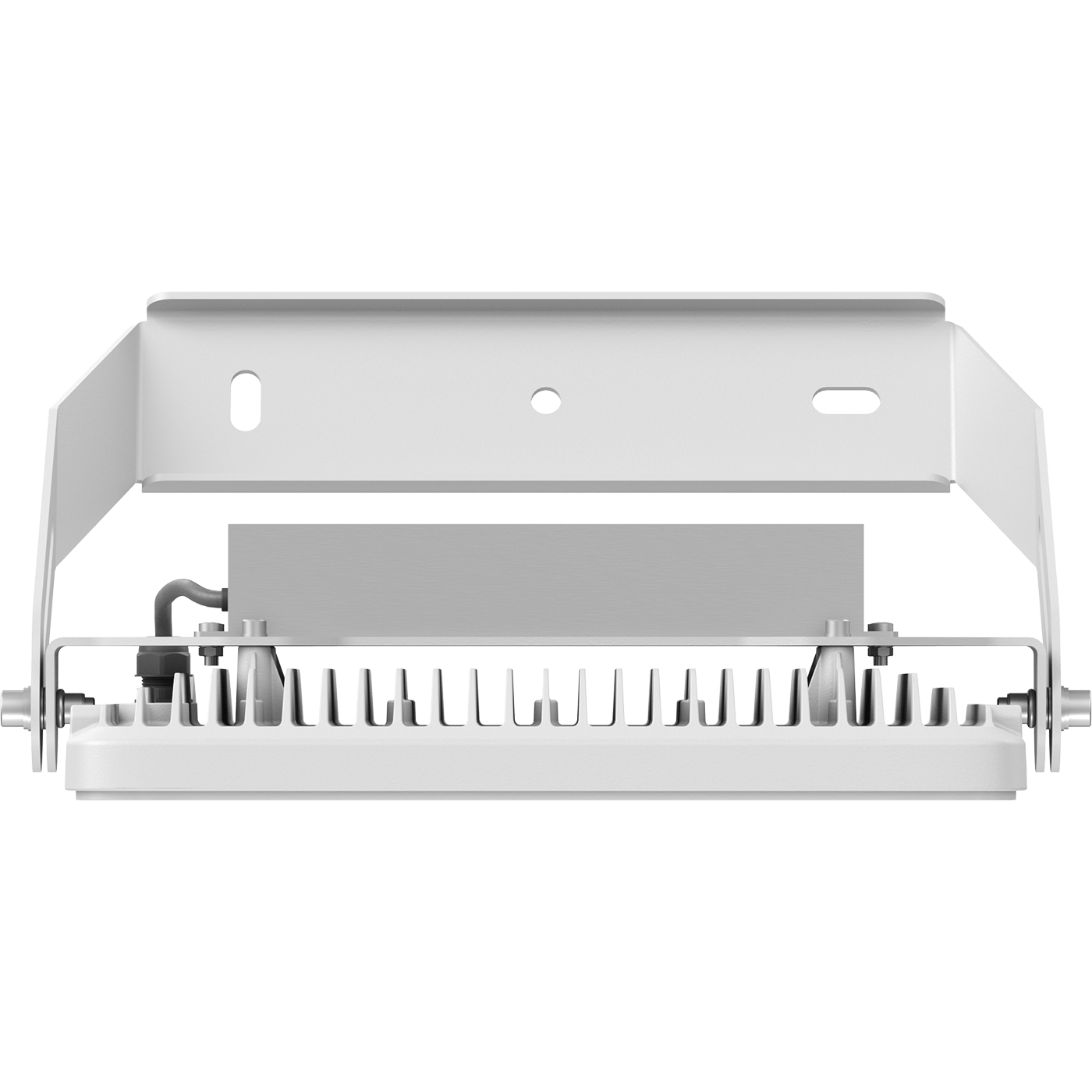

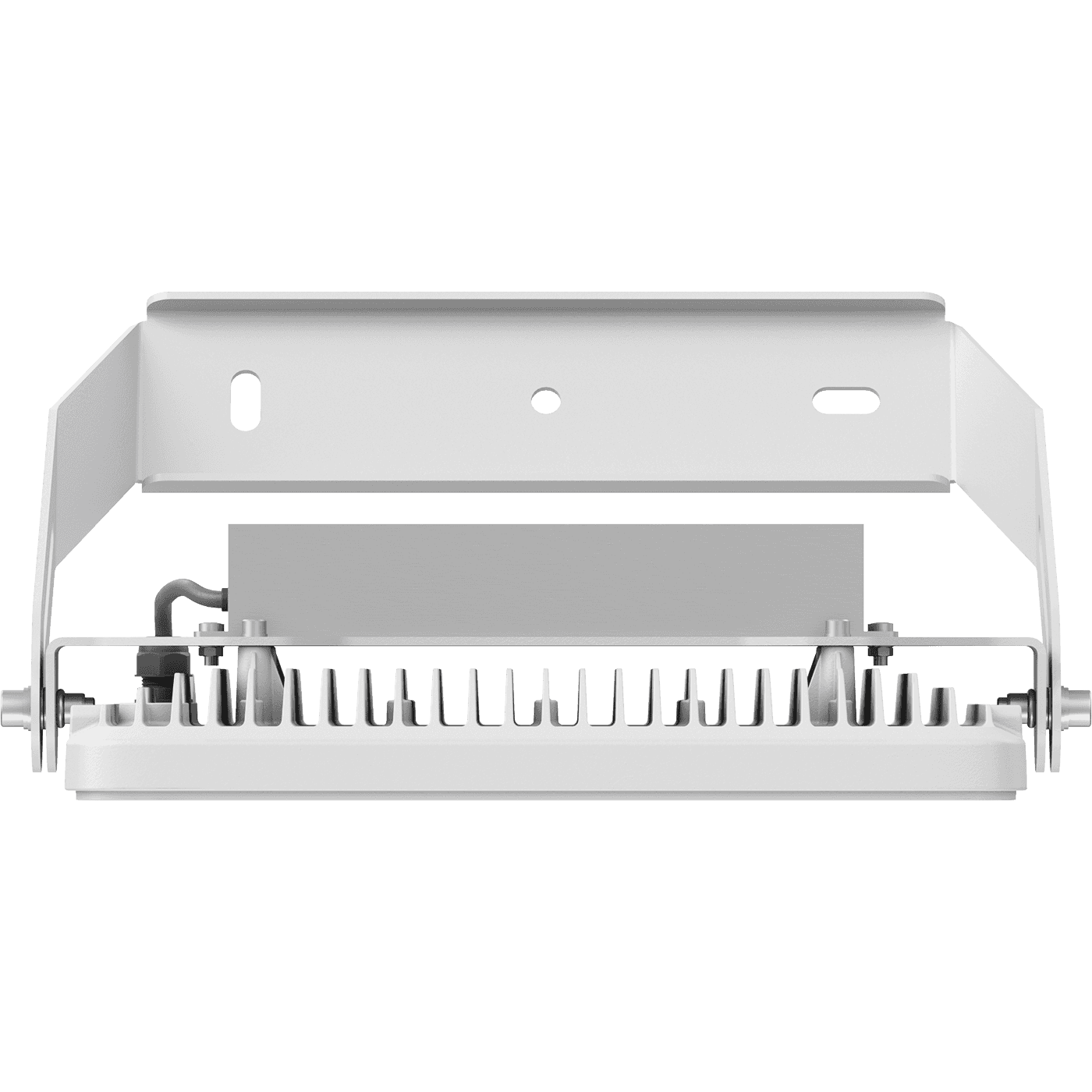

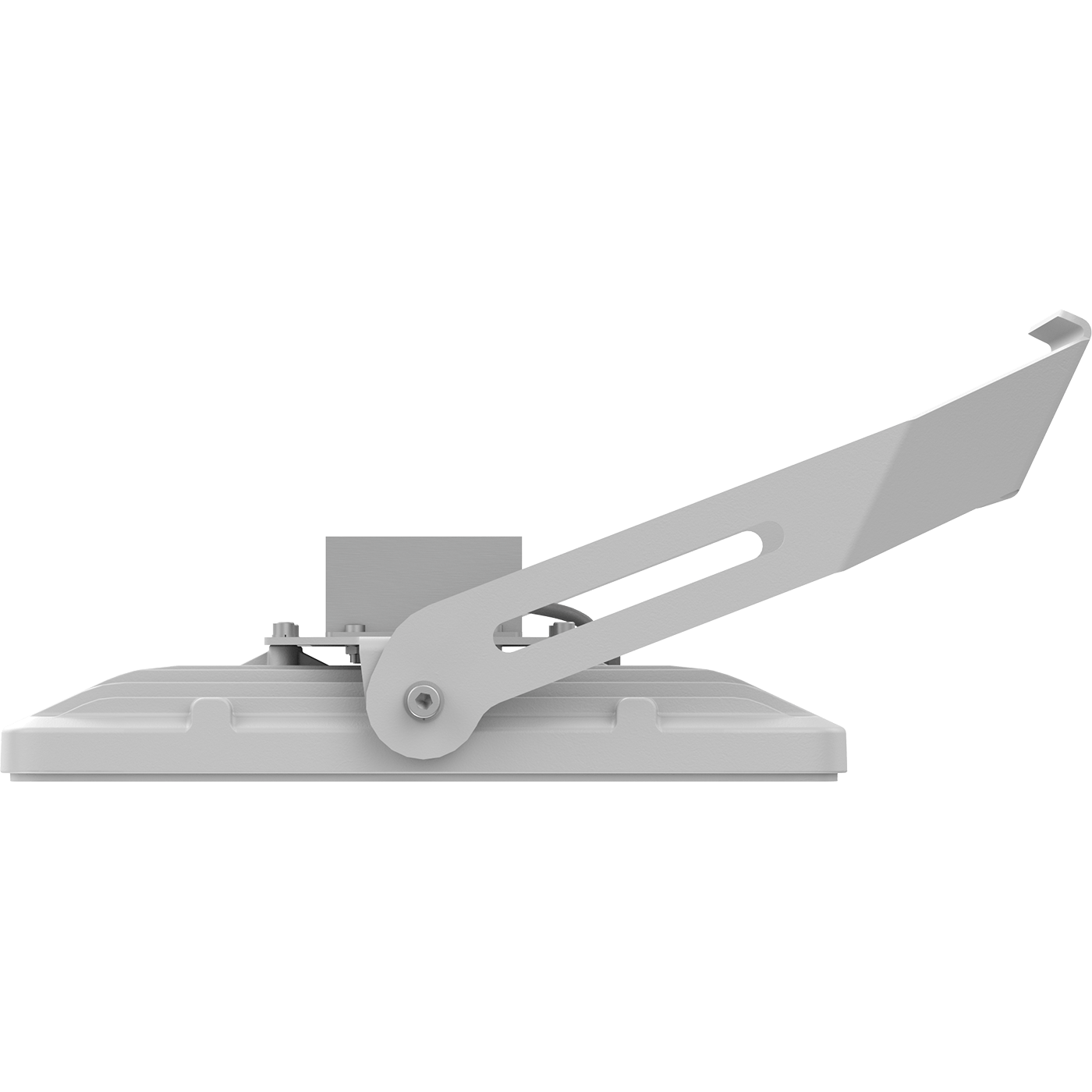

ATHLET 260W D60 957 WH SBL
ATHLET 260W D60 957 WH SBL
270 Wluminaire power
32400 lmlight flow
120 lm/Wenergy efficiency
code1875000050
beam angleD60
color temperature5700 K
weight8 kg
options
свернуть все
illuminatingelectricalconstructionalcommon
energy efficiency
120 lm/Wcolor rendition index (CRI)
>90light flow
32400 lmflickering factor
<5%beam angle
D60color temperature
5700 Klight source type
LEDemission color
Белыйilluminating
energy efficiency
120 lm/W
color rendition index (CRI)
>90
light flow
32400 lm
flickering factor
<5%
beam angle
D60
color temperature
5700 K
light source type
LED
emission color
Белый
electrical
luminaire power
270 W
electric shock protection
I
starting current pulse time
400 µs
rated supply voltage, alternating current
230 V
supply voltage
230 V
starting current
116 A
maximum cross-section of the connected cable
2.5 mm2
supply voltage, direct current
128-431 V
supply voltage, alternating current
90-305 V
power factor
> 0,96
constructional
climatic performance
УХЛ1*
fire safety class
П-I,II,IIa,ІІІ
width
410 mm
height
215 mm
installation length
220 mm
housing color
Белый
lamp socket
LED
number of lamps
1
ballast
Драйвер
length
385 mm
material
Алюминий
ingress protection (IP)
IP66
shock resistance (IK)
IK07/2 Дж
weight
8 kg
common
code
1875000050
warranty
60 month
energy efficiency class
A+
temperature range
от -40 до +40 C
service life
50 000 h
ETIM class
Прожектор / Светильник направленного света
model files
model files

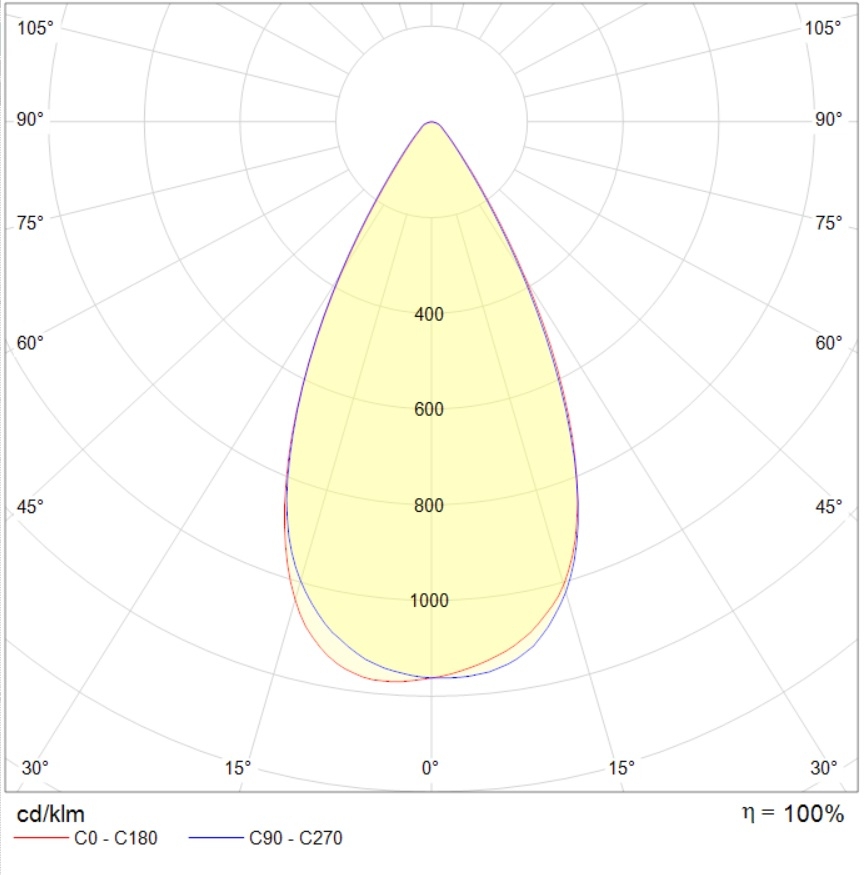

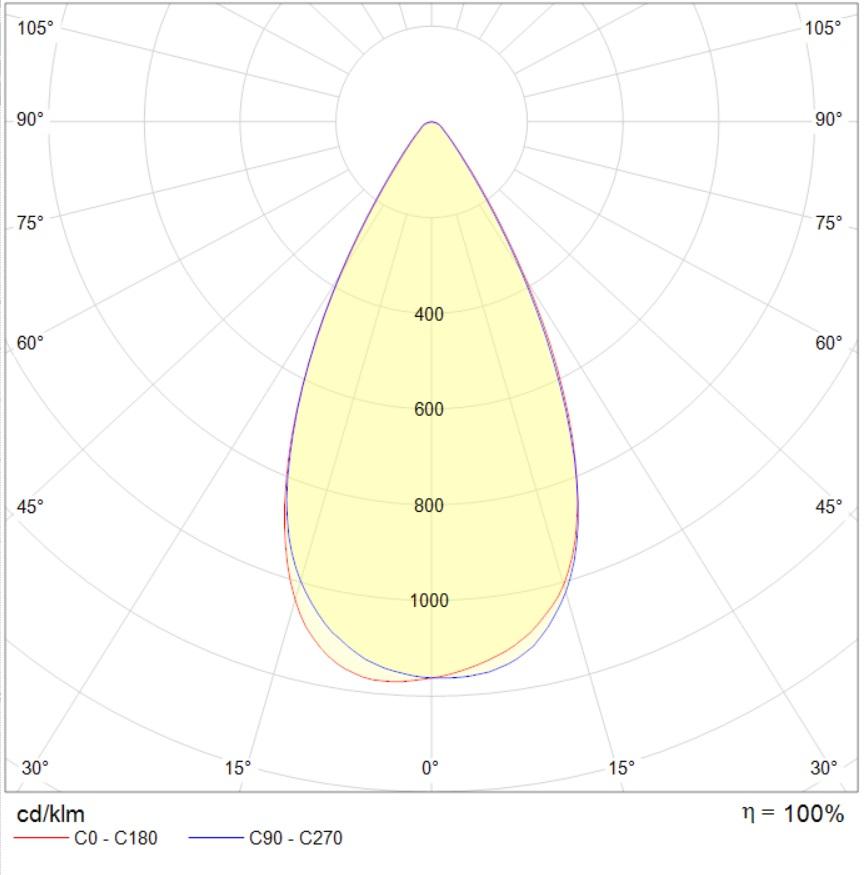

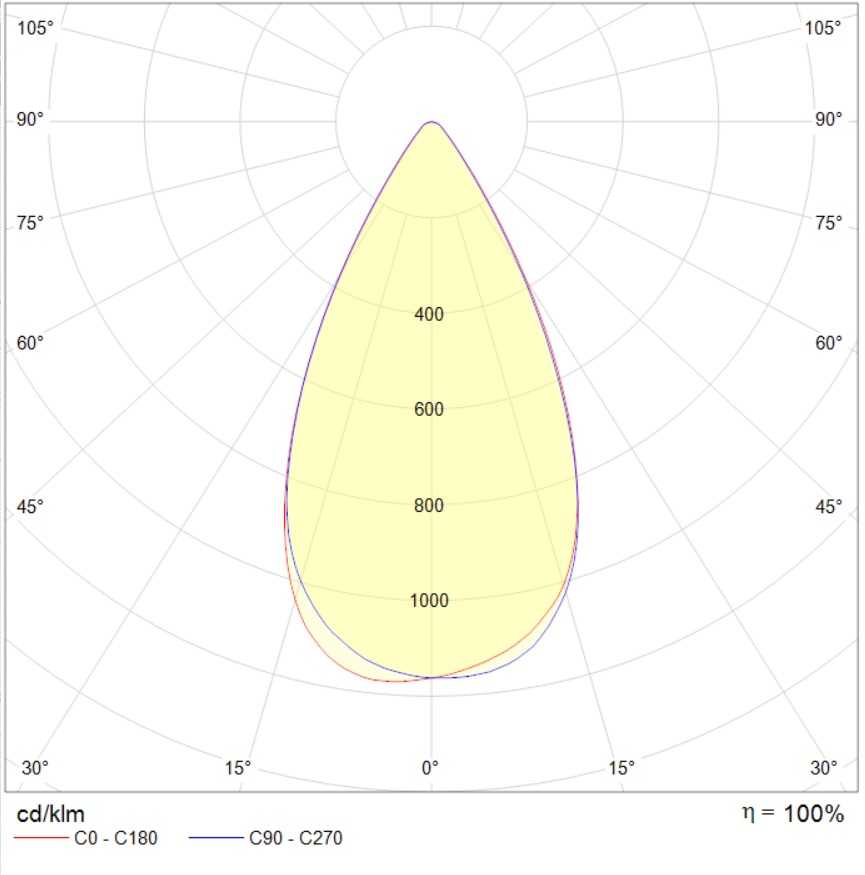

photometric files
documents
сертификаты
media
photometric files
ies263.2 kB
jpg88.1 kB
ldt168.9 kB
documents
passport3.4 mB
сертификаты
Russian origin279.6 kB
Certificate of conformity TRTS 020/2011, TRTS 004/20111.2 mB
Declaration of Conformity EAEU TR 037/2016505.1 kB
media
brochure4.9 mB
