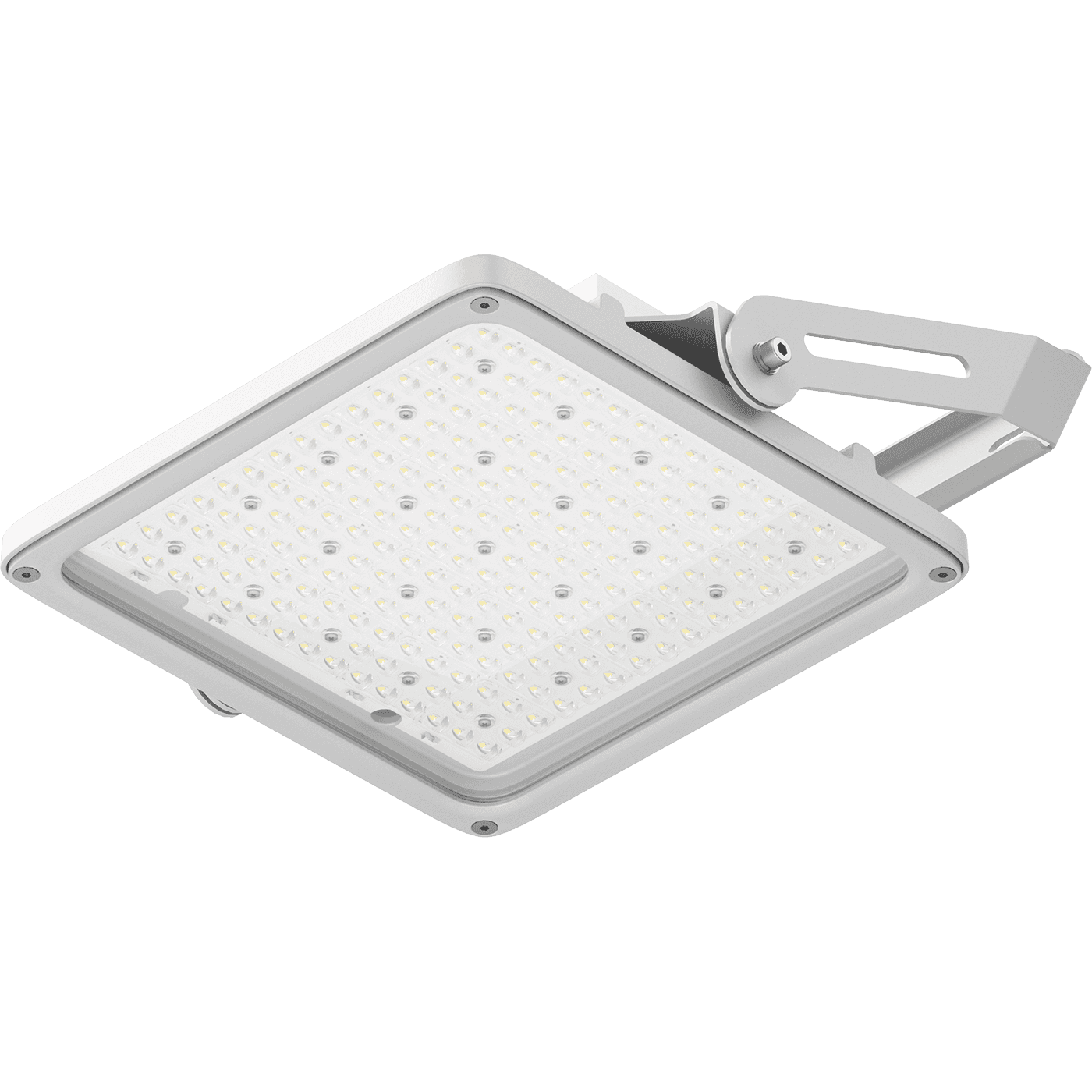

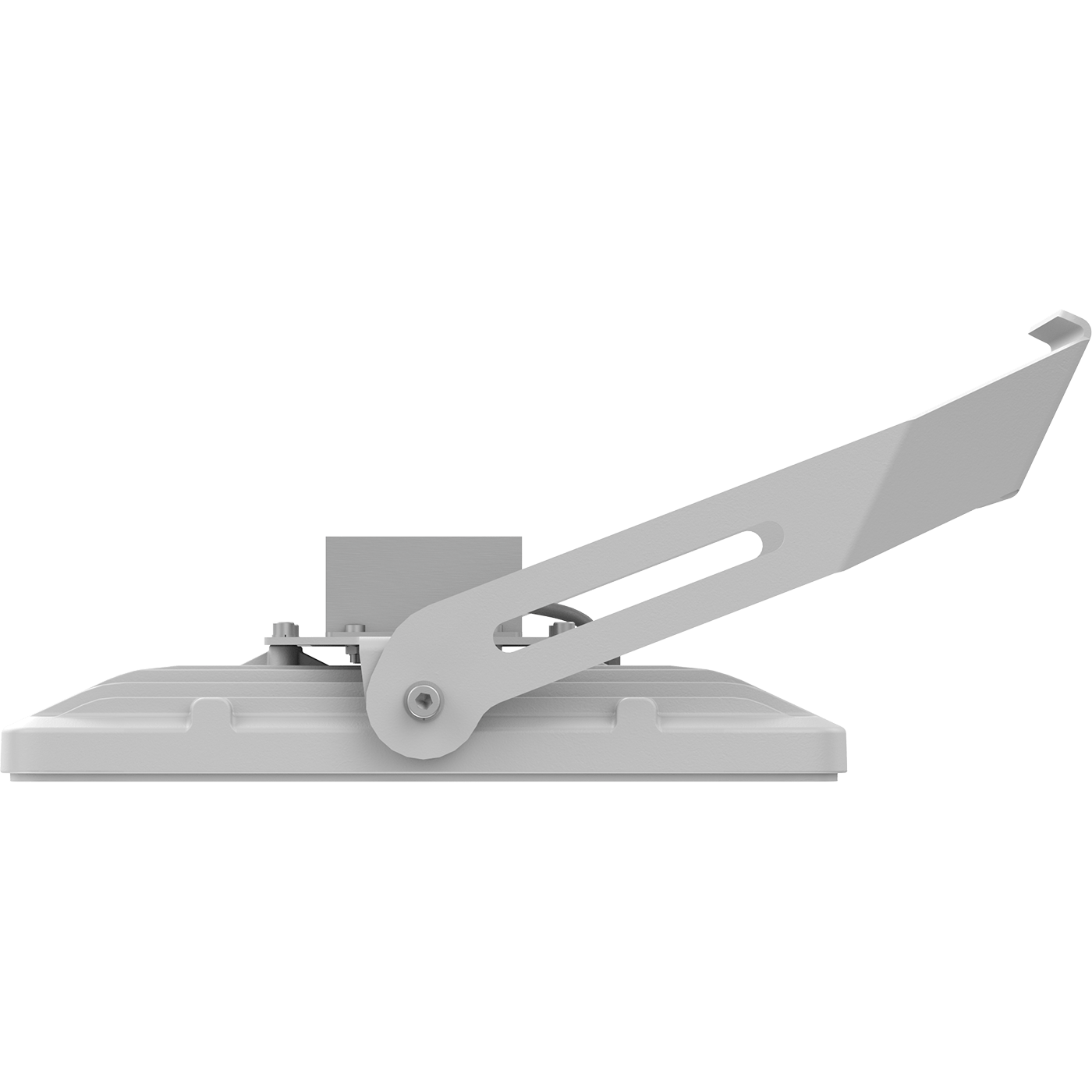

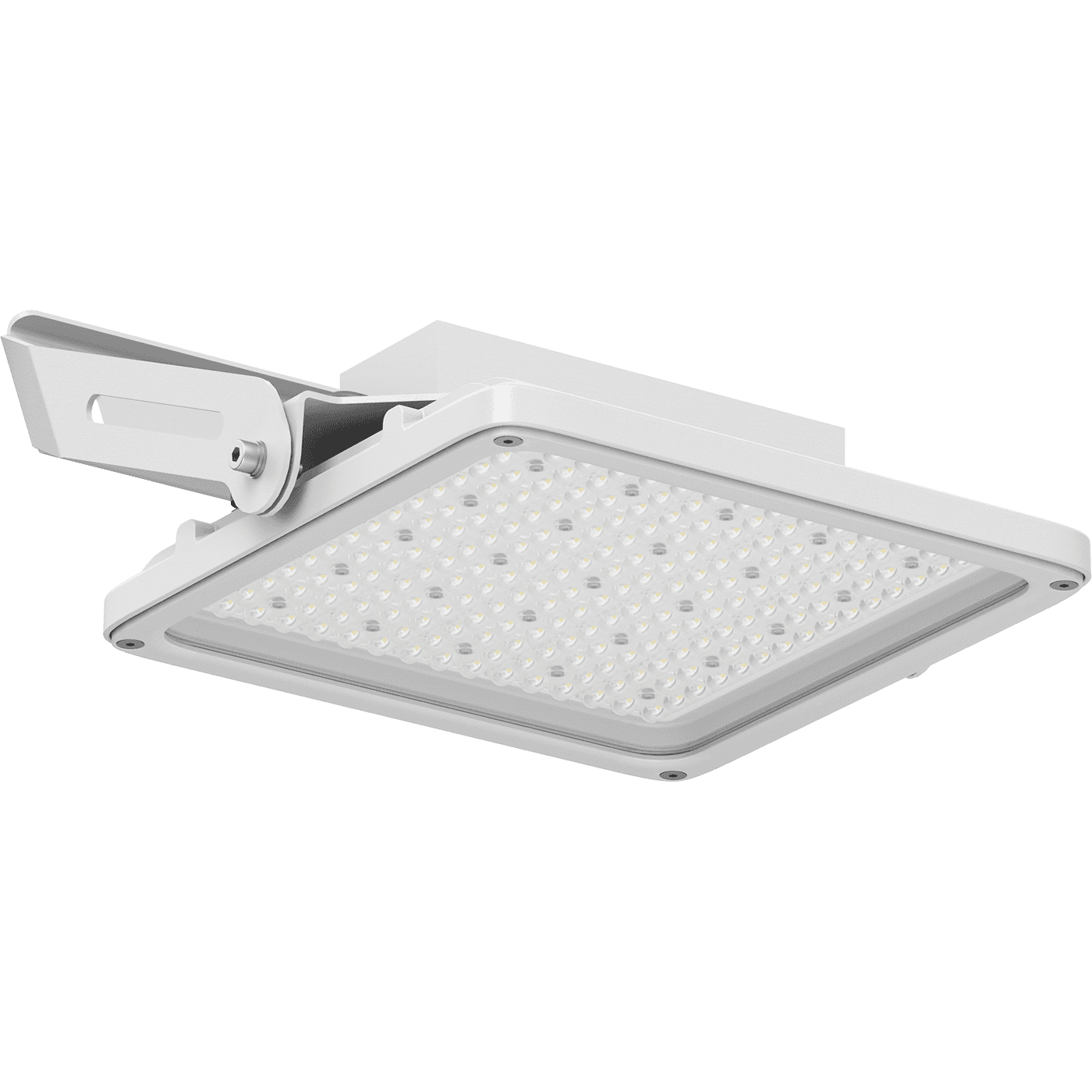

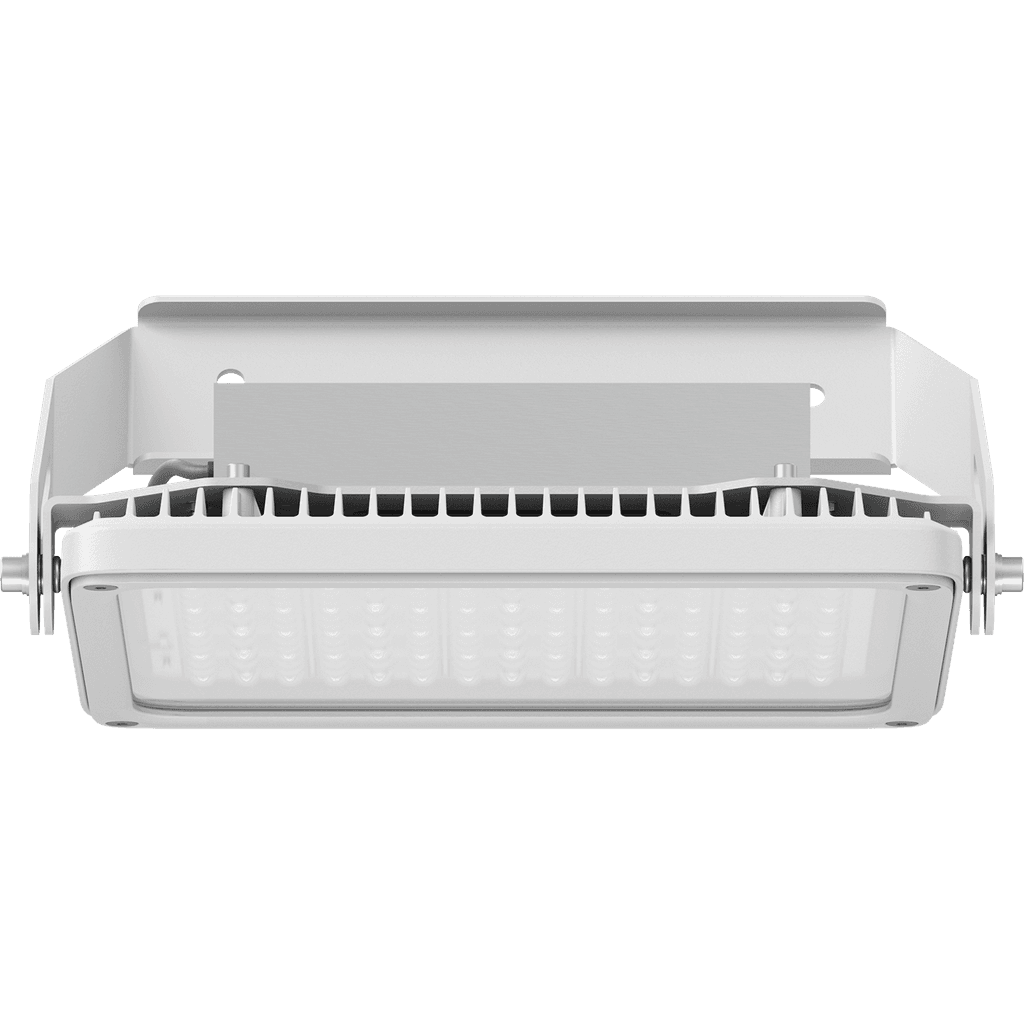

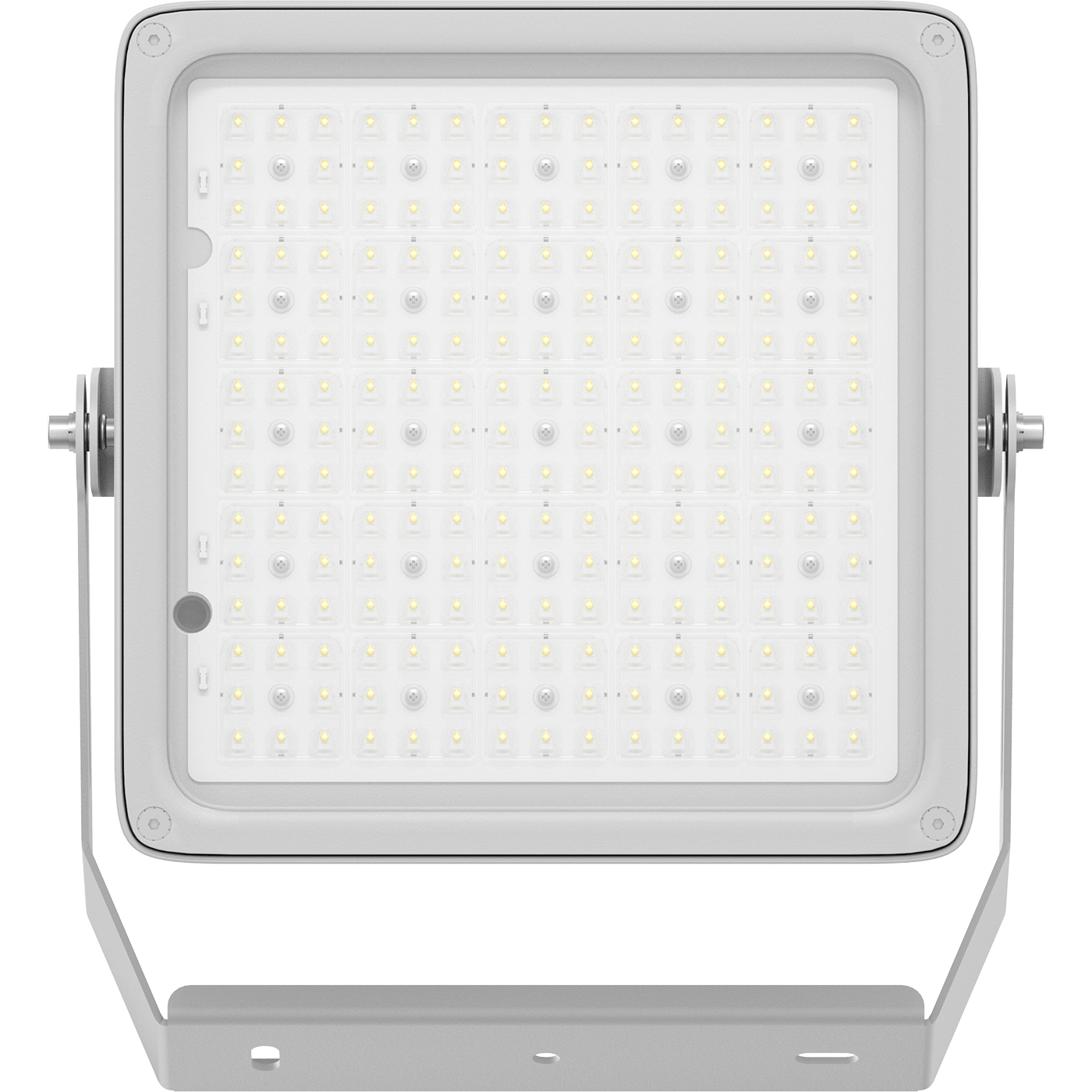

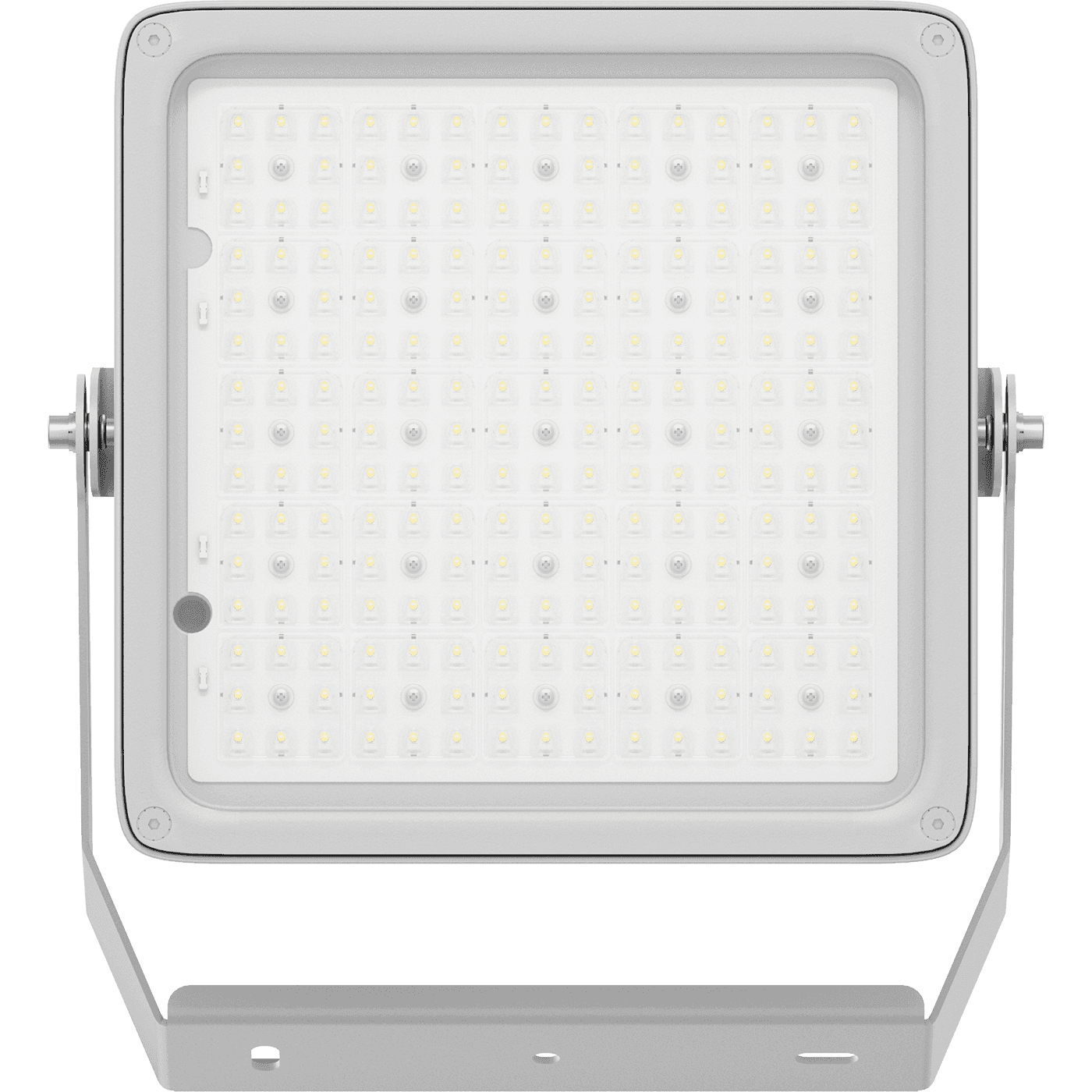

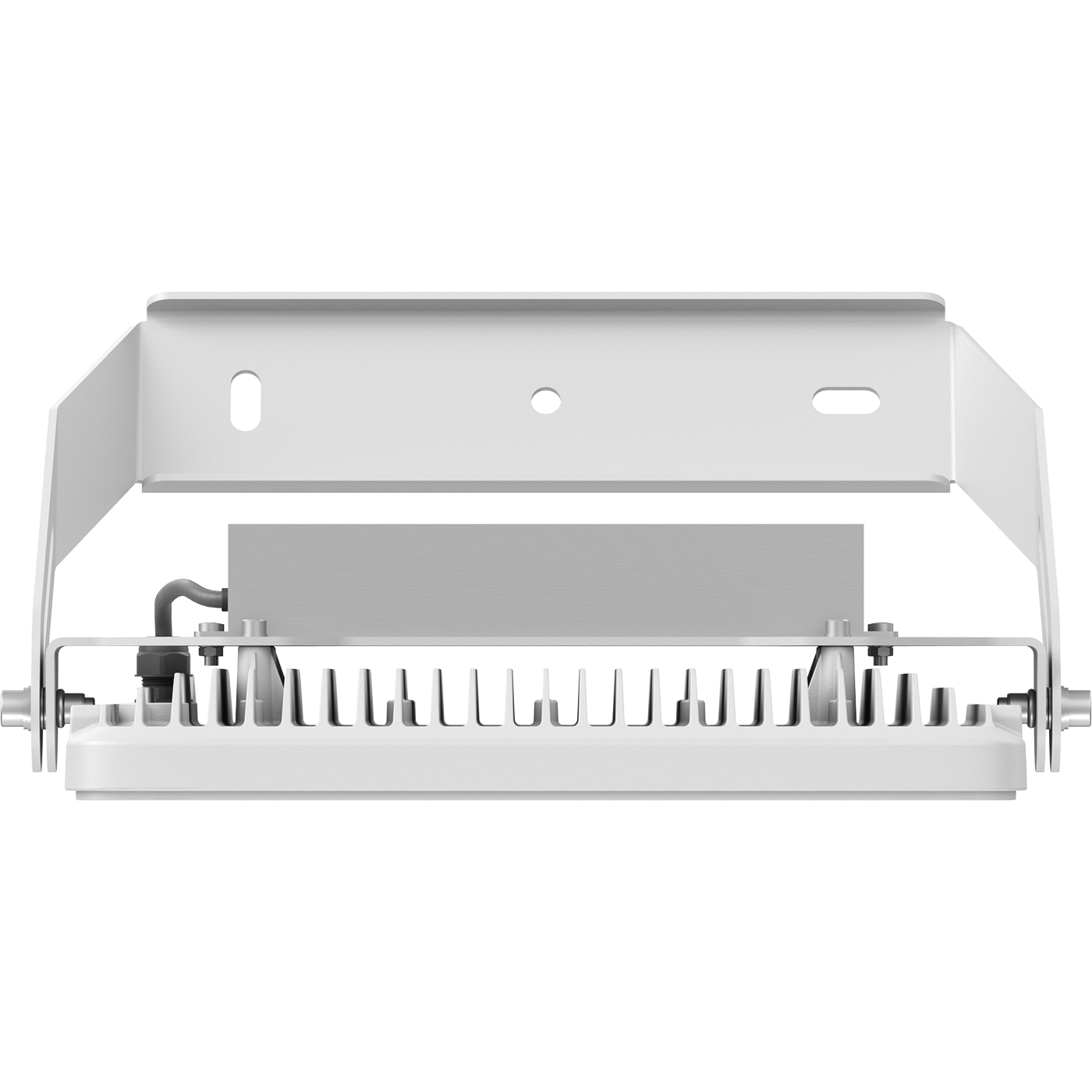

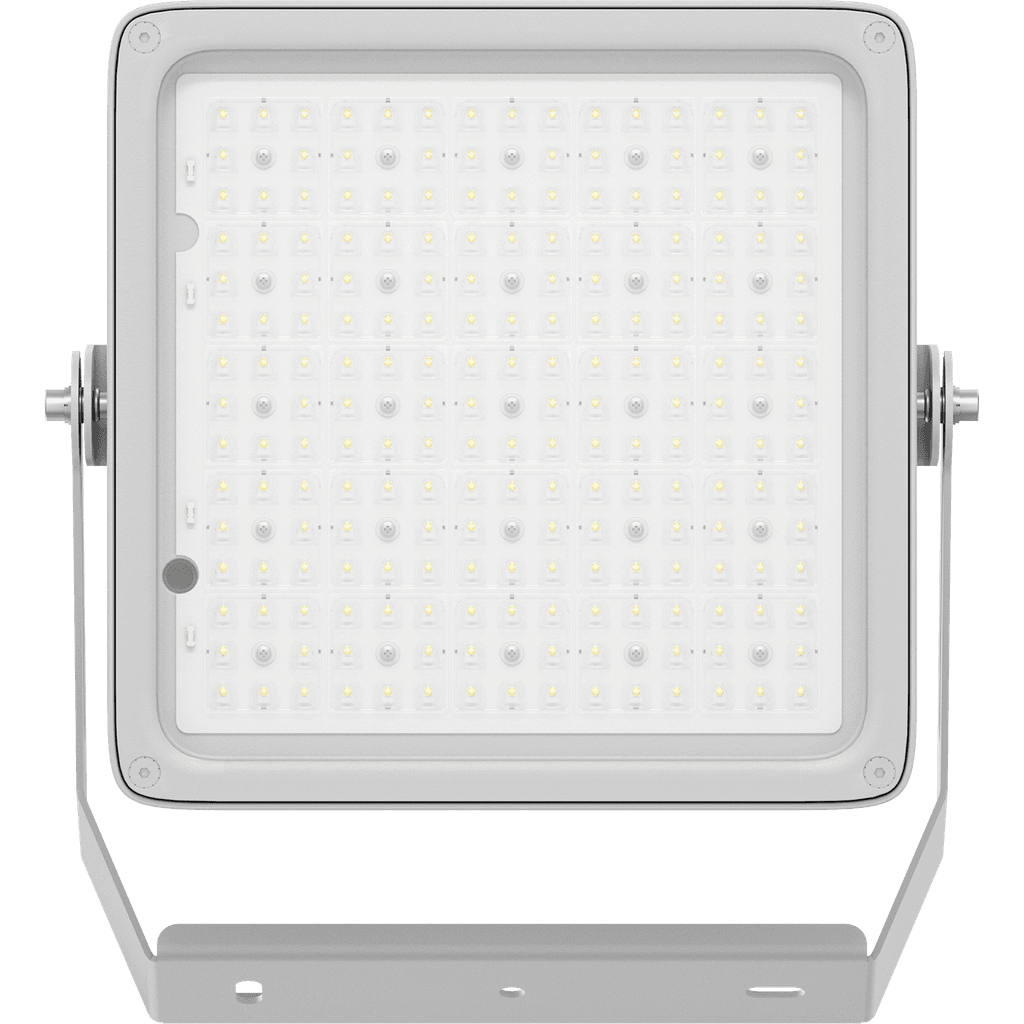

ATHLET 260W D30 840 WH SBL
ATHLET 260W D30 840 WH SBL
270 Wluminaire power
37400 lmlight flow
139 lm/Wenergy efficiency
code1875000250
beam angleD30
color temperature4000 K
weight8 kg
options
свернуть все
illuminatingelectricalconstructionalcommon
energy efficiency
139 lm/Wcolor rendition index (CRI)
>80light flow
37400 lmflickering factor
<5%beam angle
D30color temperature
4000 Klight source type
LEDemission color
Белыйilluminating
energy efficiency
139 lm/W
color rendition index (CRI)
>80
light flow
37400 lm
flickering factor
<5%
beam angle
D30
color temperature
4000 K
light source type
LED
emission color
Белый
electrical
luminaire power
270 W
electric shock protection
I
supply voltage
230 V
maximum cross-section of the connected cable
2.5 mm2
power factor
> 0,96
constructional
climatic performance
УХЛ1*
fire safety class
П-I,II,IIa,ІІІ
width
410 mm
height
215 mm
installation length
220 mm
housing color
Белый
lamp socket
LED
number of lamps
1
ballast
Драйвер
length
385 mm
material
Алюминий
ingress protection (IP)
IP66
shock resistance (IK)
IK07/2 Дж
weight
8 kg
common
code
1875000250
warranty
60 month
energy efficiency class
A++
temperature range
от -40 до +40 C
service life
50 000 h
ETIM class
Прожектор / Светильник направленного света
model files
model files

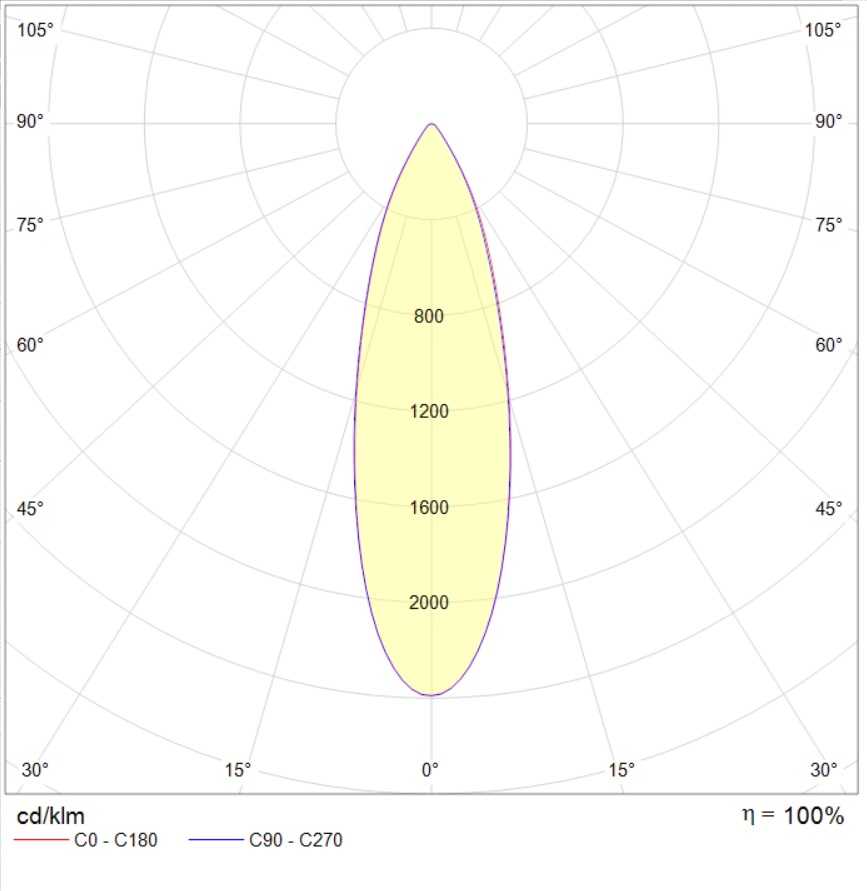

photometric files
сертификаты
media
photometric files
ies263.2 kB
jpg84.4 kB
ldt165.6 kB
сертификаты
Russian origin279.6 kB
Certificate of conformity TRTS 020/2011, TRTS 004/20111.2 mB
Declaration of Conformity EAEU TR 037/2016505.1 kB
media
brochure4.9 mB
