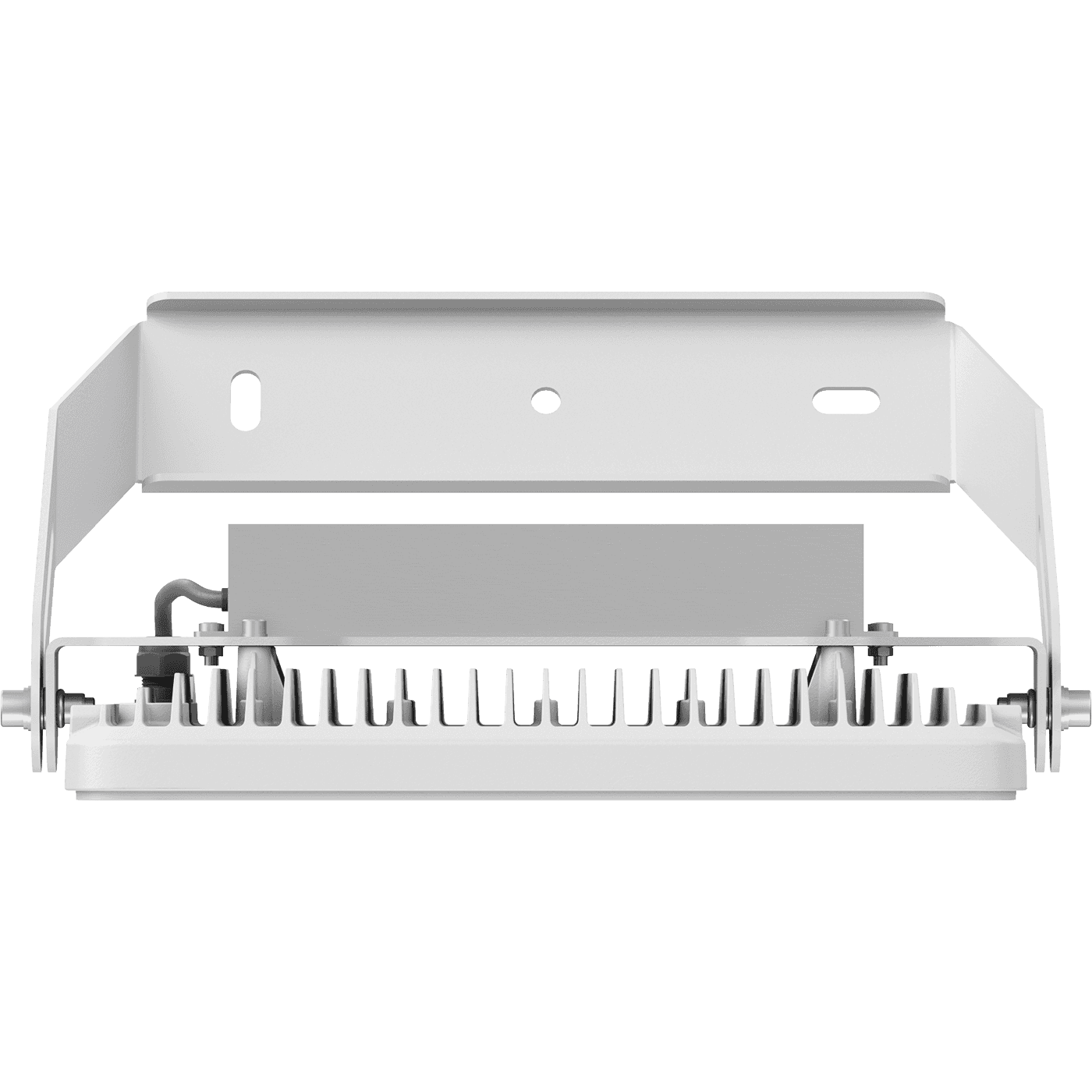

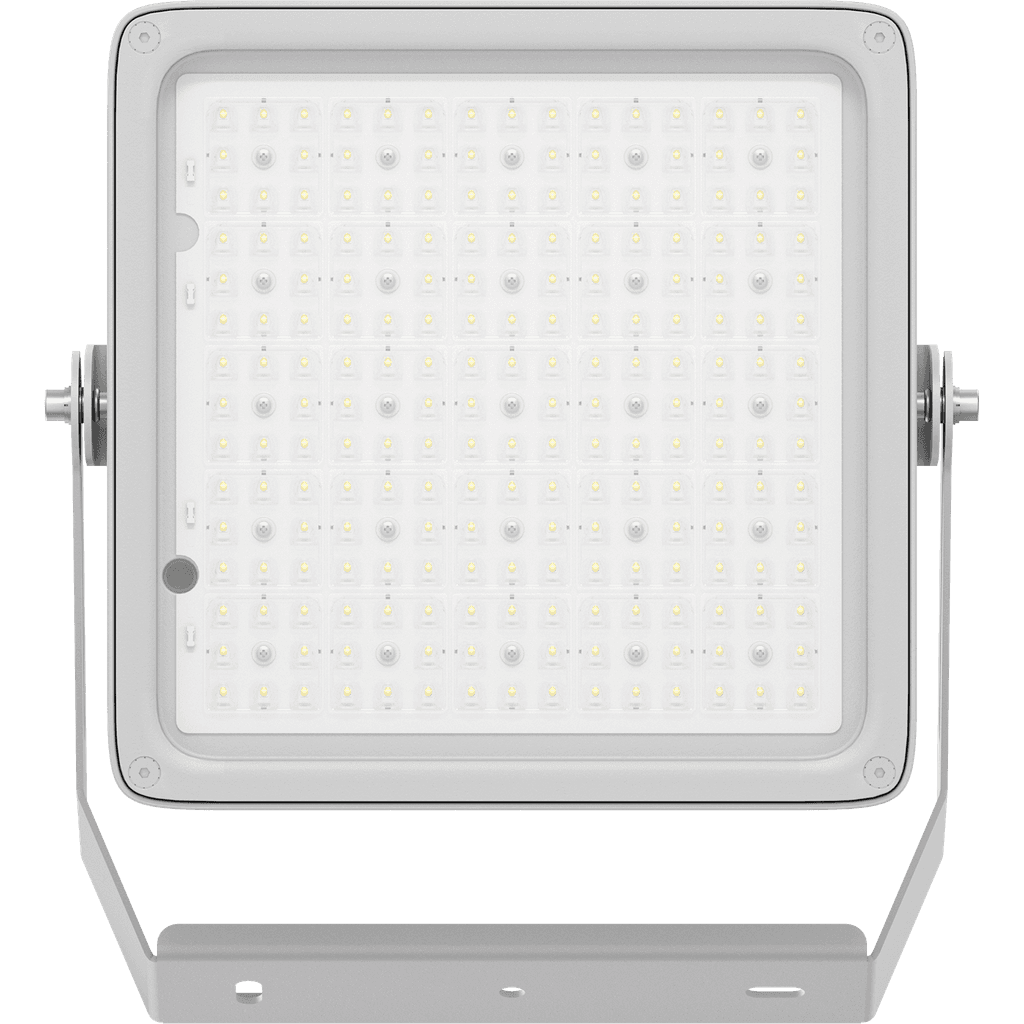

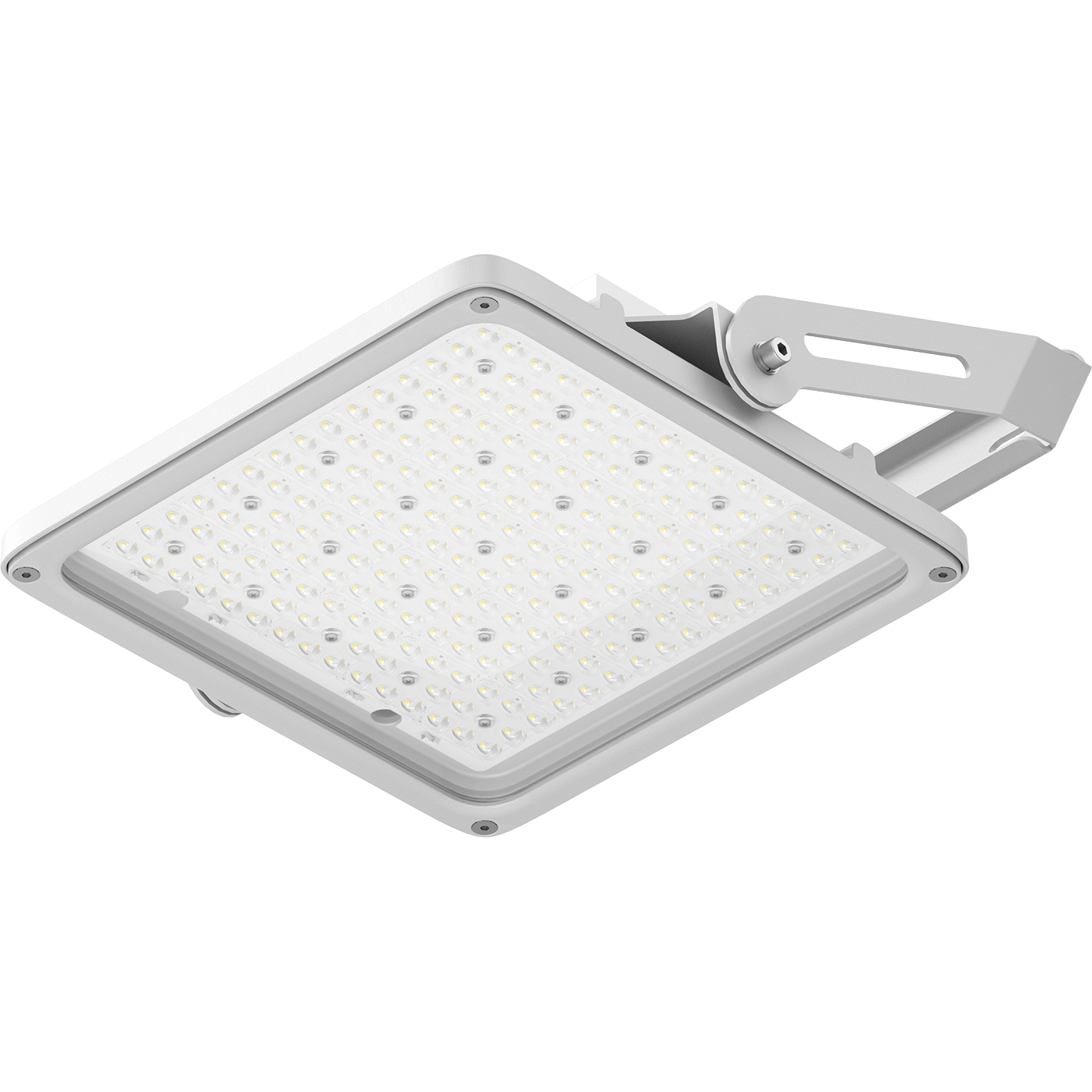

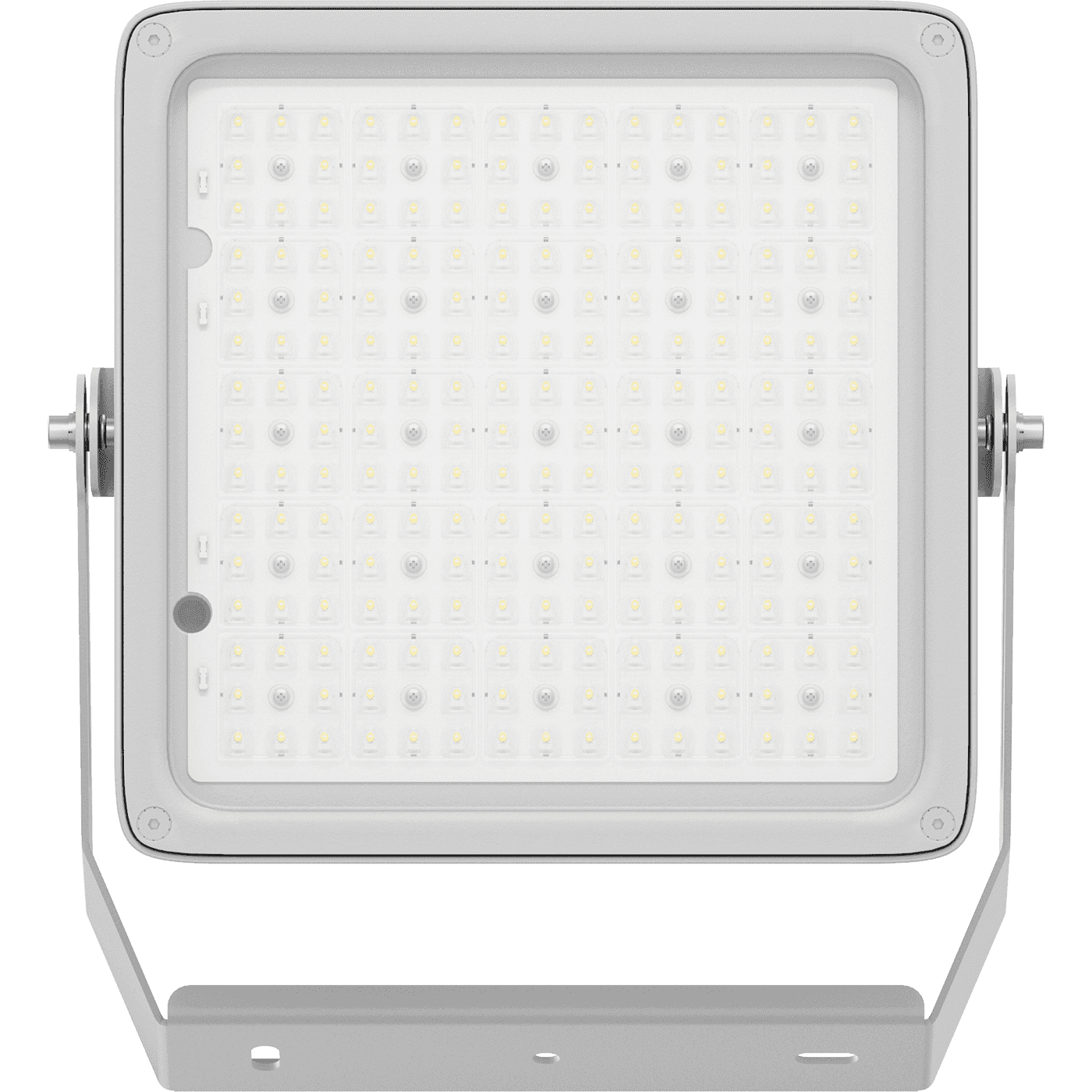

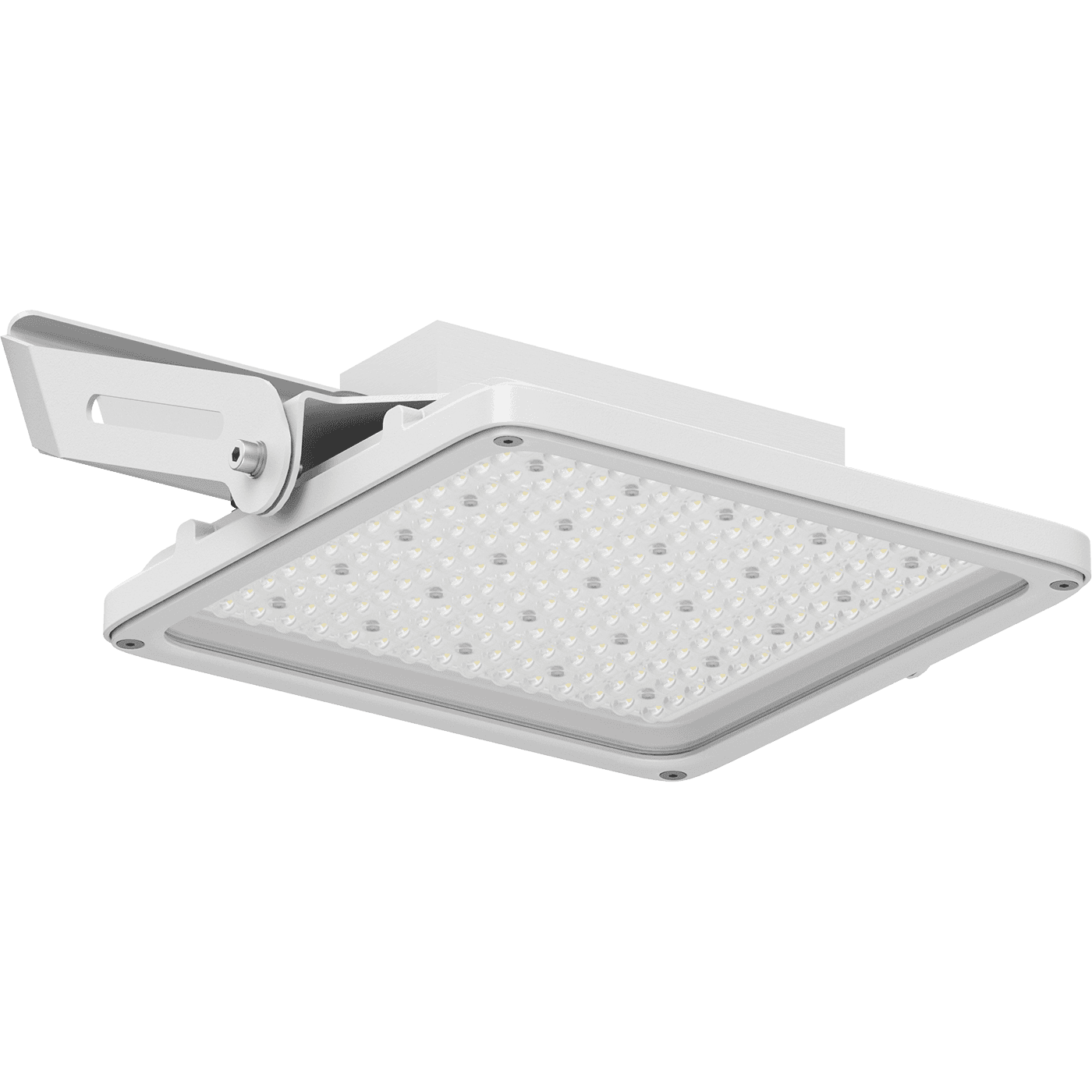

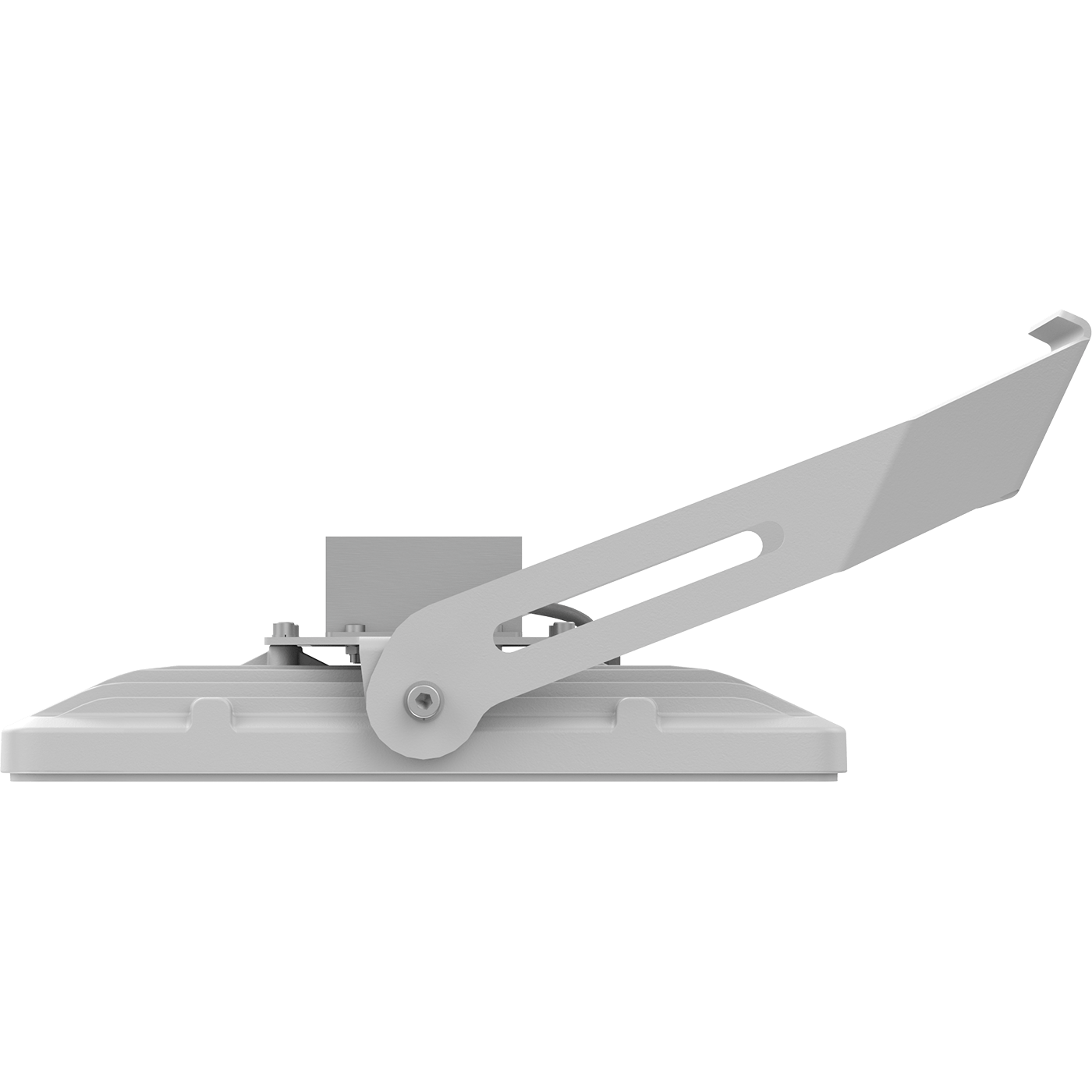

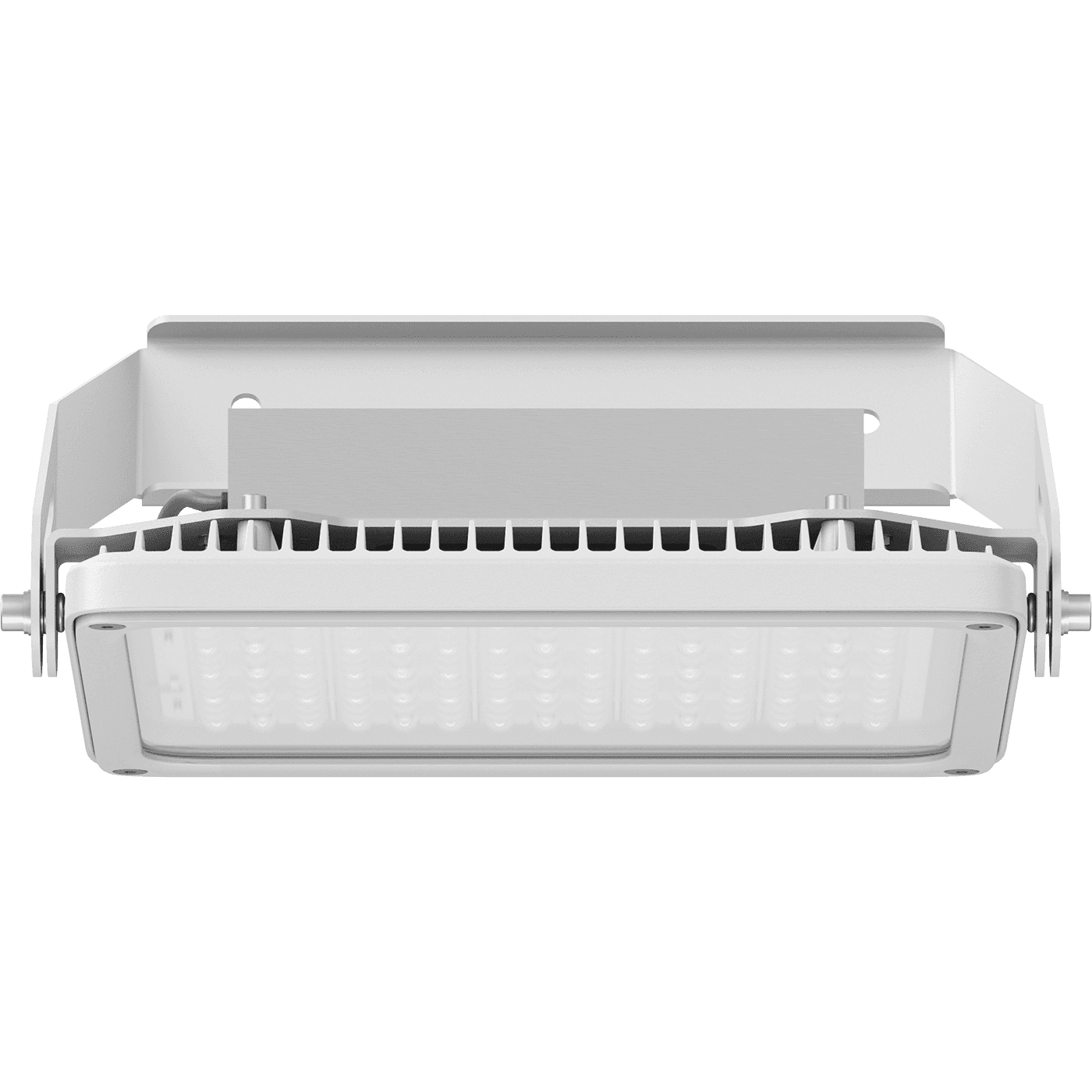

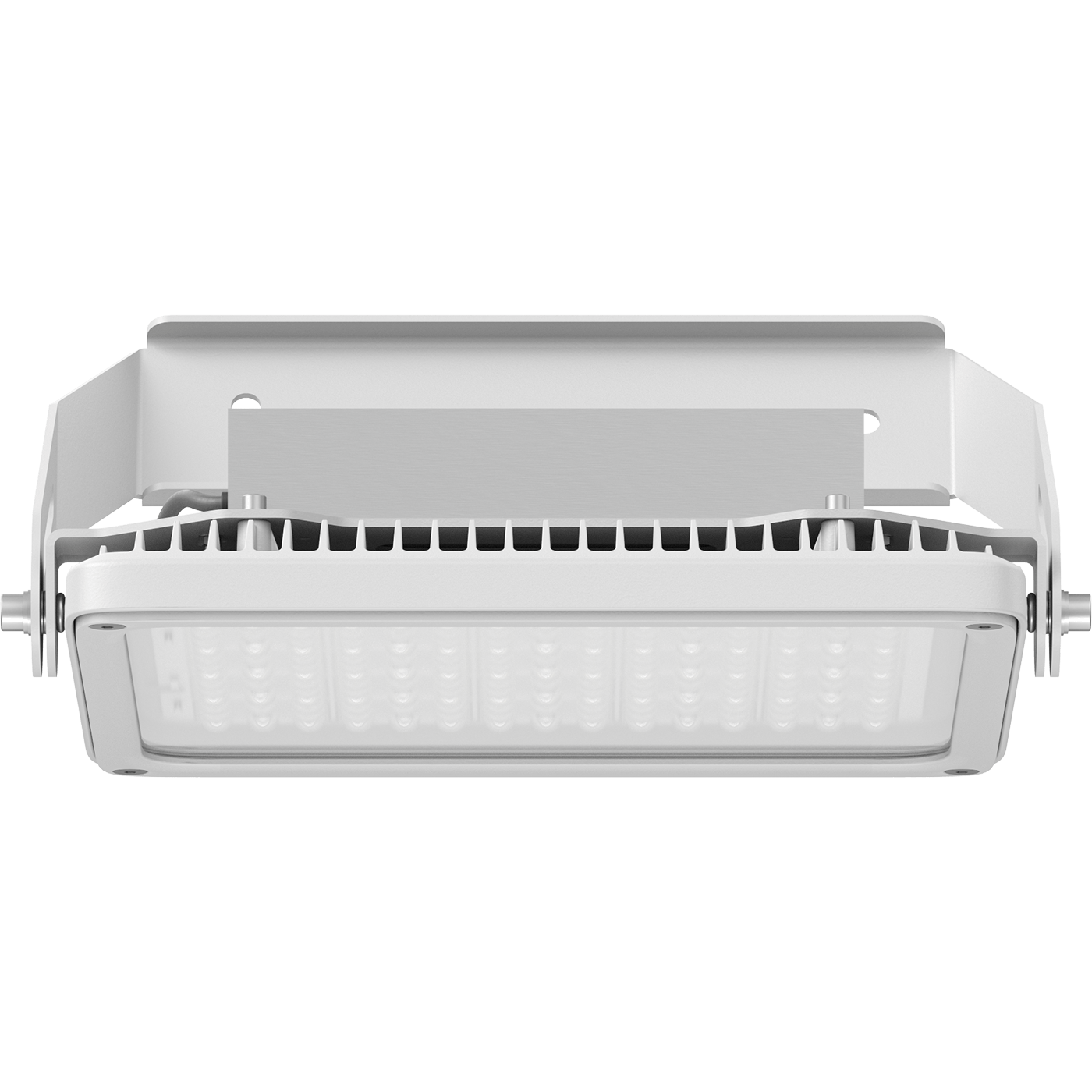

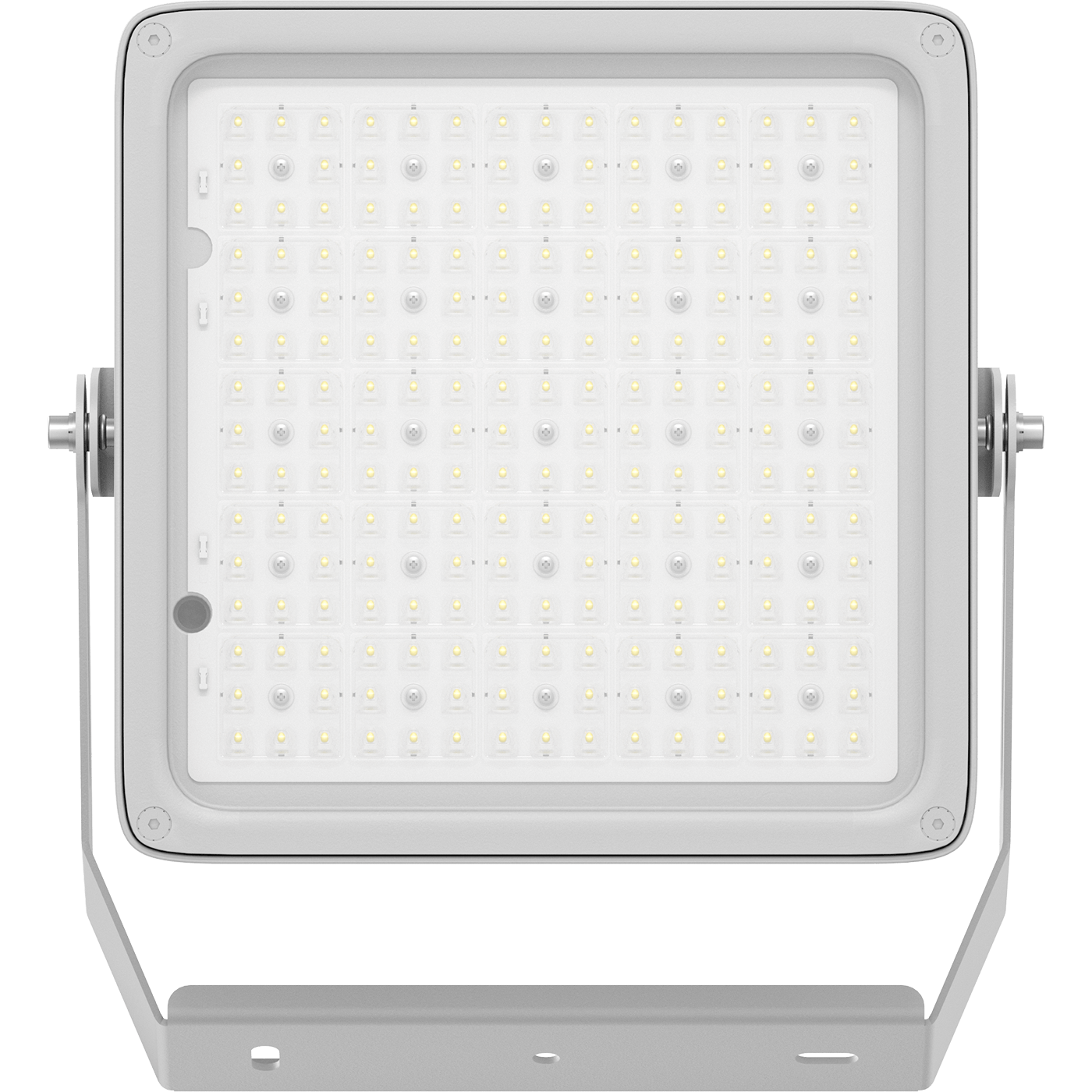

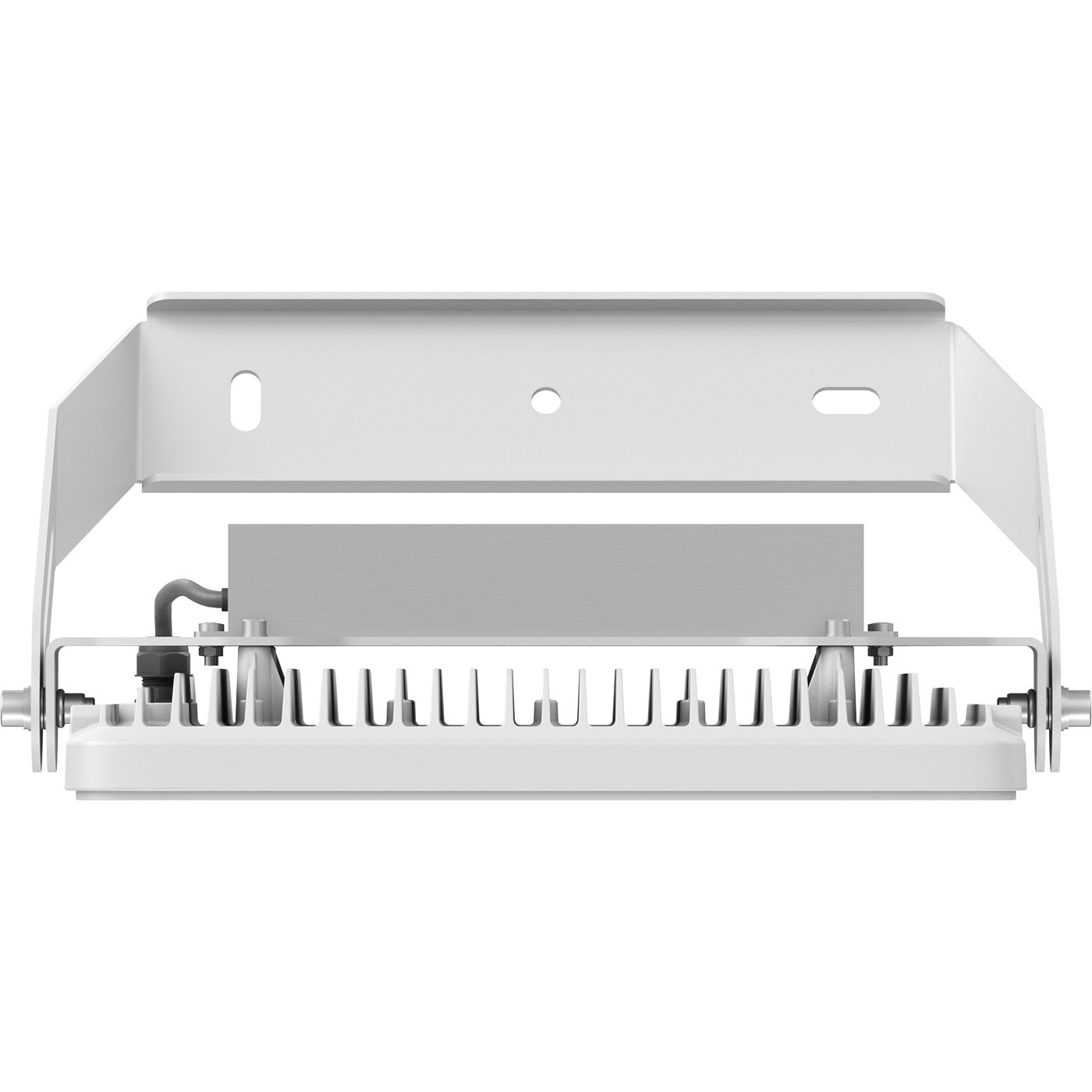

ATHLET 200W D120 750 WH SBL
ATHLET 200W D120 750 WH SBL
220 Wluminaire power
34800 lmlight flow
158 lm/Wenergy efficiency
code1875000900
beam angleD120
color temperature5000
weight8 kg
options
свернуть все
electricalconstructionalcommonilluminating
luminaire power
220 Welectric shock protection
Ipower factor
> 0,96supply voltage
230 Velectrical
luminaire power
220 W
electric shock protection
I
power factor
> 0,96
supply voltage
230 V
constructional
ingress protection (IP)
IP66
fire safety class
П-I,II,IIa,ІІІ
material
Алюминий
weight
8 kg
length, mm
385 mm
width, mm
410 mm
height, mm
215 mm
housing color
Белый
climatic performance
УХЛ1*
maximum cross-section of the connected cable, sq. mm
2.5
shock resistance (IK)
IK07/2 Дж
installation length, mm
220 mm
lamp socket
LED
number of lamps
1
ballast
Драйвер
common
code
1875000900
ETIM class
Прожектор / Светильник направленного света
warranty
60 month
temperature range
от -40 до +40 C
energy efficiency class
A++
service life, hour
50 000 h
illuminating
energy efficiency
158 lm/W
color rendition index (CRI)
>70
light flow
34800 lm
flickering factor
<5%
beam angle
D120
color temperature
5000
light source type
LED
emission color
Белый
model files
model files

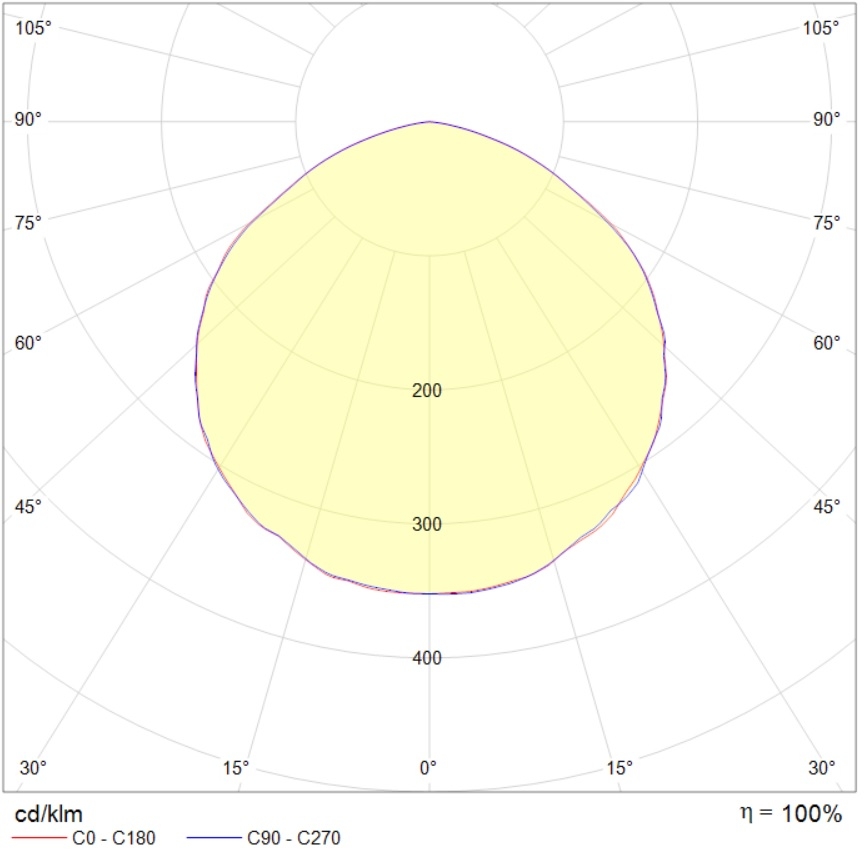

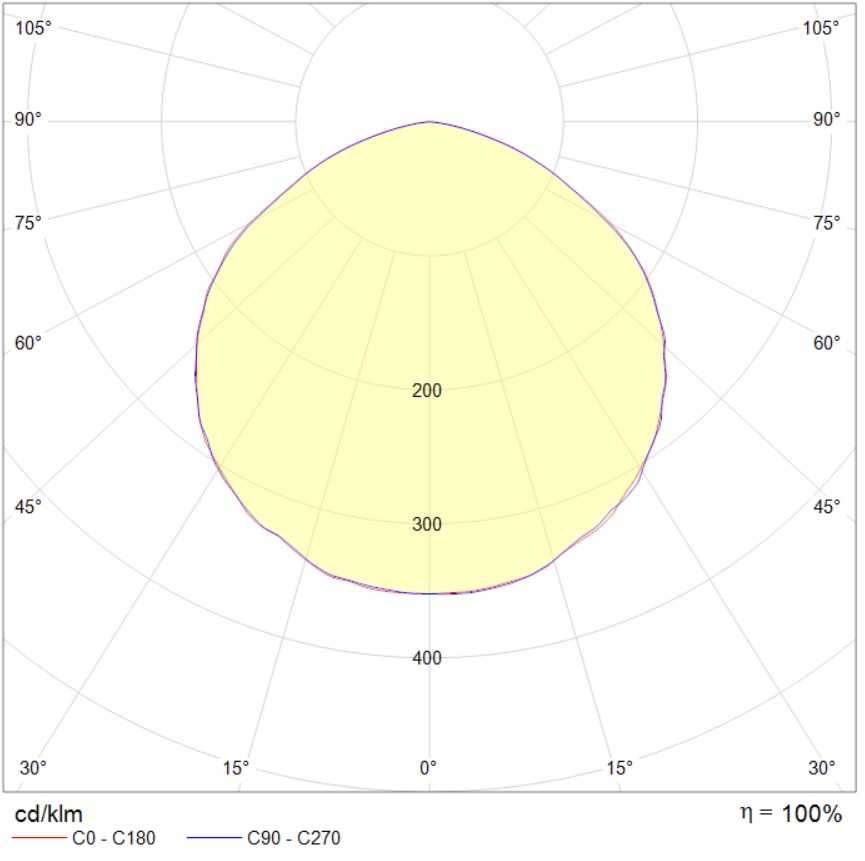

photometric files
