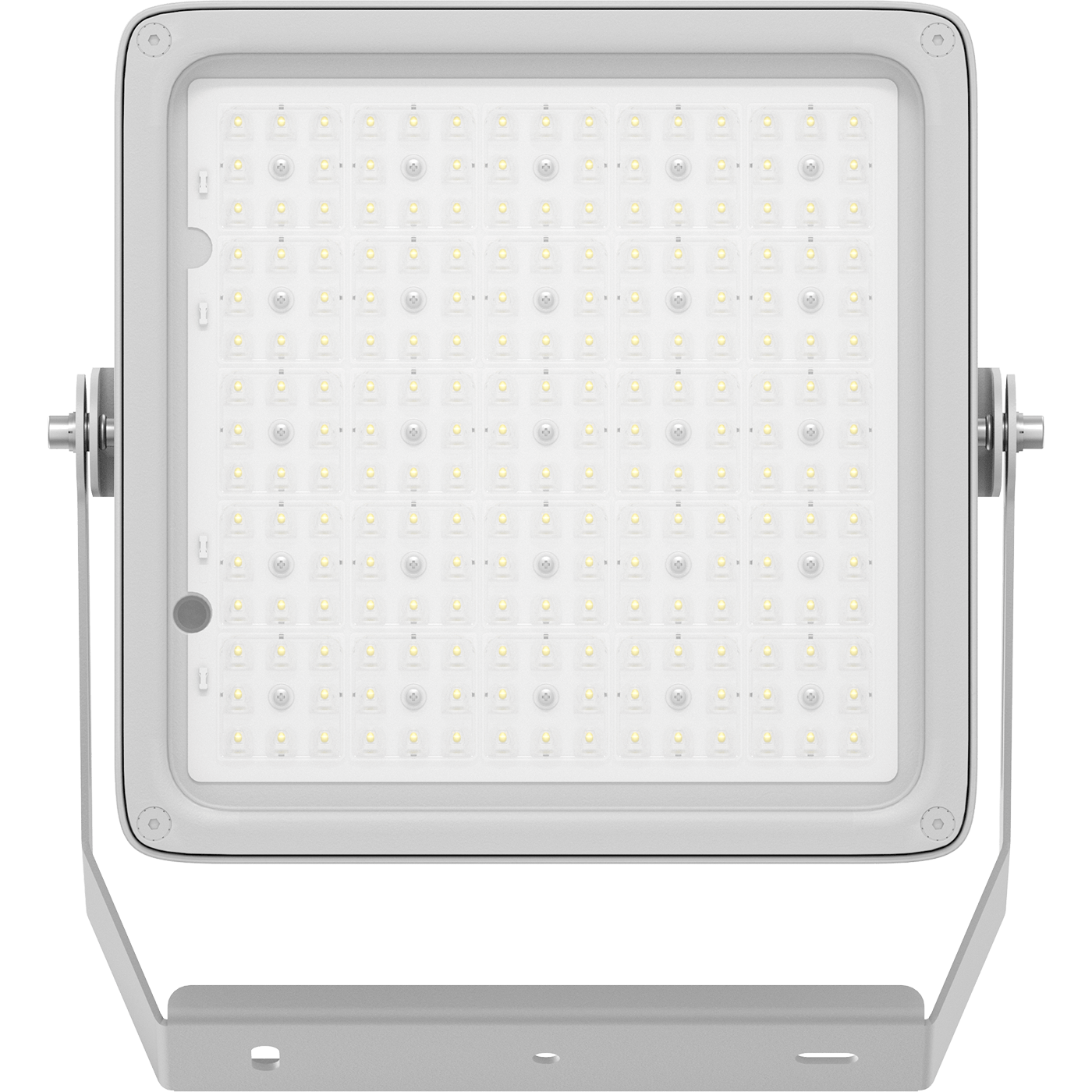

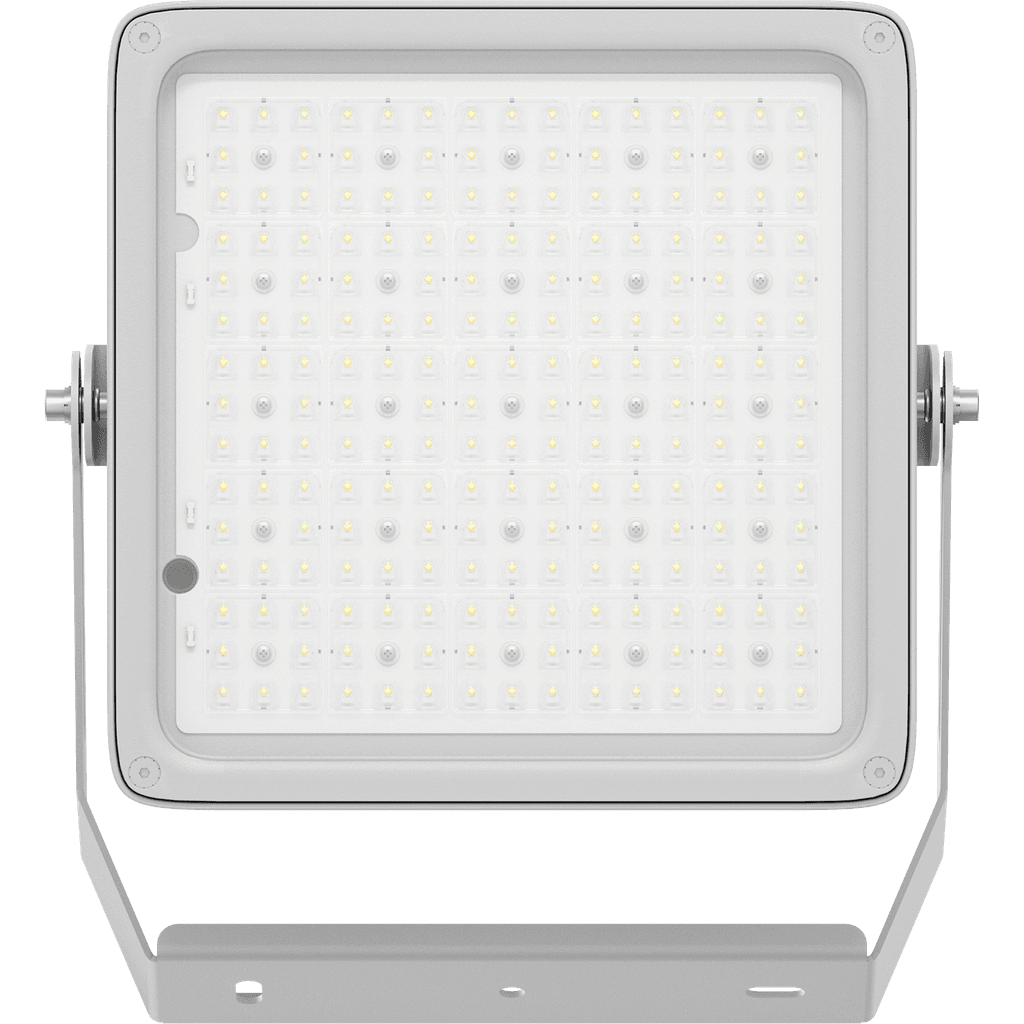

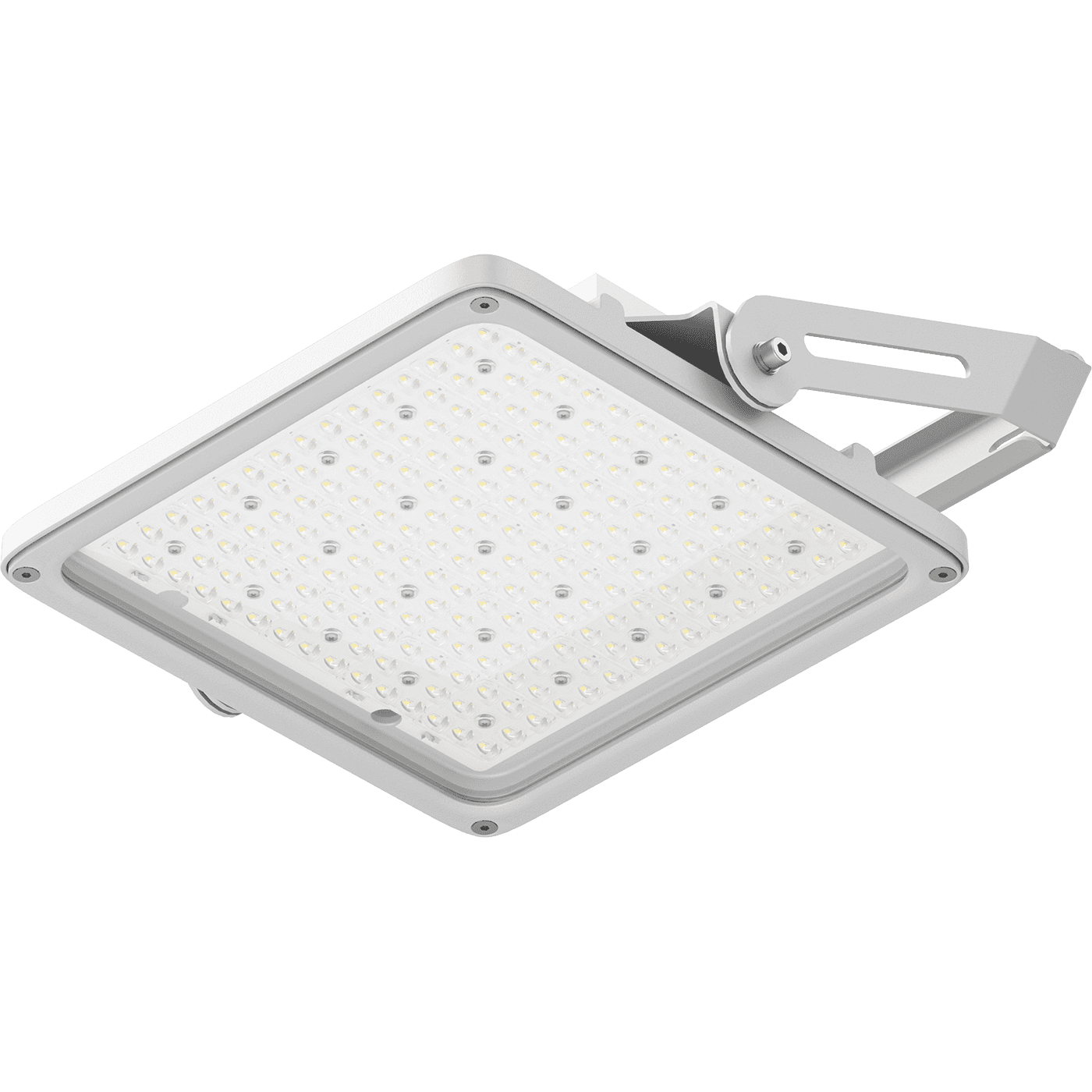

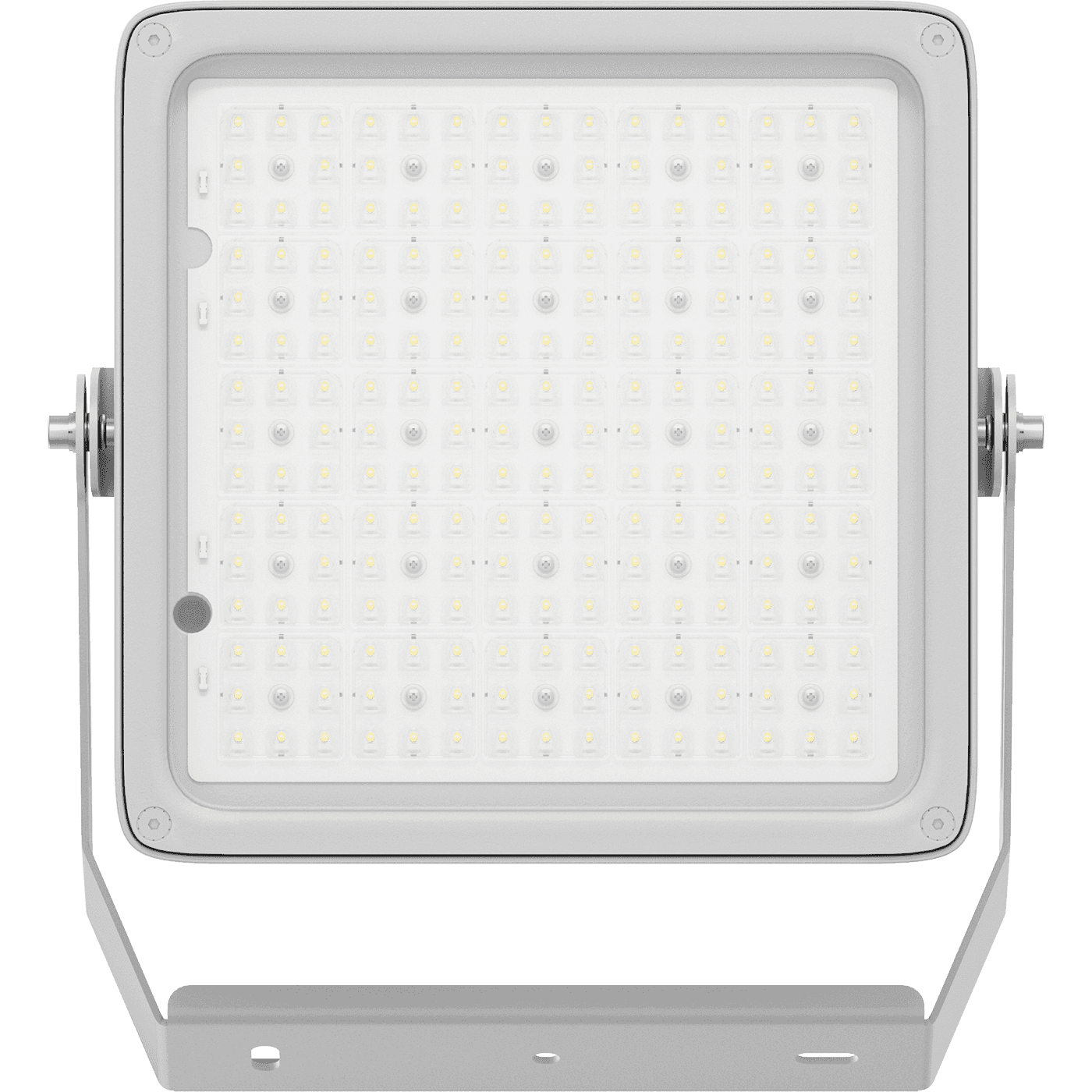

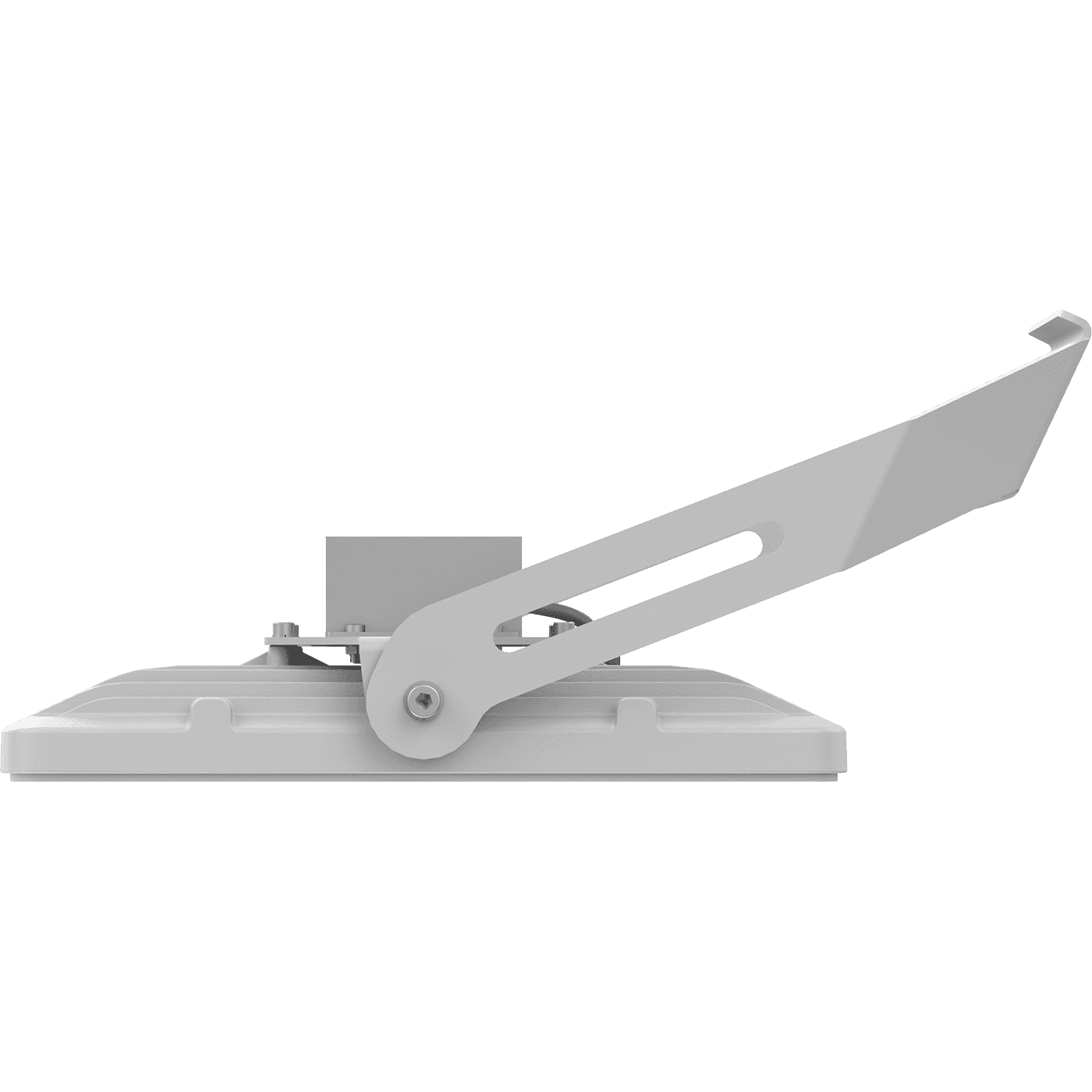

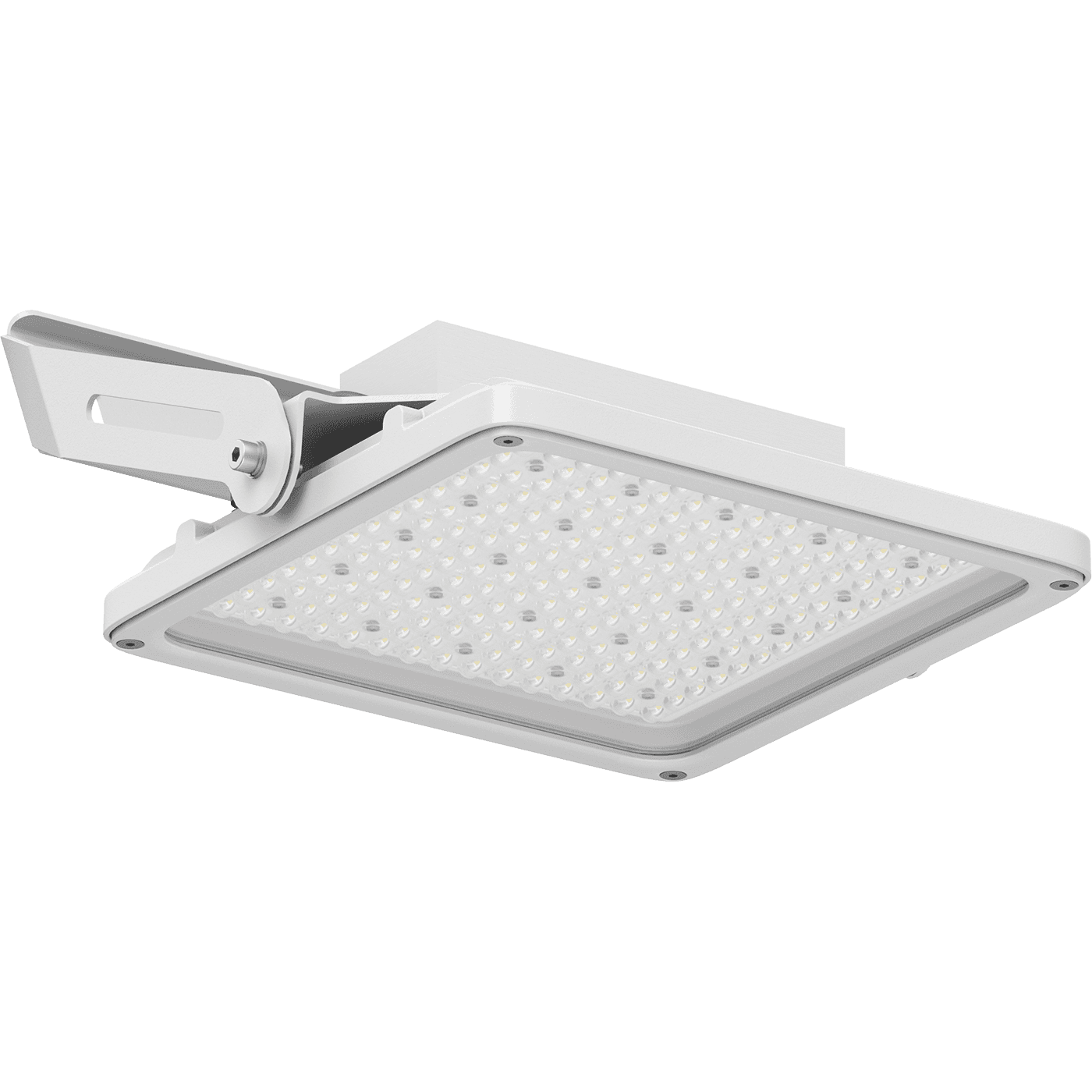

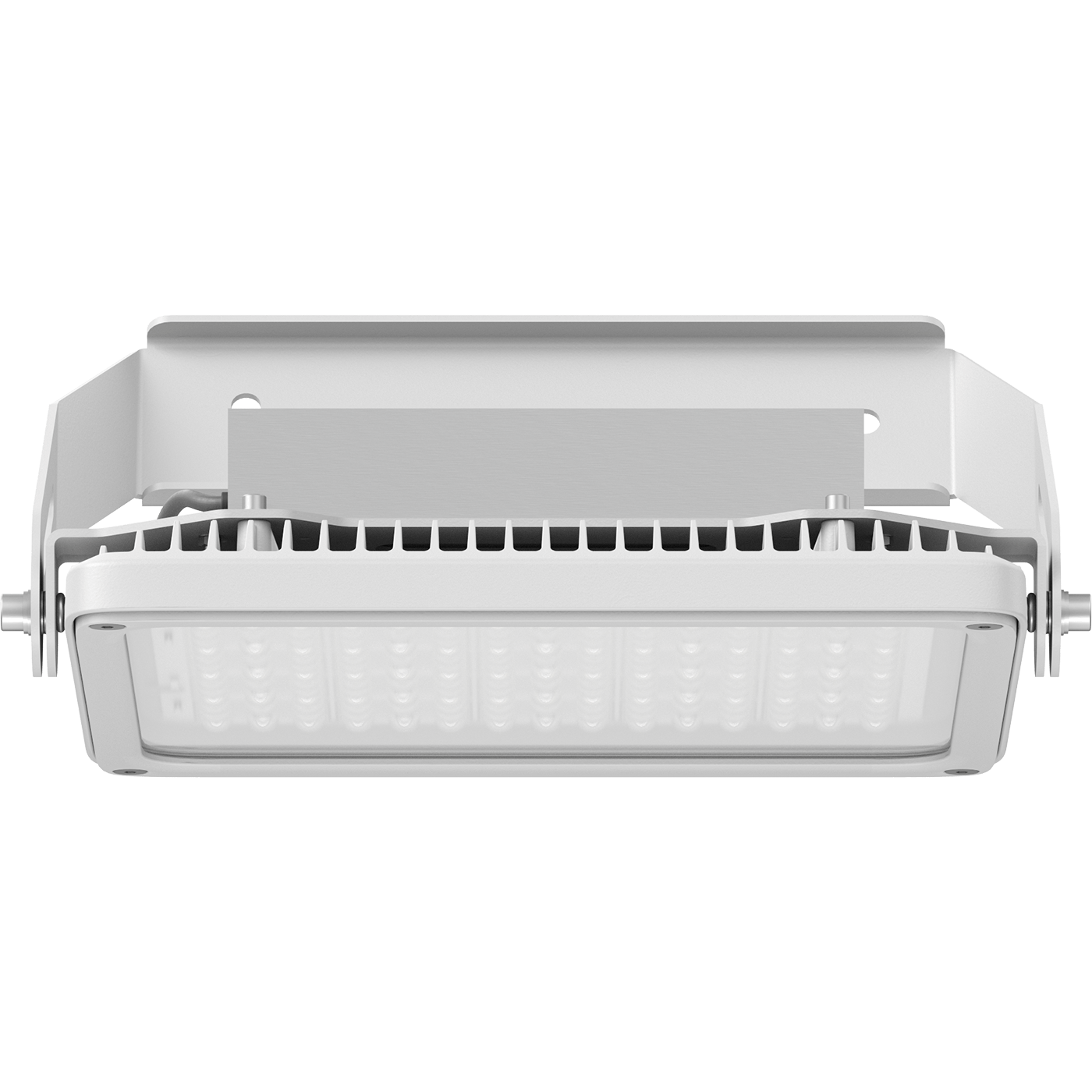

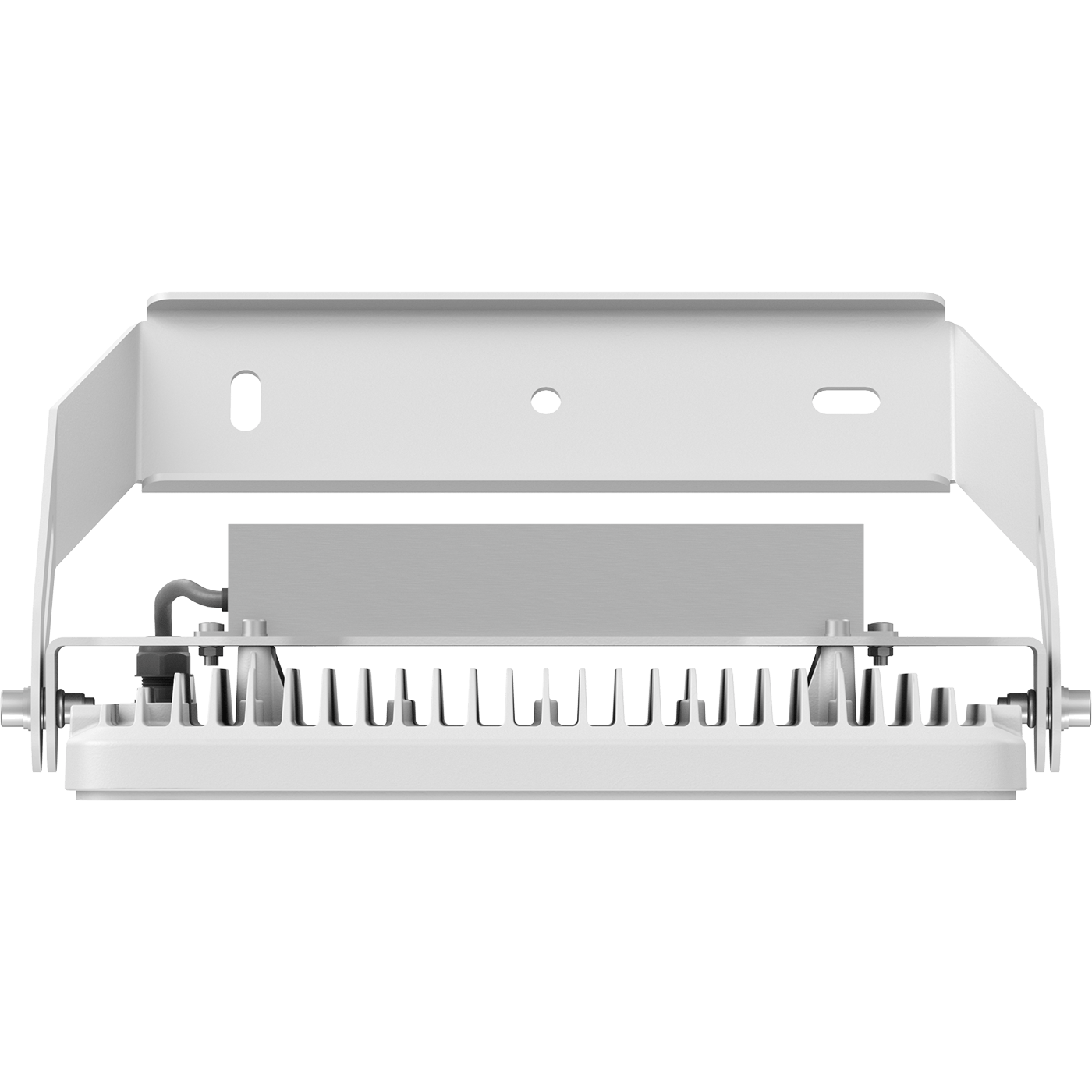

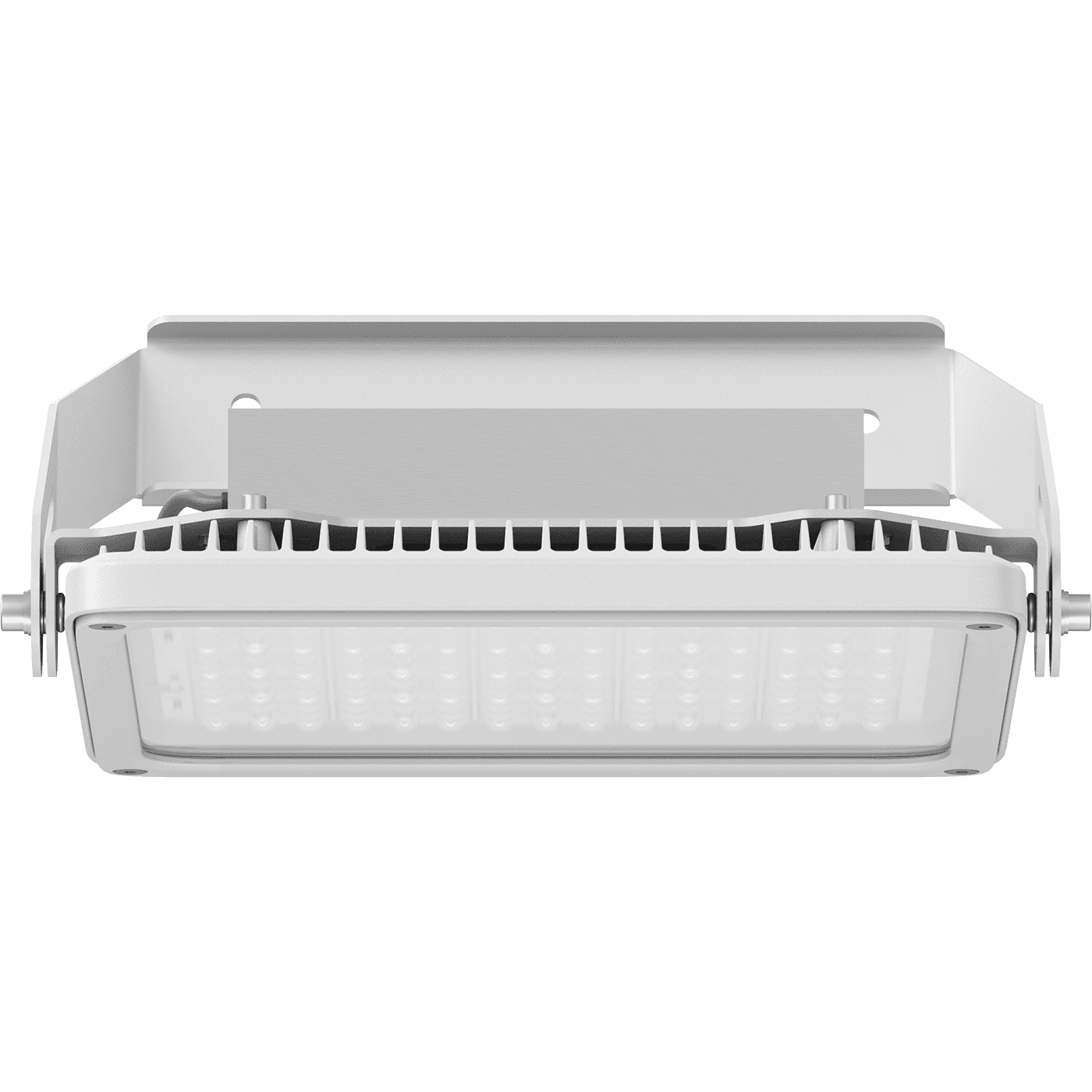

ATHLET 130W D130 857 WH DMX SBL
ATHLET 130W D130 857 WH DMX SBL
138 Wluminaire power
22400 lmlight flow
162 lm/Wenergy efficiency
code1875002510
beam angleD130
color temperature5700
weight8.3 kg
options
свернуть все
electricalconstructionalcommonilluminatingLMS options
starting current
58 Astarting current pulse time, µs
400 mksrated supply voltage, alternating current
230 Vrated supply voltage, direct current
230 Vsupply voltage, alternating current
90-305 Vsupply voltage, direct current
127-420 Vluminaire power
138 Welectric shock protection
Ipower factor
> 0,96supply voltage
230 Velectrical
starting current
58 A
starting current pulse time, µs
400 mks
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
supply voltage, alternating current
90-305 V
supply voltage, direct current
127-420 V
luminaire power
138 W
electric shock protection
I
power factor
> 0,96
supply voltage
230 V
constructional
ingress protection (IP)
IP66
fire safety class
П-I,II,IIa,ІІІ
material
Алюминий
weight
8.3 kg
length, mm
385 mm
width, mm
410 mm
height, mm
215 mm
housing color
Белый
climatic performance
УХЛ1*
maximum cross-section of the connected cable, sq. mm
2.5
shock resistance (IK)
IK07/2 Дж
installation length, mm
220 mm
lamp socket
LED
number of lamps
1
ballast
Драйвер
common
code
1875002510
ETIM class
Прожектор / Светильник направленного света
warranty
60 month
temperature range
от -40 до +40 C
energy efficiency class
A++
service life, hour
50 000 h
illuminating
energy efficiency
162 lm/W
color rendition index (CRI)
>80
light flow
22400 lm
flickering factor
<1%
beam angle
D130
color temperature
5700
light source type
LED
emission color
Белый
LMS options
dimming
DMX
model files
model files

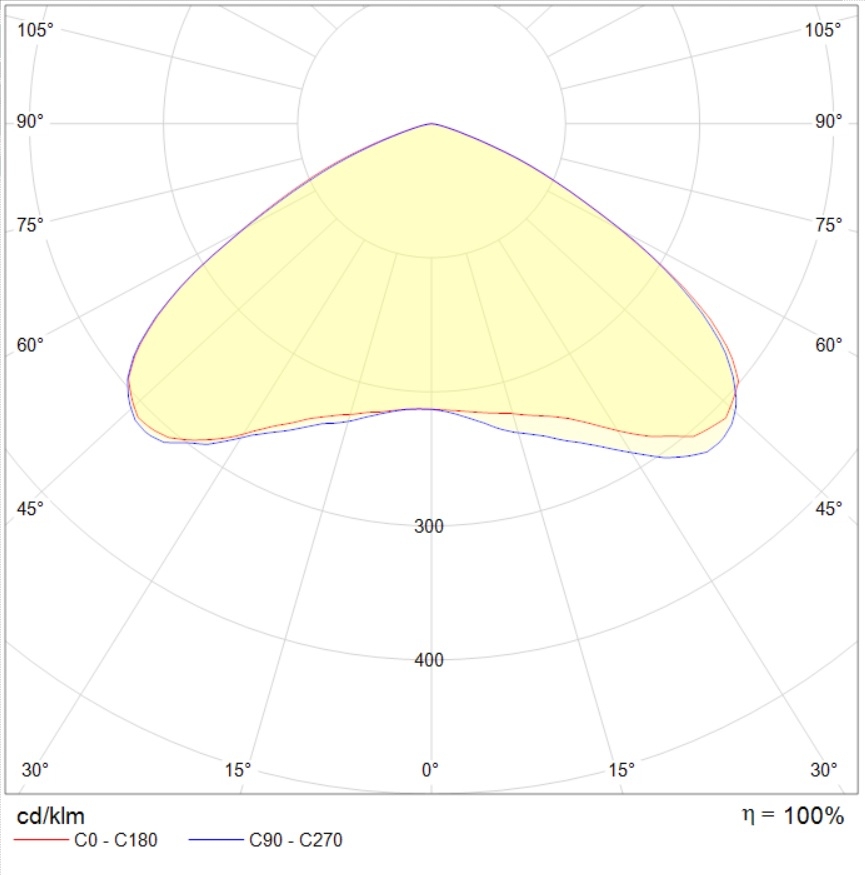

photometric files
