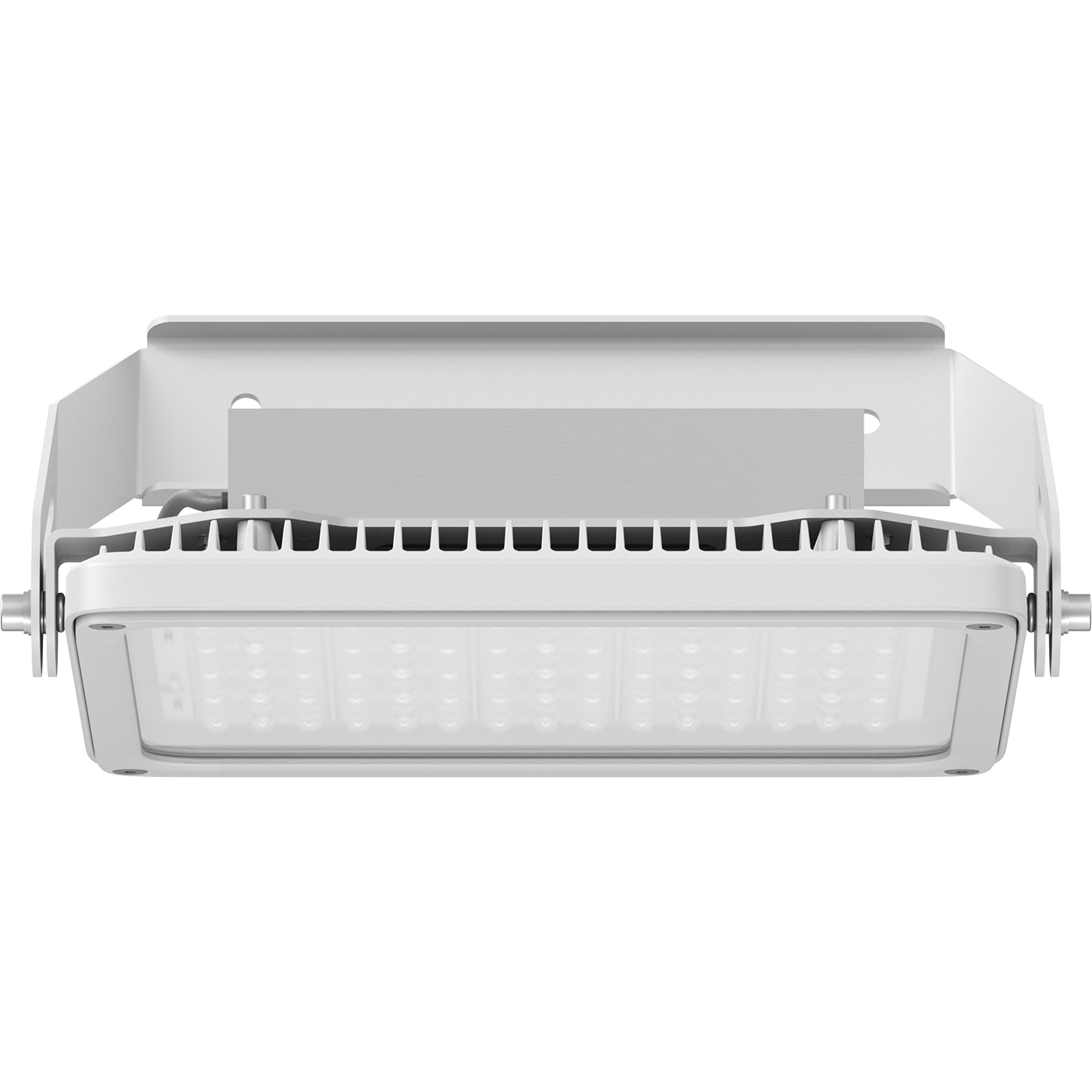

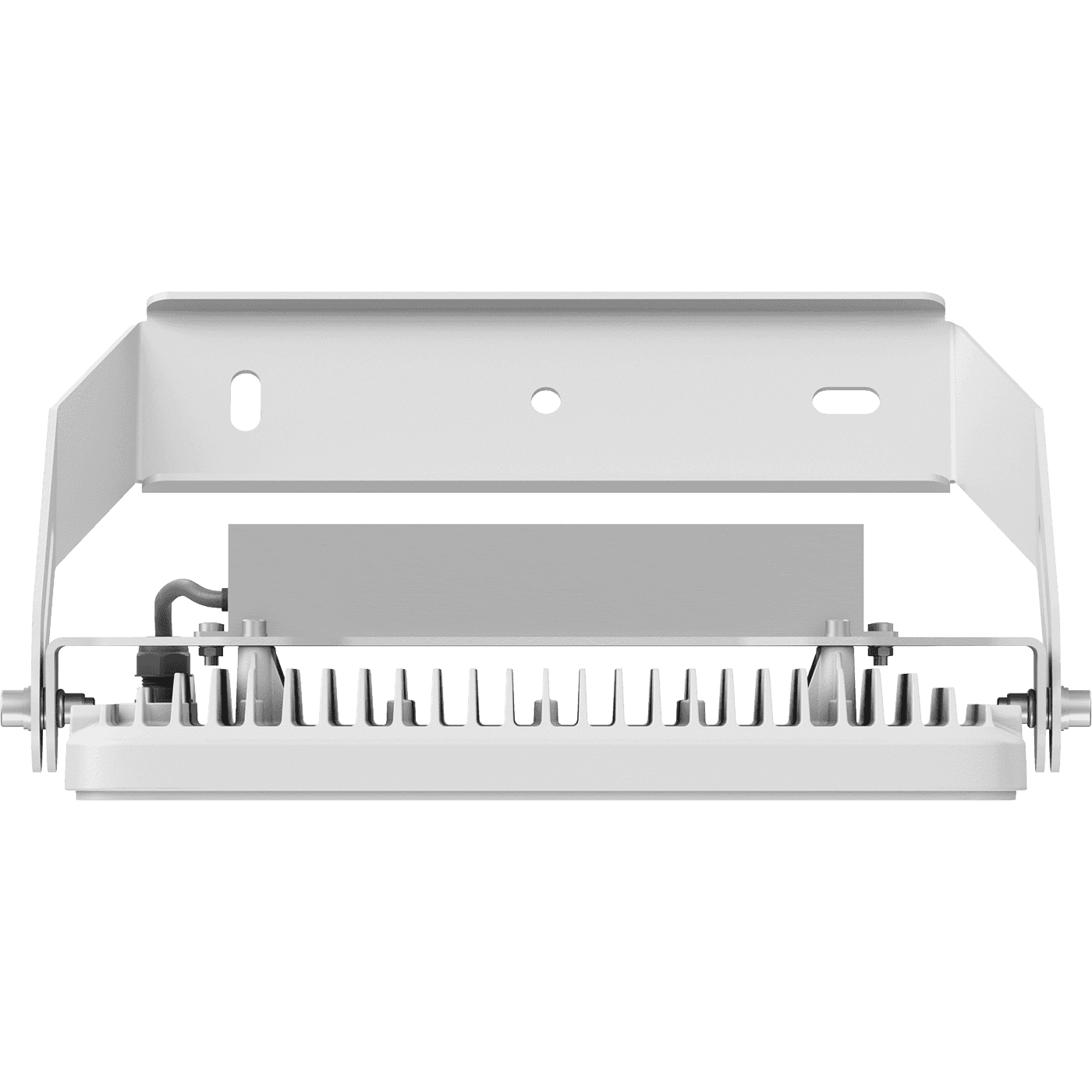

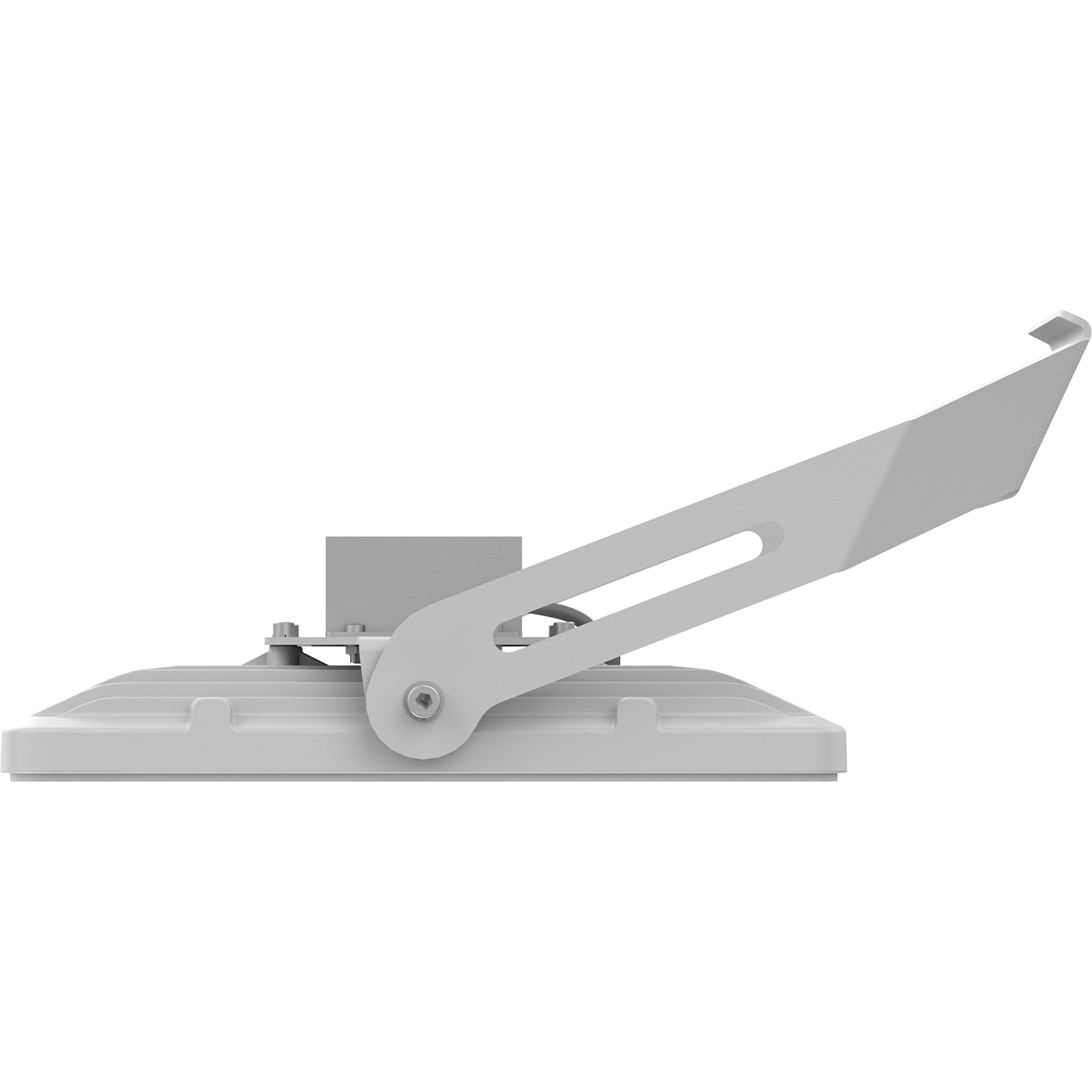

ATHLET 100W D30 957 WH SBL
ATHLET 100W D30 957 WH SBL
100 Wluminaire power
13600 lmlight flow
136 lm/Wenergy efficiency
code1875001780
beam angleD30
color temperature5700
weight8 kg
options
свернуть все
illuminatingelectricalconstructionalcommon
energy efficiency
136 lm/Wcolor rendition index (CRI)
>90light flow
13600 lmflickering factor
<2%beam angle
D30color temperature
5700light source type
LEDemission color
Белыйilluminating
energy efficiency
136 lm/W
color rendition index (CRI)
>90
light flow
13600 lm
flickering factor
<2%

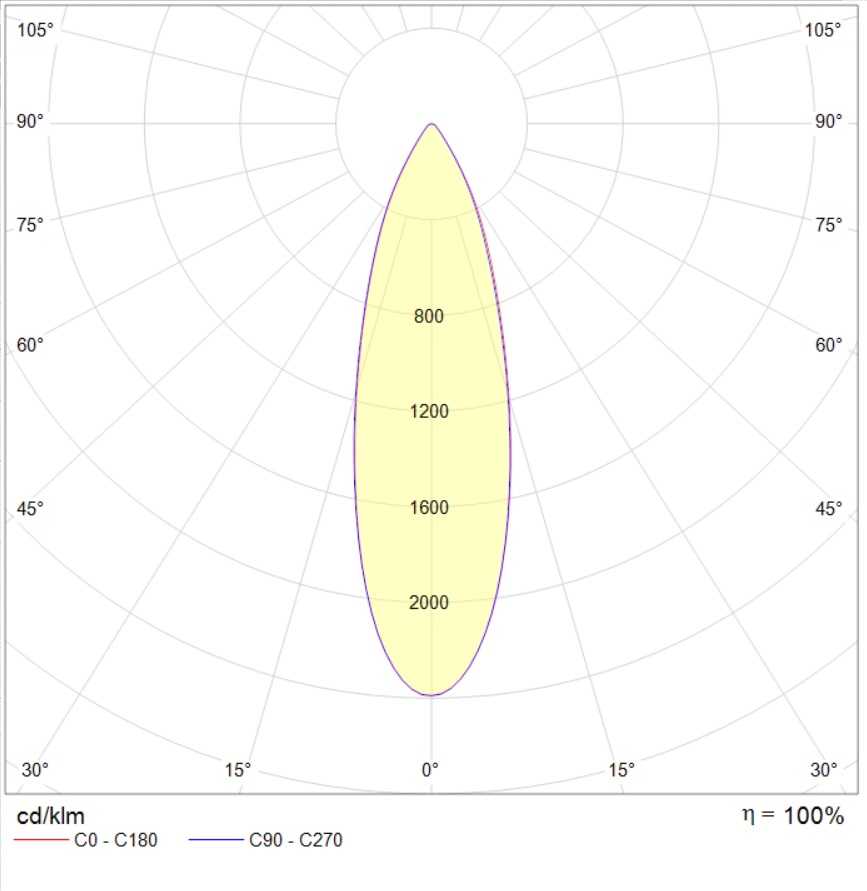

beam angle
D30
color temperature
5700
light source type
LED
emission color
Белый
electrical
luminaire power
100 W
electric shock protection
I
starting current pulse time, µs
380 mks
rated supply voltage, alternating current
230 V
supply voltage
230 V
starting current
33 A
maximum cross-section of the connected cable, sq. mm
2.5
supply voltage, direct current
90-300 V
supply voltage, alternating current
90-300 V
power factor
> 0,96
constructional
climatic performance
УХЛ1*
fire safety class
П-I,II,IIa,ІІІ
width, mm
410 mm
height, mm
215 mm
installation length, mm
220 mm
housing color
Белый
lamp socket
LED
number of lamps
1
ballast
Драйвер
length, mm
385 mm
material
Алюминий
ingress protection (IP)
IP66
shock resistance (IK)
IK07/2 Дж
weight
8 kg
common
code
1875001780
warranty
60 month
energy efficiency class
A+
temperature range
от -40 до +60 C
service life, hour
50 000 h
ETIM class
Прожектор / Светильник направленного света
