ART SUPERSPOT/T 4W D4 9730 WH DIM
ART SUPERSPOT/T 4W D4 9730 WH DIM
4 Wluminaire power
70 lmlight flow
18 lm/Wenergy efficiency
code1915000140
color temperature3000
beam angleD4
number of lamps1
performance factor100
options
свернуть все
electricalcommonilluminatingconstructional
starting current
18 Astarting current pulse time, µs
2.8 mksrated supply voltage, alternating current
230 Vsupply voltage, alternating current
176-264 Vluminaire power
4 Welectric shock protection
IIpower factor
> 0,90supply voltage
230 Velectrical
starting current
18 A
starting current pulse time, µs
2.8 mks
rated supply voltage, alternating current
230 V
supply voltage, alternating current
176-264 V
luminaire power
4 W
electric shock protection
II
power factor
> 0,90
supply voltage
230 V
common
ETIM class
Прожектор / Светильник направленного света
warranty
36 month
temperature range
от +5 до +35 C
energy efficiency class
B
service life, hour
50 000 h
code
1915000140
illuminating
color rendition index (CRI)
>97
light flow
70 lm
flickering factor
<1%
energy efficiency
18 lm/W
beam angle
D4
color temperature
3000
light source type
LED
emission color
Белый
constructional
ingress protection (IP)
IP20
climatic performance
УХЛ4*
material
Металл, пластик
weight
0.45 kg
diameter, mm
55 mm
height, mm
131 mm
housing color
Белый
shock resistance (IK)
IK02/0,2 Дж
lamp socket
LED
number of lamps
1
ballast
Драйвер 1-10В
model files
model files

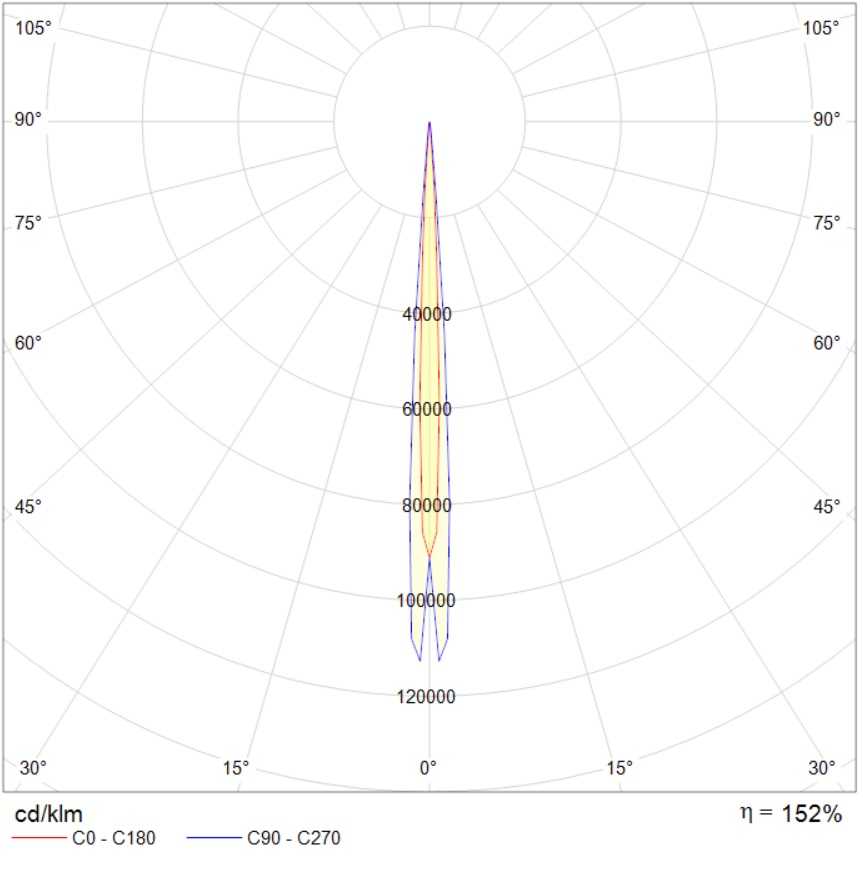

photometric files
documents
сертификаты
photometric files
ies8.6 kB
jpg85.2 kB
ldt6.5 kB
documents
passport1.6 mB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20113.2 mB
Declaration of Conformity EAEU TR 037/2016588 kB
