ART SUPERSPOT/T 4W D4 9727 WH DIM

ART SUPERSPOT/T 4W D4 9727 WH DIM
4 Wluminaire power
70 lmlight flow
18 lm/Wenergy efficiency
code1915000120
color temperature2700
beam angleD4
performance factor100
options
свернуть все
illuminatingelectricalconstructionalcommon
energy efficiency
18 lm/W
color rendition index (CRI)
>97
light flow
70 lm
flickering factor
<1%
beam angle
D4
color temperature
2700
light source type
LED
emission color
Белый
illuminating
energy efficiency
18 lm/W
color rendition index (CRI)
>97
light flow
70 lm
flickering factor
<1%
beam angle
D4
color temperature
2700
light source type
LED
emission color
Белый
electrical
starting current pulse time, µs
2.8 mks
electric shock protection
II
luminaire power
4 W
supply voltage
230 V
power factor
> 0,90
rated supply voltage, alternating current
230 V
starting current
18 A
constructional

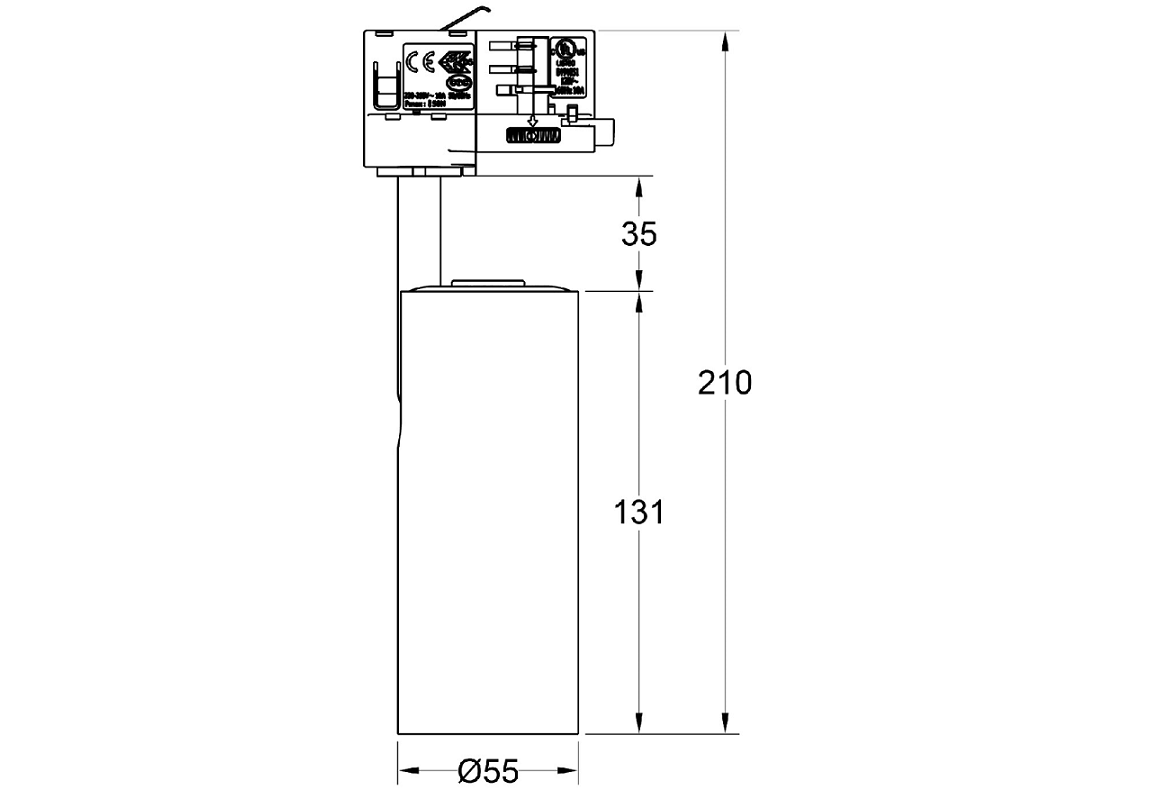

diameter
55 mm
height, mm
131 mm
weight
0.45 kg
ingress protection (IP)
IP20
shock resistance (IK)
IK02/0,2 Дж
climatic performance
УХЛ4*
material
Металл, пластик
housing color
Белый
lamp socket
LED
number of lamps
1
ballast
Драйвер 1-10В
common
warranty
36 month
temperature range
от +5 до +35 C
service life, hour
50 000 h
energy efficiency class
B
ETIM class
Прожектор / Светильник направленного света
code
1915000120
model files
model files

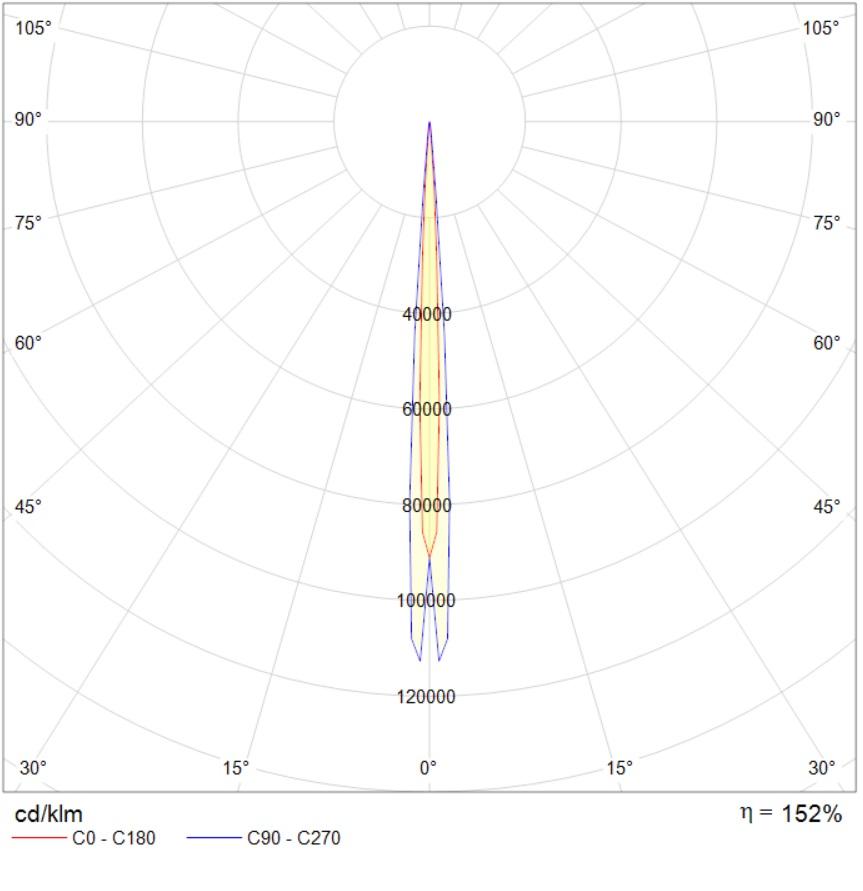

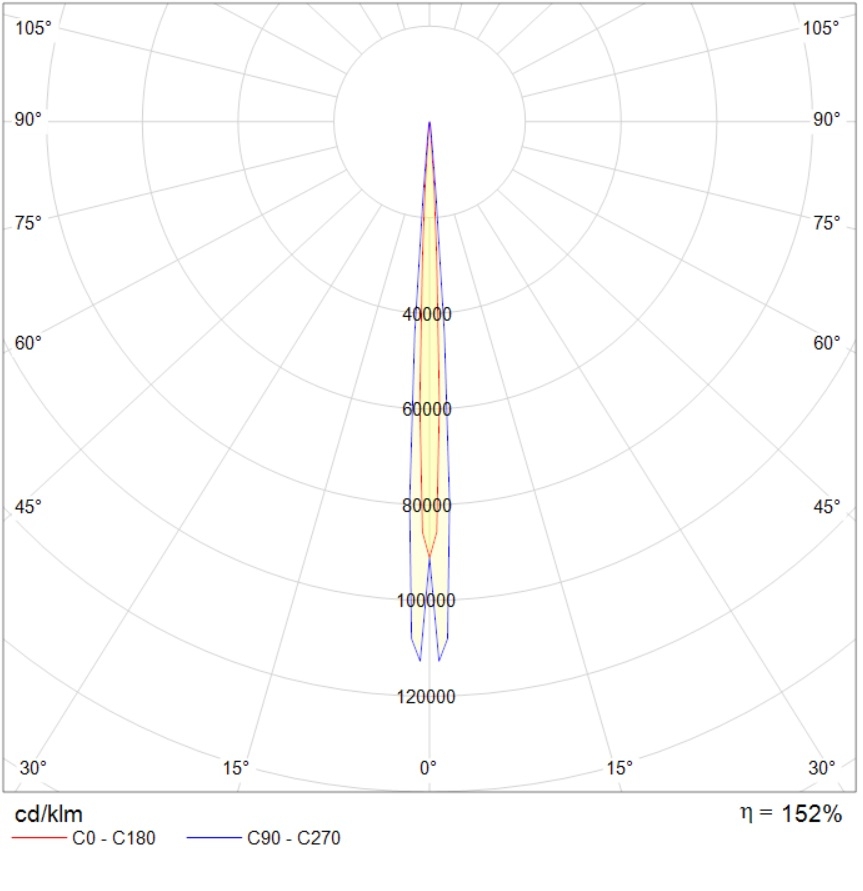

photometric files
ies8.6 kB
jpg85.2 kB
ldt6.5 kB
documents
passport1.6 mB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20113.2 mB
Declaration of Conformity EAEU TR 037/2016658.3 kB
photometric files
ies8.6 kB
jpg85.2 kB
ldt6.5 kB
documents
passport1.6 mB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20113.2 mB
Declaration of Conformity EAEU TR 037/2016658.3 kB
