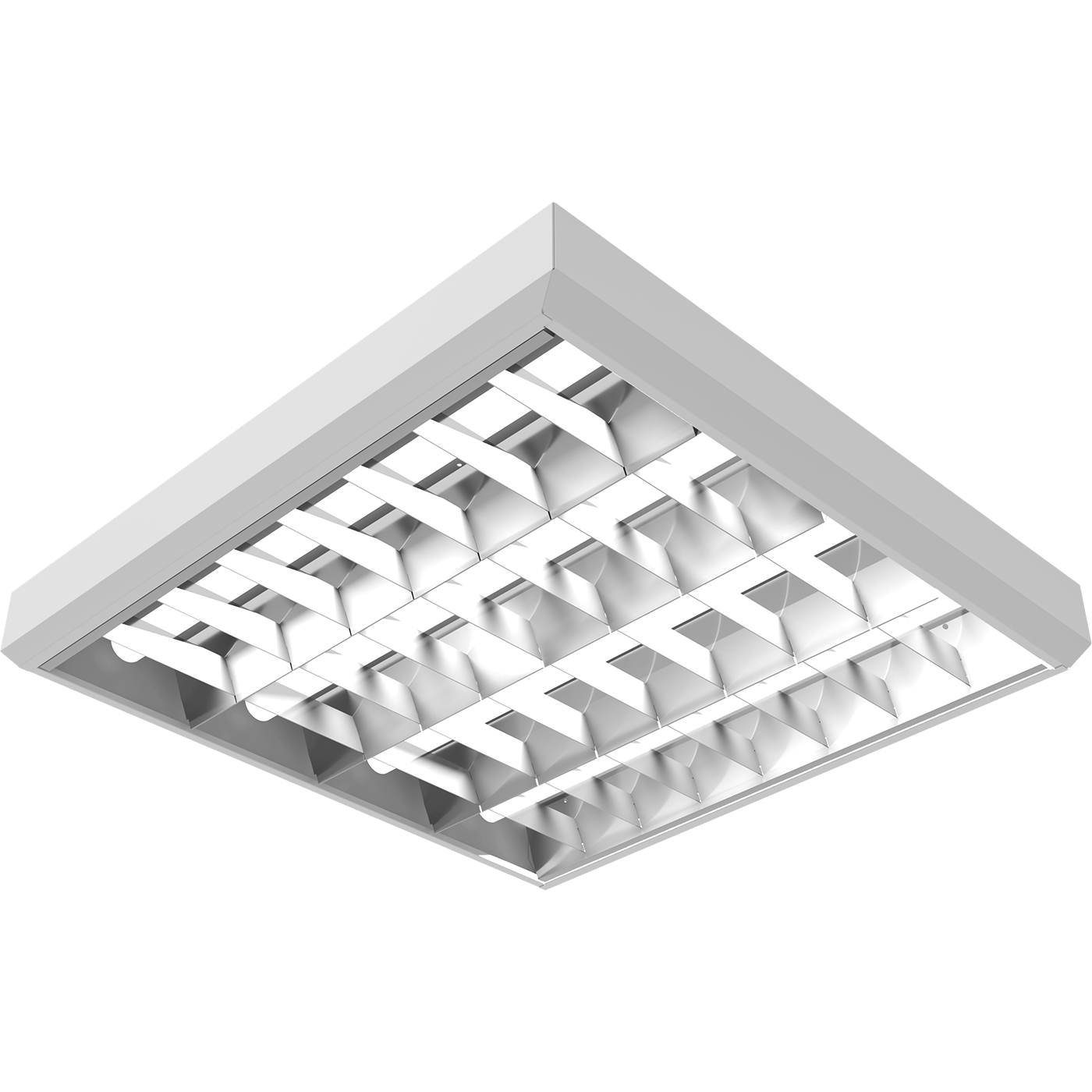

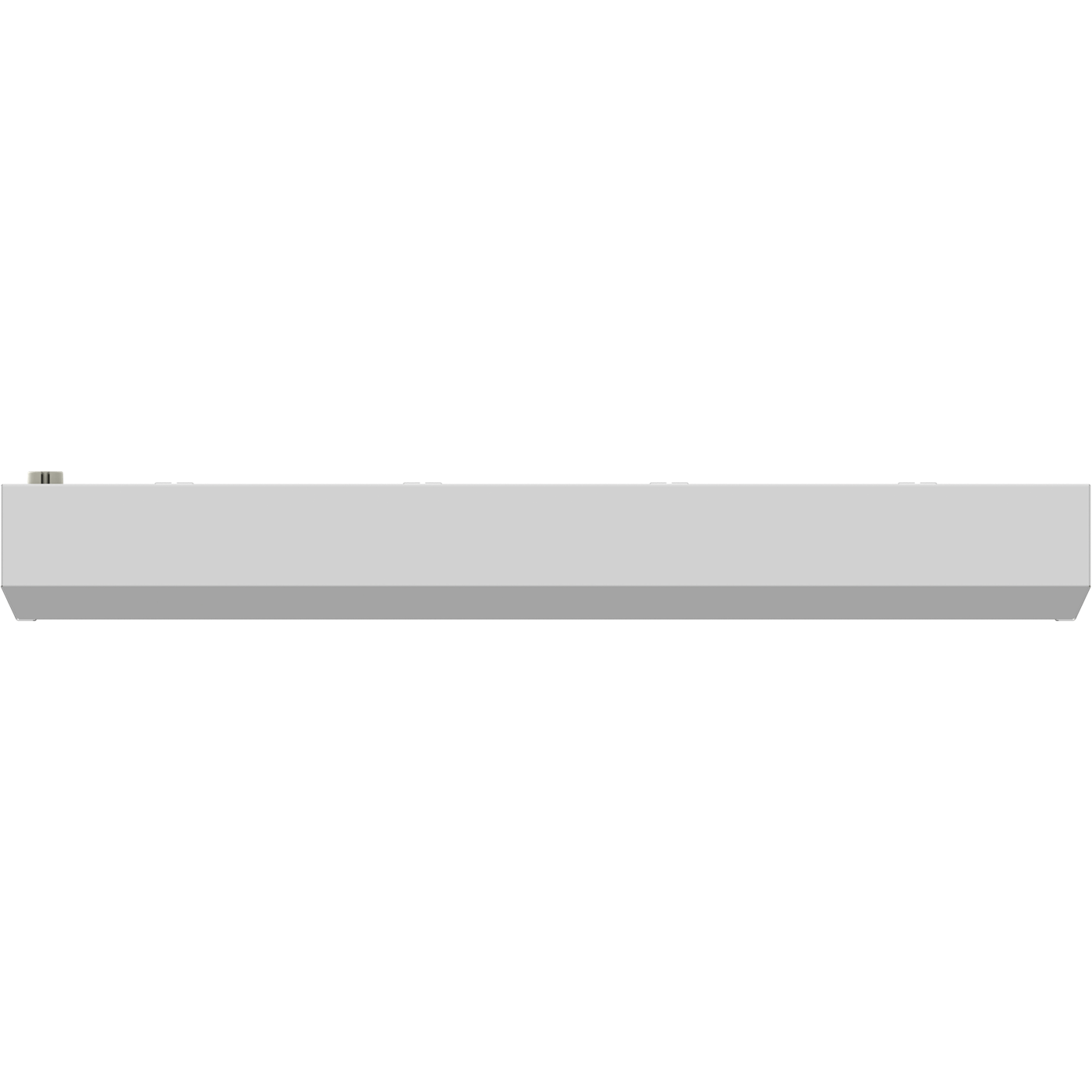

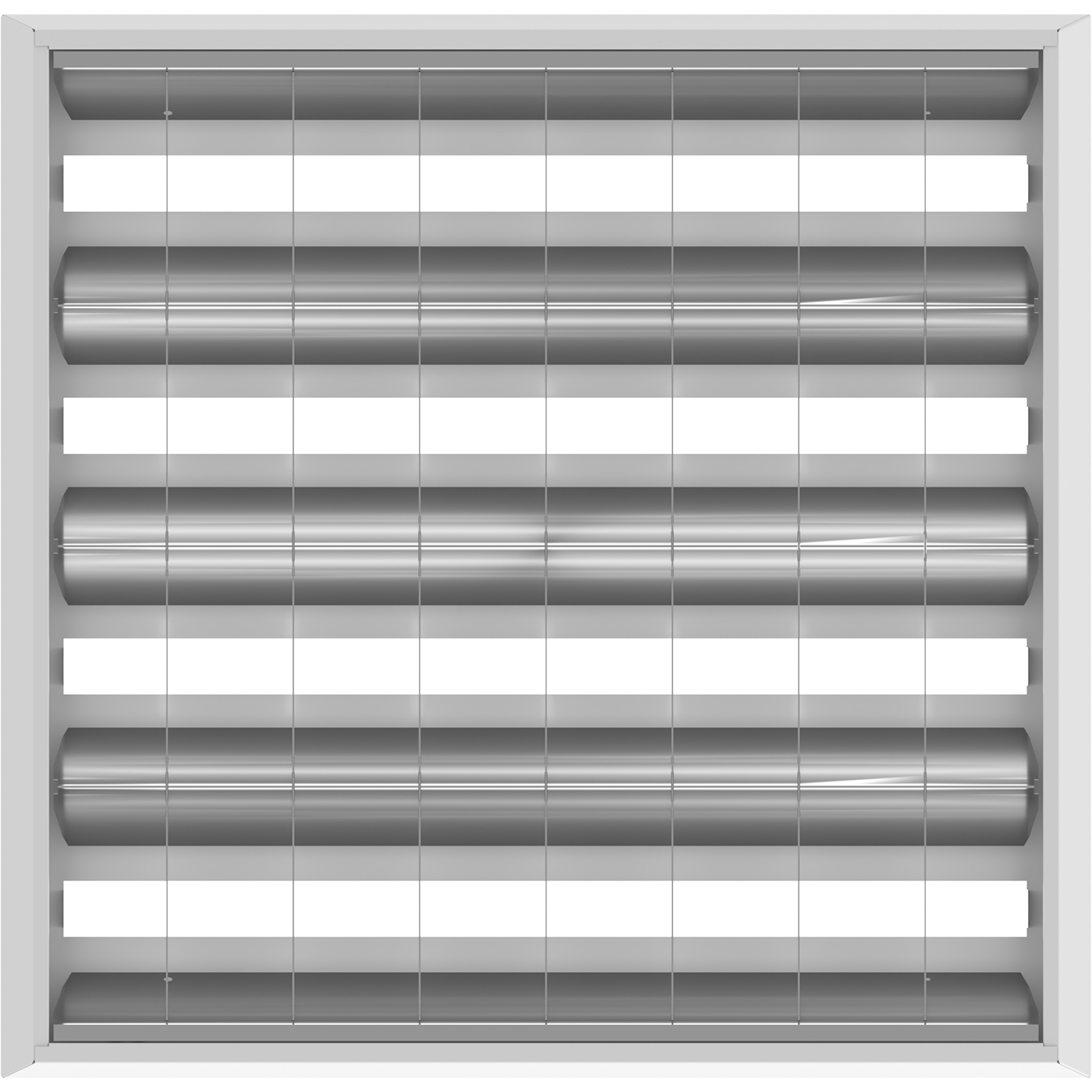

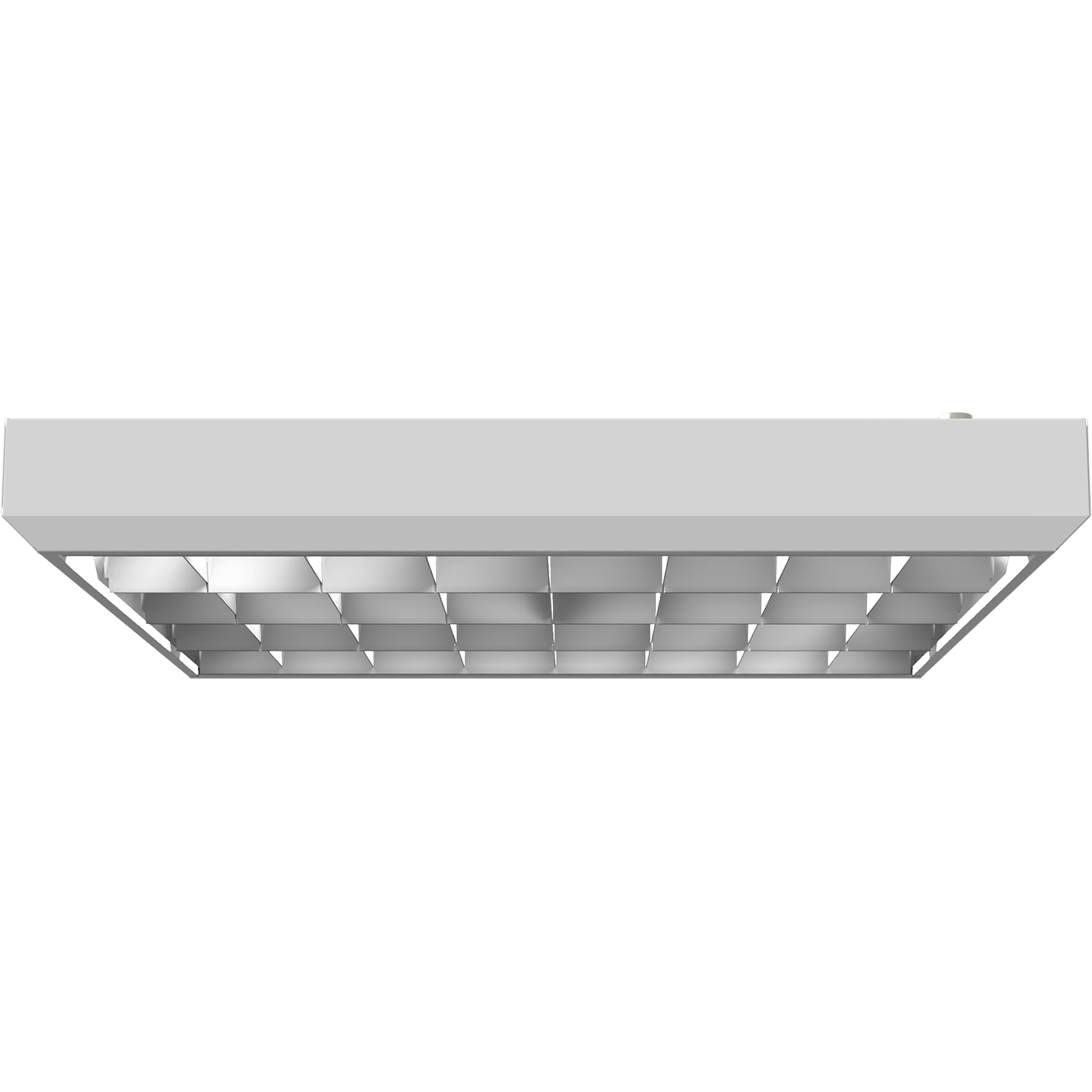

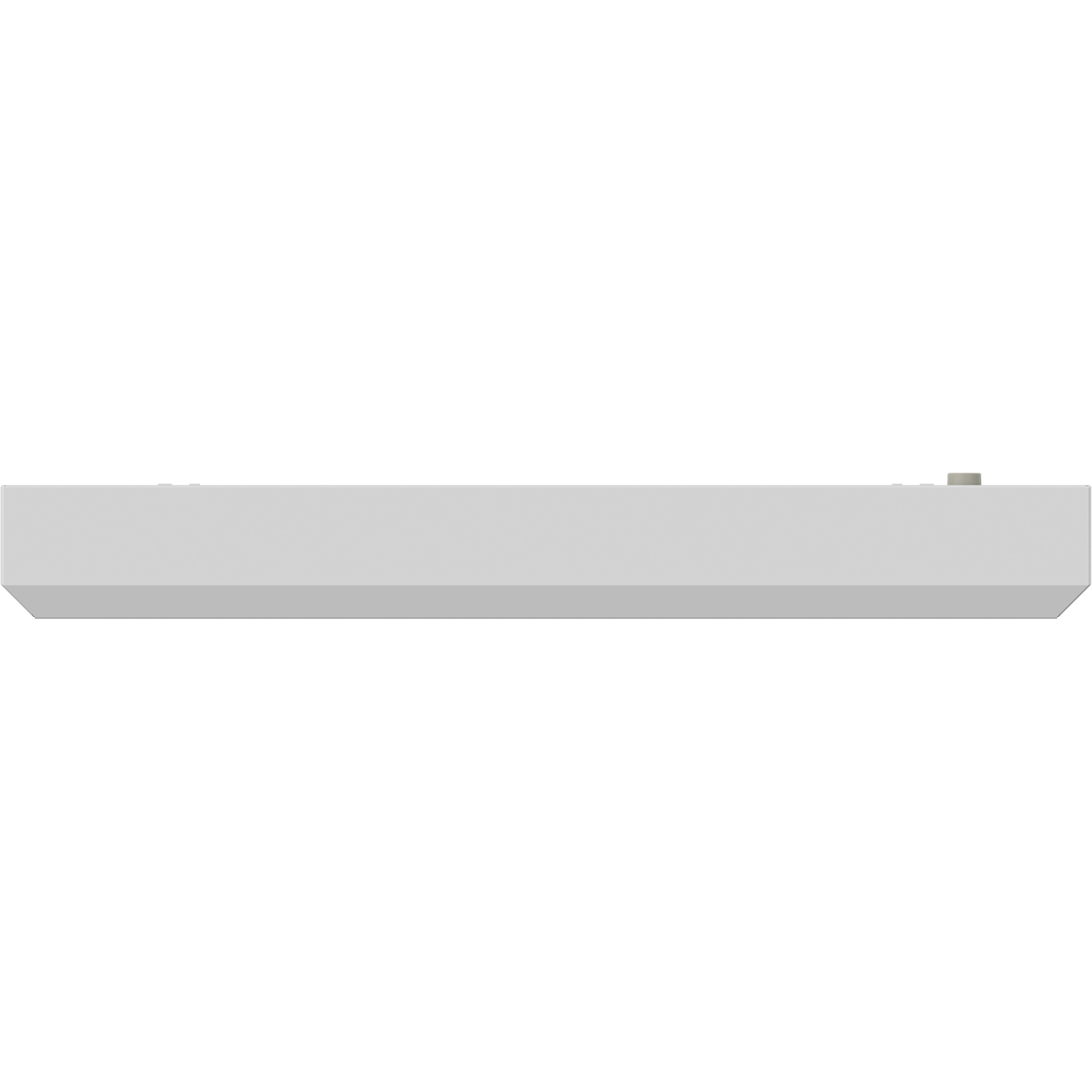

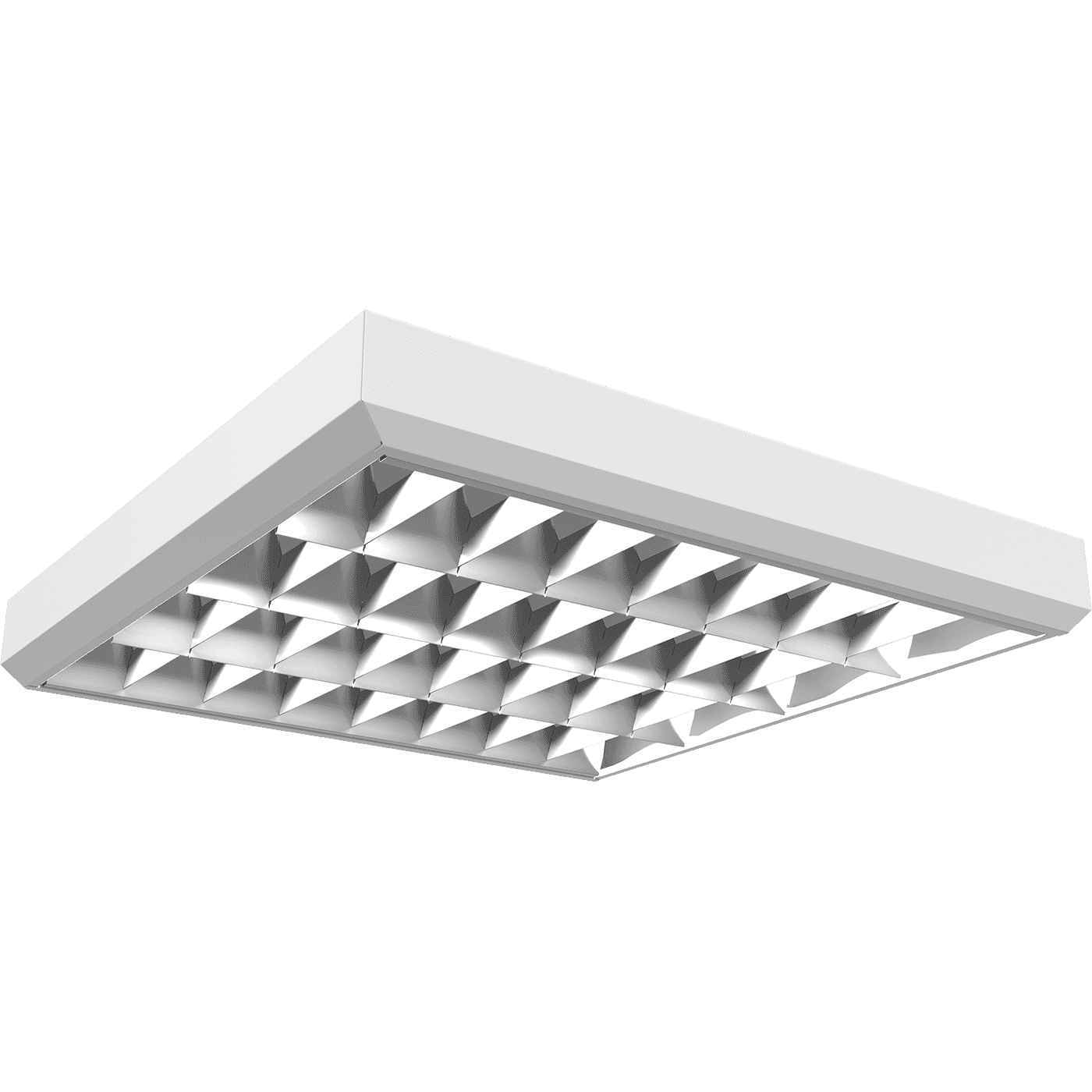

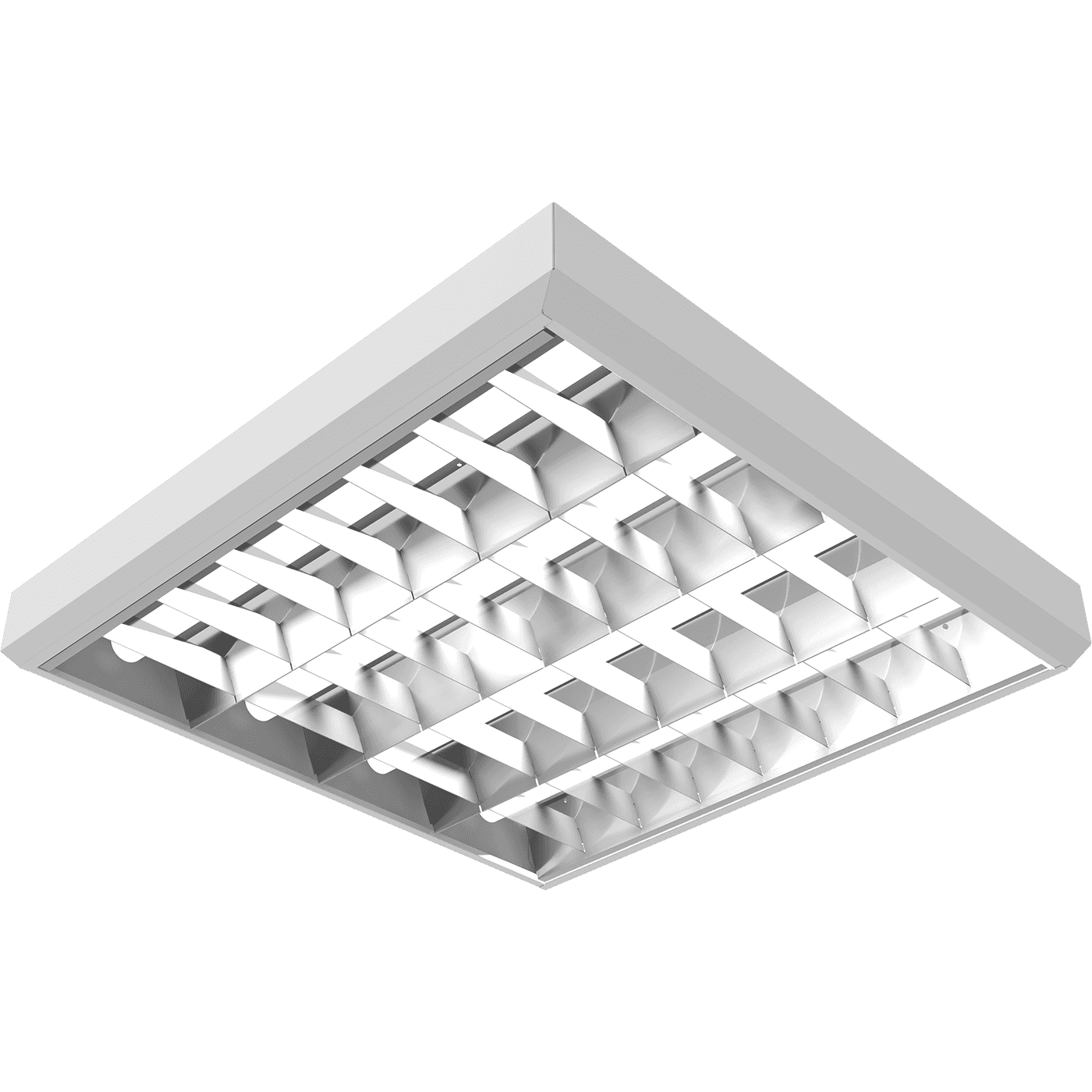

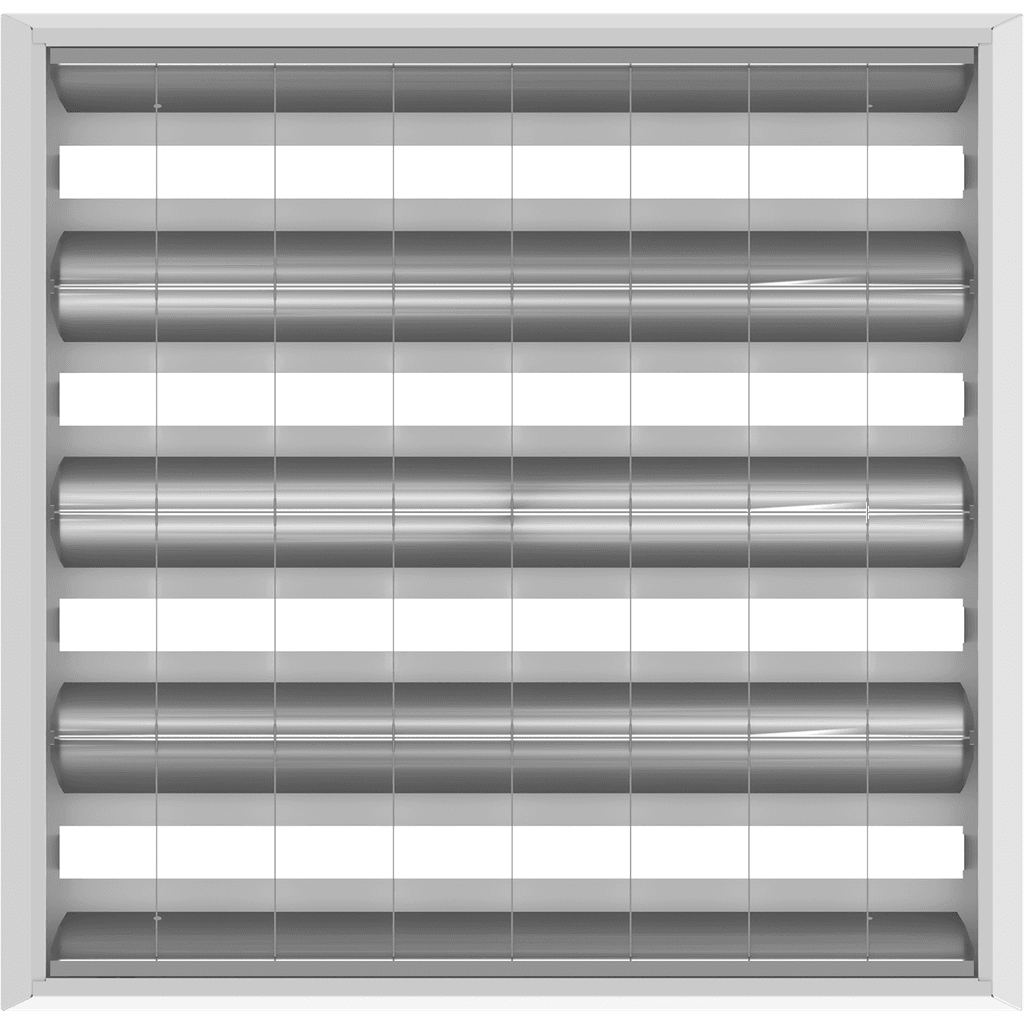

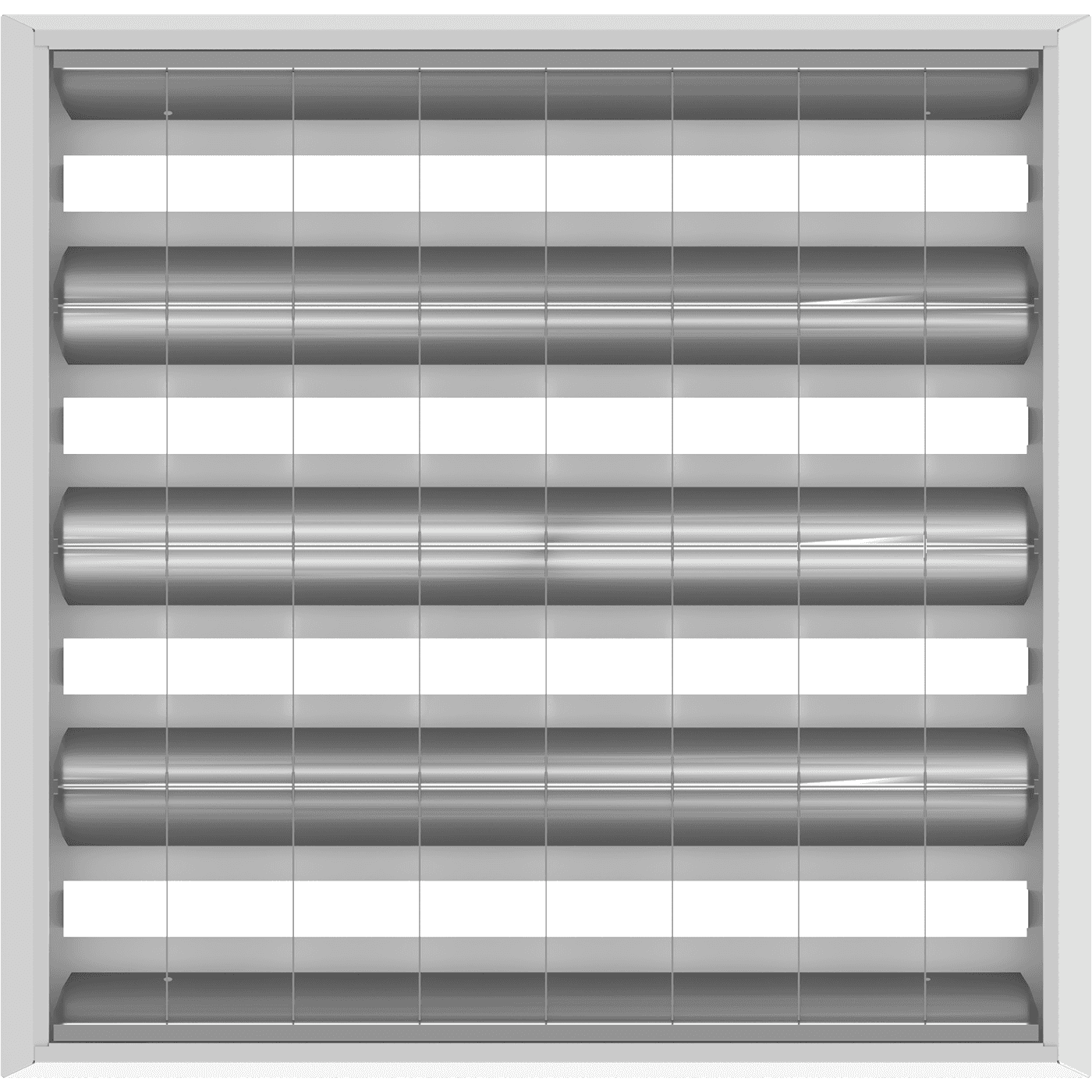

ARS/S UNI LED 600 4000K
ARS/S UNI LED 600 4000K
30 Wluminaire power
3000 lmlight flow
100 lm/Wenergy efficiency
code1042000030
color temperature4000 K
beam angleD120
performance factor100
options
свернуть все
illuminatingelectricalconstructionalcommon
energy efficiency
100 lm/Wcolor rendition index (CRI)
>80light flow
3000 lmflickering factor
<5%beam angle
D120color temperature
4000 Klight source type
LEDemission color
Белыйilluminating
energy efficiency
100 lm/W
color rendition index (CRI)
>80
light flow
3000 lm
flickering factor
<5%
beam angle
D120
color temperature
4000 K
light source type
LED
emission color
Белый
electrical
starting current pulse time
250 µs
electric shock protection
I
luminaire power
30 W
supply voltage
230 V
power factor
> 0,98
maximum cross-section of the connected cable
2.5 mm2
rated supply voltage, alternating current
230 V
rated supply voltage
230 V
starting current
25 A
constructional
length
625 mm
width
610 mm
height
80 mm
installation length
480 mm
installation width
560 mm
weight
4.8 kg
ingress protection (IP)
IP20
shock resistance (IK)
IK02/0,2 Дж
climatic performance
УХЛ4*
material
Сталь
housing color
Белый
lamp socket
LED
number of lamps
1
ballast
Драйвер
common
warranty
36 month
temperature range
от +5 до +35 C
service life
50 000 h
energy efficiency class
A+
ETIM class
Настенно-потолочный светильник
code
1042000030
model files
model files
CAD/BIM files

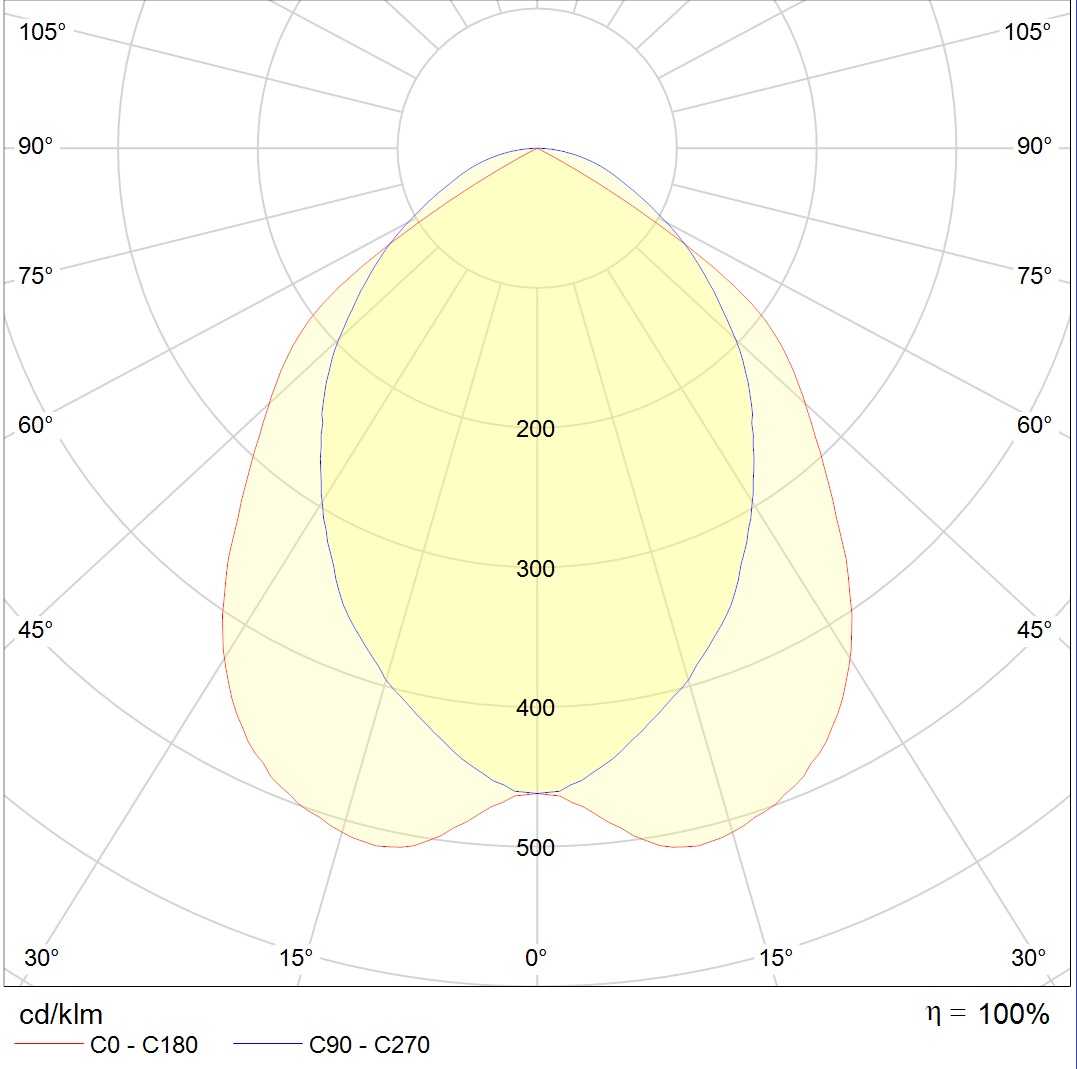

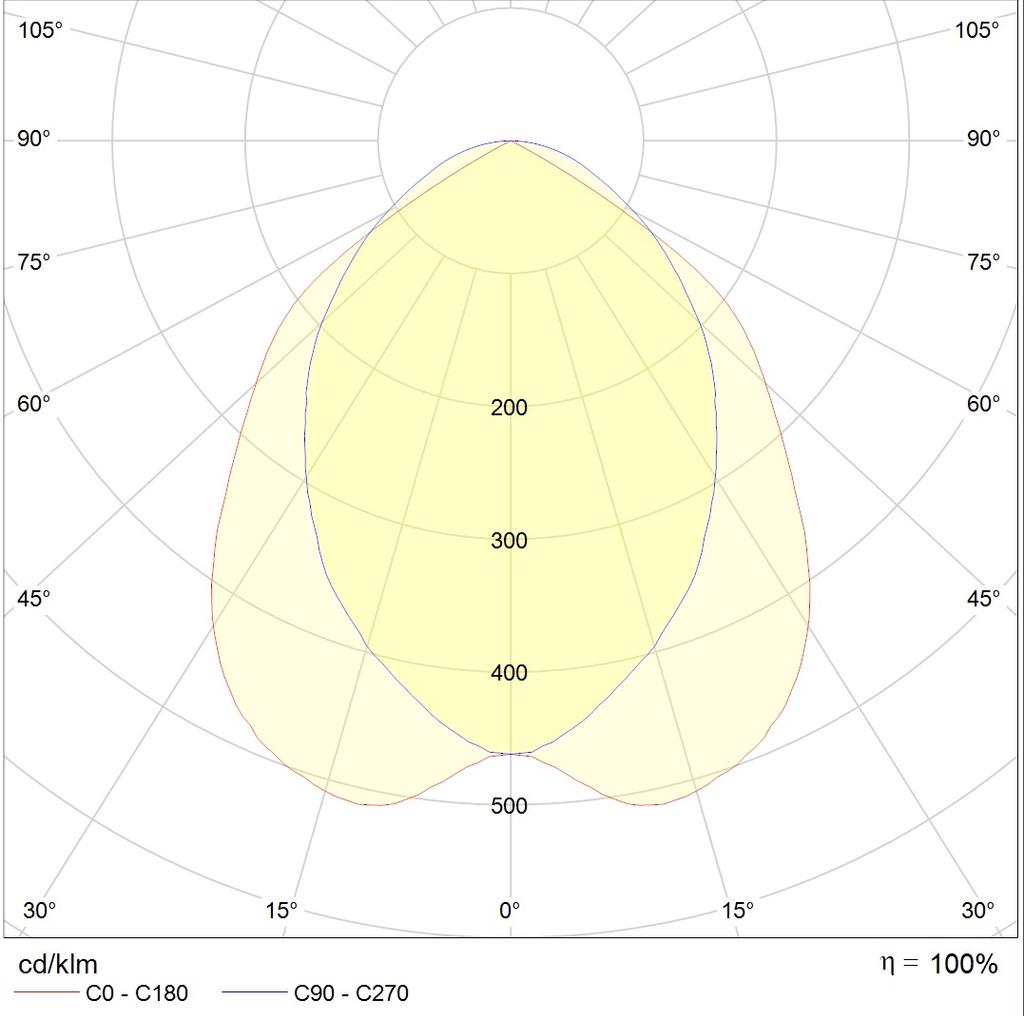

photometric files
documents
сертификаты
CAD/BIM files
model 3dMax752 kB
photometric files
ies134.1 kB
jpg139.4 kB
ldt82.7 kB
csv419 B
documents
passport1.5 mB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20113.2 mB
Declaration of Conformity EAEU TR 037/2016658.3 kB
accessories
Mounting kit X40.013kgarticle: 2995000040
