ARS/S UNI LED 1200 EM 4000K CRI90

ARS/S UNI LED 1200 EM 4000K CRI90
30 Wluminaire power
3000 lmlight flow
100 lm/Wenergy efficiency
code1042000160
color temperature4000 K
beam angleD120
performance factor100
options
свернуть все
illuminatingelectricalconstructionalemergencycommon
energy efficiency
100 lm/W
color rendition index (CRI)
>90
light flow
3000 lm
flickering factor
<5%
beam angle
D120
color temperature
4000 K
light source type
LED
emission color
Белый
illuminating
energy efficiency
100 lm/W
color rendition index (CRI)
>90
light flow
3000 lm
flickering factor
<5%
beam angle
D120
color temperature
4000 K
light source type
LED
emission color
Белый
electrical
electric shock protection
I
luminaire power
30 W
supply voltage
230 V
power factor
> 0,98
maximum cross-section of the connected cable
2.5 mm2

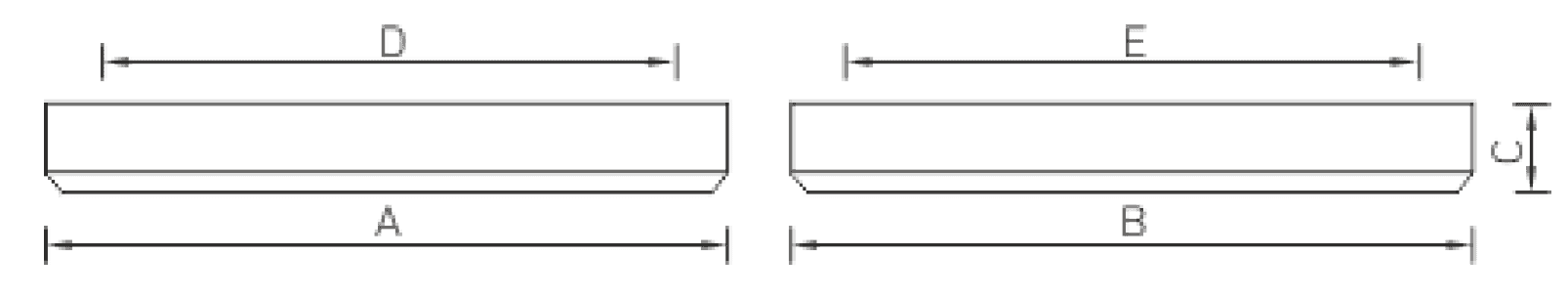

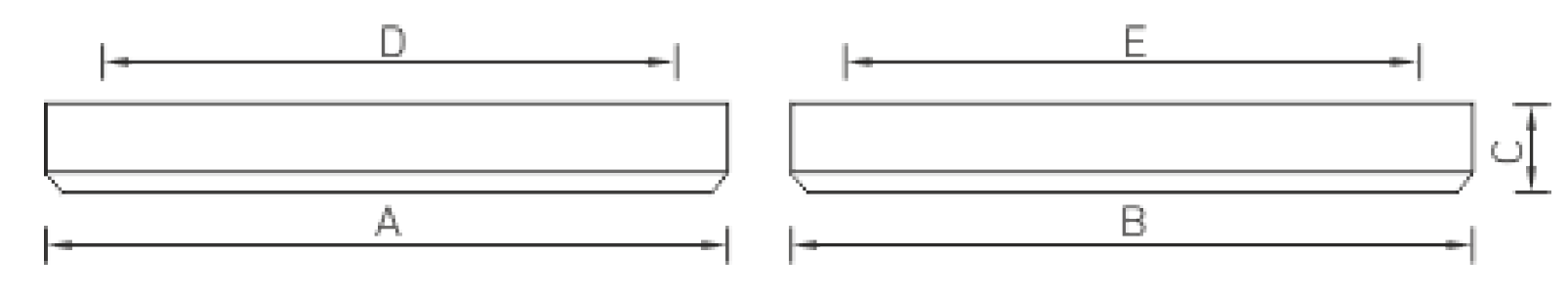

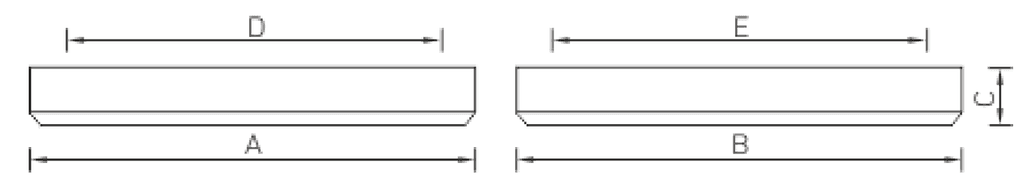

constructional
length
1195 mm
width
295 mm
height
81 mm
installation length
1050 mm
installation width
224 mm
weight
5.2 kg
ingress protection (IP)
IP20
shock resistance (IK)
IK02/0,2 Дж
climatic performance
УХЛ4*
material
Сталь
housing color
Белый
lamp socket
LED
number of lamps
1
ballast
Драйвер
emergency
operating time in emergency mode
1 h
luminous flux in emergency mode
11% lm
common
warranty
36 month
temperature range
от +5 до +35 C
service life
50 000 h
energy efficiency class
A+
ETIM class
Настенно-потолочный светильник
code
1042000160
model files
model files

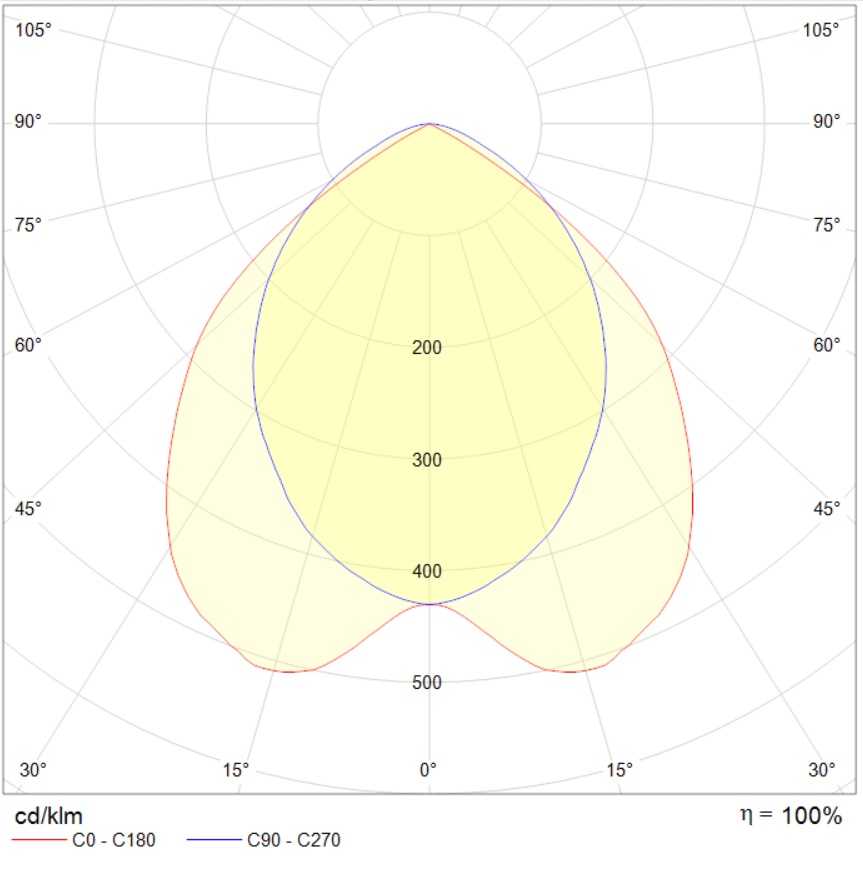

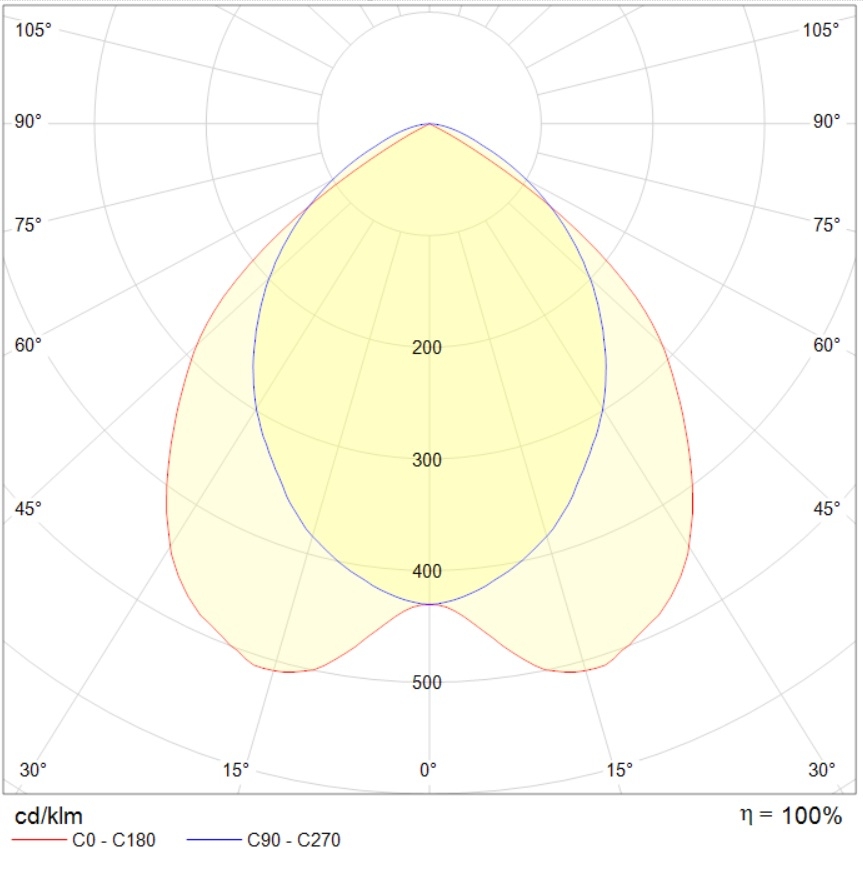

photometric files
ies134.1 kB
jpg87.9 kB
ldt81.8 kB
csv430 B
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20113.2 mB
Declaration of Conformity EAEU TR 037/2016658.3 kB
photometric files
ies134.1 kB
jpg87.9 kB
ldt81.8 kB
csv430 B
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20113.2 mB
Declaration of Conformity EAEU TR 037/2016658.3 kB
