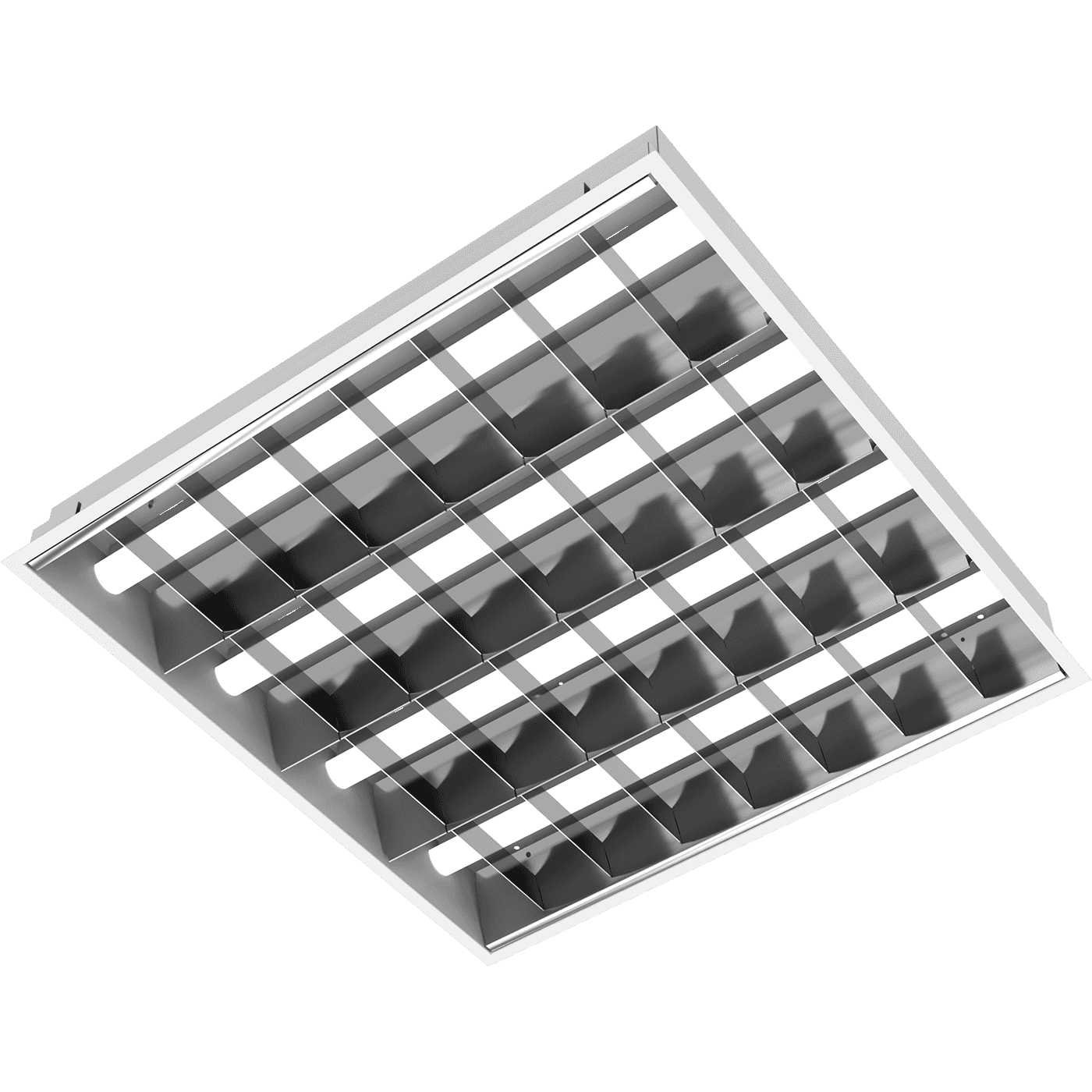

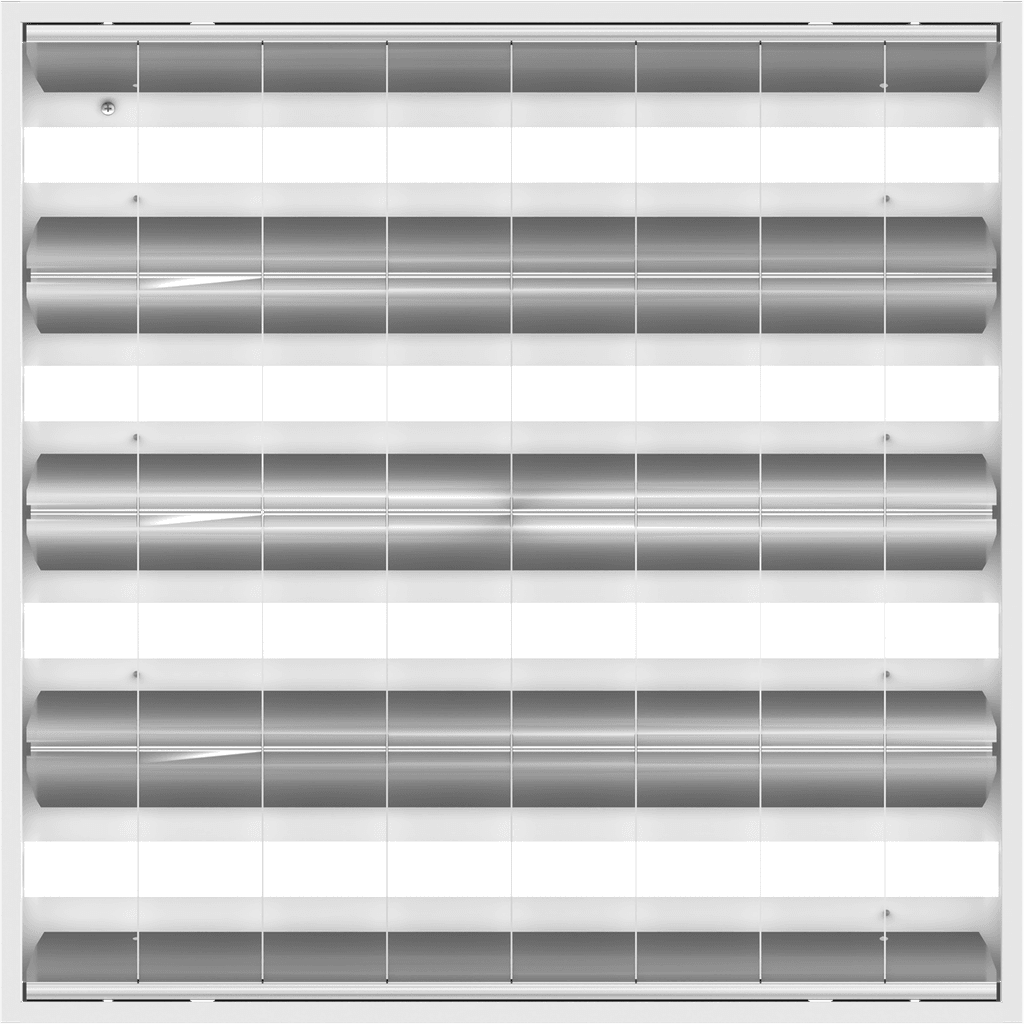

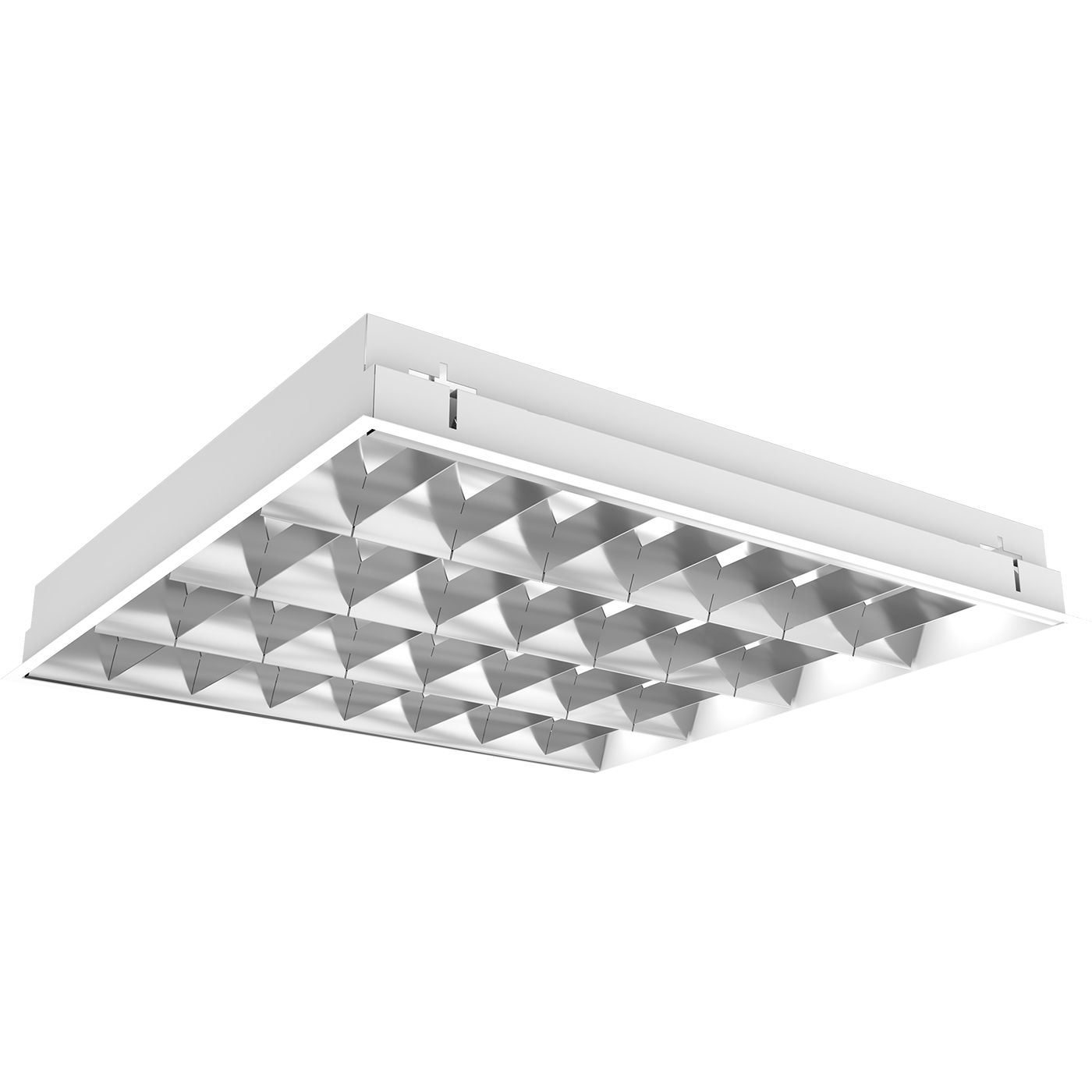

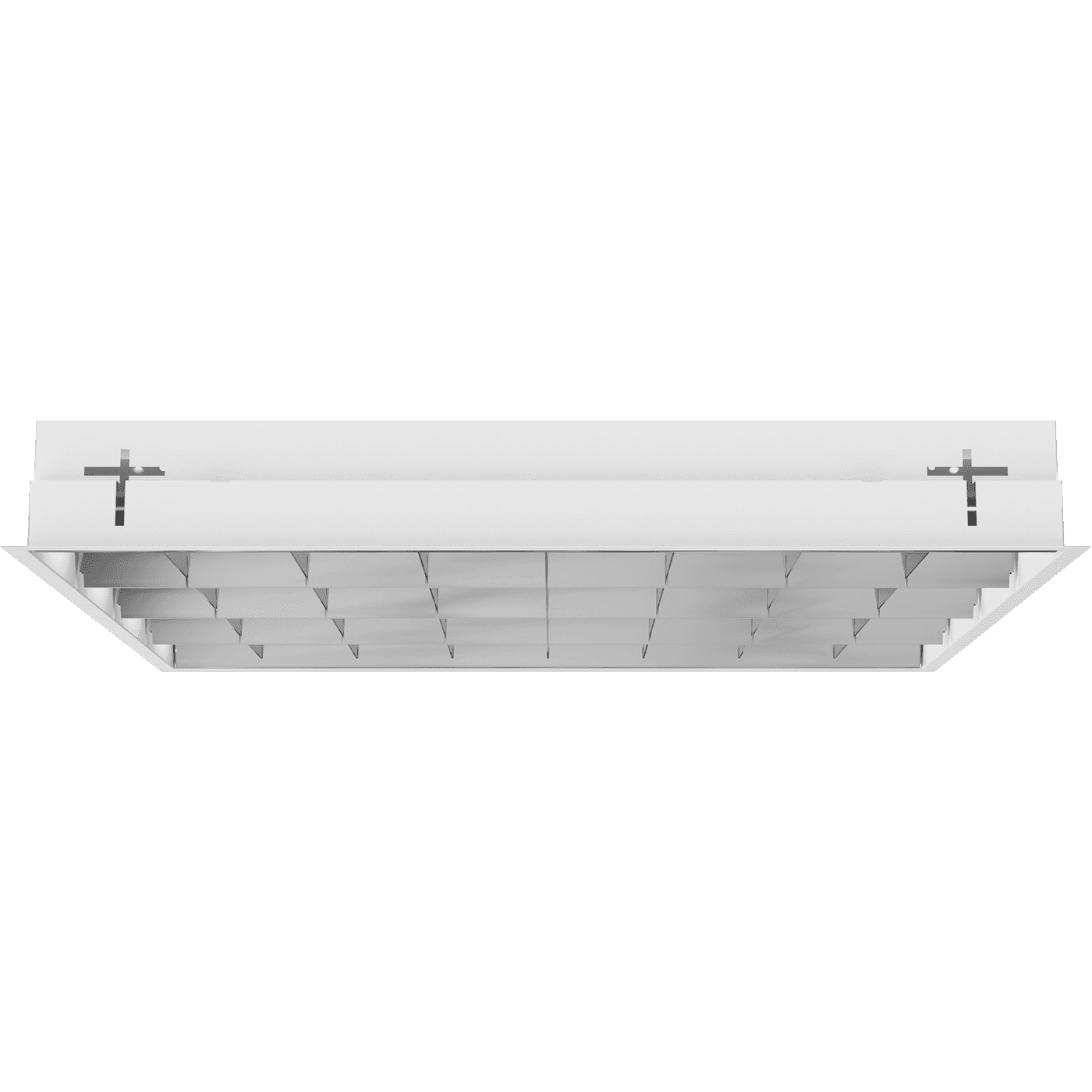

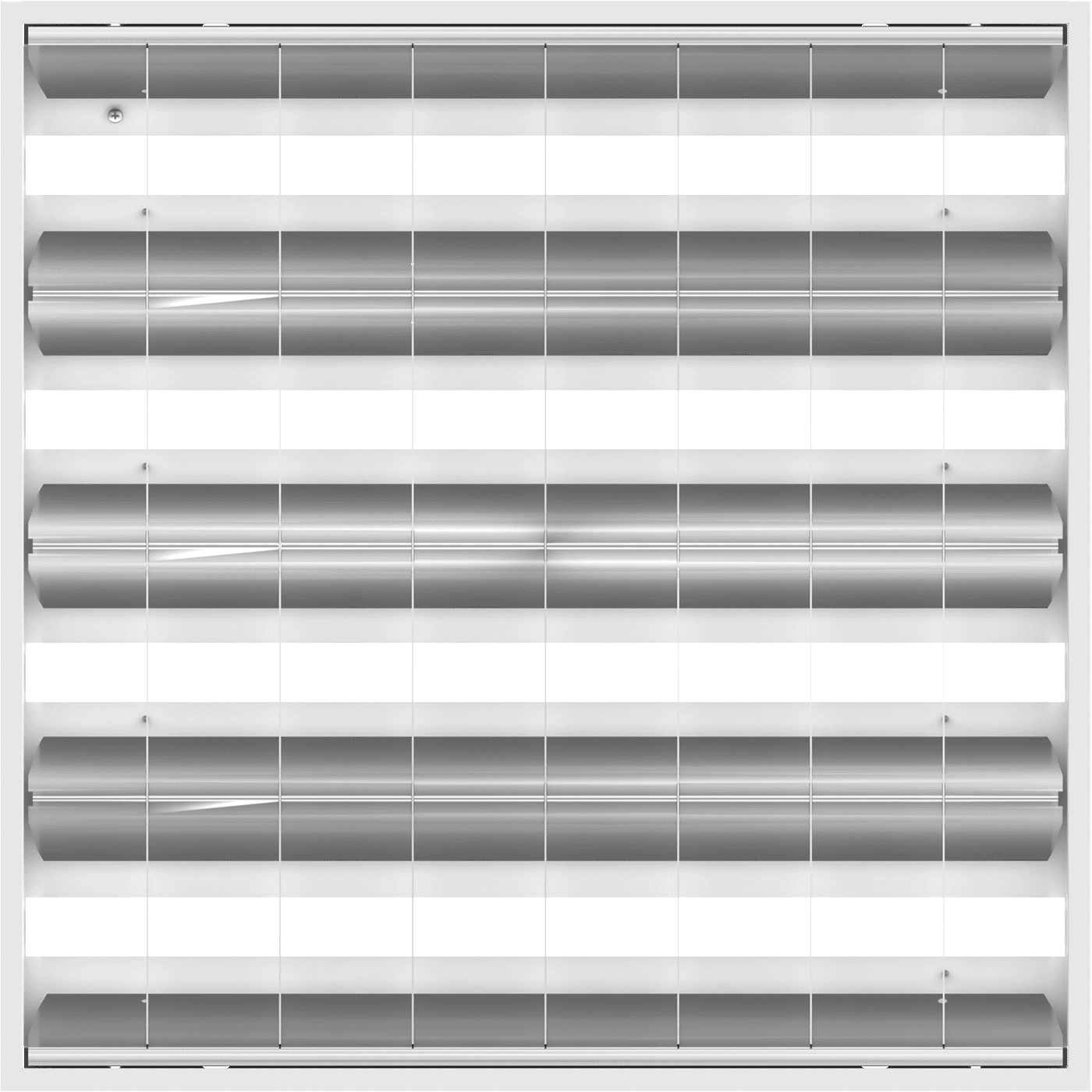

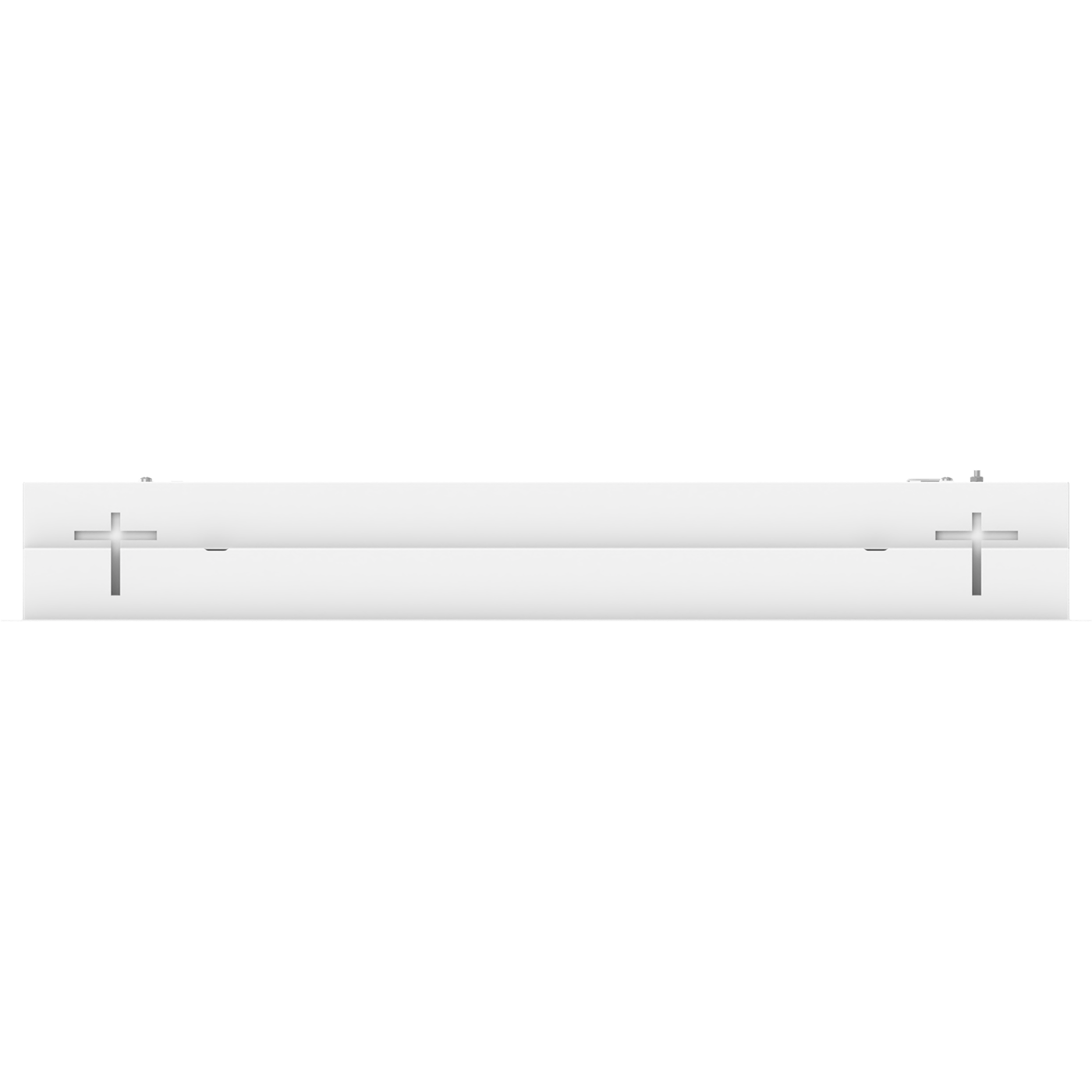

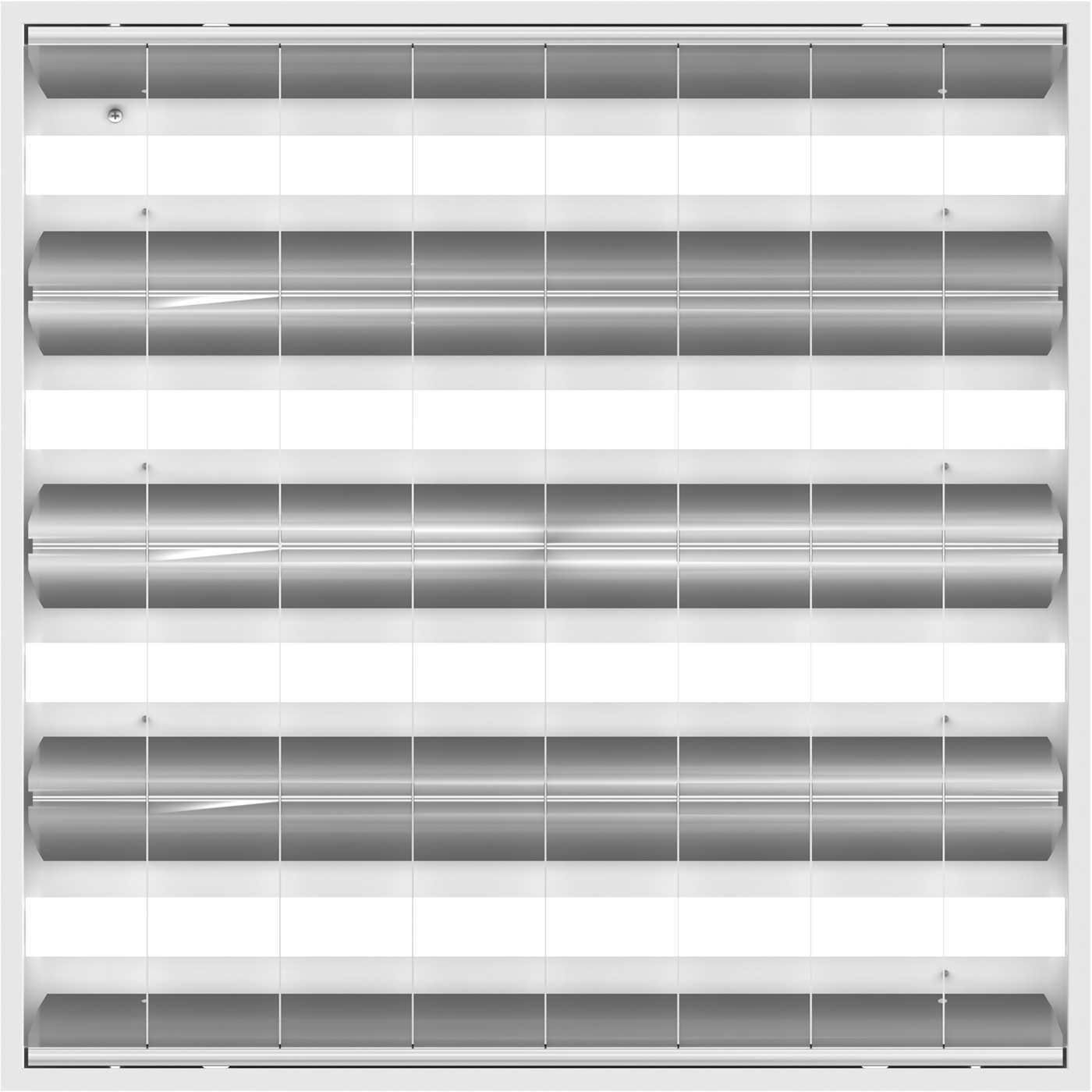

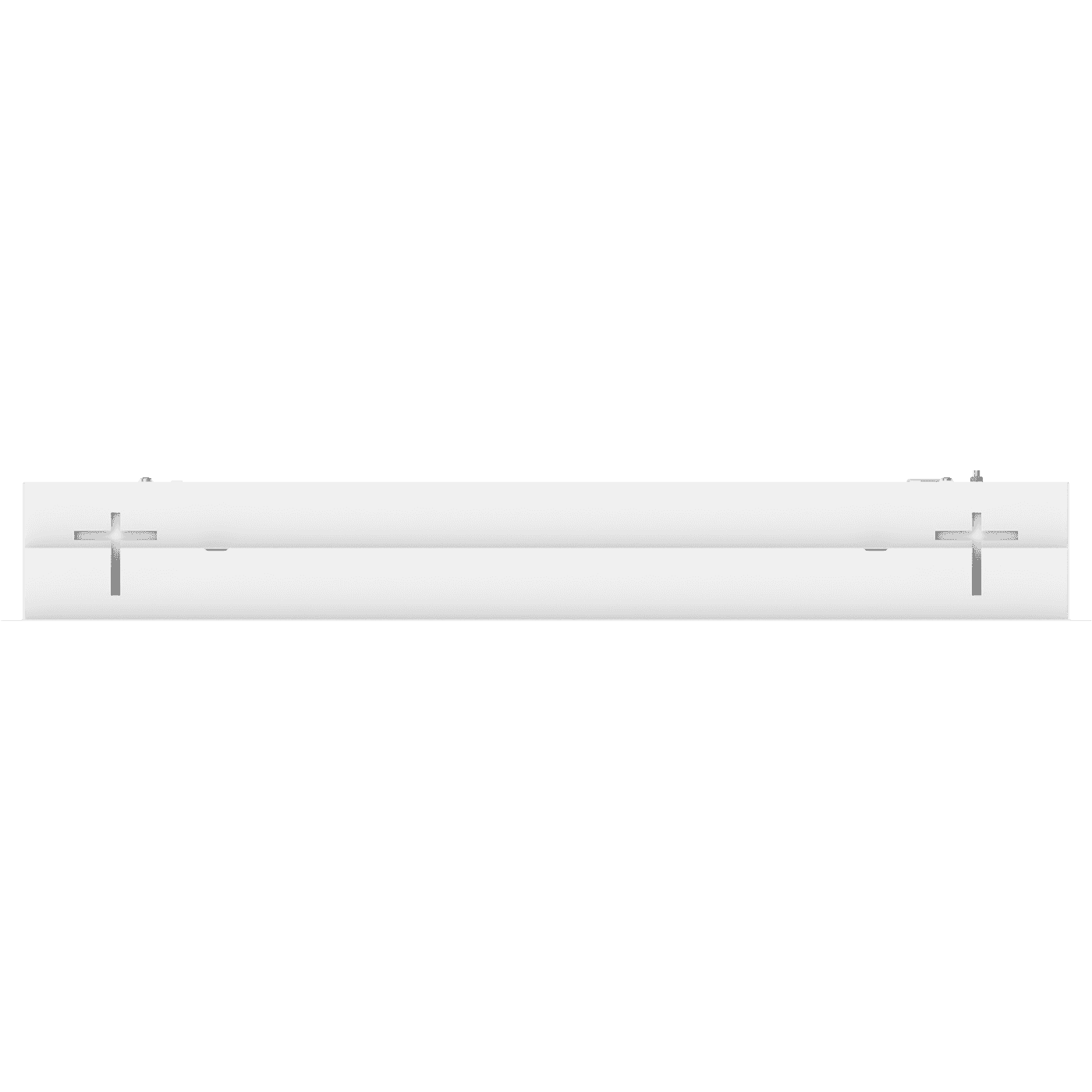

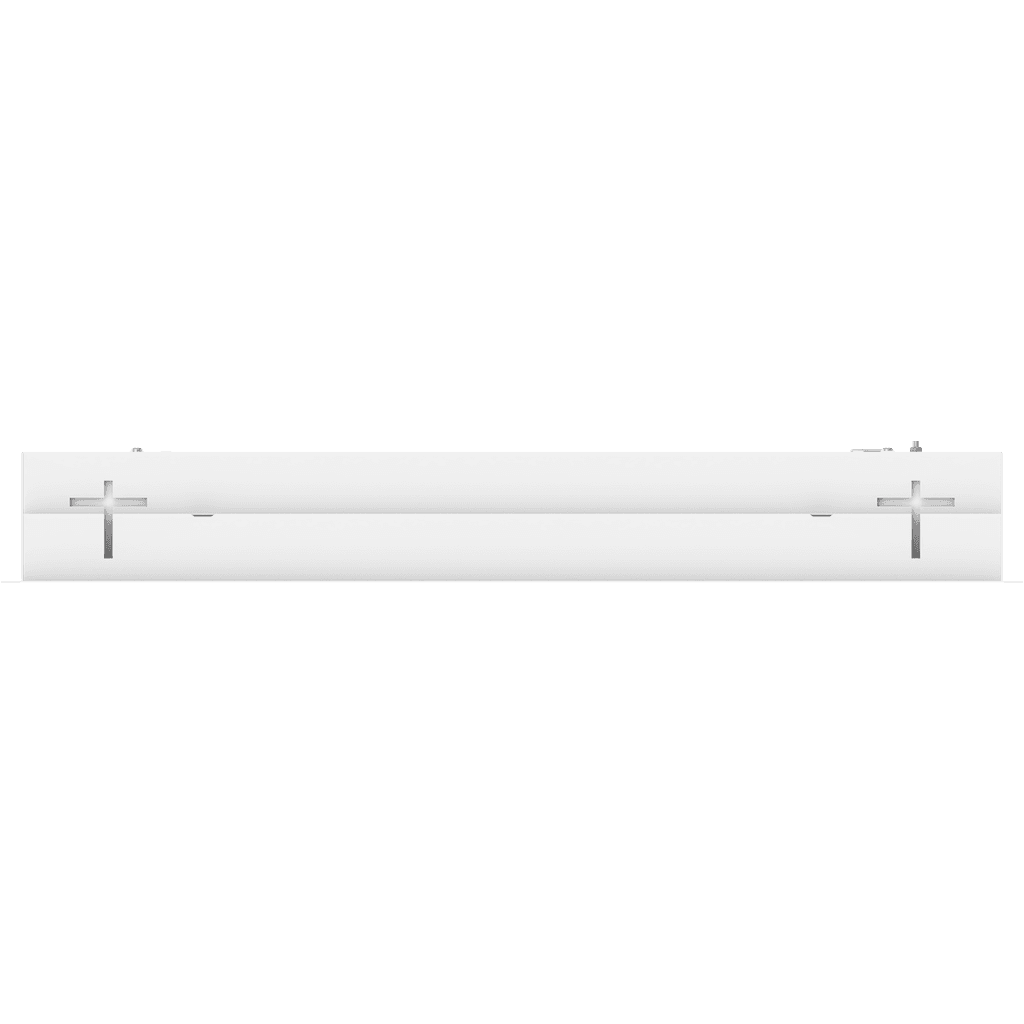

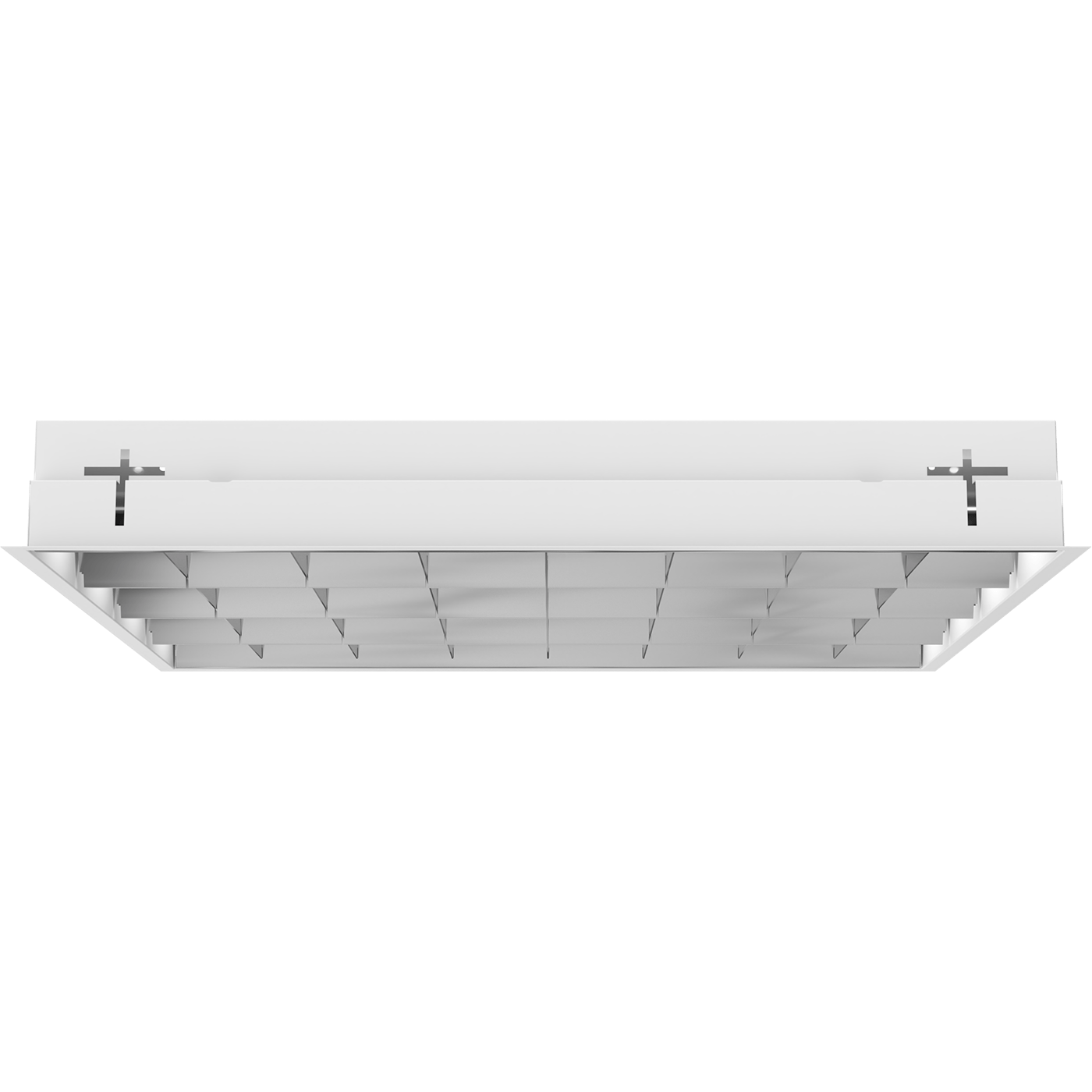

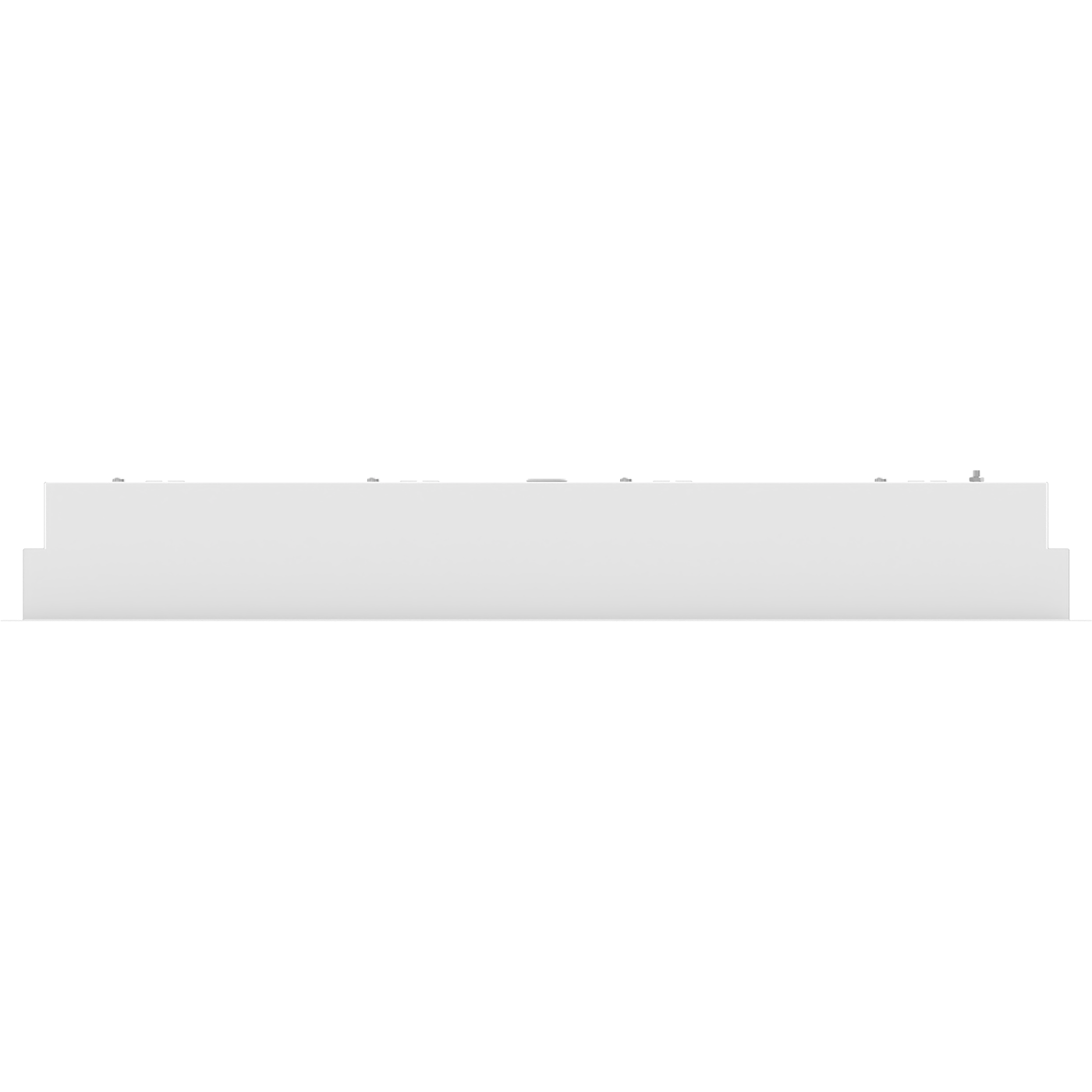

ARS/R UNI LED 595 HFD 4000K CRI90
ARS/R UNI LED 595 HFD 4000K CRI90
30 Wluminaire power
3000 lmlight flow
100 lm/Wenergy efficiency
code1016000300
color temperature4000 K

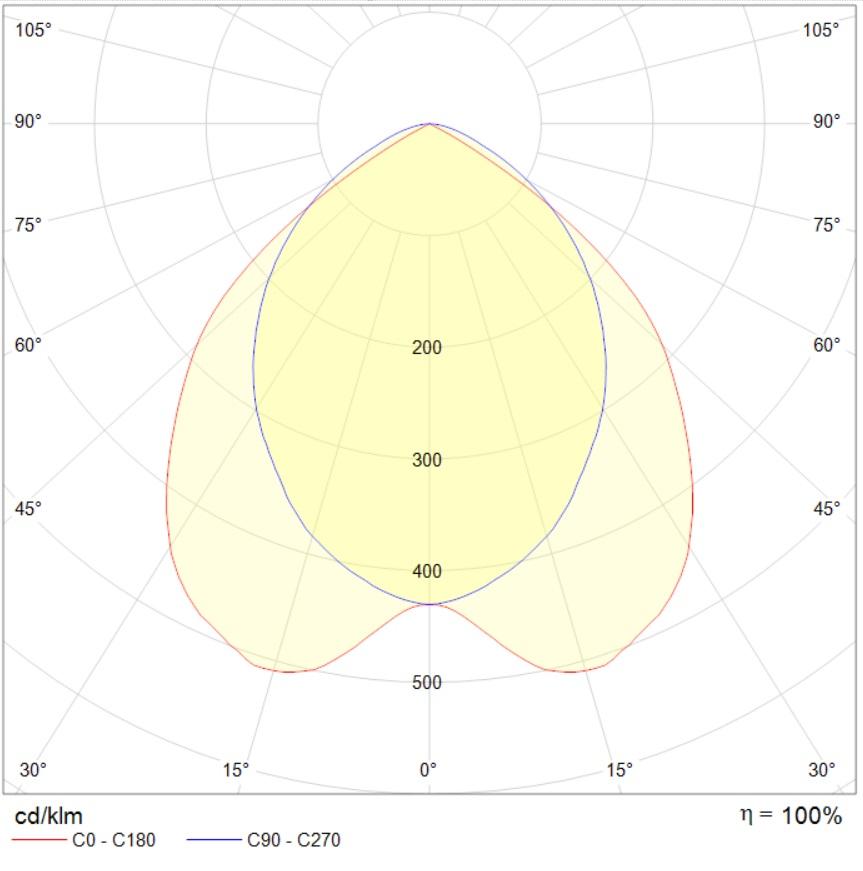

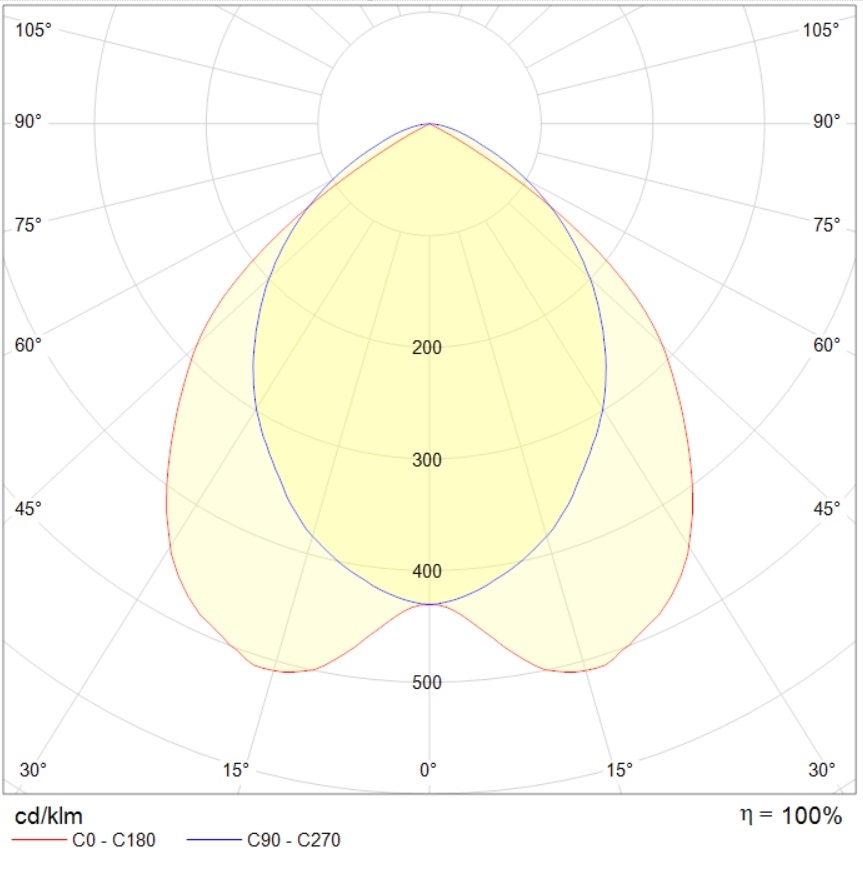

beam angleD120
performance factor100
options
свернуть все
illuminatingelectricalconstructionalLMS optionscommon
energy efficiency
100 lm/Wcolor rendition index (CRI)
>90light flow
3000 lmflickering factor
<5%beam angle
D120color temperature
4000 Klight source type
LEDemission color
Белыйilluminating
energy efficiency
100 lm/W
color rendition index (CRI)
>90
light flow
3000 lm
flickering factor
<5%
beam angle
D120
color temperature
4000 K
light source type
LED
emission color
Белый
electrical
electric shock protection
I
luminaire power
30 W
supply voltage
230 V
power factor
> 0,98
maximum cross-section of the connected cable
2.5 mm2

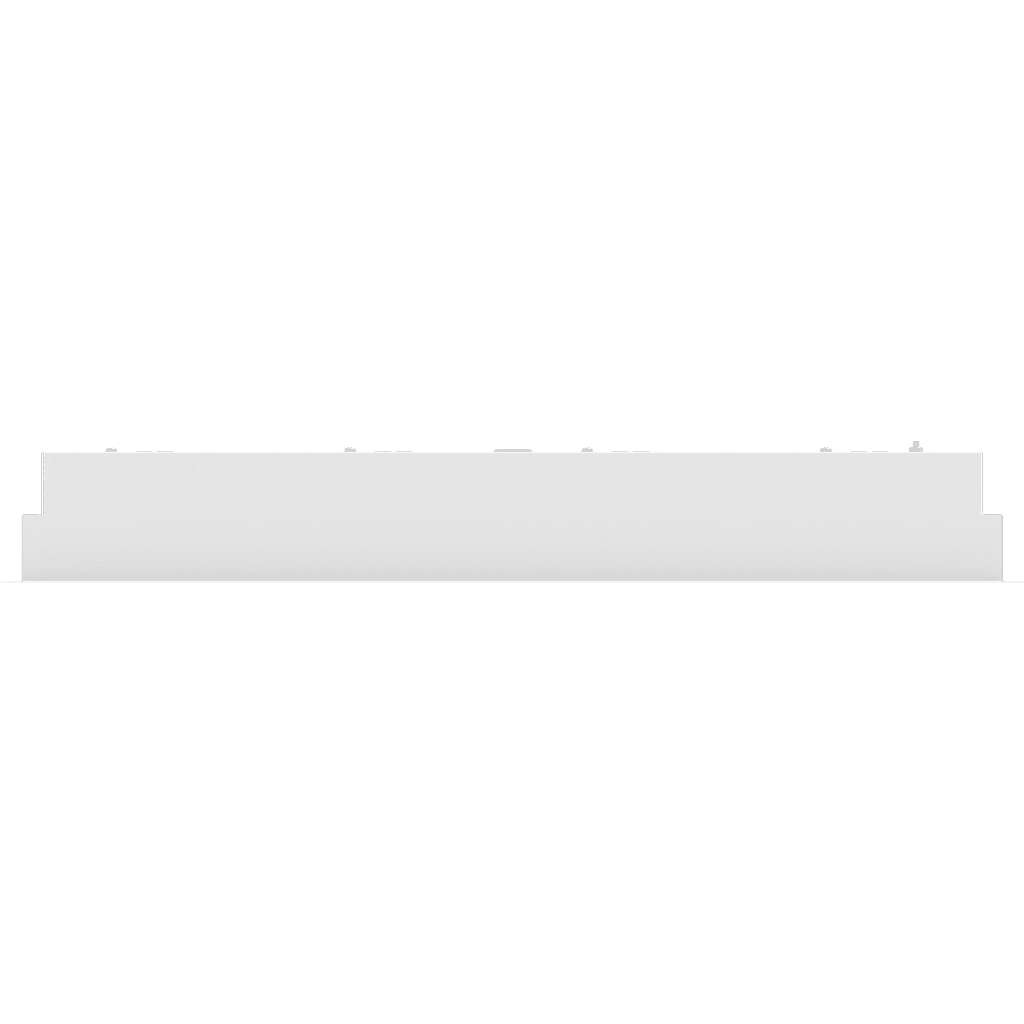

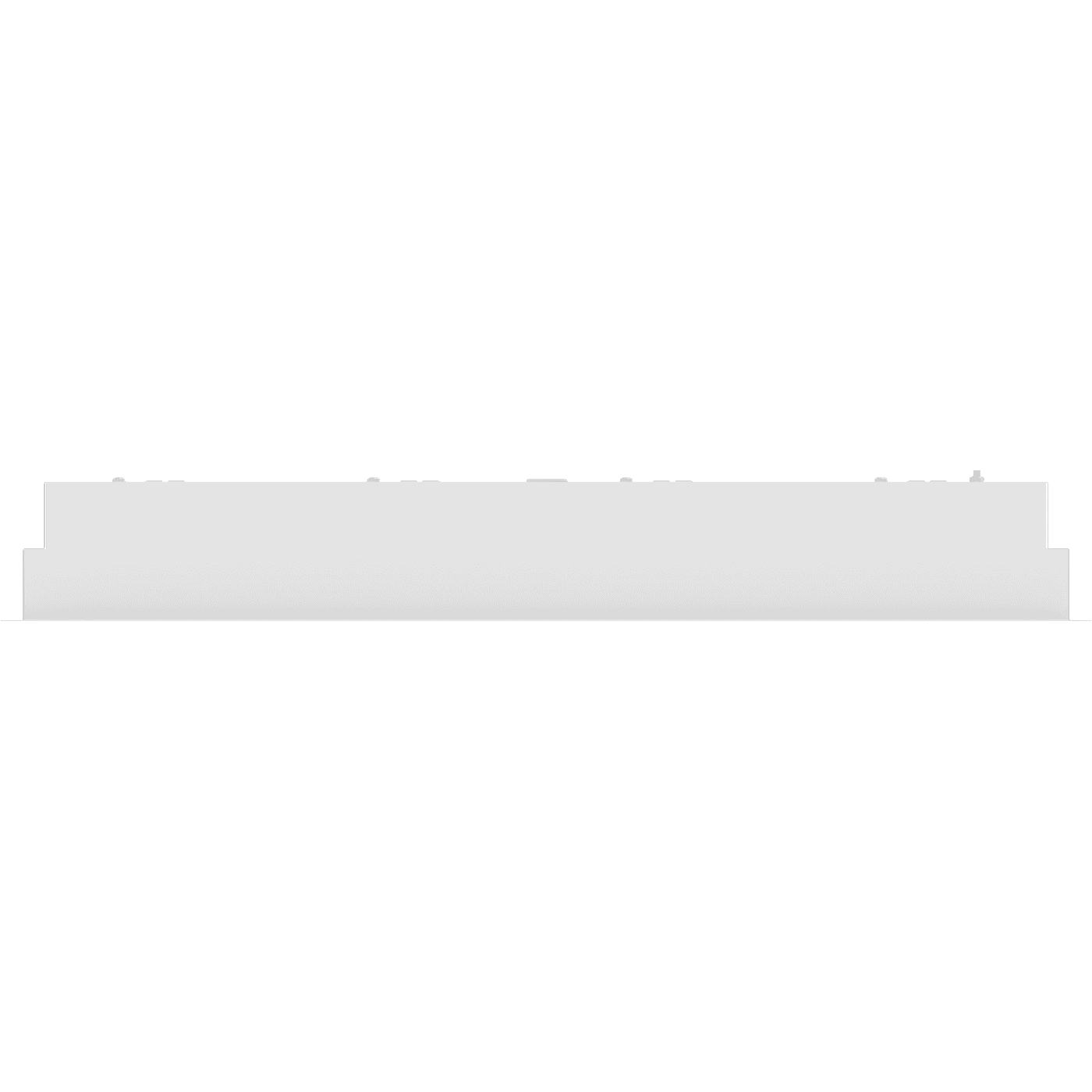

constructional
length
595 mm
width
595 mm
height
77 mm
installation length
575 mm
installation width
575 mm
weight
3.8 kg
ingress protection (IP)
IP20
shock resistance (IK)
IK02/0,2 Дж
climatic performance
УХЛ4*
material
Сталь
housing color
Белый
lamp socket
LED
number of lamps
1
ballast
Драйвер DALI
LMS options
dimming
DALI
common
warranty
36 month
temperature range
от +5 до +35 C
service life
50 000 h
energy efficiency class
A+
ETIM class
Настенно-потолочный светильник
code
1016000300
model files
model files
photometric files
сертификаты
photometric files
ies134.1 kB
jpg87.9 kB
ldt82.7 kB
csv429 B
сертификаты
Russian origin620 kB
Certificate of conformity TRTS 020/2011, TRTS 004/20112.4 mB
Declaration of Conformity EAEU TR 037/2016541.4 kB
Fire Safety Certificate1.7 mB
