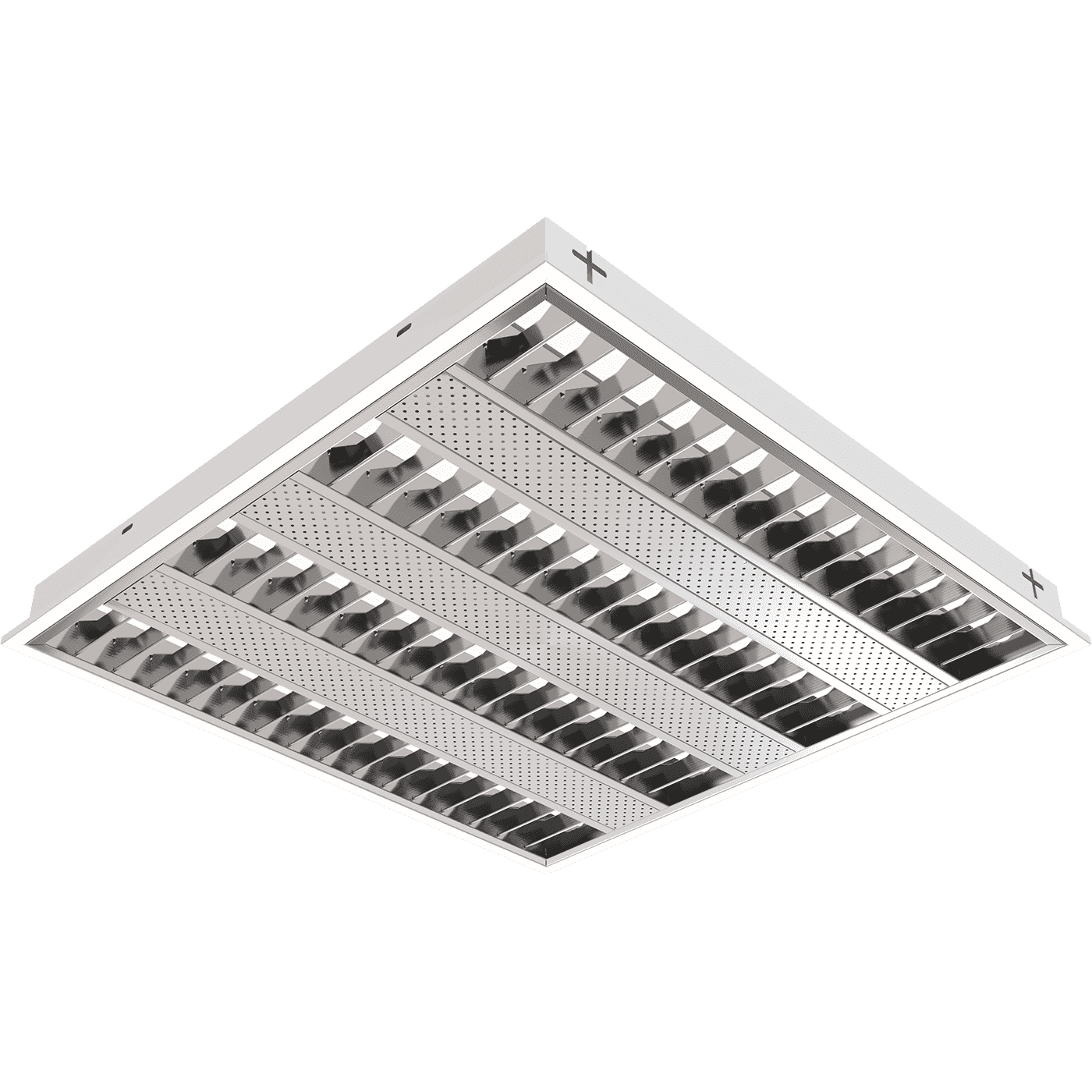

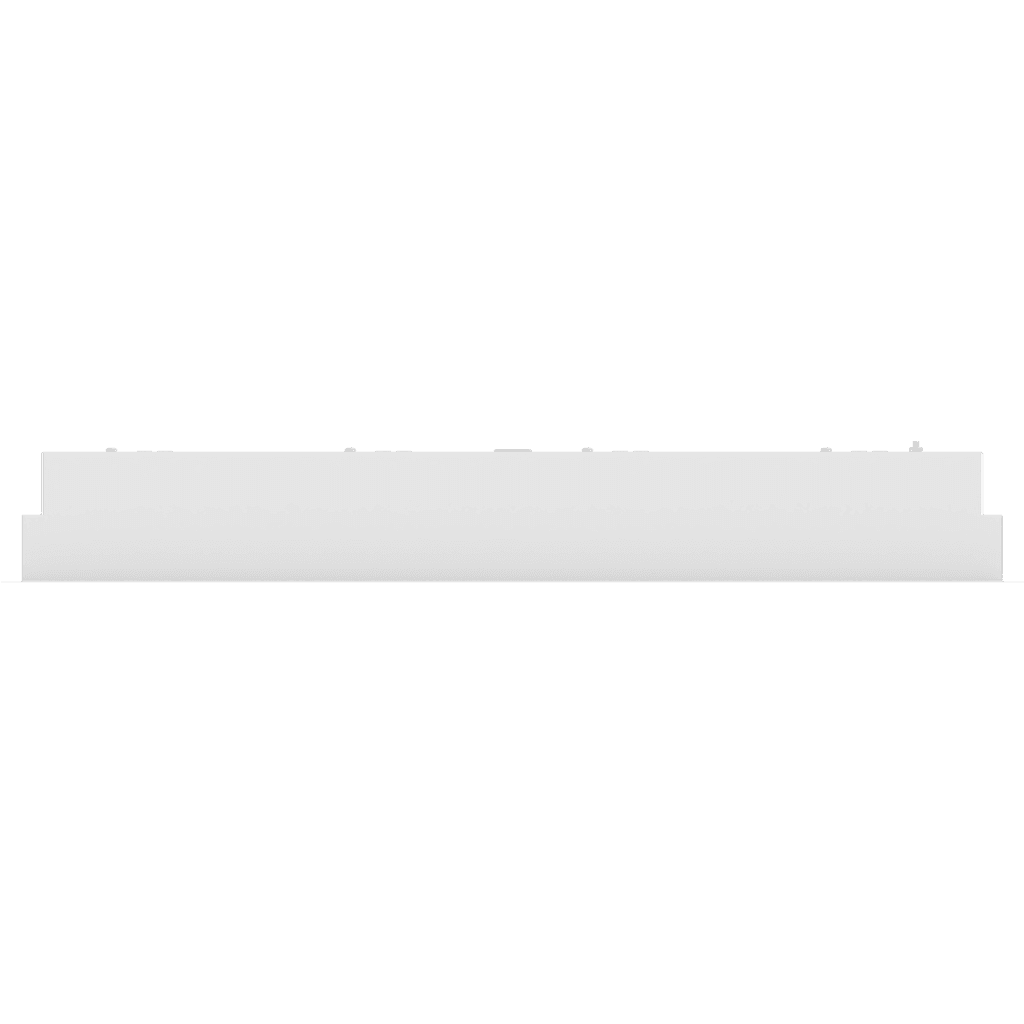

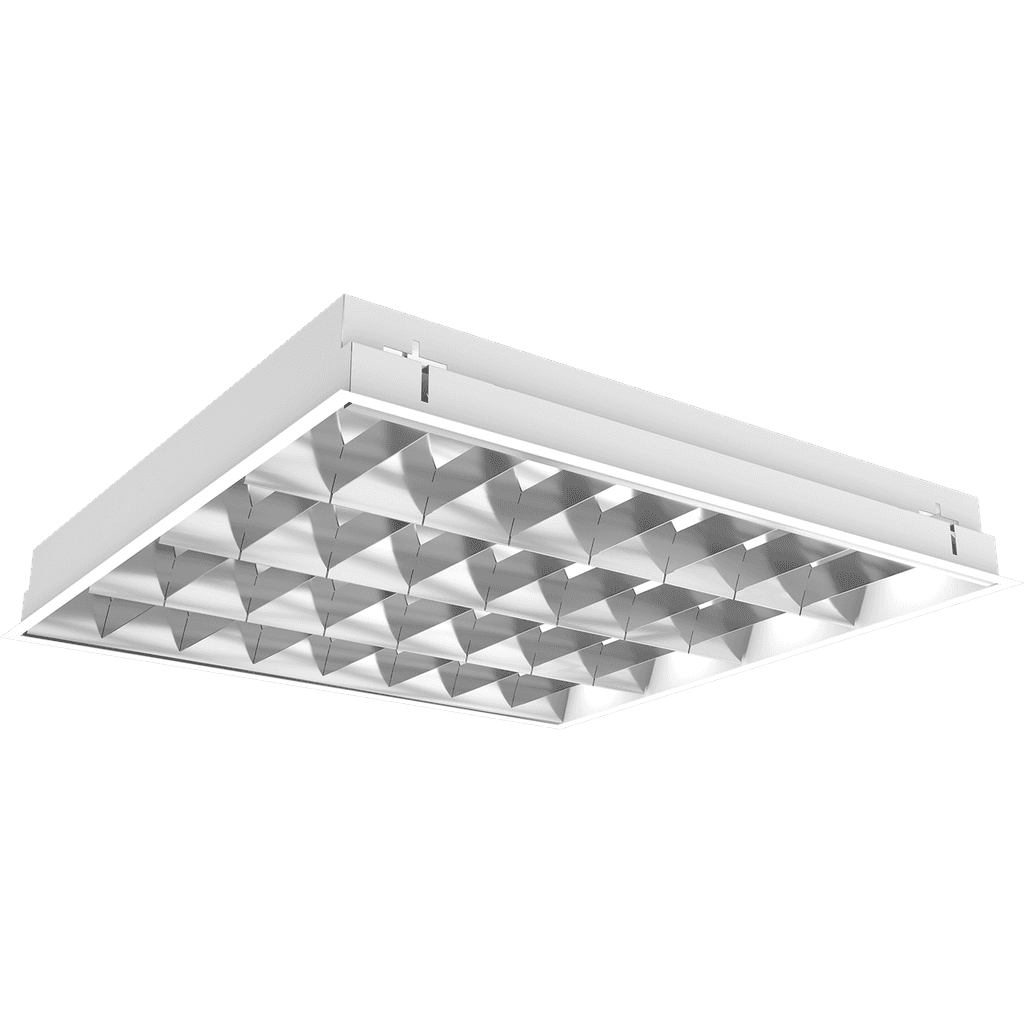

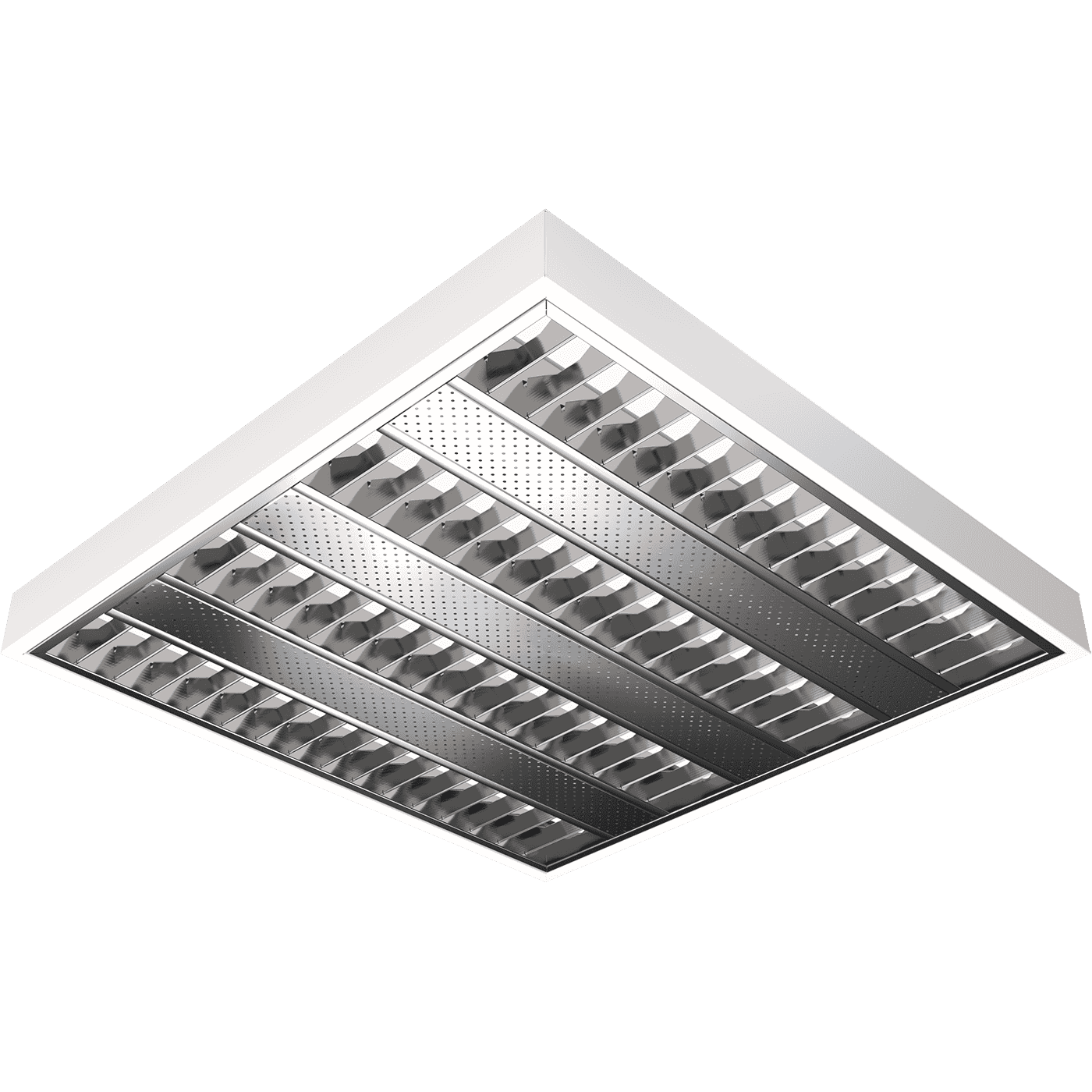

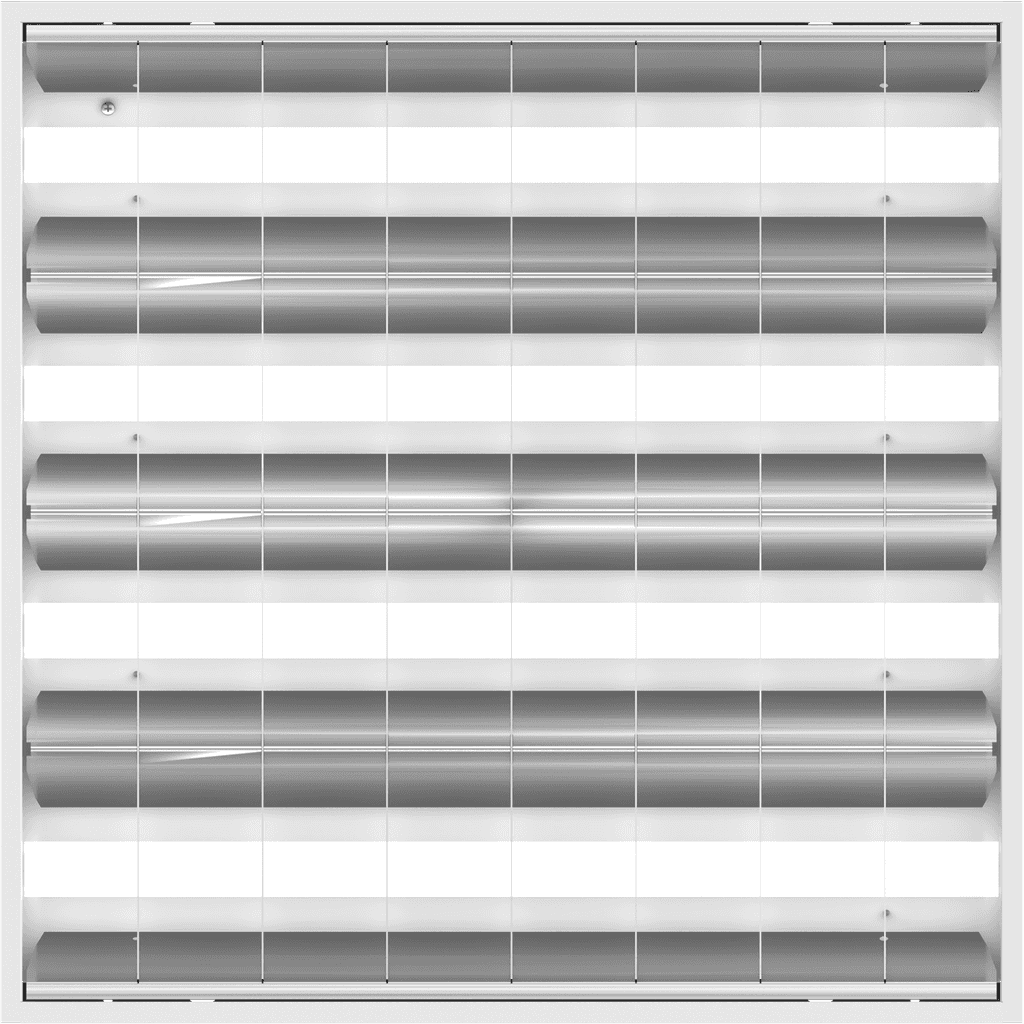

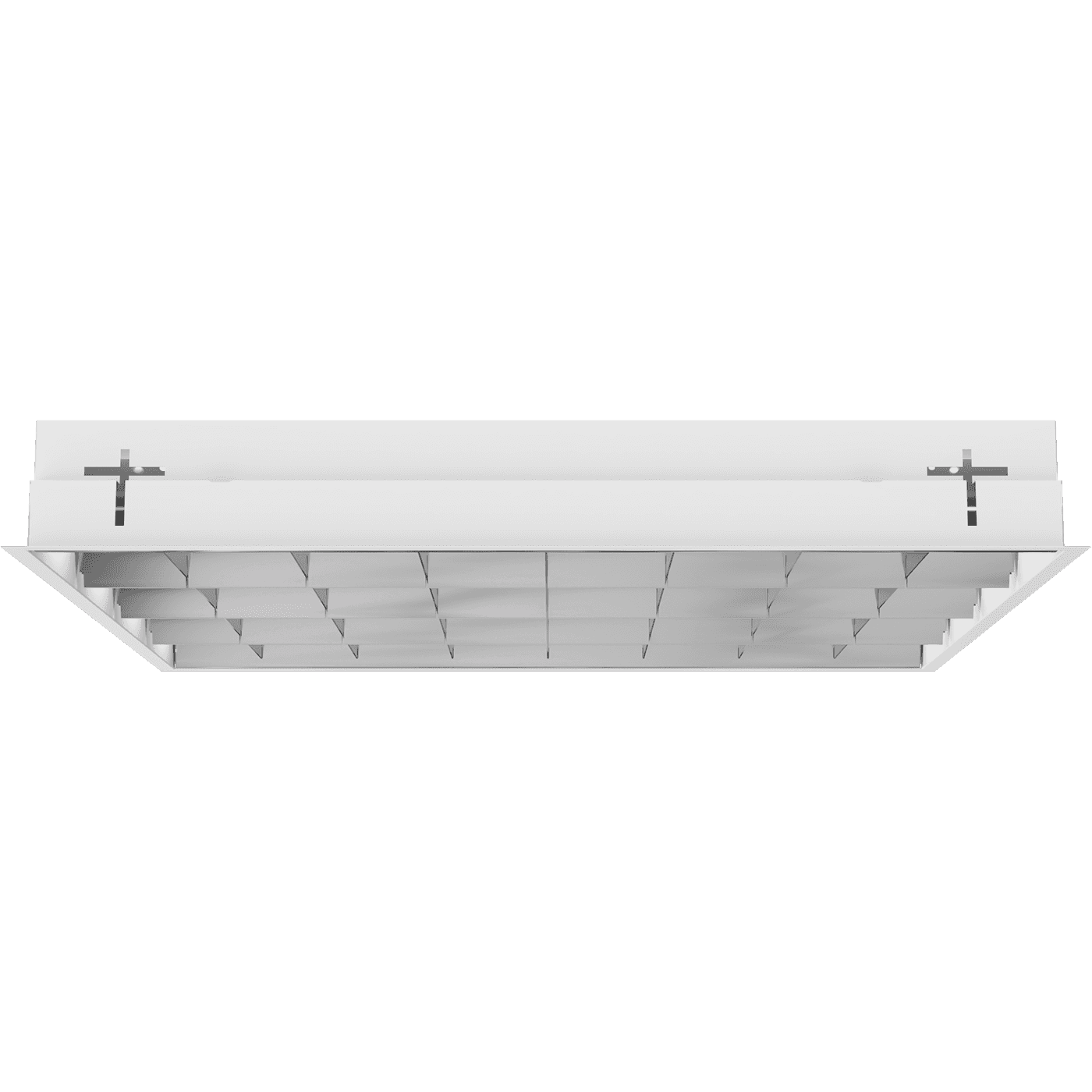

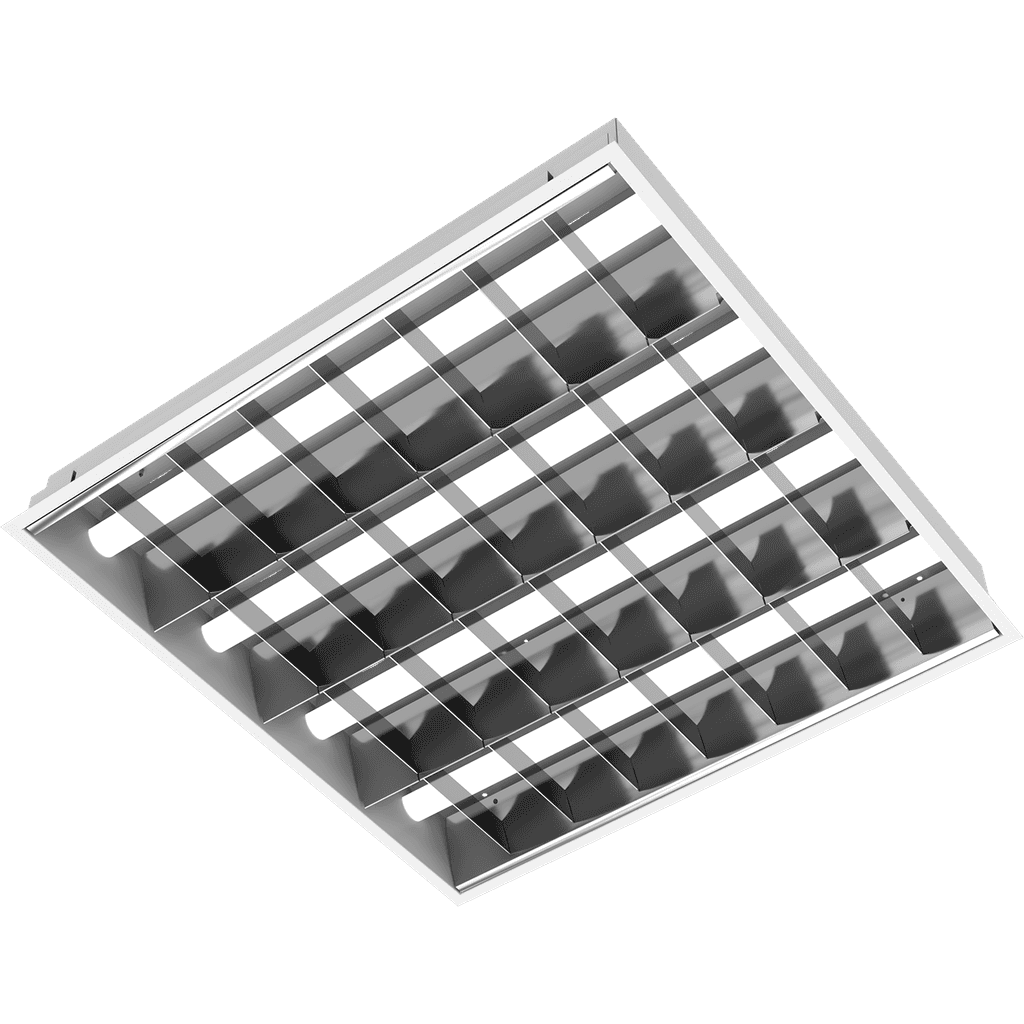

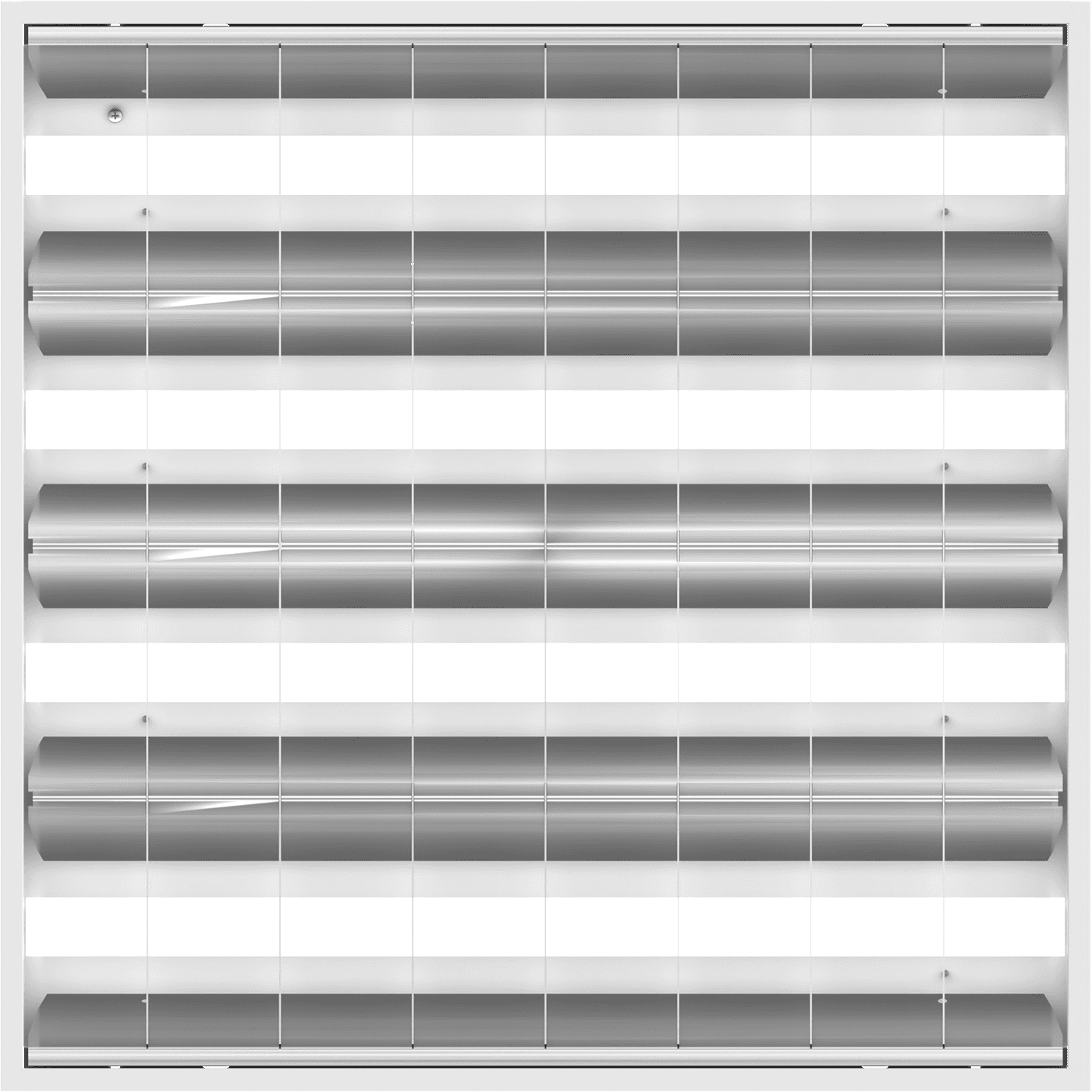

ARS/R UNI LED 595 EM 4000K

ARS/R UNI LED 595 EM 4000K
add to favorites
30 Wluminaire power
3000 lmlight flow
100 lm/Wenergy efficiency
code1016000060
color temperature4000
beam angleD120
number of lamps1
performance factor100
  1. main page
  2. catalog
  3. by product type
  4. interior lighting
  5. recessed ceiling
  6. ARS/R UNI LED
  7. ARS/R UNI LED 595 EM 4000K
options
свернуть все
electricalconstructionalcommonilluminatingemergency
starting current
25 A
starting current pulse time, µs
250 mks
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
supply voltage, alternating current
176-264 V
supply voltage, direct current
176-264 V
luminaire power
30 W
electric shock protection
I
power factor
> 0,98
supply voltage
230 V
electrical
starting current
25 A
starting current pulse time, µs
250 mks
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
supply voltage, alternating current
176-264 V
supply voltage, direct current
176-264 V
luminaire power
30 W
electric shock protection
I
power factor
> 0,98
supply voltage
230 V
constructional
maximum cross-section of the connected cable, sq. mm
2.5
ingress protection (IP)
IP20
climatic performance
УХЛ4*
material
Сталь
weight
4.25 kg
length, mm
595 mm
width, mm
595 mm
height, mm
77 mm
housing color
Белый
installation length, mm
575 mm
installation width, mm
575 mm
shock resistance (IK)
IK02/0,2 Дж
lamp socket
LED
number of lamps
1
ballast
Драйвер
common
ETIM class
Настенно-потолочный светильник
warranty
36 month
temperature range
от +5 до +35 C
energy efficiency class
A+
service life, hour
50 000 h
code
1016000060
illuminating
color rendition index (CRI)
>80
light flow
3000 lm
flickering factor
<5%
energy efficiency
100 lm/W
beam angle
D120
color temperature
4000
light source type
LED
emission color
Белый
emergency
operating time in emergency mode, hours
1 h
luminous flux in emergency mode
11% lm
model files
model files
CAD/BIM files
CAD model 3DS130.4 kB
model 3dMax512 kB

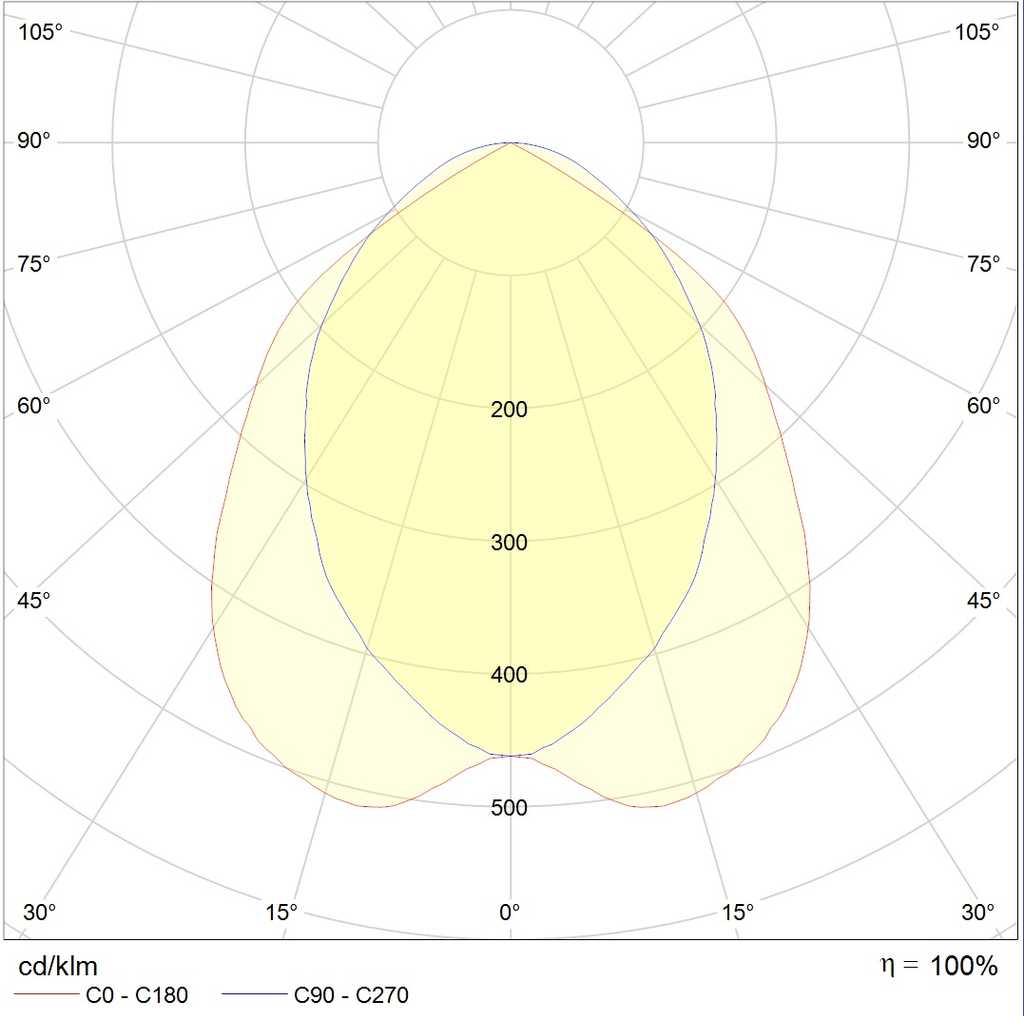

photometric files
ies134.1 kB
jpg140.2 kB
ldt82.7 kB
csv422 B
documents
passport1.8 mB
сертификаты
Russian origin620 kB
Certificate of conformity TRTS 020/2011, TRTS 004/20112.4 mB
Declaration of Conformity EAEU TR 037/2016541.4 kB
Fire Safety Certificate1.7 mB
CAD/BIM files
CAD model 3DS130.4 kB
model 3dMax512 kB
photometric files
ies134.1 kB
jpg140.2 kB
ldt82.7 kB
csv422 B
documents
passport1.8 mB
сертификаты
Russian origin620 kB
Certificate of conformity TRTS 020/2011, TRTS 004/20112.4 mB
Declaration of Conformity EAEU TR 037/2016541.4 kB
Fire Safety Certificate1.7 mB
accessories
Clip0.018kgarticle: 2905000110
