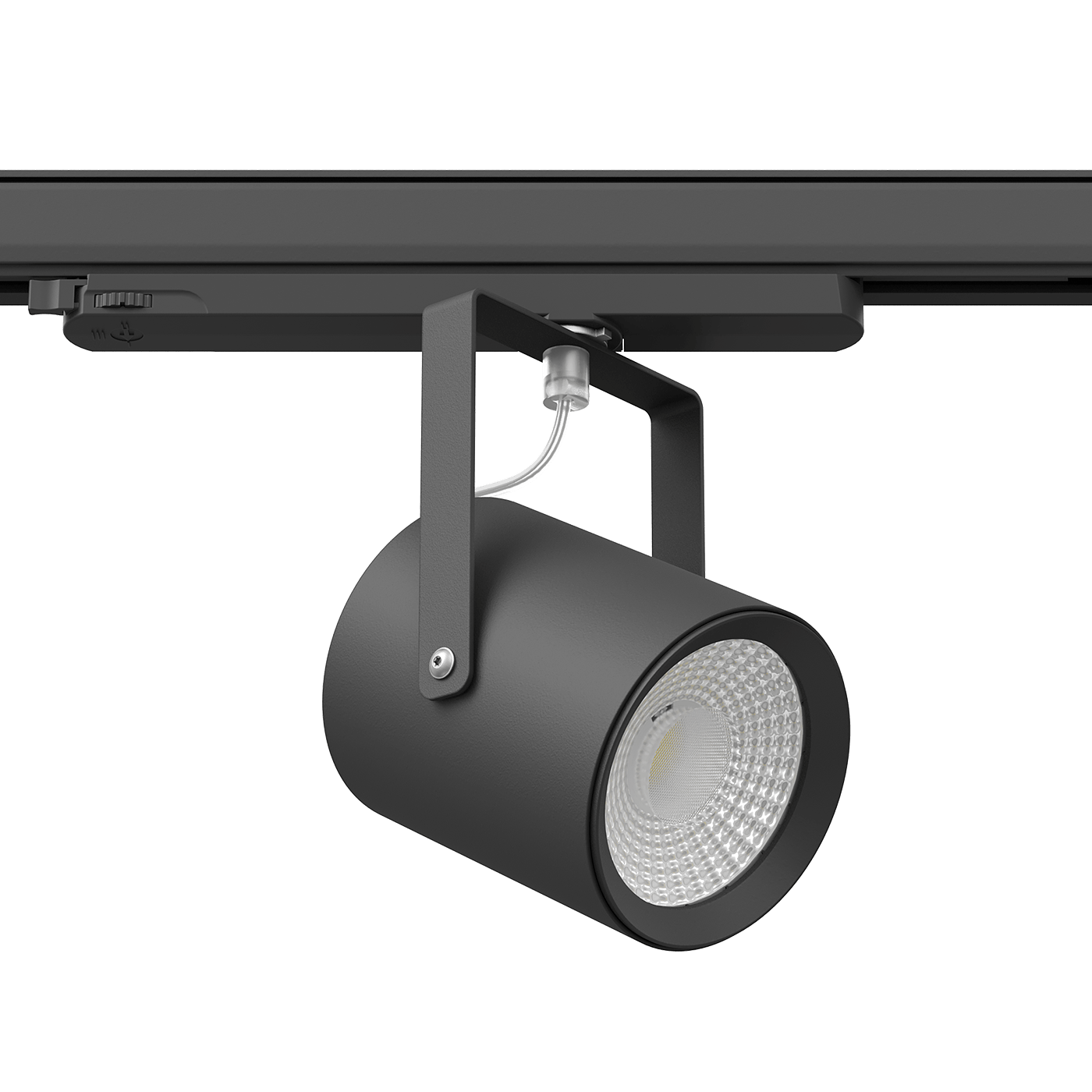

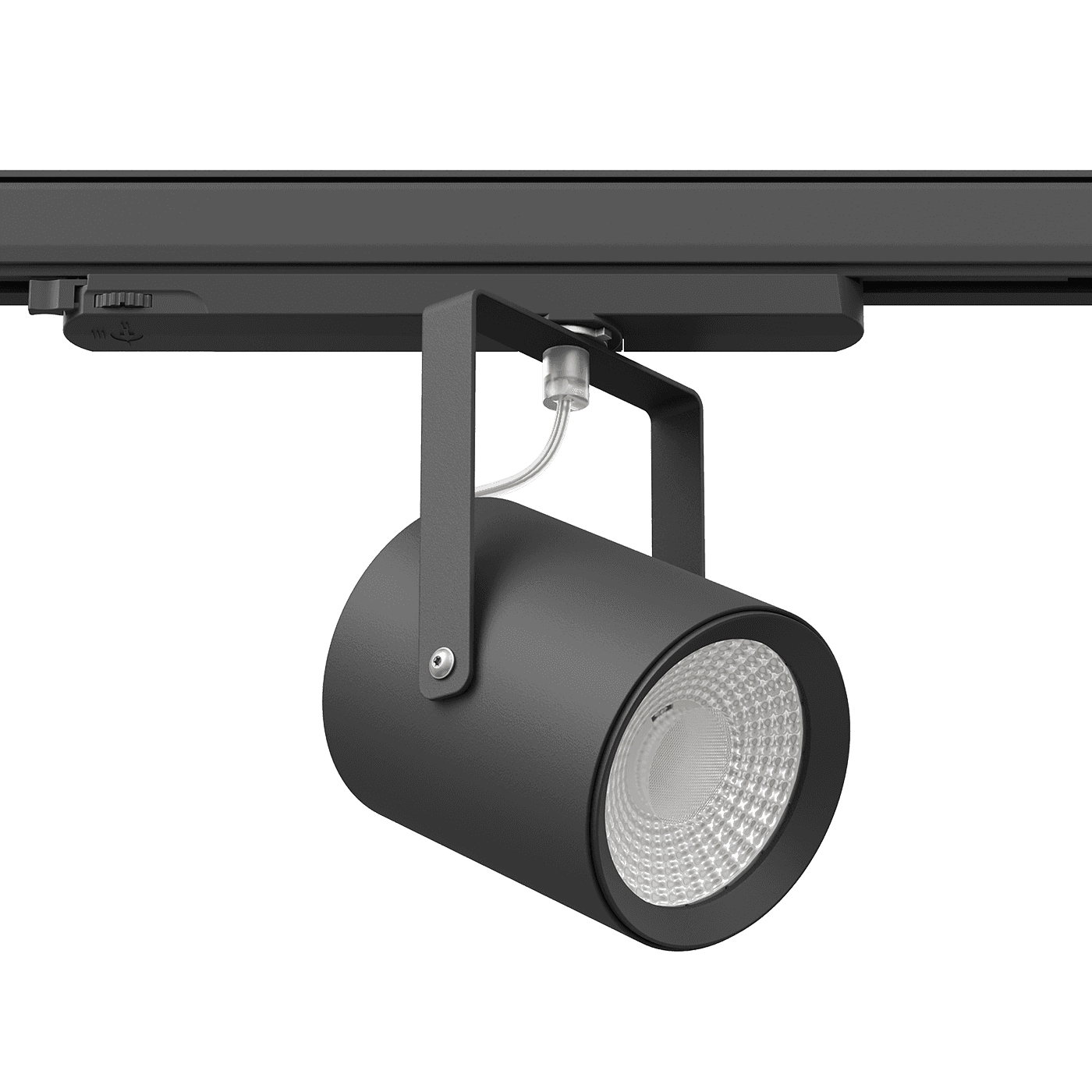

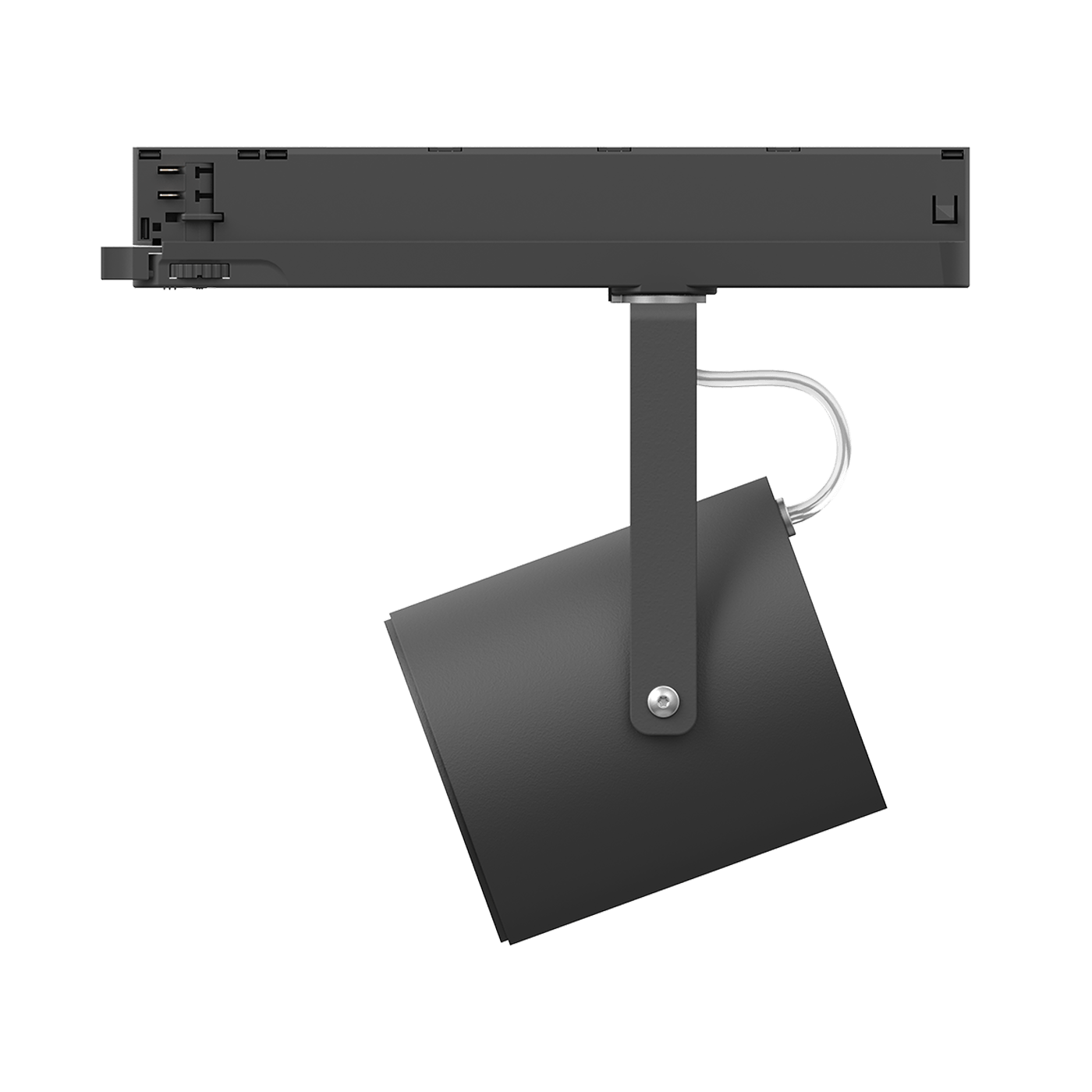

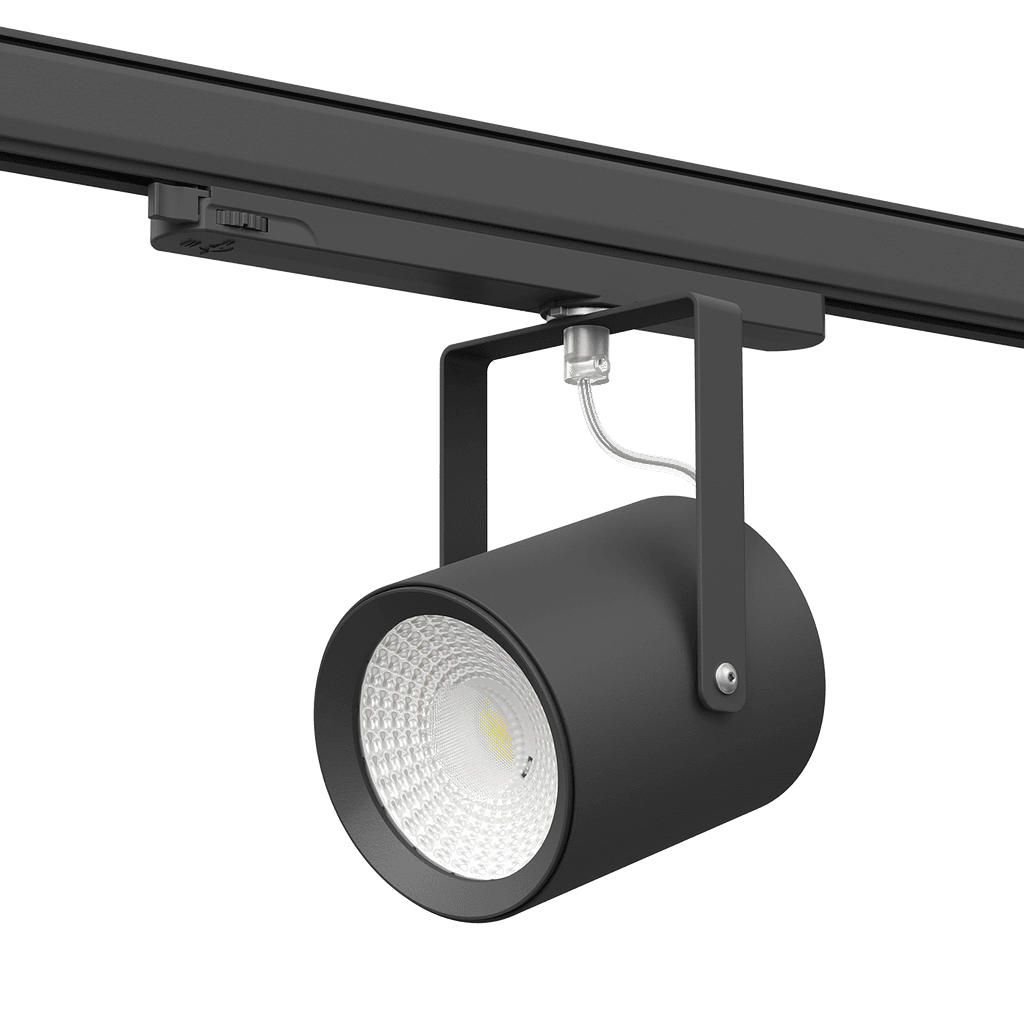

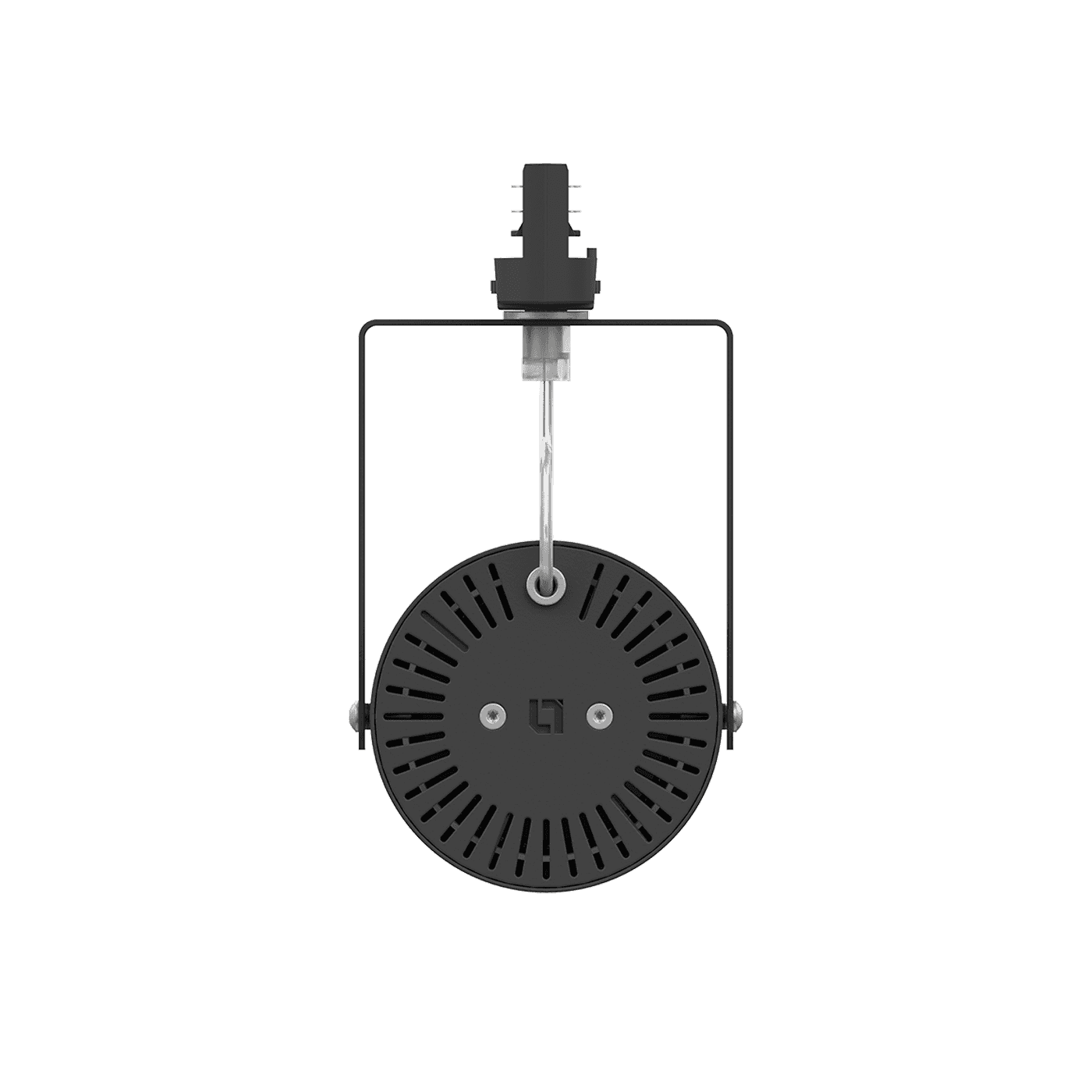

ARMA/T LED 38 BL D60 4000K
ARMA/T LED 38 BL D60 4000K
38 Wluminaire power
4700 lmlight flow
124 lm/Wenergy efficiency
code1102300600
color temperature4000 K
beam angleD60
performance factor100
options
свернуть все
illuminatingelectricalconstructionalcommon
energy efficiency
124 lm/Wcolor rendition index (CRI)
>80light flow
4700 lmflickering factor
<5%beam angle
D60color temperature
4000 Klight source type
LEDemission color
Белыйilluminating
energy efficiency
124 lm/W
color rendition index (CRI)
>80
light flow
4700 lm
flickering factor
<5%
beam angle
D60
color temperature
4000 K
light source type
LED
emission color
Белый
electrical
starting current pulse time
2.8 µs
electric shock protection
II
luminaire power
38 W
supply voltage
230 V
power factor
> 0,95
rated supply voltage, alternating current
230 V
starting current
18 A
constructional
diameter
106 mm
height
220 mm
weight
0.9 kg
ingress protection (IP)
IP20
shock resistance (IK)
IK02/0,2 Дж
climatic performance
УХЛ4*
material
Металл, пластик
housing color
Черный
lamp socket
LED
number of lamps
1
ballast
Драйвер
common
warranty
36 month
temperature range
от +5 до +35 C
service life
50 000 h
energy efficiency class
A+
ETIM class
Прожектор / Светильник направленного света
code
1102300600
model files
model files

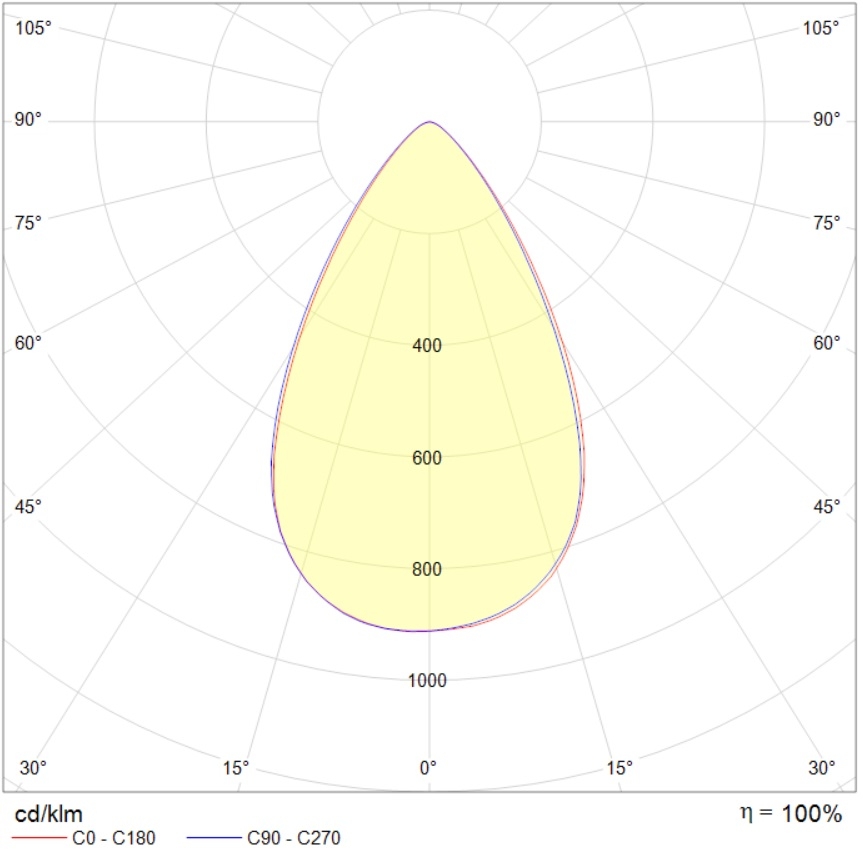

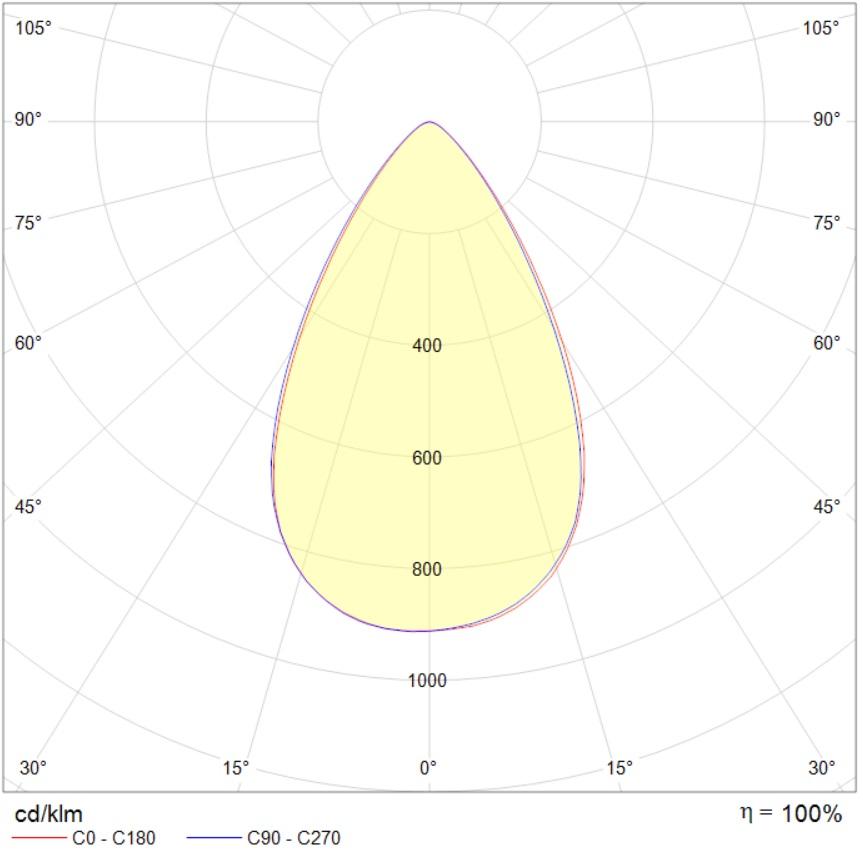

photometric files
documents
сертификаты
photometric files
ies107 kB
jpg81.8 kB
ldt63.4 kB
documents
passport2 mB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20113.2 mB
Declaration of Conformity EAEU TR 037/2016658.3 kB
Fire Safety Certificate2.5 mB
