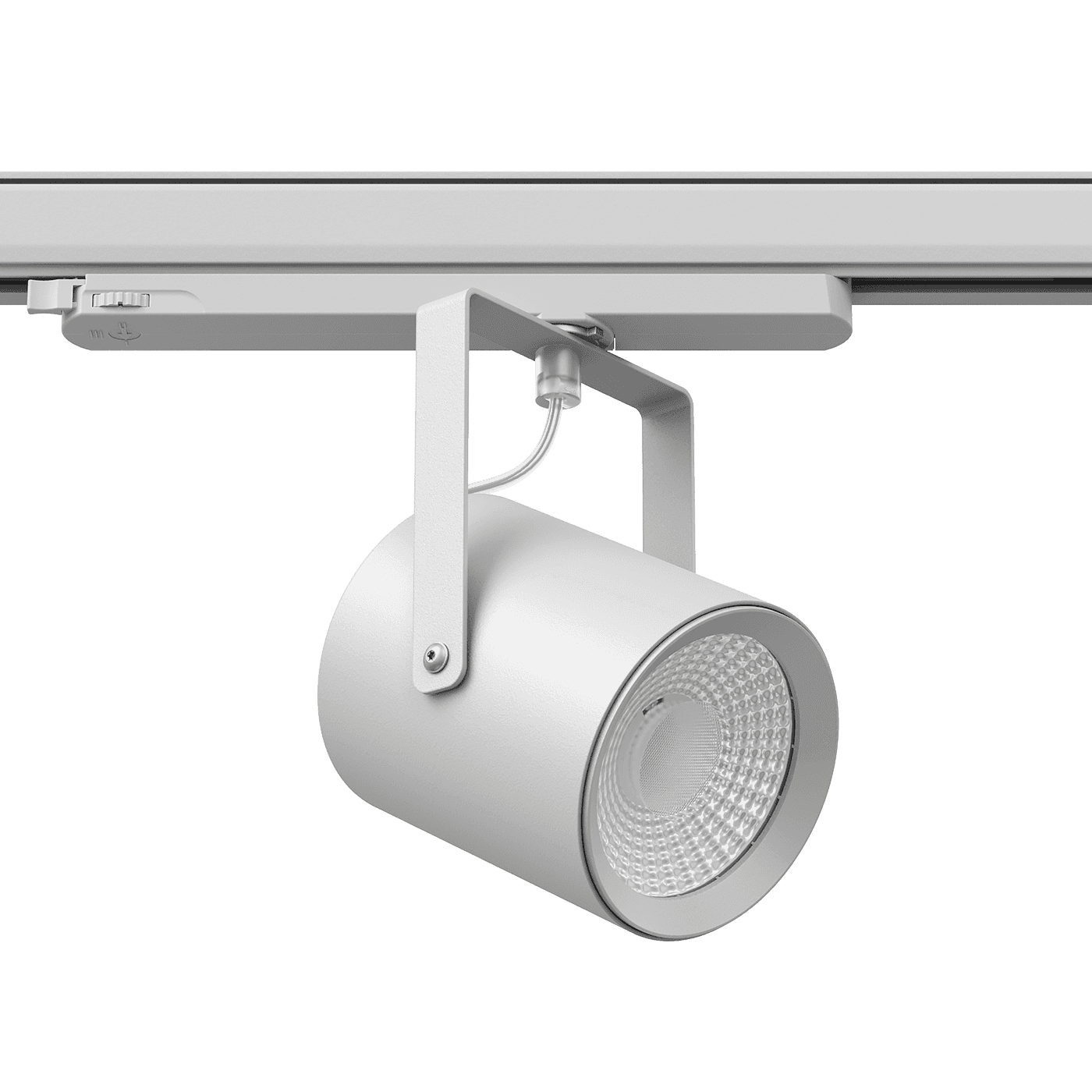

ARMA/T 38W D15 840 WH
ARMA/T 38W D15 840 WH
38 Wluminaire power
4700 lmlight flow
124 lm/Wenergy efficiency
code1102300520
color temperature4000 K
beam angleD15
old nameARMA/T LED 38 WH D15 4000K
performance factor100
options
свернуть все
illuminatingelectricalconstructionalcommon
energy efficiency
124 lm/Wcolor rendition index (CRI)
>80light flow
4700 lmflickering factor
<5%beam angle
D15color temperature
4000 Klight source type
LEDemission color
Белыйilluminating
energy efficiency
124 lm/W
color rendition index (CRI)
>80
light flow
4700 lm
flickering factor
<5%
beam angle
D15
color temperature
4000 K
light source type
LED
emission color
Белый
electrical
starting current pulse time
2.8 µs
electric shock protection
II
luminaire power
38 W
supply voltage
230 V
power factor
> 0,95
rated supply voltage, alternating current
230 V
starting current
18 A
constructional

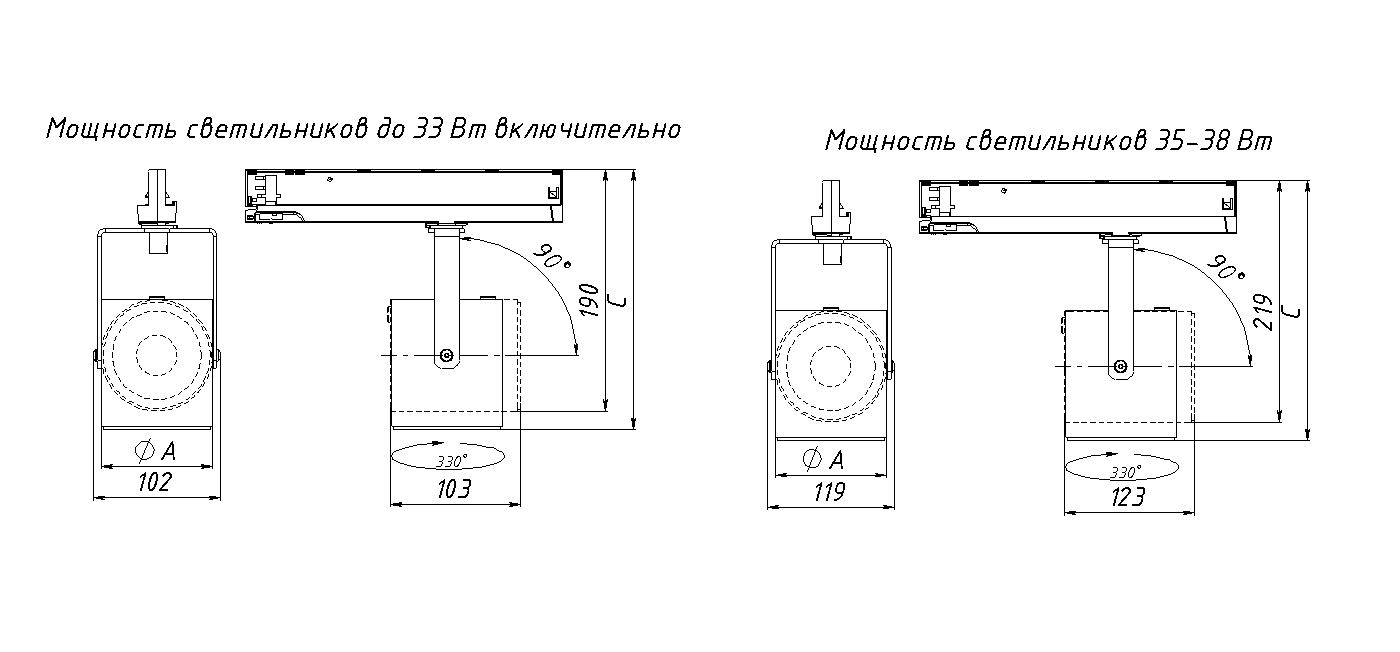

diameter
106 mm
height
220 mm
weight
0.9 kg
ingress protection (IP)
IP20
shock resistance (IK)
IK02/0,2 Дж
climatic performance
УХЛ4*
material
Металл, пластик
housing color
Белый
lamp socket
LED
number of lamps
1
ballast
Драйвер
common
warranty
36 month
temperature range
от +5 до +35 C
service life
50 000 h
energy efficiency class
A+
ETIM class
Прожектор / Светильник направленного света
code
1102300520
model files
model files

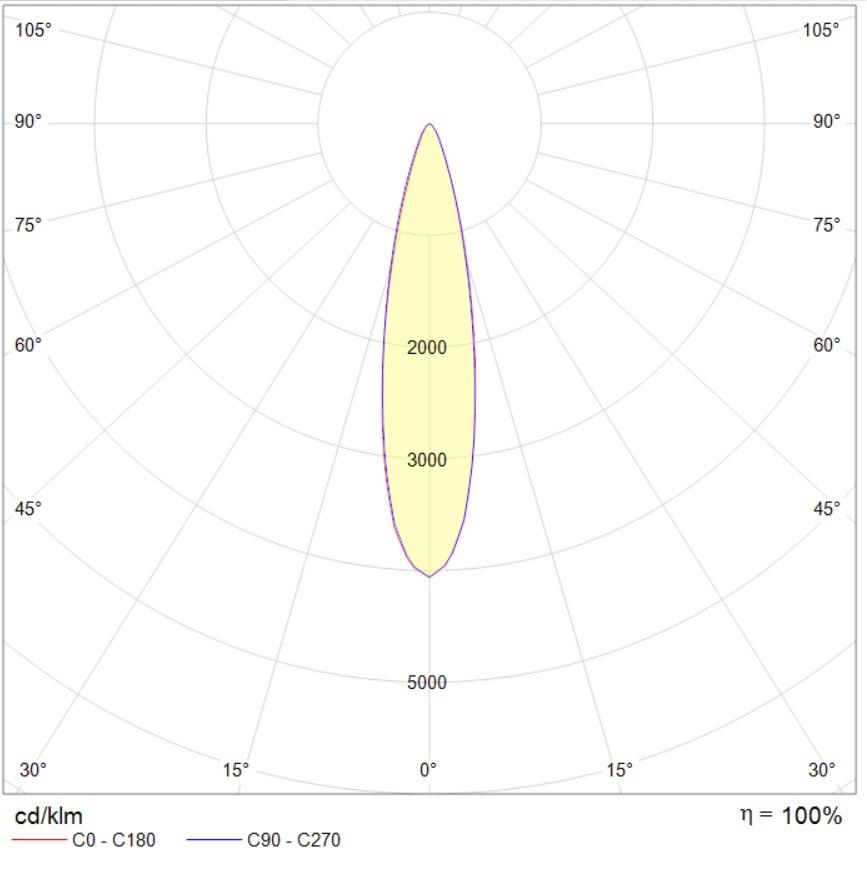

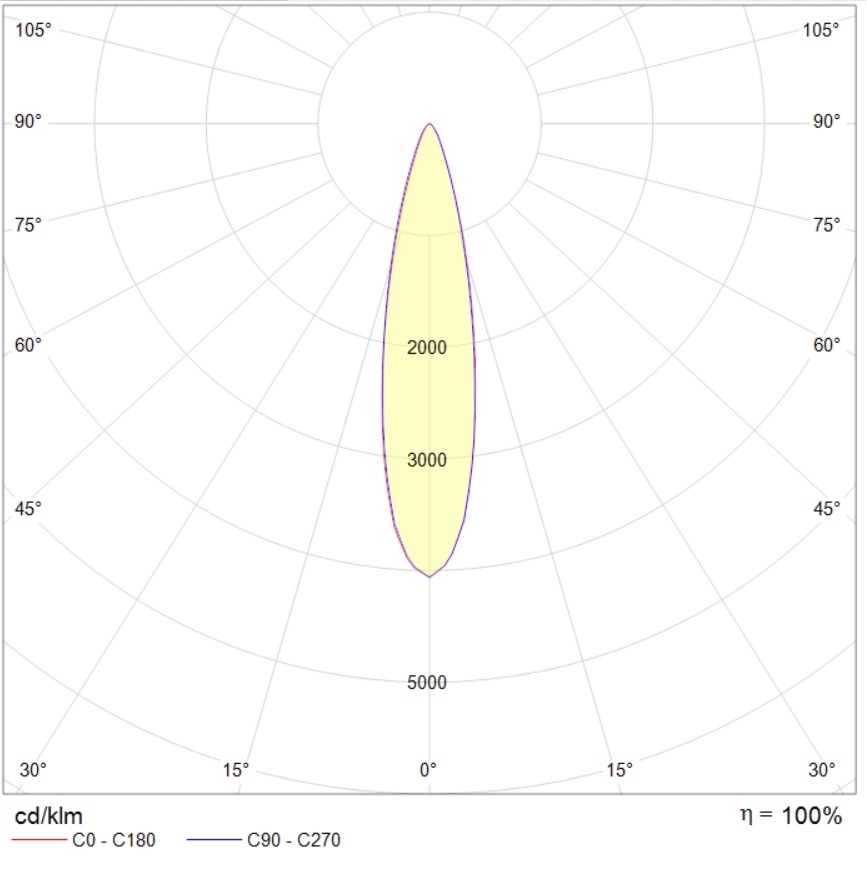

photometric files
documents
сертификаты
photometric files
ies107 kB
jpg77.9 kB
ldt61.3 kB
documents
passport2 mB
сертификаты
Russian origin281.2 kB
Certificate of conformity TRTS 020/2011, TRTS 004/20113.2 mB
Declaration of Conformity EAEU TR 037/2016658.3 kB
Fire Safety Certificate2.5 mB
