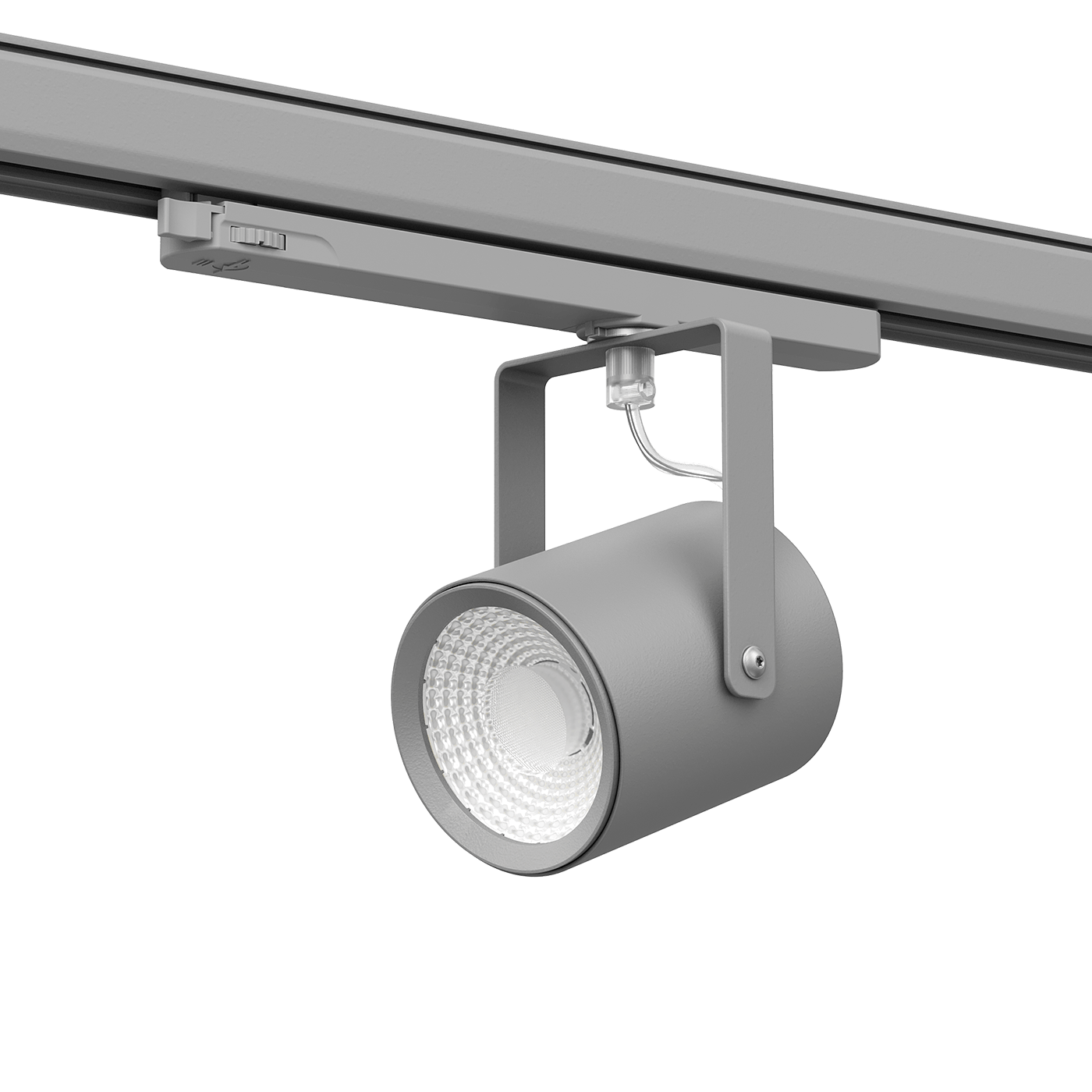

ARMA/T 35W D45 930 SL
archive
archive
ARMA/T 35W D45 930 SL
32 Wluminaire power
3900 lmlight flow
122 lm/Wenergy efficiency
code1102300670
color temperature3000
beam angleD45
old nameARMA/T LED 35 SL D45 3000K CRI90
number of lamps1
performance factor100
options
свернуть все
electricalcommonilluminatingconstructional
starting current
18 Astarting current pulse time, µs
2.8 mksrated supply voltage, alternating current
230 Vsupply voltage, alternating current
176-264 Vluminaire power
32 Welectric shock protection
IIpower factor
> 0,95supply voltage
230 Velectrical
starting current
18 A
starting current pulse time, µs
2.8 mks
rated supply voltage, alternating current
230 V
supply voltage, alternating current
176-264 V
luminaire power
32 W
electric shock protection
II
power factor
> 0,95
supply voltage
230 V
common
ETIM class
Прожектор / Светильник направленного света
warranty
36 month
temperature range
от +5 до +35 C
energy efficiency class
A+
service life, hour
50 000 h
code
1102300670
illuminating
color rendition index (CRI)
>90
light flow
3900 lm
flickering factor
<5%
energy efficiency
122 lm/W
beam angle
D45
color temperature
3000
light source type
LED
emission color
Белый
constructional
ingress protection (IP)
IP20
climatic performance
УХЛ4*
material
Металл, пластик
weight
0.9 kg
diameter, mm
106 mm
height, mm
220 mm
housing color
Металлик
shock resistance (IK)
IK02/0,2 Дж
lamp socket
LED
number of lamps
1
ballast
Драйвер
model files
model files
photometric files
documents
сертификаты

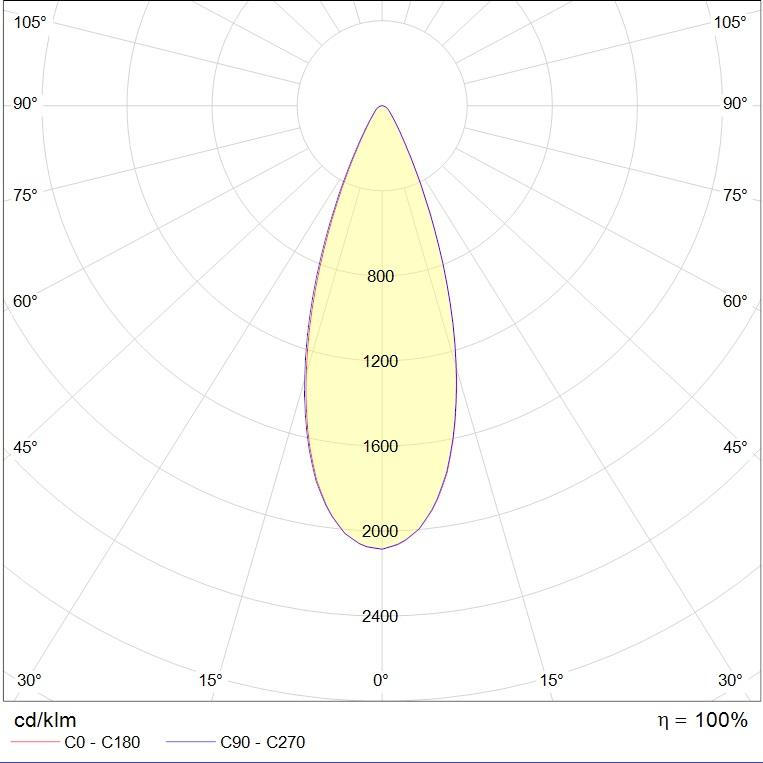

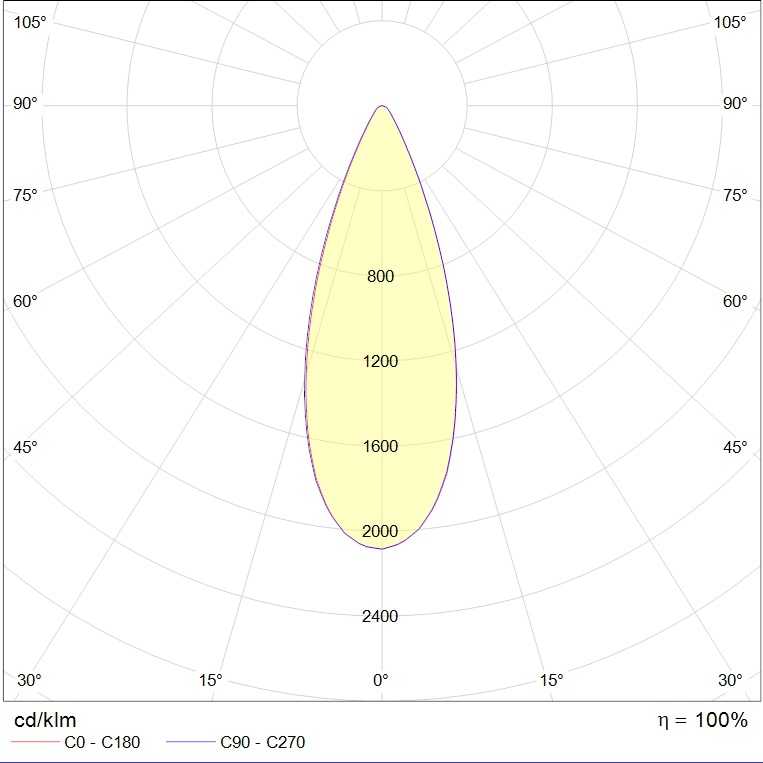

photometric files
ies107 kB
jpg82.5 kB
ldt64 kB
documents
passport2.2 mB
сертификаты
Russian origin281.2 kB
Certificate of conformity TRTS 020/2011, TRTS 004/20113.2 mB
Declaration of Conformity EAEU TR 037/2016588 kB
Fire Safety Certificate2.5 mB
