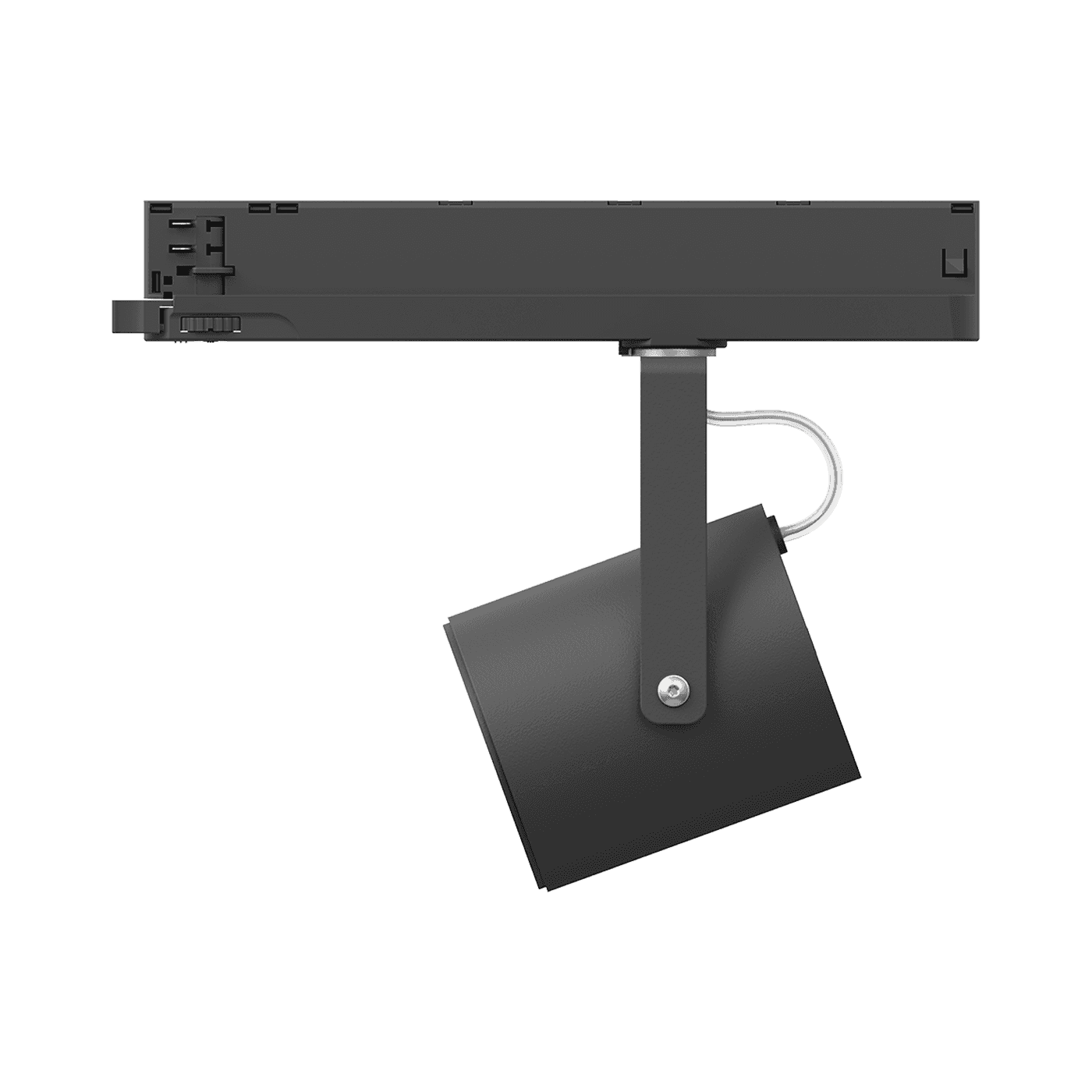

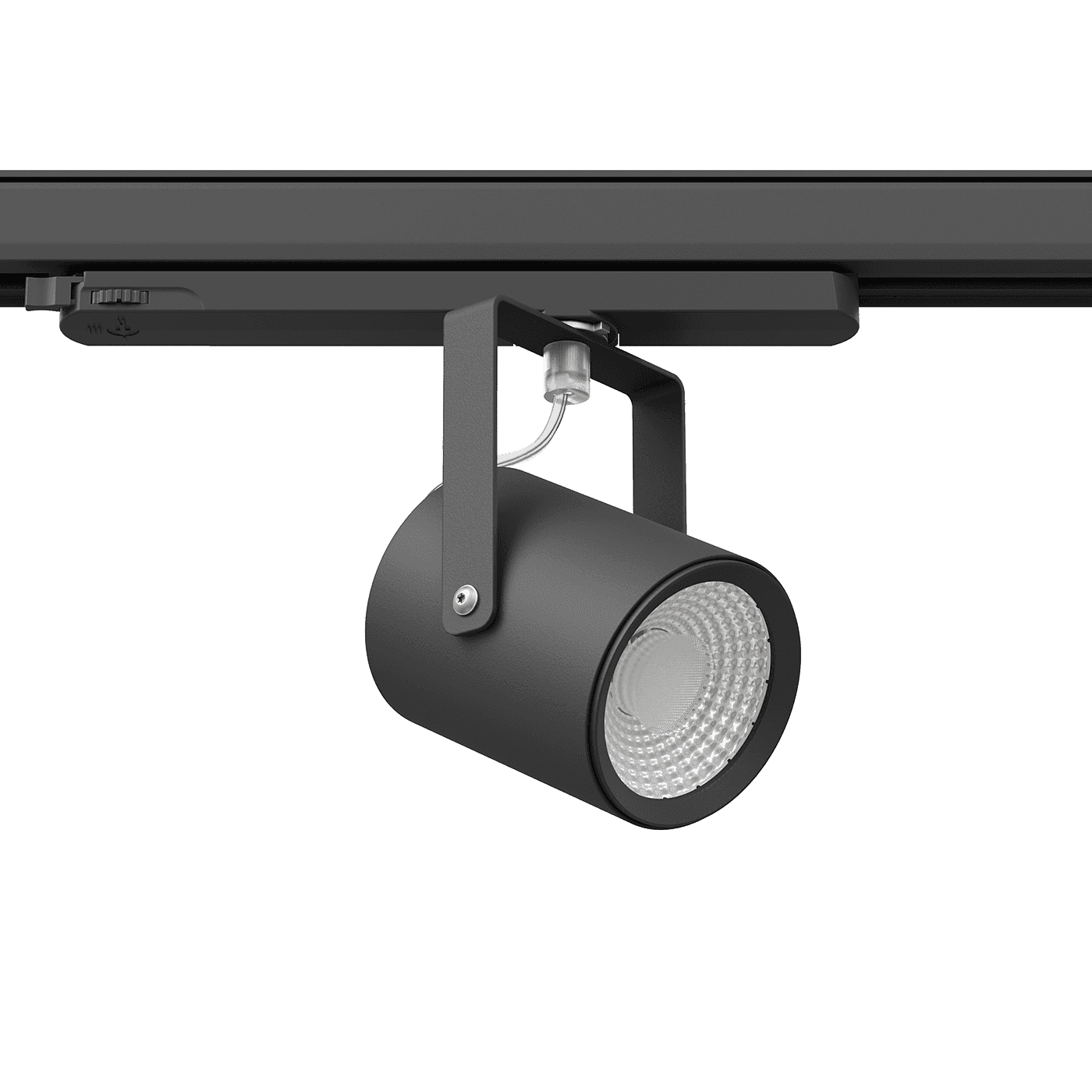

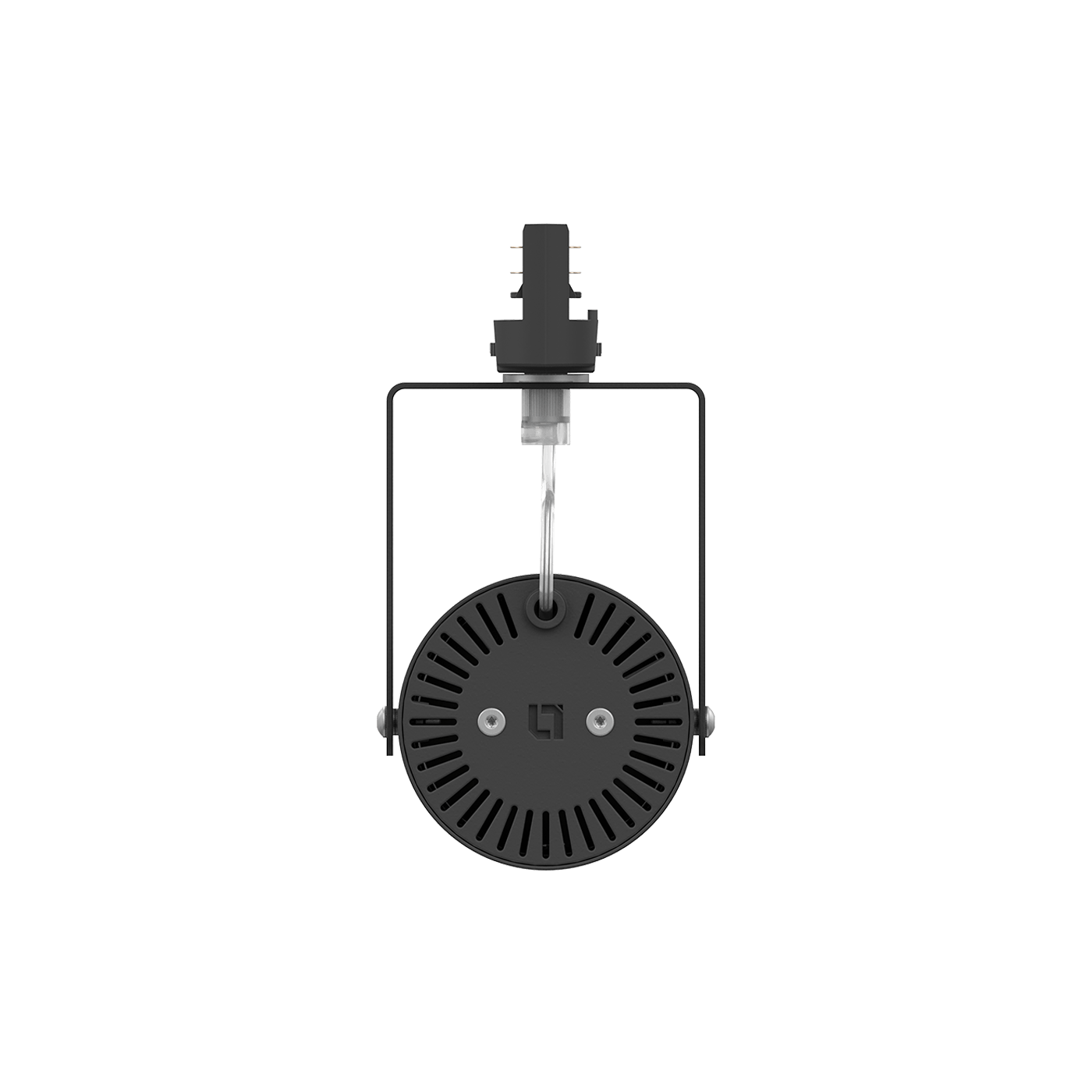

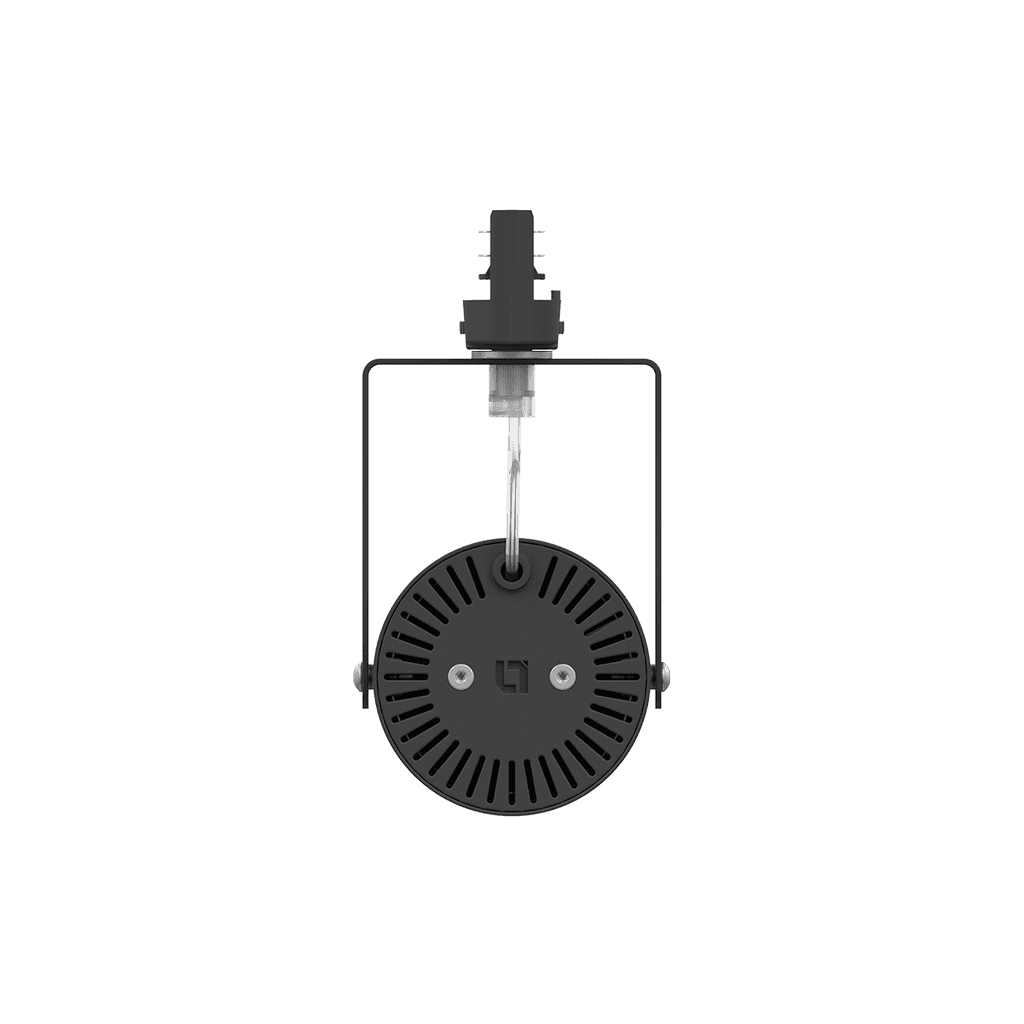

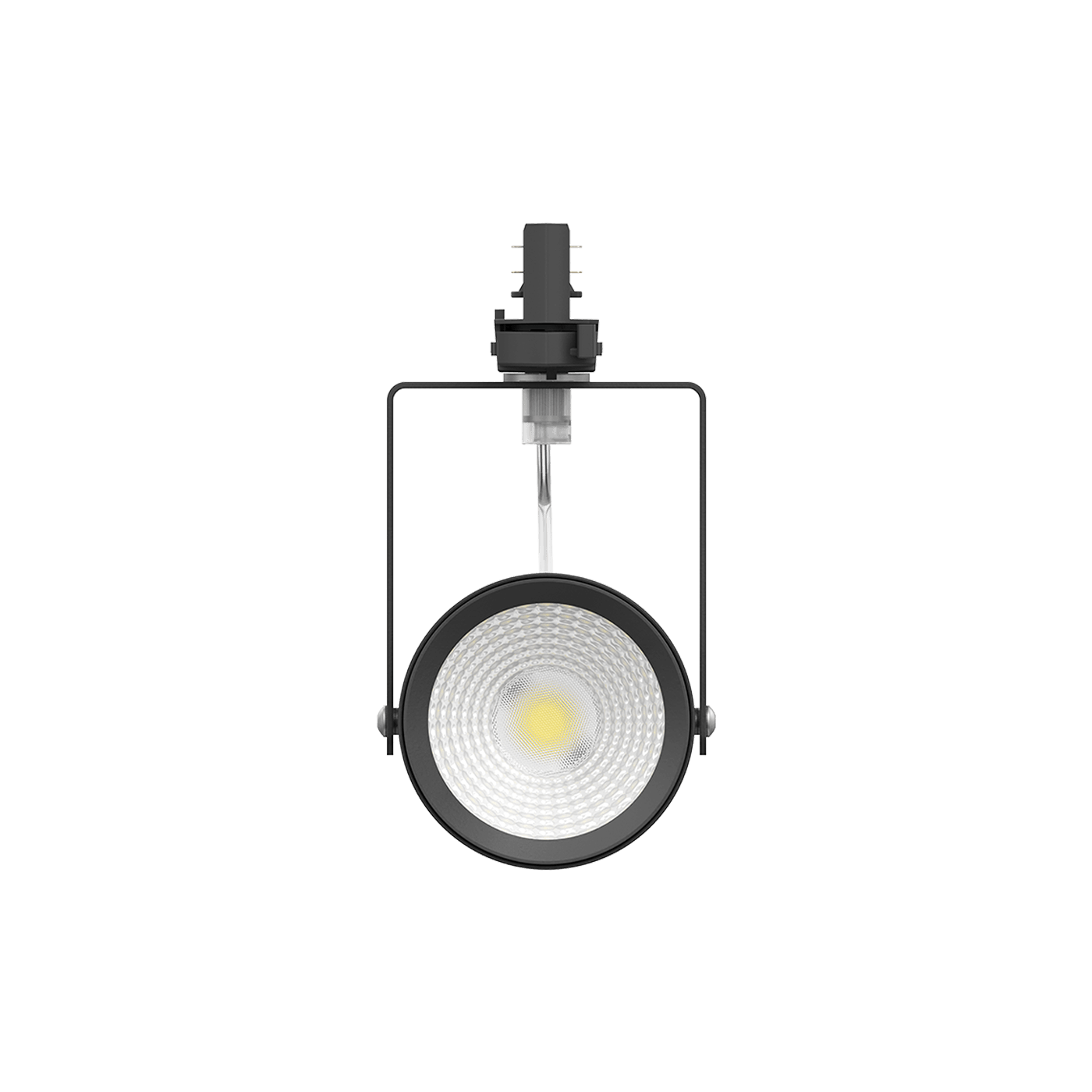

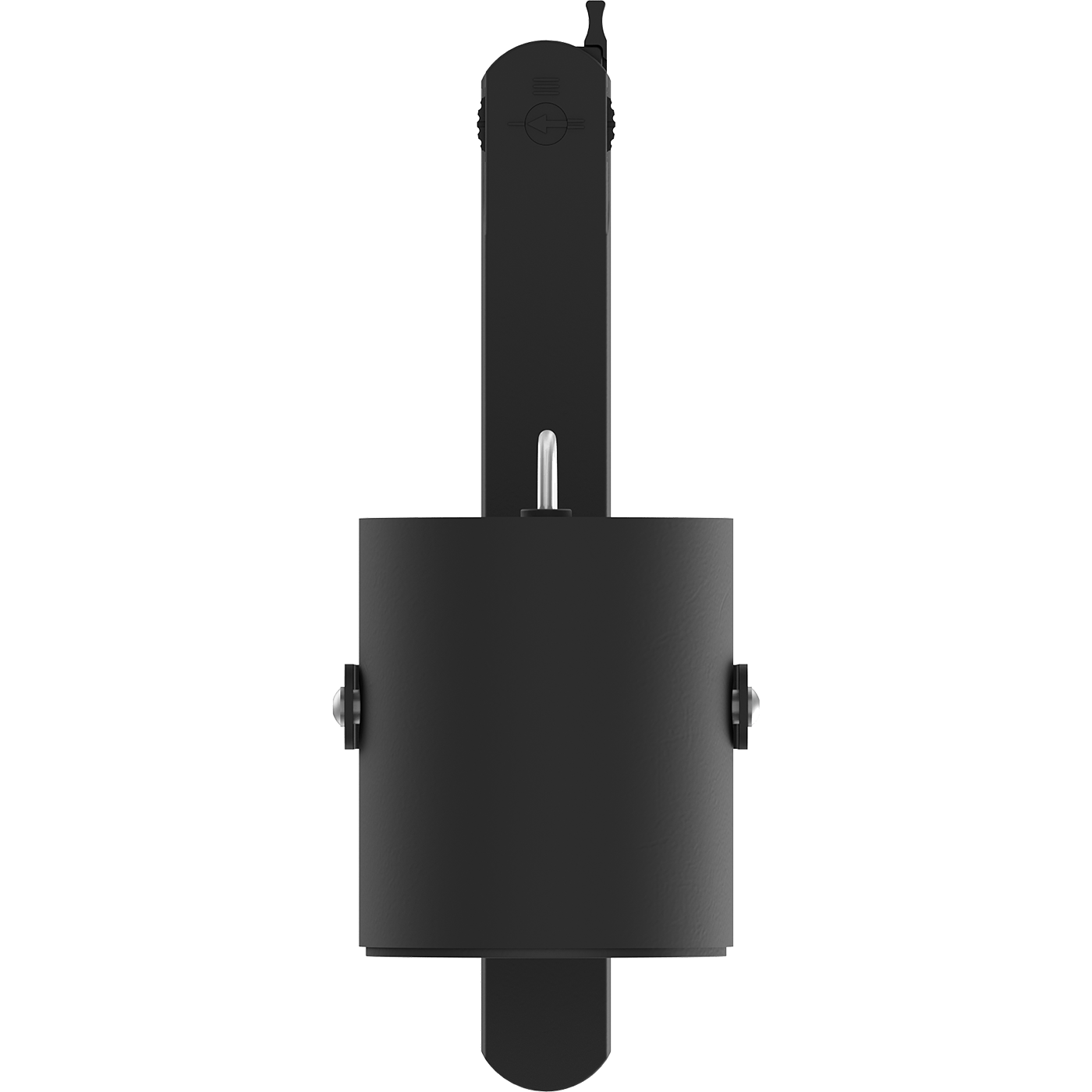

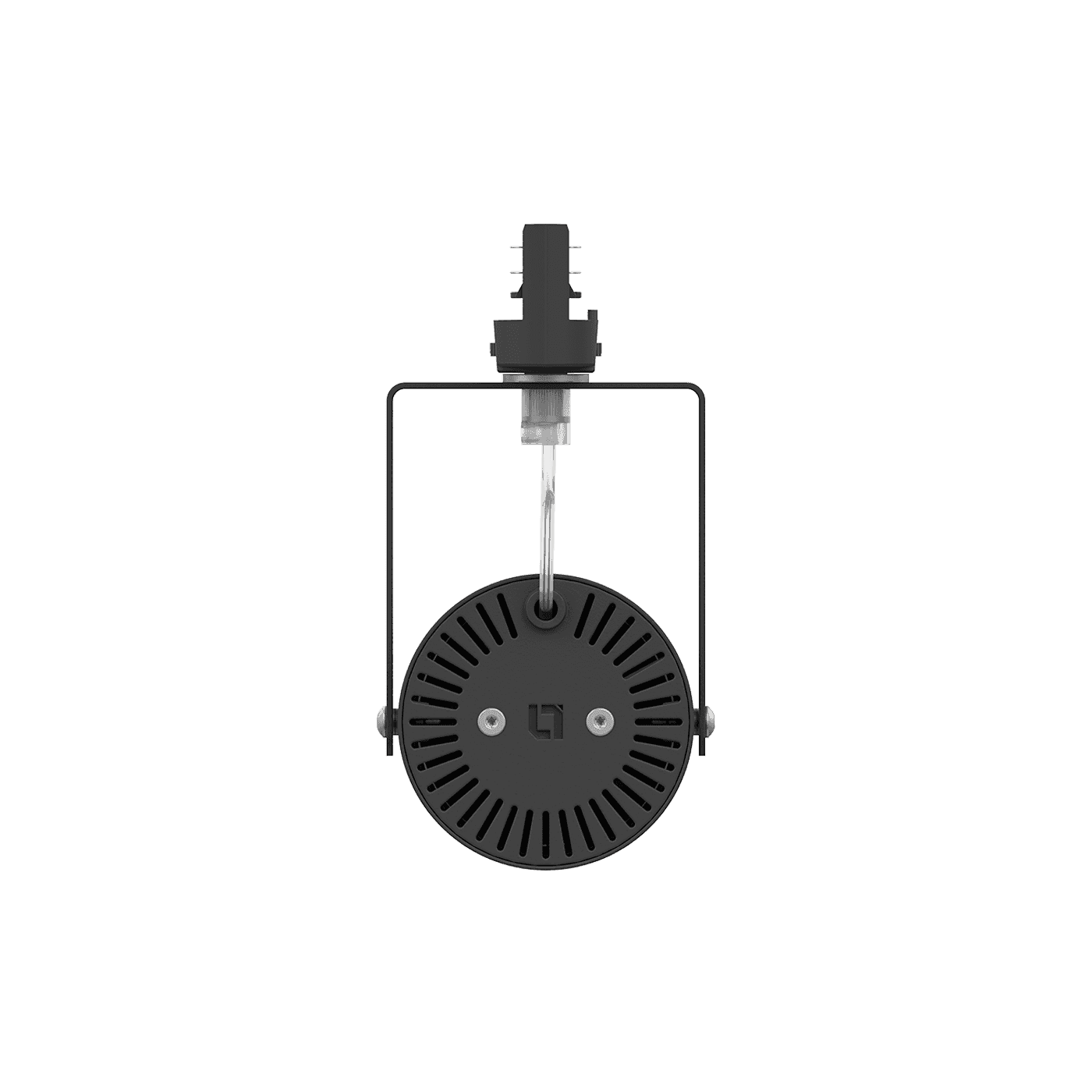

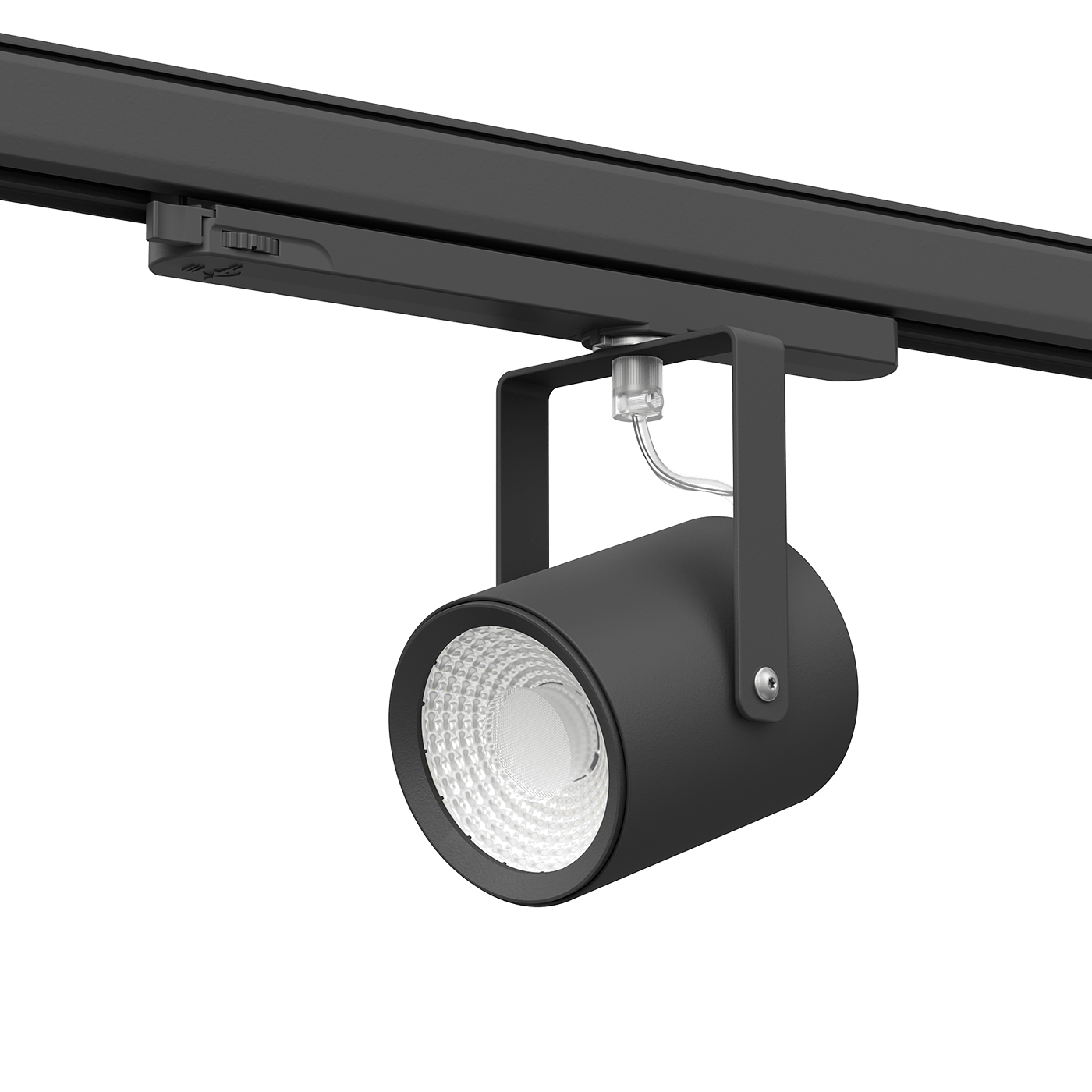

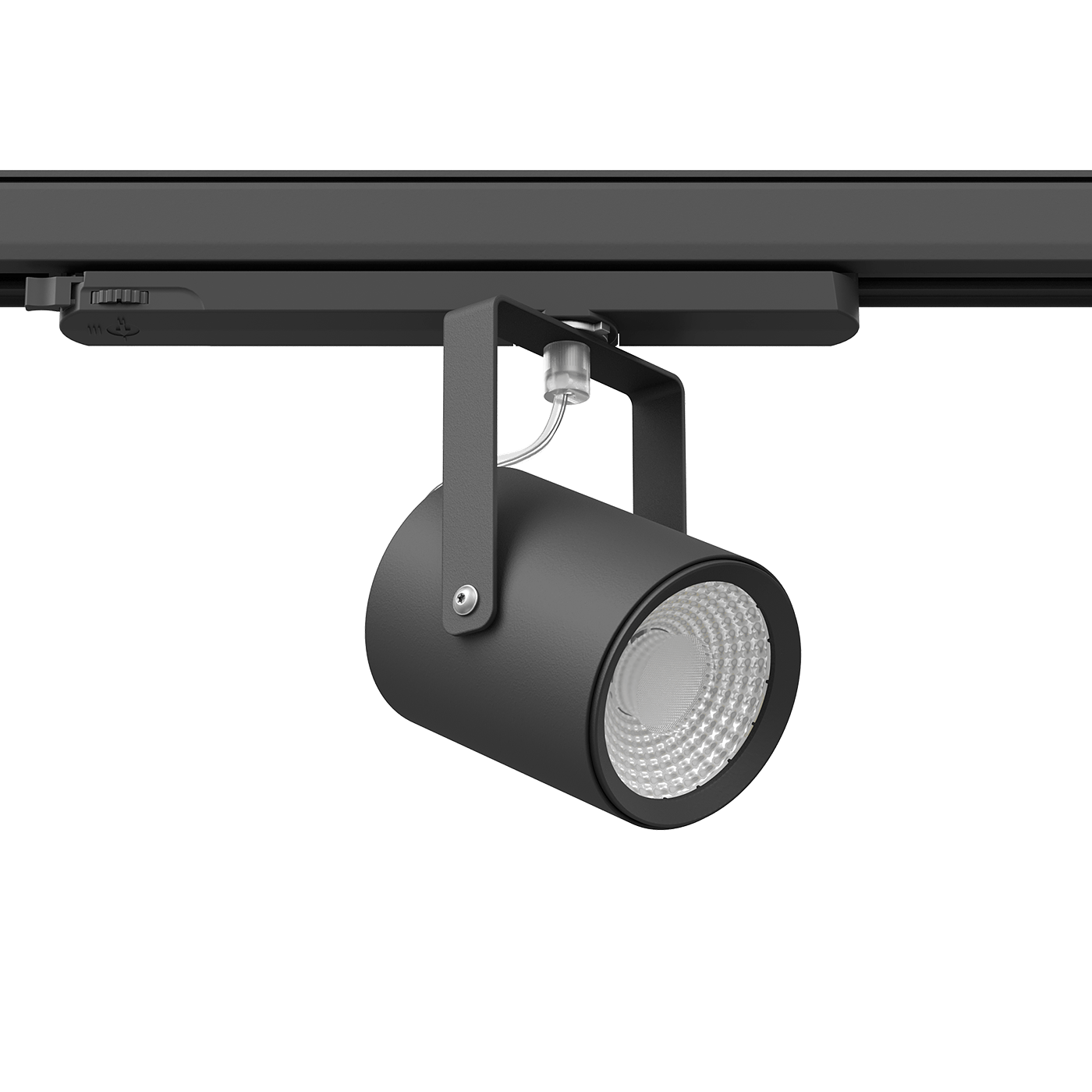

ARMA/T 35W D30 840 BK
ARMA/T 35W D30 840 BK
32 Wluminaire power
3900 lmlight flow
122 lm/Wenergy efficiency
code1102300500
color temperature4000
beam angleD30
old nameARMA/T LED 35 BL D30 4000K
performance factor100
options
свернуть все
electricalcommonilluminatingconstructional
electric shock protection
IIstarting current
18 Astarting current pulse time, µs
2.8 mksrated supply voltage, alternating current
230 Vsupply voltage, alternating current
176-264 Vluminaire power
32 Wpower factor
> 0,95supply voltage
230 Velectrical
electric shock protection
II
starting current
18 A
starting current pulse time, µs
2.8 mks
rated supply voltage, alternating current
230 V
supply voltage, alternating current
176-264 V
luminaire power
32 W
power factor
> 0,95
supply voltage
230 V
common
ETIM class
Прожектор / Светильник направленного света
warranty
36 month
temperature range
от +5 до +35 C
service life, hour
50 000 h
code
1102300500
energy efficiency class
A+
illuminating
color rendition index (CRI)
>80
light flow
3900 lm
flickering factor
<5%
beam angle
D30
color temperature
4000
light source type
LED
emission color
Белый
energy efficiency
122 lm/W
constructional
ingress protection (IP)
IP20
material
Металл, пластик
housing color
Черный
diameter, mm
106 mm
height, mm
220 mm
weight
0.9 kg
climatic performance
УХЛ4*
shock resistance (IK)
IK02/0,2 Дж
lamp socket
LED
number of lamps
1
ballast
Драйвер
model files
model files

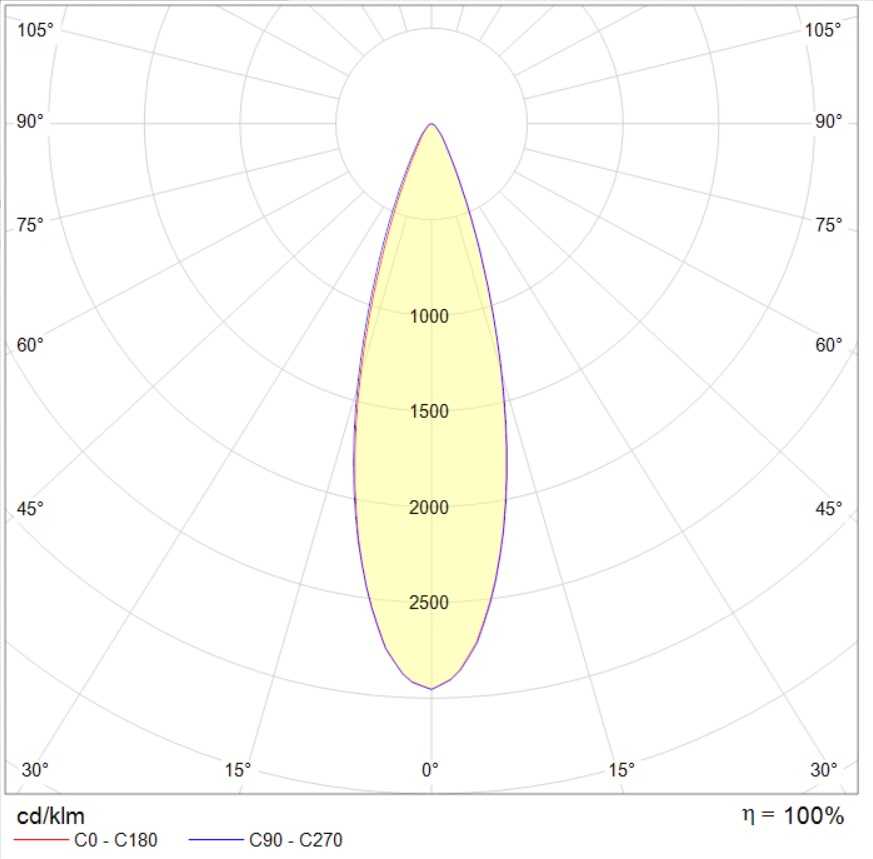

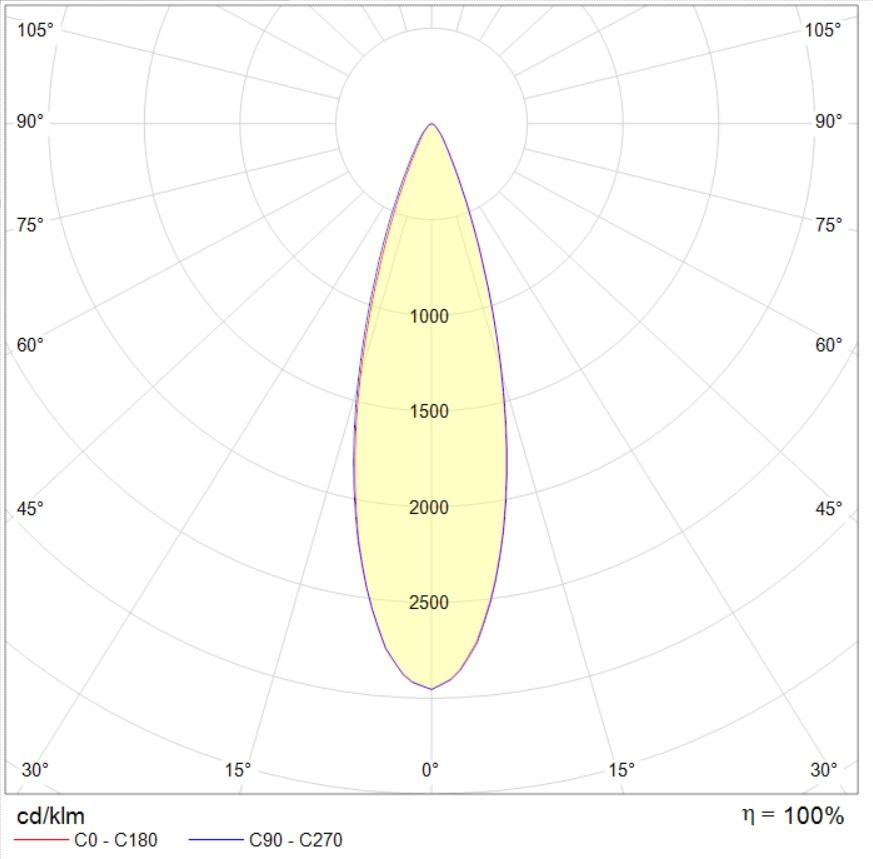

photometric files
documents
сертификаты
photometric files
ies107 kB
jpg84.8 kB
ldt61.1 kB
documents
passport2 mB
сертификаты
Russian origin281.2 kB
Certificate of conformity TRTS 020/2011, TRTS 004/20113.2 mB
Declaration of Conformity EAEU TR 037/2016658.3 kB
Fire Safety Certificate2.5 mB
