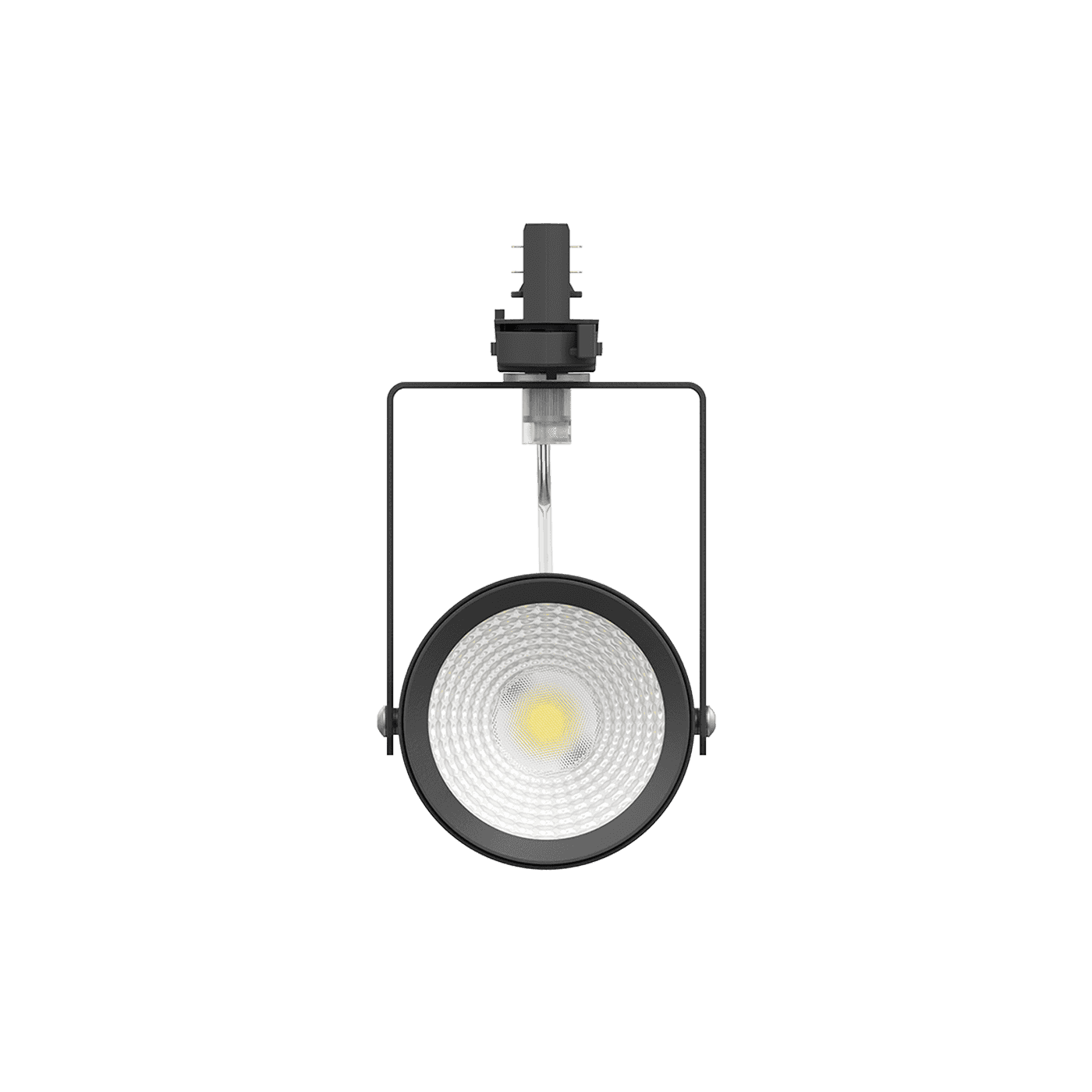

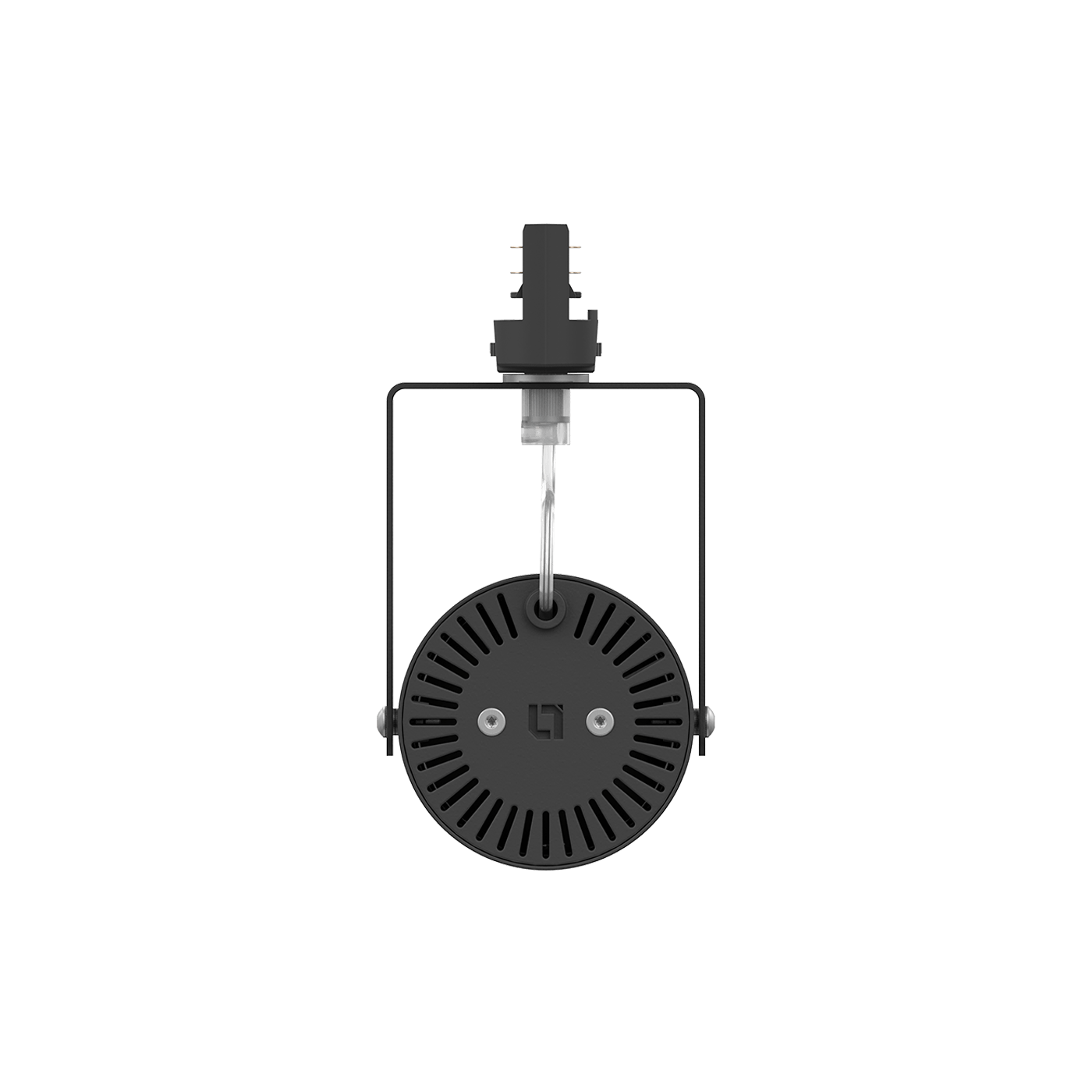

ARMA/T 15W D30 830 BK DALI
ARMA/T 15W D30 830 BK DALI
14 Wluminaire power
1800 lmlight flow
129 lm/Wenergy efficiency
code1102300440
color temperature3000 K
beam angleD30
old nameARMA/T LED 15 BL D30 3000K DALI
performance factor100
options
свернуть все
illuminatingelectricalconstructionalLMS optionscommon
energy efficiency
129 lm/Wcolor rendition index (CRI)
>80light flow
1800 lmflickering factor
<5%beam angle
D30color temperature
3000 Klight source type
LEDemission color
Белыйilluminating
energy efficiency
129 lm/W
color rendition index (CRI)
>80
light flow
1800 lm
flickering factor
<5%
beam angle
D30
color temperature
3000 K
light source type
LED
emission color
Белый
electrical
starting current pulse time
2.8 µs
electric shock protection
II
luminaire power
14 W
supply voltage
230 V
power factor
> 0,95
rated supply voltage, alternating current
230 V
starting current
18 A
constructional
diameter
88 mm
height
195 mm
weight
0.77 kg
ingress protection (IP)
IP20
shock resistance (IK)
IK02/0,2 Дж
climatic performance
УХЛ4*
material
Металл, пластик
housing color
Черный
lamp socket
LED
number of lamps
1
ballast
Драйвер DALI
LMS options
dimming
DALI
common
warranty
36 month
temperature range
от +5 до +35 C
service life
50 000 h
energy efficiency class
A+
ETIM class
Прожектор / Светильник направленного света
code
1102300440
model files
model files
photometric files
documents
сертификаты

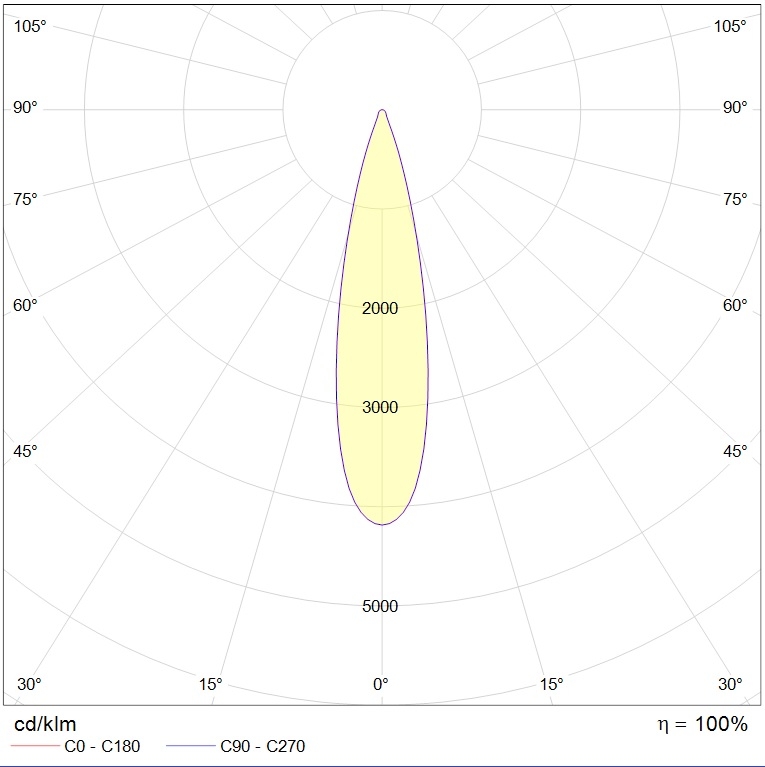

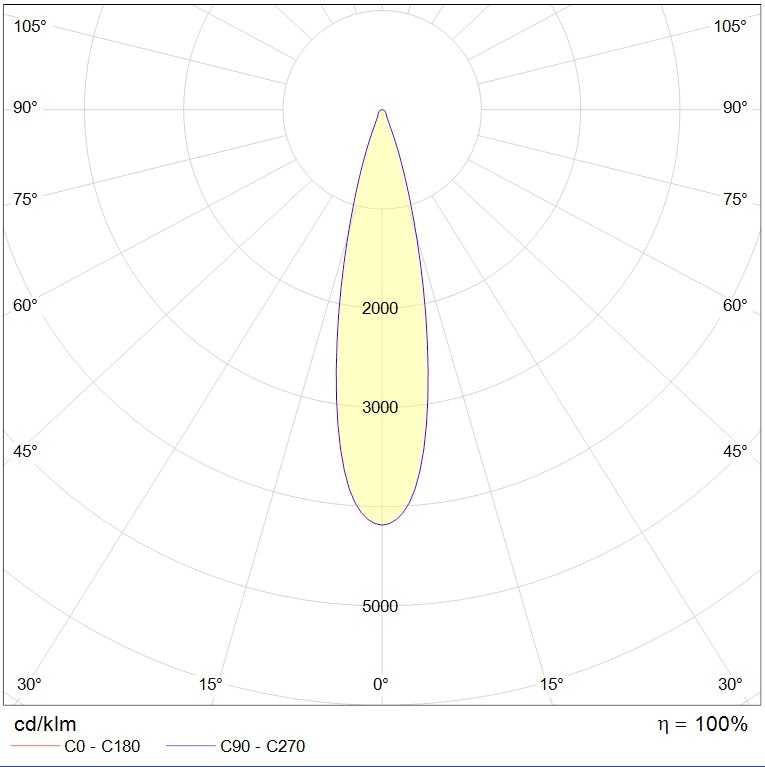

photometric files
jpg75.5 kB
ldt2.4 kB
documents
passport2 mB
сертификаты
Russian origin281.2 kB
Certificate of conformity TRTS 020/2011, TRTS 004/20113.2 mB
Declaration of Conformity EAEU TR 037/2016658.3 kB
Fire Safety Certificate2.5 mB
