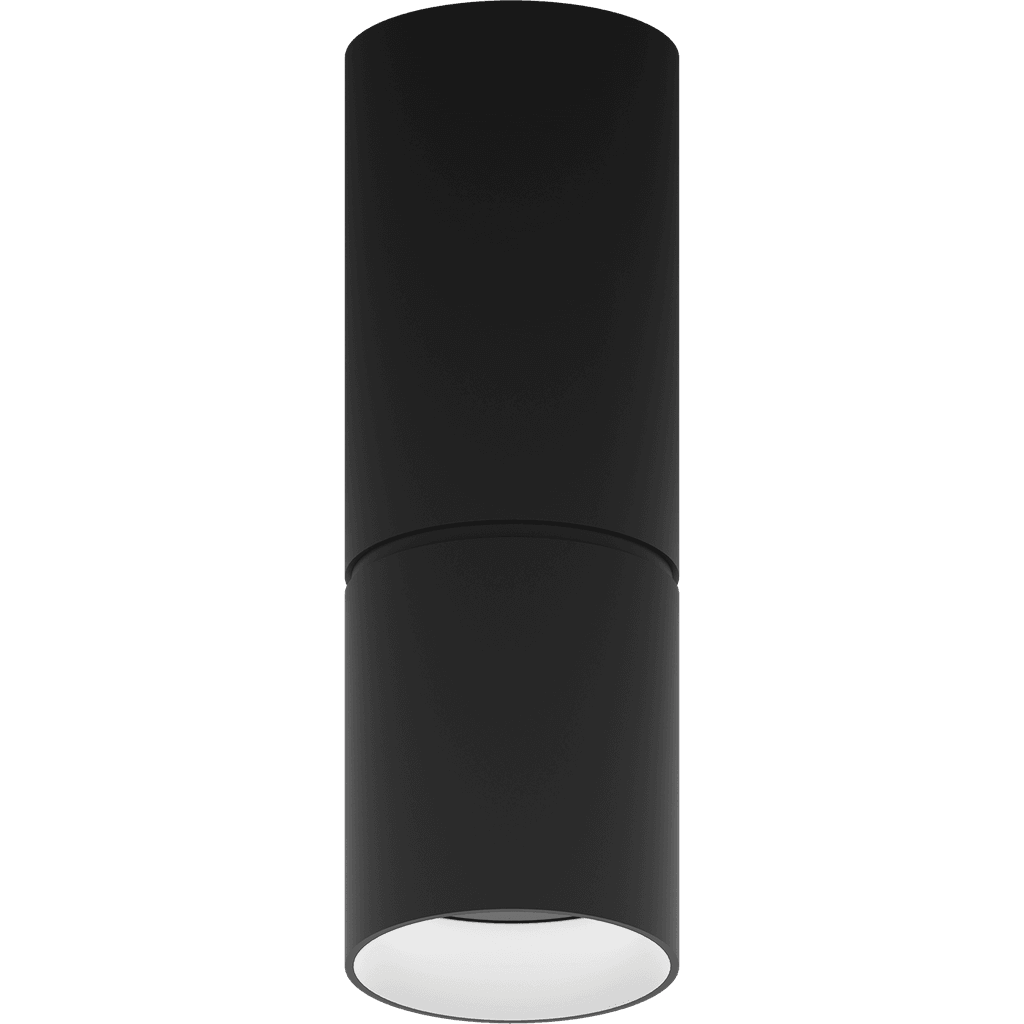

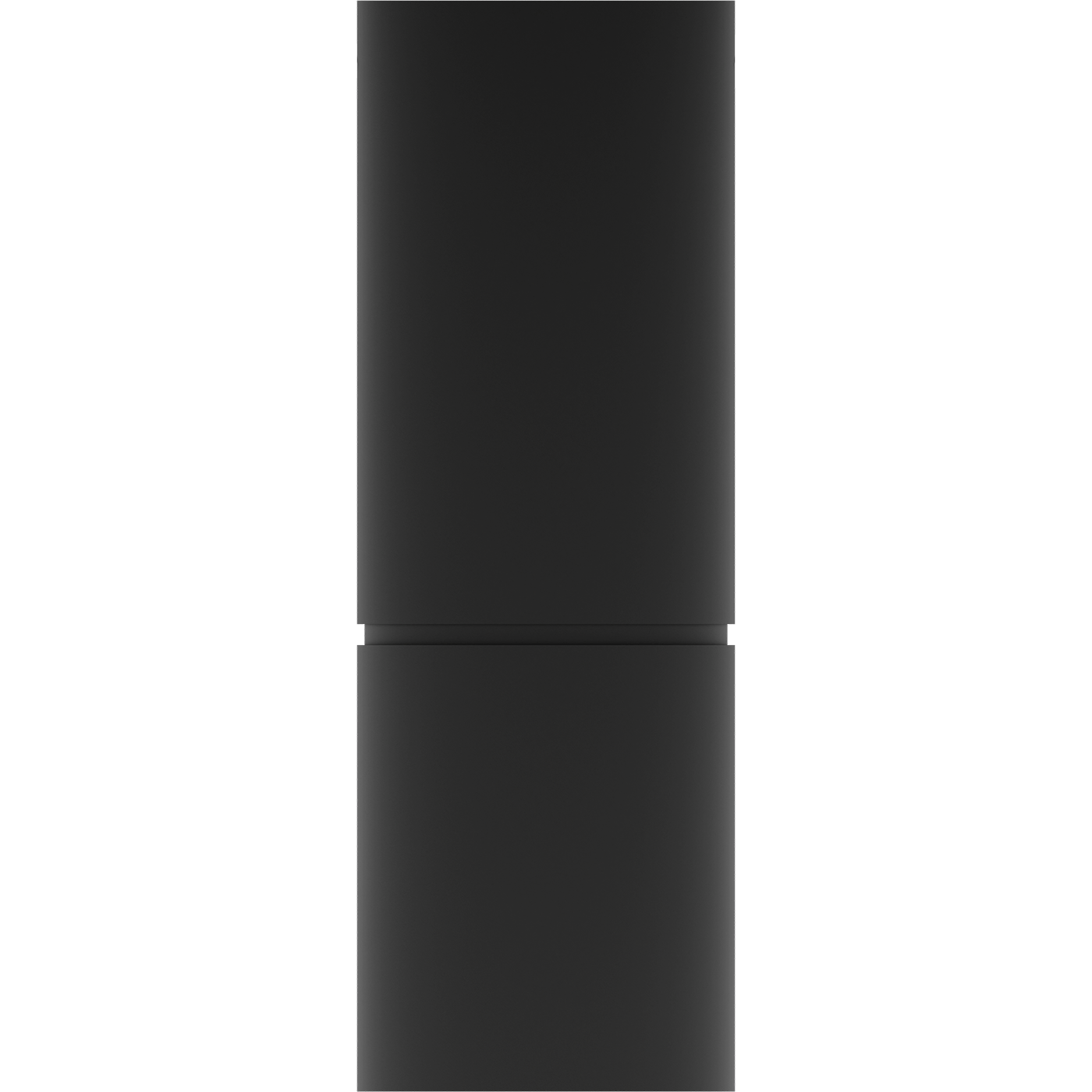

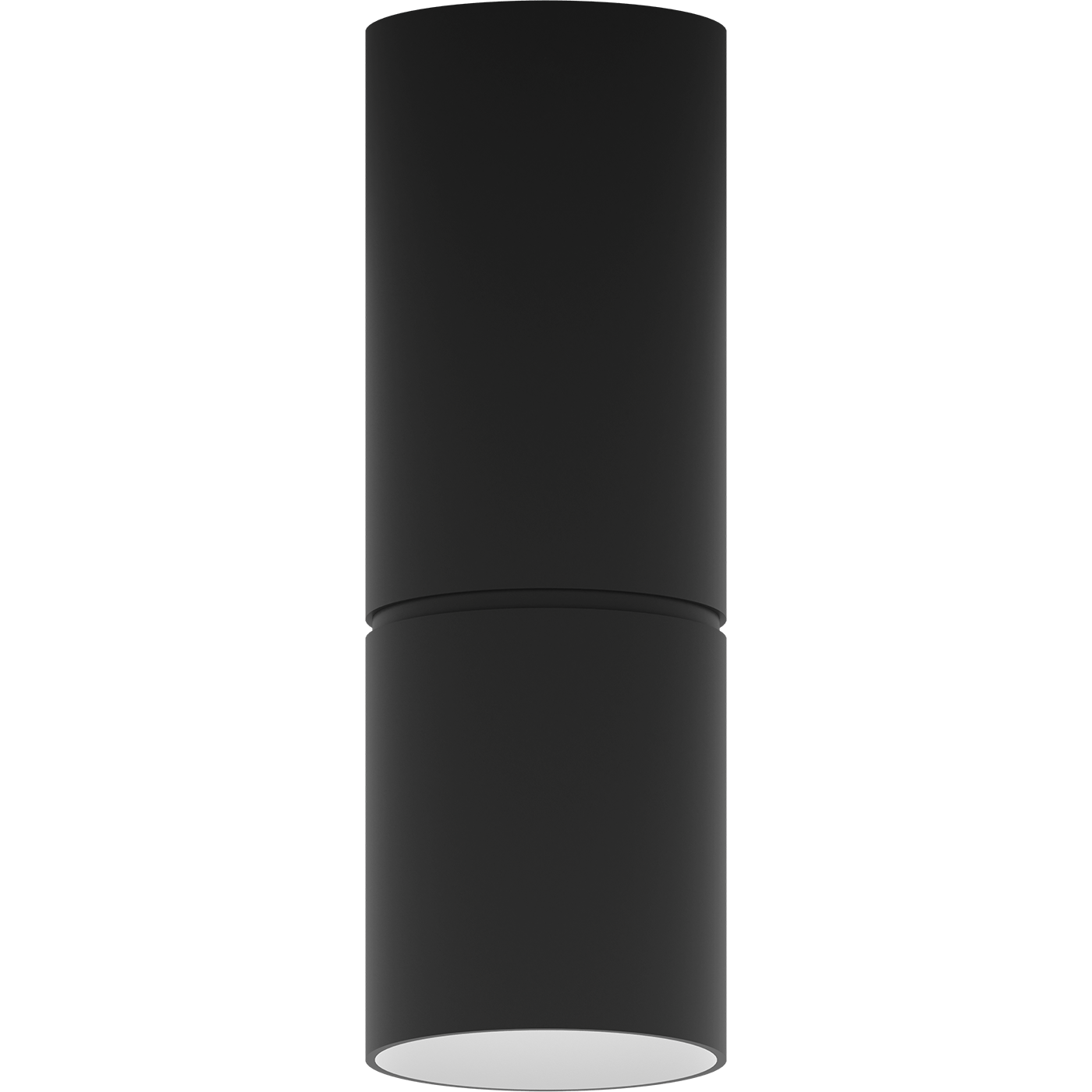

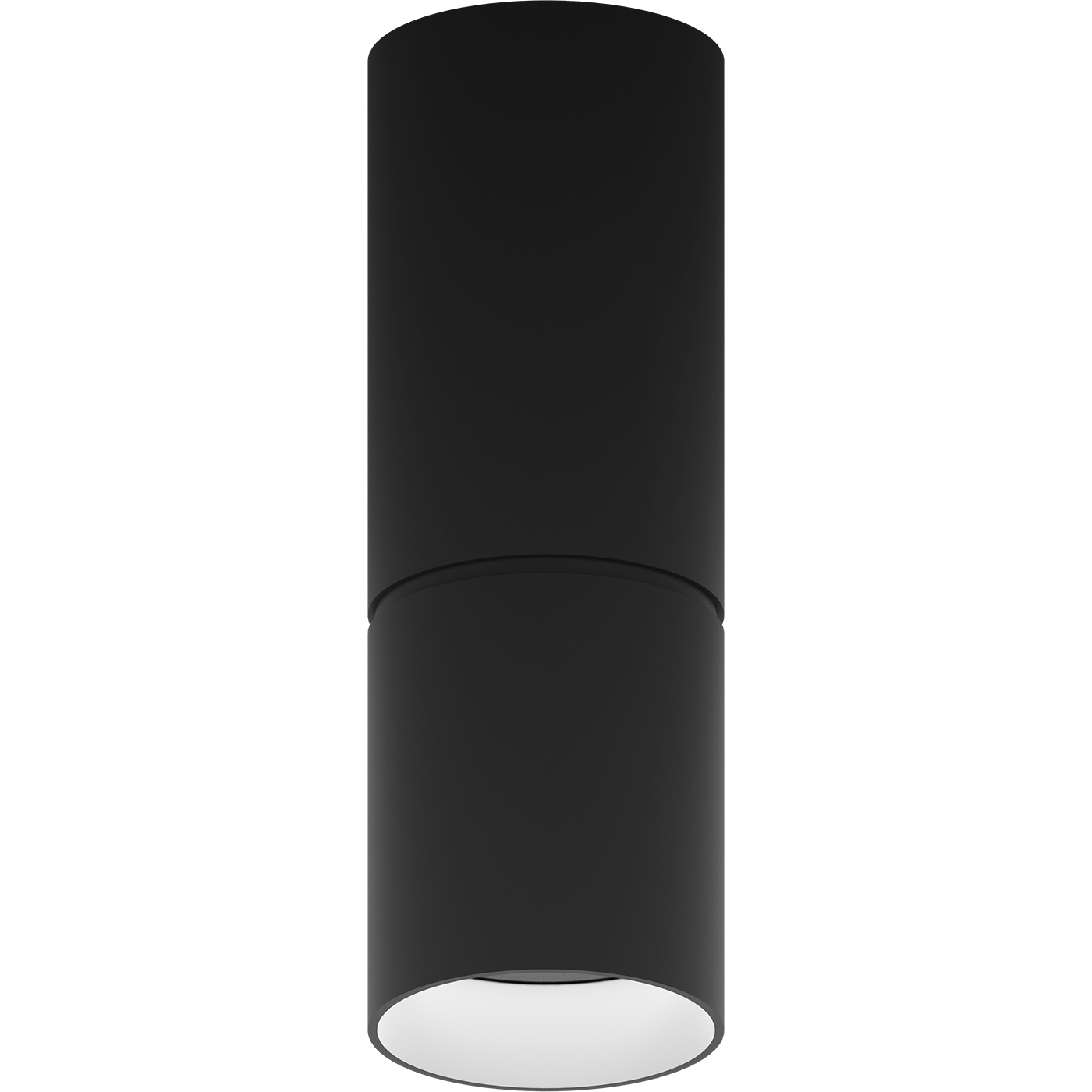

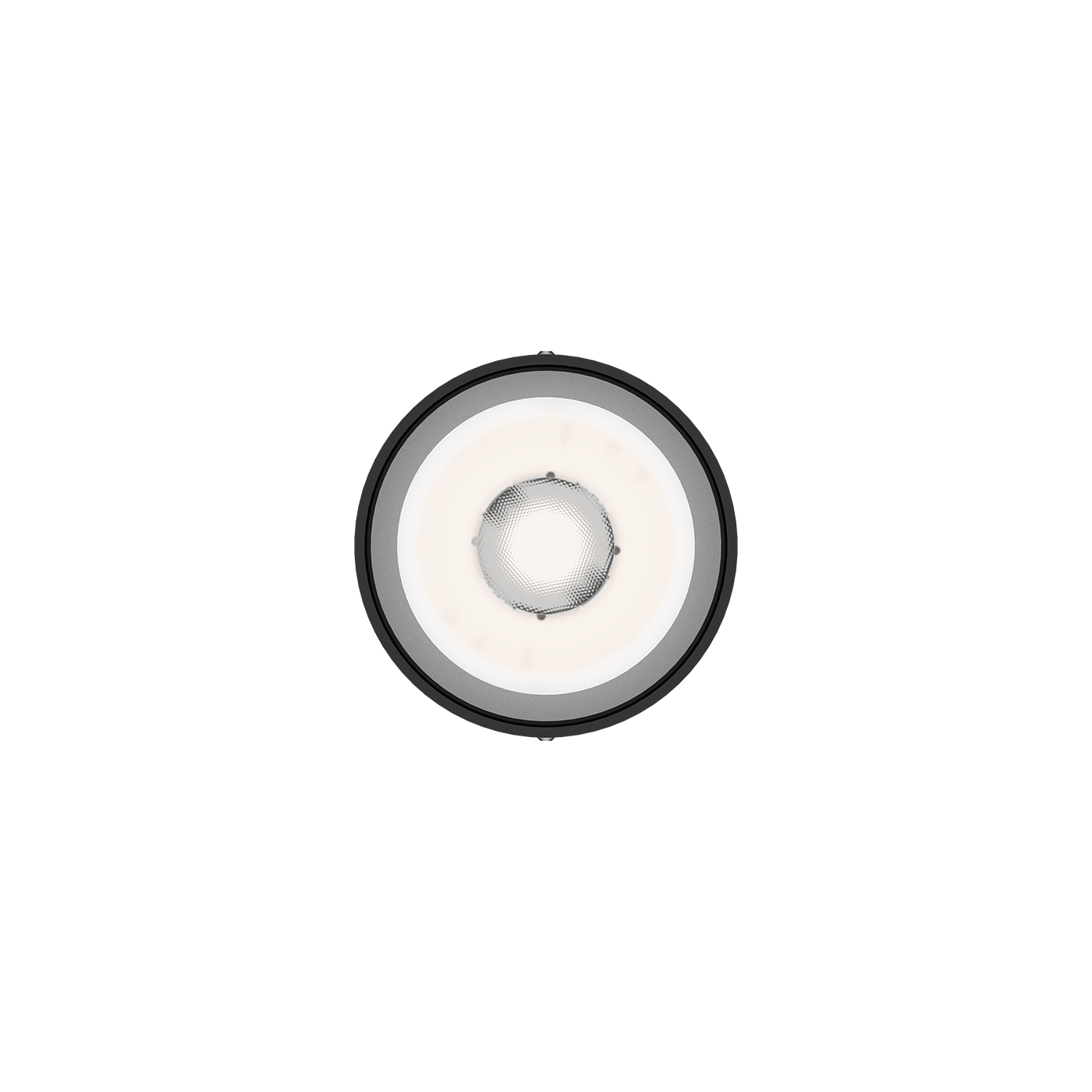

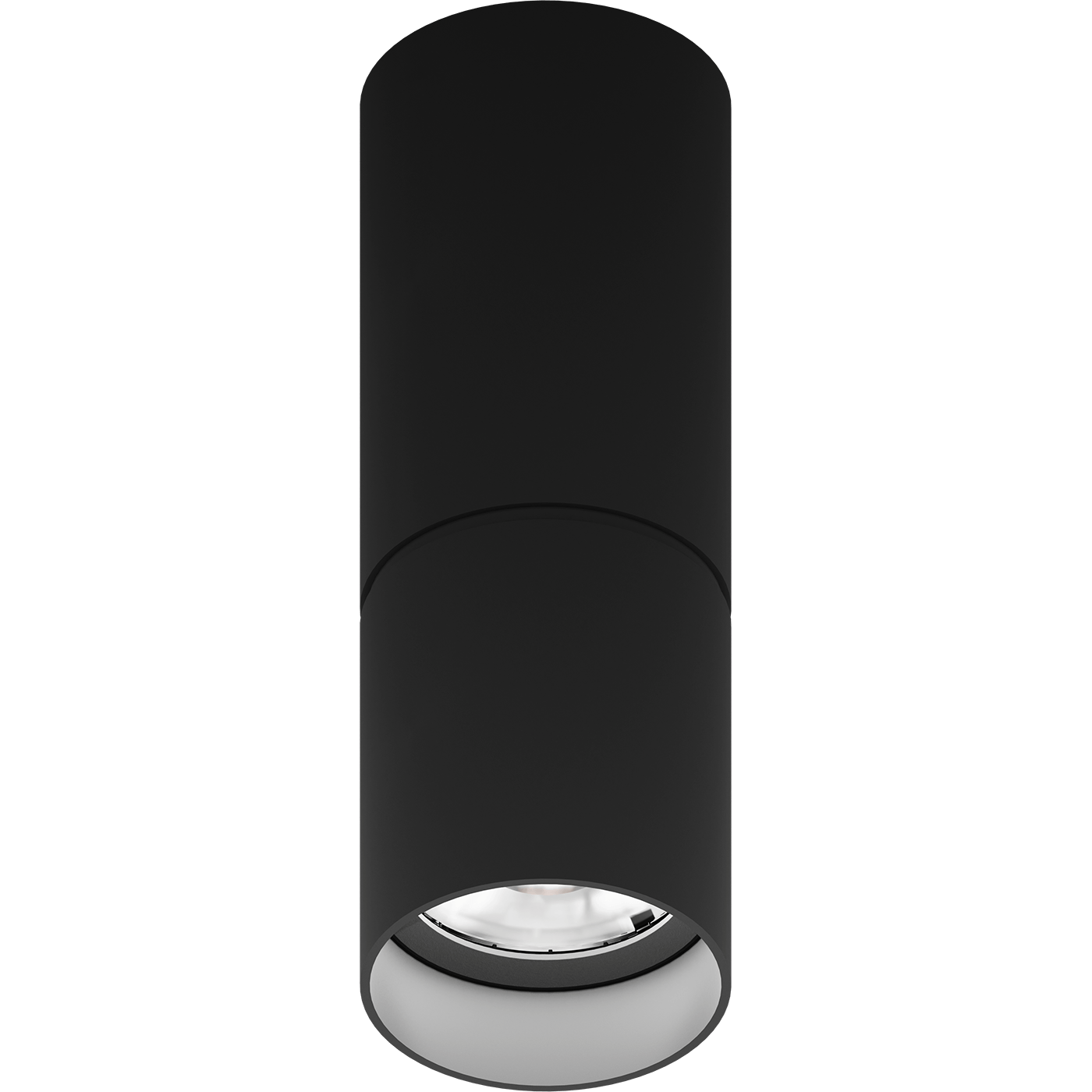

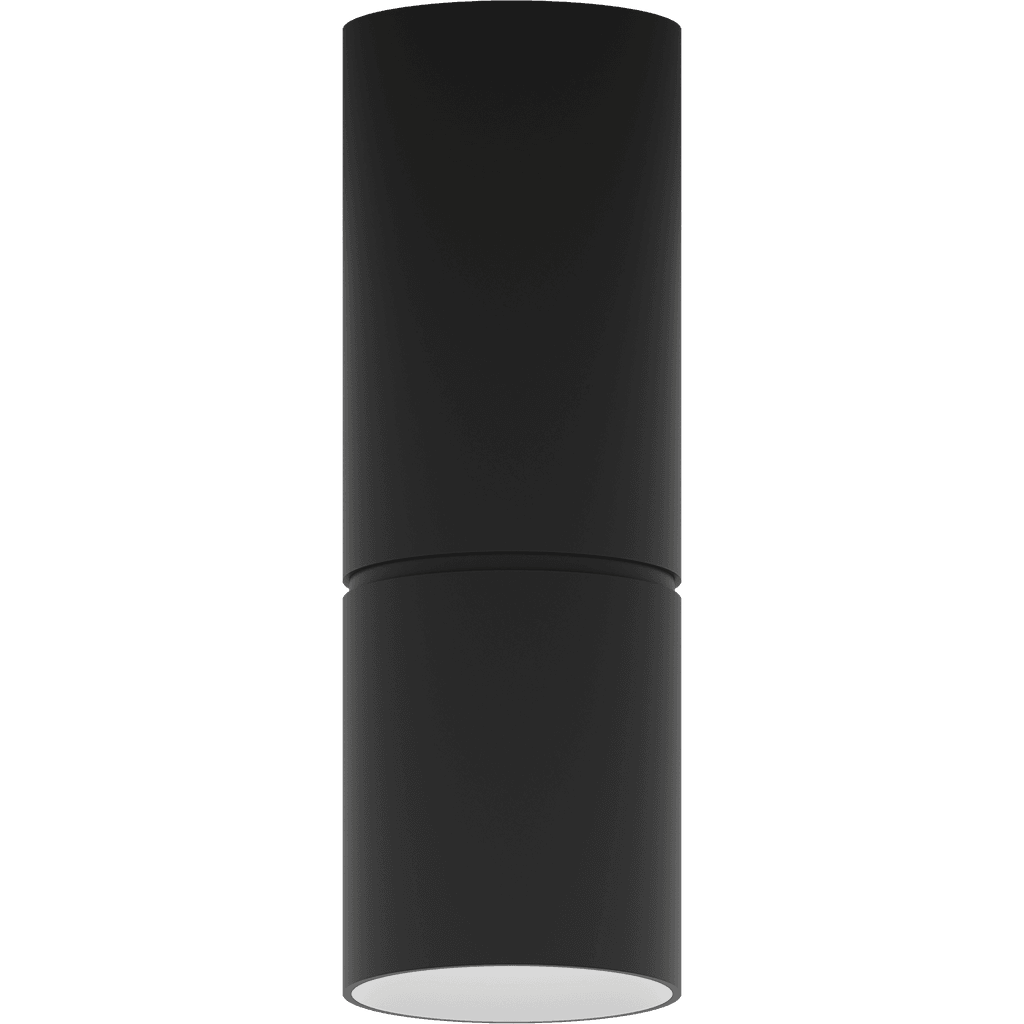

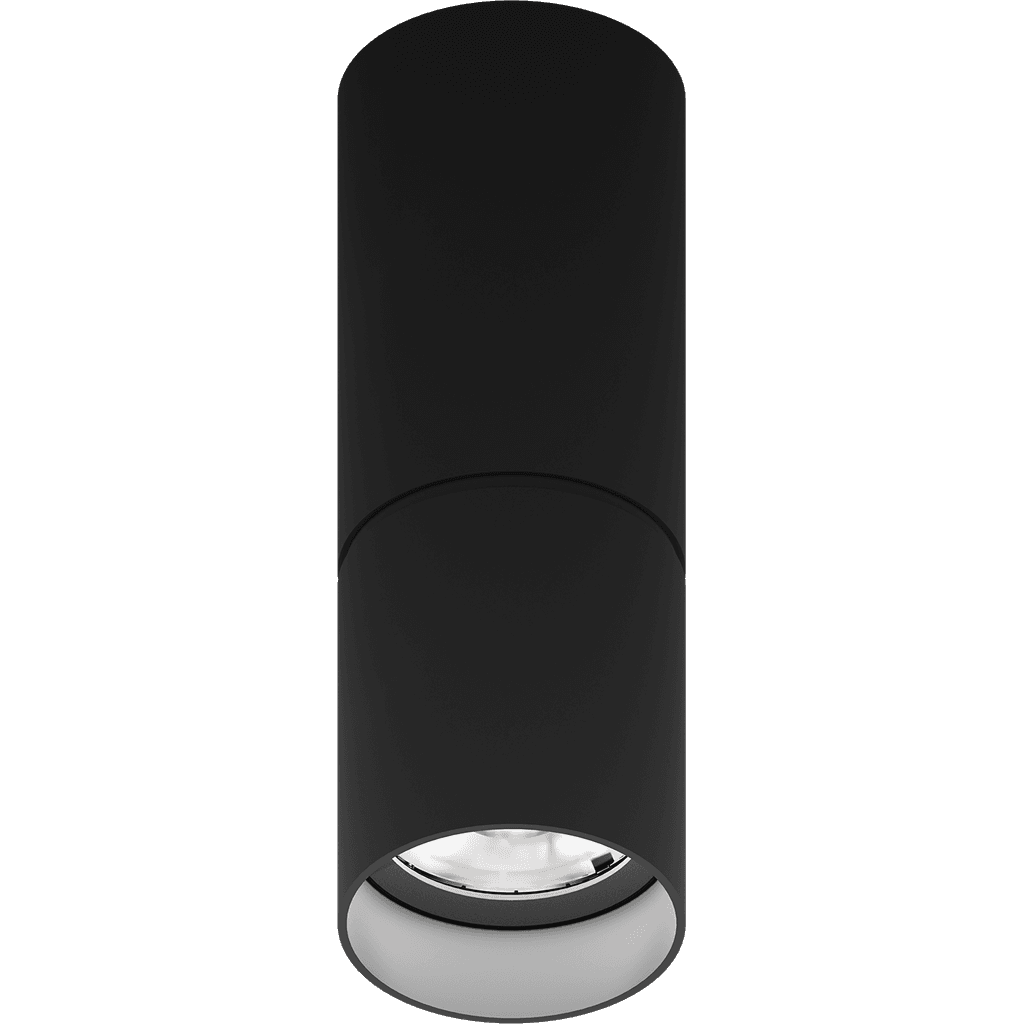

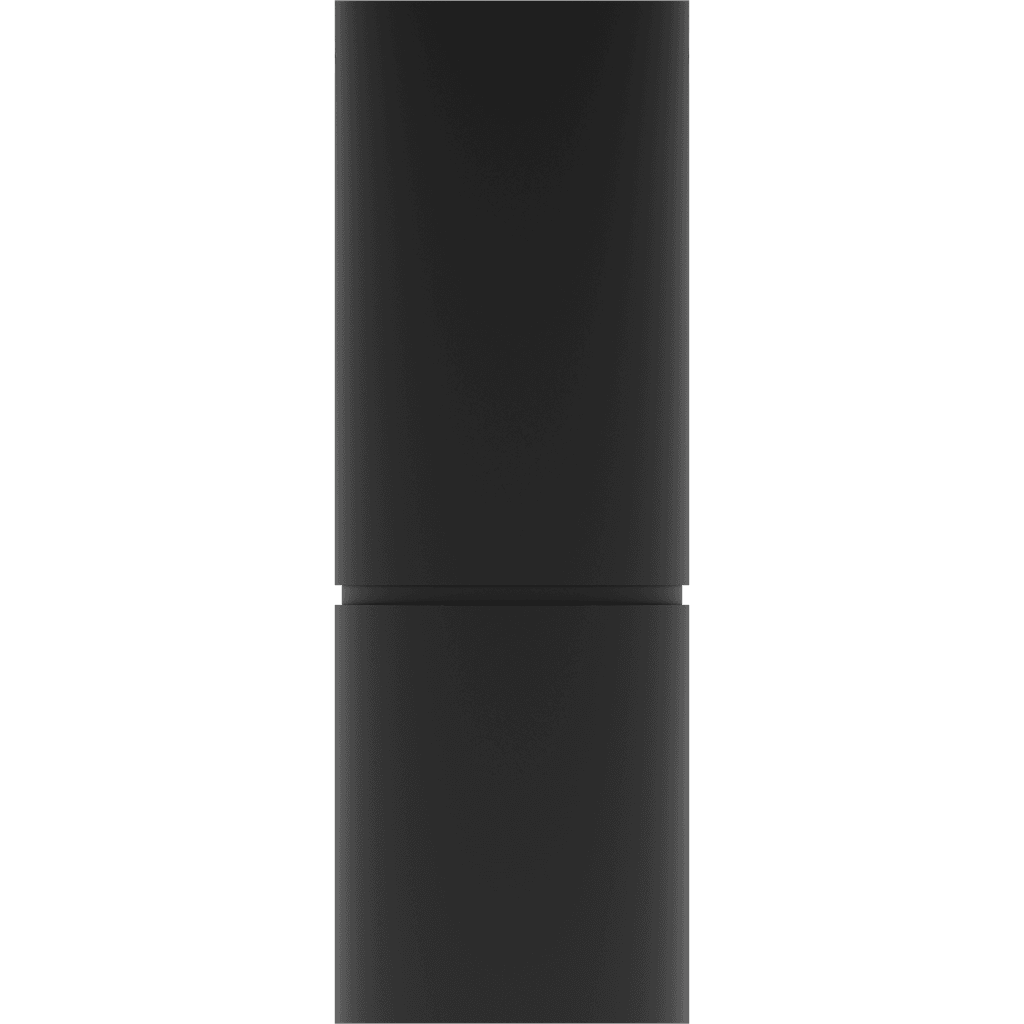

ARMA/S (260) 10W D45 840 BL
_10w_d45_840_bl.jpg&w=1920&q=100)
_10w_d45_840_bl.jpg&w=1024&q=75)
ARMA/S (260) 10W D45 840 BL
9 Wluminaire power
1050 lmlight flow
117 lm/Wenergy efficiency
code1102302000
color temperature4000 K
beam angleD45
performance factor100
options
свернуть все
illuminatingelectricalconstructionalcommon
energy efficiency
117 lm/Wcolor rendition index (CRI)
>80light flow
1050 lmflickering factor
<5%beam angle
D45color temperature
4000 Klight source type
LEDemission color
Белыйilluminating
energy efficiency
117 lm/W
color rendition index (CRI)
>80
light flow
1050 lm
flickering factor
<5%
beam angle
D45
color temperature
4000 K
light source type
LED
emission color
Белый
electrical
starting current pulse time
100 µs
electric shock protection
I
luminaire power
9 W
supply voltage
230 V
power factor
> 0,95
maximum cross-section of the connected cable
2.5 mm2
rated supply voltage, alternating current
230 V
rated supply voltage
230 V
starting current
15 A
constructional
length
90 mm
width
90 mm
height
260 mm
installation length
32 mm
weight
1.07 kg
ingress protection (IP)
IP20
shock resistance (IK)
IK02/0,2 Дж
climatic performance
УХЛ4*
material
Металл, пластик
housing color
Черный
lamp socket
LED
number of lamps
1
ballast
Драйвер
common
warranty
36 month
temperature range
от +5 до +35 C
service life
50 000 h
energy efficiency class
A+
ETIM class
Настенно-потолочный светильник
code
1102302000
model files
model files
photometric files
documents
сертификаты

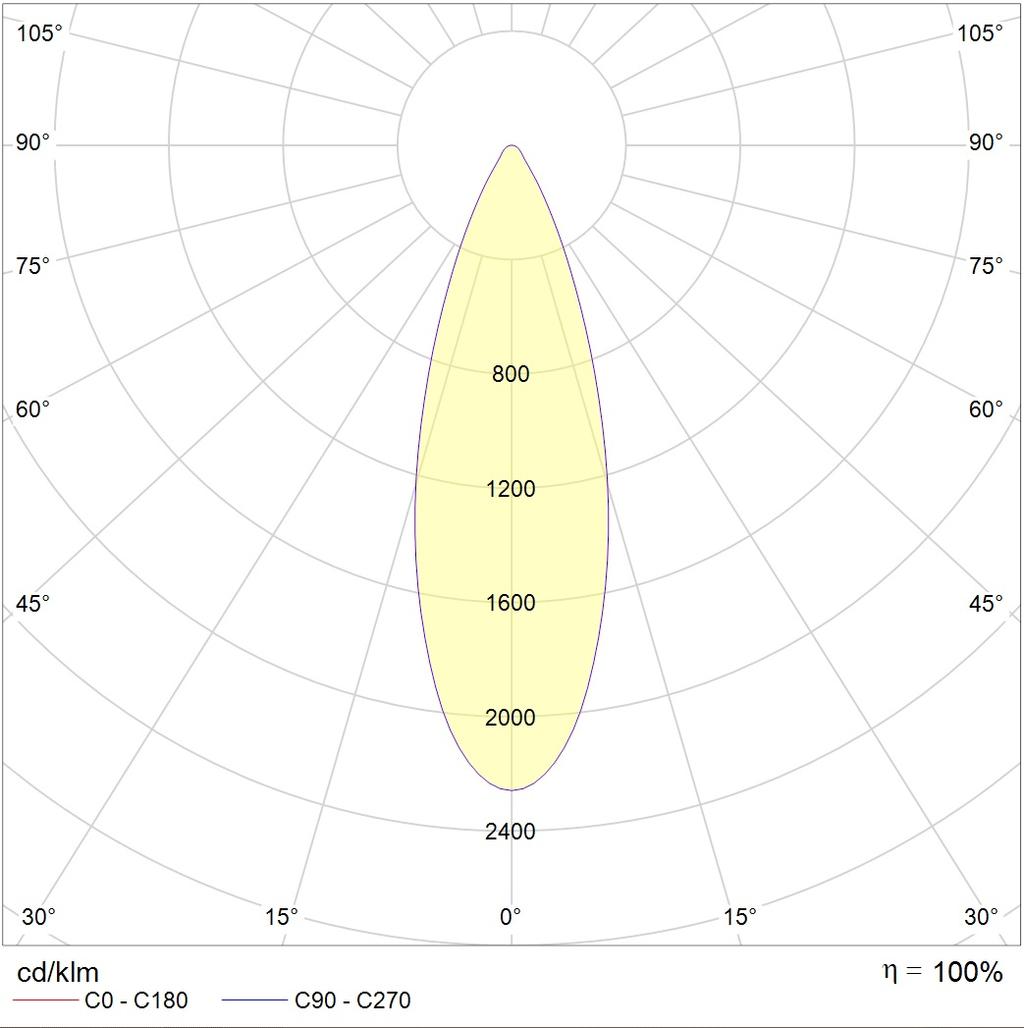

photometric files
jpg131.9 kB
ldt2.4 kB
documents
passport917.4 kB
сертификаты
Russian origin281.2 kB
Certificate of conformity TRTS 020/2011, TRTS 004/20113.2 mB
Declaration of Conformity EAEU TR 037/2016658.3 kB
Fire Safety Certificate2.5 mB
