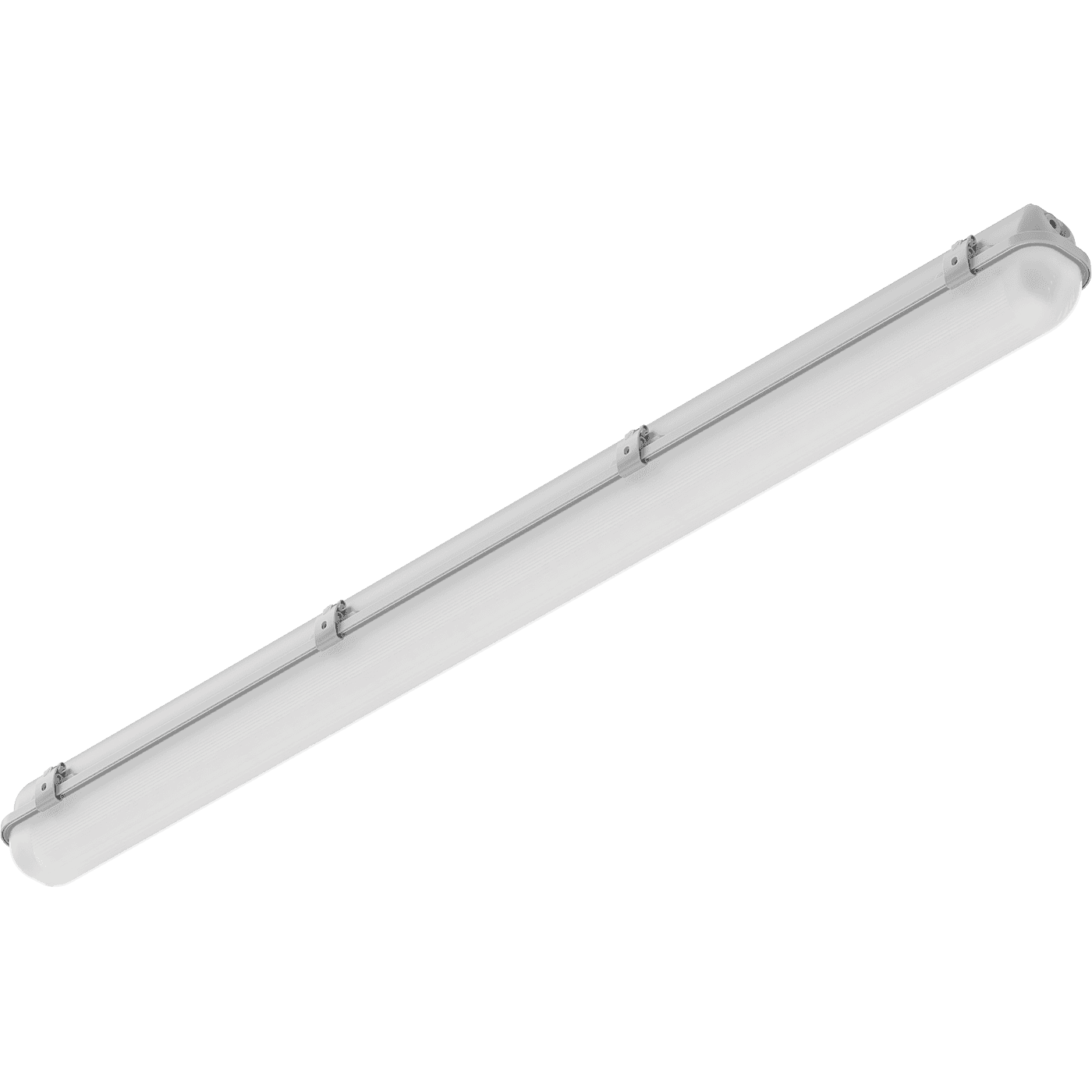

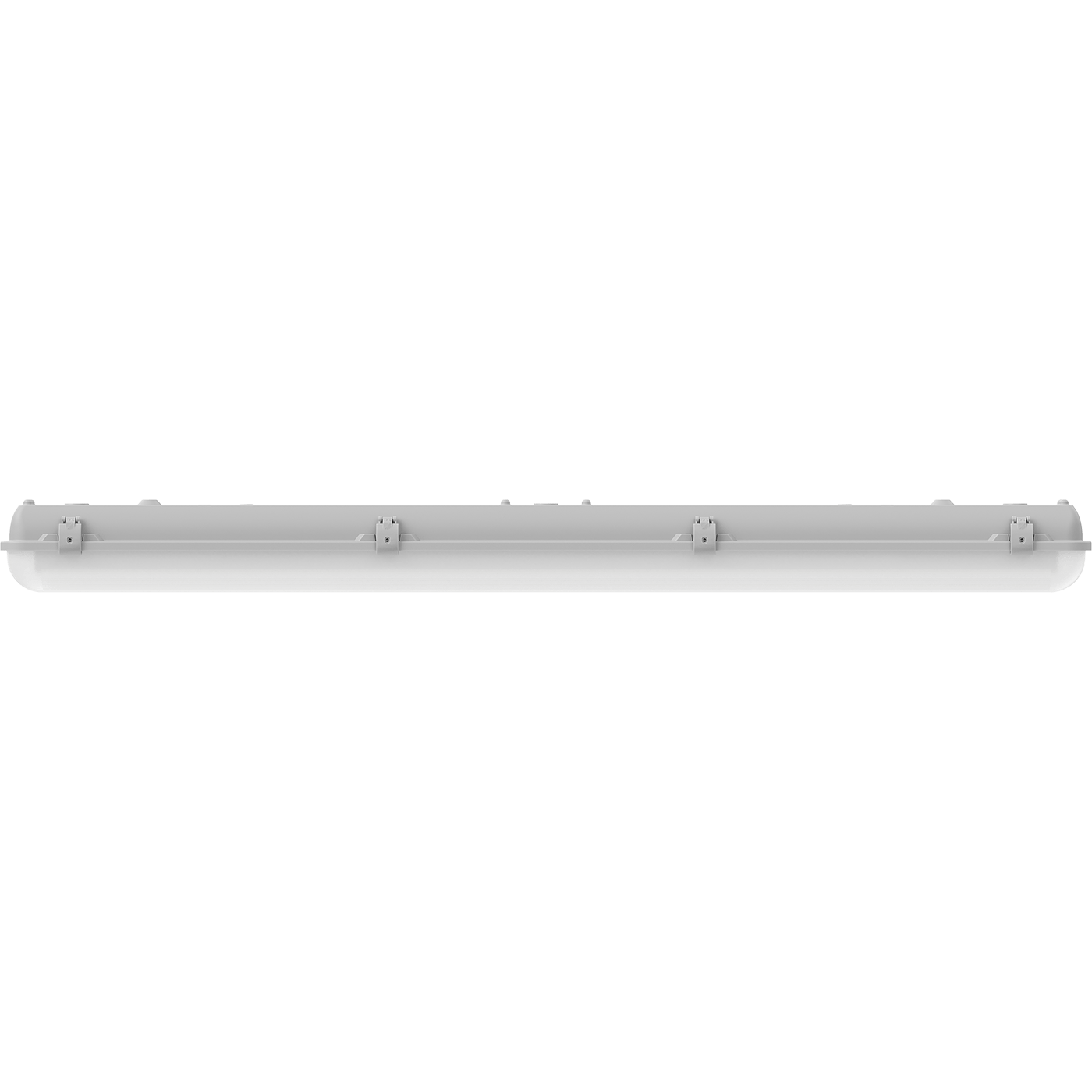

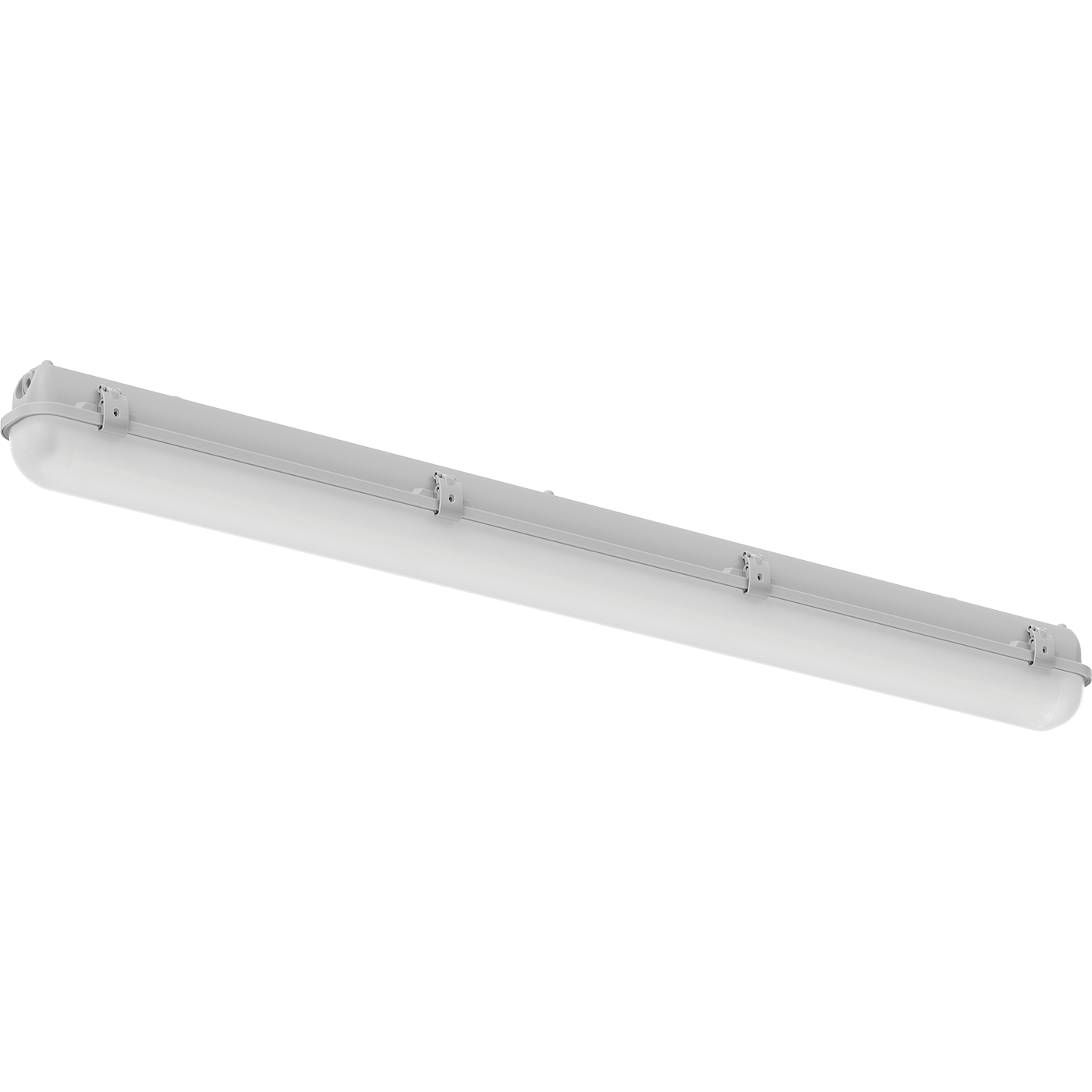

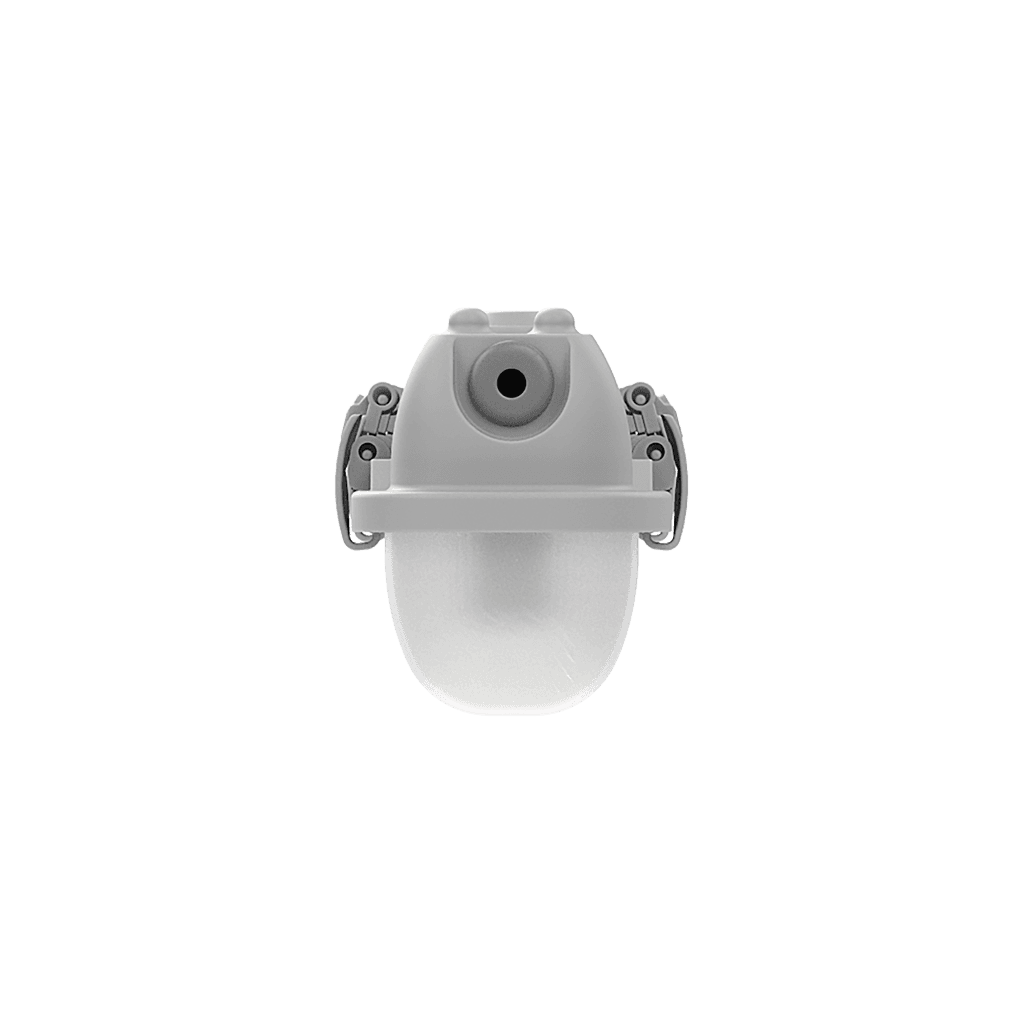

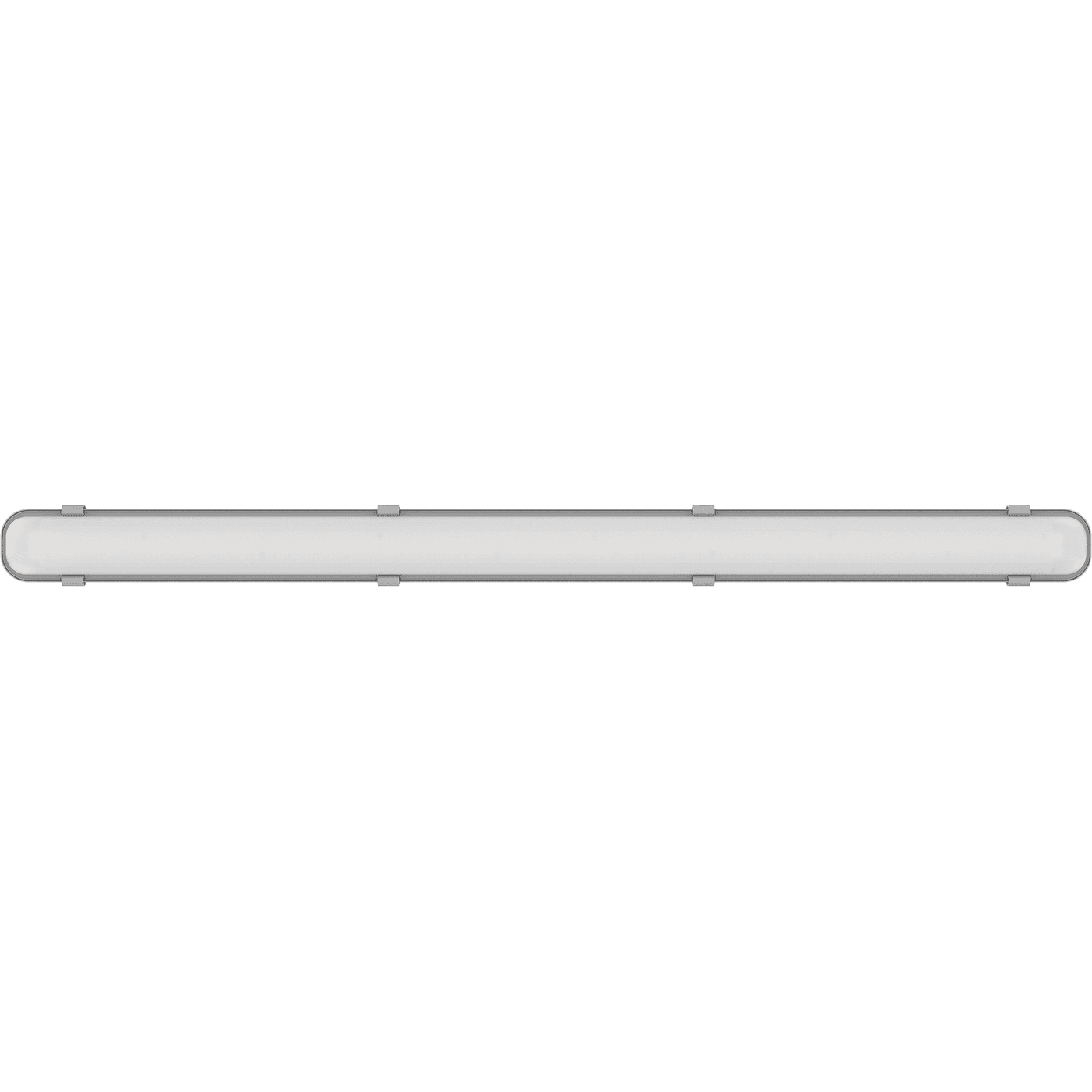

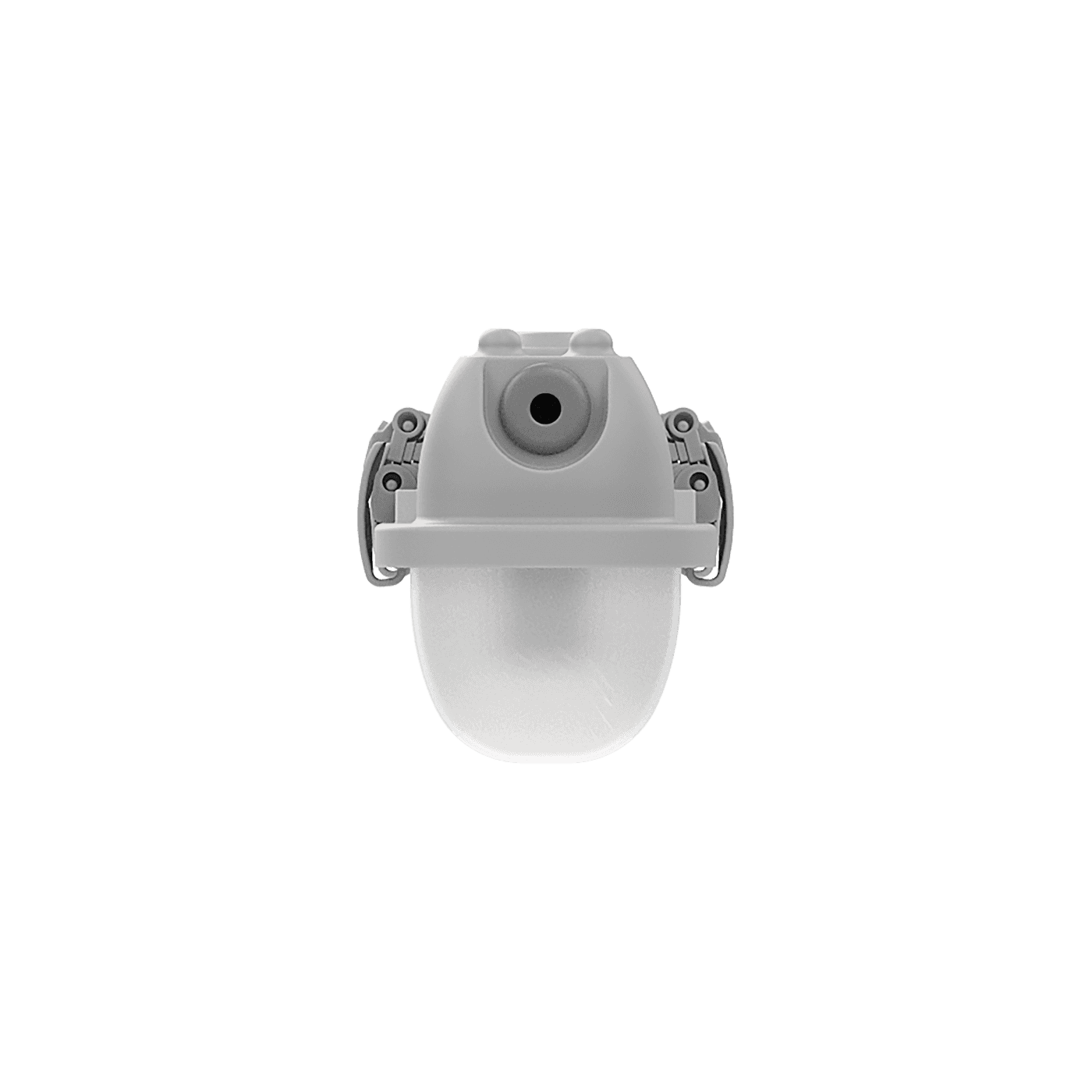

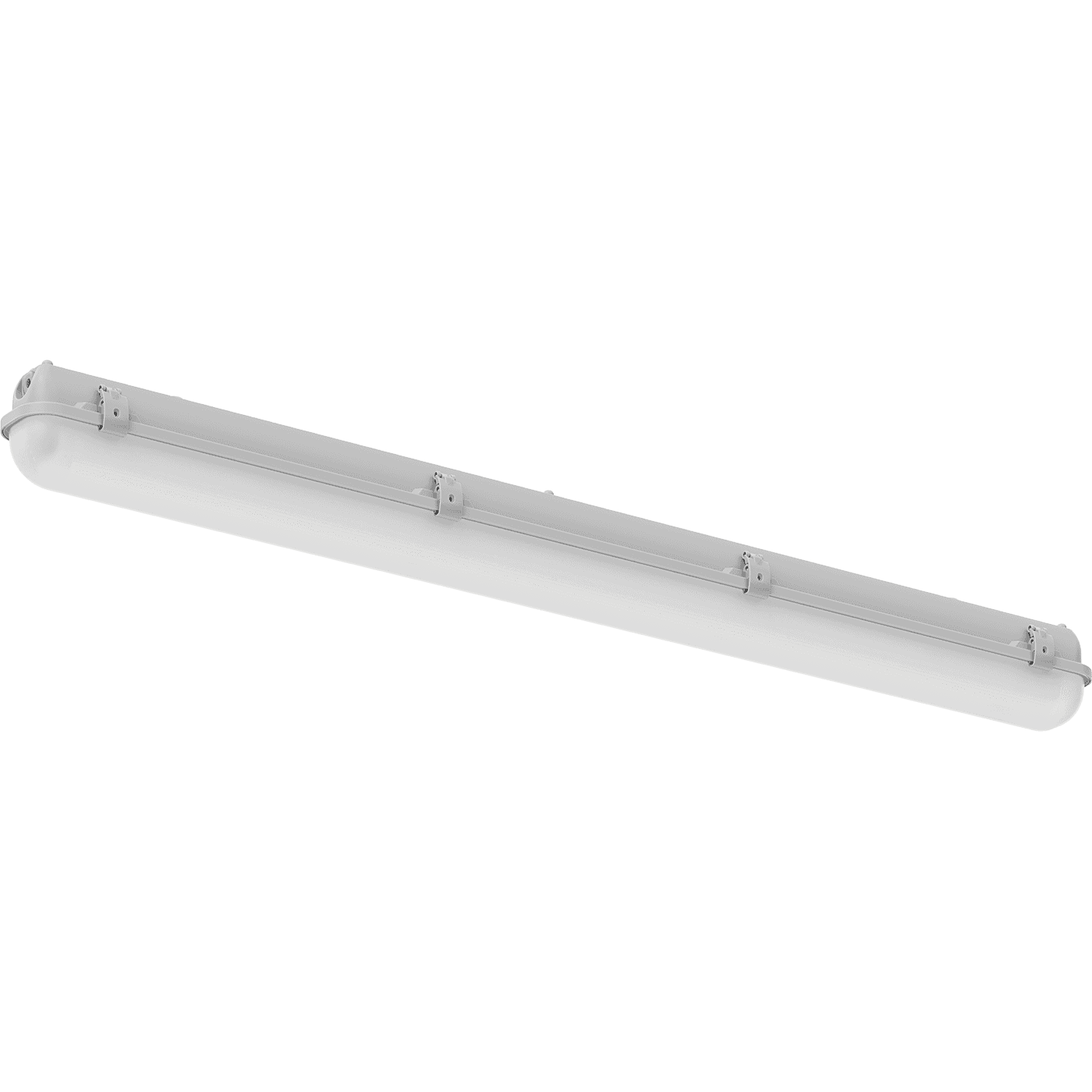

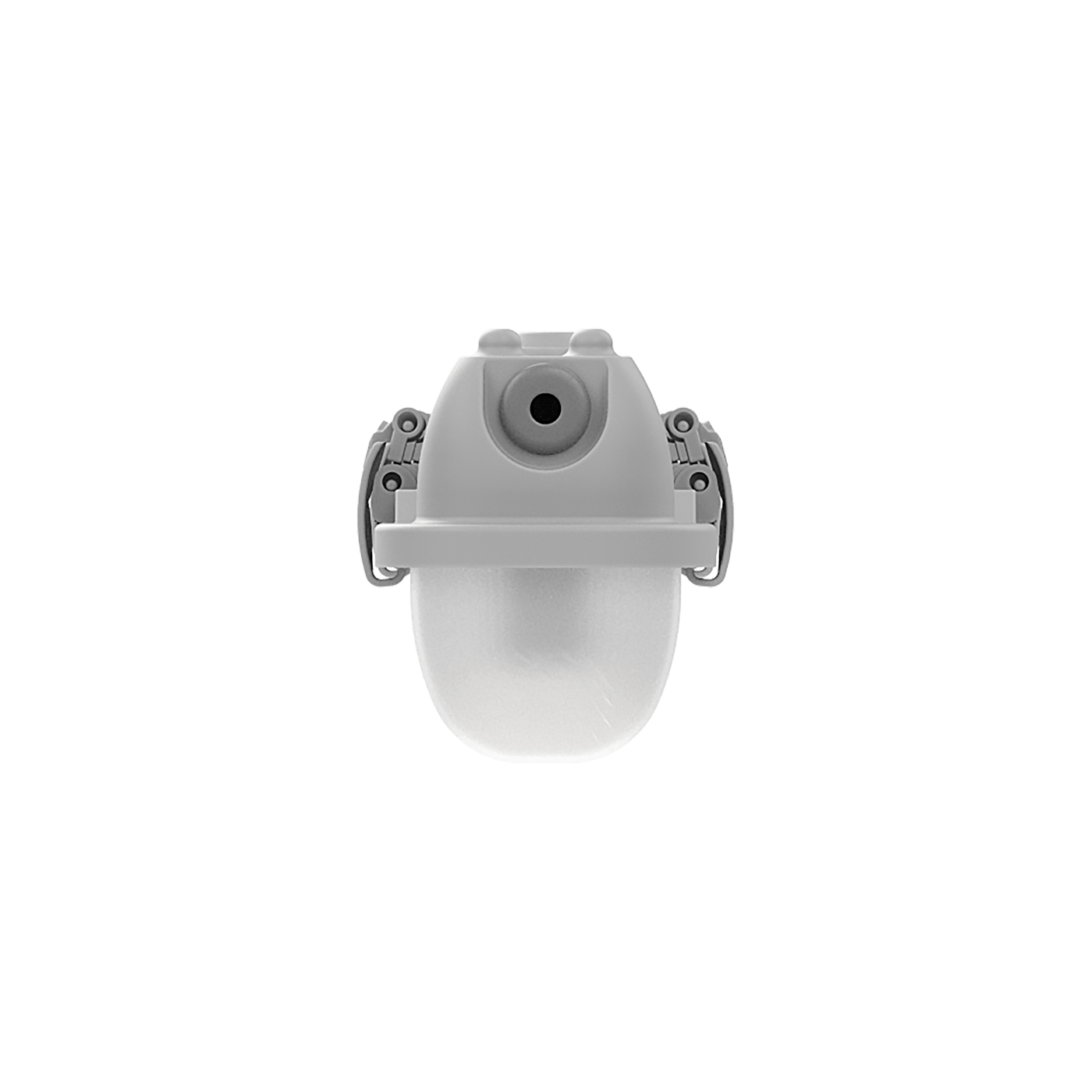

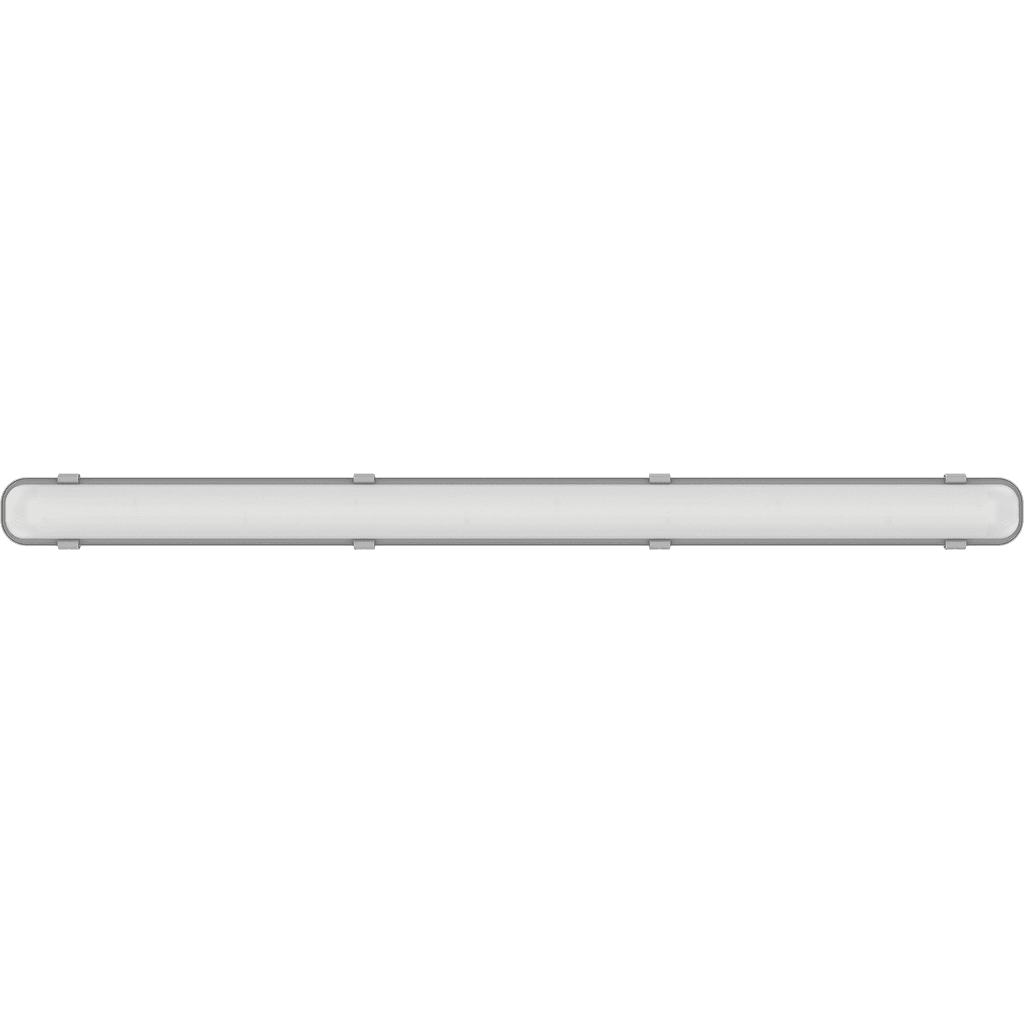

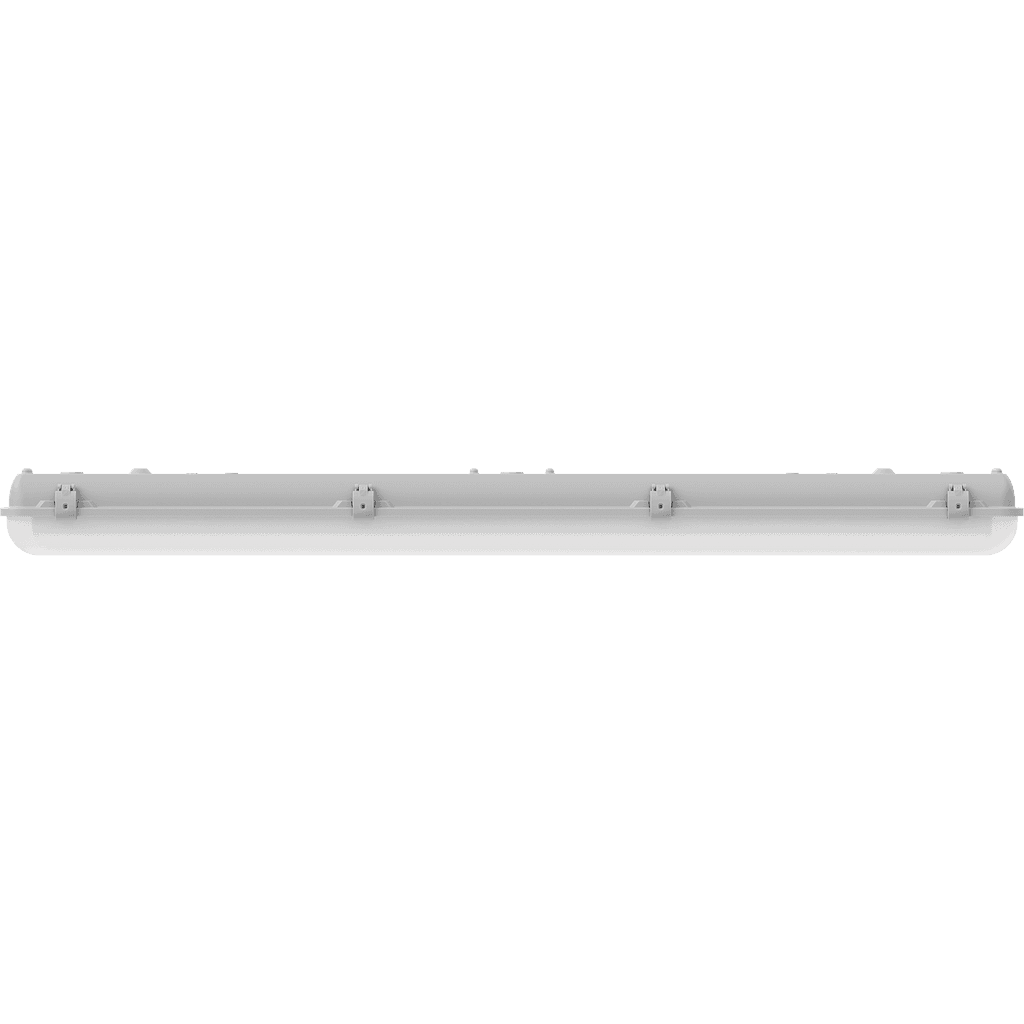

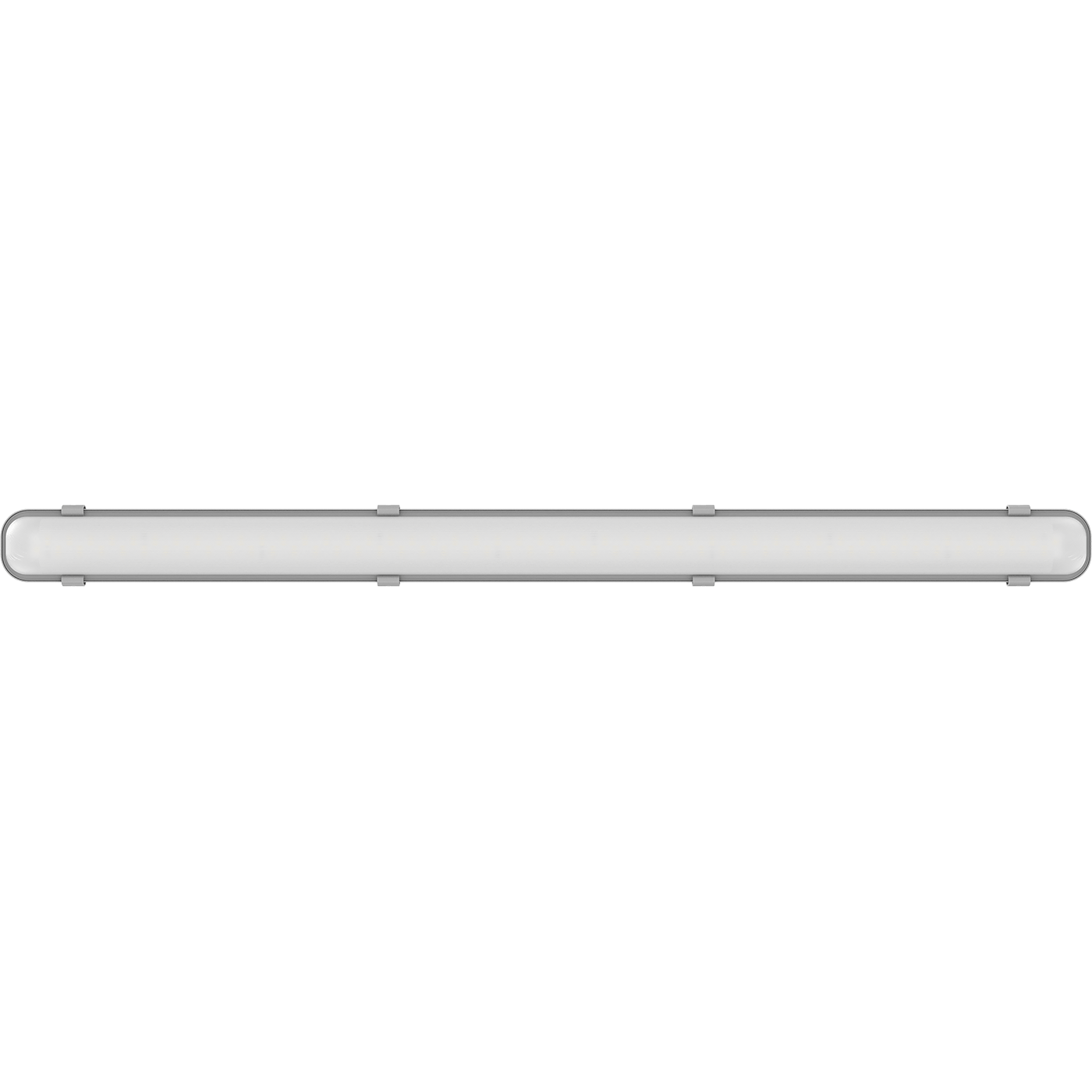

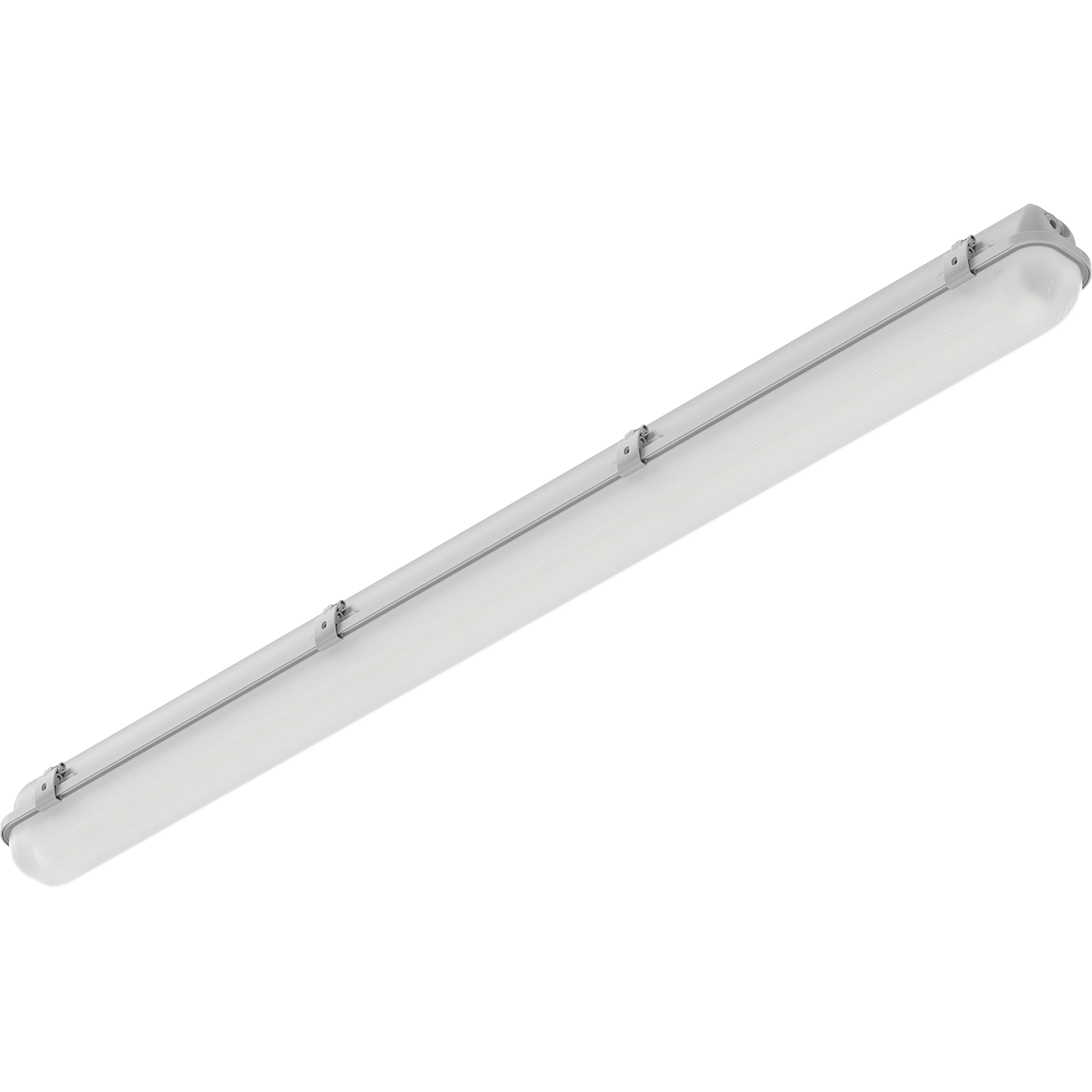

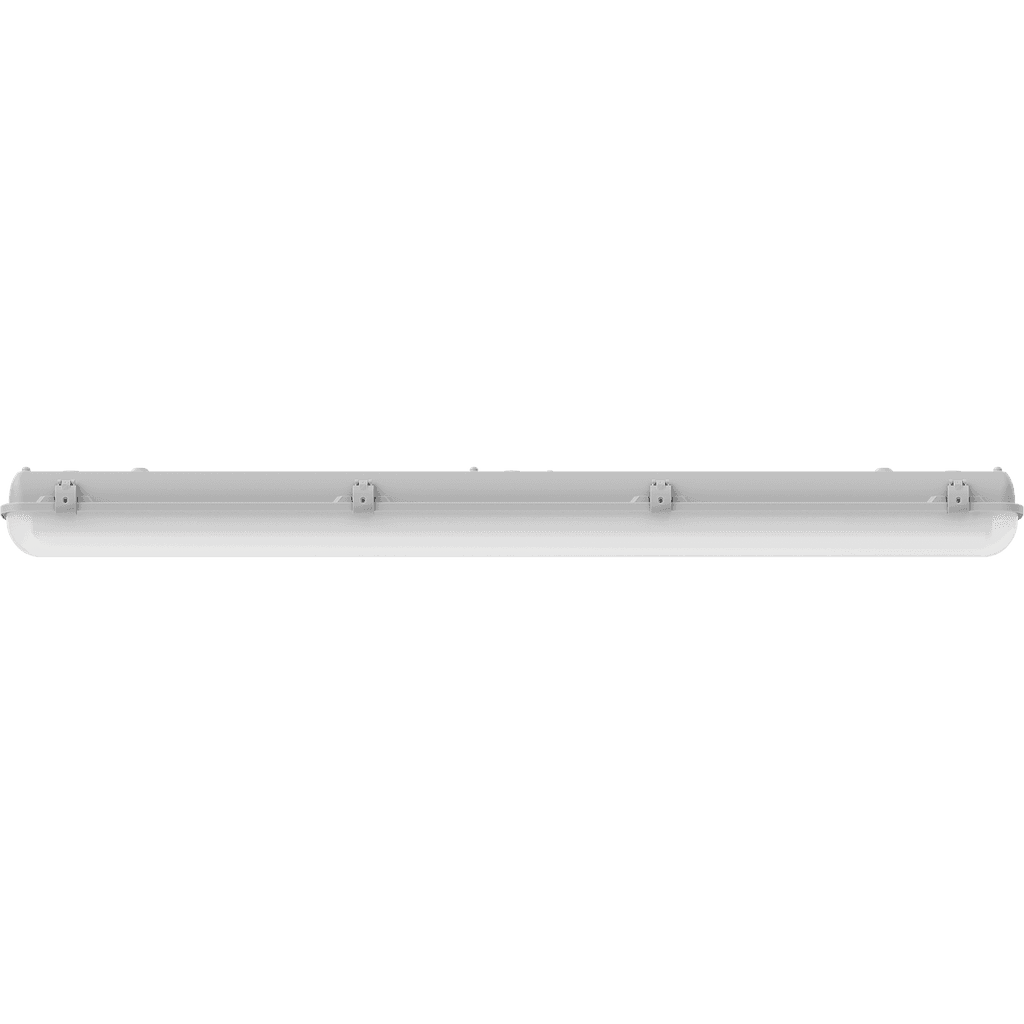

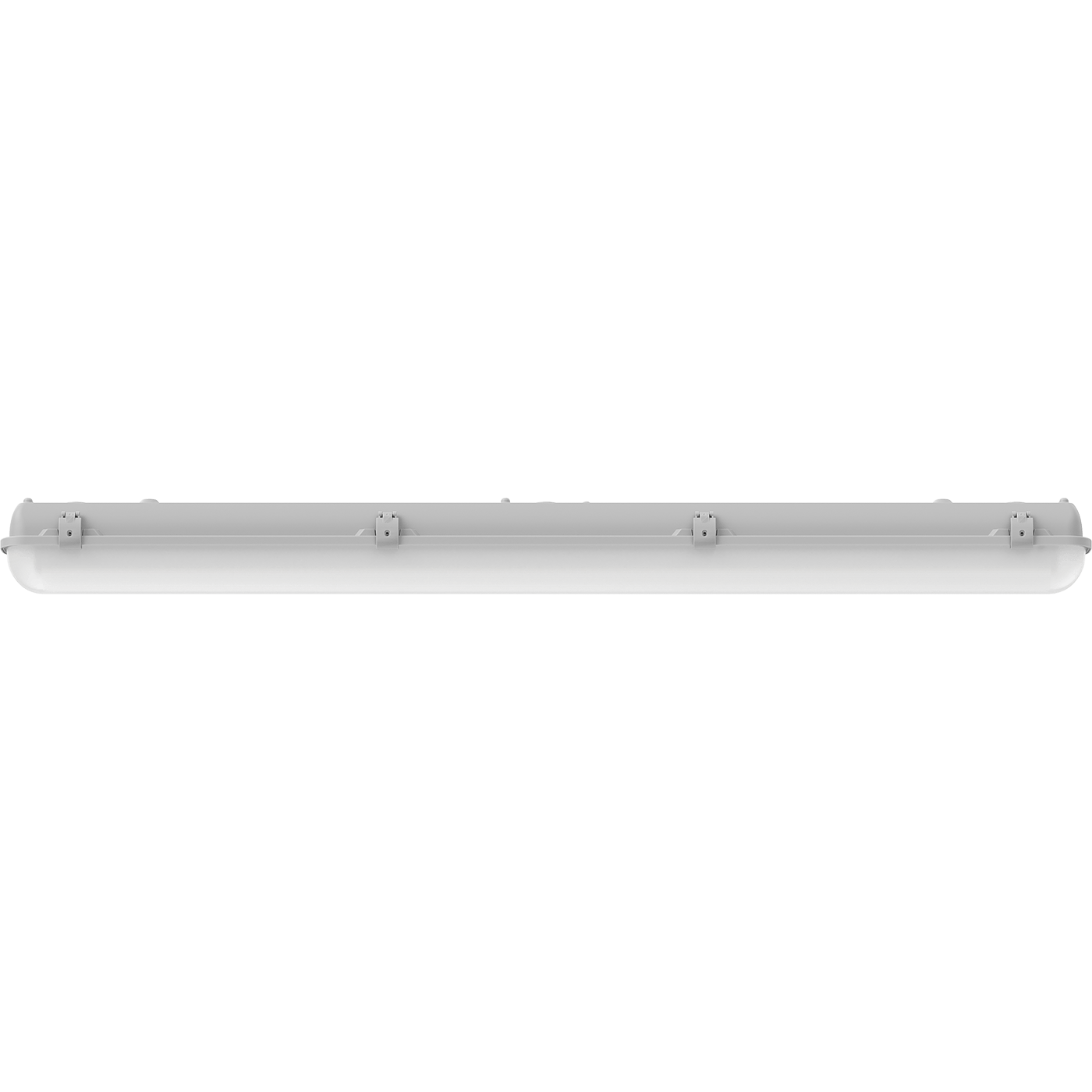

ARCTIC STANDARD 600 TH 5000K (1500 lm)

archive
archive
ARCTIC STANDARD 600 TH 5000K (1500 lm)
20 Wluminaire power
1500 lmlight flow
75 lm/Wenergy efficiency
code1088000940
color temperature5000
beam angleD120
weight1.5 kg
options
свернуть все
electricalconstructionalcommonilluminating
starting current
35 A
starting current pulse time, µs
3 mks
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
supply voltage, alternating current
176-264 V
supply voltage, direct current
176-264 V
luminaire power
20 W
electric shock protection
I
power factor
> 0,98
supply voltage
230 V
electrical
starting current
35 A
starting current pulse time, µs
3 mks
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
supply voltage, alternating current
176-264 V
supply voltage, direct current
176-264 V
luminaire power
20 W
electric shock protection
I
power factor
> 0,98
supply voltage
230 V
constructional
ingress protection (IP)
IP65
fire safety class
П-ІІ
material
Пластик
weight
1.5 kg
housing color
Белый
climatic performance
УХЛ2
maximum cross-section of the connected cable, sq. mm
2.5
length, mm
671 mm
width, mm
96 mm
height, mm
110 mm
shock resistance (IK)
IK02/0,2 Дж
lamp socket
LED
number of lamps
1
ballast
Драйвер
installation length, mm
445 mm
common
ETIM class
Настенно-потолочный светильник
warranty
36 month
temperature range
от -30 до +40 C
energy efficiency class
A
service life, hour
50 000 h
code
1088000940
illuminating
light flow
1500 lm
flickering factor
<5%
energy efficiency
75 lm/W
beam angle
D120
color temperature
5000
light source type
LED
emission color
Белый
color rendition index (CRI)
>85
