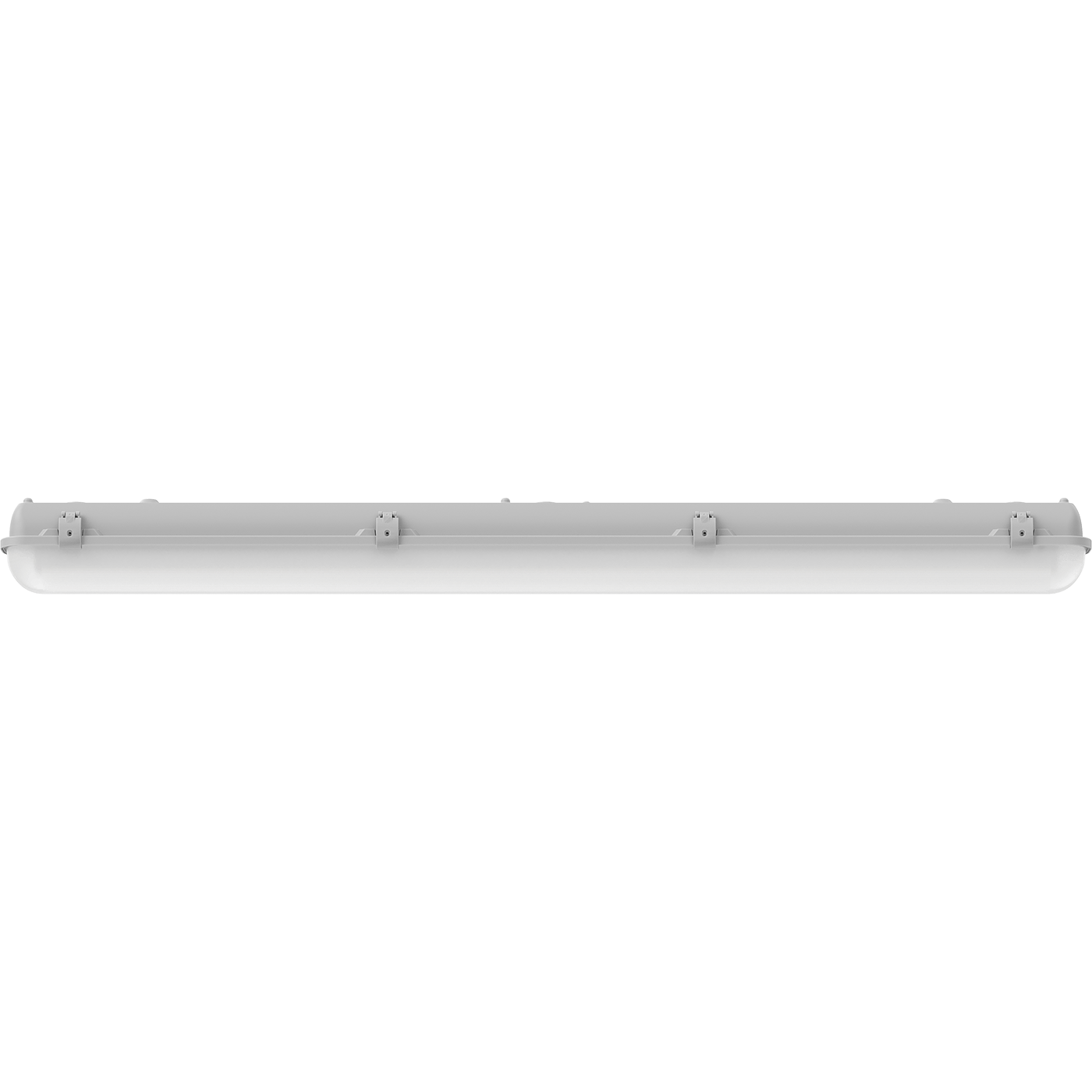

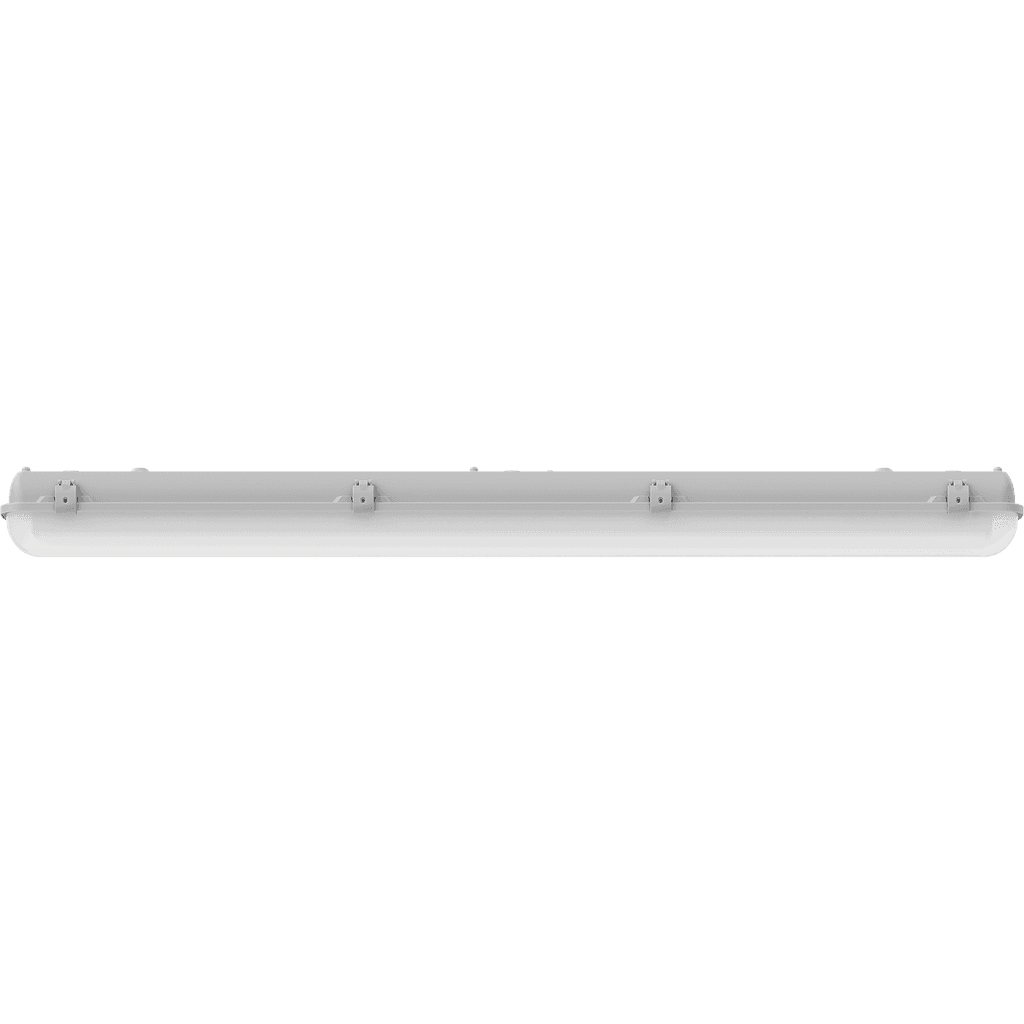

ARCTIC STANDARD 600 TH 4000K 127 VAC
model is discontinued
model is discontinued
ARCTIC STANDARD 600 TH 4000K 127 VAC
20 Wluminaire power
2250 lmlight flow
113 lm/Wenergy efficiency
code1088000920
color temperature4000 K
beam angleD120
performance factor100
weight1.5 kg
options
свернуть все
illuminatingelectricalconstructionalcommon
energy efficiency
113 lm/Wcolor rendition index (CRI)
>80light flow
2250 lmflickering factor
<5%beam angle
D120color temperature
4000 Klight source type
LEDemission color
Белыйilluminating
energy efficiency
113 lm/W
color rendition index (CRI)
>80
light flow
2250 lm
flickering factor
<5%
beam angle
D120
color temperature
4000 K
light source type
LED
emission color
Белый
electrical
starting current pulse time
220 µs
electric shock protection
I
luminaire power
20 W
supply voltage
127 V
power factor
> 0,99
maximum cross-section of the connected cable
2.5 mm2
rated supply voltage, alternating current
230 V
rated supply voltage
230 V
starting current
30 A
constructional
length
695 mm
width
100 mm
height
110 mm
installation length
445 mm
weight
1.5 kg
ingress protection (IP)
IP65
shock resistance (IK)
IK02/0,2 Дж
climatic performance
Т2
fire safety class
П-ІІ
material
Пластик
housing color
Белый
lamp socket
LED
number of lamps
1
ballast
Драйвер
common
warranty
36 month
temperature range
от -10 до +50 C
service life
50 000 h
energy efficiency class
A+
ETIM class
Настенно-потолочный светильник
code
1088000920
