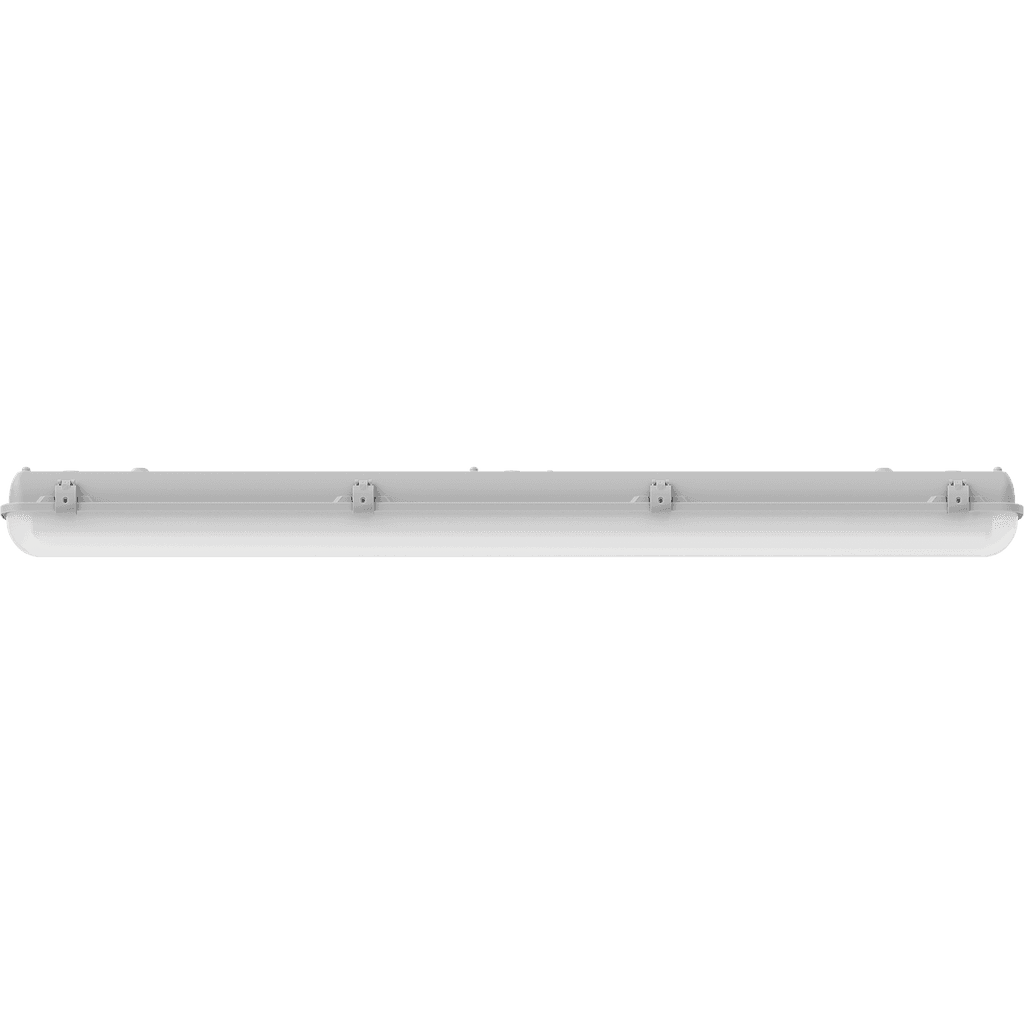

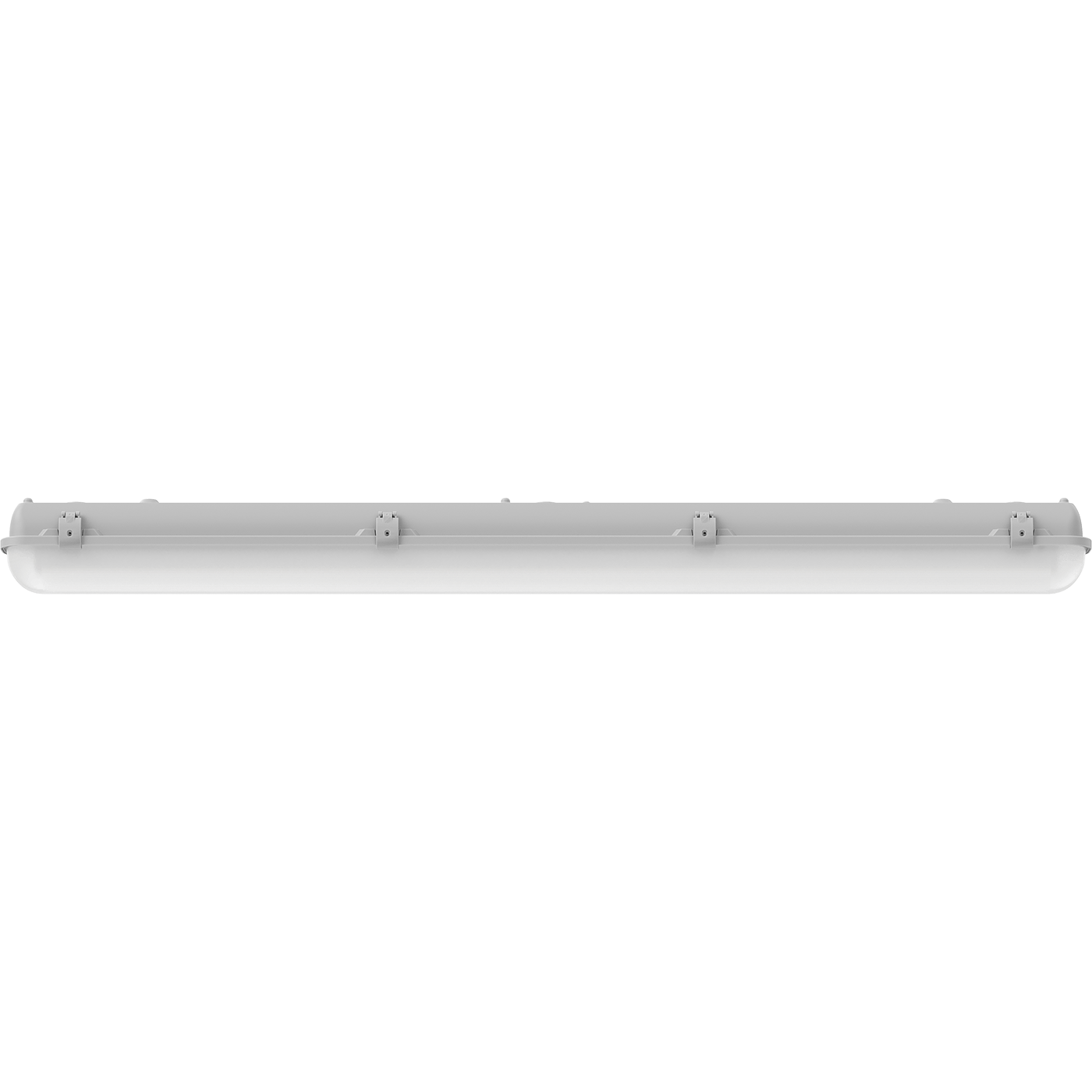

ARCTIC STANDARD 600 TH 4000K

ARCTIC STANDARD 600 TH 4000K
add to favorites
20 Wluminaire power
2300 lmlight flow
115 lm/Wenergy efficiency
code1088000590
color temperature4000
beam angleD120
weight1.5 kg
  1. main page
  2. catalog
  3. by product type
  4. industrial lighting
  5. up to 5 meters
  6. ARCTIC STANDARD
  7. ARCTIC STANDARD 600 TH 4000K
options
свернуть все
electricalilluminatingconstructionalcommon
supply voltage, alternating current
176-264 V
supply voltage, direct current
176-264 V
electric shock protection
I
starting current
25 A
starting current pulse time, µs
250 mks
luminaire power
20 W
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
maximum cross-section of the connected cable, sq. mm
2.5
power factor
> 0,96
supply voltage
230 V
electrical
supply voltage, alternating current
176-264 V
supply voltage, direct current
176-264 V
electric shock protection
I
starting current
25 A
starting current pulse time, µs
250 mks
luminaire power
20 W
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
maximum cross-section of the connected cable, sq. mm
2.5
power factor
> 0,96
supply voltage
230 V
illuminating
color rendition index (CRI)
>80
light flow
2300 lm
flickering factor
<1%
energy efficiency
115 lm/W
beam angle
D120
color temperature
4000
light source type
LED
emission color
Белый
constructional
ingress protection (IP)
IP65
material
Пластик
housing color
Серый
length, mm
671 mm
width, mm
96 mm
height, mm
110 mm
weight
1.5 kg
fire safety class
П-ІІ
climatic performance
УХЛ2*
shock resistance (IK)
IK08/5 Дж
lamp socket
LED
number of lamps
1
ballast
Драйвер
installation length, mm
445 mm
common
ETIM class
Настенно-потолочный светильник
warranty
60 month
temperature range
от -40 до +40 C
energy efficiency class
A+
service life, hour
50 000 h
code
1088000590
model files
model files
CAD/BIM files
CAD model 3DS1.4 mB
model 3dMax2.2 mB
photometric files
ies107 kB
jpg107.5 kB
ldt88.5 kB
csv413 B
documents
passport1.8 mB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20113.2 mB
Declaration of Conformity EAEU TR 037/2016658.3 kB
Fire Safety Certificate2.5 mB
CAD/BIM files
CAD model 3DS1.4 mB
model 3dMax2.2 mB
photometric files
ies107 kB
jpg107.5 kB
ldt88.5 kB
csv413 B
documents
passport1.8 mB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20113.2 mB
Declaration of Conformity EAEU TR 037/2016658.3 kB
Fire Safety Certificate2.5 mB
accessories
Cable mounting kit Arctic /2/0.01kgarticle: 2069000010
