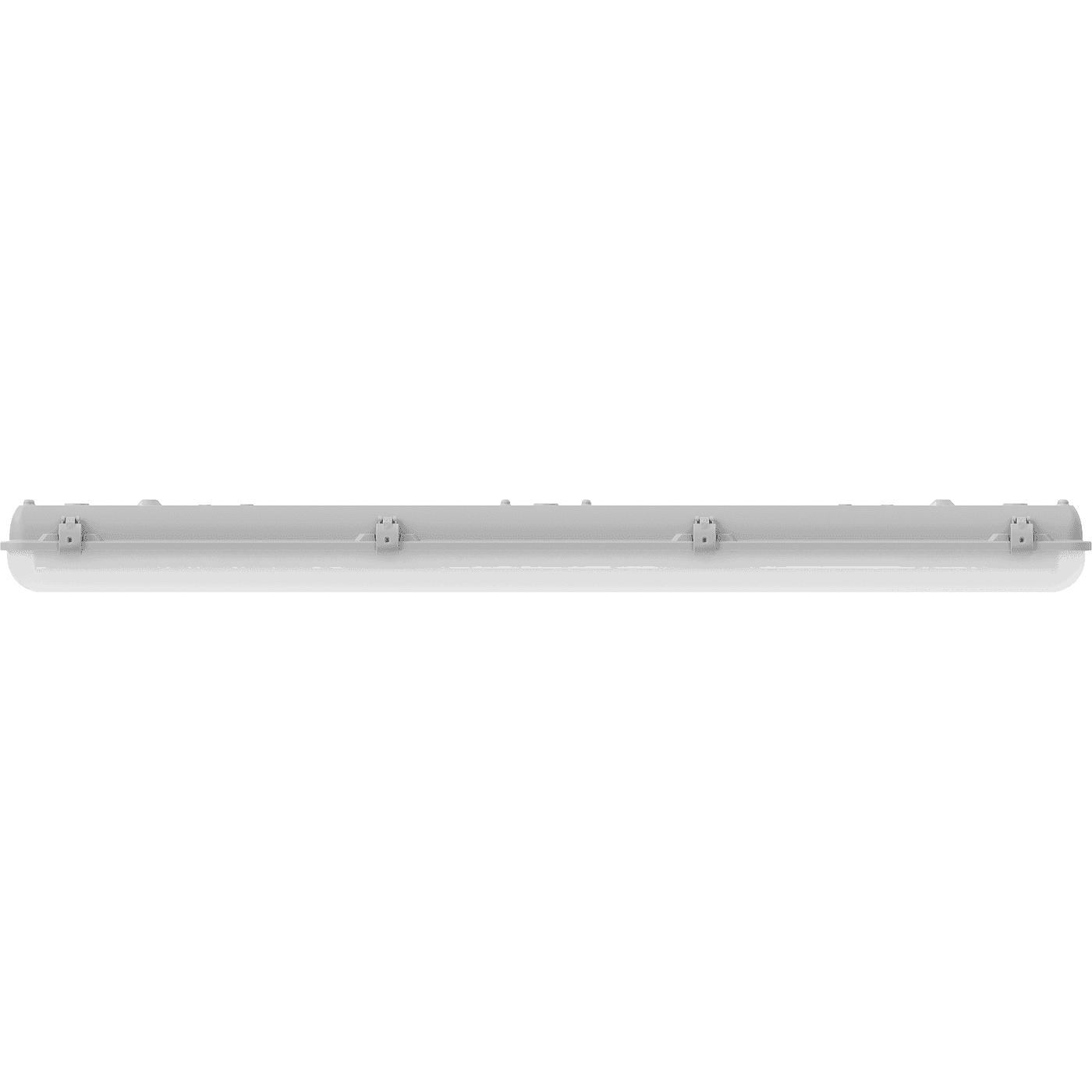

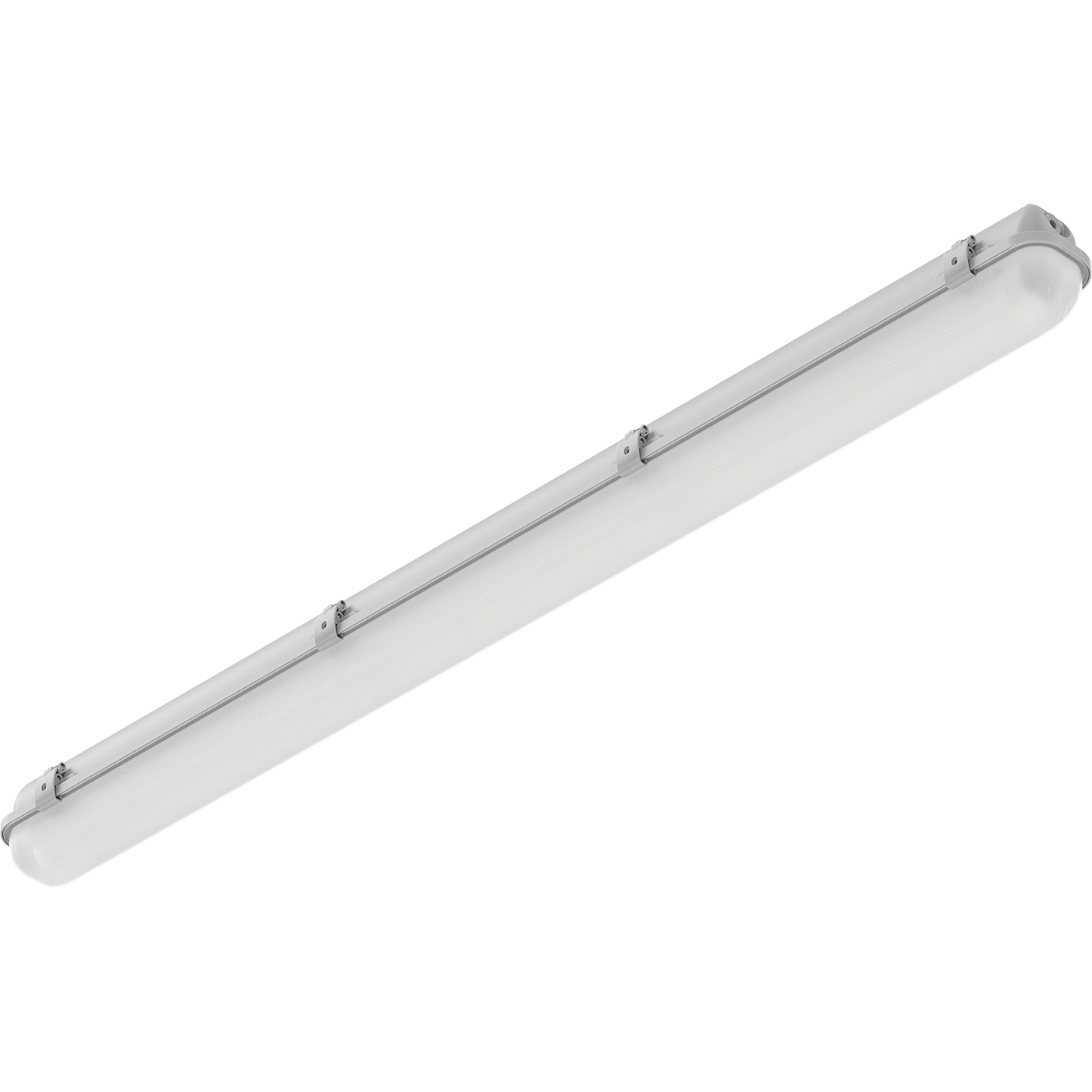

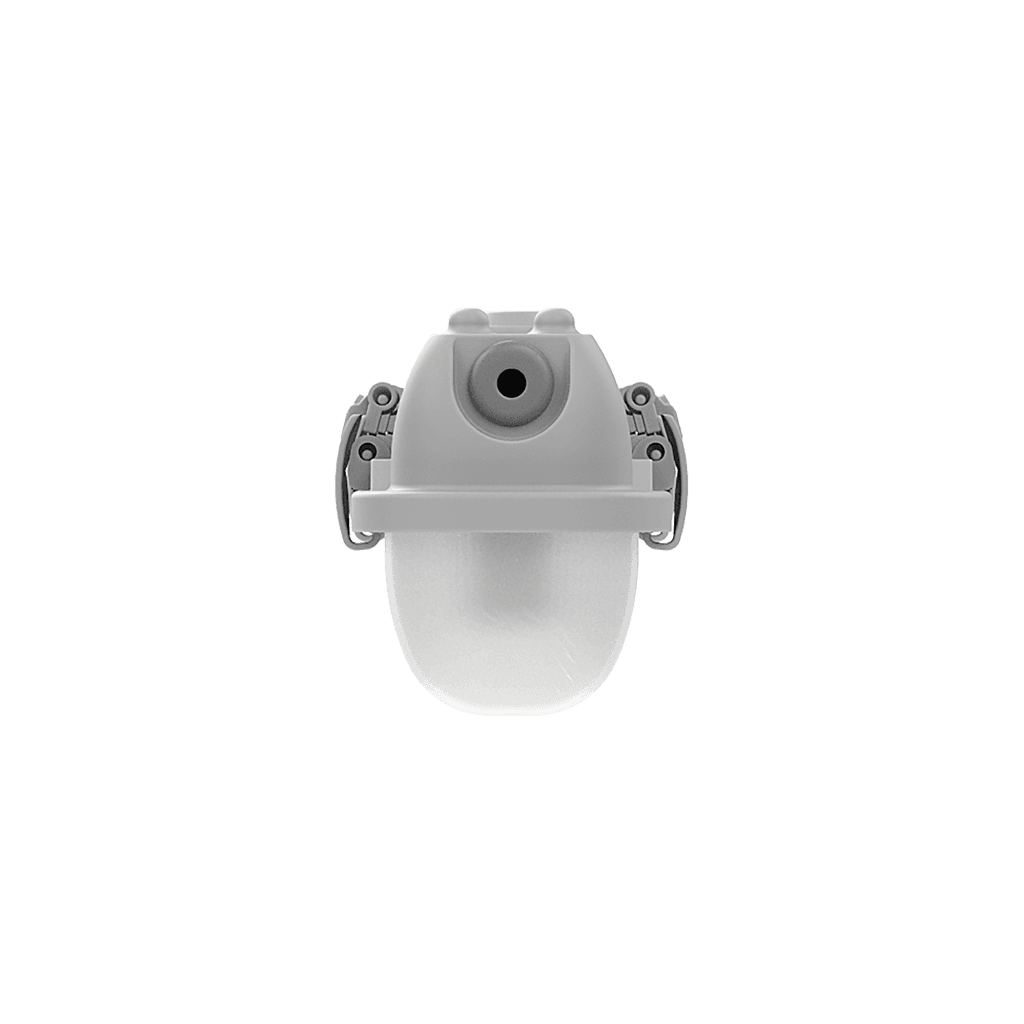

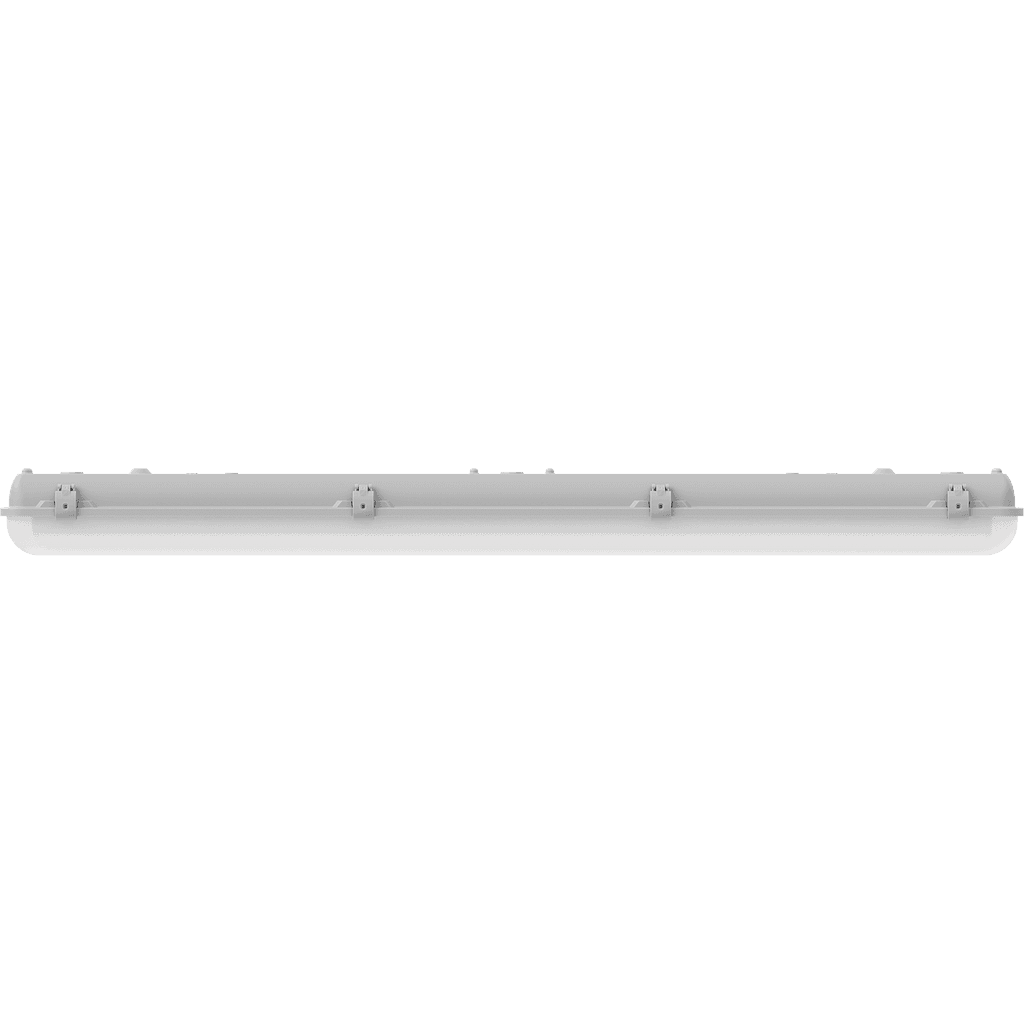

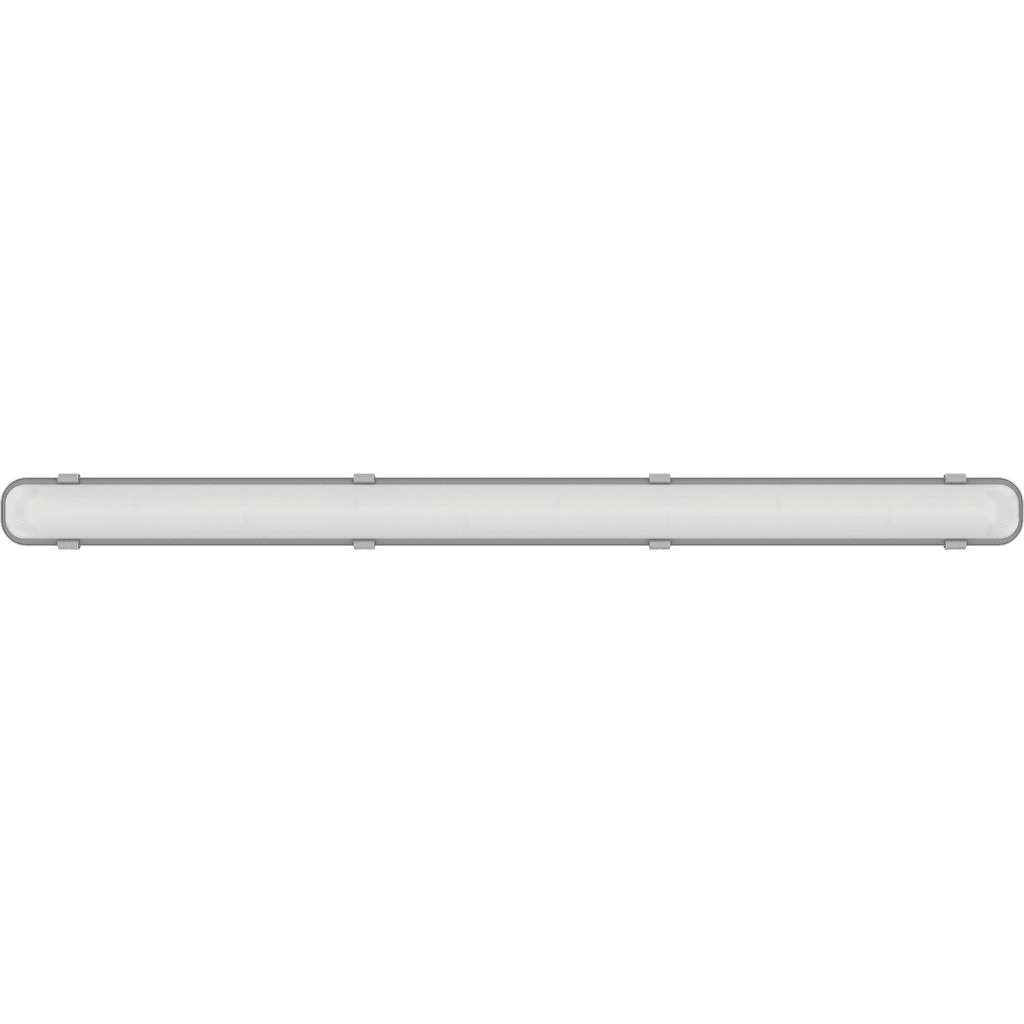

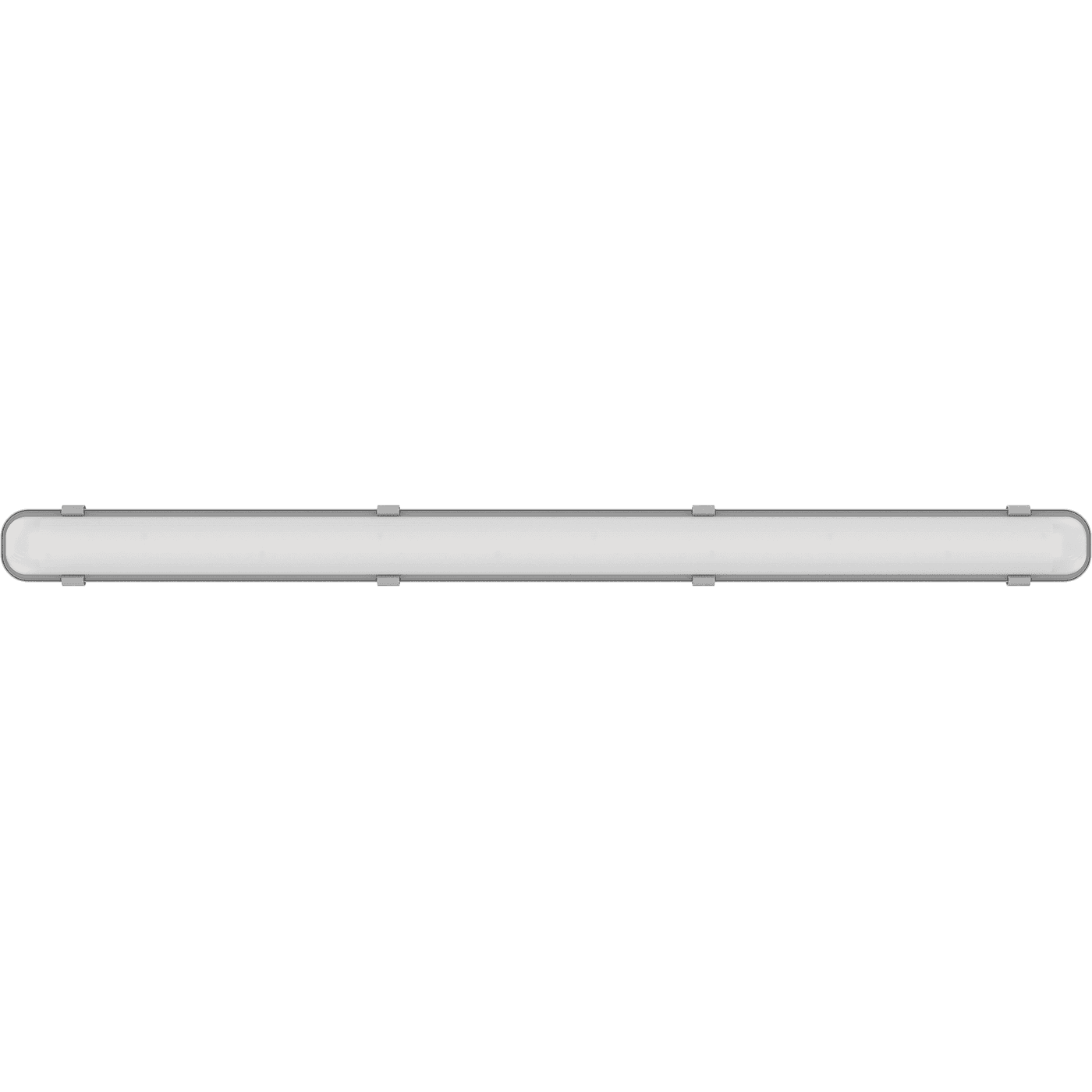

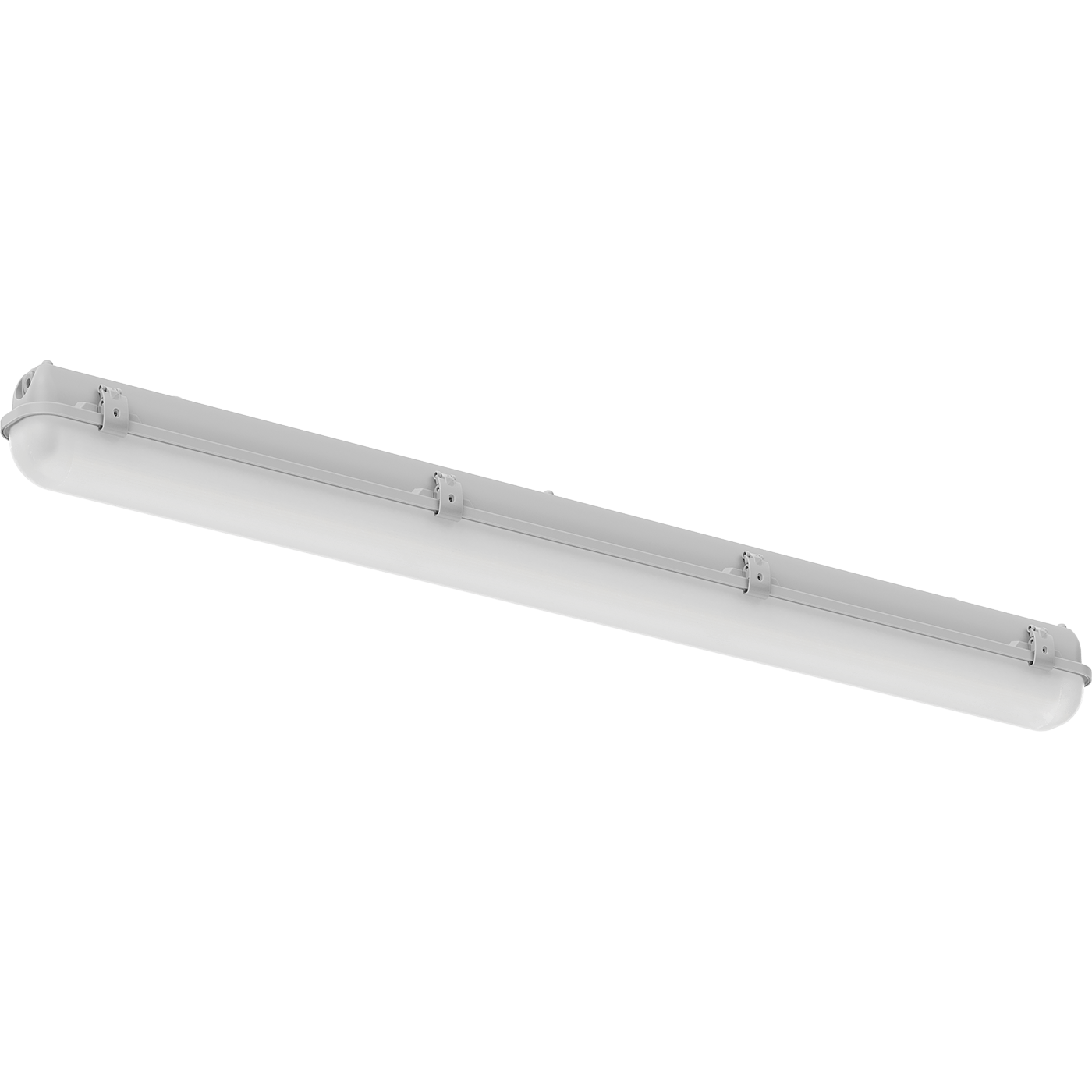

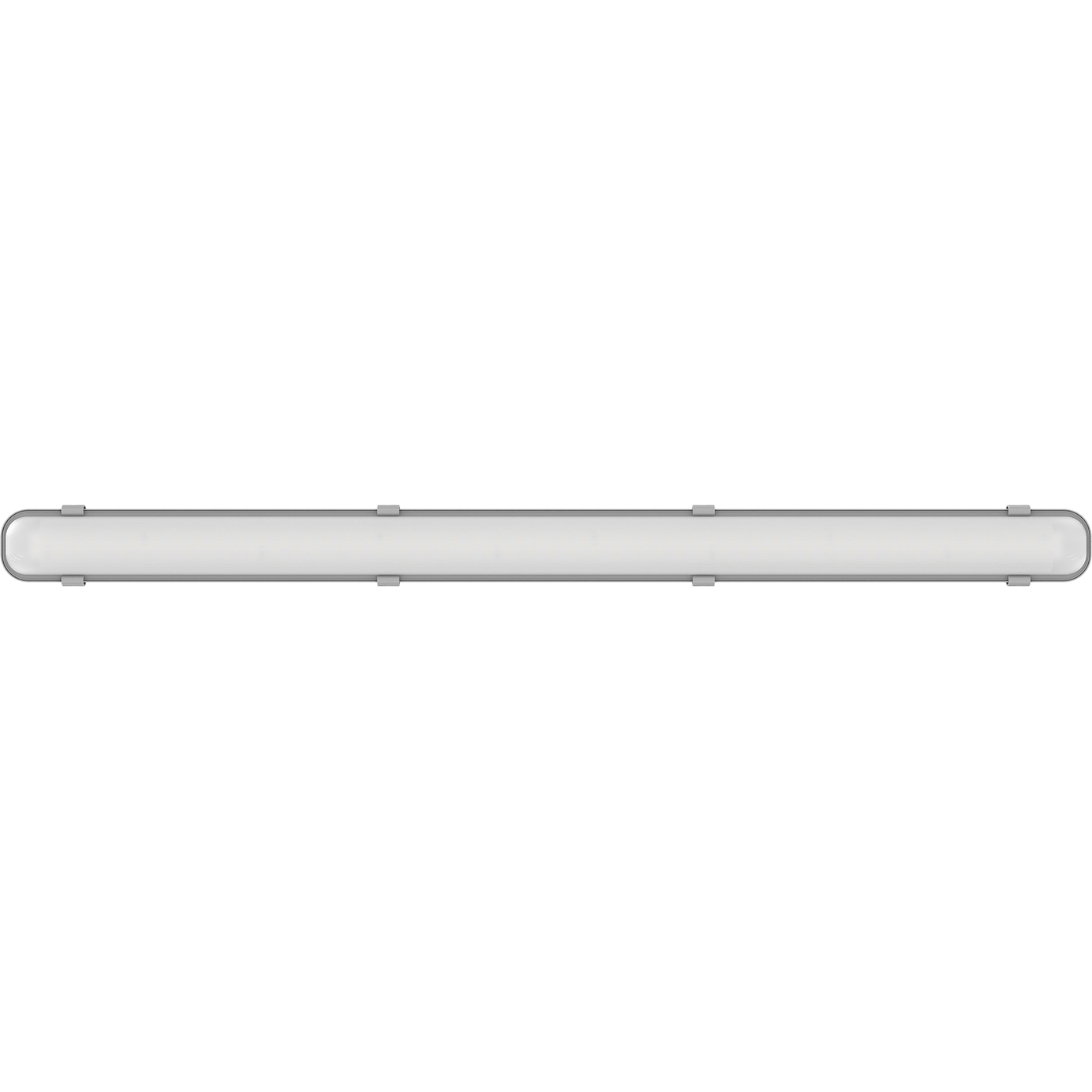

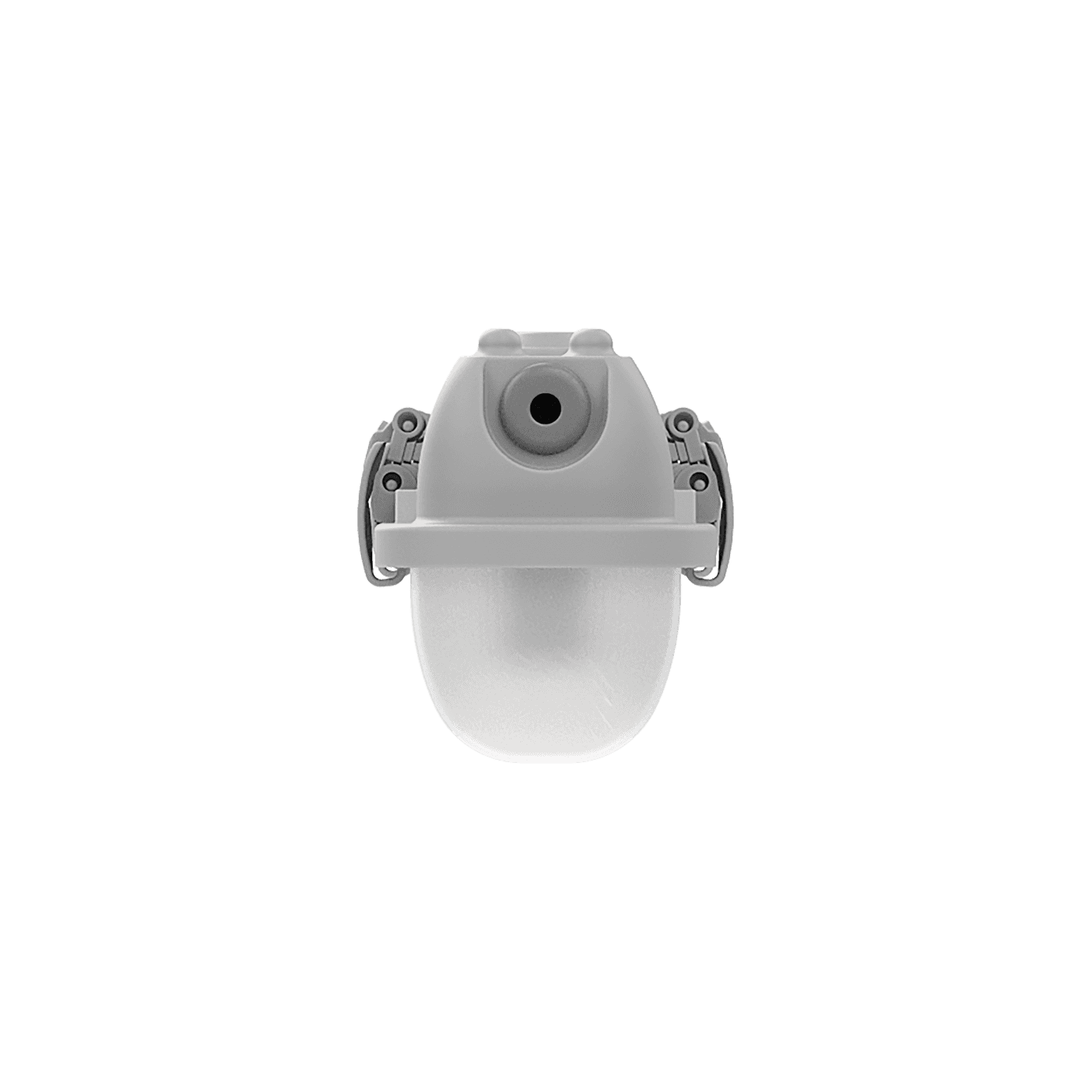

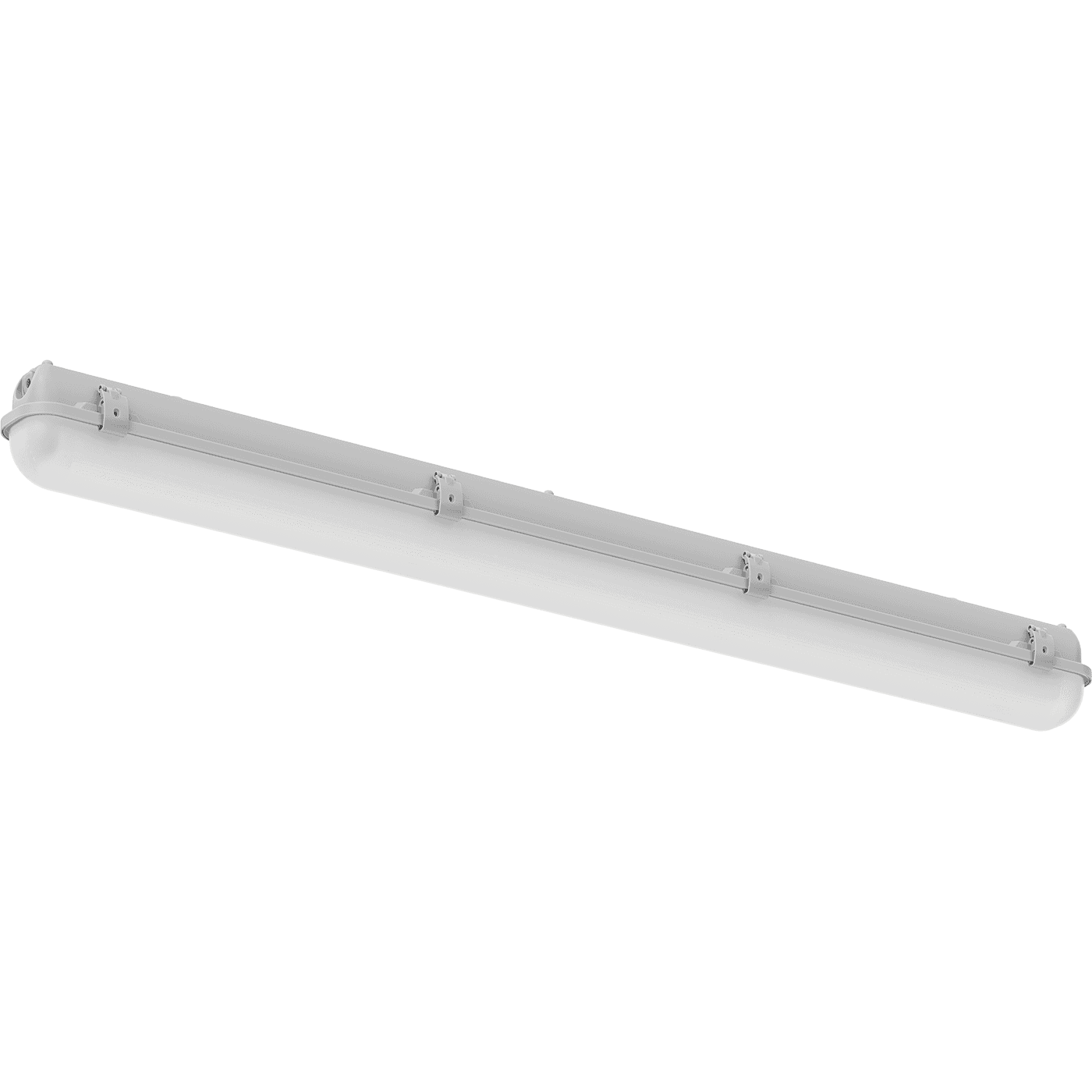

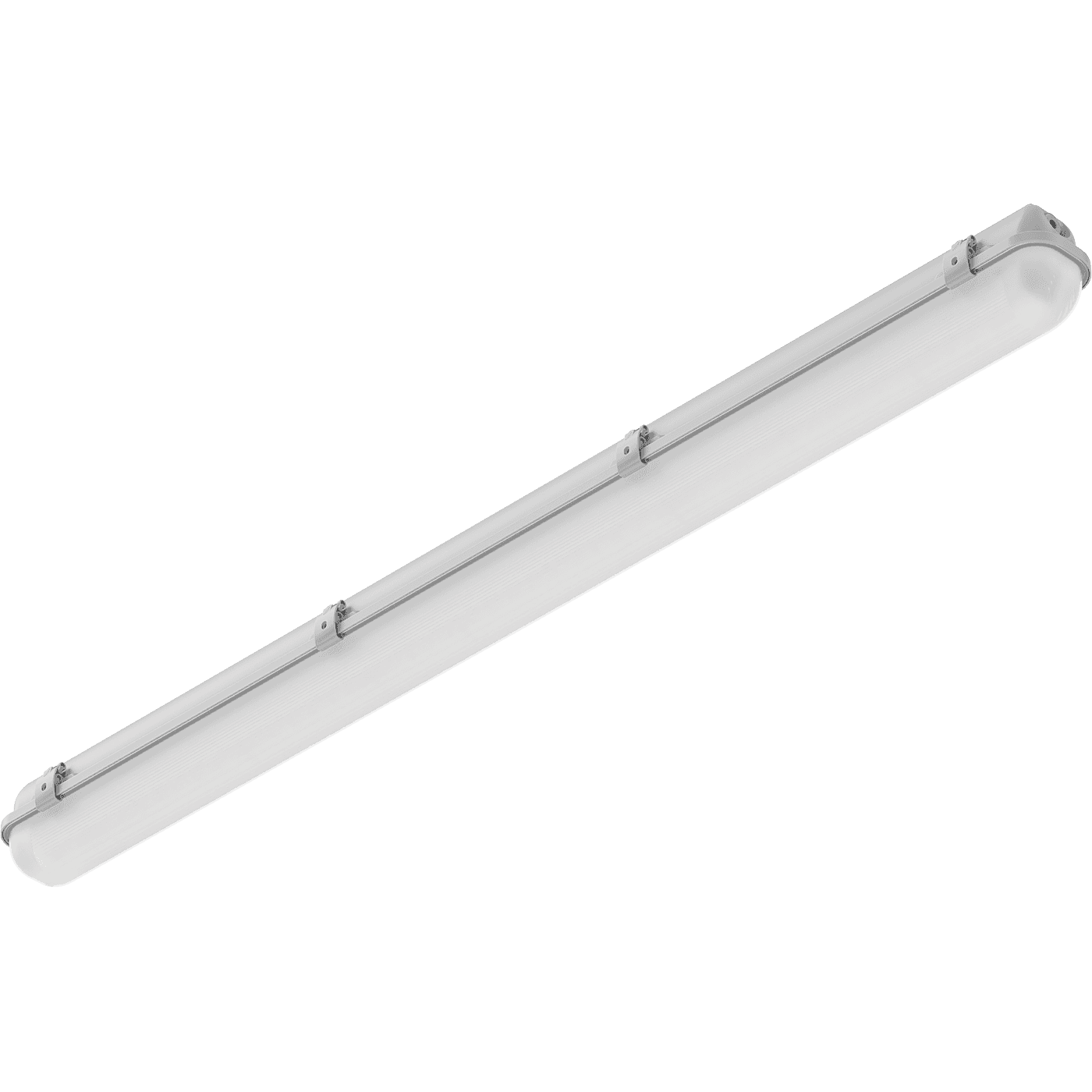

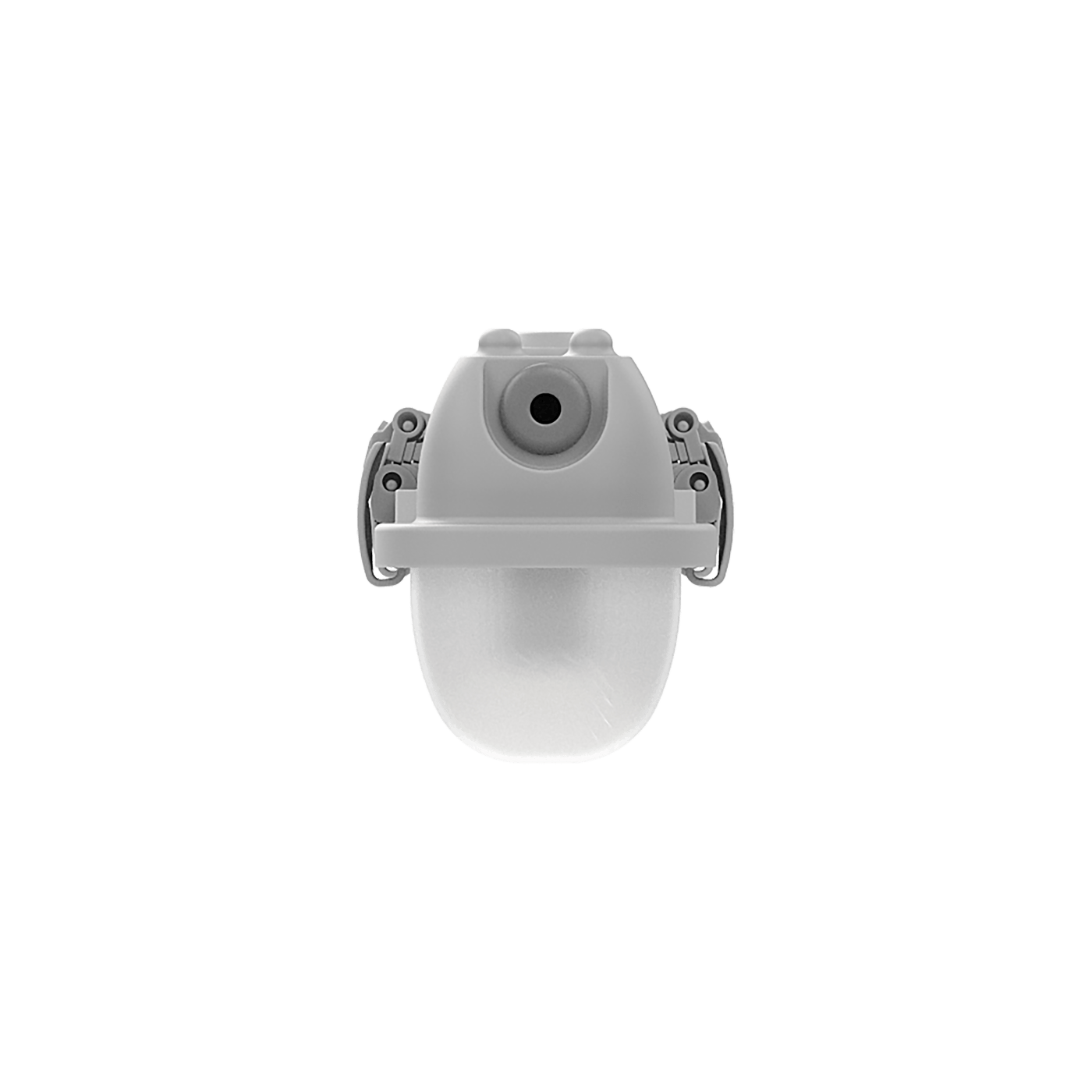

ARCTIC STANDARD 1500 TH EM3 4000K
ARCTIC STANDARD 1500 TH EM3 4000K
44 Wluminaire power
4500 lmlight flow
102 lm/Wenergy efficiency
code
1088000670
color temperature
4000 K
beam angle
D120
performance factor
100
weight
3.2 kg
- main page
- catalog
- by product type
- interior lighting
- ceiling
- IP protected
- ARCTIC STANDARD
- ARCTIC STANDARD 1500 TH EM3 4000K
options
свернуть все
illuminatingelectricalconstructionalemergencycommonpackage
energy efficiency
102 lm/Wcolor rendition index (CRI)
>80light flow
4500 lmflickering factor
<1%beam angle
D120color temperature
4000 Klight source type
LEDemission color
Белыйilluminating
energy efficiency
102 lm/W
color rendition index (CRI)
>80
light flow
4500 lm
flickering factor
<1%
beam angle
D120
color temperature
4000 K
light source type
LED
emission color
Белый
electrical
starting current pulse time
150 µs
power factor
> 0,98
luminaire power
44 W
electric shock protection
I
supply voltage
230 V
maximum cross-section of the connected cable
2.5 mm2
rated supply voltage, alternating current
230 V
rated supply voltage
230 V
starting current
40 A
constructional
length
1582 mm
width
96 mm
height
110 mm
installation length
1230 mm
weight
3.2 kg
ingress protection (IP)
IP65
shock resistance (IK)
IK08/5 Дж
climatic performance
УХЛ2*
fire safety class
П-ІІ
material
Пластик
housing color
Серый
mounting type
lamp socket
LED
number of lamps
1
ballast
Драйвер
Type roof
emergency
emergency power supply
Нет
operating time in emergency mode
3 h
luminous flux in emergency mode
600 lm
common
temperature range
от 0 до +40 C
service life
50 000 h
ETIM class
Настенно-потолочный светильник
warranty
60 month
energy efficiency class
A+
code
1088000670
package
Package contents
Светильник - 1 шт.
Паспорт - 1 шт.
Упаковка - 1 шт.
Гермоизолятор - 2 шт.
Шайба М6 - 2 шт.
Шайба резиновая - 2 шт.
Комплект крепления ARCTIC (2) на трос (поставляется по отдельному заказу) - 1 шт.
model files
model files

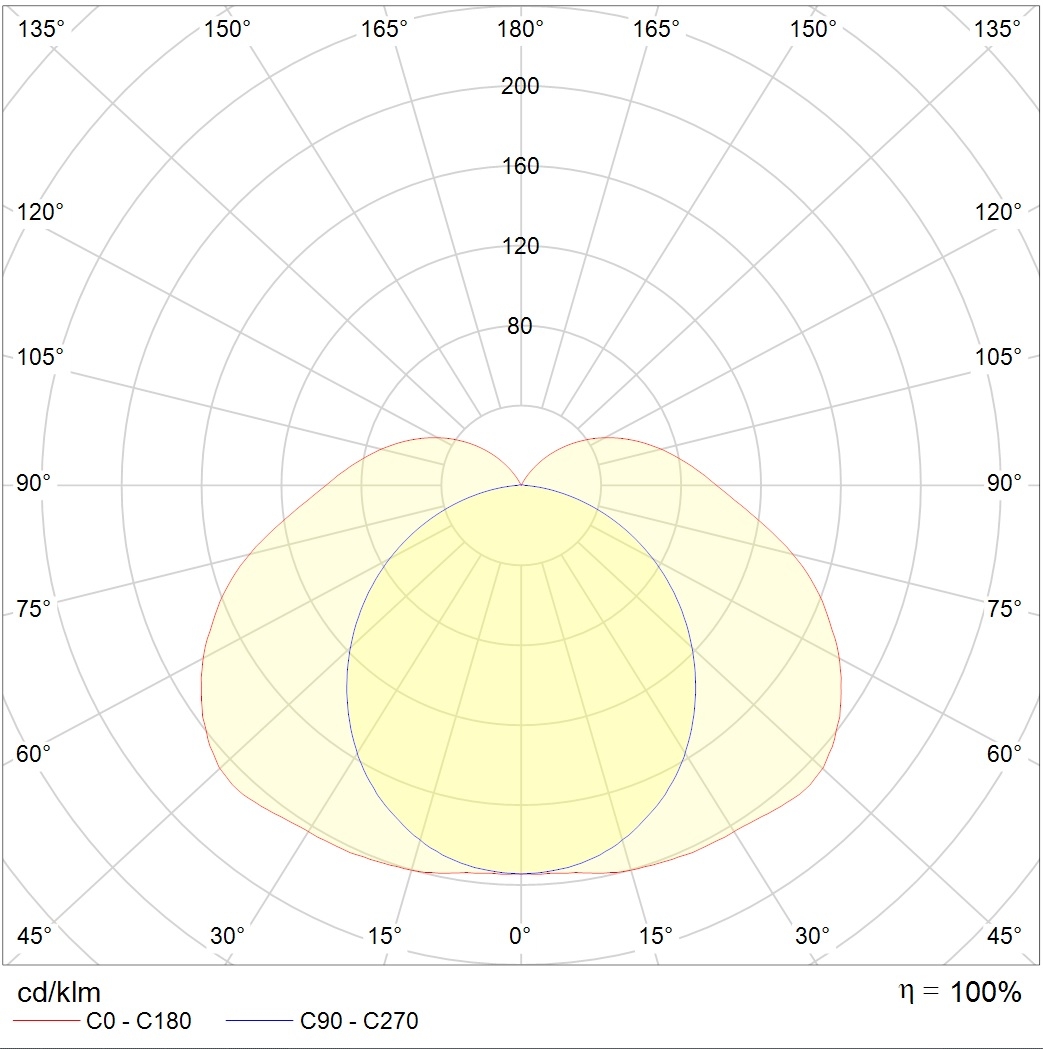

photometric files
documents
сертификаты
media
photometric files
ies134.1 kB
jpg163.9 kB
ldt108.9 kB
csv427 B
documents
passport1.8 mB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/2011300.7 kB
Declaration of Conformity EAEU TR 037/2016300.5 kB
media
brochure5.7 mB
accessories
Cable mounting kit Arctic /2/0.01kgarticle: 2069000010
