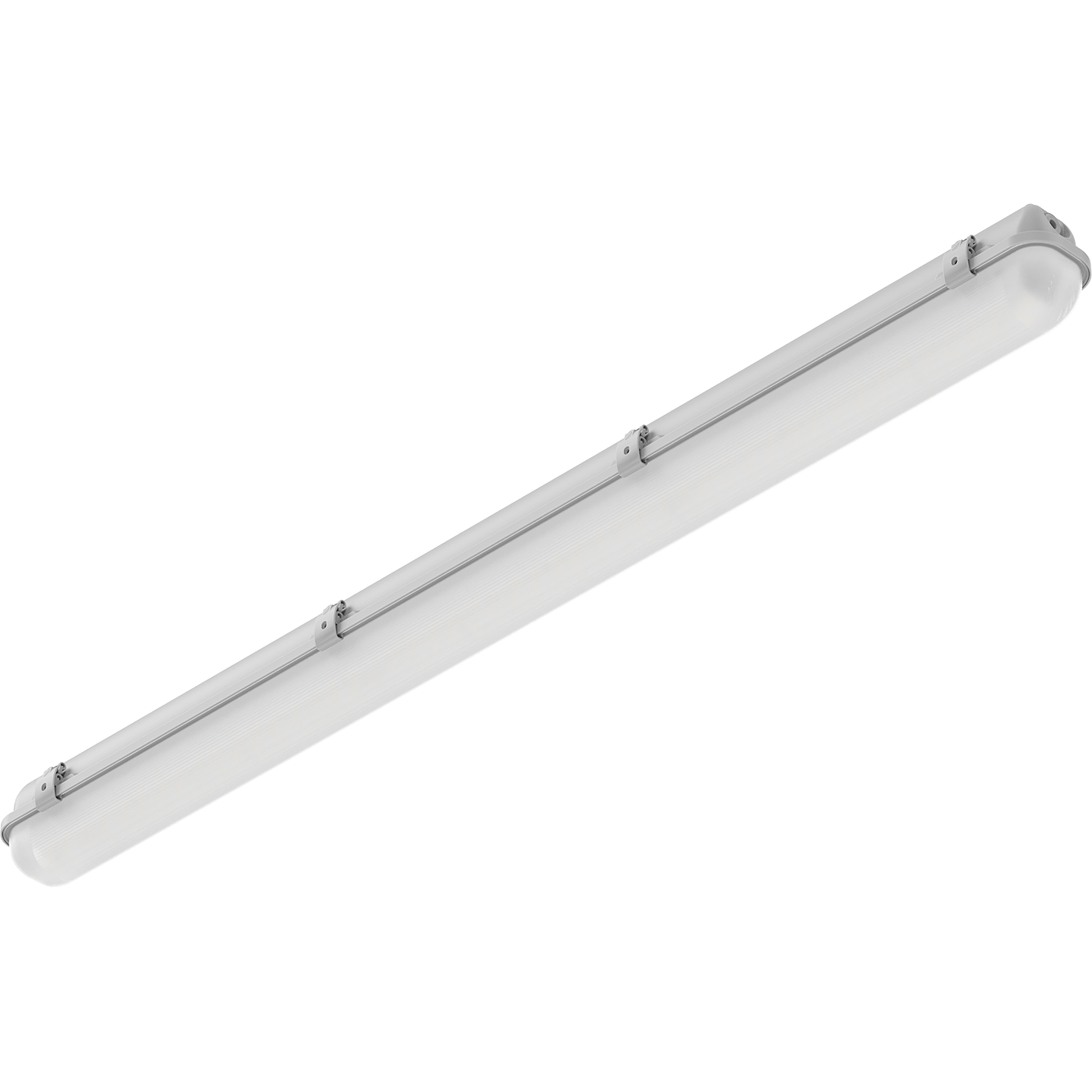

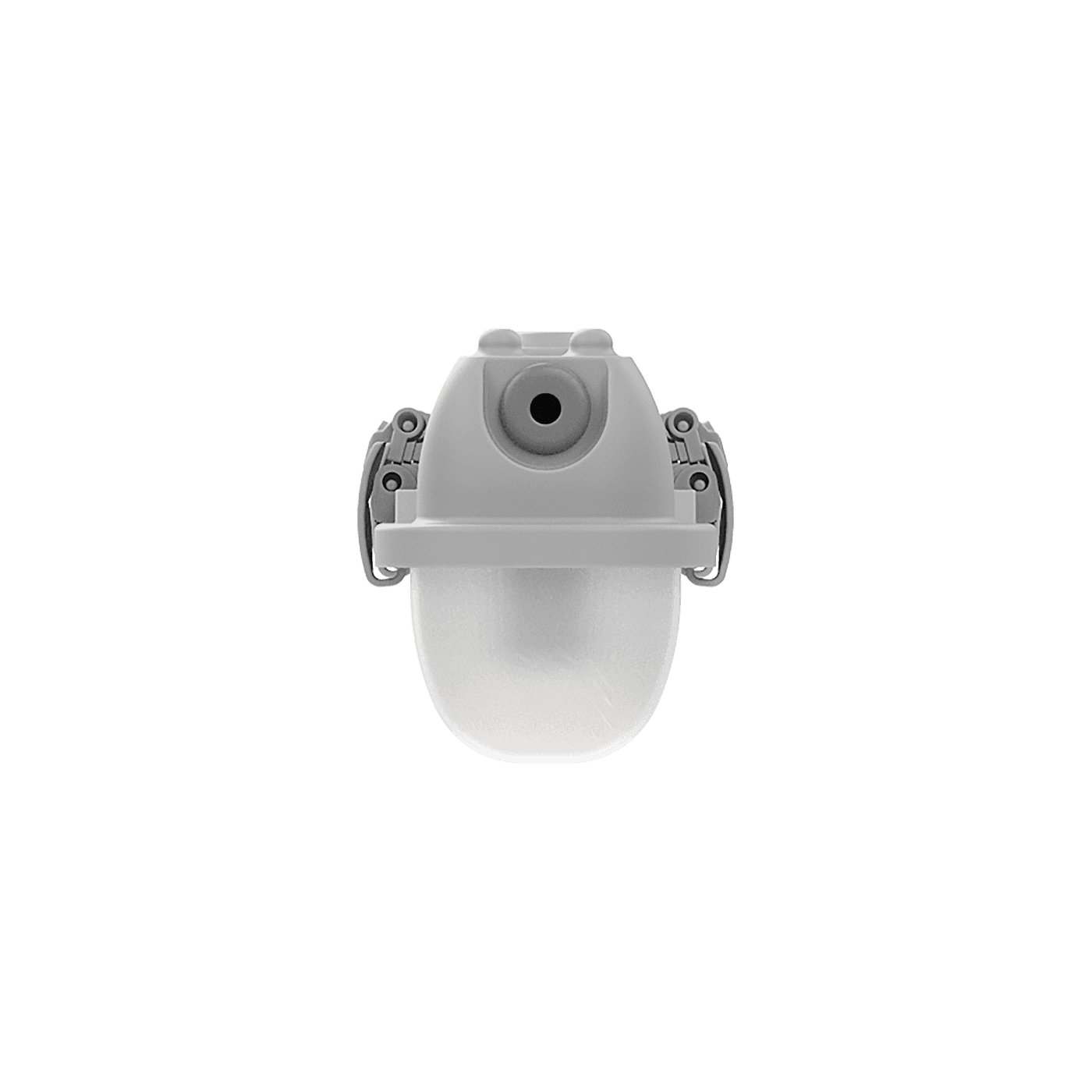

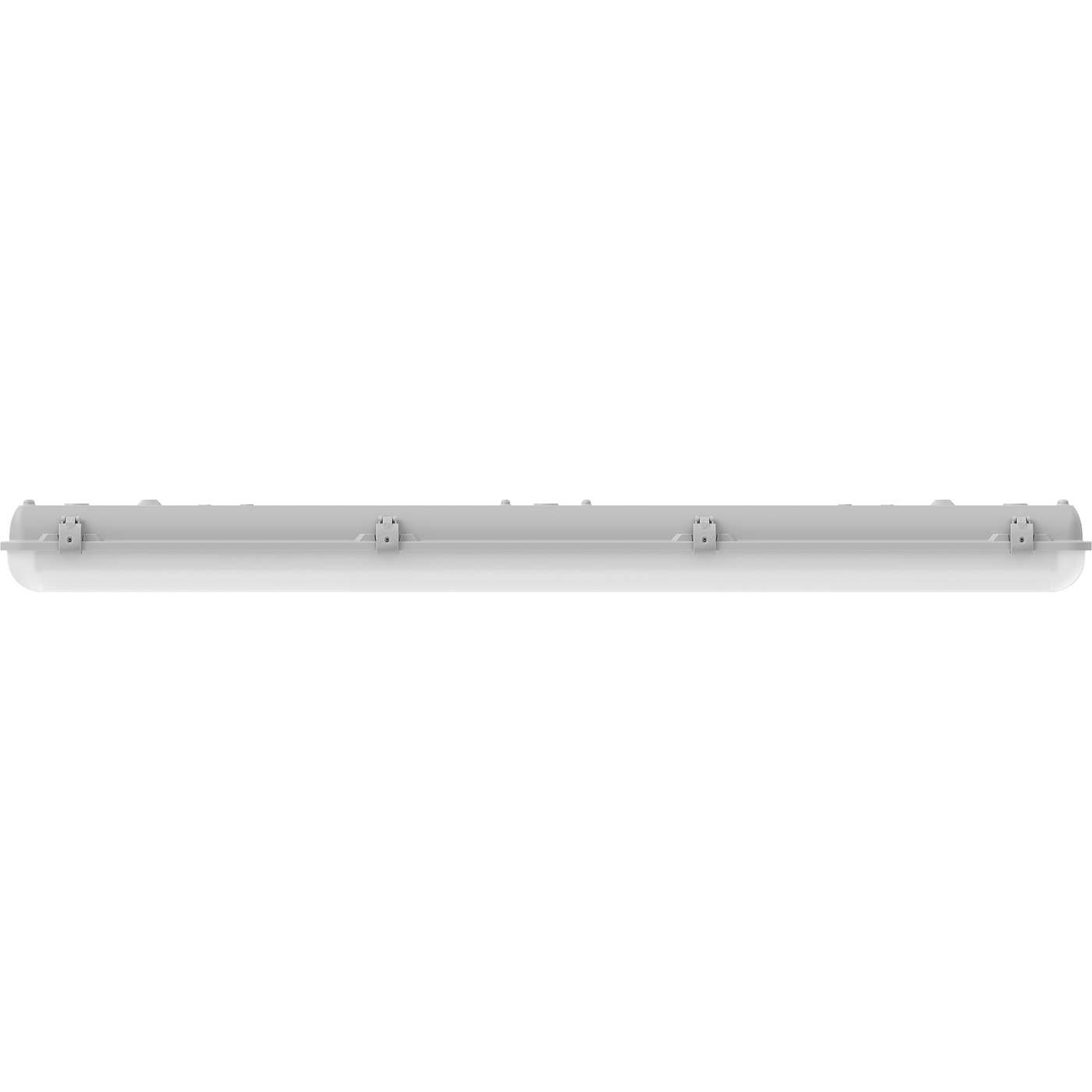

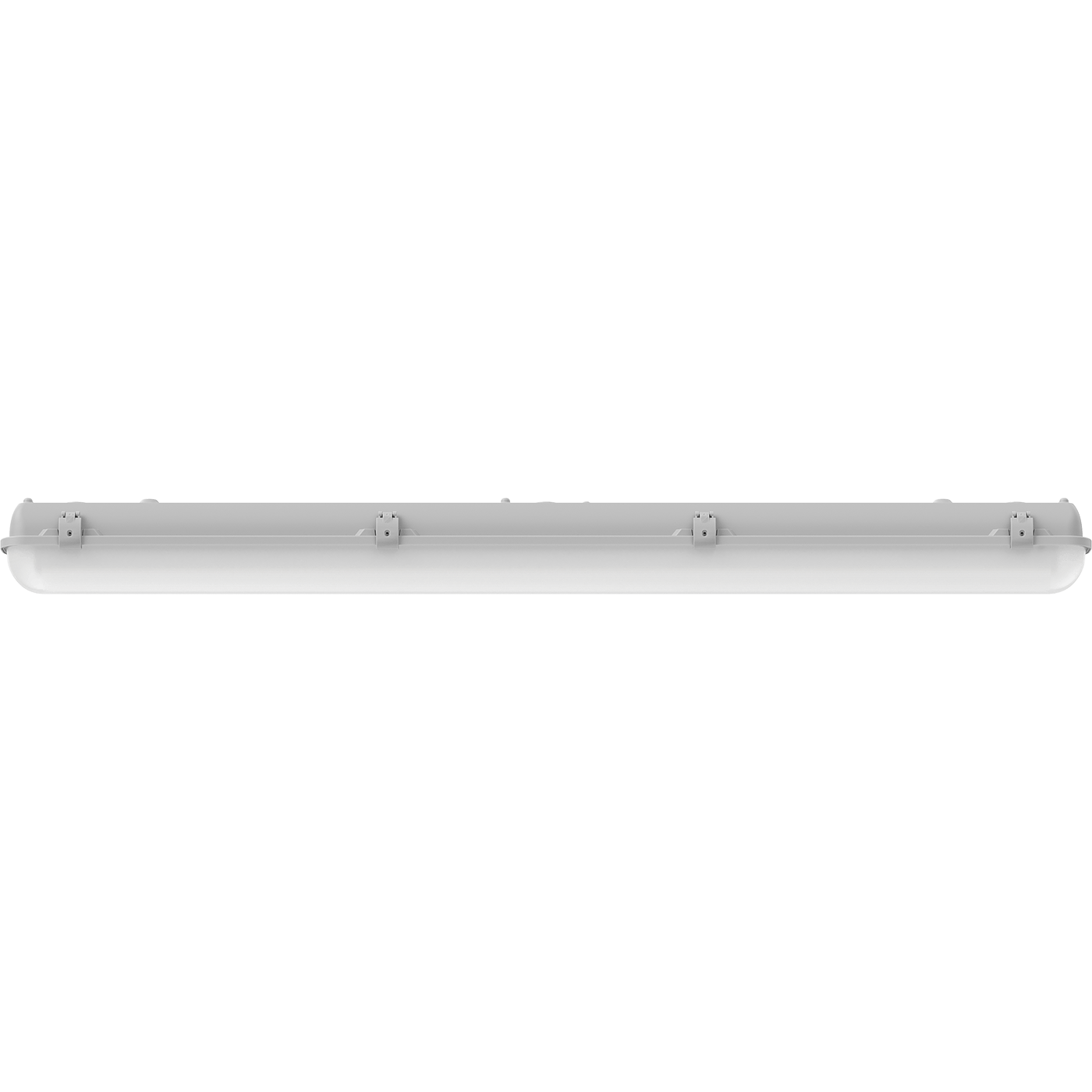

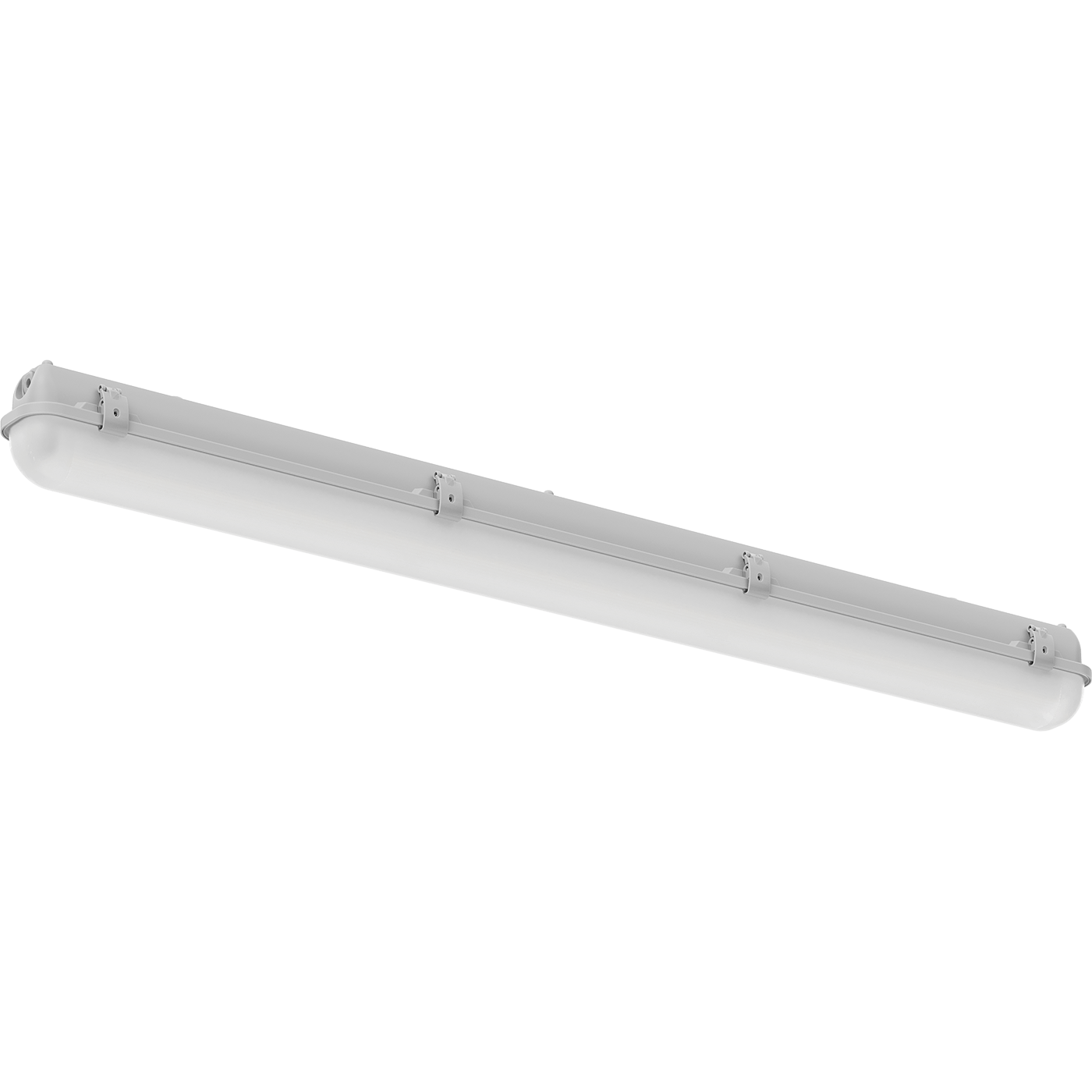

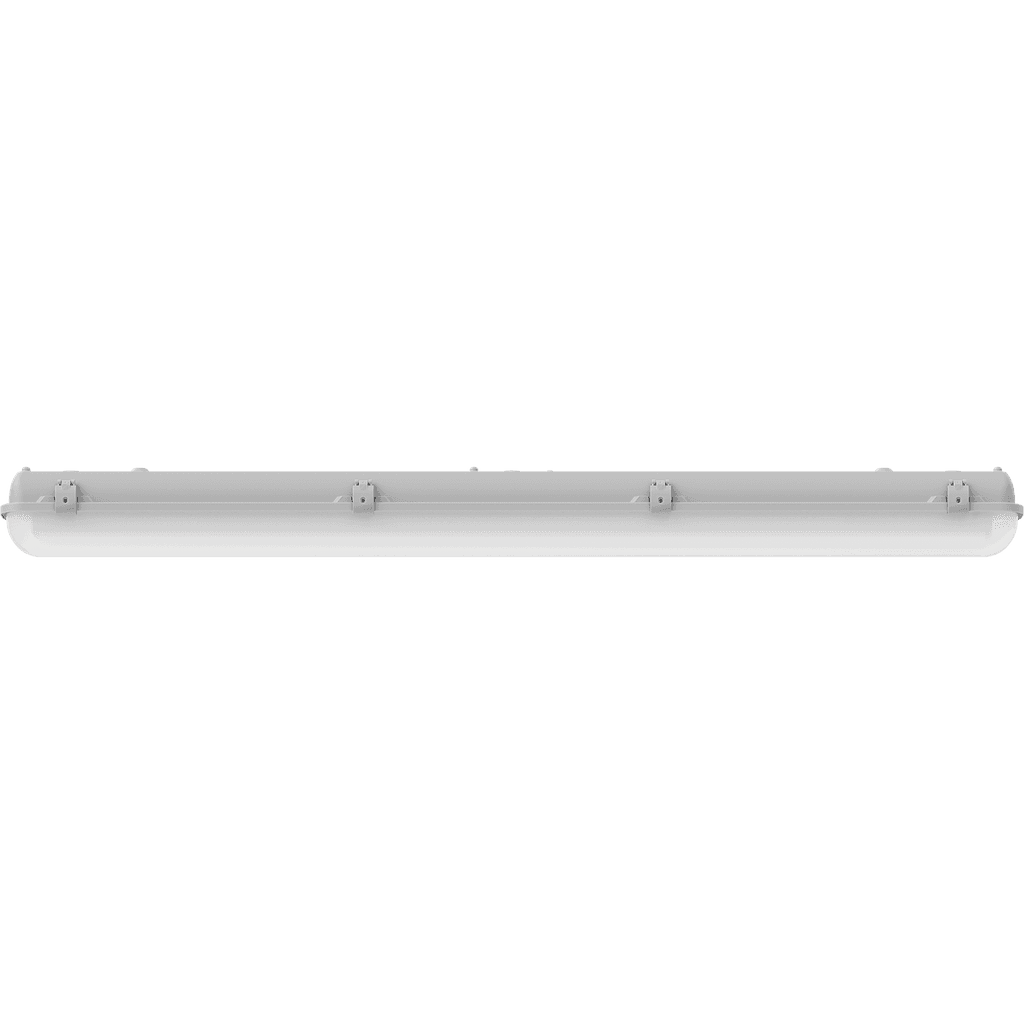

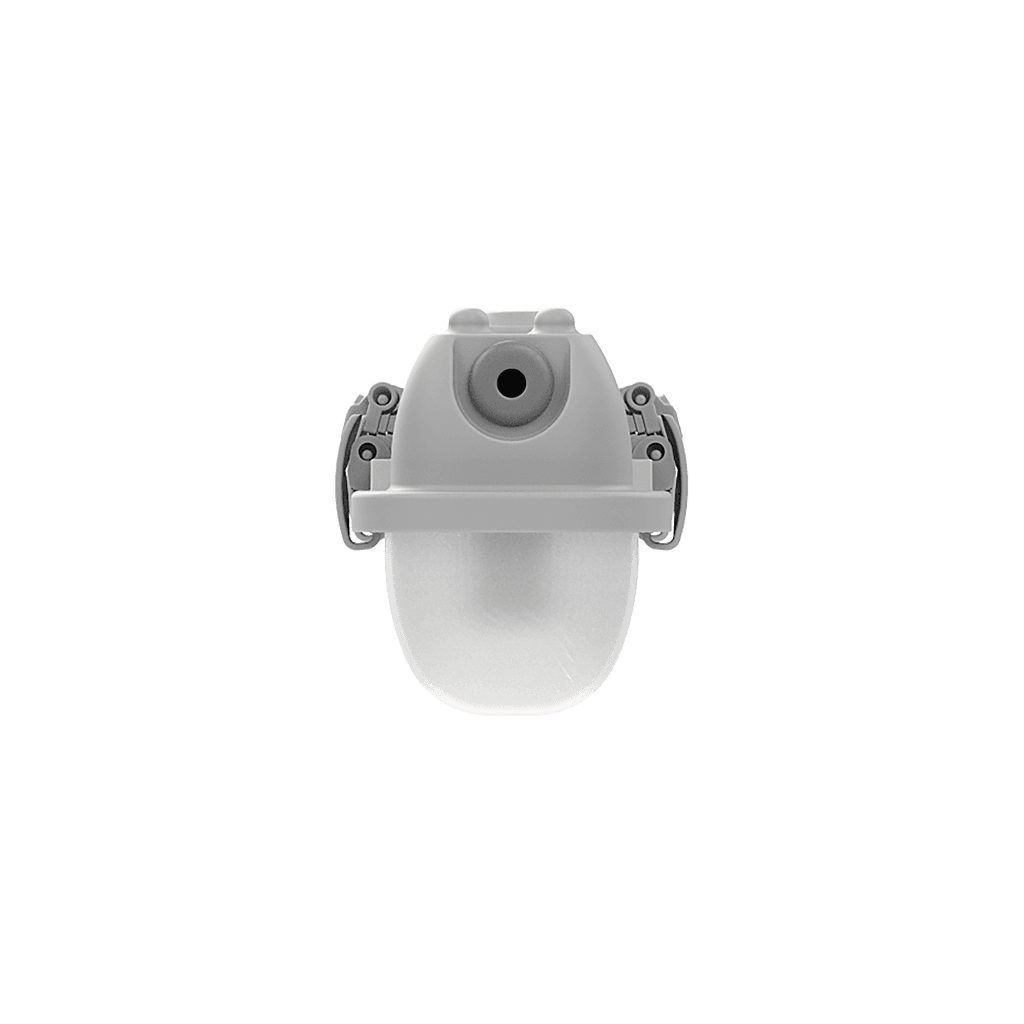

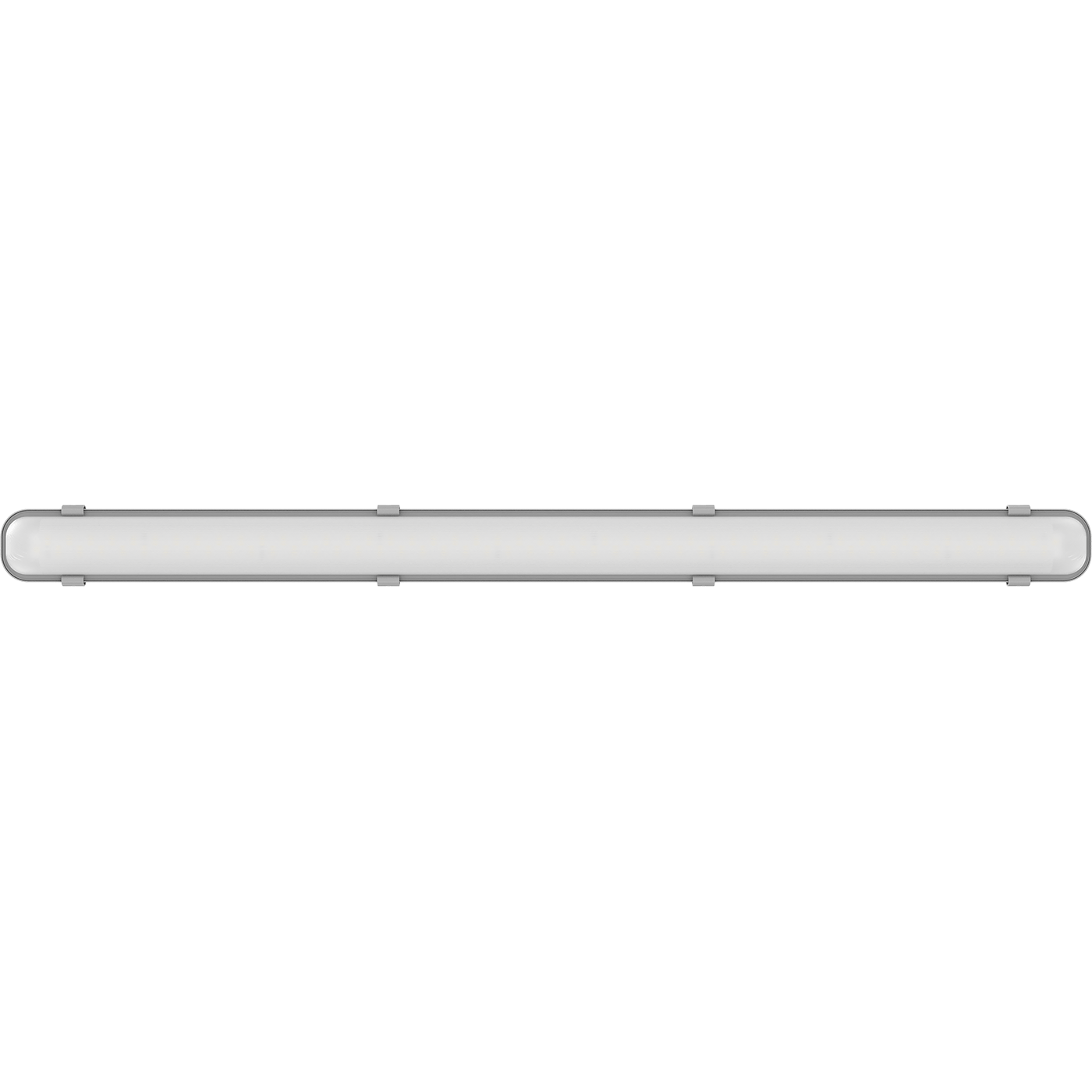

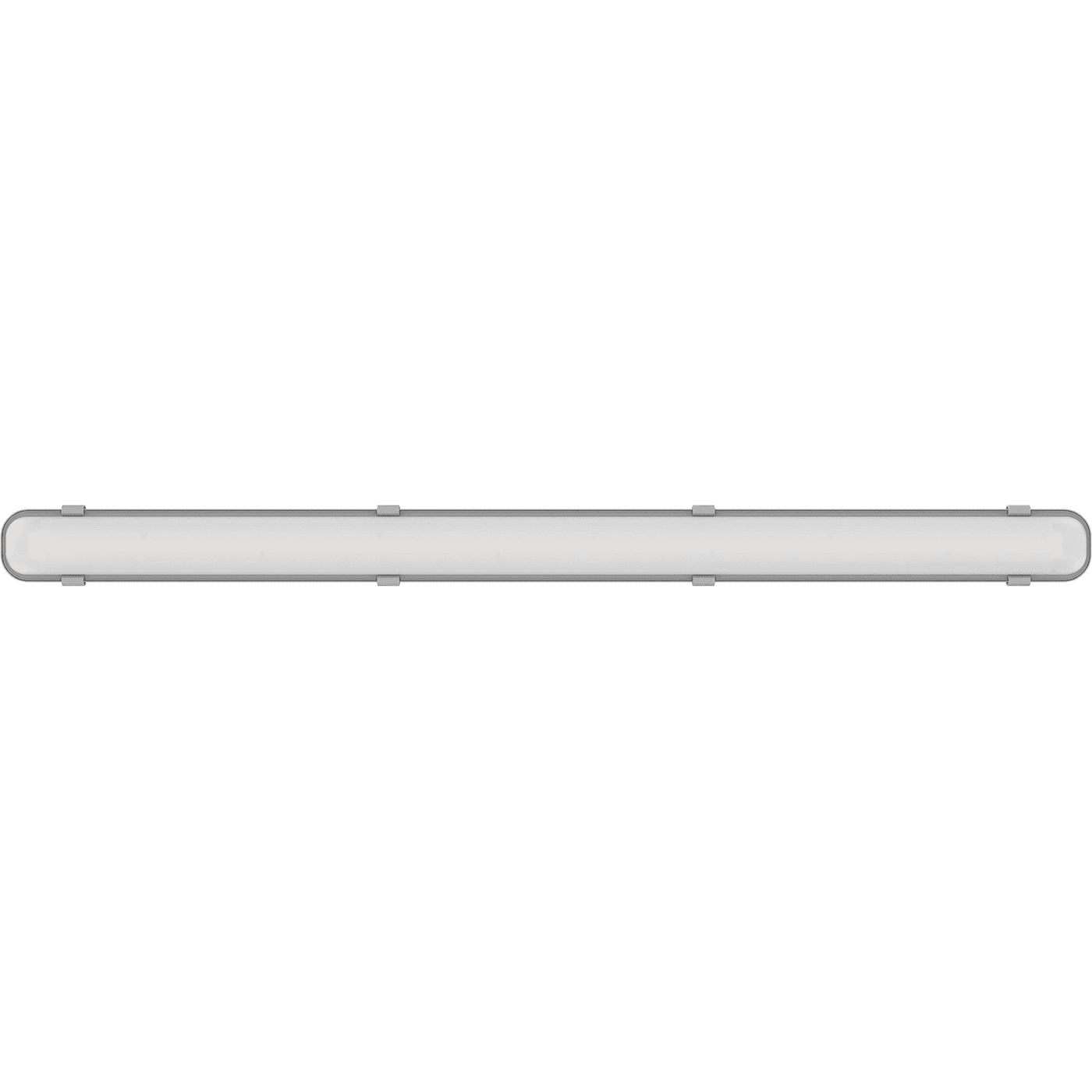

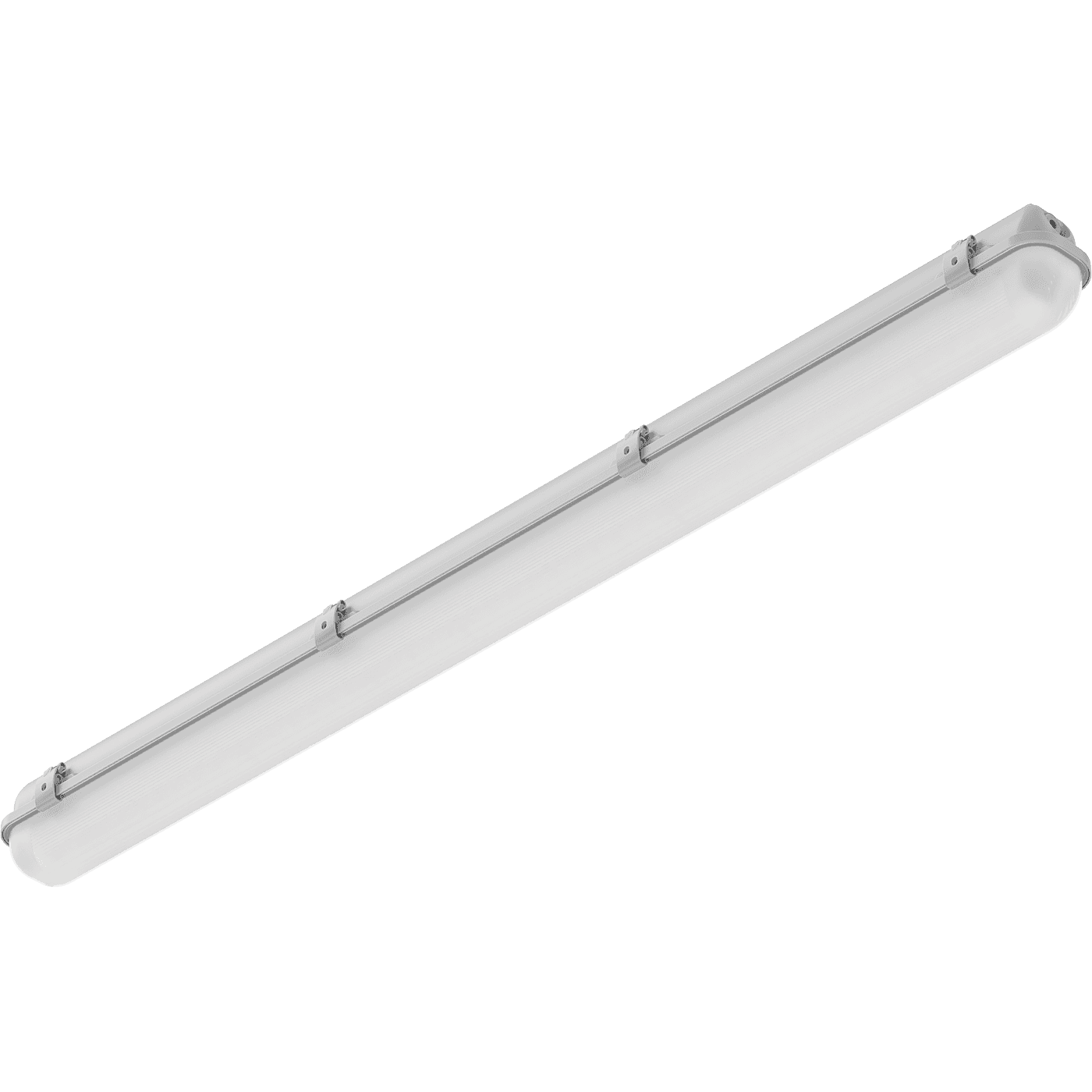

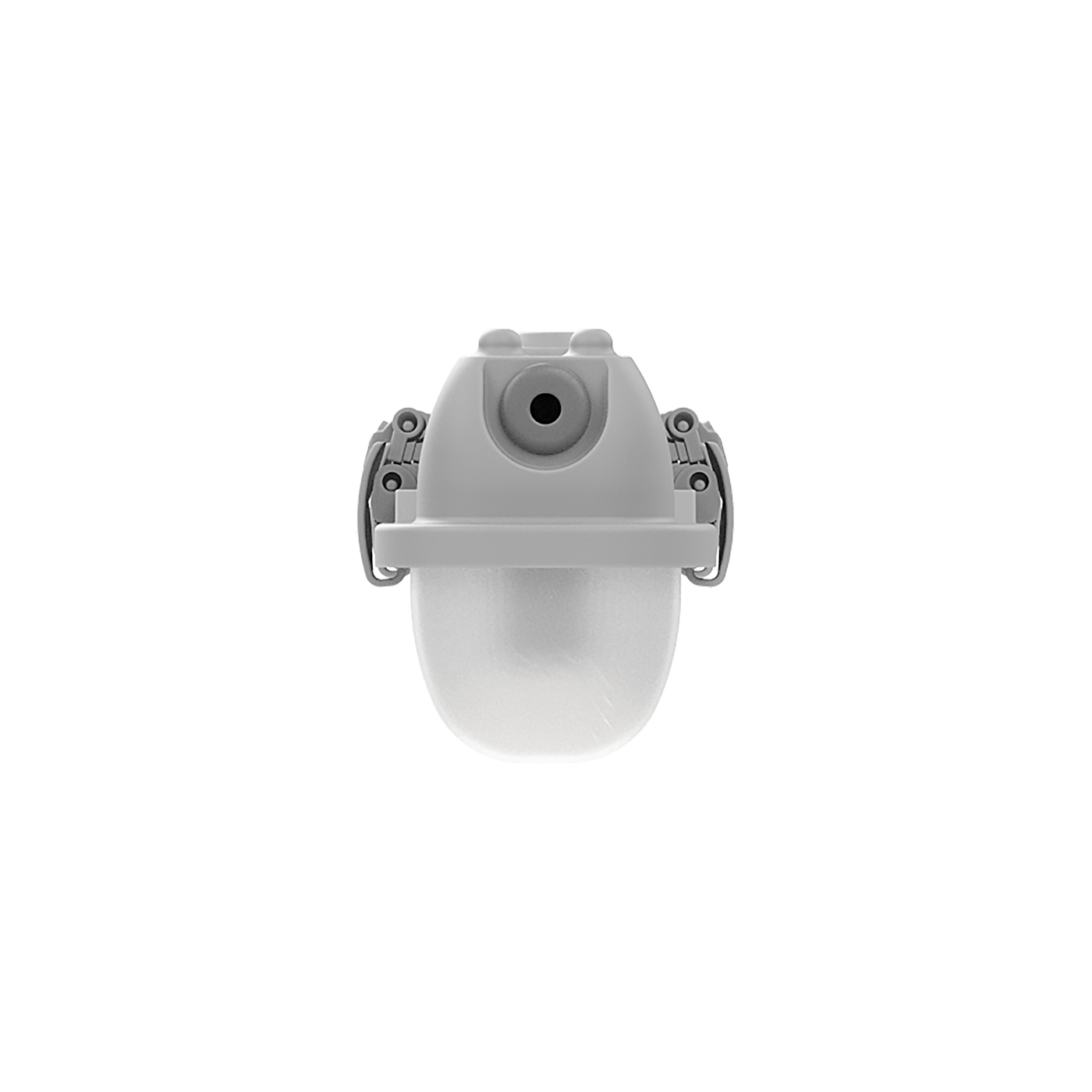

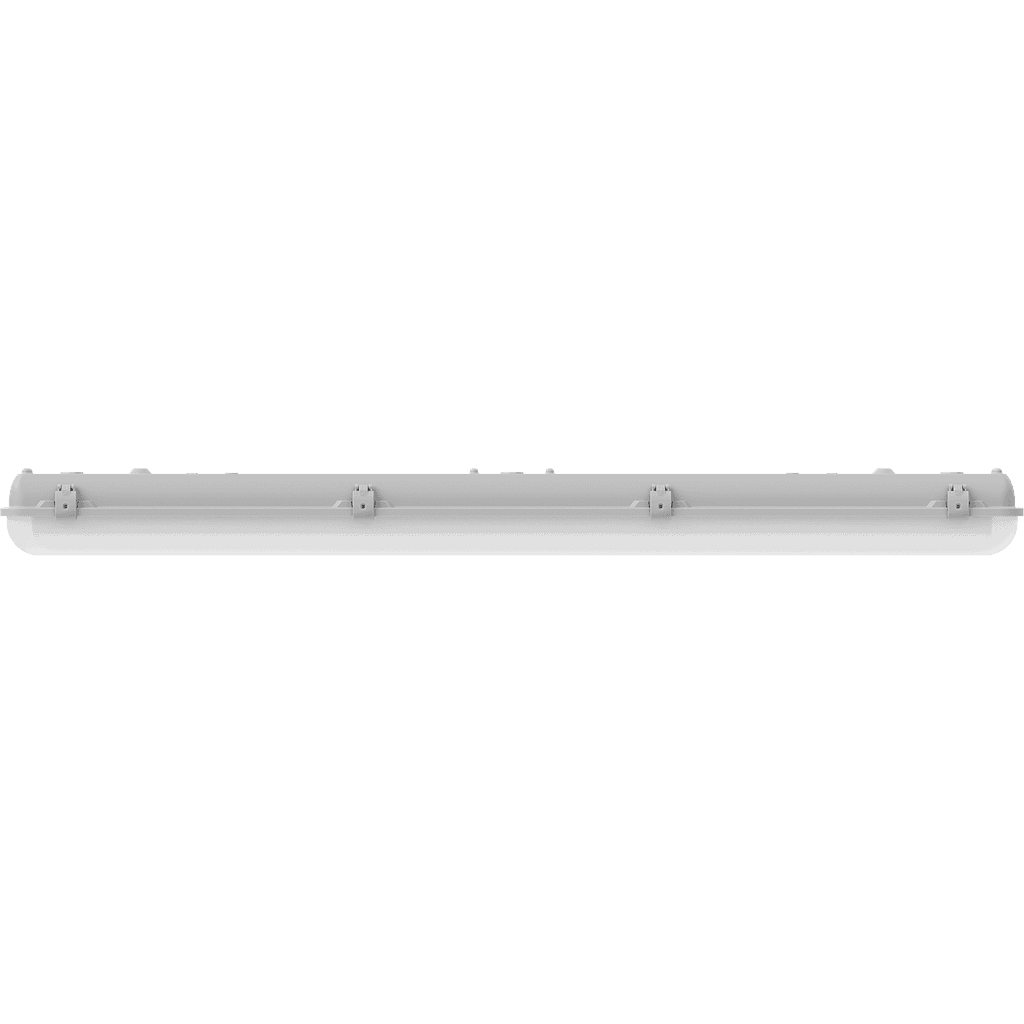

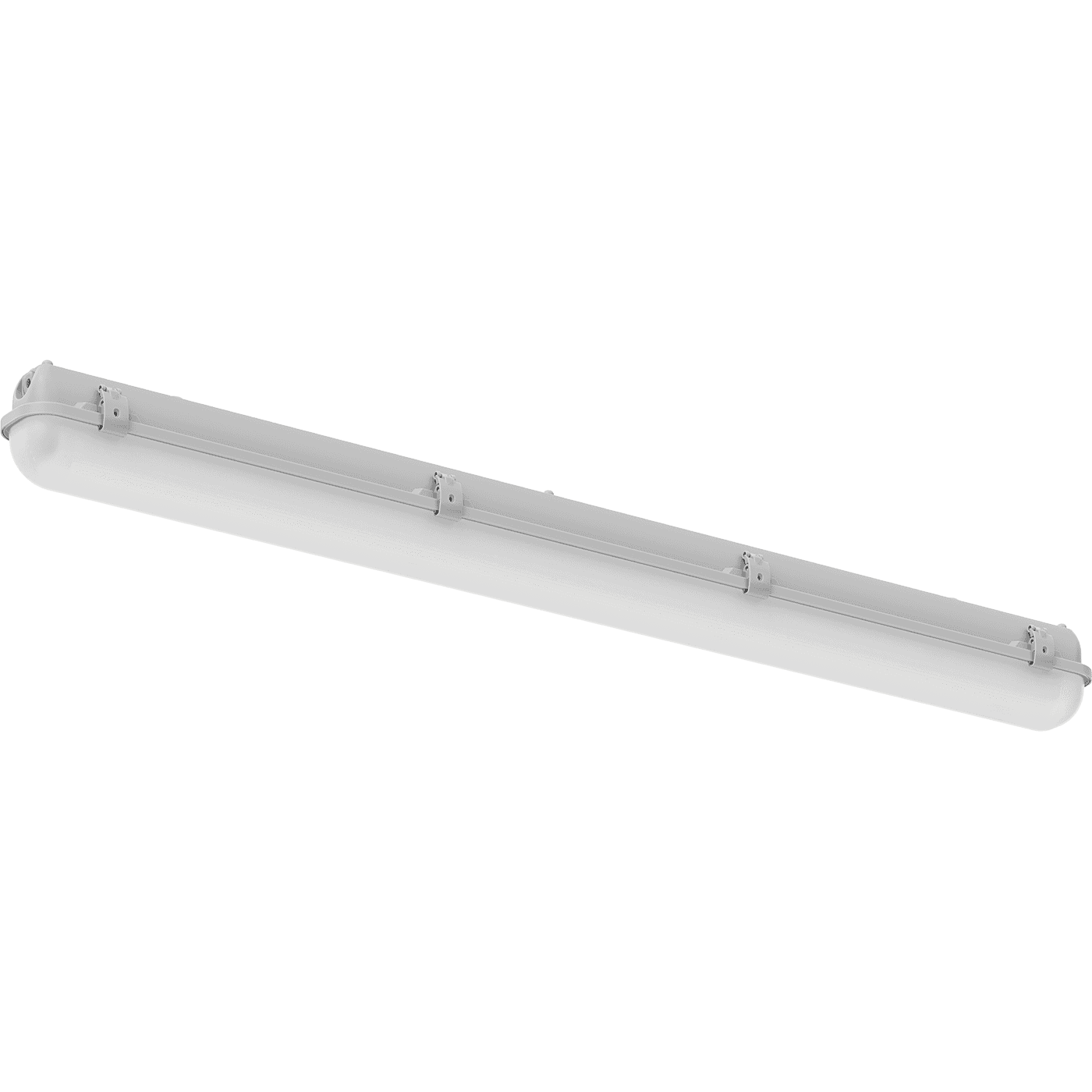

ARCTIC STANDARD 1500 TH EM 5000K
model is discontinued
model is discontinued
ARCTIC STANDARD 1500 TH EM 5000K
45 Wluminaire power
4600 lmlight flow
102 lm/Wenergy efficiency
code1088000580
color temperature5000 K
beam angleD120
performance factor100
weight3.2 kg
options
свернуть все
illuminatingelectricalconstructionalemergencycommon
energy efficiency
102 lm/Wcolor rendition index (CRI)
>80light flow
4600 lmflickering factor
<5%beam angle
D120color temperature
5000 Klight source type
LEDemission color
Белыйilluminating
energy efficiency
102 lm/W
color rendition index (CRI)
>80
light flow
4600 lm
flickering factor
<5%
beam angle
D120
color temperature
5000 K
light source type
LED
emission color
Белый
electrical
starting current pulse time
250 µs
power factor
> 0,97
luminaire power
45 W
electric shock protection
II
supply voltage
230 V
maximum cross-section of the connected cable
2.5 mm2
starting current
25 A
constructional
length
1582 mm
width
96 mm
height
110 mm
installation length
1230 mm
weight
3.2 kg
ingress protection (IP)
IP65
shock resistance (IK)
IK02/0,2 Дж
climatic performance
УХЛ2
fire safety class
П-ІІ
material
Пластик
housing color
Белый
lamp socket
LED
number of lamps
1
ballast
Драйвер
emergency
operating time in emergency mode
1 h
luminous flux in emergency mode
8% lm
common
temperature range
от 0 до +40 C
service life
50 000 h
ETIM class
Настенно-потолочный светильник
warranty
36 month
energy efficiency class
A+
code
1088000580
model files
model files
CAD/BIM files
сертификаты
CAD/BIM files
model 3dMax2 mB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20113.2 mB
Declaration of Conformity EAEU TR 037/2016658.3 kB
Fire Safety Certificate2.5 mB
