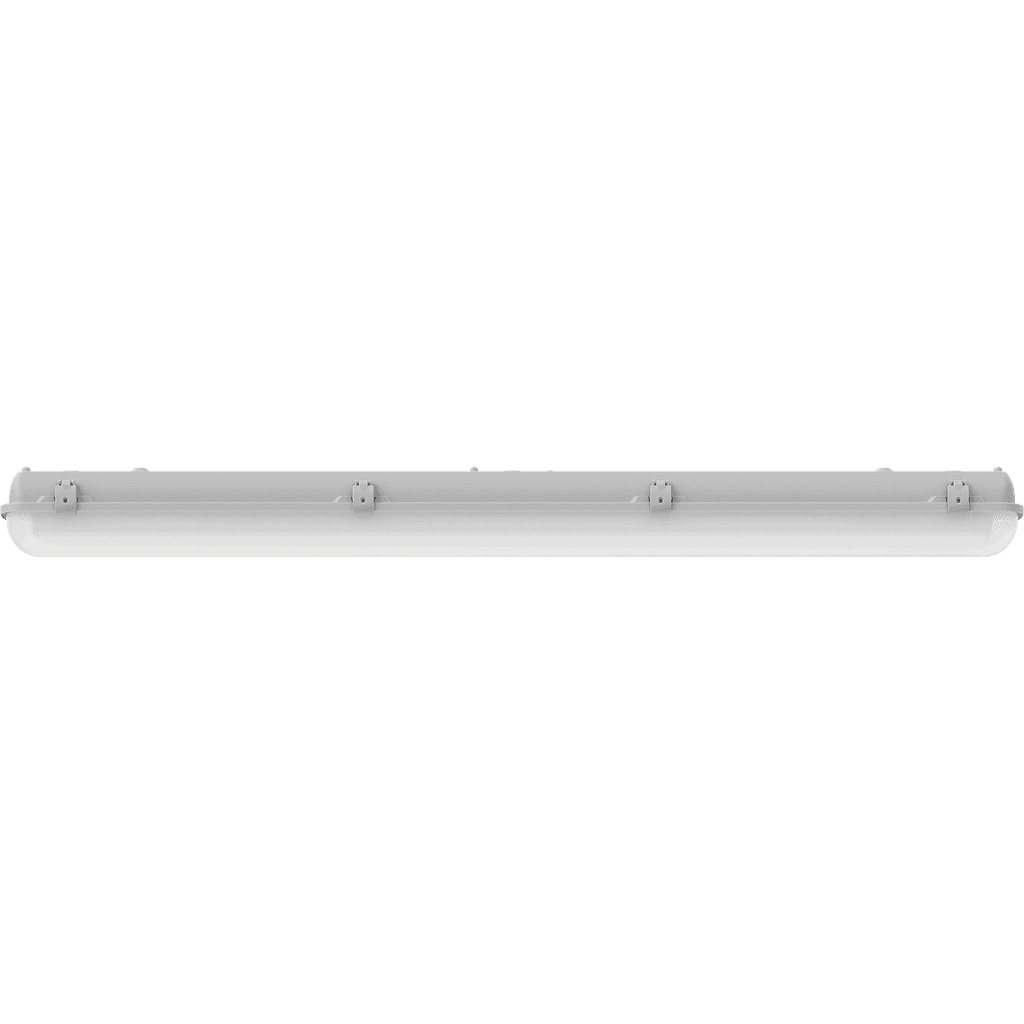

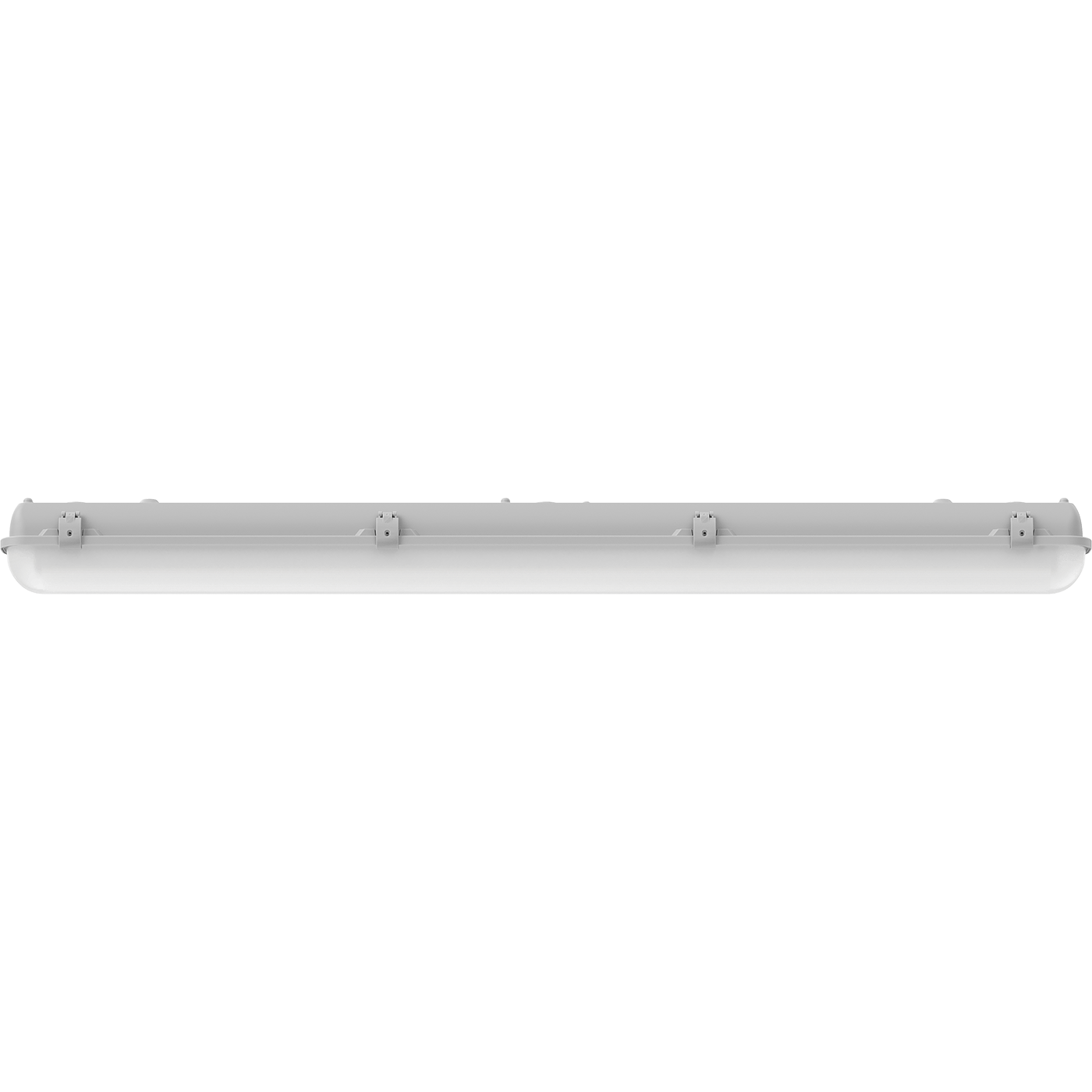

ARCTIC STANDARD 1200 TH EM 5000K
ARCTIC STANDARD 1200 TH EM 5000K
32 Wluminaire power
3400 lmlight flow
106 lm/Wenergy efficiency
code1088000540
color temperature5000 K
beam angleD120
weight2.7 kg
options
свернуть все
illuminatingelectricalconstructionalemergencycommon
color rendition index (CRI)
>80light flow
3400 lmflickering factor
<1%energy efficiency
106 lm/Wbeam angle
D120color temperature
5000 Klight source type
LEDemission color
Белыйilluminating
color rendition index (CRI)
>80
light flow
3400 lm
flickering factor
<1%
energy efficiency
106 lm/W
beam angle
D120
color temperature
5000 K
light source type
LED
emission color
Белый
electrical
power factor
> 0,95
luminaire power
32 W
electric shock protection
I
maximum cross-section of the connected cable
2.5 mm2
rated supply voltage, alternating current
230 V
rated supply voltage
230 V
starting current
25 A
supply voltage
230 V
starting current pulse time
250 µs
constructional
shock resistance (IK)
IK08/5 Дж
climatic performance
УХЛ2*
fire safety class
П-ІІ
material
Пластик
housing color
Серый
lamp socket
LED
number of lamps
1
ballast
Драйвер
ingress protection (IP)
IP65
weight
2.7 kg
length
1280 mm
width
96 mm
height
110 mm
installation length
932 mm
emergency
luminous flux in emergency mode
600 lm
operating time in emergency mode
1 h
common
ETIM class
Настенно-потолочный светильник
warranty
60 month
energy efficiency class
A+
service life
50 000 h
temperature range
от 0 до +40 C
code
1088000540
model files
model files
CAD/BIM files
photometric files
documents
сертификаты
CAD/BIM files
model 3dMax2 mB
photometric files
ies134.1 kB
jpg163.7 kB
ldt108.9 kB
csv417 B
documents
passport1.8 mB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20113.2 mB
Declaration of Conformity EAEU TR 037/2016658.3 kB
Fire Safety Certificate2.5 mB
accessories
Cable mounting kit Arctic /2/0.01kgarticle: 2069000010
