ARCTIC STANDARD 1200 TH EM 4000K (PG 13,5)
ARCTIC STANDARD 1200 TH EM 4000K (PG 13,5)
34 Wluminaire power
3500 lmlight flow
103 lm/Wenergy efficiency
code1088000980
color temperature4000
beam angleD120
weight2.7 kg
options
свернуть все
illuminatingelectricalconstructionalemergencycommon
color rendition index (CRI)
>80light flow
3500 lmflickering factor
<1%energy efficiency
103 lm/Wbeam angle
D120color temperature
4000light source type
LEDemission color
Белыйilluminating
color rendition index (CRI)
>80
light flow
3500 lm
flickering factor
<1%
energy efficiency
103 lm/W
beam angle
D120
color temperature
4000
light source type
LED
emission color
Белый
electrical
power factor
> 0,95
luminaire power
34 W
electric shock protection
I
maximum cross-section of the connected cable, sq. mm
2.5
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
starting current
25 A
supply voltage
230 V
starting current pulse time, µs
250 mks
constructional
shock resistance (IK)
IK08/5 Дж
climatic performance
УХЛ2*
fire safety class
П-ІІ
material
Пластик
housing color
Серый
lamp socket
LED
number of lamps
1
ballast
Драйвер
ingress protection (IP)
IP65
weight
2.7 kg
length, mm
1280 mm
width, mm
96 mm
height, mm
110 mm
installation length, mm
932 mm
emergency
luminous flux in emergency mode
600 lm
operating time in emergency mode, hours
1 h
common
ETIM class
Настенно-потолочный светильник
warranty
60 month
energy efficiency class
A+
service life, hour
50 000 h
temperature range
от 0 до +40 C
code
1088000980
model files
model files

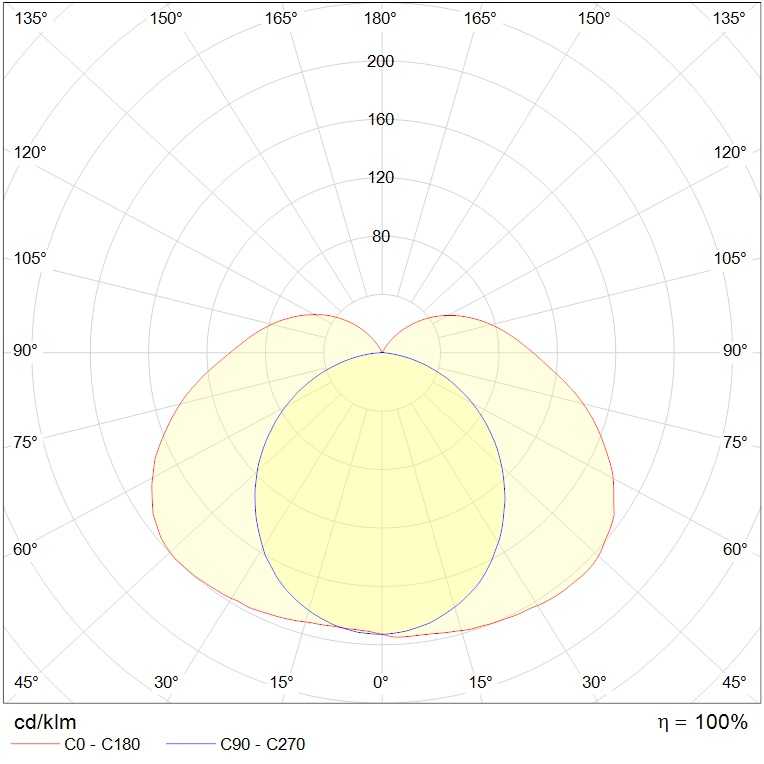

photometric files
documents
сертификаты
photometric files
ies107.1 kB
jpg101 kB
ldt87.6 kB
csv427 B
documents
passport1.8 mB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20113.2 mB
Declaration of Conformity EAEU TR 037/2016658.3 kB
Fire Safety Certificate2.5 mB
accessories

Cable mounting kit Arctic /2/0.01kgarticle: 2069000010
