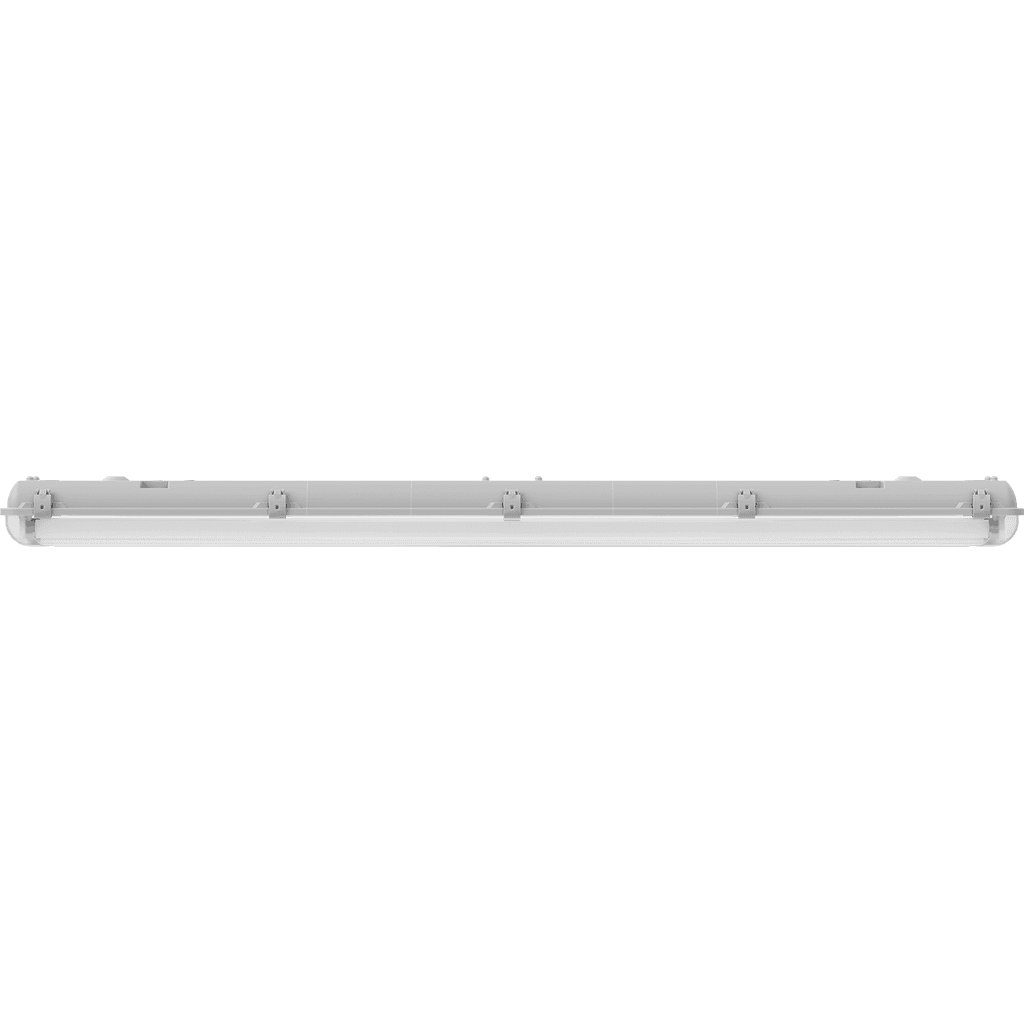

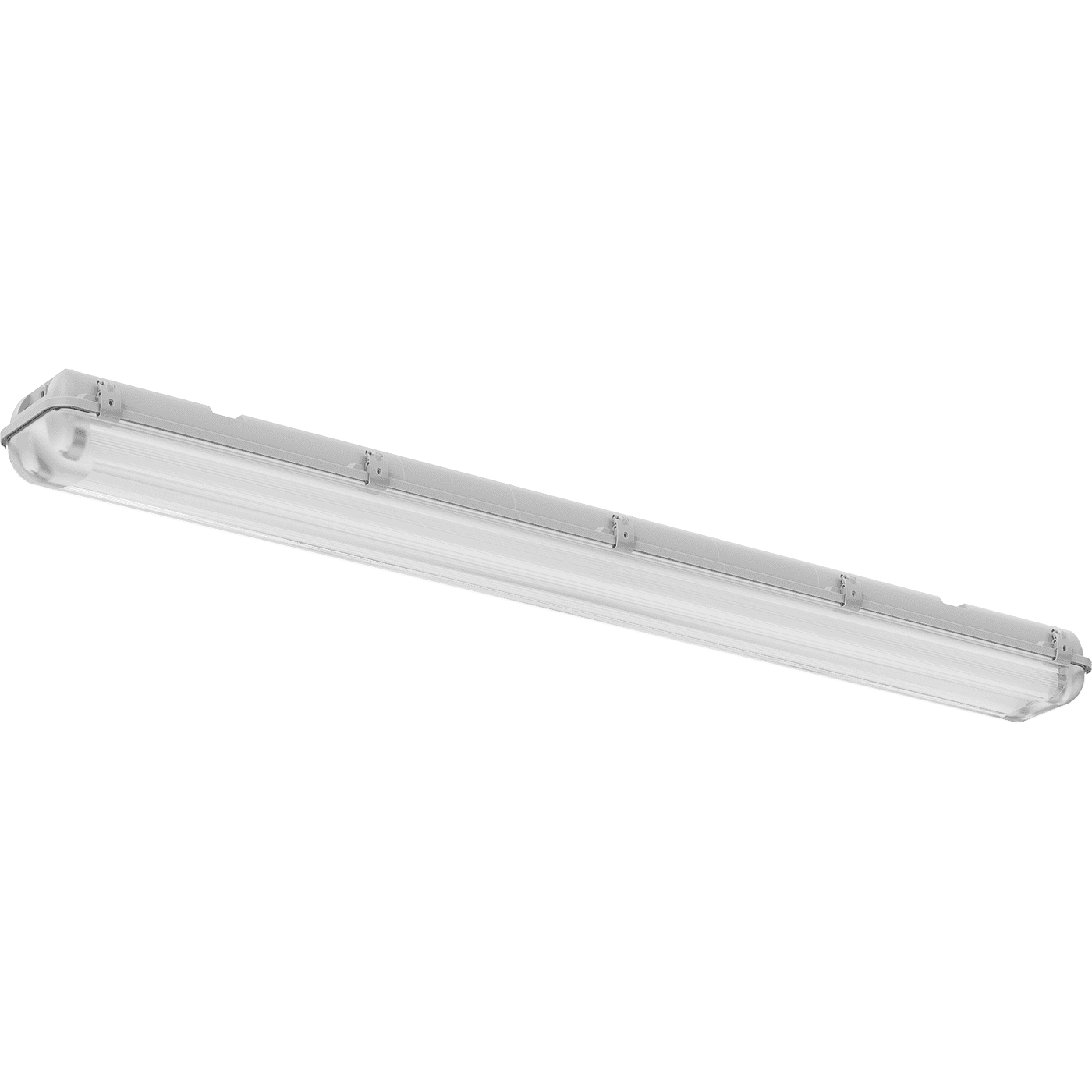

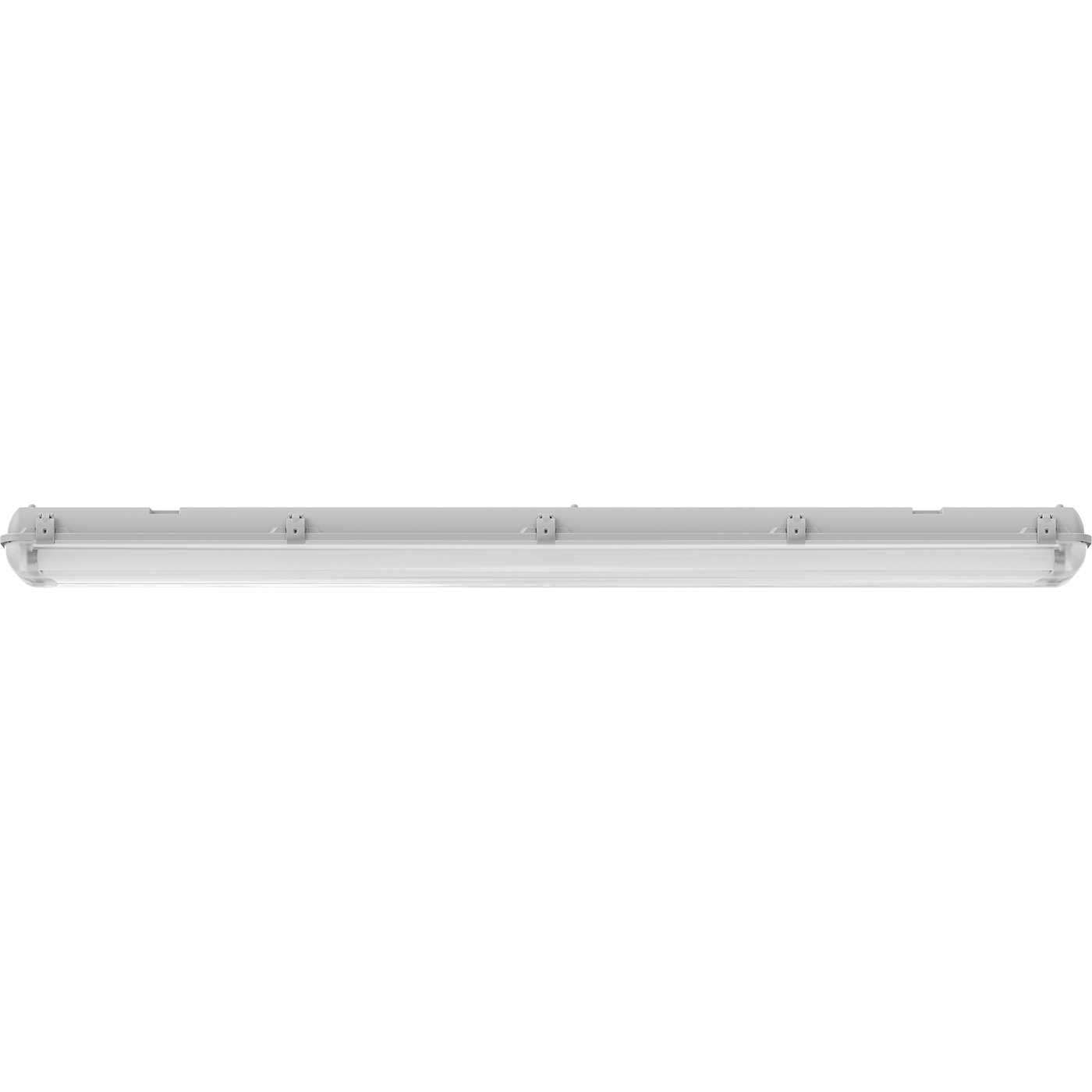

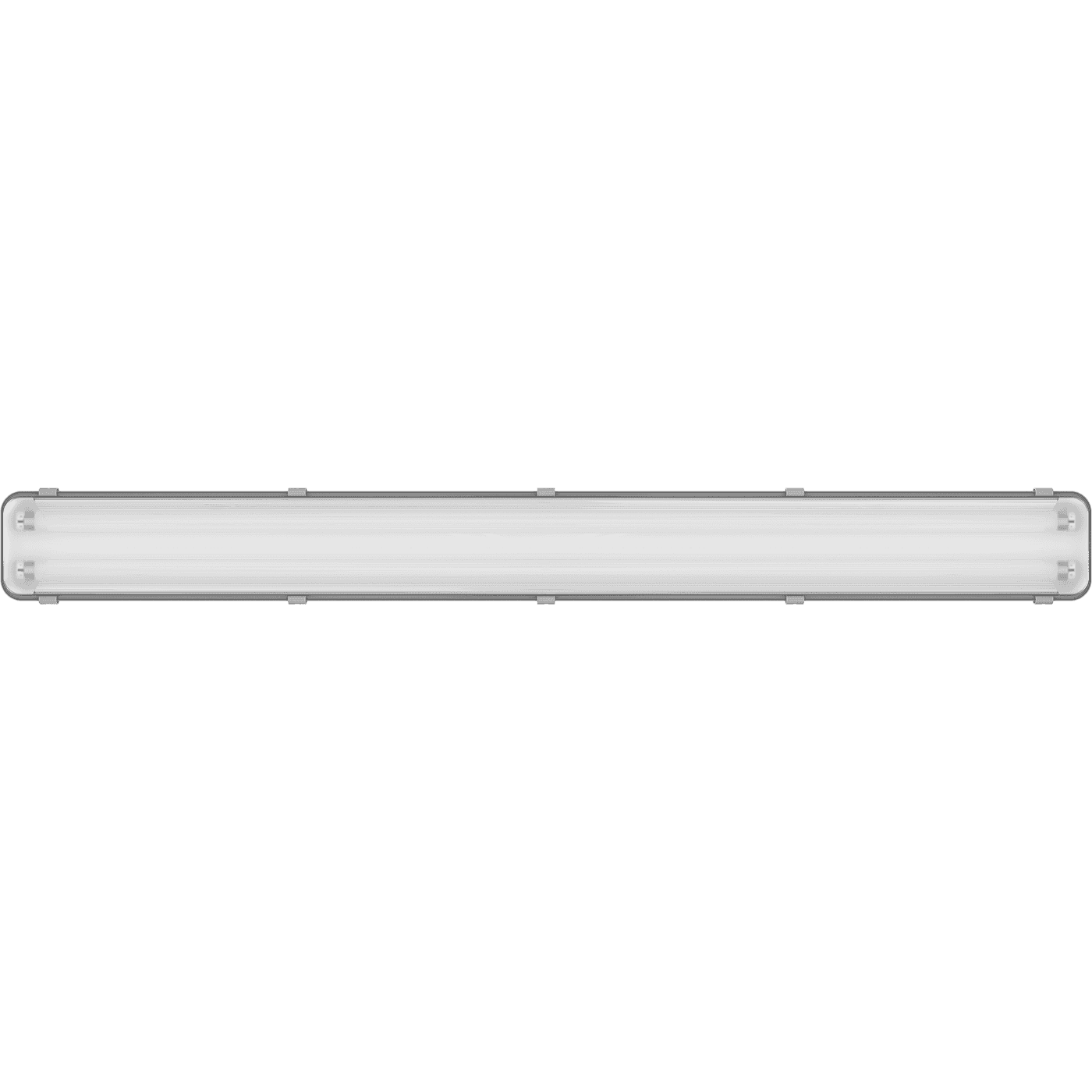

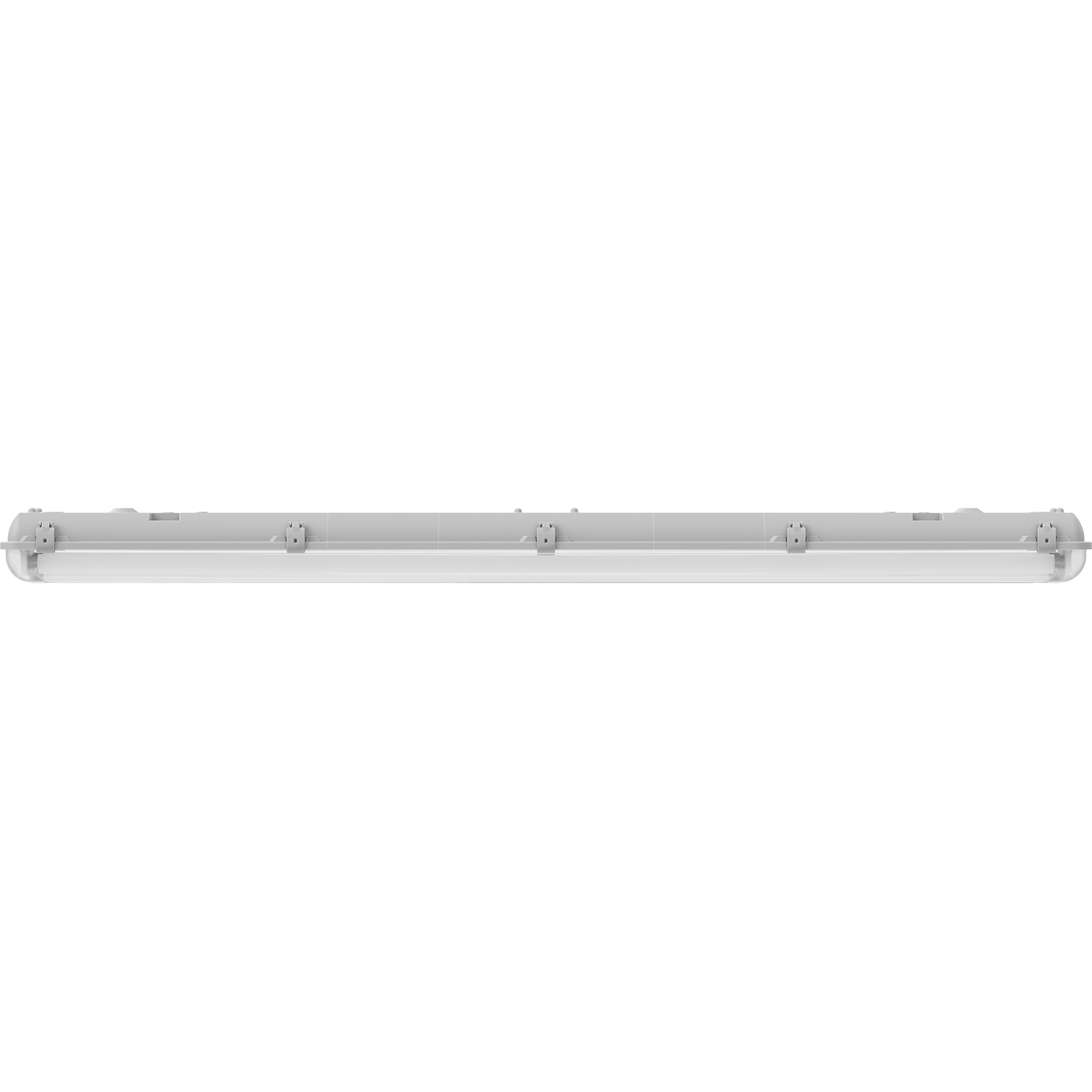

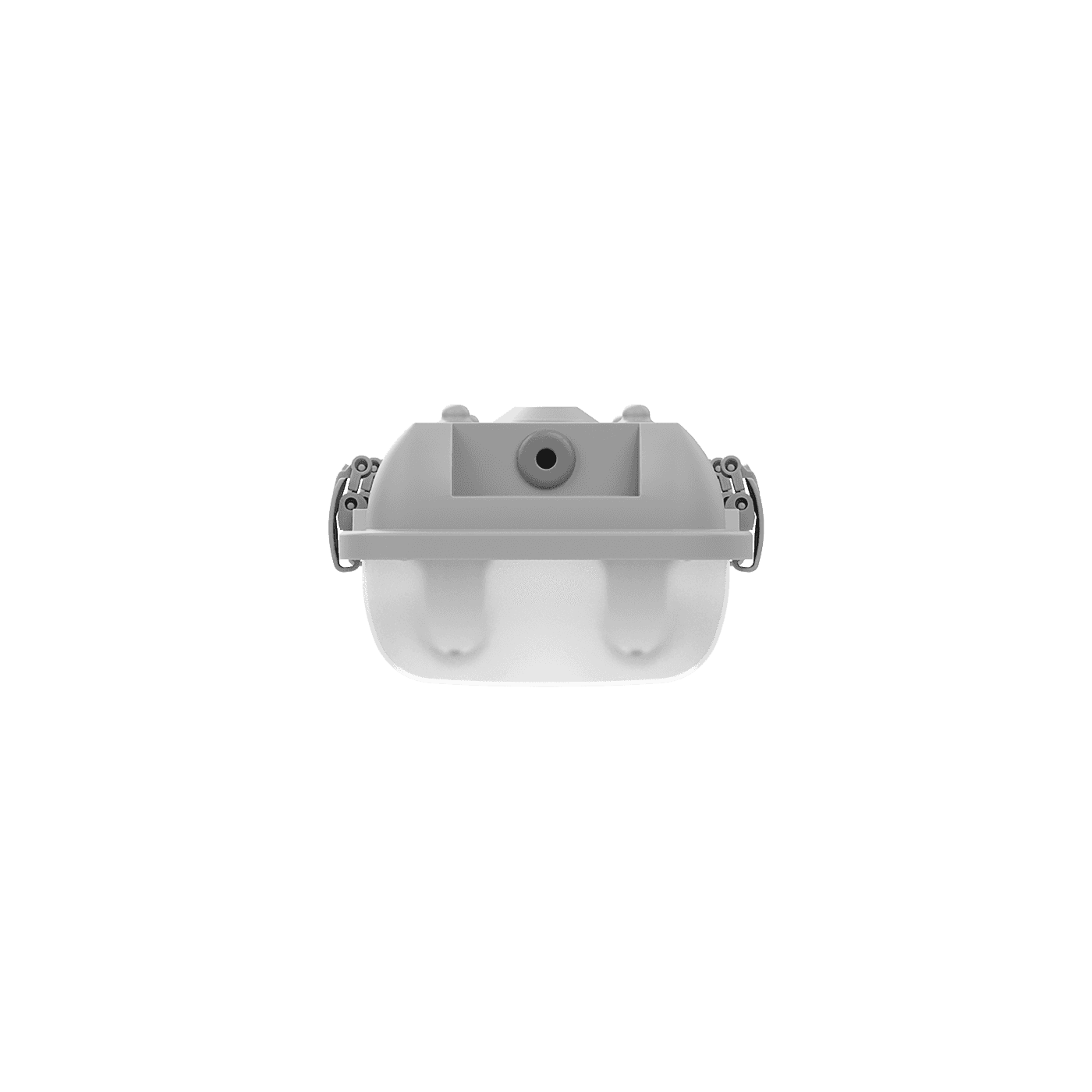

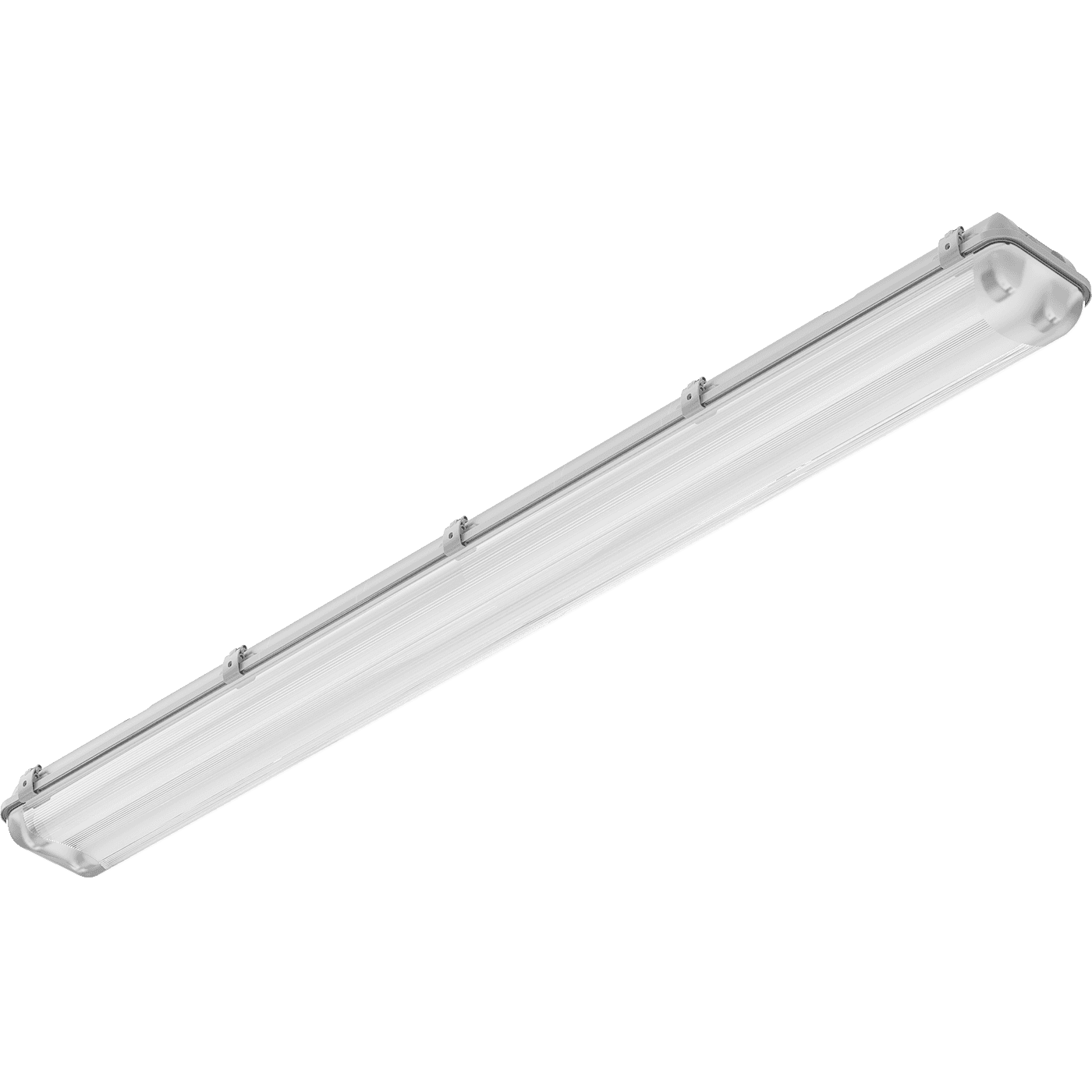

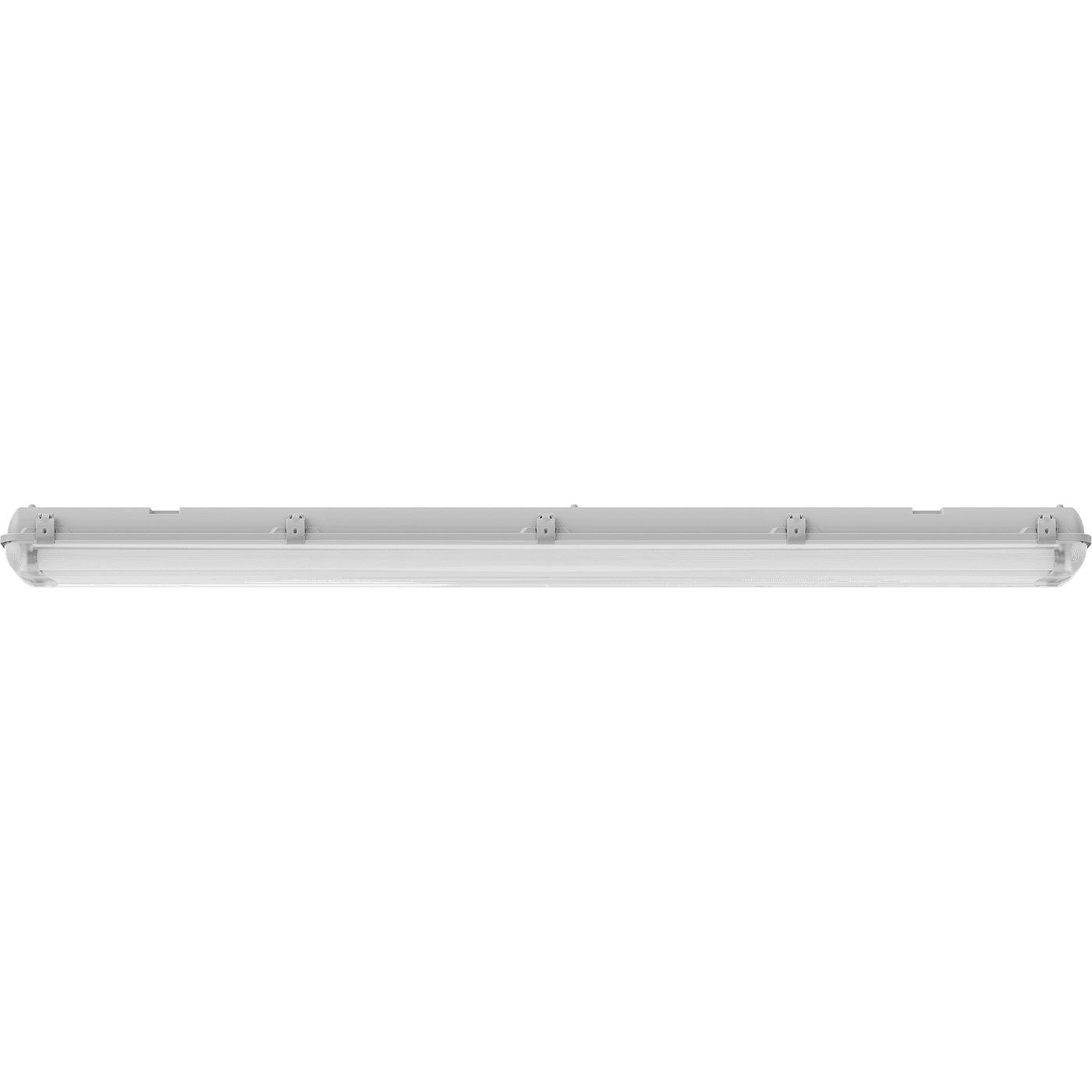

ARCTIC 258 (SAN/SMC) (U)
116 Wluminaire power
5200 lmlight flow
48 lm/Wenergy efficiency
code1069005620
weight4.1 kg
number of lamps2
options
свернуть все
illuminatingelectricalconstructionalcommon
light flow
5200 lmenergy efficiency
48 lm/Wflickering factor
<5%light source type
ЛЛilluminating
light flow
5200 lm
energy efficiency
48 lm/W
flickering factor
<5%
light source type
ЛЛ
electrical
electric shock protection
I
luminaire power
116 W
maximum cross-section of the connected cable, sq. mm
2.5
power factor
> 0,85
supply voltage
230 V
constructional
ingress protection (IP)
IP65
material
Пластик
housing color
Белый
length, mm
1578 mm
width, mm
170 mm
height, mm
110 mm
weight
4.1 kg
climatic performance
УХЛ2
lamp socket
G13
number of lamps
2
ballast
ЭмПРА
installation length, mm
1234 mm
common
ETIM class
Настенно-потолочный светильник
warranty
36 month
temperature range
от -20 до +40 C
energy efficiency class
A
service life, hour
24 000 h
code
1069005620
