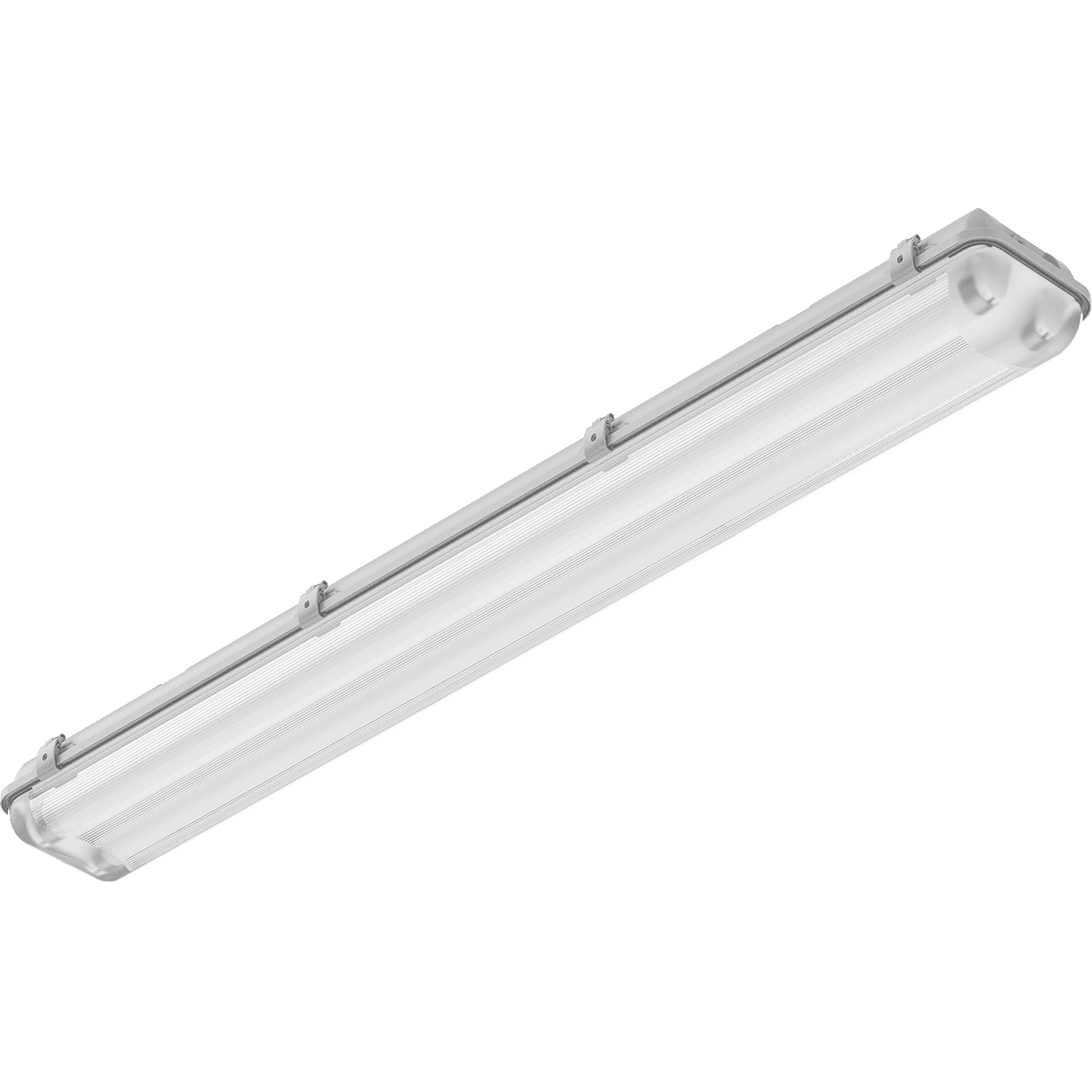

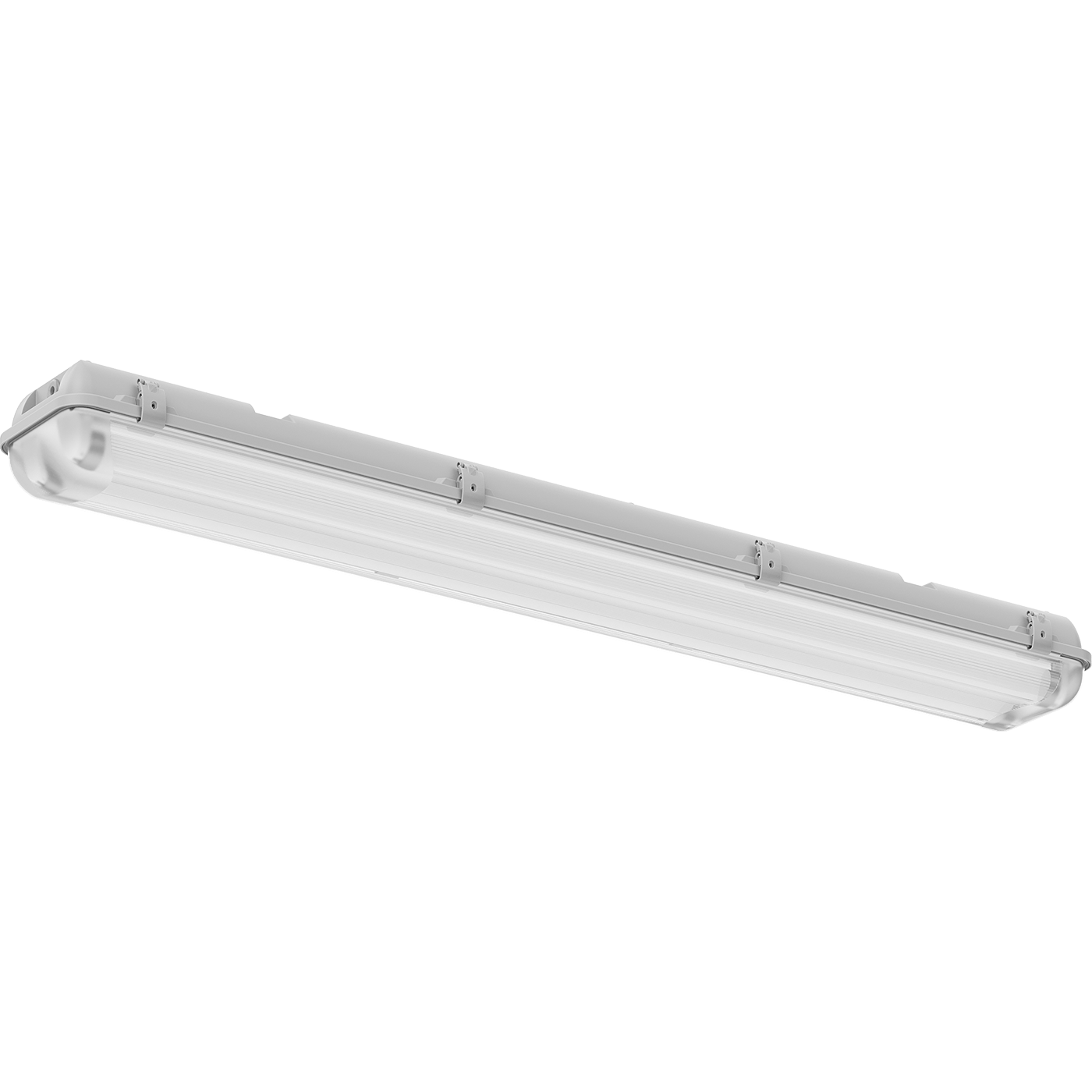

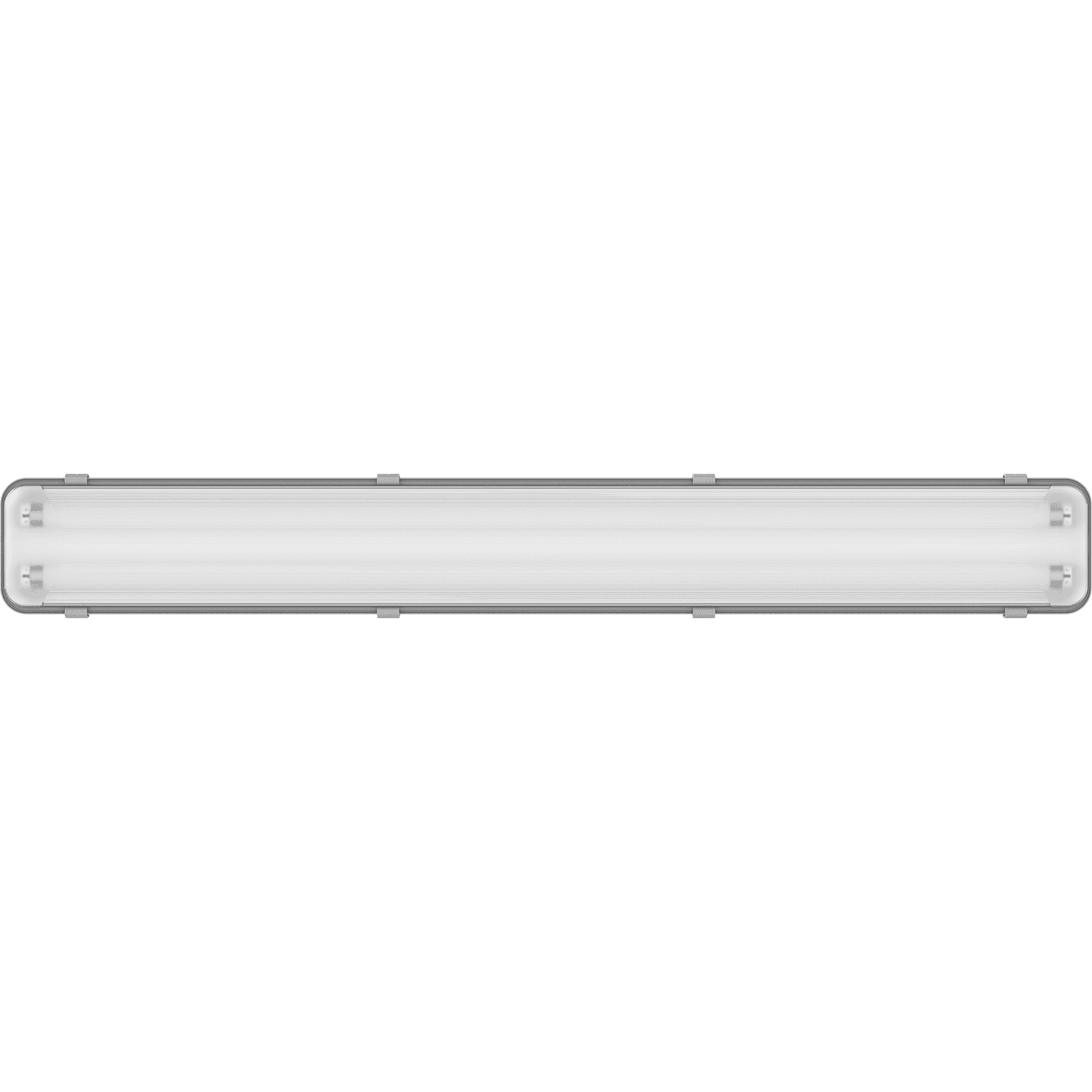

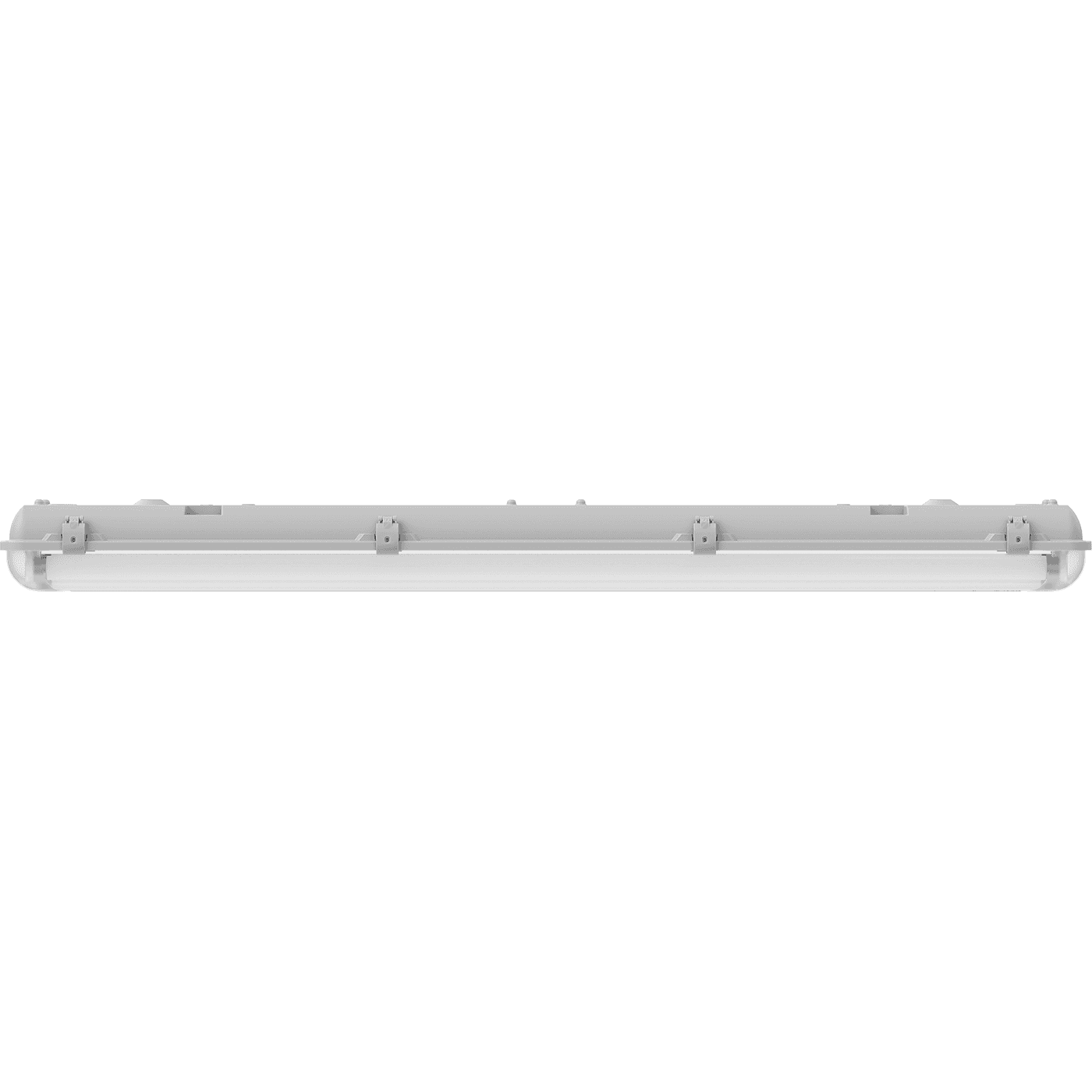

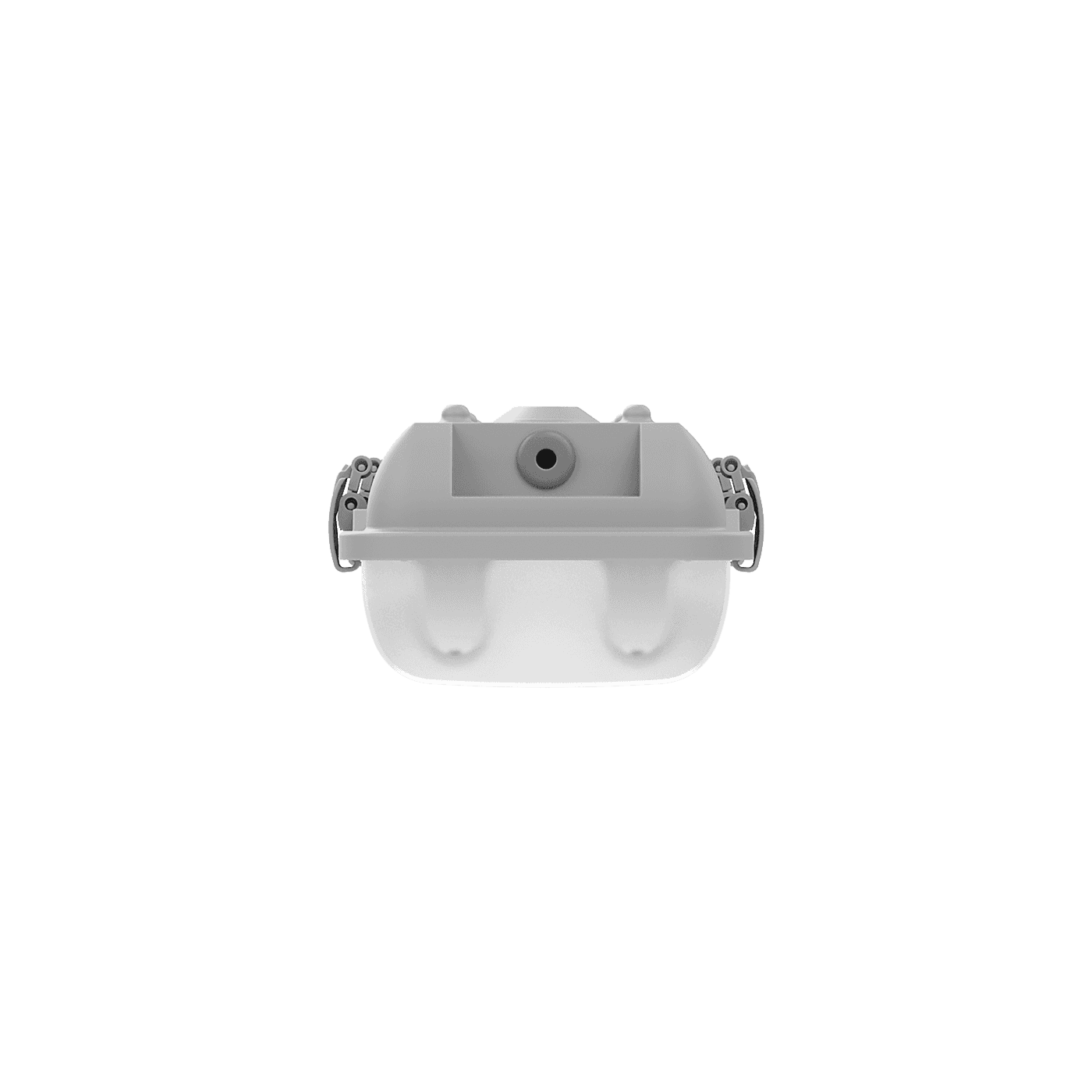

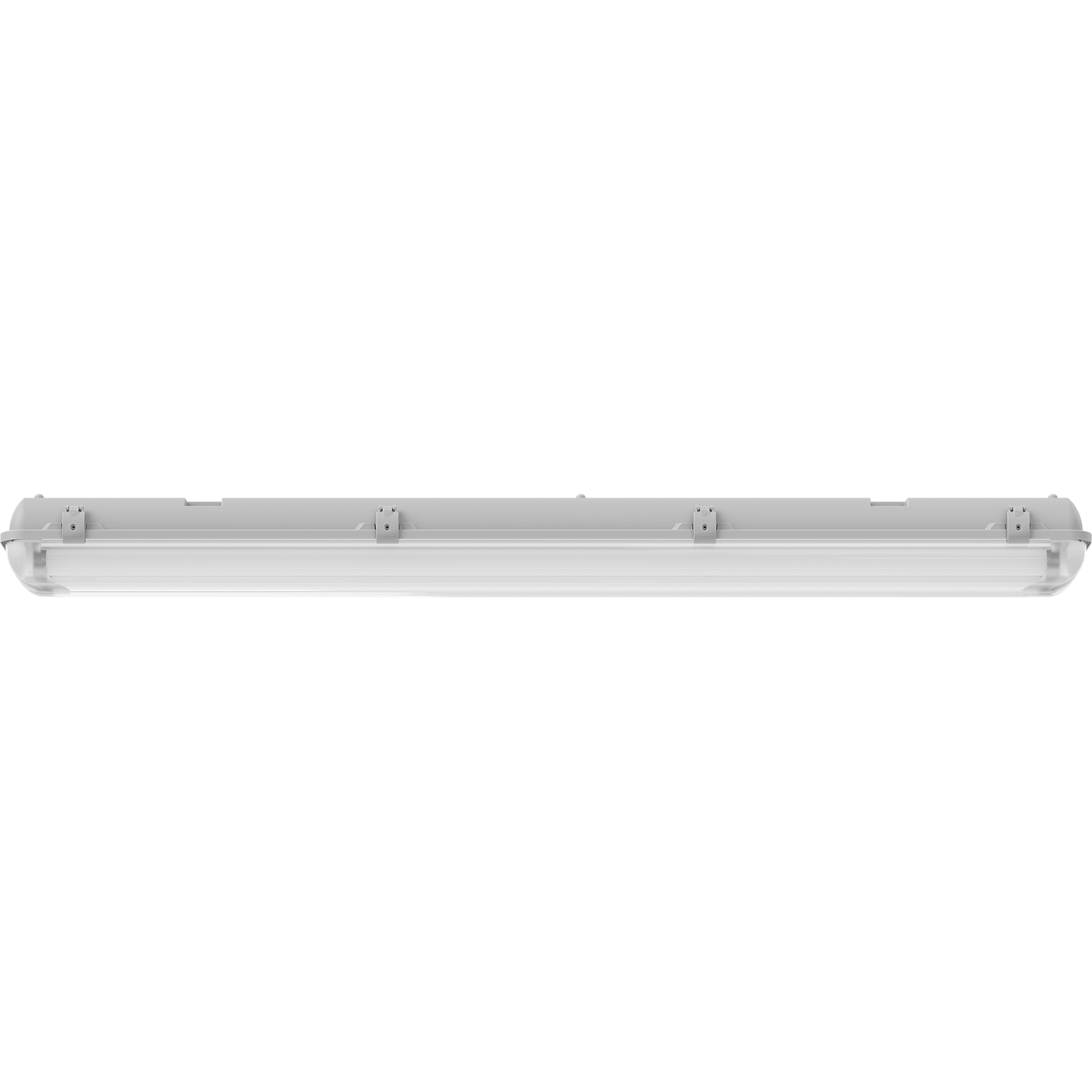

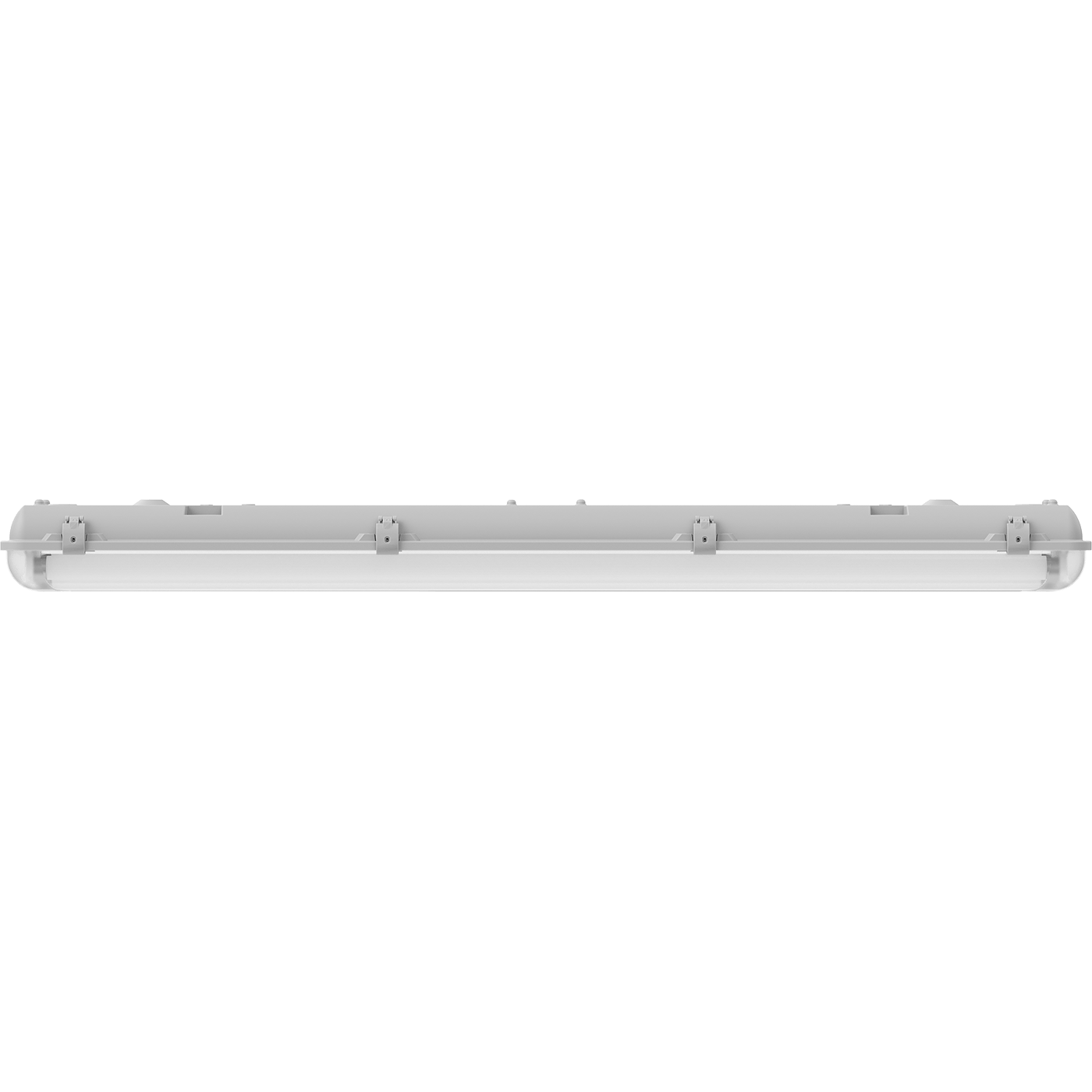

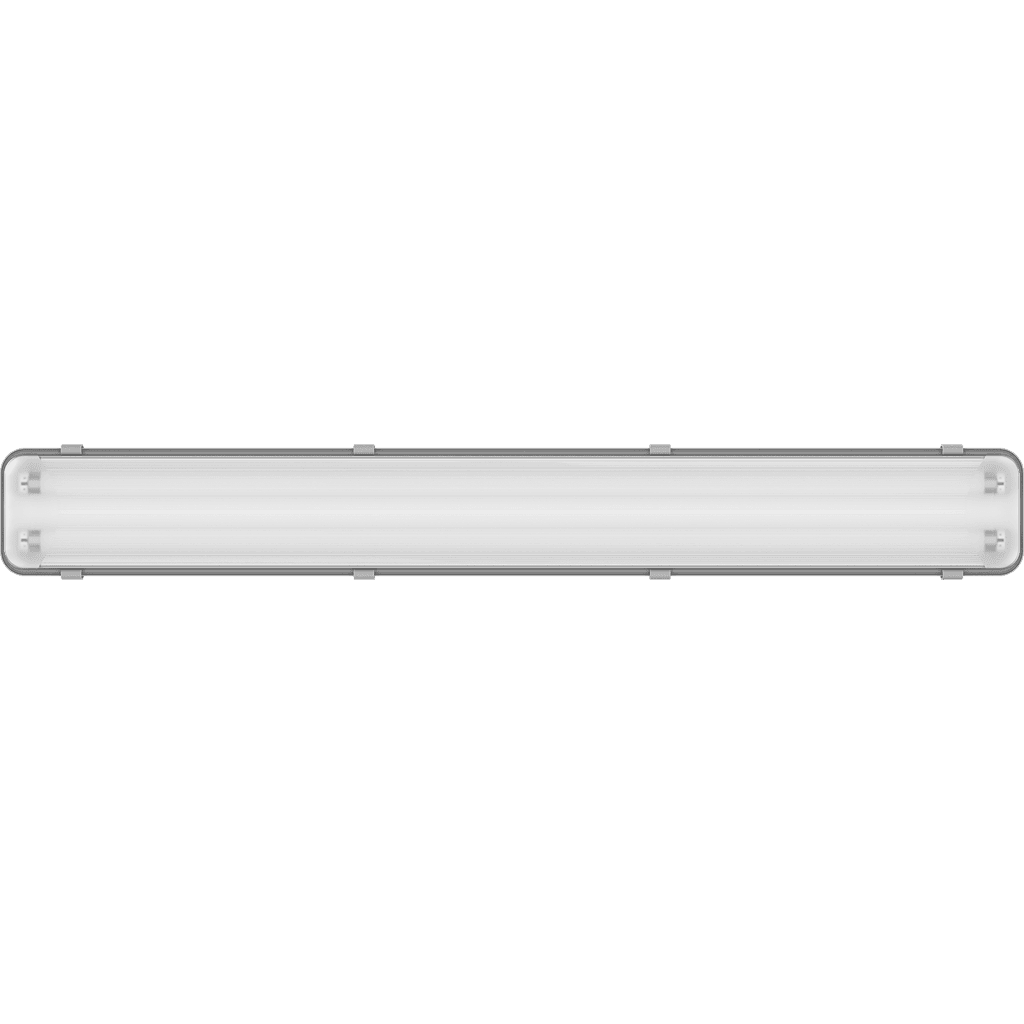

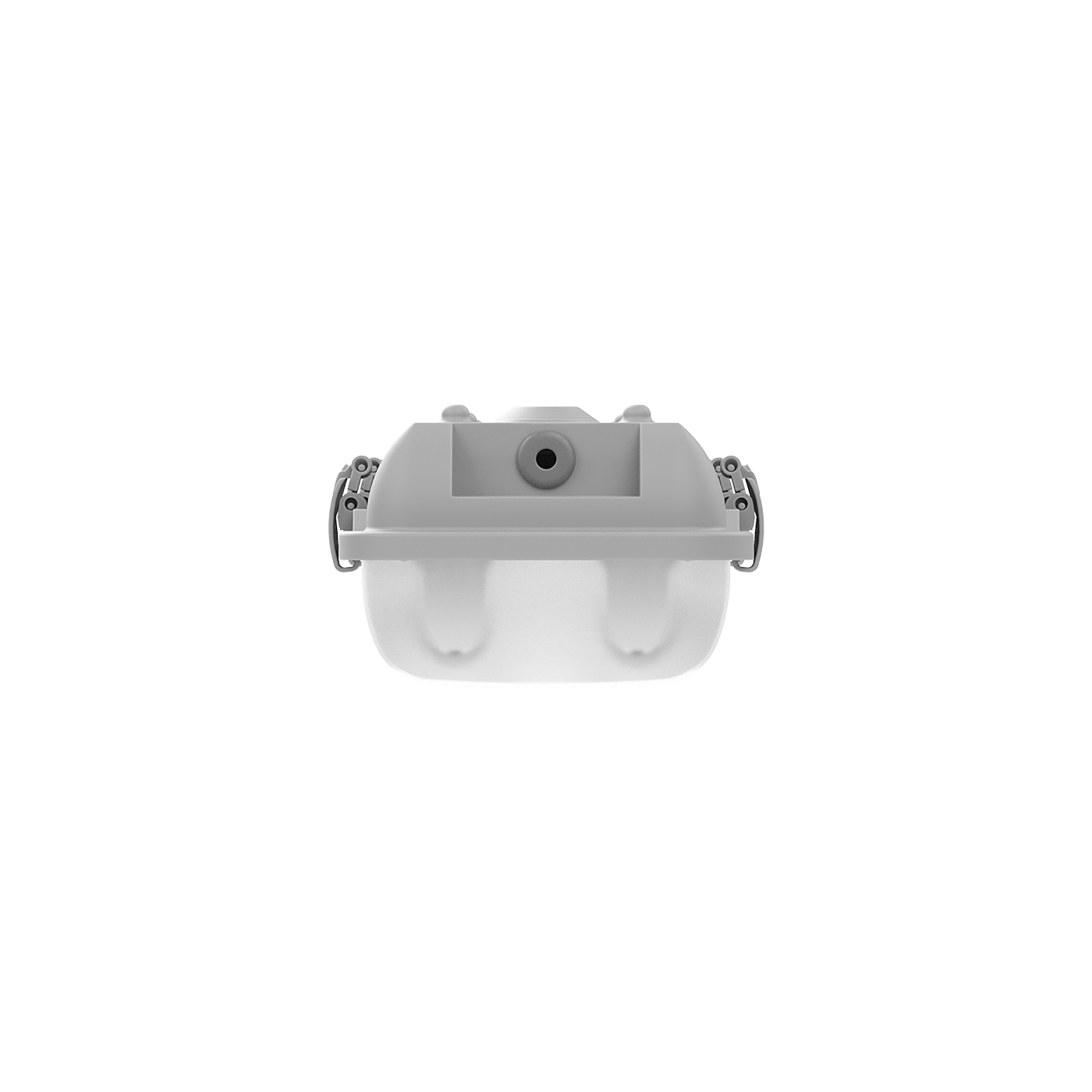

ARCTIC 236 (SAN/SMC) HF
_hf.jpg&w=1920&q=50)
_hf.jpg&w=1024&q=50)
ARCTIC 236 (SAN/SMC) HF
72 Wluminaire power
3250 lmlight flow
58 lm/Wenergy efficiency
code1069002410
weight3 kg
options
свернуть все
electricalconstructionalcommonilluminating
rated supply voltage, alternating current
230 Vsupply voltage, alternating current
230-240 Vluminaire power
72 Welectric shock protection
Ipower factor
> 0,90supply voltage
230 Velectrical
rated supply voltage, alternating current
230 V
supply voltage, alternating current
230-240 V
luminaire power
72 W
electric shock protection
I
power factor
> 0,90
supply voltage
230 V
constructional
ingress protection (IP)
IP65
fire safety class
П-ІІ
material
Пластик
weight
3 kg
housing color
Белый
climatic performance
УХЛ2*
maximum cross-section of the connected cable, sq. mm
2.5
length, mm
1278 mm
width, mm
170 mm
height, mm
110 mm
shock resistance (IK)
IK02/0,2 Дж
lamp socket
G13
number of lamps
2
ballast
ЭПРА
installation length, mm
932 mm
common
ETIM class
Настенно-потолочный светильник
warranty
60 month
temperature range
от -20 до +40 C
energy efficiency class
A
service life, hour
24 000 h
code
1069002410
illuminating
light flow
3250 lm
light source type
ЛЛ
emission color
Белый
flickering factor
<5%
energy efficiency
58 lm/W
model files
model files
CAD/BIM files
photometric files
documents
сертификаты
CAD/BIM files
CAD model 3DS1.4 mB
model 3dMax2 mB

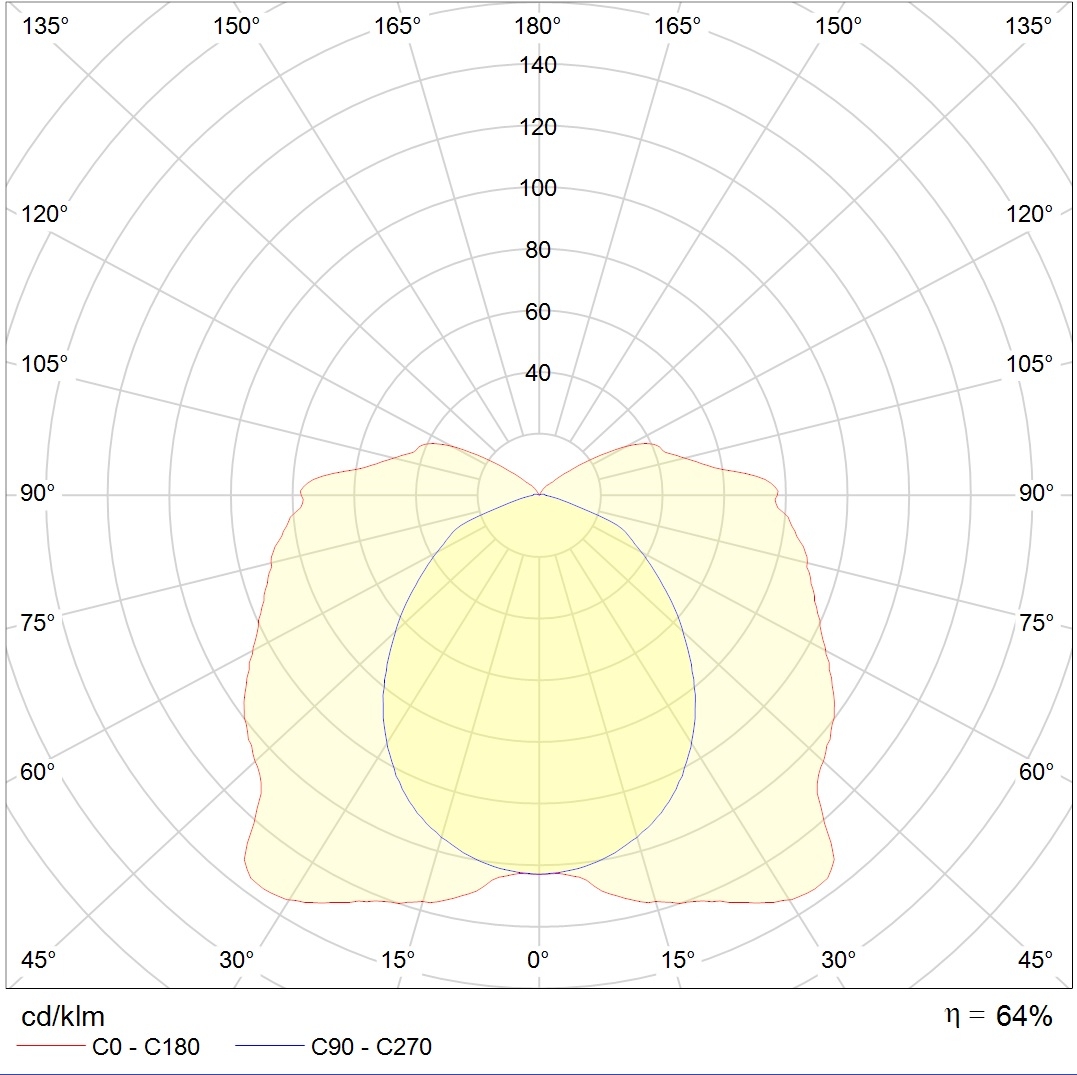

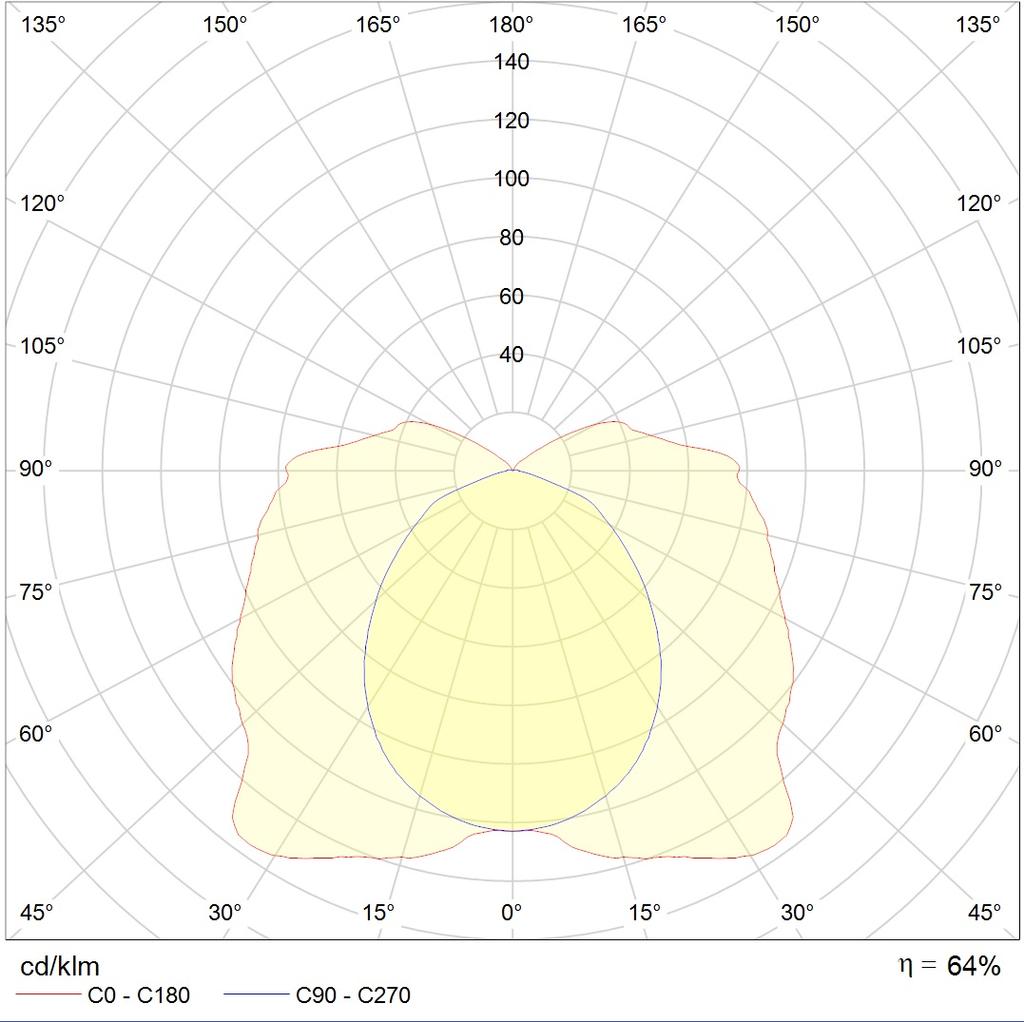

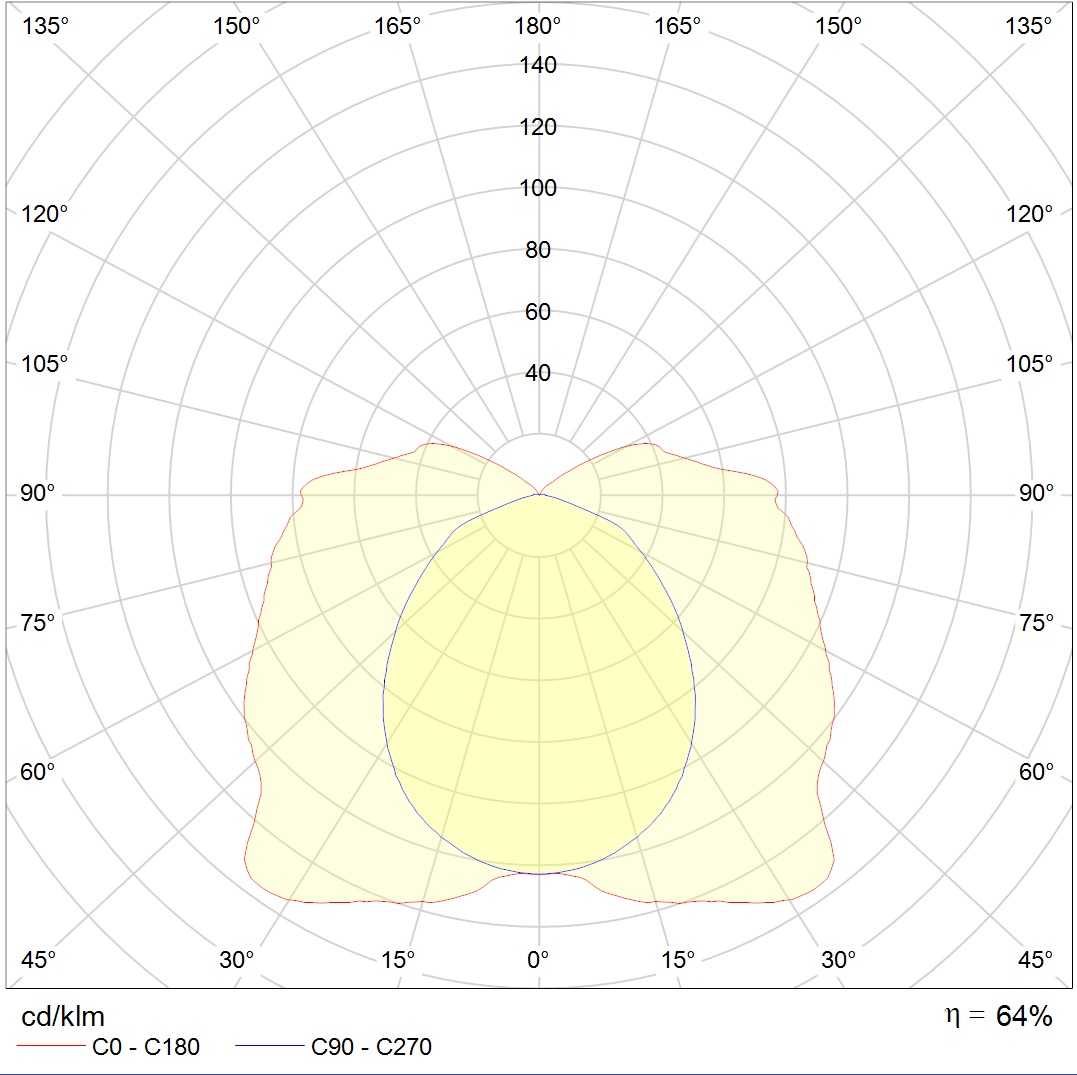

photometric files
ies134.1 kB
jpg184.1 kB
ldt85 kB
documents
passport1.6 mB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20113.2 mB
Declaration of Conformity EAEU TR 037/2016588 kB
Fire Safety Certificate2.5 mB
accessories
Cable mounting kit Arctic /2/0.01kgarticle: 2069000010
