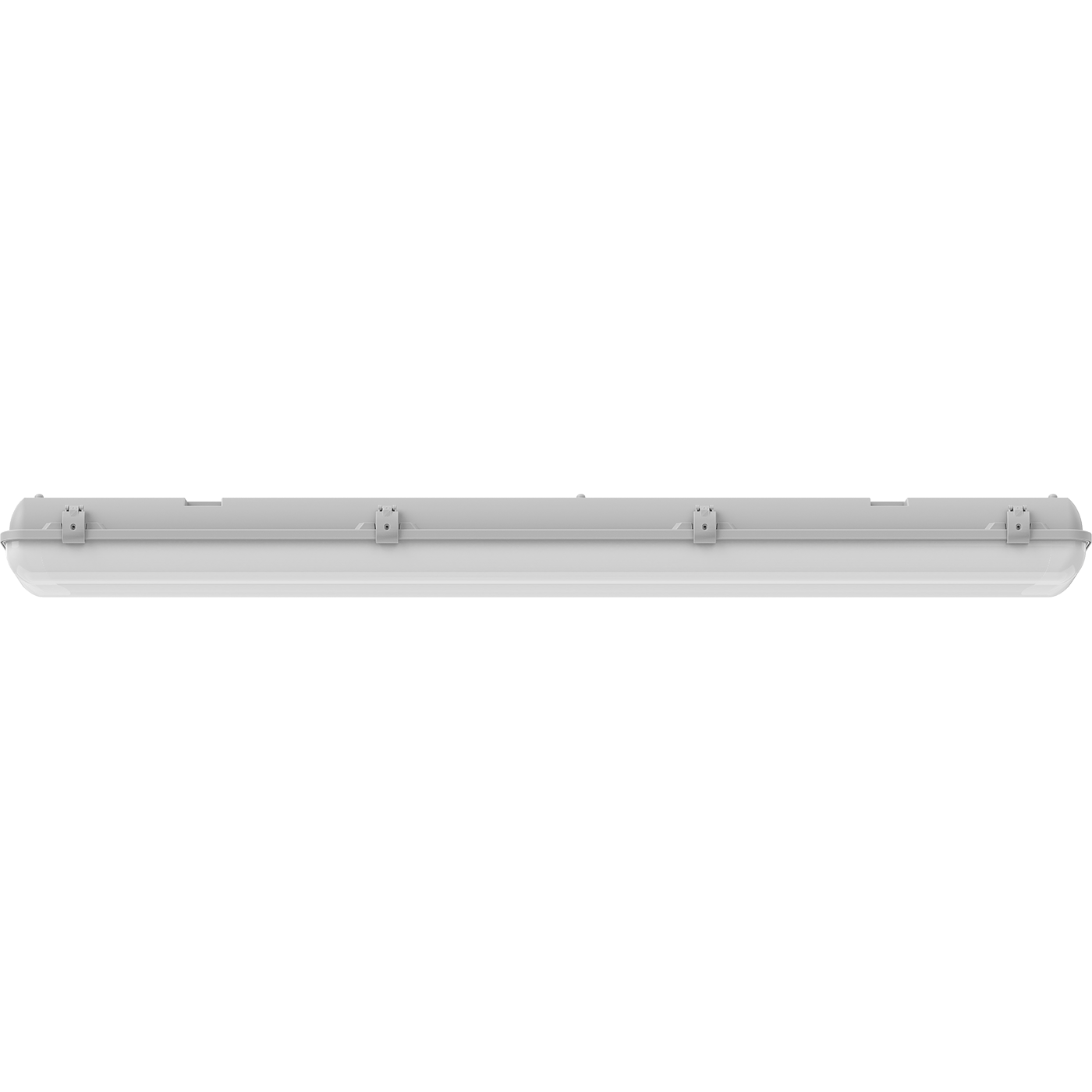

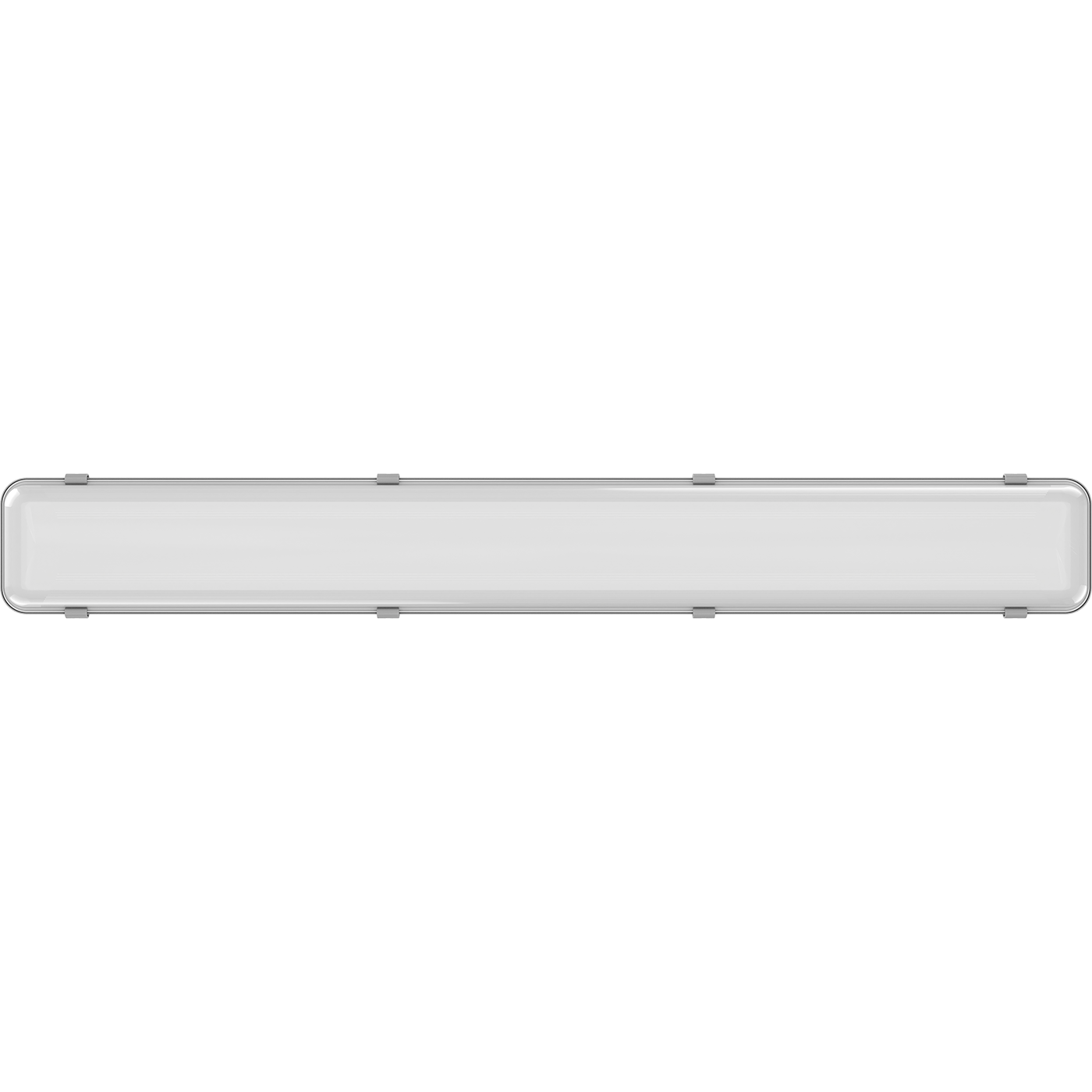

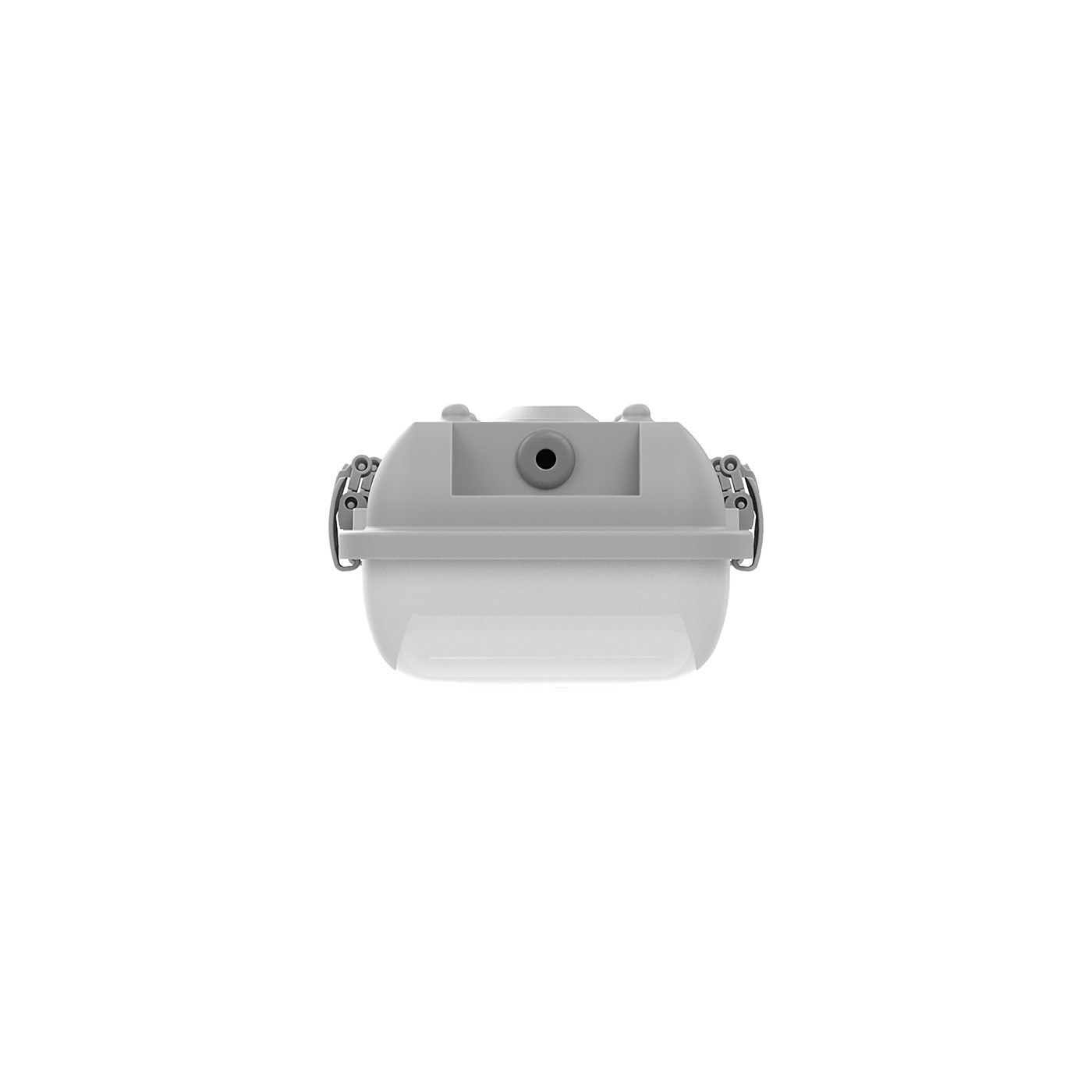

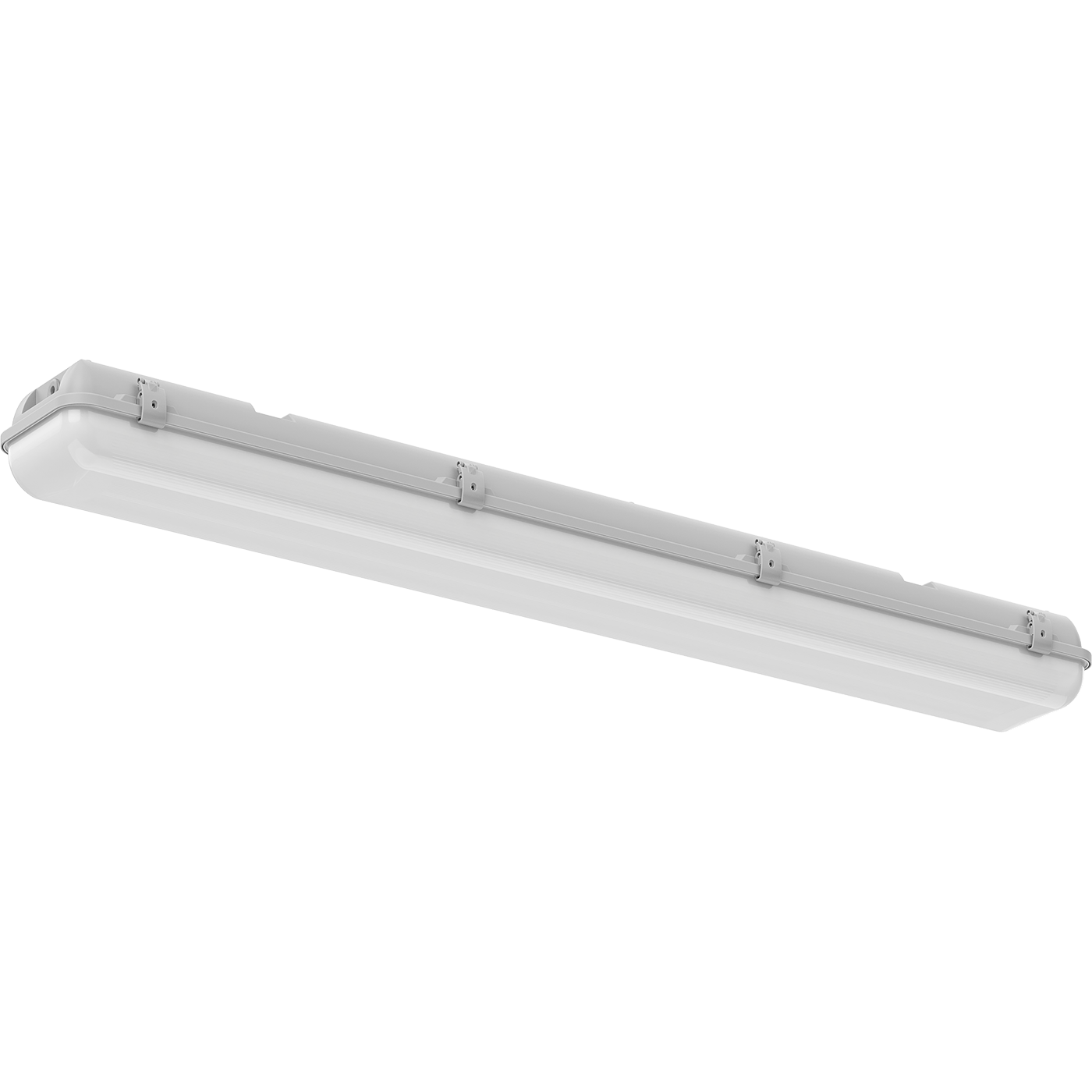

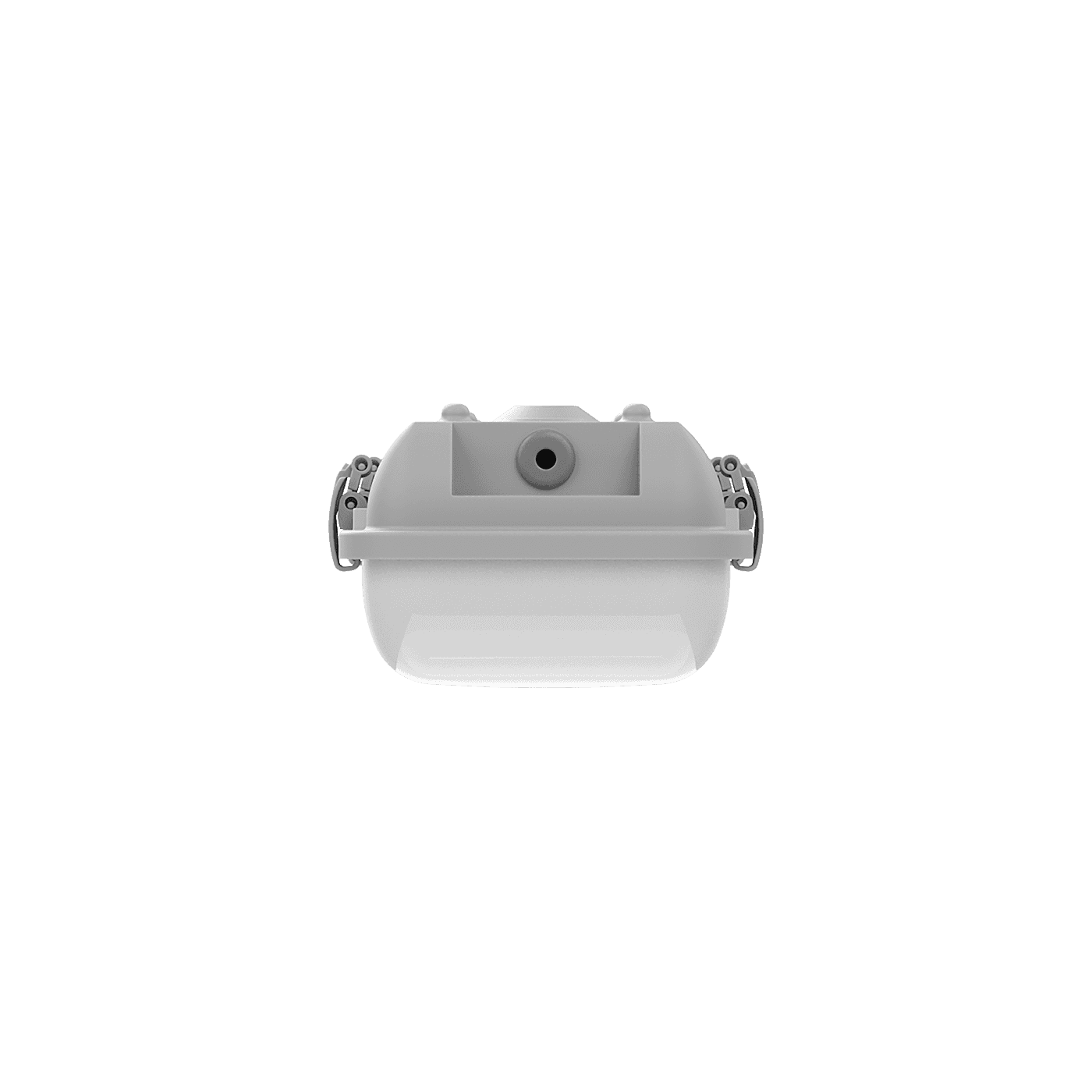

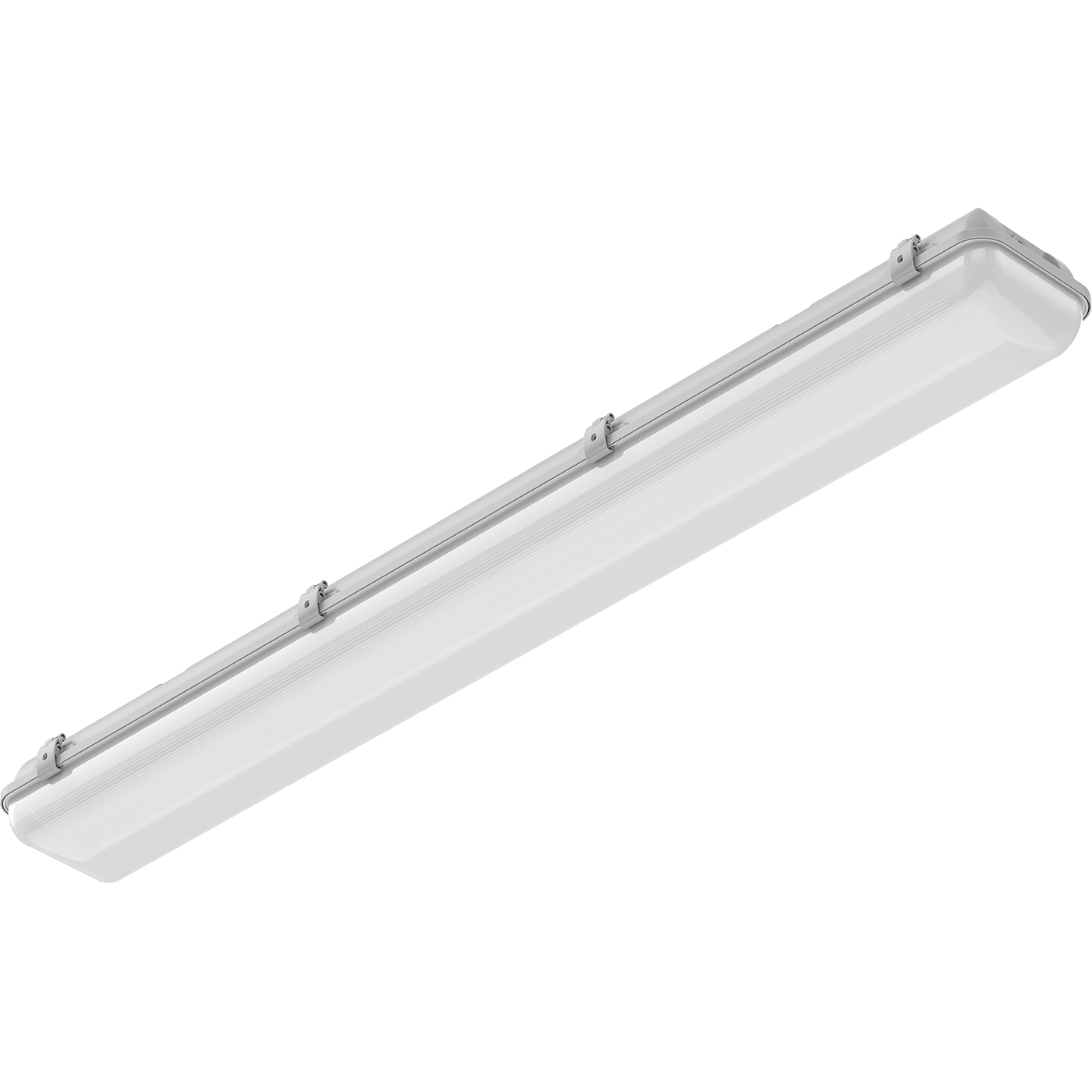

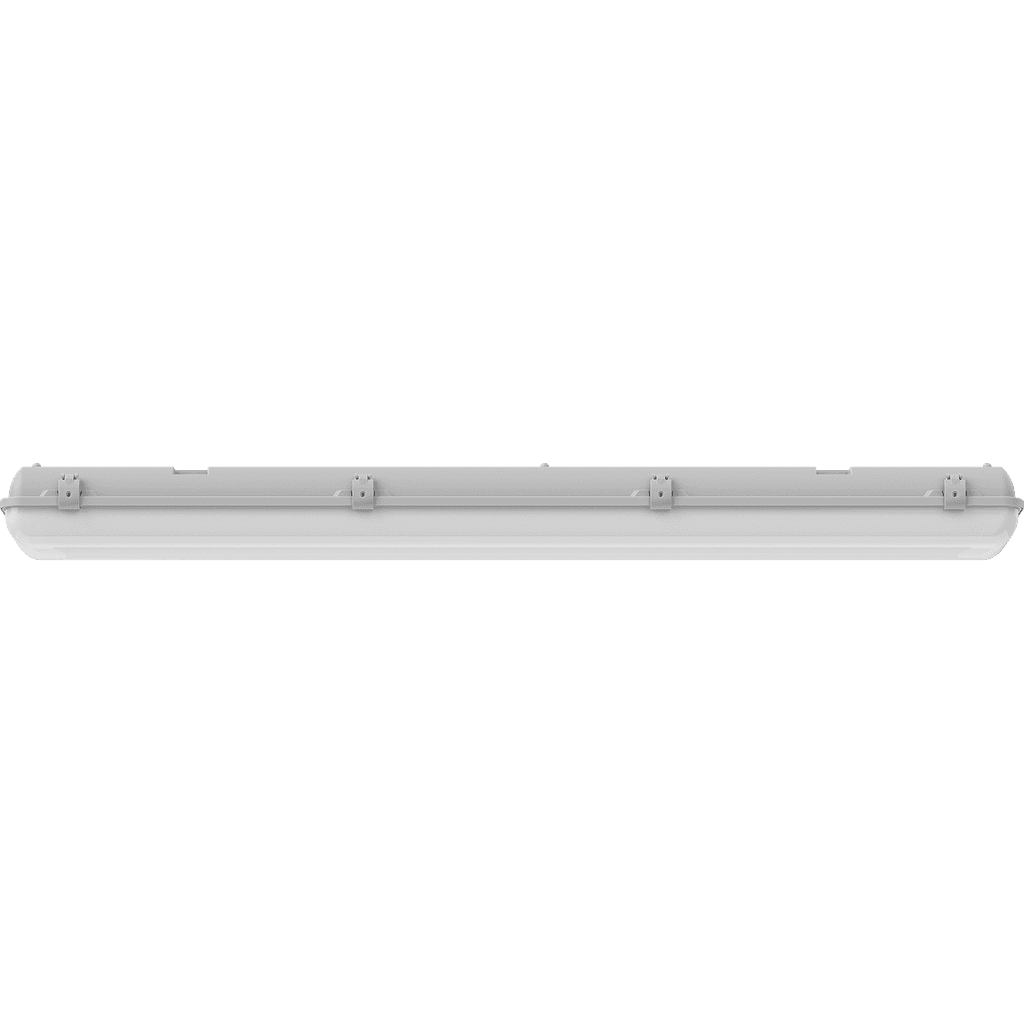

ARCTIC.OPL ECO LED 600 EM3 5000K
ARCTIC.OPL ECO LED 600 EM3 5000K
26 Wluminaire power
3000 lmlight flow
115 lm/Wenergy efficiency
code1088000720
color temperature5000
beam angleD120
weight2.5 kg
options
свернуть все
illuminatingelectricalconstructionalemergencycommon
color rendition index (CRI)
>80light flow
3000 lmflickering factor
<1%energy efficiency
115 lm/Wbeam angle
D120color temperature
5000light source type
LEDemission color
Белыйilluminating
color rendition index (CRI)
>80
light flow
3000 lm
flickering factor
<1%
energy efficiency
115 lm/W
beam angle
D120
color temperature
5000
light source type
LED
emission color
Белый
electrical
power factor
> 0,95
luminaire power
26 W
electric shock protection
II
maximum cross-section of the connected cable, sq. mm
2.5
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
starting current
25 A
supply voltage
230 V
starting current pulse time, µs
250 mks
constructional
shock resistance (IK)
IK08/5 Дж
climatic performance
УХЛ2*
fire safety class
П-ІІ
material
Пластик
housing color
Серый
lamp socket
LED
number of lamps
1
ballast
Драйвер
ingress protection (IP)
IP65
weight
2.5 kg
length, mm
671 mm
width, mm
170 mm
height, mm
110 mm
installation length, mm
445 mm
emergency
luminous flux in emergency mode
250 lm
operating time in emergency mode, hours
3 h
common
ETIM class
Настенно-потолочный светильник
warranty
60 month
energy efficiency class
A+
service life, hour
50 000 h
temperature range
от 0 до +40 C
code
1088000720
model files
model files

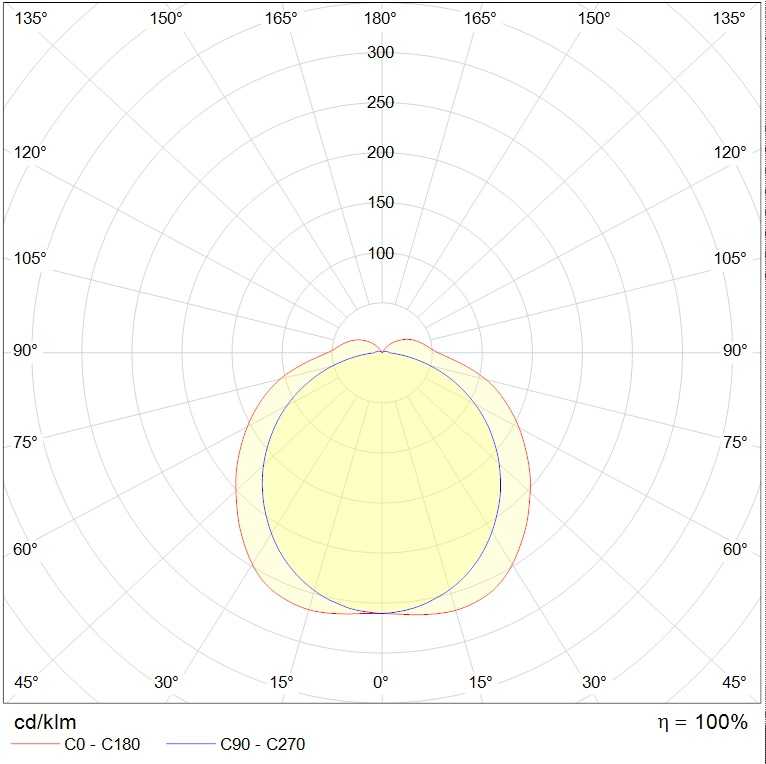

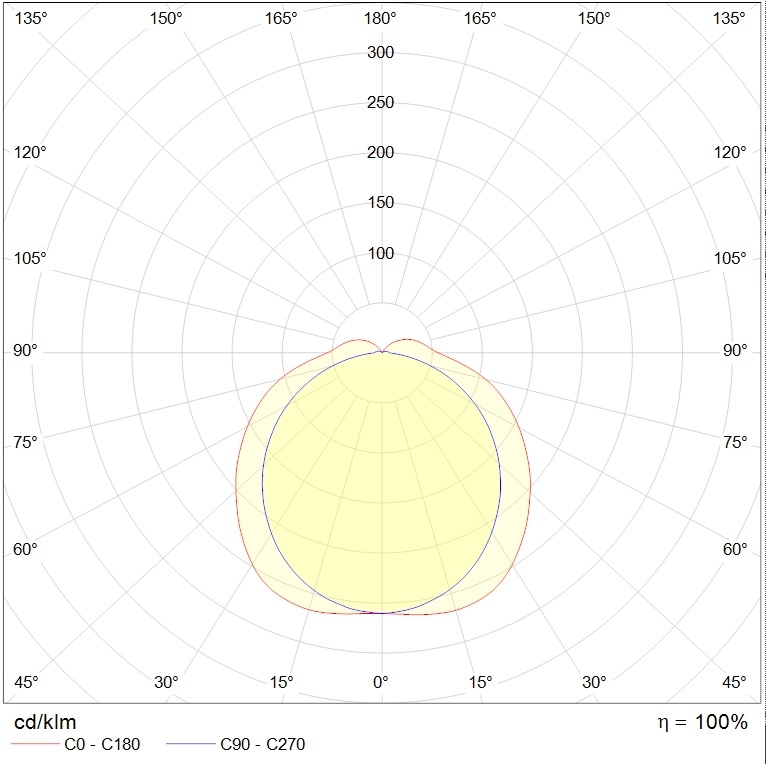

photometric files
documents
сертификаты
photometric files
ies107.1 kB
jpg105.4 kB
ldt86.2 kB
csv419 B
documents
passport2.3 mB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20113.2 mB
Declaration of Conformity EAEU TR 037/2016658.3 kB
Fire Safety Certificate2.5 mB
accessories
Cable mounting kit Arctic /2/0.01kgarticle: 2069000010
ARCTIC.OPL ECO LED Pipe mounting kit0.6kgarticle: 2069000740
