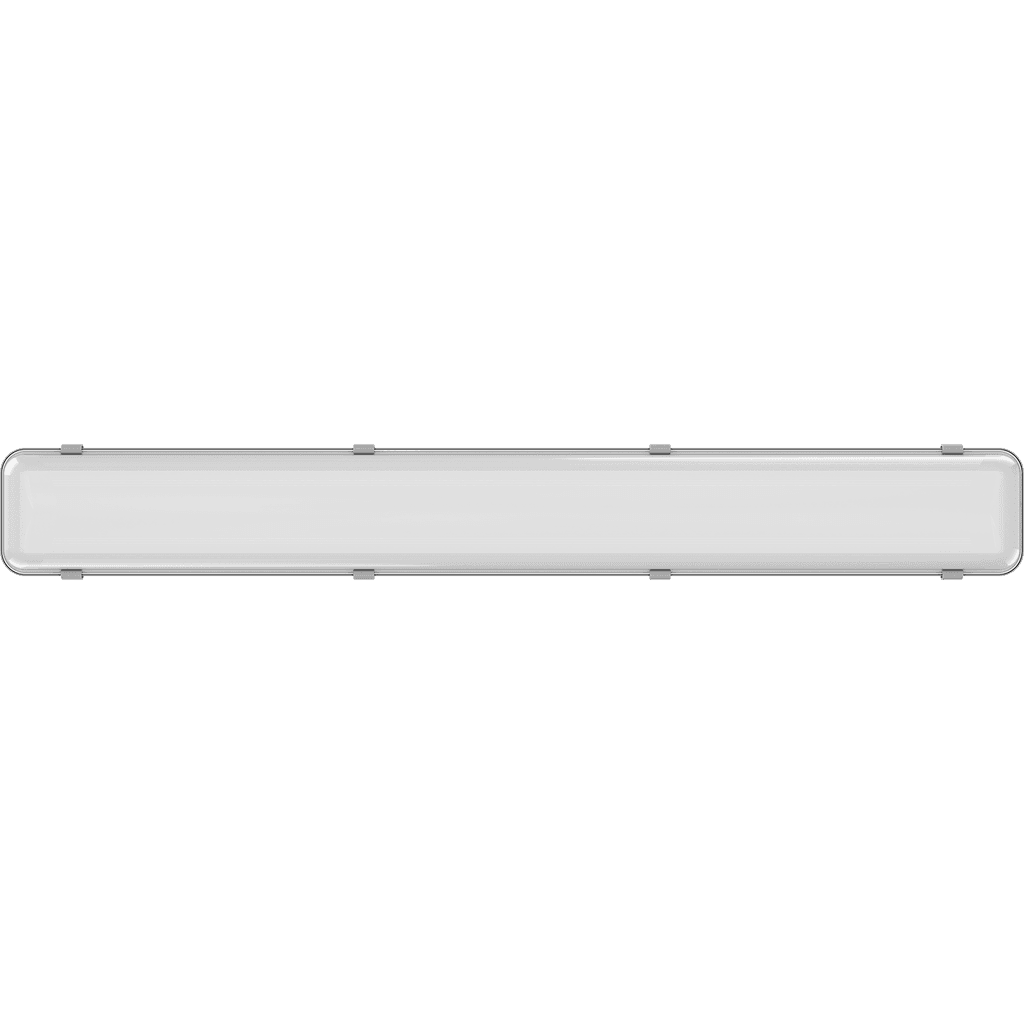

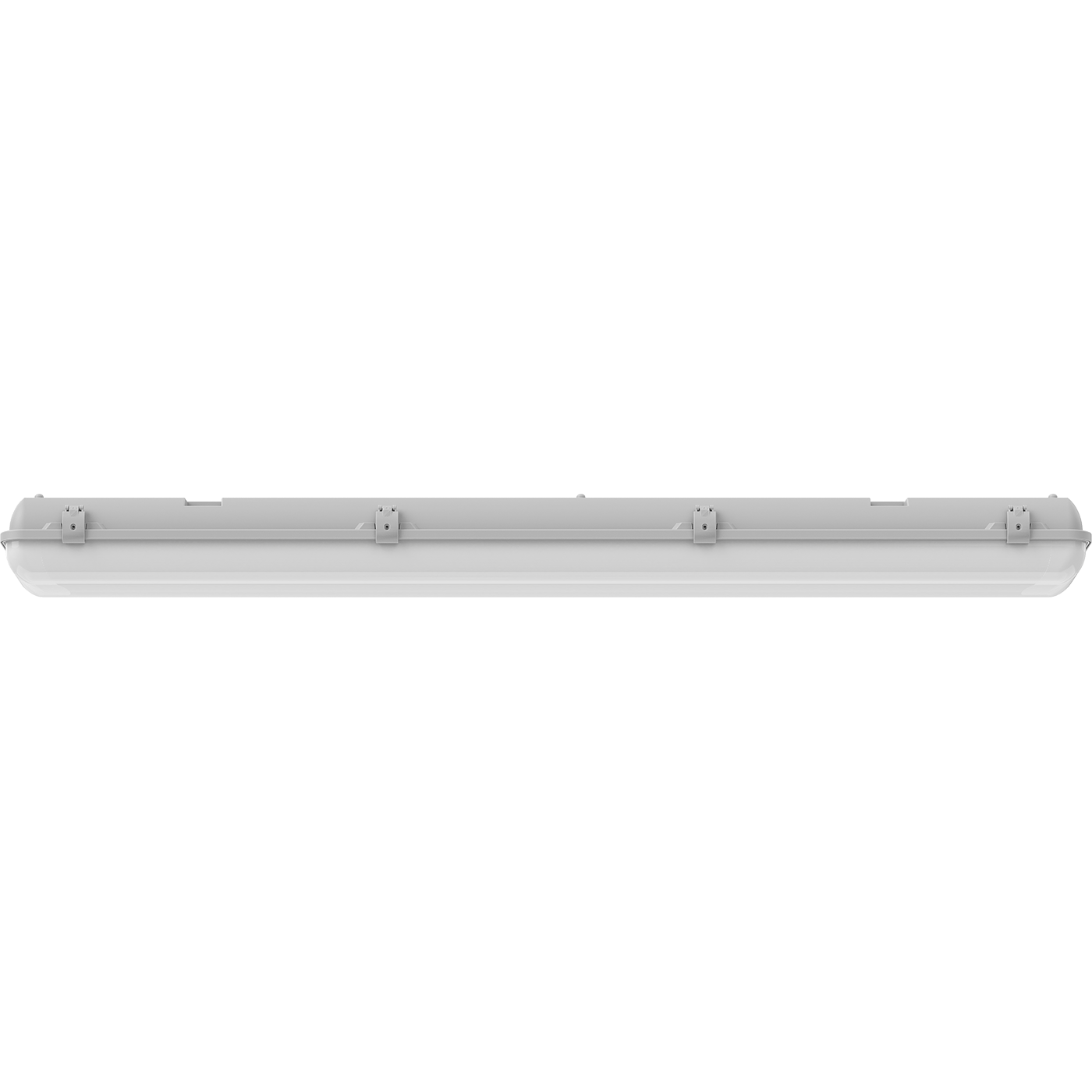

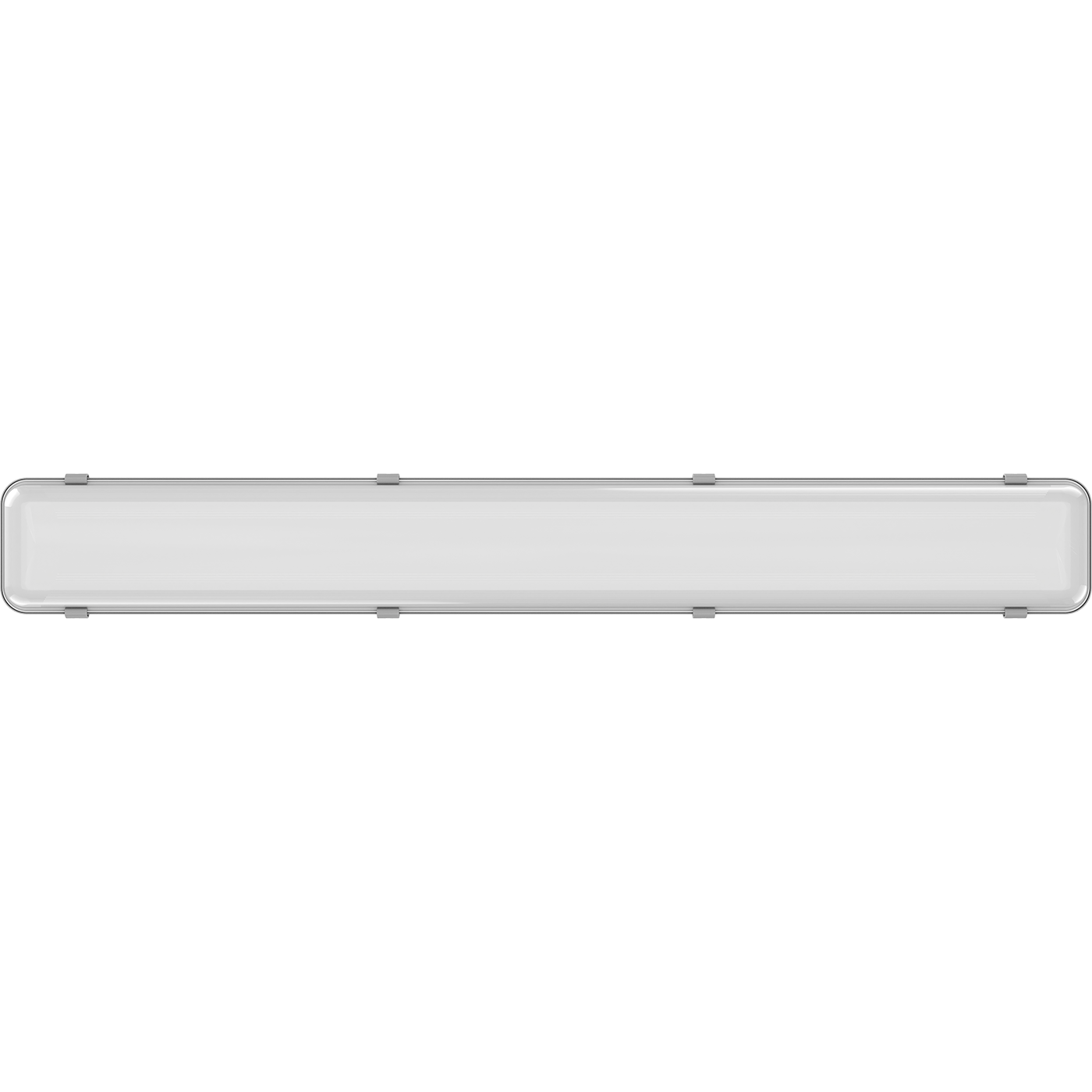

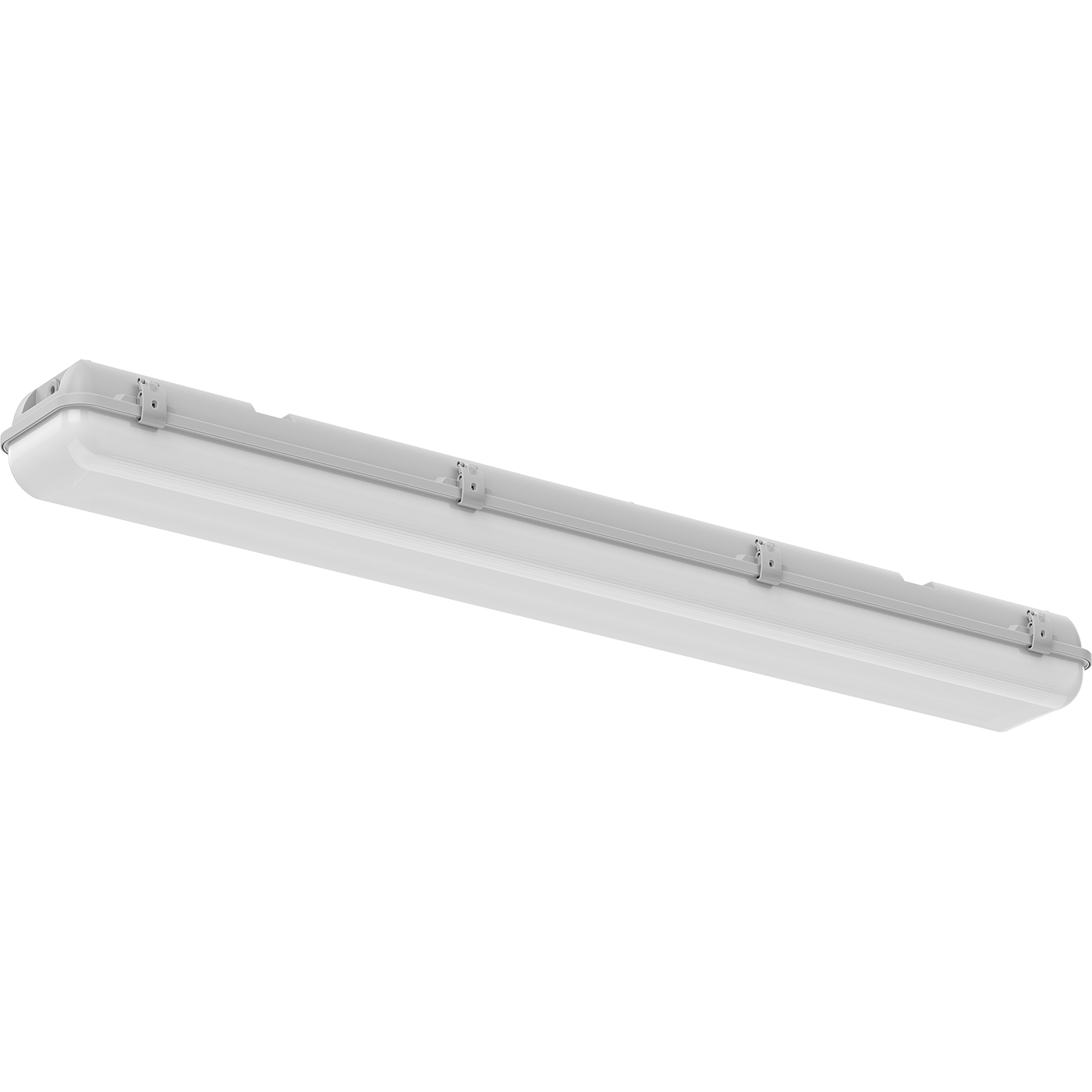

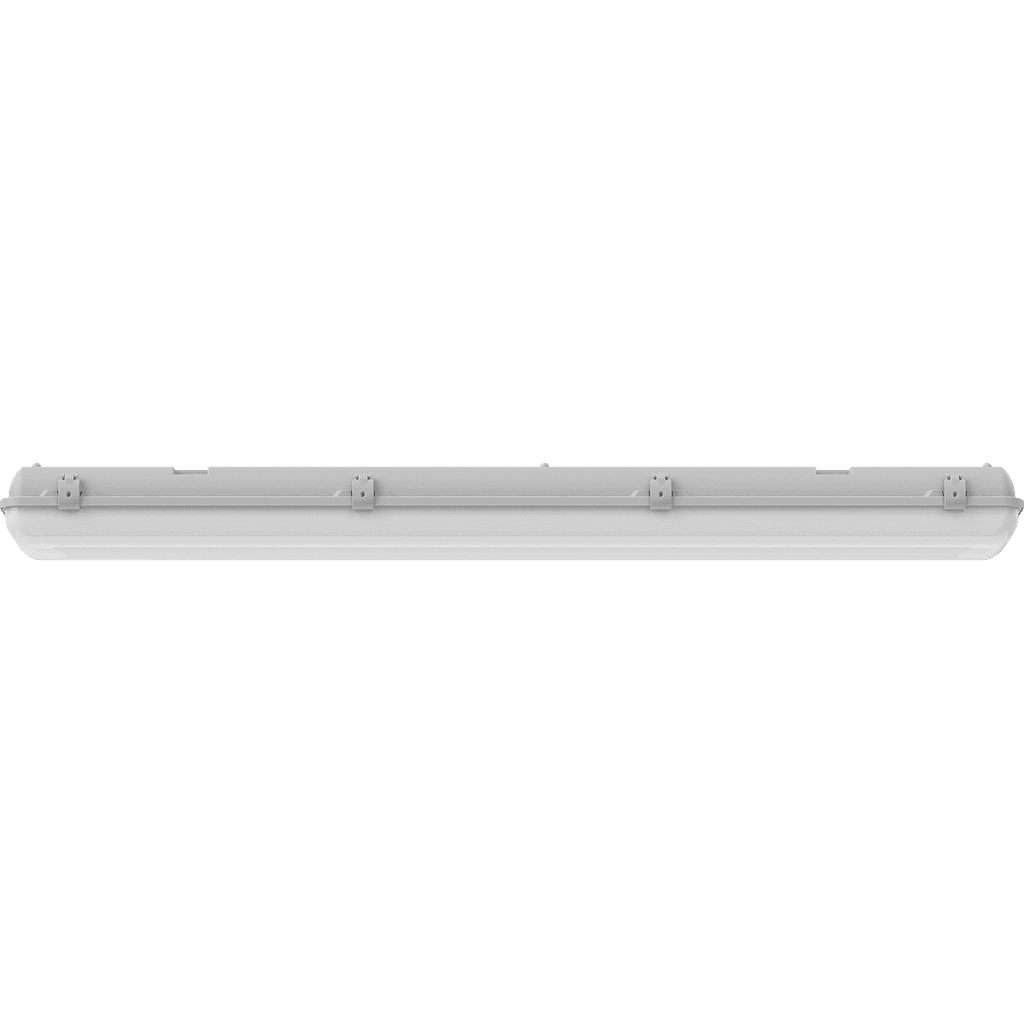

ARCTIC.OPL ECO LED 1500 EM 4000K
ARCTIC.OPL ECO LED 1500 EM 4000K
60 Wluminaire power
7600 lmlight flow
127 lm/Wenergy efficiency
code1088000350
color temperature4000 K
beam angleD120
weight4.3 kg
options
свернуть все
illuminatingelectricalconstructionalemergencycommon
color rendition index (CRI)
>80light flow
7600 lmflickering factor
<1%energy efficiency
127 lm/Wbeam angle
D120color temperature
4000 Klight source type
LEDemission color
Белыйilluminating
color rendition index (CRI)
>80
light flow
7600 lm
flickering factor
<1%
energy efficiency
127 lm/W
beam angle
D120
color temperature
4000 K
light source type
LED
emission color
Белый
electrical
power factor
> 0,96
luminaire power
60 W
electric shock protection
II
maximum cross-section of the connected cable
2.5 mm2
rated supply voltage, alternating current
230 V
rated supply voltage
230 V
starting current
30 A
supply voltage
230 V
starting current pulse time
250 µs
constructional
shock resistance (IK)
IK08/5 Дж
climatic performance
УХЛ2*
fire safety class
П-ІІ
material
Пластик
housing color
Серый
lamp socket
LED
number of lamps
1
ballast
Драйвер
ingress protection (IP)
IP65
weight
4.3 kg
length
1578 mm
width
170 mm
height
110 mm
installation length
1234 mm
emergency
luminous flux in emergency mode
600 lm
operating time in emergency mode
1 h
common
ETIM class
Настенно-потолочный светильник
warranty
60 month
energy efficiency class
A+
service life
50 000 h
temperature range
от -40 до +40 C
code
1088000350
model files
model files
CAD/BIM files
photometric files
documents
сертификаты
CAD/BIM files
model 3dMax2 mB
photometric files
ies134.1 kB
jpg171.6 kB
ldt112.1 kB
csv419 B
documents
passport2.3 mB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20113.2 mB
Declaration of Conformity EAEU TR 037/2016658.3 kB
Fire Safety Certificate2.5 mB
accessories
Cable mounting kit Arctic /2/0.01kgarticle: 2069000010
ARCTIC.OPL ECO LED Pipe mounting kit0.6kgarticle: 2069000740
