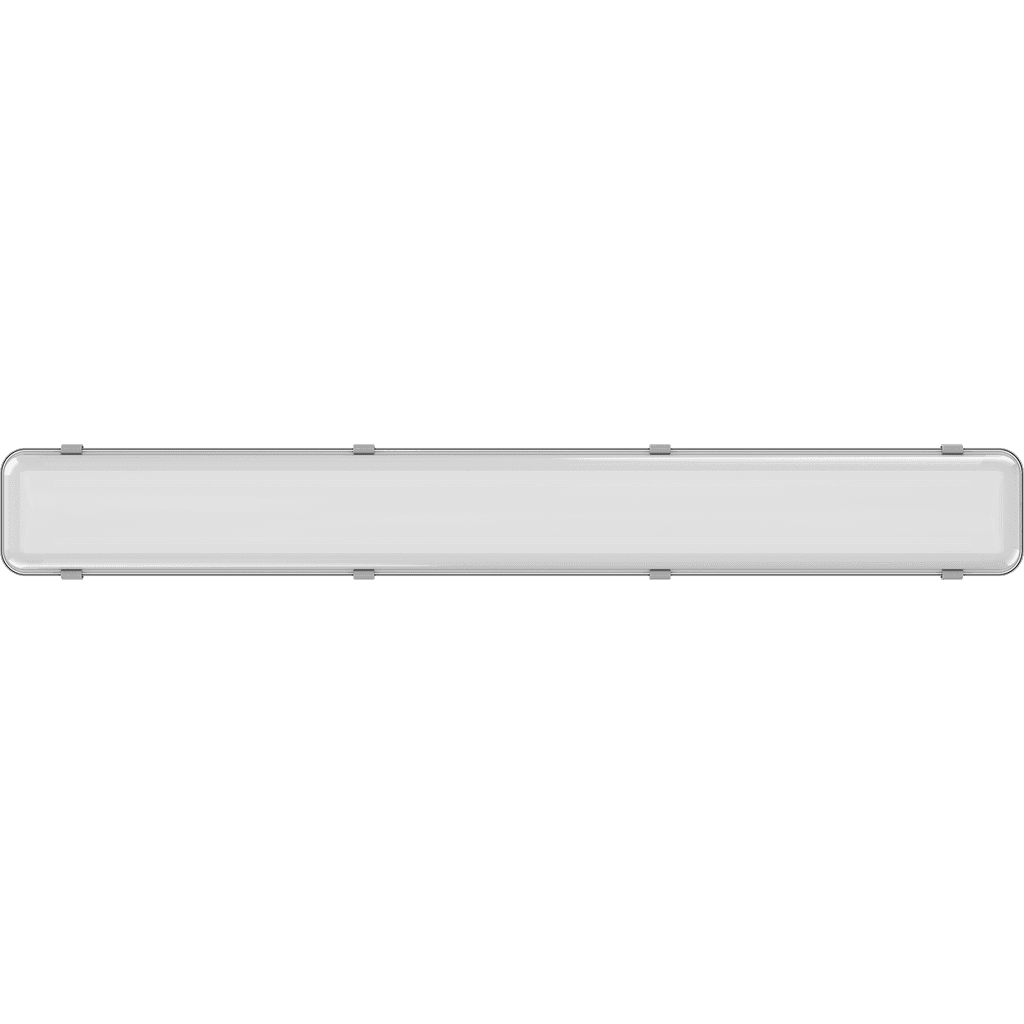

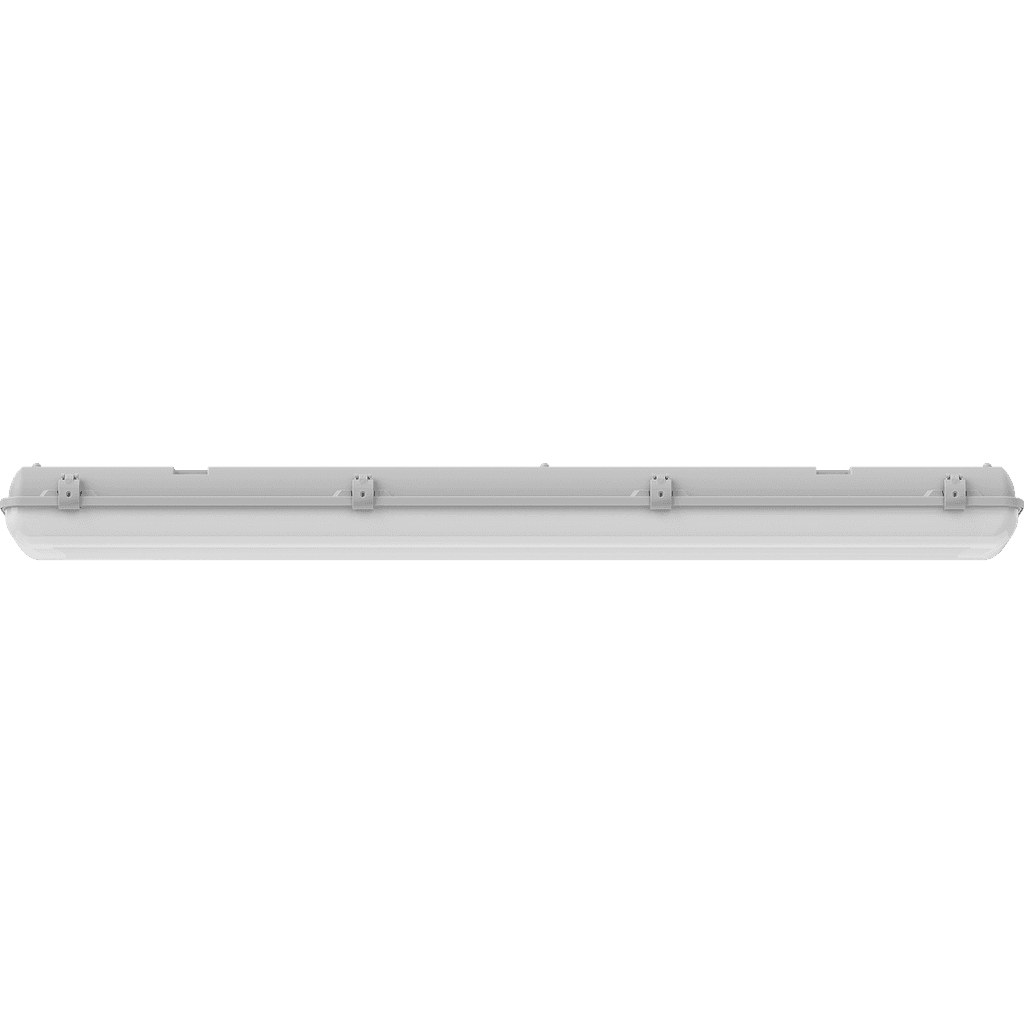

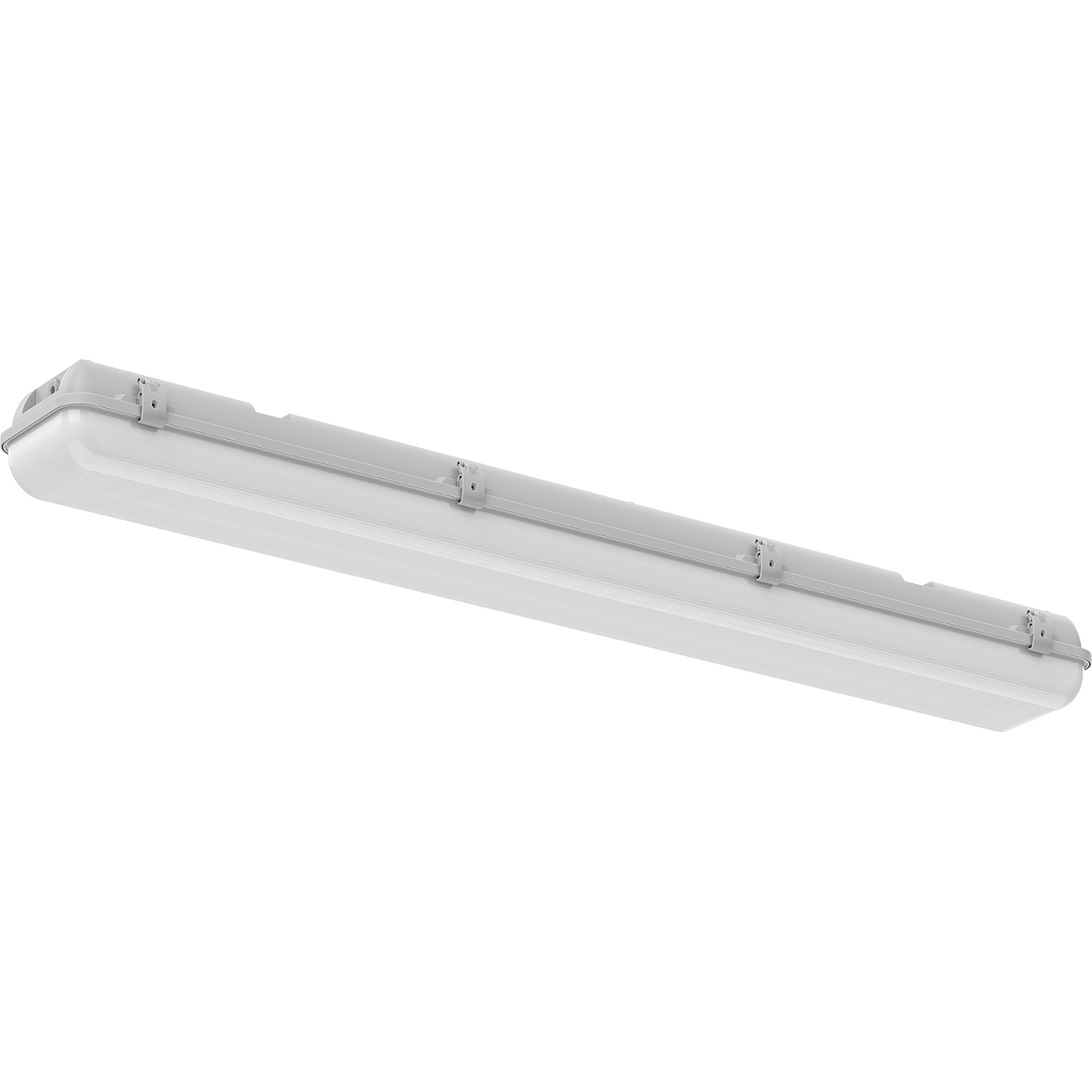

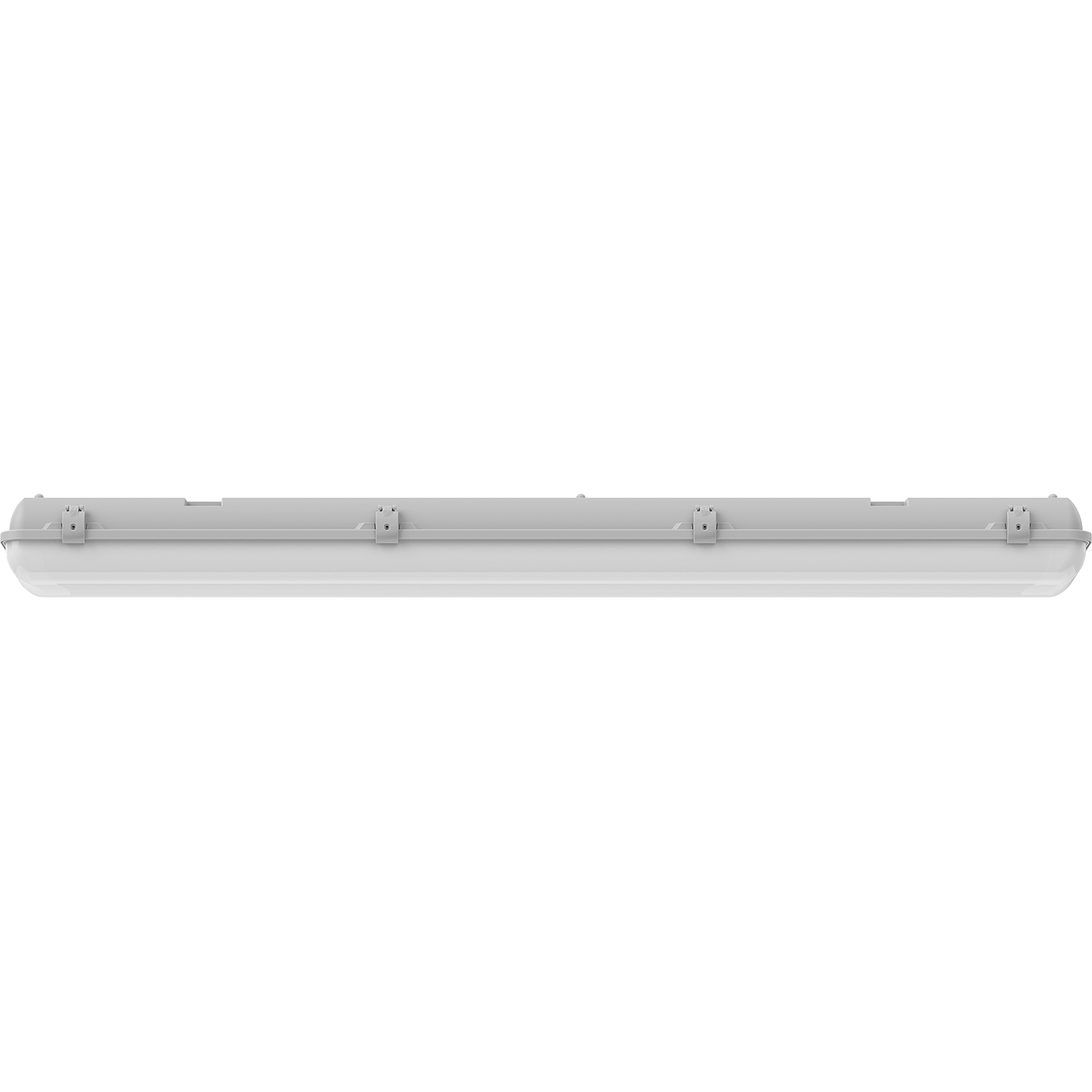

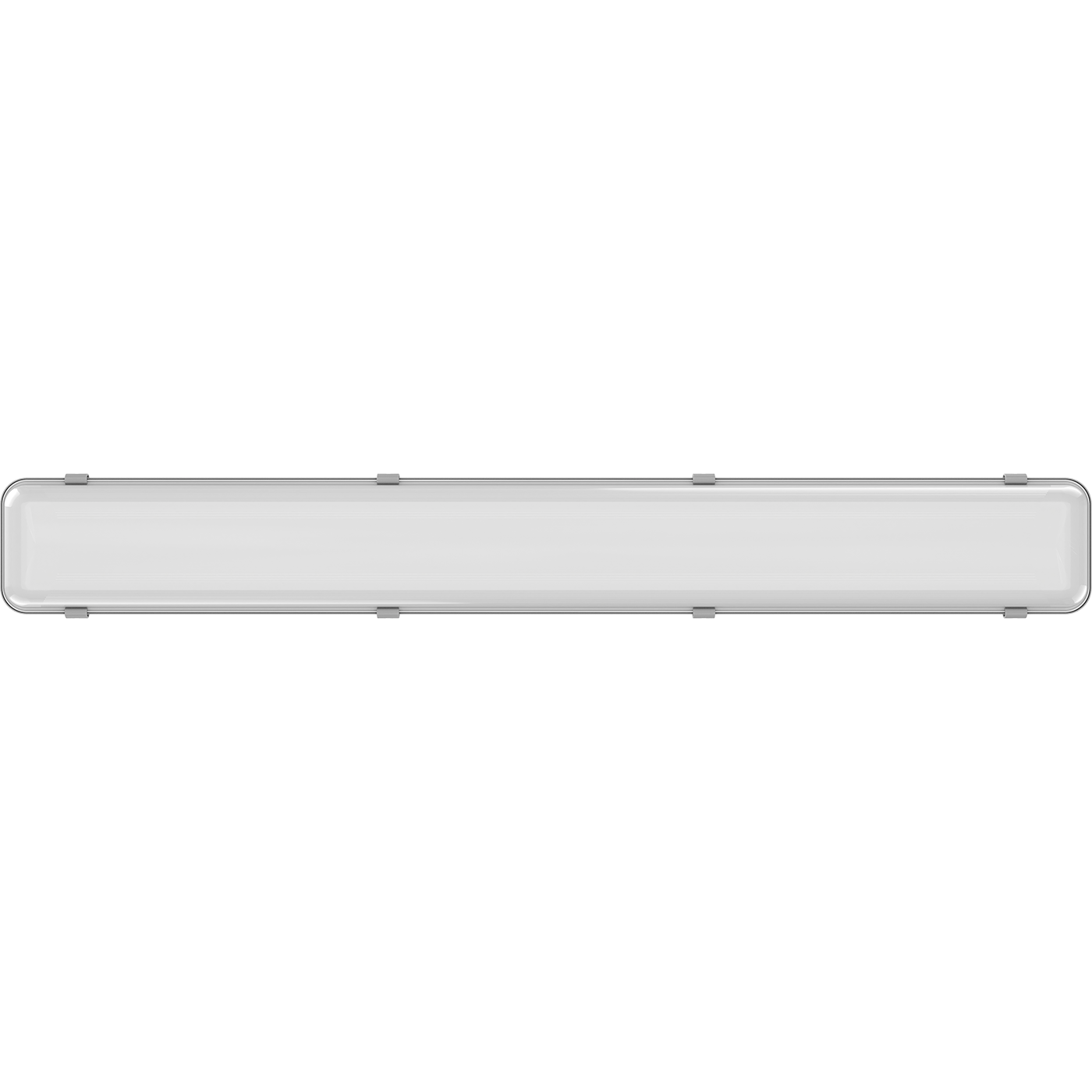

ARCTIC.OPL ECO LED (1500) 60W 950 GY through wiring
ARCTIC.OPL ECO LED (1500) 60W 950 GY through wiring
60 Wluminaire power
7000 lmlight flow
117 lm/Wenergy efficiency
code1088002100
color temperature5000 K
beam angleD120
weight5.4 kg
options
свернуть все
illuminatingelectricalconstructionalcommon
color rendition index (CRI)
>90light flow
7000 lmflickering factor
<1%energy efficiency
117 lm/Wbeam angle
D120color temperature
5000 Klight source type
LEDemission color
Белыйilluminating
color rendition index (CRI)
>90
light flow
7000 lm
flickering factor
<1%
energy efficiency
117 lm/W
beam angle
D120
color temperature
5000 K
light source type
LED
emission color
Белый
electrical
power factor
> 0,96
luminaire power
60 W
electric shock protection
II
maximum cross-section of the connected cable
2.5 mm2
rated supply voltage, alternating current
230 V
rated supply voltage
230 V
starting current
30 A
supply voltage
230 V
starting current pulse time
250 µs
constructional
shock resistance (IK)
IK08/5 Дж
climatic performance
УХЛ2*
fire safety class
П-ІІ
material
Пластик
housing color
Серый
lamp socket
LED
number of lamps
1
ballast
Драйвер
ingress protection (IP)
IP65
weight
5.4 kg
length
1578 mm
width
170 mm
height
110 mm
installation length
1234 mm
common
ETIM class
Настенно-потолочный светильник
warranty
60 month
energy efficiency class
A+
service life
50 000 h
temperature range
от -40 до +40 C
code
1088002100
model files
model files
photometric files
documents
сертификаты
photometric files
ies107.1 kB
jpg107.9 kB
ldt86.6 kB
documents
passport2.3 mB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20113.2 mB
Declaration of Conformity EAEU TR 037/2016658.3 kB
Fire Safety Certificate2.5 mB
