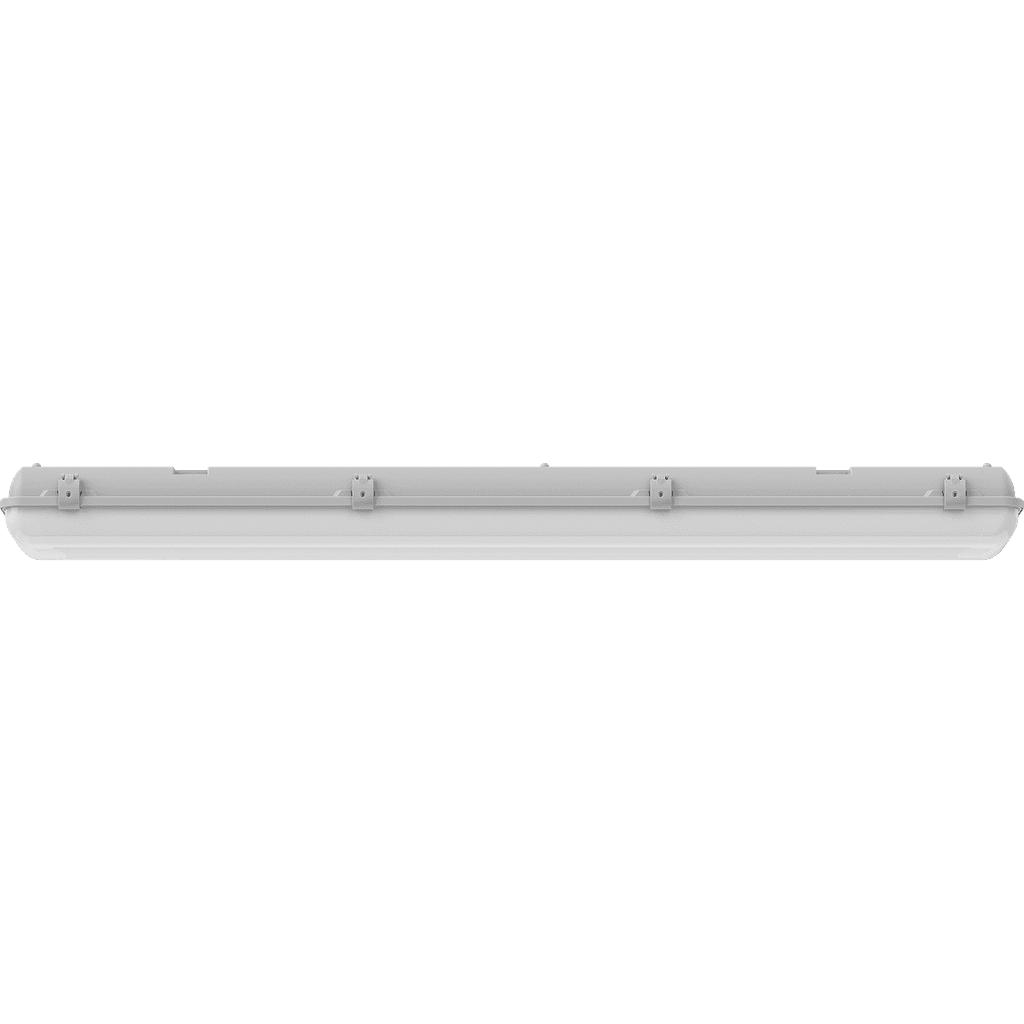

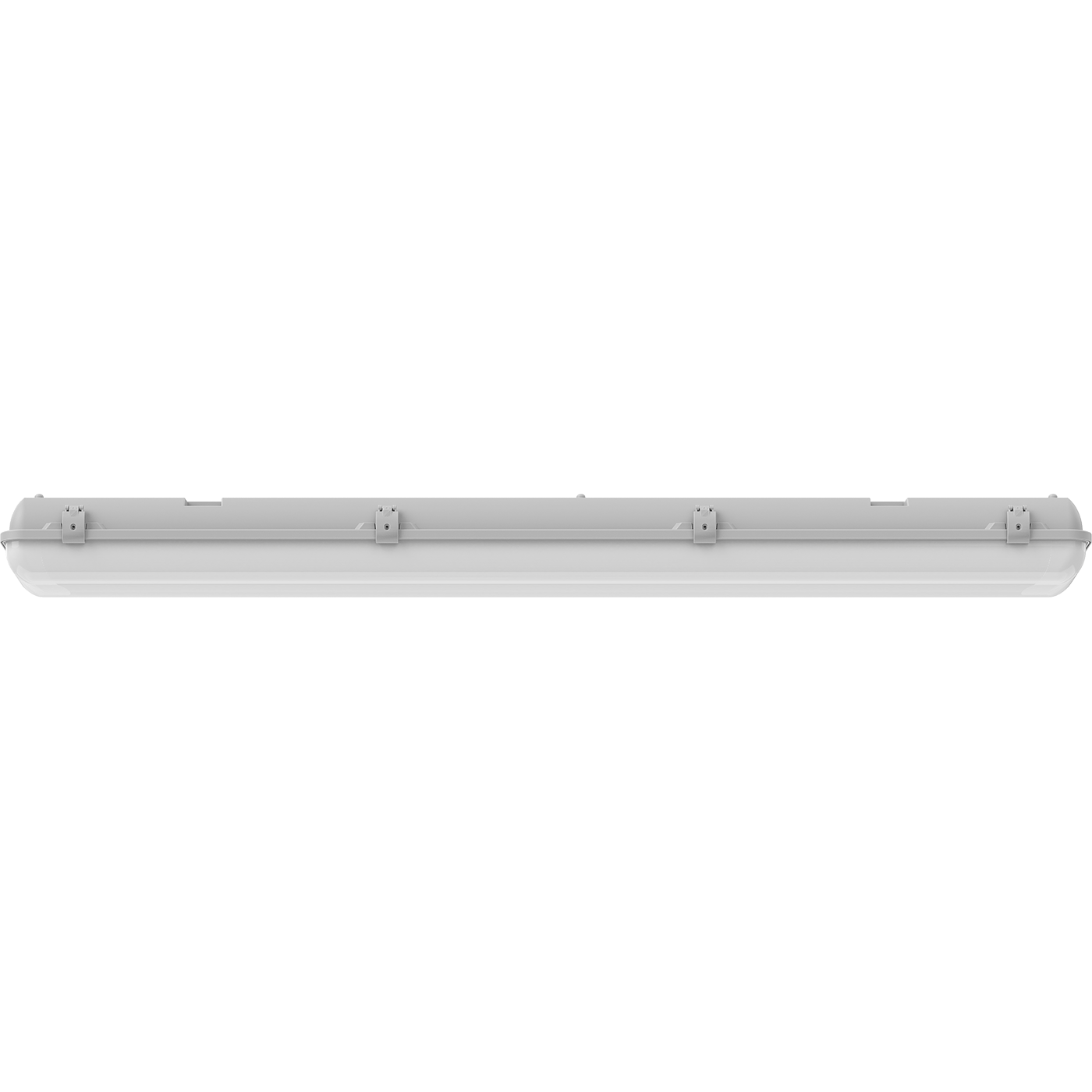

ARCTIC.OPL ECO LED (1500) 60W 940 GY EM
зарегистрирована в реестре российской промышленной продукции
ARCTIC.OPL ECO LED (1500) 60W 940 GY EM
60 Wluminaire power
7000 lmlight flow
117 lm/Wenergy efficiency
code
1088002120
number from the register of Russian industrial products
10758154
color temperature
4000 K
beam angle
D120
performance factor
100
weight
5.8 kg
- main page
- catalog
- by product type
- interior lighting
- ceiling
- IP protected
- ARCTIC.OPL ECO LED
- ARCTIC.OPL ECO LED (1500) 60W 940 GY EM
options
свернуть все
illuminatingelectricalconstructionalemergencycommonpackage
energy efficiency
117 lm/Wcolor rendition index (CRI)
>90light flow
7000 lmflickering factor
<1%beam angle
D120color temperature
4000 Klight source type
LEDemission color
Белыйilluminating
energy efficiency
117 lm/W
color rendition index (CRI)
>90
light flow
7000 lm
flickering factor
<1%
beam angle
D120
color temperature
4000 K
light source type
LED
emission color
Белый
electrical
starting current pulse time
250 µs
power factor
> 0,96
luminaire power
60 W
electric shock protection
II
supply voltage
230 V
maximum cross-section of the connected cable
2.5 mm2
rated supply voltage, alternating current
230 V
rated supply voltage
230 V
starting current
35 A
constructional
length
1578 mm
width
170 mm
height
110 mm
installation length
1234 mm
weight
5.8 kg
ingress protection (IP)
IP65
shock resistance (IK)
IK08/5 Дж
climatic performance
УХЛ2*
fire safety class
П-ІІ
material
Пластик
housing color
Серый
mounting type
lamp socket
LED
number of lamps
1
ballast
Драйвер
Type roof
emergency
emergency power supply
Нет
operating time in emergency mode
1 h
luminous flux in emergency mode
600 lm
common
temperature range
от -40 до +40 C
service life
50 000 h
ETIM class
Настенно-потолочный светильник
warranty
60 month
energy efficiency class
A+
code
1088002120
package
Package contents
Светильник - 1 шт.
Паспорт - 1 шт.
Упаковка - 1 шт.
Гермоизолятор - 2 шт.
Шайба М6 - 2 шт.
Шайба резиновая - 2 шт.
Винт-саморез 3,5х9,5 (только для светильников с классом защиты II) - 2 шт.
Комплект крепления ARCTIC (2) на трос (поставляется по отдельному заказу) - 1 шт.
model files
model files

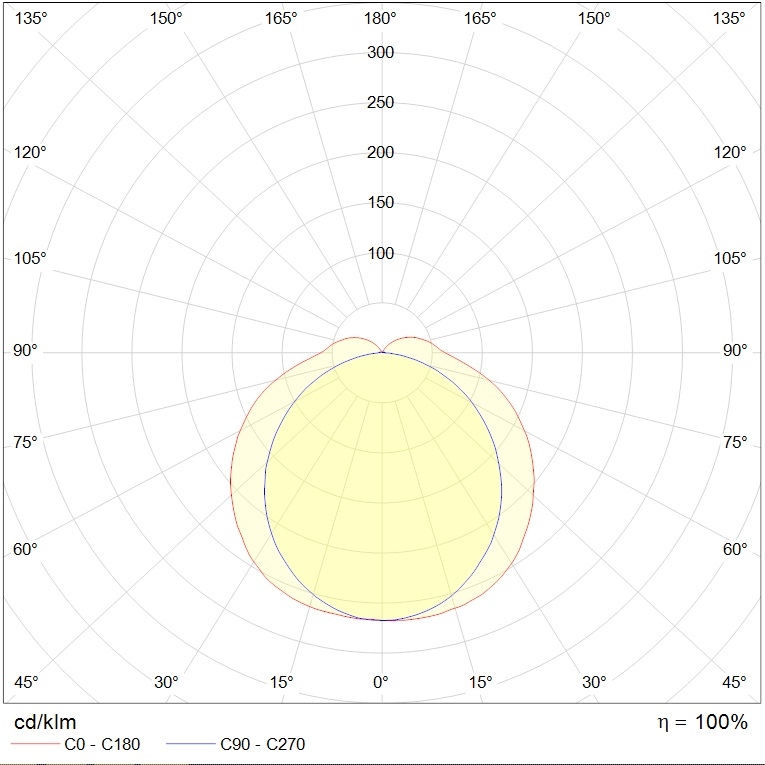

photometric files
сертификаты
photometric files
ies107.1 kB
jpg107.9 kB
ldt86.5 kB
csv434 B
сертификаты
Russian origin329.9 kB
Certificate of conformity TRTS 020/2011, TRTS 004/2011300.7 kB
Declaration of Conformity EAEU TR 037/2016300.5 kB
