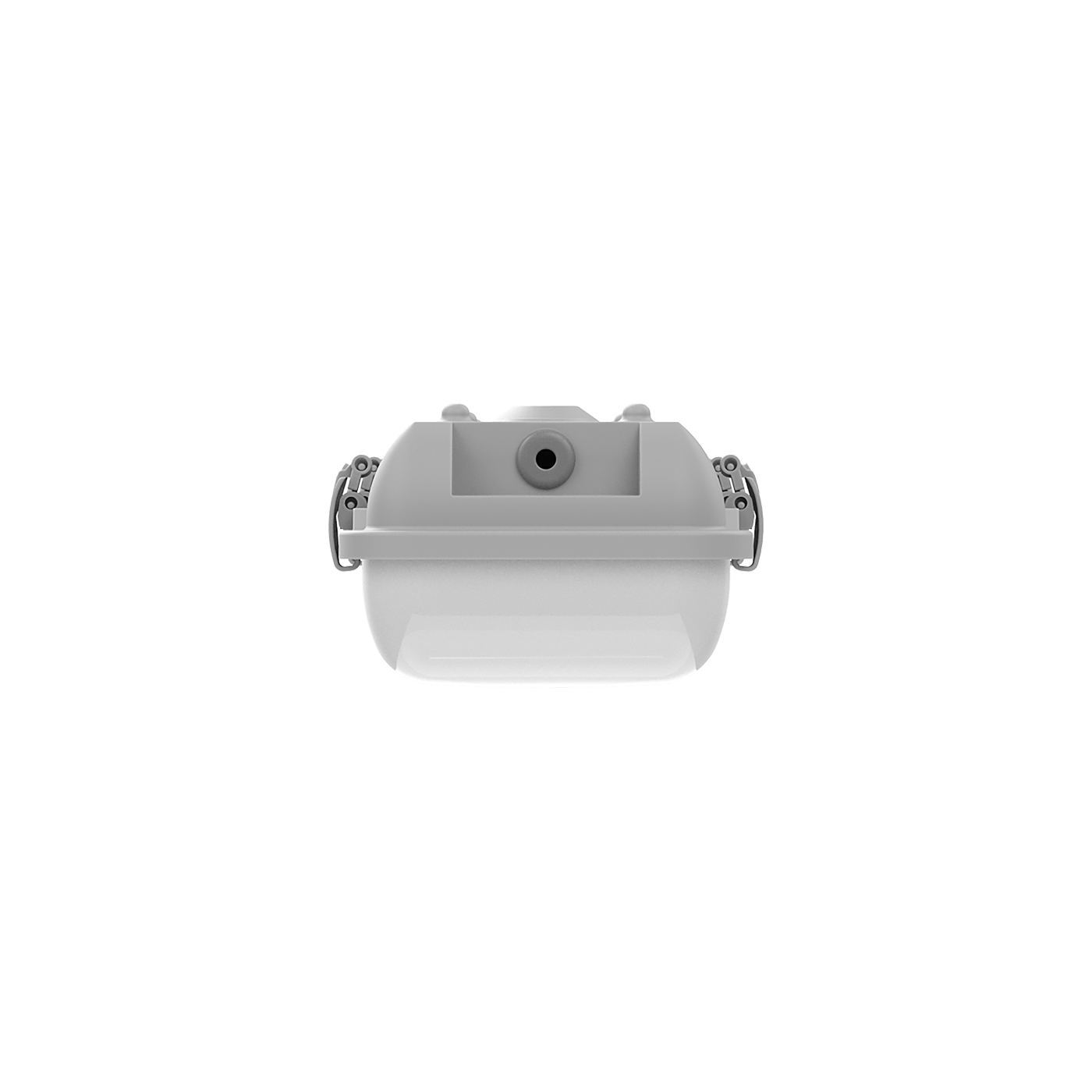

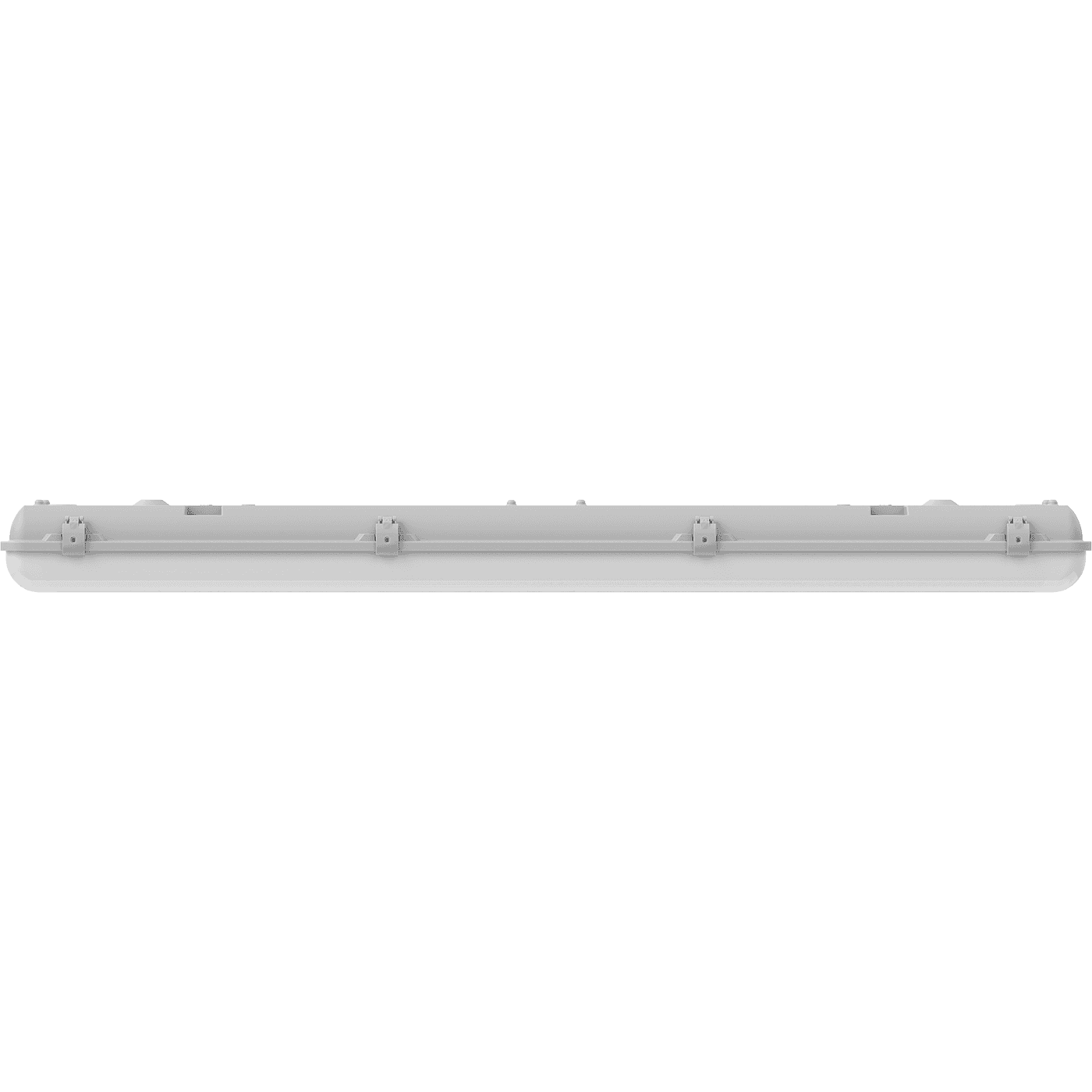

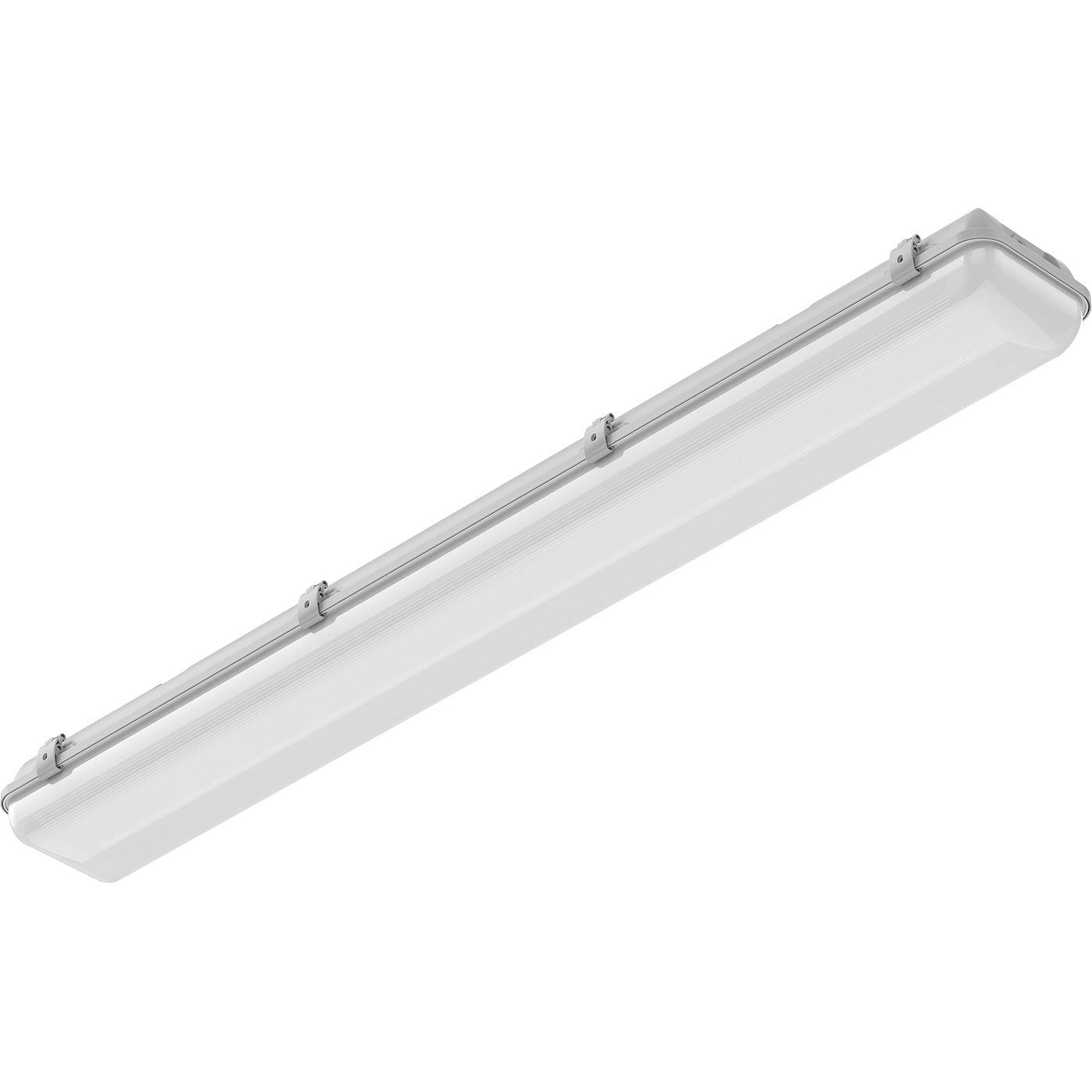

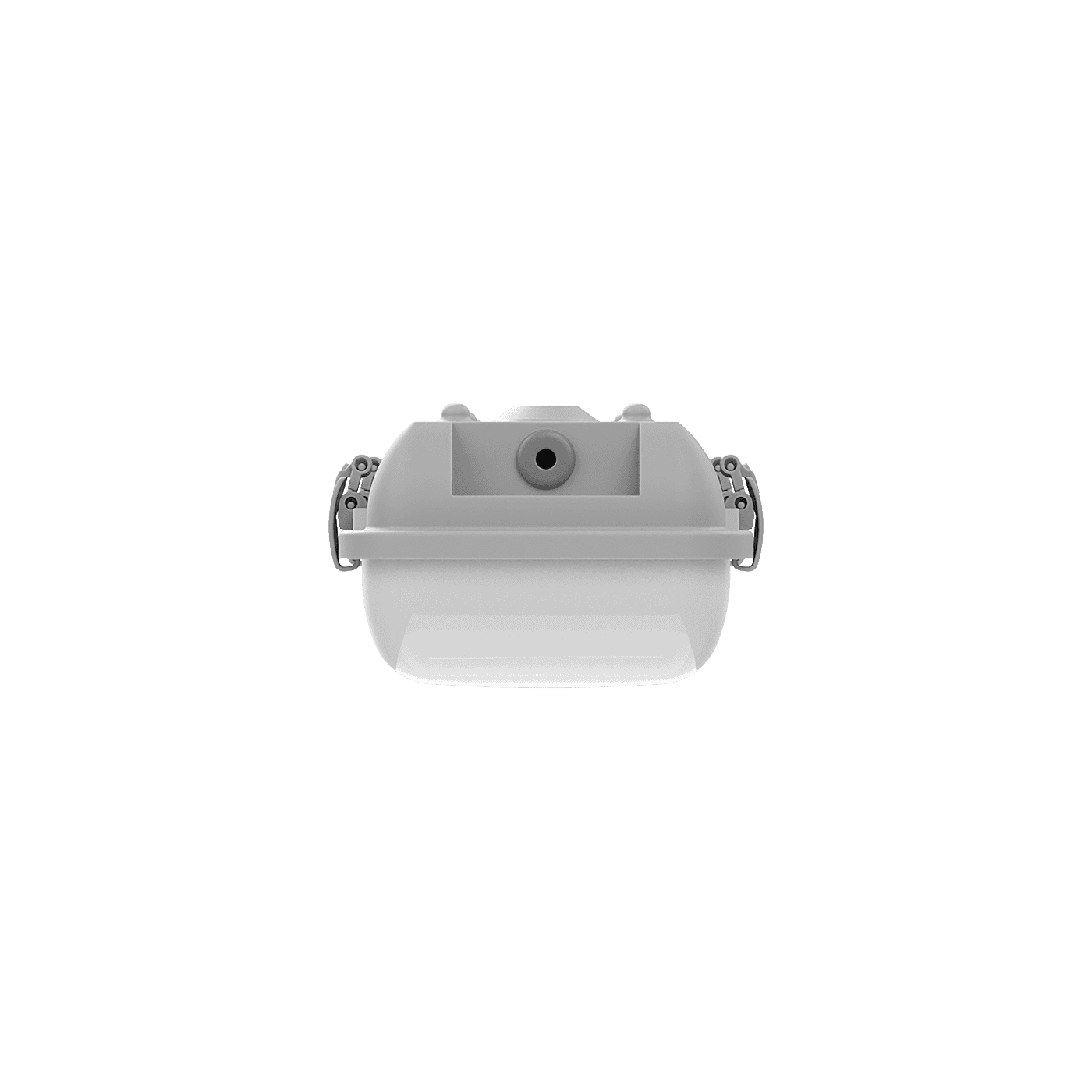

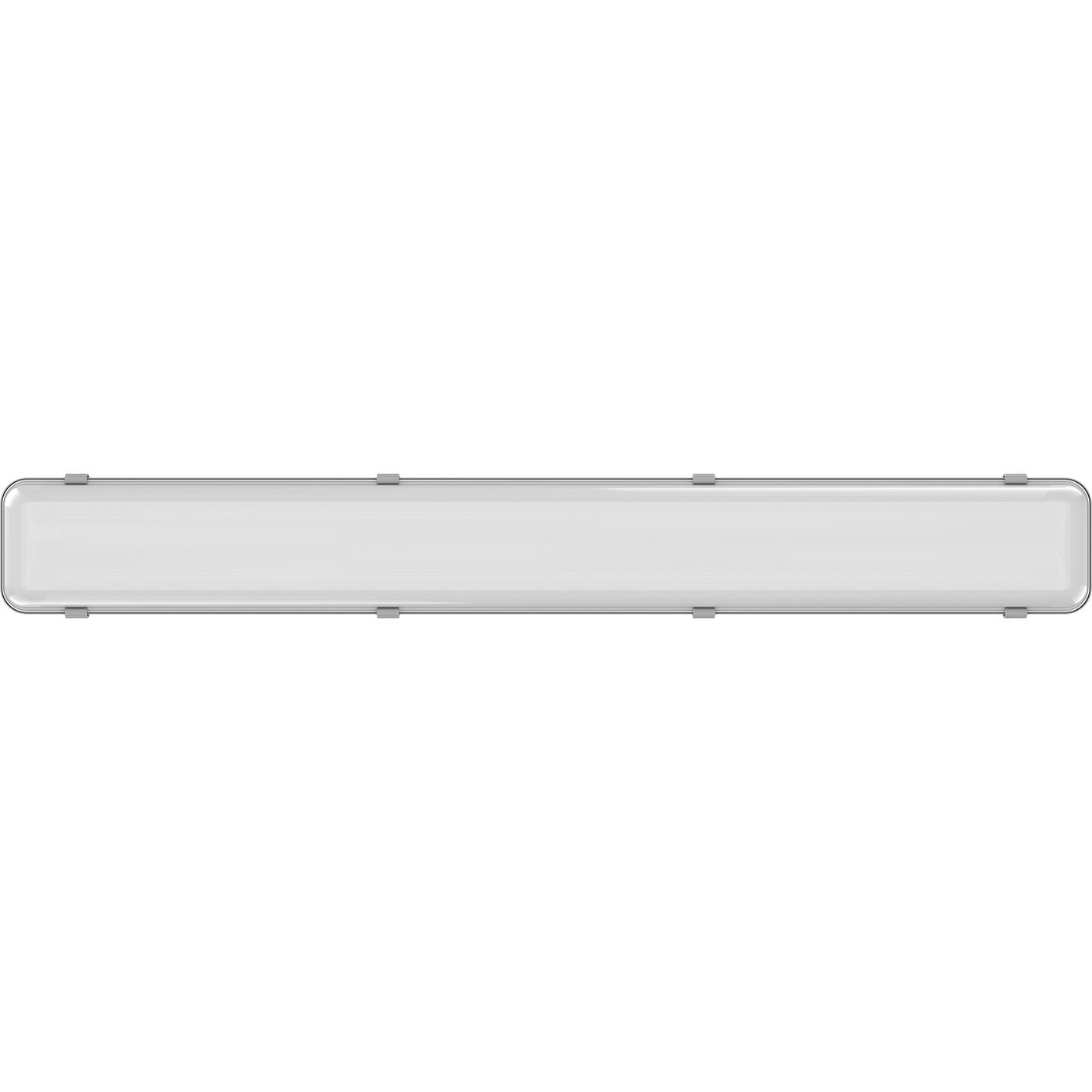

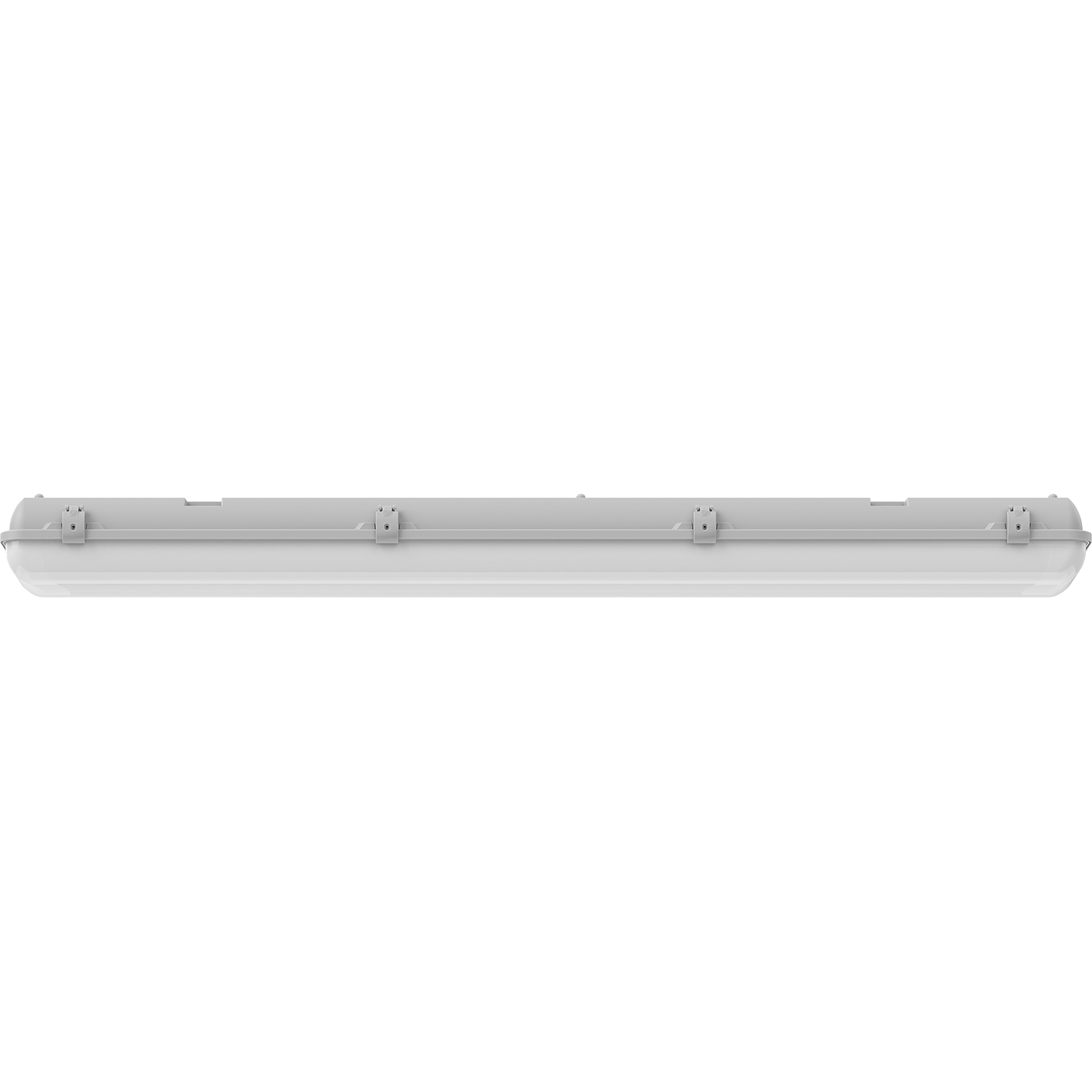

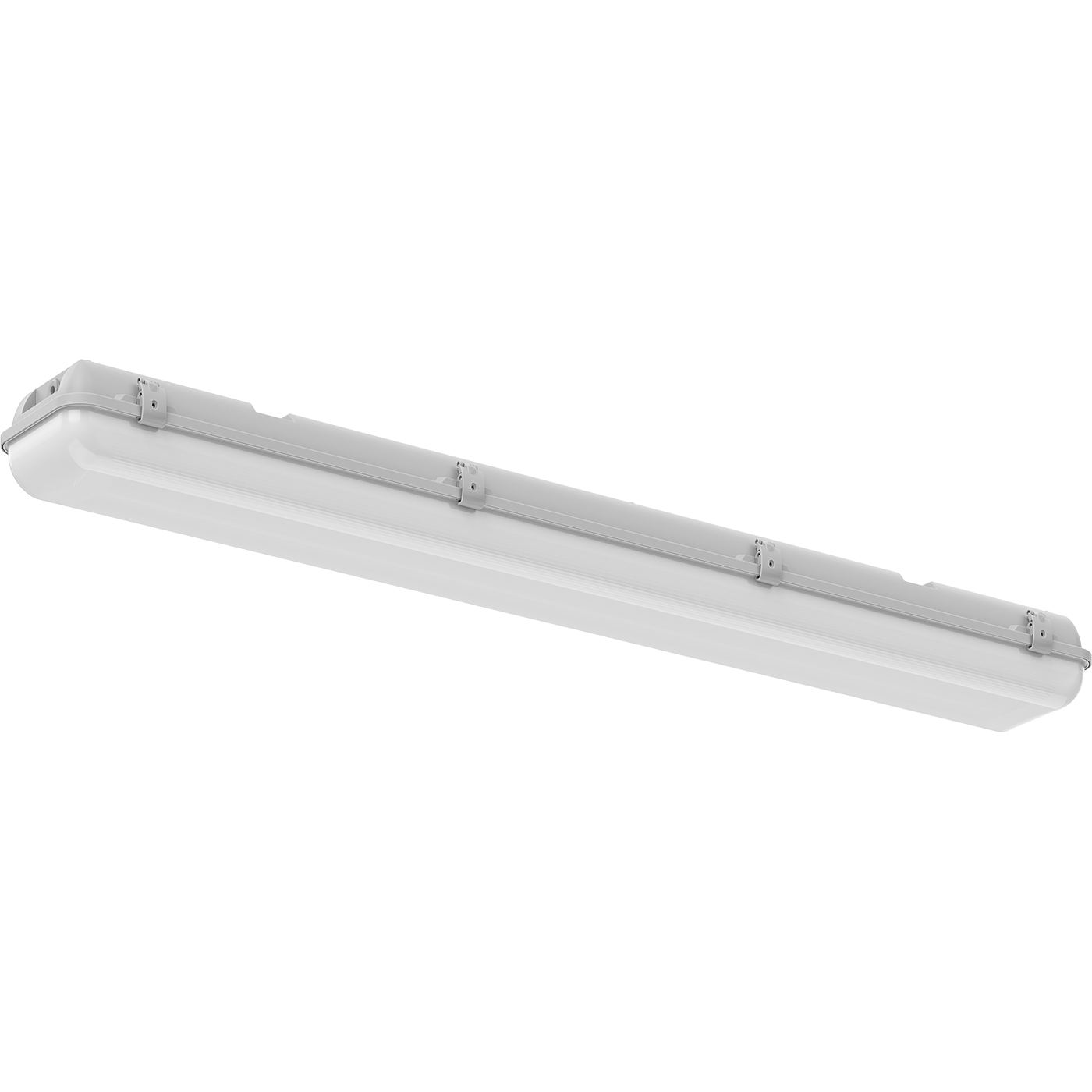

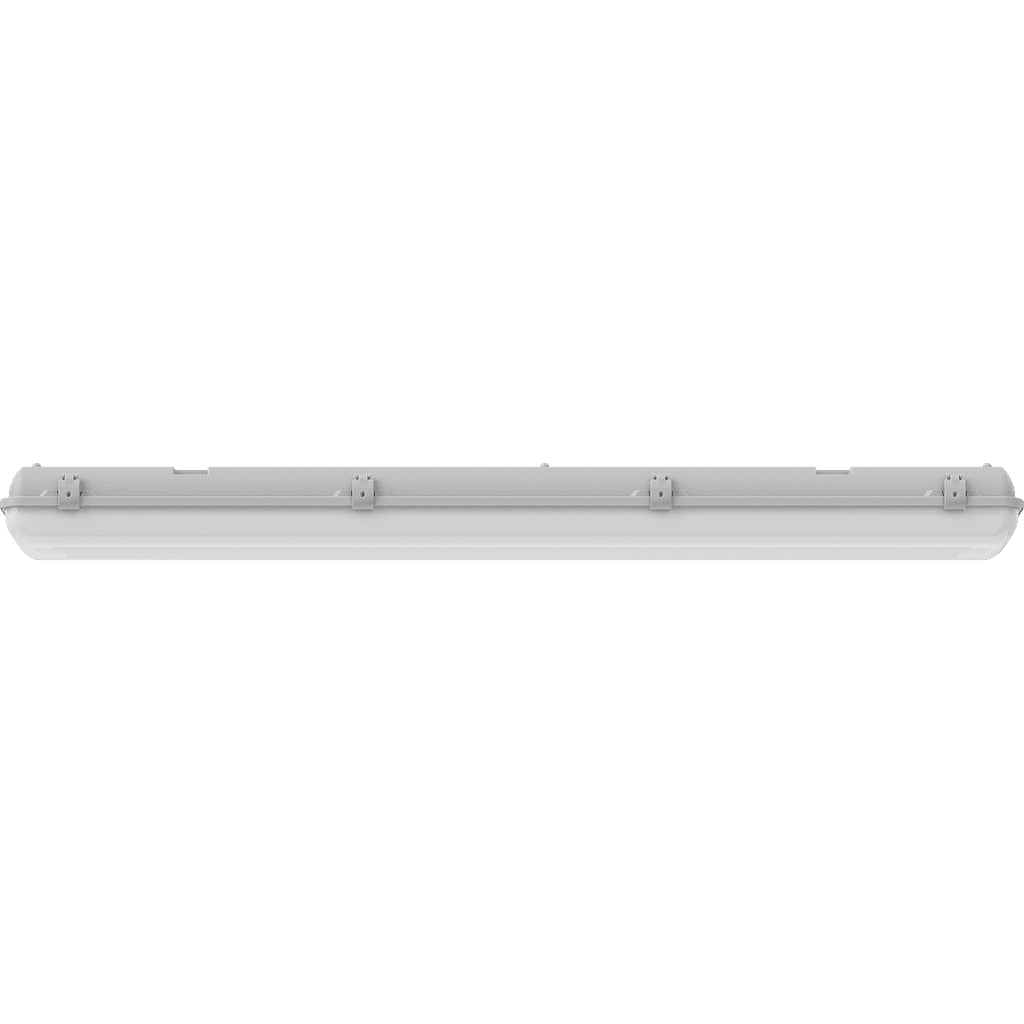

ARCTIC.OPL ECO LED 1200 MS 5000K

ARCTIC.OPL ECO LED 1200 MS 5000K
50 Wluminaire power
6400 lmlight flow
128 lm/Wenergy efficiency
code1088000200
color temperature5000
beam angleD120
weight3.4 kg
options
свернуть все
illuminatingelectricalconstructionalLMS optionscommon
color rendition index (CRI)
>80
light flow
6400 lm
flickering factor
<1%
energy efficiency
128 lm/W
beam angle
D120
color temperature
5000
light source type
LED
emission color
Белый
illuminating
color rendition index (CRI)
>80
light flow
6400 lm
flickering factor
<1%
energy efficiency
128 lm/W
beam angle
D120
color temperature
5000
light source type
LED
emission color
Белый
electrical
power factor
> 0,96
luminaire power
50 W
electric shock protection
II
maximum cross-section of the connected cable, sq. mm
2.5
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
starting current
30 A
supply voltage
230 V
starting current pulse time, µs
250 mks
constructional
shock resistance (IK)
IK08/5 Дж
climatic performance
УХЛ2*
fire safety class
П-ІІ
material
Пластик
housing color
Серый
lamp socket
LED
number of lamps
1
ballast
Драйвер
ingress protection (IP)
IP65
weight
3.4 kg
length, mm
1278 mm
width, mm
170 mm
height, mm
110 mm
installation length, mm
932 mm
LMS options
dimming
Microwave motion sensor / light sensor
common
ETIM class
Настенно-потолочный светильник
warranty
60 month
energy efficiency class
A+
service life, hour
50 000 h
temperature range
от -20 до +40 C
code
1088000200
model files
model files
CAD/BIM files
model 3dMax2 mB

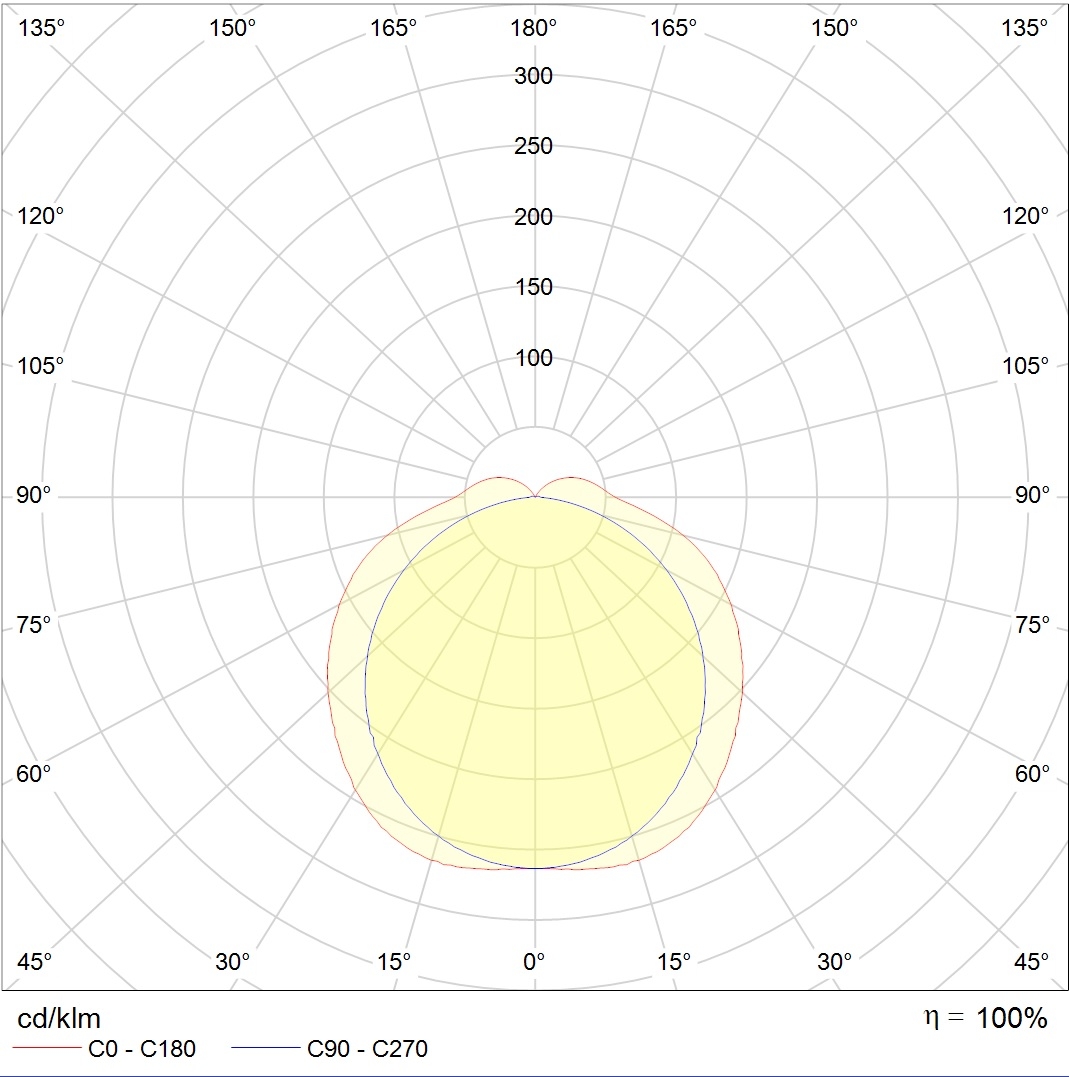

photometric files
ies134.1 kB
jpg173.6 kB
ldt107.2 kB
csv419 B
documents
passport2.3 mB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20113.2 mB
Declaration of Conformity EAEU TR 037/2016658.3 kB
Fire Safety Certificate2.5 mB
CAD/BIM files
model 3dMax2 mB
photometric files
ies134.1 kB
jpg173.6 kB
ldt107.2 kB
csv419 B
documents
passport2.3 mB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20113.2 mB
Declaration of Conformity EAEU TR 037/2016658.3 kB
Fire Safety Certificate2.5 mB
accessories
Cable mounting kit Arctic /2/0.01kgarticle: 2069000010
ARCTIC.OPL ECO LED Pipe mounting kit0.6kgarticle: 2069000740
