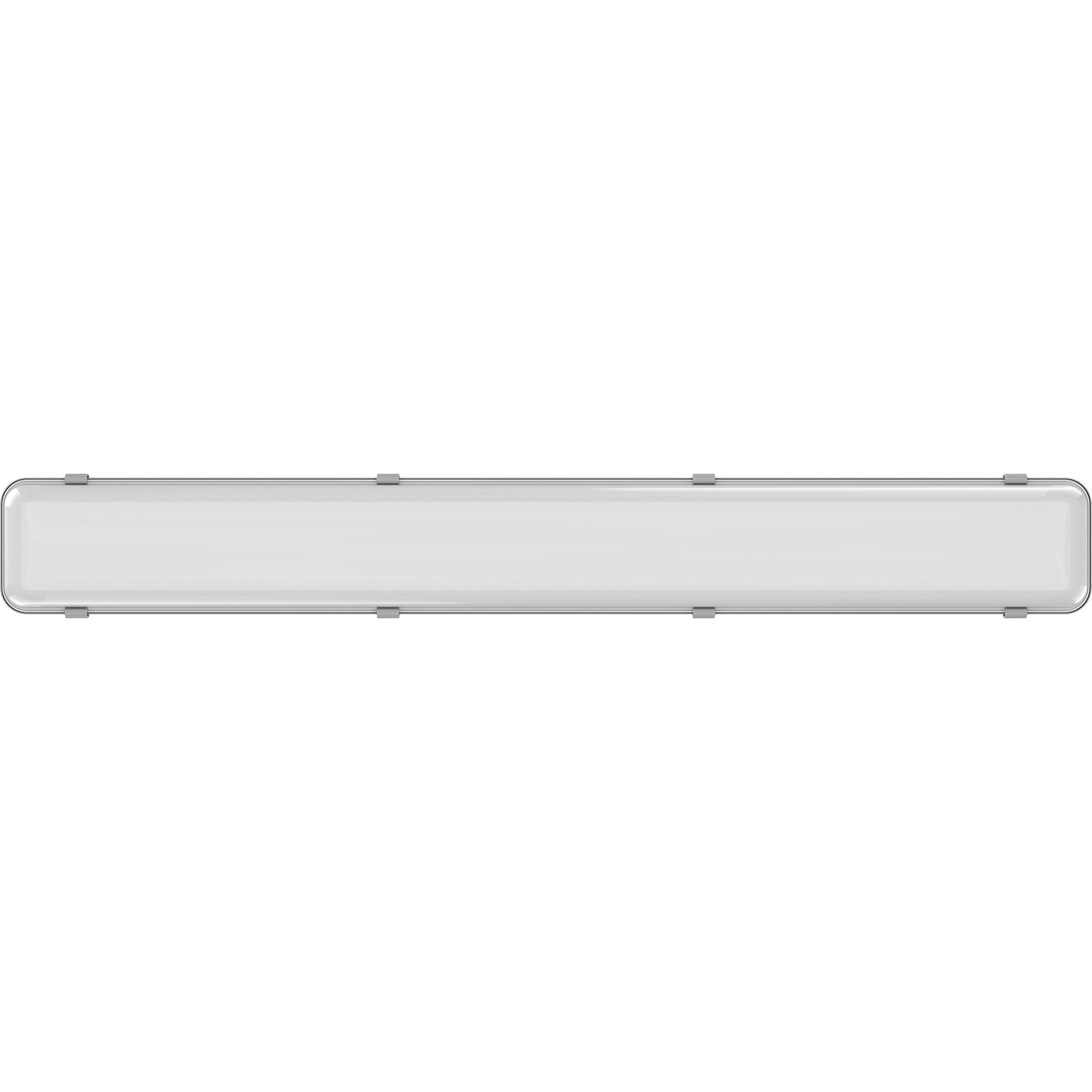

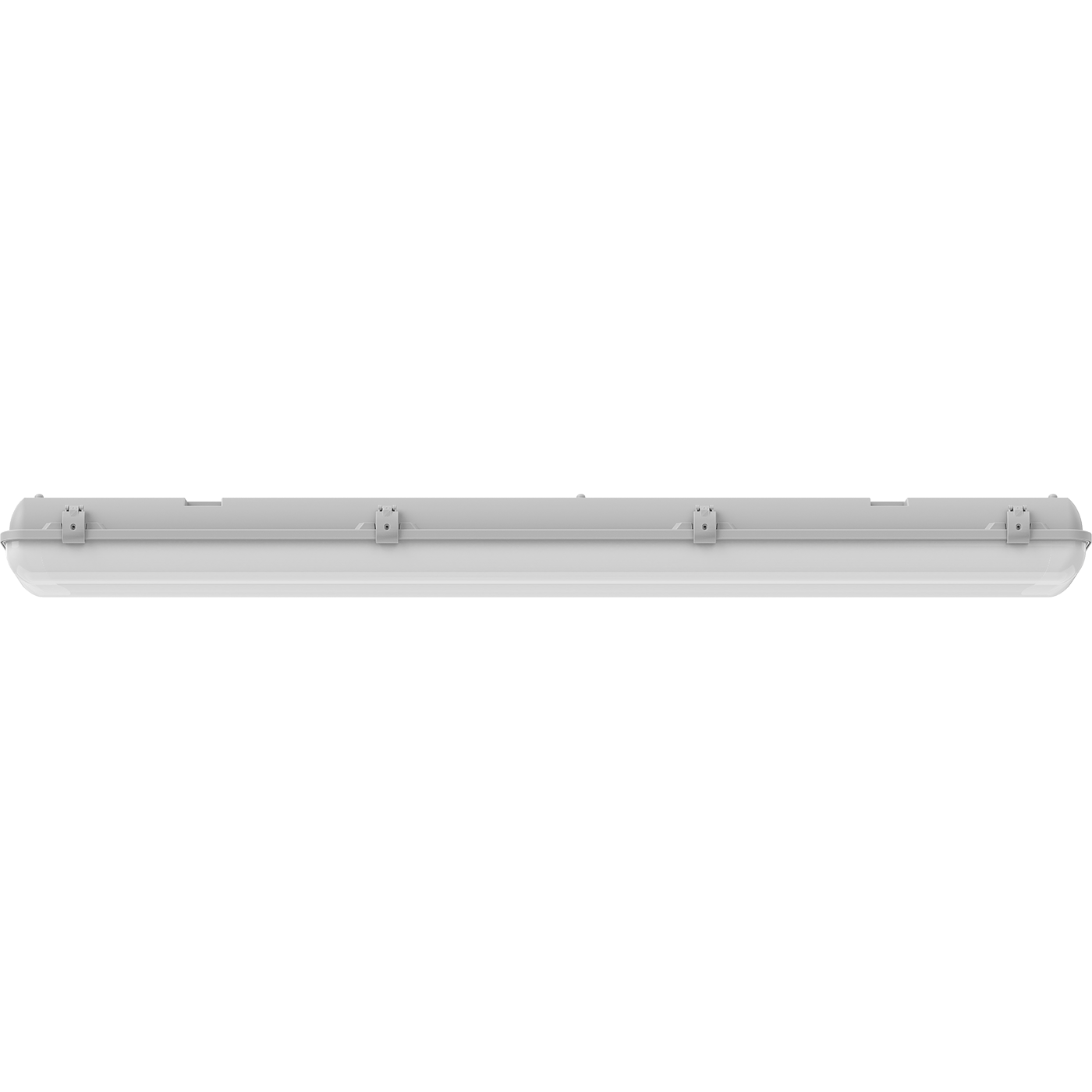

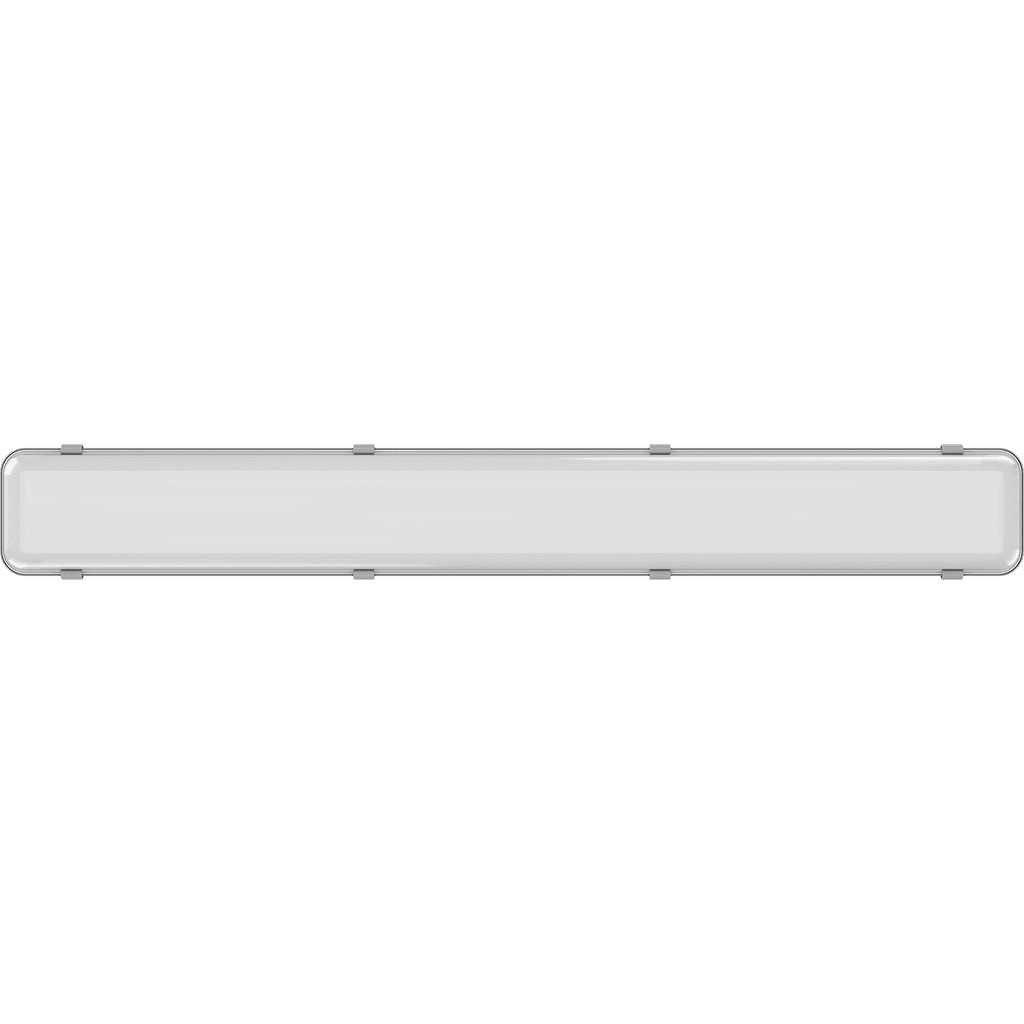

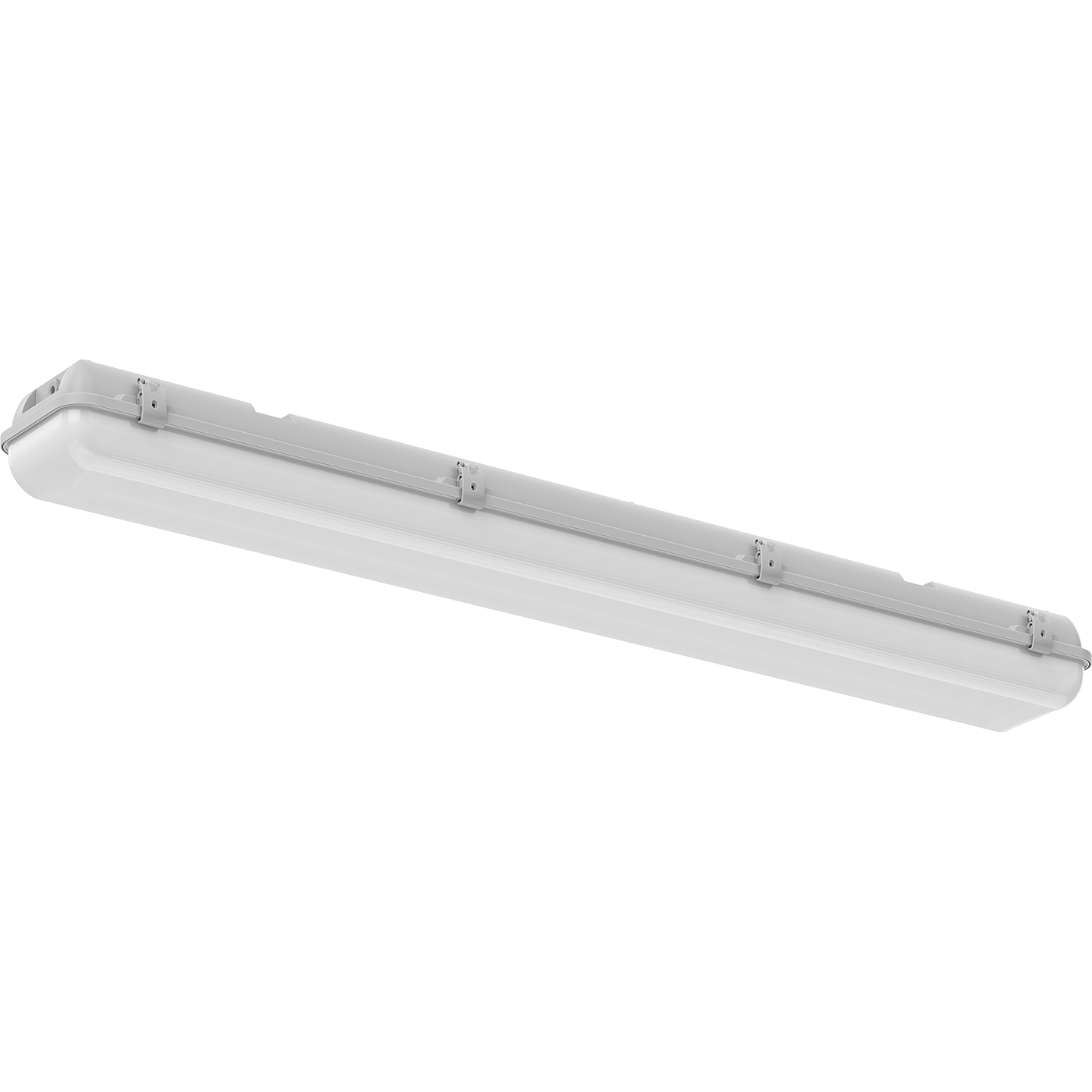

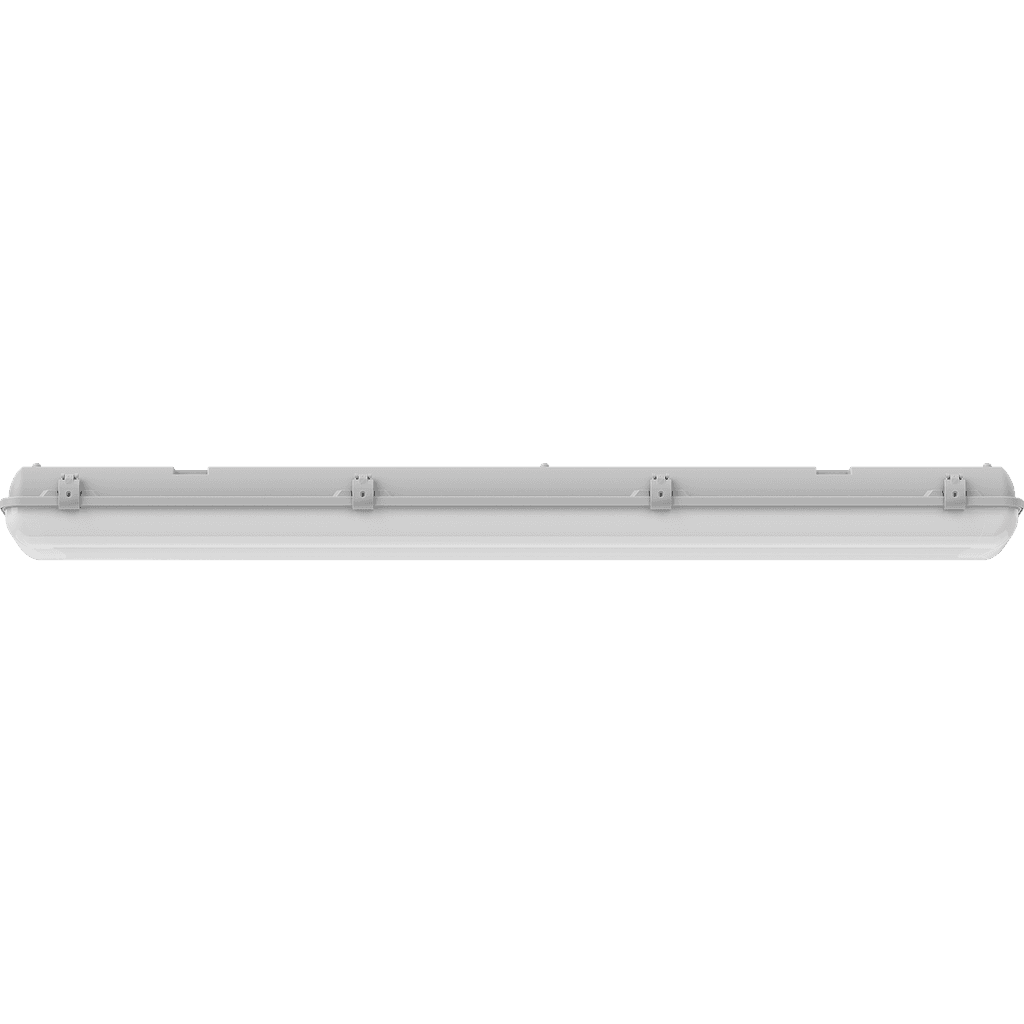

ARCTIC.OPL ECO LED 1200 HFD 3000K
ARCTIC.OPL ECO LED 1200 HFD 3000K
50 Wluminaire power
6000 lmlight flow
120 lm/Wenergy efficiency
code1088000650
color temperature3000 K
beam angleD120
weight3.3 kg
options
свернуть все
illuminatingelectricalconstructionalLMS optionscommon
color rendition index (CRI)
>80light flow
6000 lmflickering factor
<1%energy efficiency
120 lm/Wbeam angle
D120color temperature
3000 Klight source type
LEDemission color
Белыйilluminating
color rendition index (CRI)
>80
light flow
6000 lm
flickering factor
<1%
energy efficiency
120 lm/W
beam angle
D120
color temperature
3000 K
light source type
LED
emission color
Белый
electrical
power factor
> 0,96
luminaire power
50 W
electric shock protection
II
maximum cross-section of the connected cable
2.5 mm2
rated supply voltage, alternating current
230 V
rated supply voltage
230 V
starting current
30 A
supply voltage
230 V
starting current pulse time
250 µs
constructional
shock resistance (IK)
IK08/5 Дж
climatic performance
УХЛ2*
fire safety class
П-ІІ
material
Пластик
housing color
Серый
lamp socket
LED
number of lamps
1
ballast
Драйвер DALI
ingress protection (IP)
IP65
weight
3.3 kg
length
1278 mm
width
170 mm
height
110 mm
installation length
932 mm
LMS options
dimming
DALI
common
ETIM class
Настенно-потолочный светильник
warranty
60 month
energy efficiency class
A+
service life
50 000 h
temperature range
от -40 до +40 C
code
1088000650
model files
model files
photometric files
documents
сертификаты
photometric files
ies263.2 kB
jpg169.6 kB
ldt208.5 kB
csv420 B
documents
passport2.4 mB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20113.2 mB
Declaration of Conformity EAEU TR 037/2016658.3 kB
Fire Safety Certificate2.5 mB
accessories
Cable mounting kit Arctic /2/0.01kgarticle: 2069000010
ARCTIC.OPL ECO LED Pipe mounting kit0.6kgarticle: 2069000740
