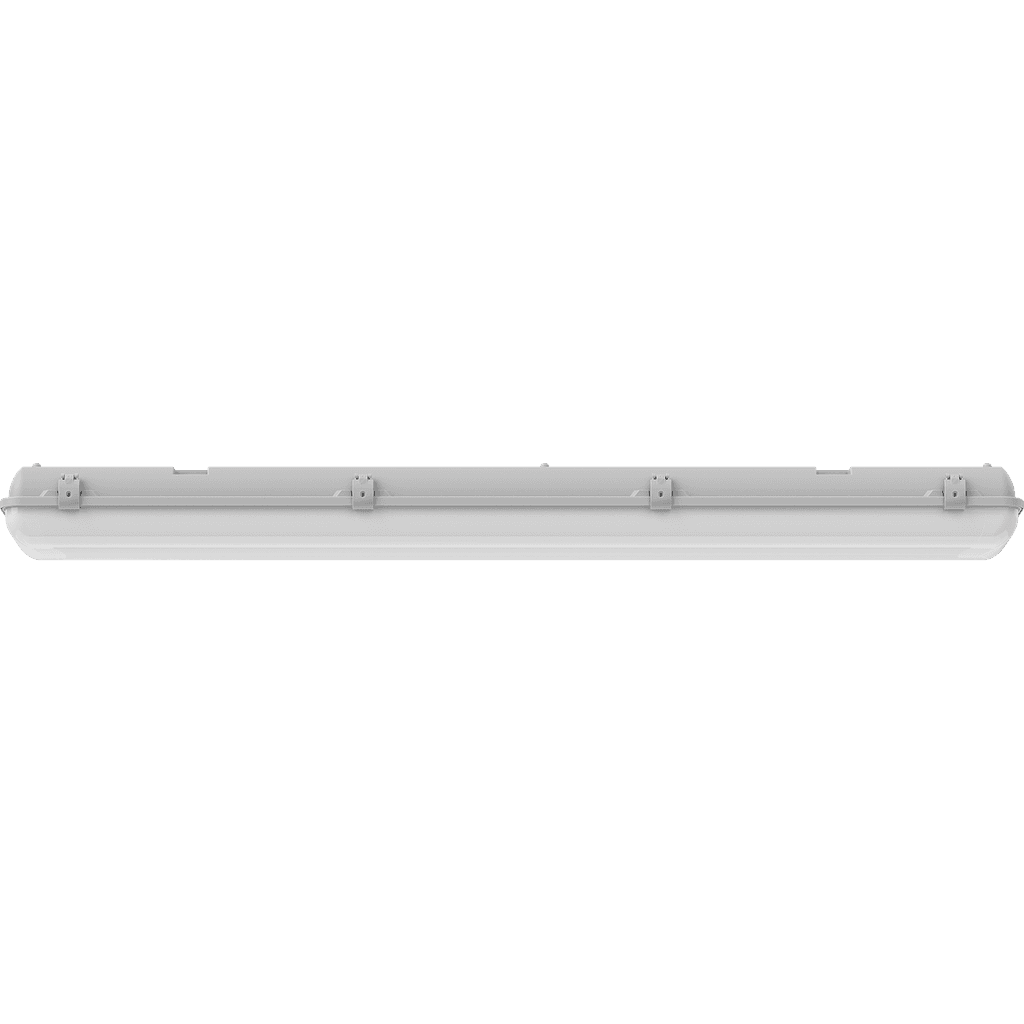

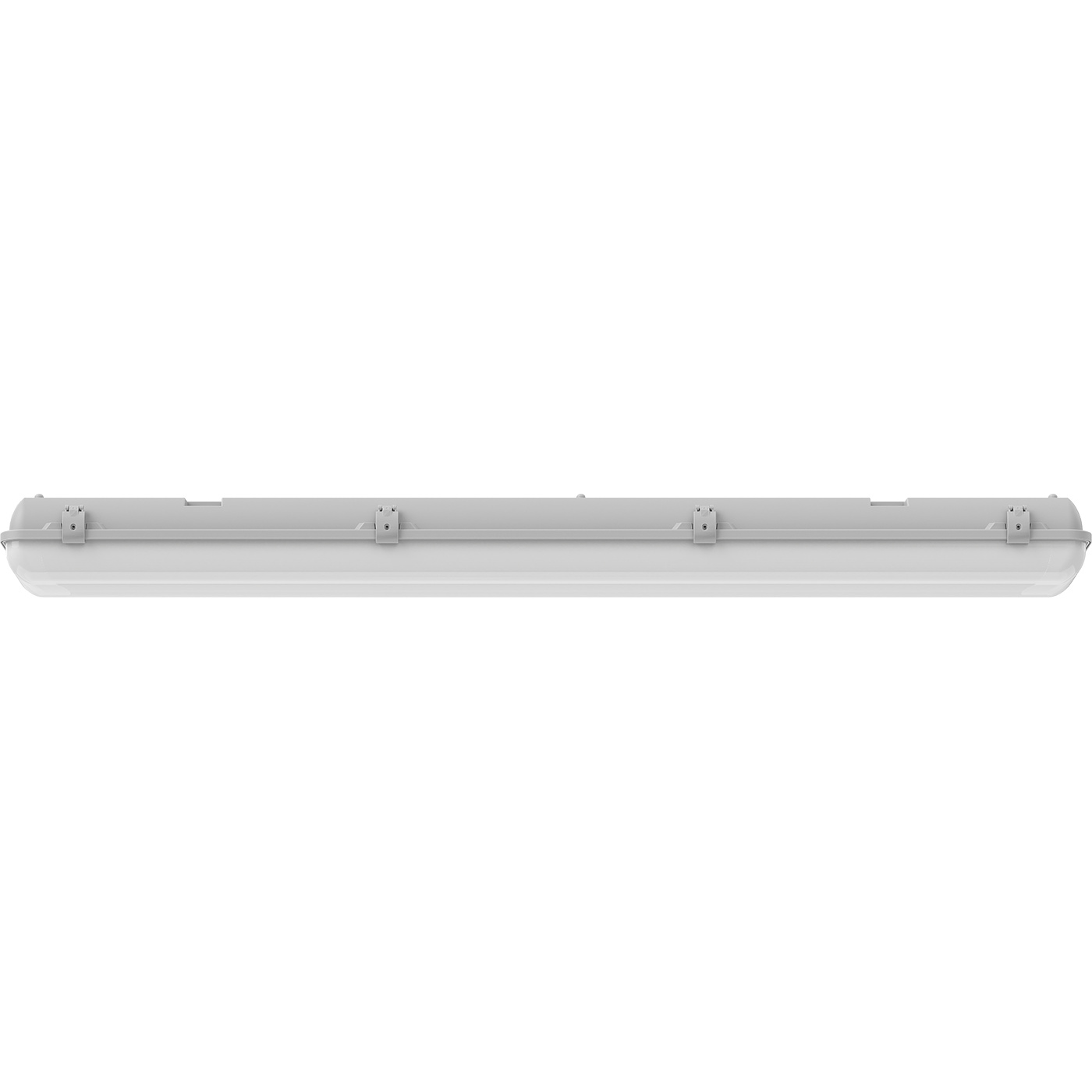

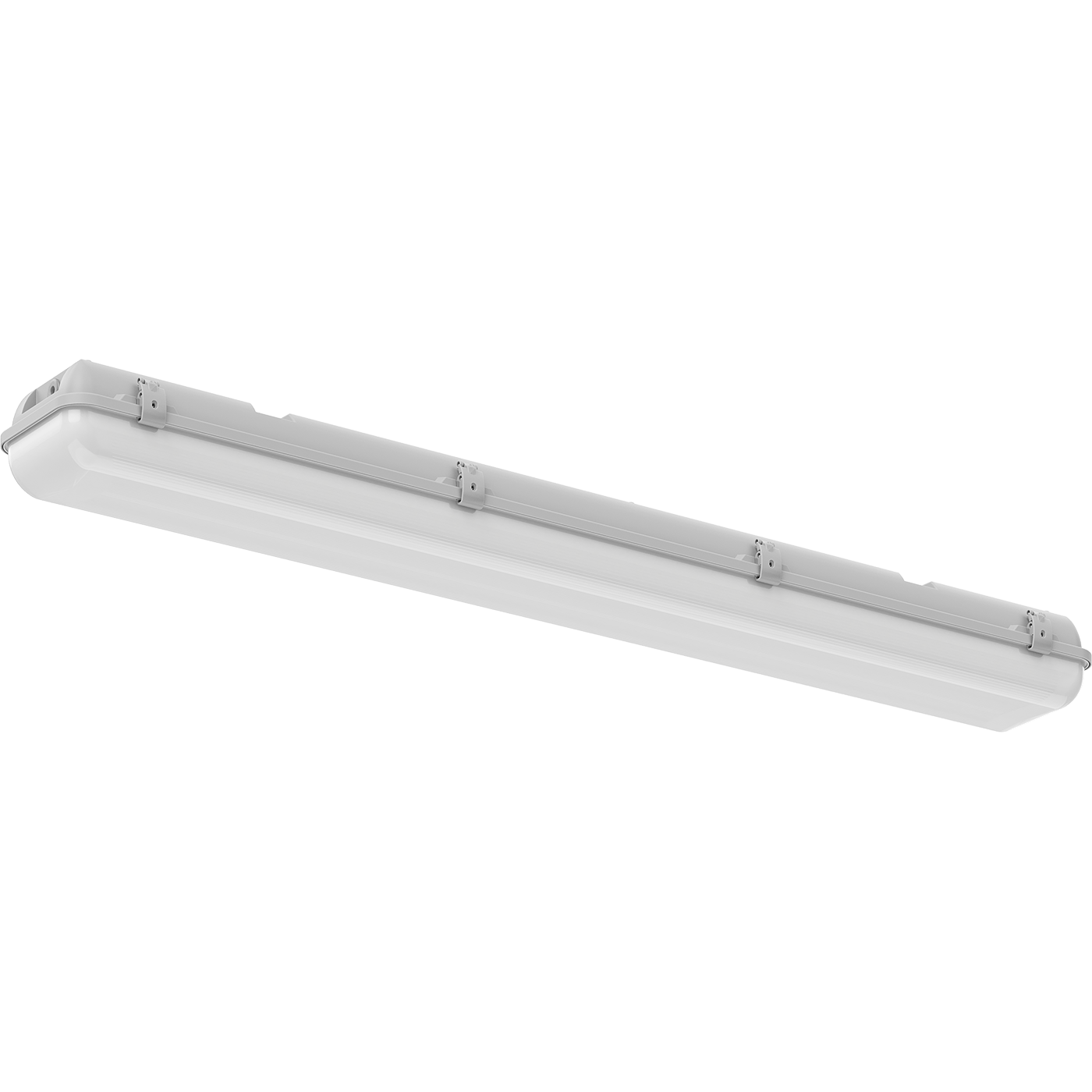

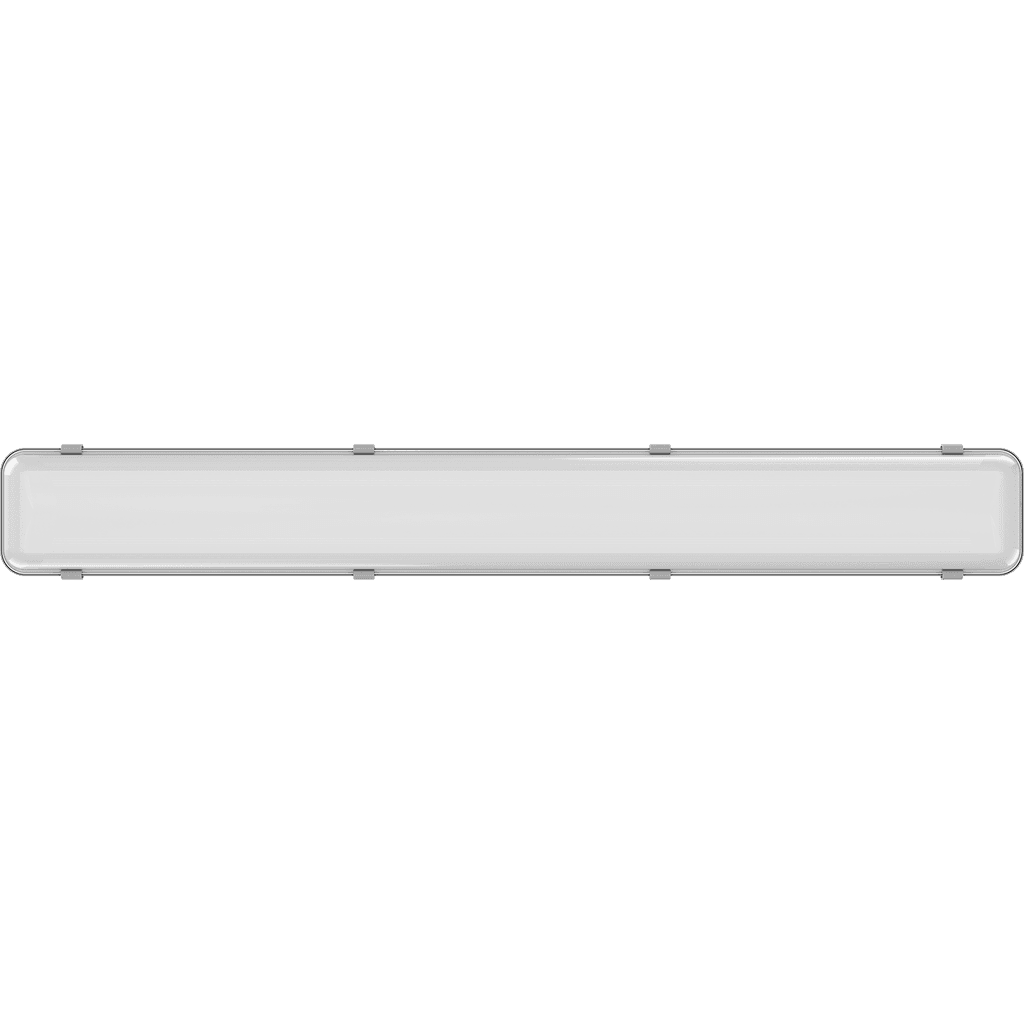

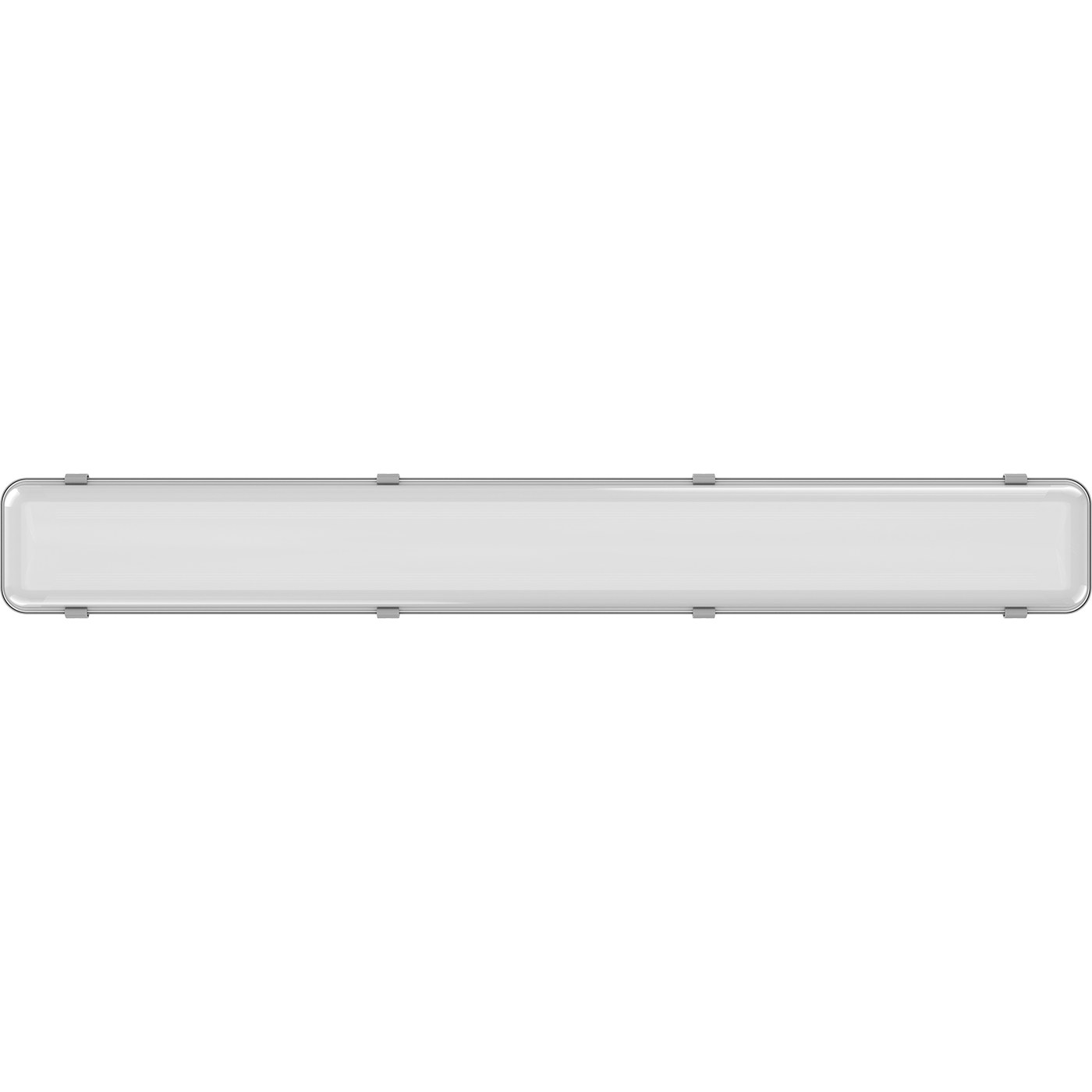

ARCTIC.OPL ECO LED 1200 EM 4000K
ARCTIC.OPL ECO LED 1200 EM 4000K
50 Wluminaire power
6400 lmlight flow
128 lm/Wenergy efficiency
code1088000180
color temperature4000 K
beam angleD120
performance factor100
weight3.3 kg
options
свернуть все
illuminatingelectricalconstructionalemergencycommon
energy efficiency
128 lm/Wcolor rendition index (CRI)
>80light flow
6400 lmflickering factor
<1%beam angle
D120color temperature
4000 Klight source type
LEDemission color
Белыйilluminating
energy efficiency
128 lm/W
color rendition index (CRI)
>80
light flow
6400 lm
flickering factor
<1%
beam angle
D120
color temperature
4000 K
light source type
LED
emission color
Белый
electrical
starting current pulse time
250 µs
electric shock protection
II
luminaire power
50 W
supply voltage
230 V
power factor
> 0,96
maximum cross-section of the connected cable
2.5 mm2
rated supply voltage, alternating current
230 V
rated supply voltage
230 V
starting current
30 A
constructional
length
1278 mm
width
170 mm
height
110 mm
installation length
932 mm
weight
3.3 kg
ingress protection (IP)
IP65
shock resistance (IK)
IK08/5 Дж
climatic performance
УХЛ2*
fire safety class
П-ІІ
material
Пластик
housing color
Серый
lamp socket
LED
number of lamps
1
ballast
Драйвер
emergency
operating time in emergency mode
1 h
luminous flux in emergency mode
550 lm
common
warranty
60 month
temperature range
от 0 до +40 C
service life
50 000 h
energy efficiency class
A+
ETIM class
Настенно-потолочный светильник
code
1088000180
model files
model files
CAD/BIM files
photometric files
documents
сертификаты
CAD/BIM files
model 3dMax2 mB
photometric files
csv419 B
documents
passport2.4 mB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20113.2 mB
Declaration of Conformity EAEU TR 037/2016658.3 kB
Fire Safety Certificate2.5 mB
accessories
Cable mounting kit Arctic /2/0.01kgarticle: 2069000010
ARCTIC.OPL ECO LED Pipe mounting kit0.6kgarticle: 2069000740
