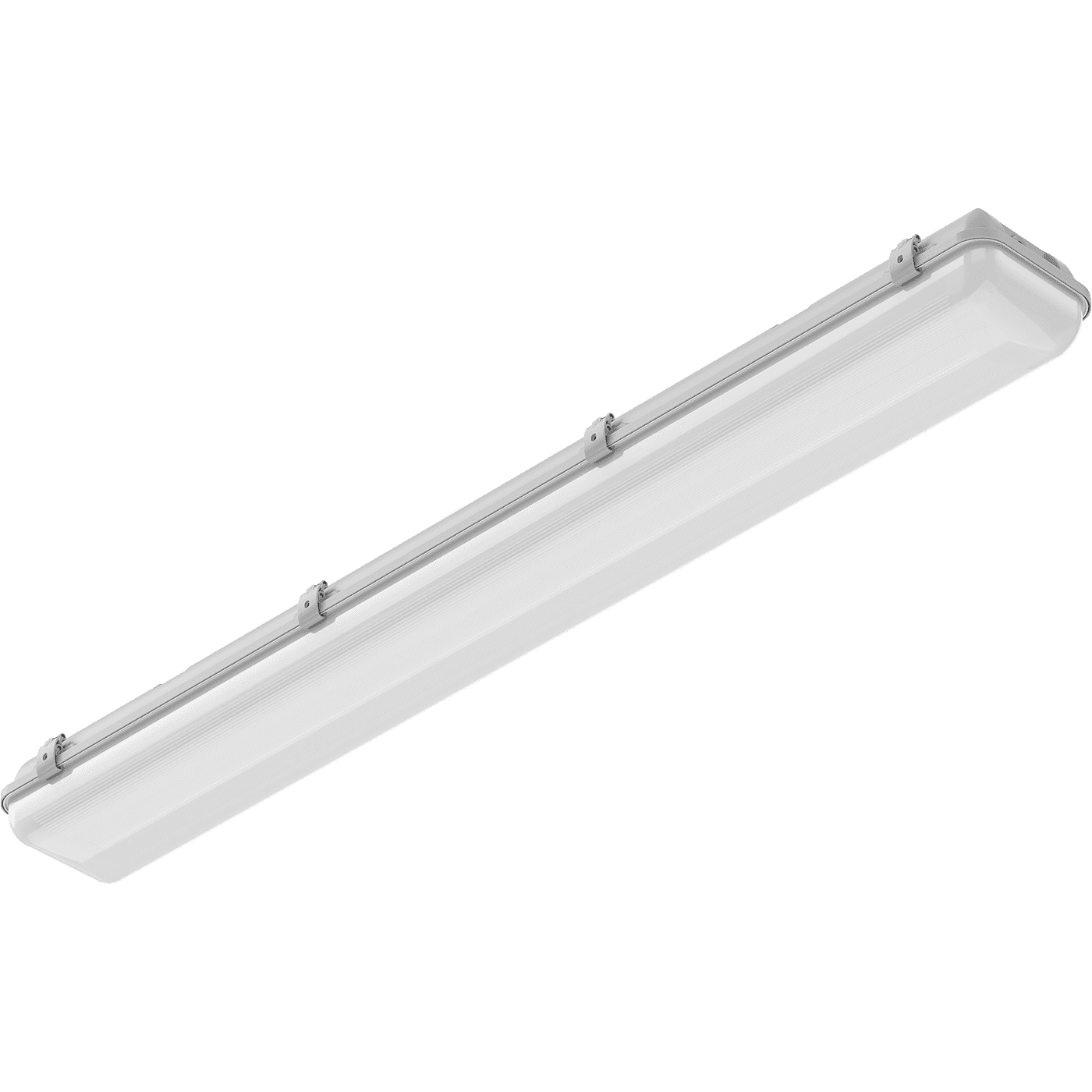

ARCTIC.OPL ECO LED (1200) 50W 840 GY through wiring
ARCTIC.OPL ECO LED (1200) 50W 840 GY through wiring
50 Wluminaire power
6400 lmlight flow
128 lm/Wenergy efficiency
code1088002150
color temperature4000
beam angleD120
weight3.3 kg
options
свернуть все
electricalconstructionalcommonilluminating
starting current
35 Astarting current pulse time, µs
250 mksrated supply voltage, alternating current
230 Vrated supply voltage, direct current
230 Vsupply voltage, alternating current
176-264 Vsupply voltage, direct current
176-264 Vluminaire power
50 Welectric shock protection
IIpower factor
> 0,96supply voltage
230 Velectrical
starting current
35 A
starting current pulse time, µs
250 mks
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
supply voltage, alternating current
176-264 V
supply voltage, direct current
176-264 V
luminaire power
50 W
electric shock protection
II
power factor
> 0,96
supply voltage
230 V
constructional
ingress protection (IP)
IP65
fire safety class
П-ІІ
material
Пластик
weight
3.3 kg
housing color
Серый
climatic performance
УХЛ2*
maximum cross-section of the connected cable, sq. mm
2.5
length, mm
1278 mm
width, mm
170 mm
height, mm
110 mm
shock resistance (IK)
IK08/5 Дж
lamp socket
LED
number of lamps
1
ballast
Драйвер
installation length, mm
932 mm
common
ETIM class
Настенно-потолочный светильник
warranty
60 month
temperature range
от -40 до +40 C
energy efficiency class
A+
service life, hour
50 000 h
code
1088002150
illuminating
light flow
6400 lm
flickering factor
<1%
energy efficiency
128 lm/W
beam angle
D120
color temperature
4000
light source type
LED
emission color
Белый
color rendition index (CRI)
>80
model files
model files

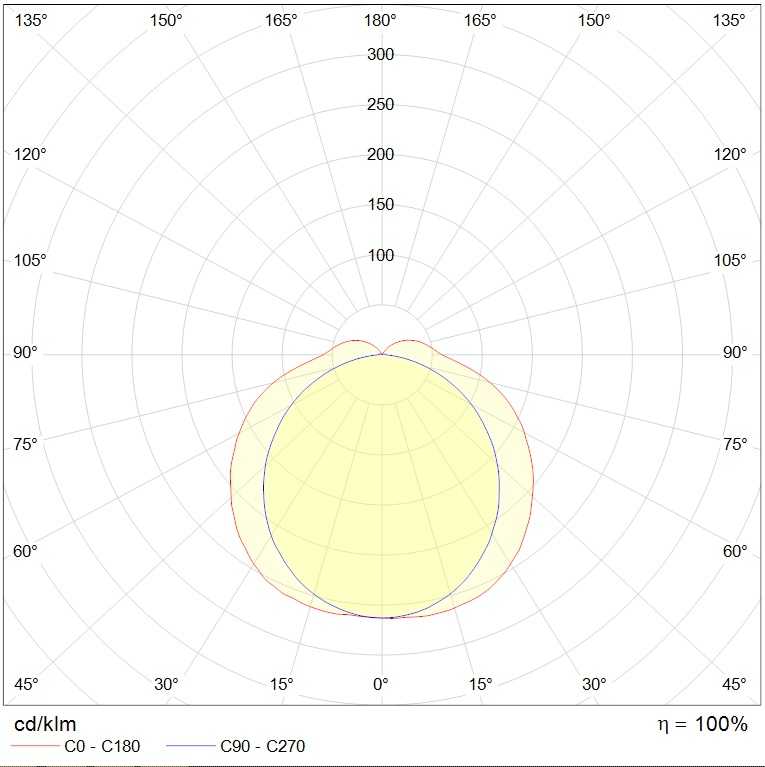

photometric files
сертификаты
photometric files
ies107 kB
jpg108.9 kB
ldt86 kB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20113.2 mB
Declaration of Conformity EAEU TR 037/2016588 kB
Fire Safety Certificate2.5 mB
