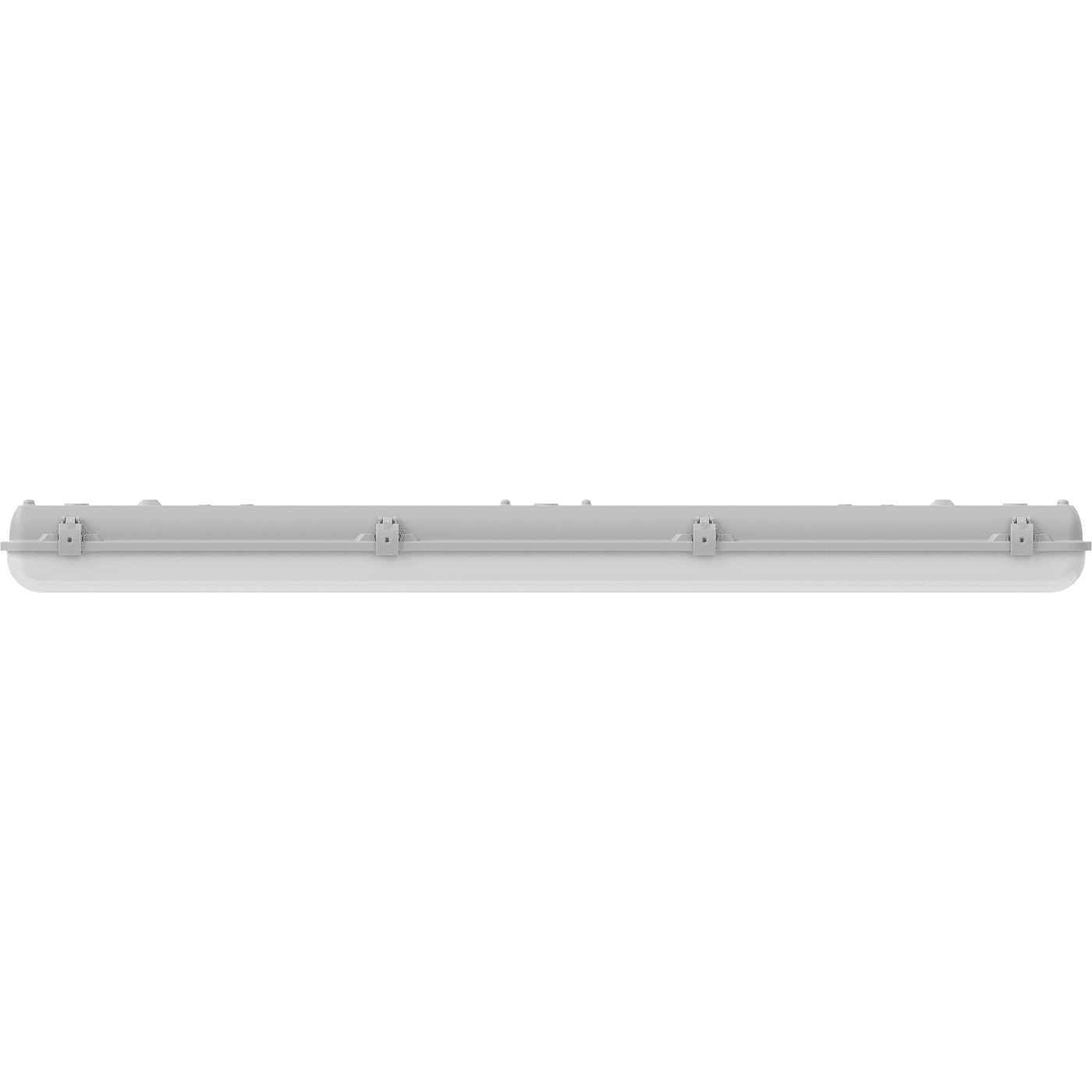

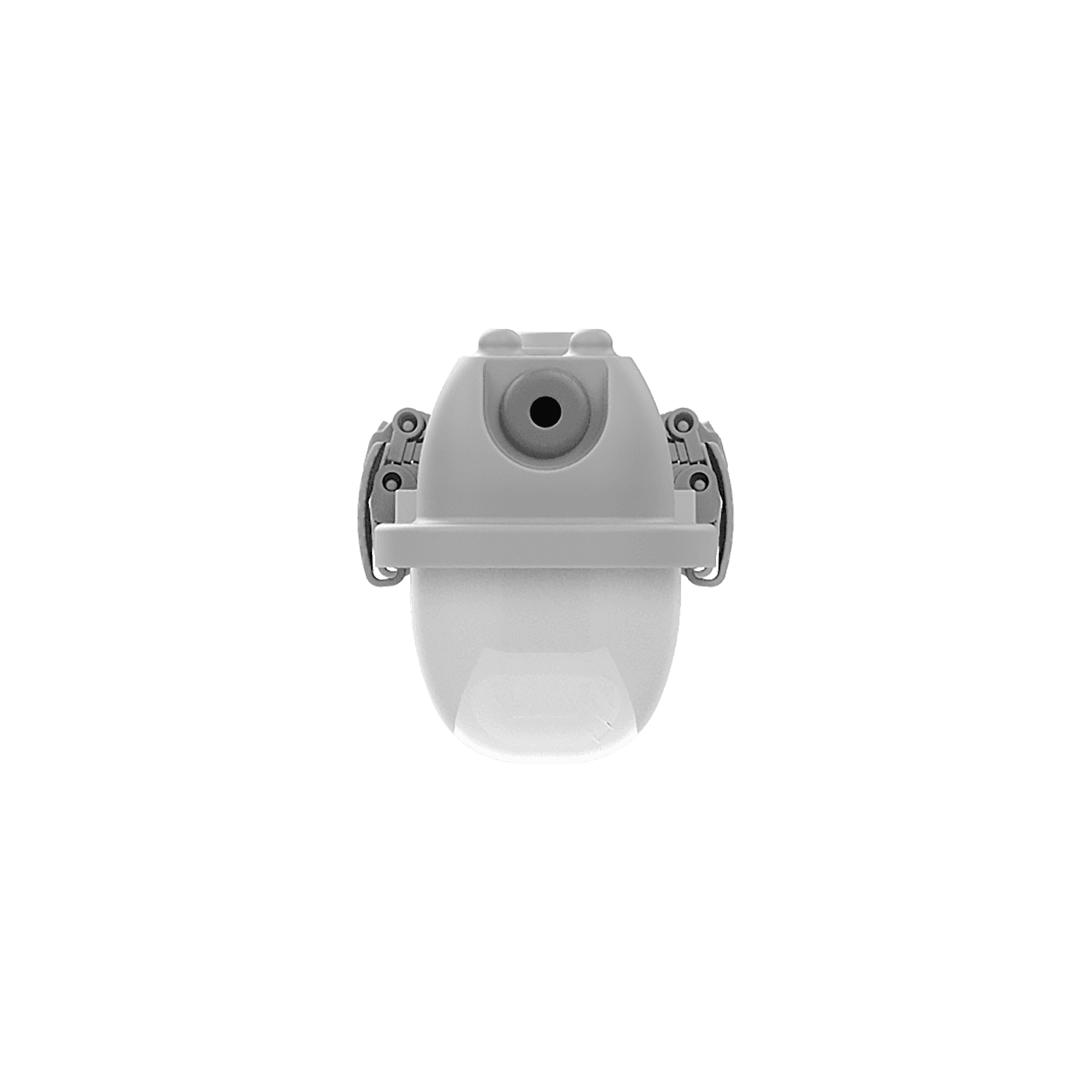

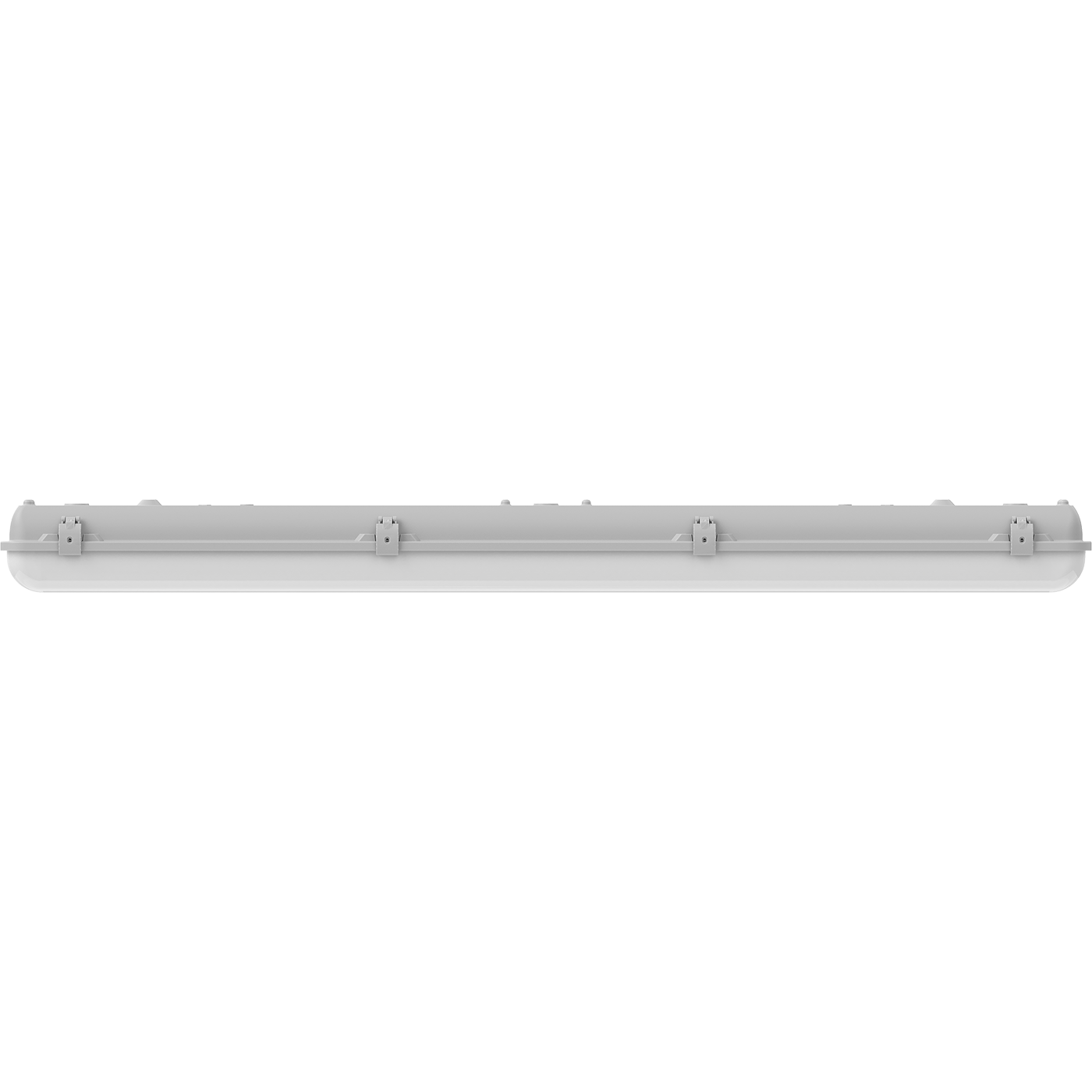

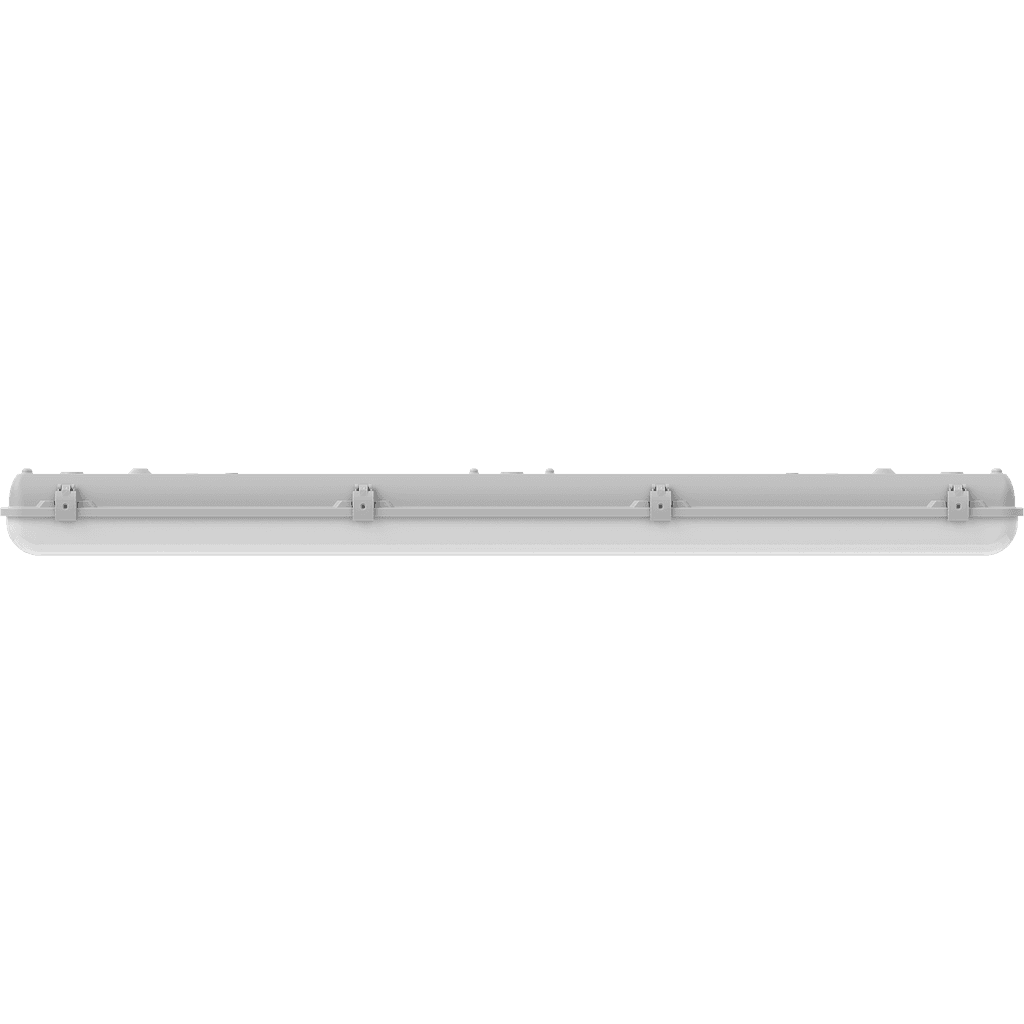

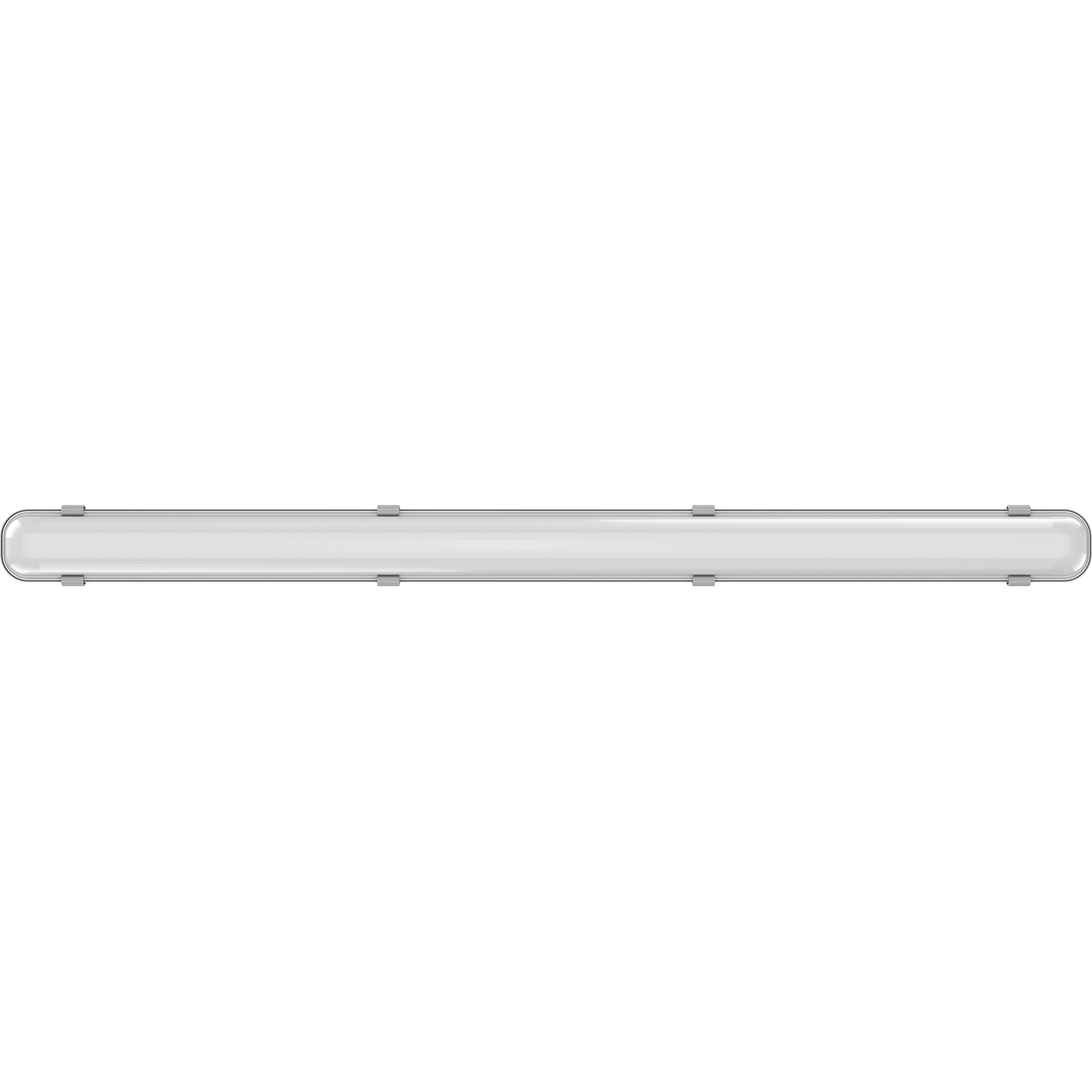

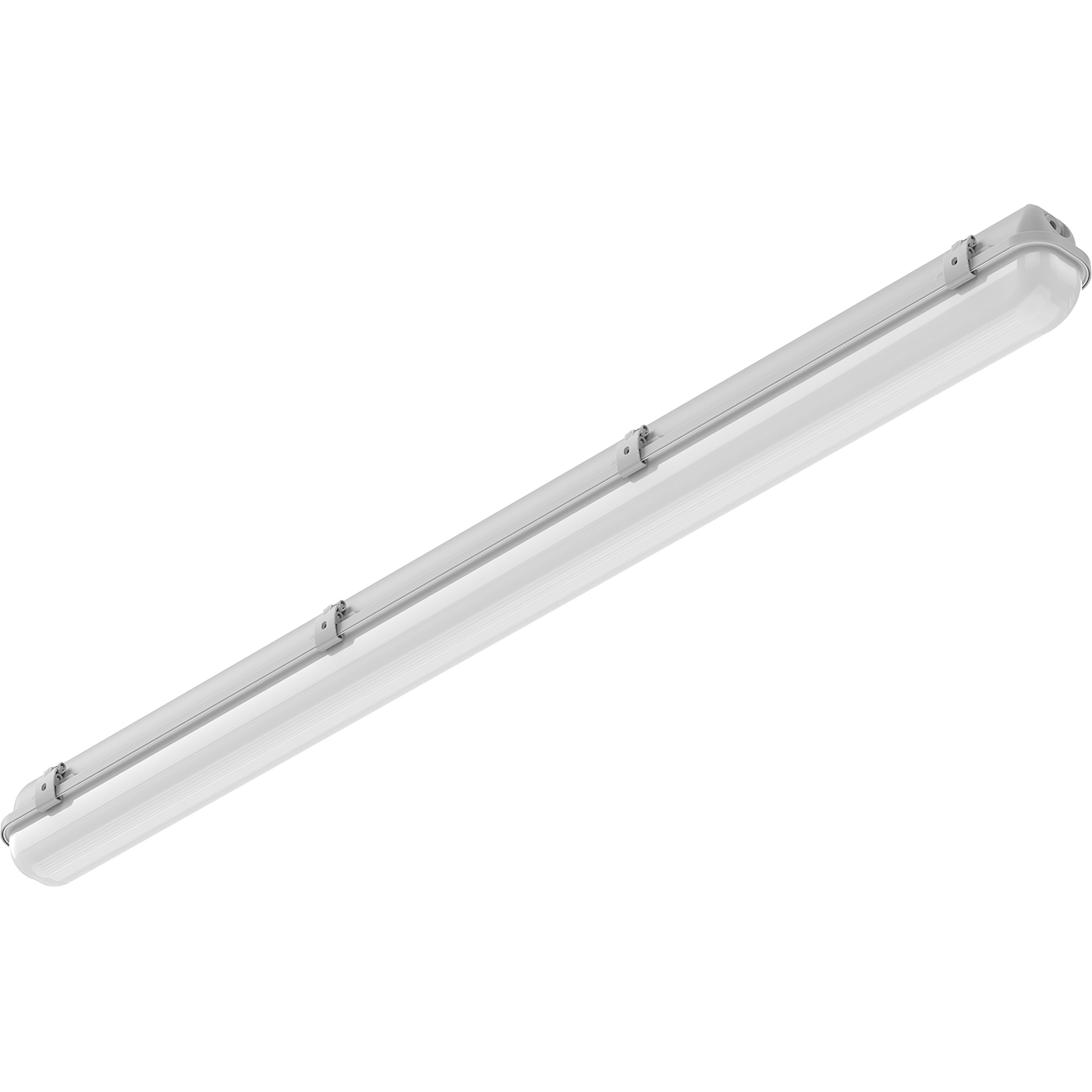

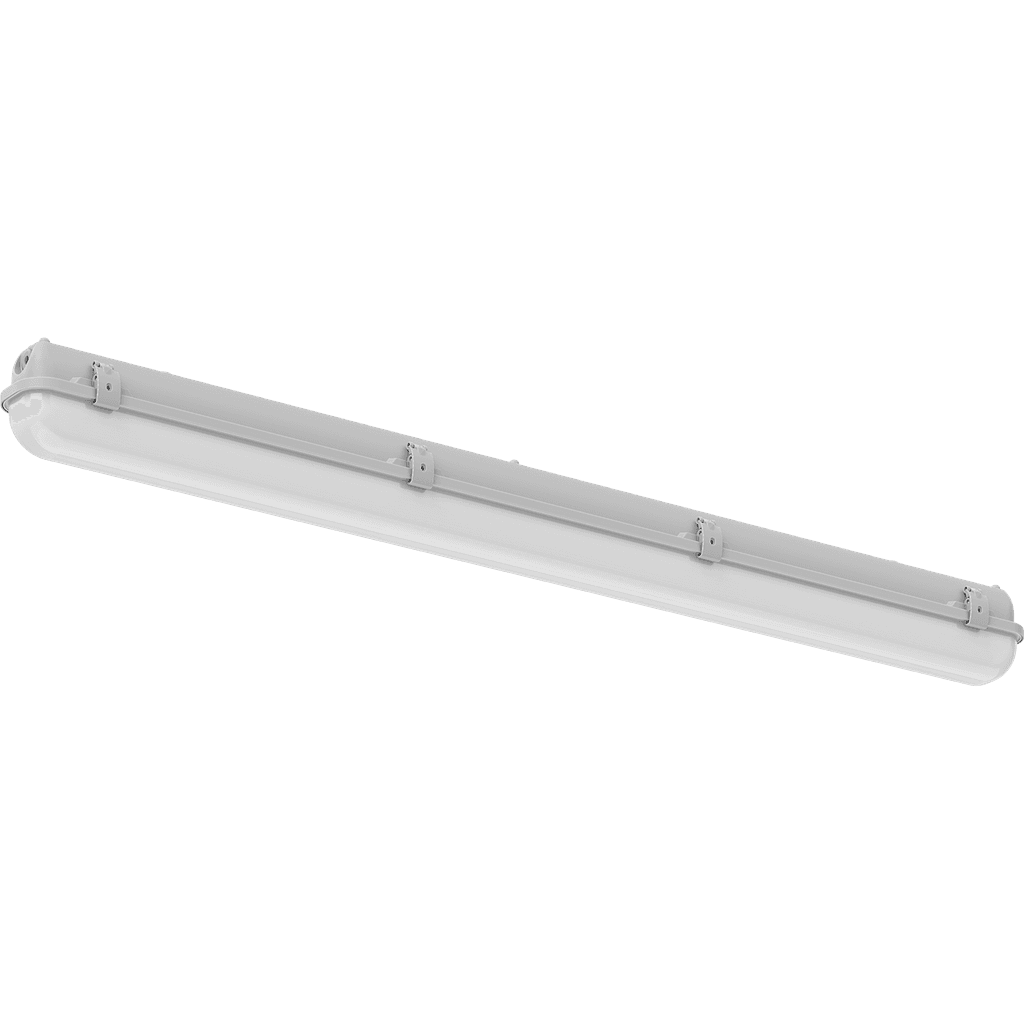

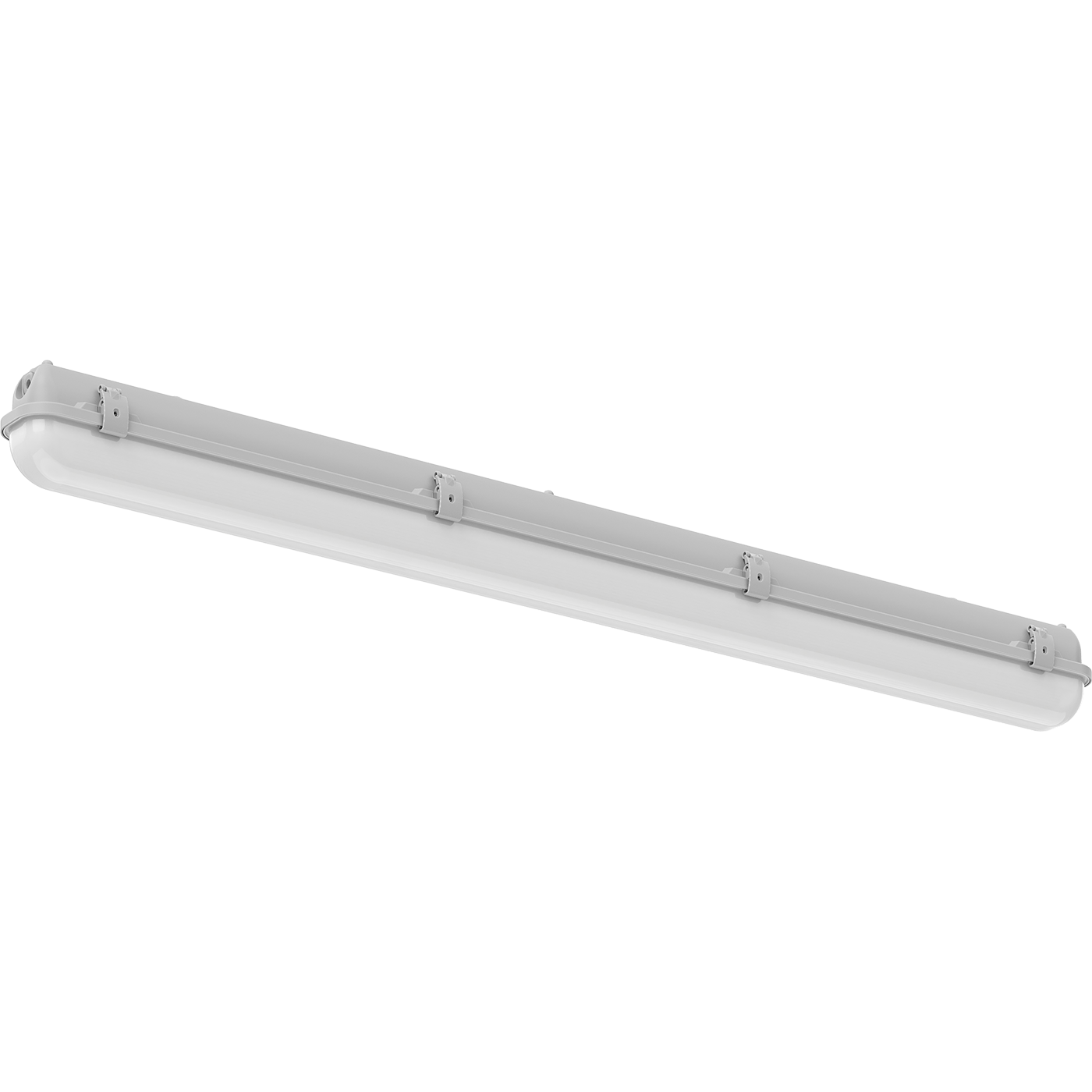

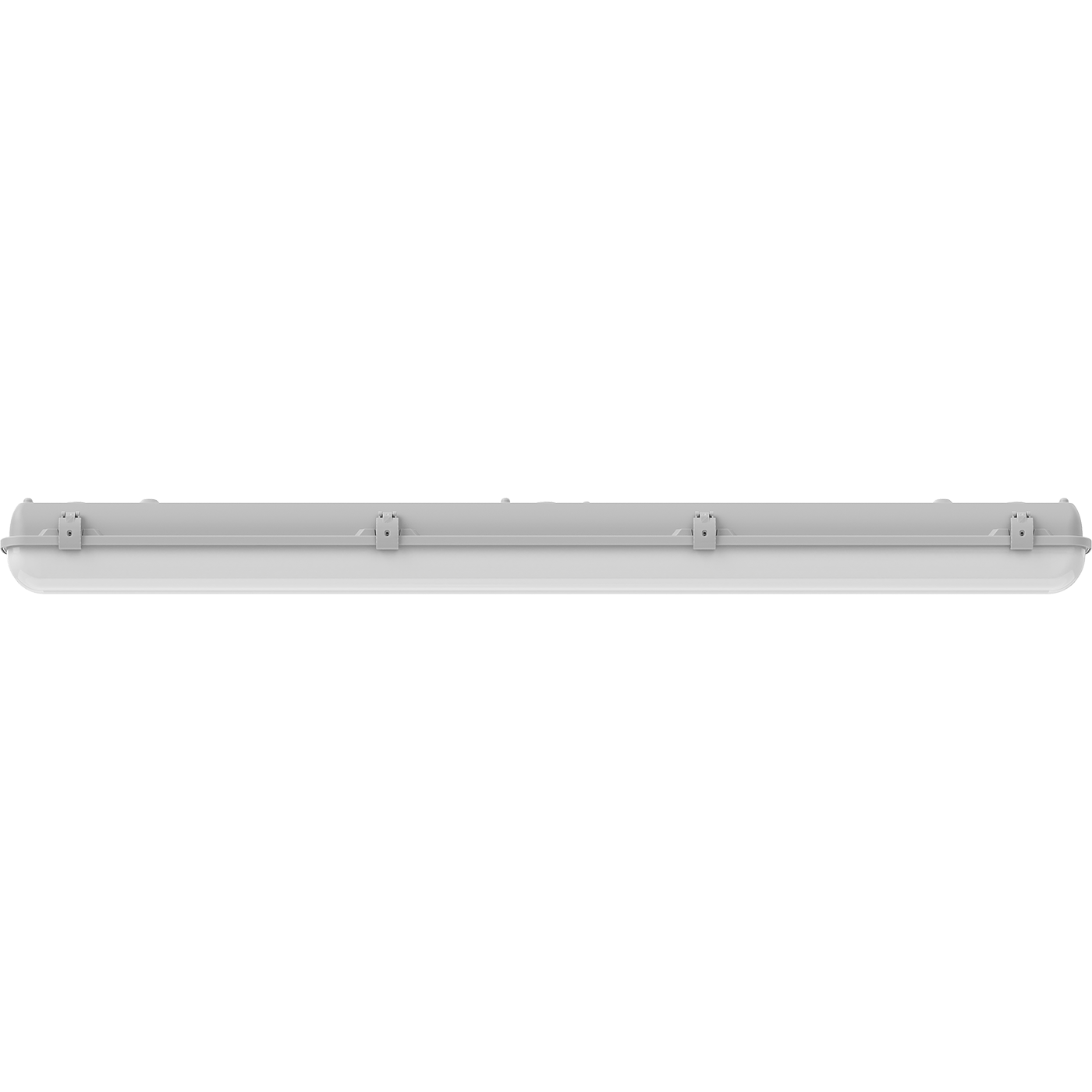

ARCTIC.OPL ECO LED 600 TH 5000K /E/

model is discontinued
model is discontinued
ARCTIC.OPL ECO LED 600 TH 5000K /E/
22 Wluminaire power
2100 lmlight flow
95 lm/Wenergy efficiency
code1997021800
color temperature5000 K
beam angleD120
weight1.5 kg
options
свернуть все
illuminatingelectricalconstructionalcommon
color rendition index (CRI)
>80
light flow
2100 lm
flickering factor
<2%
energy efficiency
95 lm/W
beam angle
D120
color temperature
5000 K
light source type
LED
emission color
Белый
illuminating
color rendition index (CRI)
>80
light flow
2100 lm
flickering factor
<2%
energy efficiency
95 lm/W
beam angle
D120
color temperature
5000 K
light source type
LED
emission color
Белый
electrical
power factor
> 0,97
luminaire power
22 W
electric shock protection
II
maximum cross-section of the connected cable
2.5 mm2
starting current
23 A
supply voltage
230 V
constructional
shock resistance (IK)
IK08/5 Дж
climatic performance
УХЛ2
fire safety class
П-ІІ
material
Пластик
housing color
Белый
lamp socket
LED
number of lamps
1
ballast
Драйвер
ingress protection (IP)
IP65
weight
1.5 kg
length
671 mm
width
96 mm
height
110 mm
installation length
445 mm
common
ETIM class
Настенно-потолочный светильник
warranty
60 month
energy efficiency class
Е
service life
50 000 h
temperature range
от -40 до +40 C
code
1997021800
model files
model files
CAD/BIM files
CAD model 3DS1.4 mB
model 3dMax2.2 mB
photometric files
csv150 B
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20113.2 mB
CE declaration243.4 kB
Declaration of Conformity EAEU TR 037/2016658.3 kB
Fire Safety Certificate2.5 mB
CAD/BIM files
CAD model 3DS1.4 mB
model 3dMax2.2 mB
photometric files
csv150 B
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20113.2 mB
CE declaration243.4 kB
Declaration of Conformity EAEU TR 037/2016658.3 kB
Fire Safety Certificate2.5 mB
