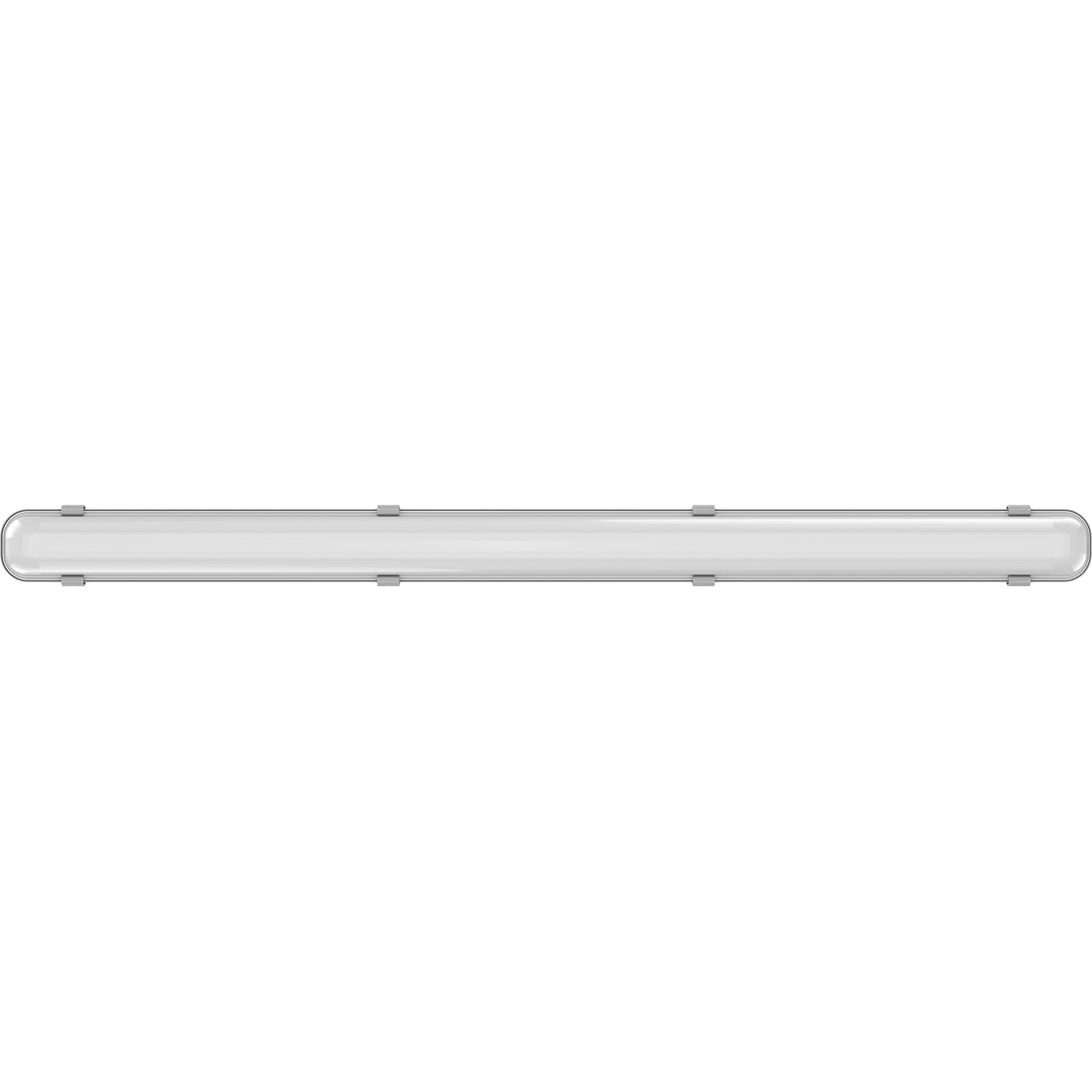

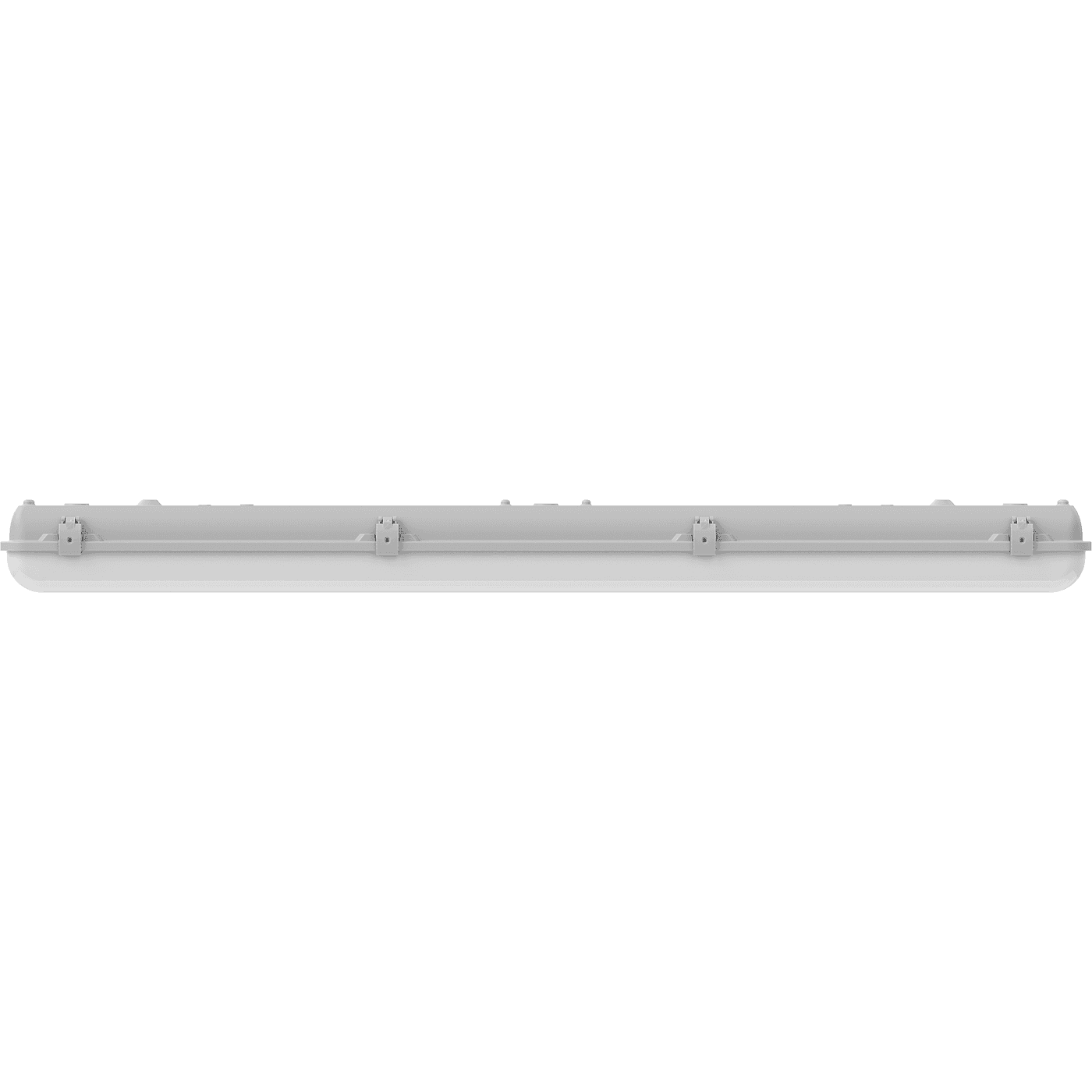

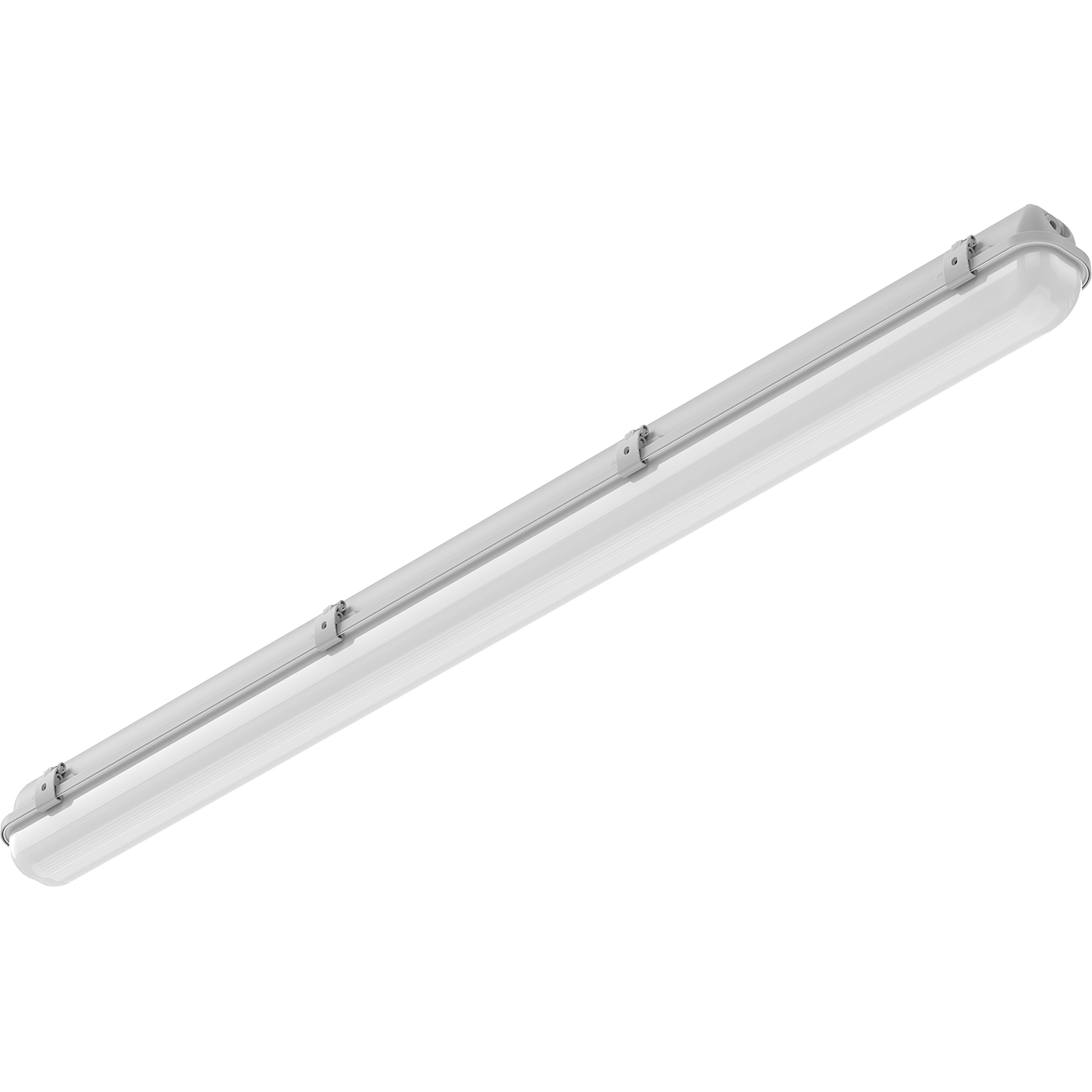

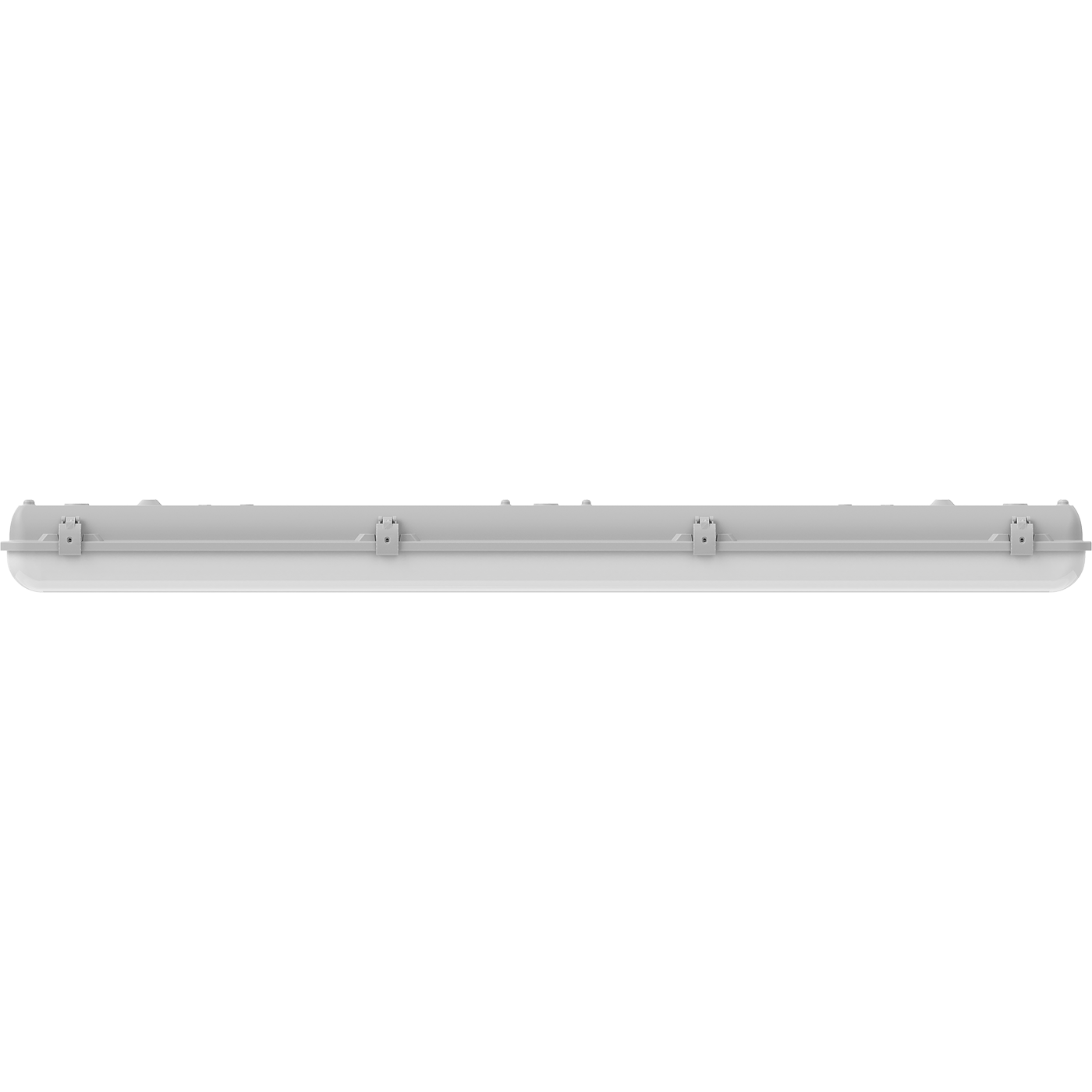

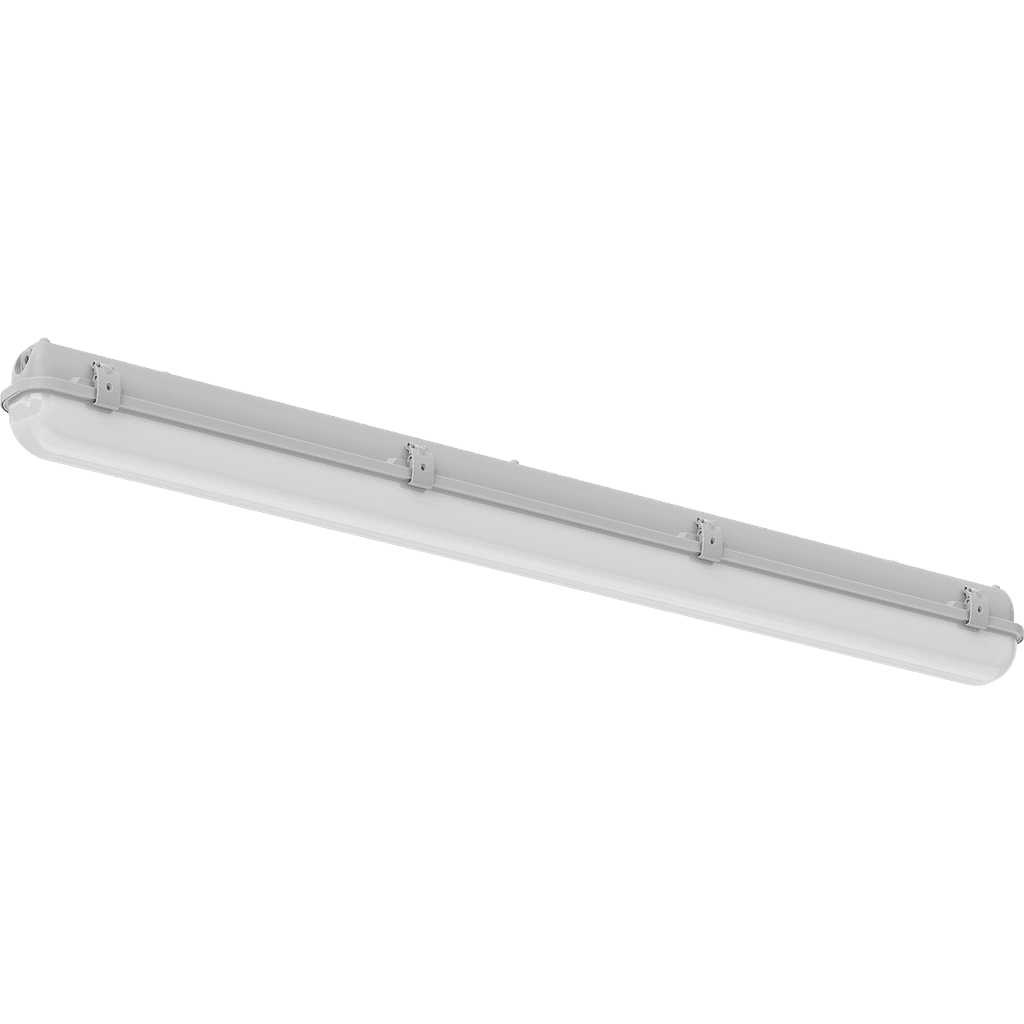

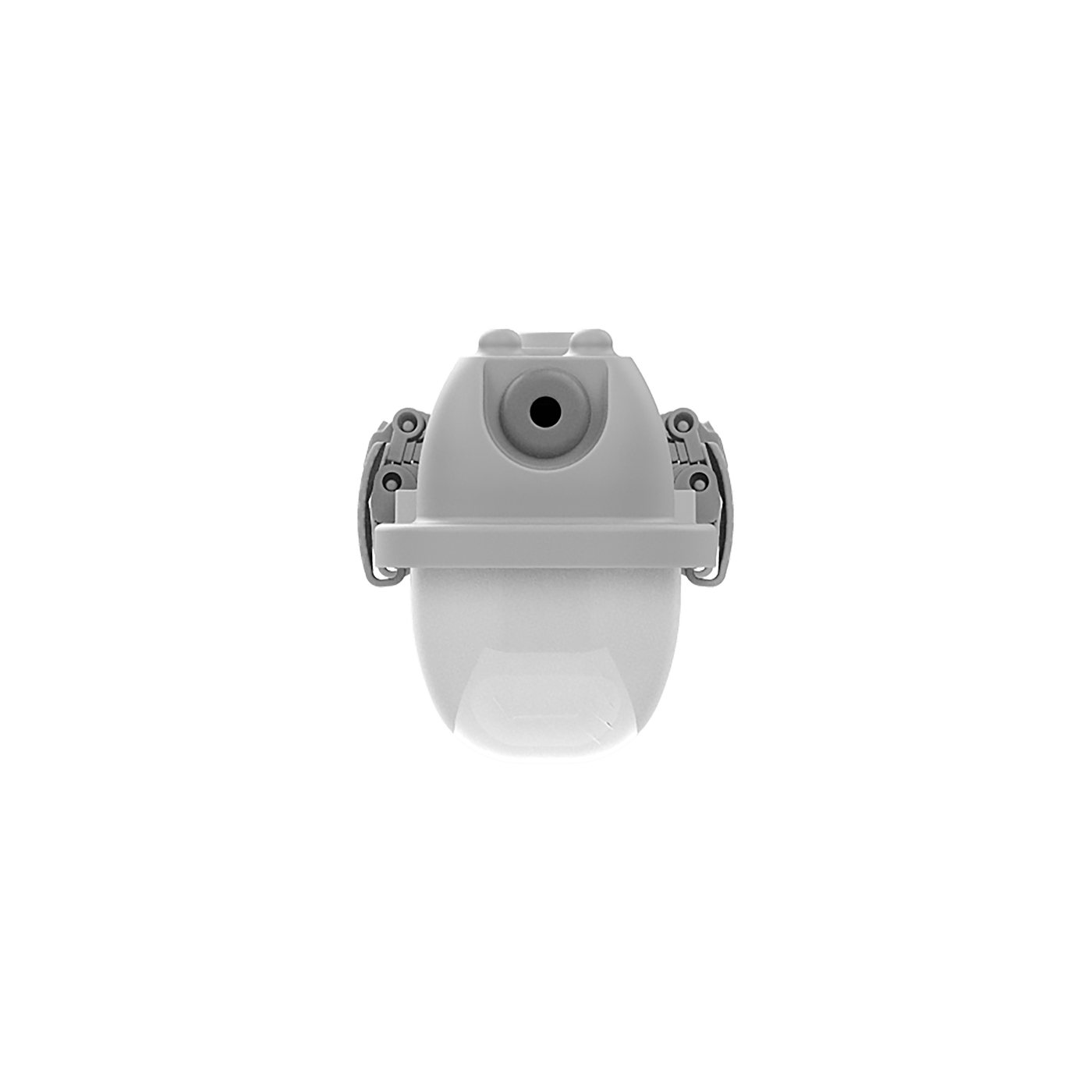

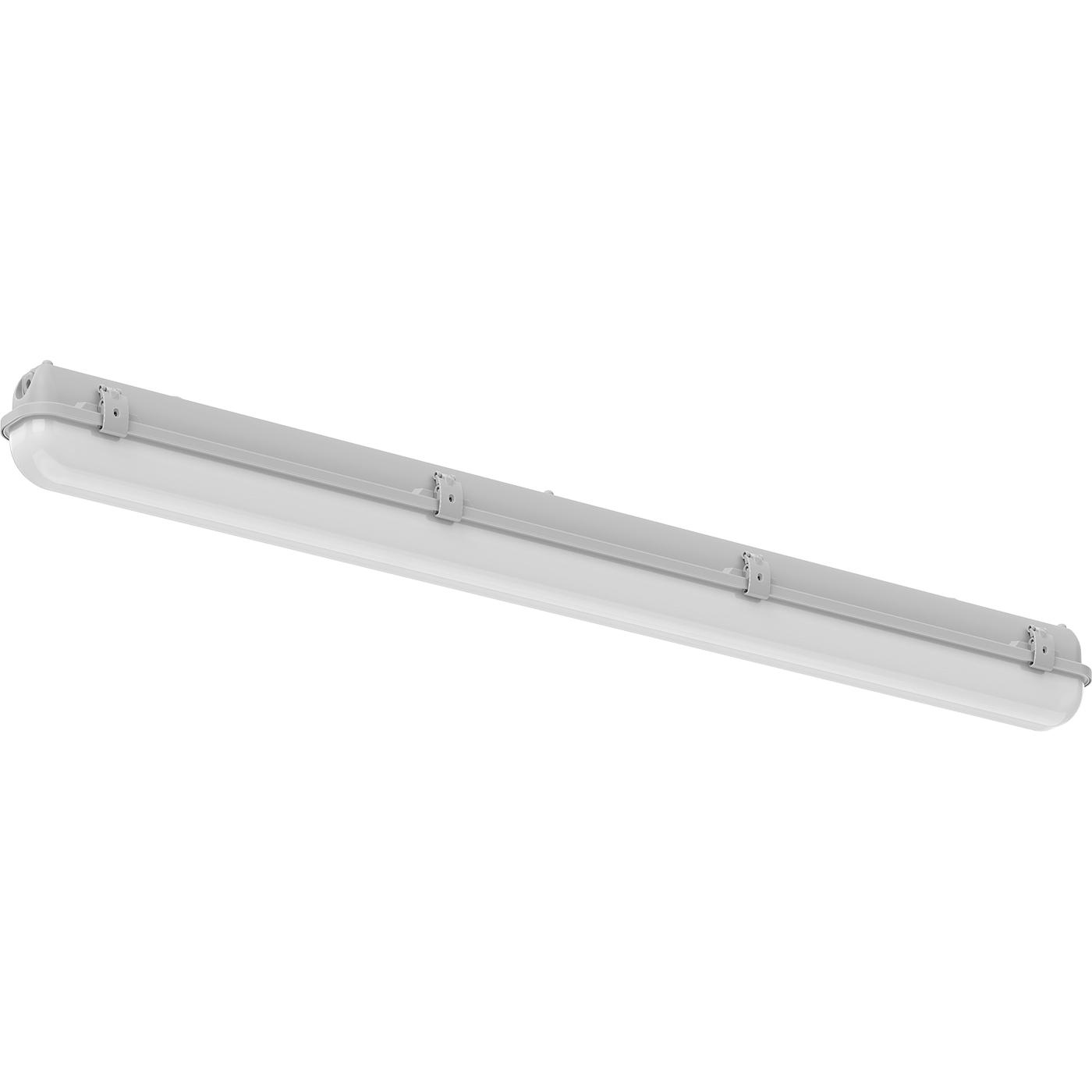

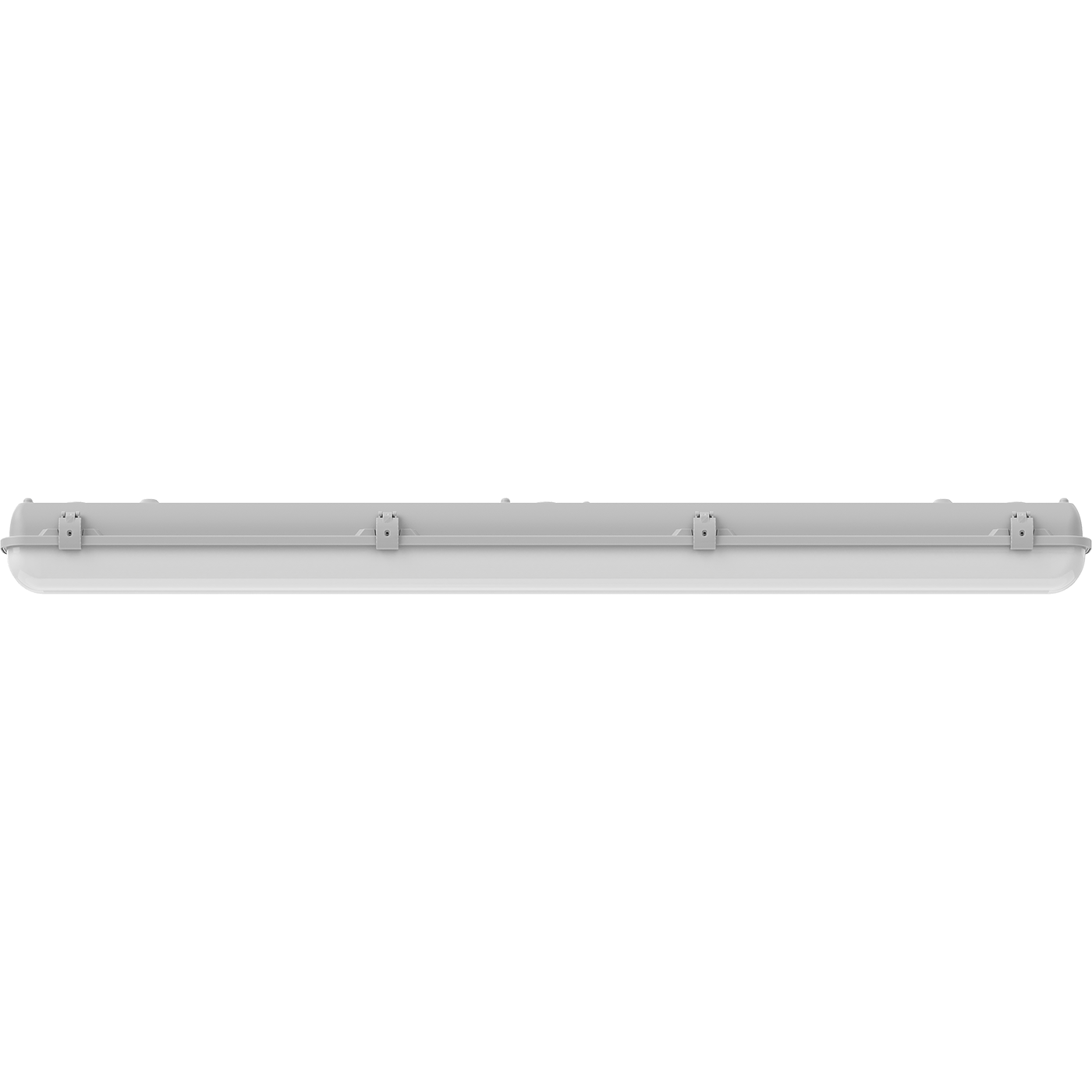

ARCTIC.OPL ECO LED 1500 TH EM 4000K
ARCTIC.OPL ECO LED 1500 TH EM 4000K
48 Wluminaire power
5400 lmlight flow
113 lm/Wenergy efficiency
code1088001460
color temperature4000 K
beam angleD120
performance factor100
weight3.2 kg
options
свернуть все
illuminatingelectricalconstructionalemergencycommon
energy efficiency
113 lm/Wcolor rendition index (CRI)
>80light flow
5400 lmflickering factor
<1%beam angle
D120color temperature
4000 Klight source type
LEDemission color
Белыйilluminating
energy efficiency
113 lm/W
color rendition index (CRI)
>80
light flow
5400 lm
flickering factor
<1%
beam angle
D120
color temperature
4000 K
light source type
LED
emission color
Белый
electrical
starting current pulse time
150 µs
power factor
> 0,96
luminaire power
48 W
electric shock protection
II
supply voltage
230 V
maximum cross-section of the connected cable
2.5 mm2
rated supply voltage, alternating current
230 V
rated supply voltage
230 V
starting current
60 A
constructional
length
1578 mm
width
96 mm
height
110 mm
installation length
1234 mm
weight
3.2 kg
ingress protection (IP)
IP65
shock resistance (IK)
IK08/5 Дж
climatic performance
УХЛ2*
fire safety class
П-ІІ
material
Пластик
housing color
Серый
lamp socket
LED
number of lamps
1
ballast
Драйвер
emergency
operating time in emergency mode
1 h
luminous flux in emergency mode
1100 lm
battery / battery Ni-Cd
RB 6,4 V 3,0 A*h LiFePO4
common
temperature range
от 0 до +40 C
service life
50 000 h
ETIM class
Настенно-потолочный светильник
warranty
60 month
energy efficiency class
A+
code
1088001460
model files
model files

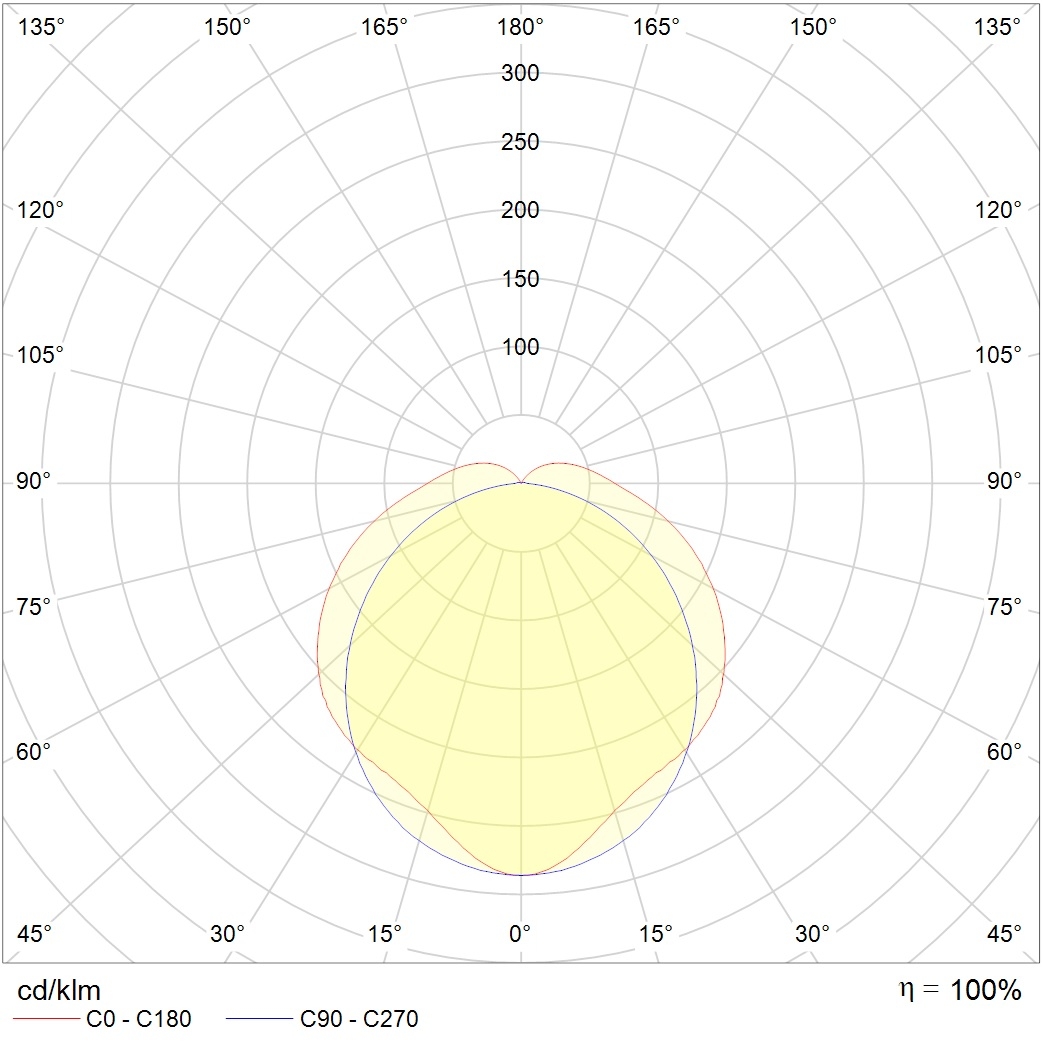

photometric files
documents
сертификаты
photometric files
ies134.1 kB
jpg166.8 kB
ldt108.4 kB
documents
passport1.7 mB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20113.2 mB
Declaration of Conformity EAEU TR 037/2016658.3 kB
Fire Safety Certificate2.5 mB
