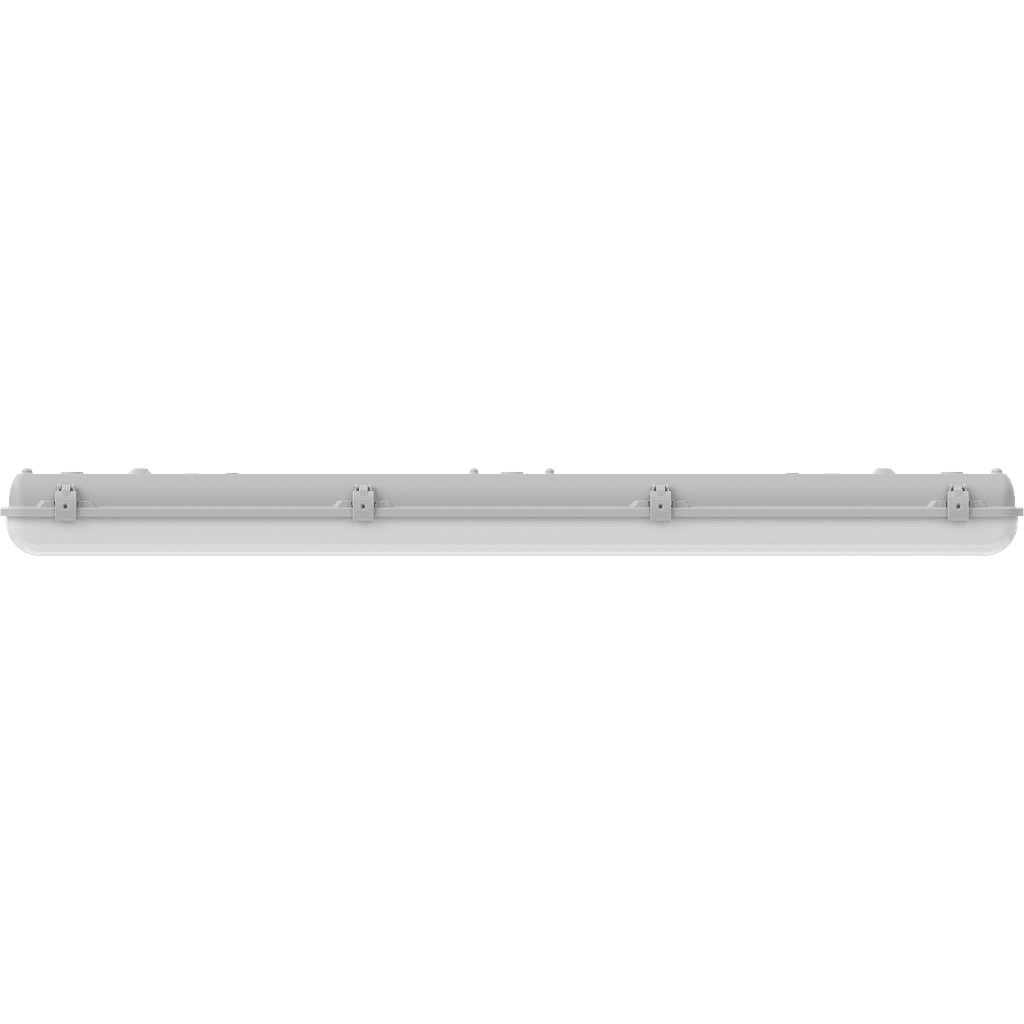

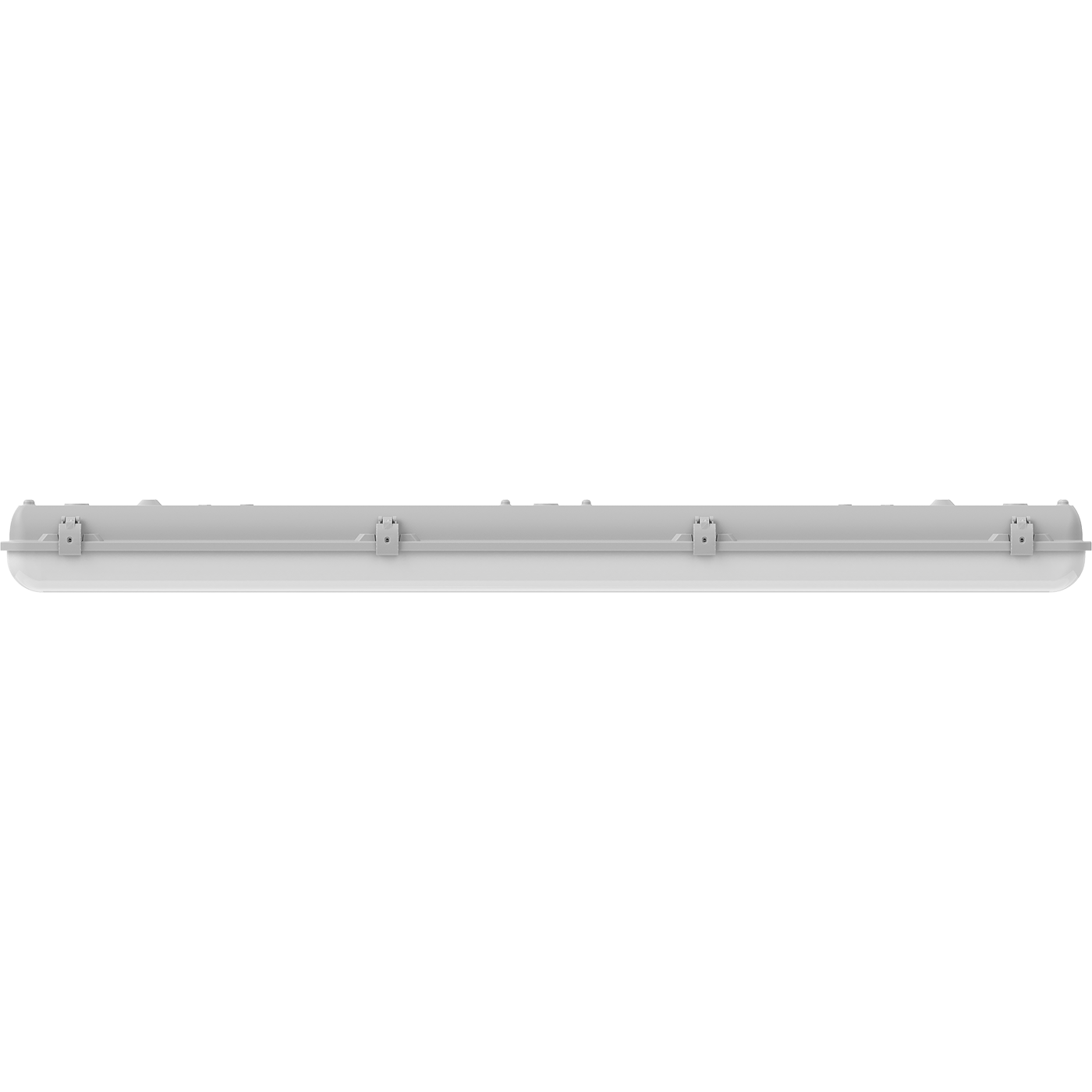

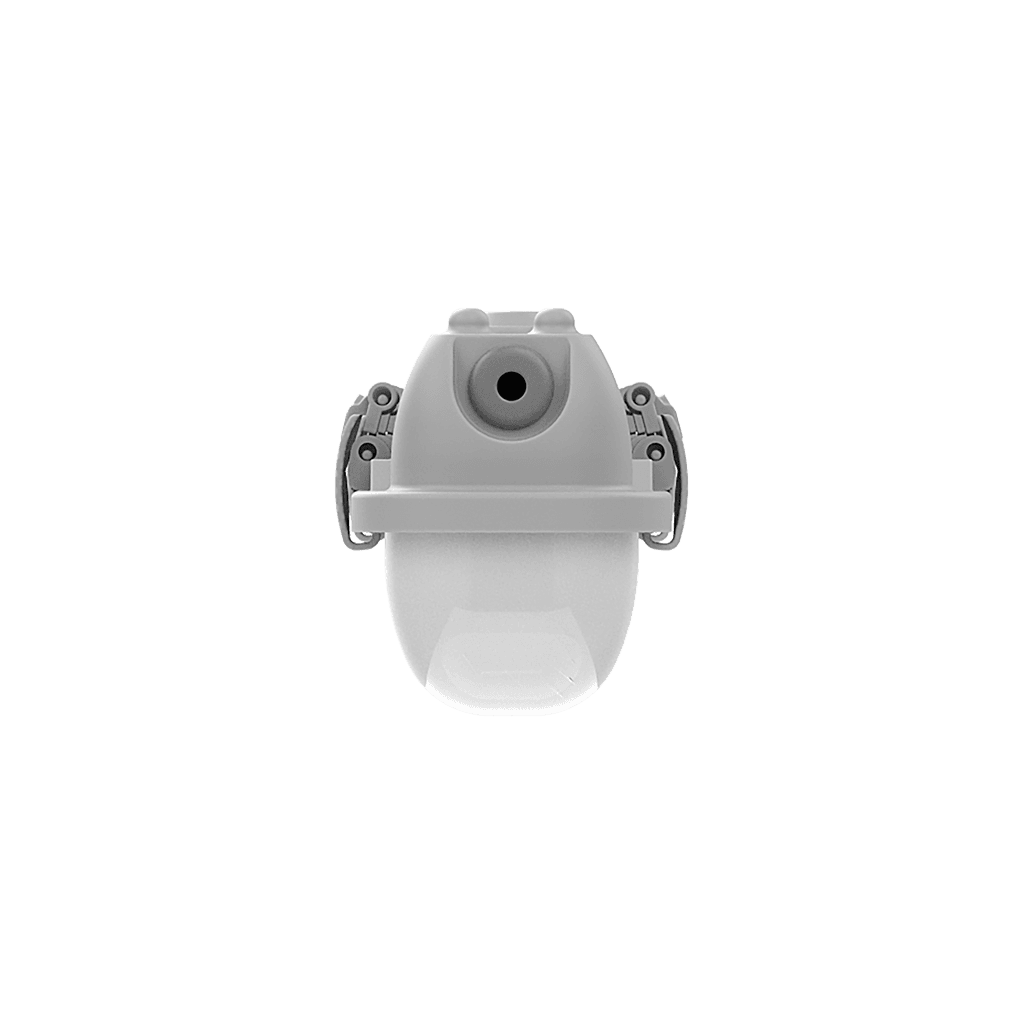

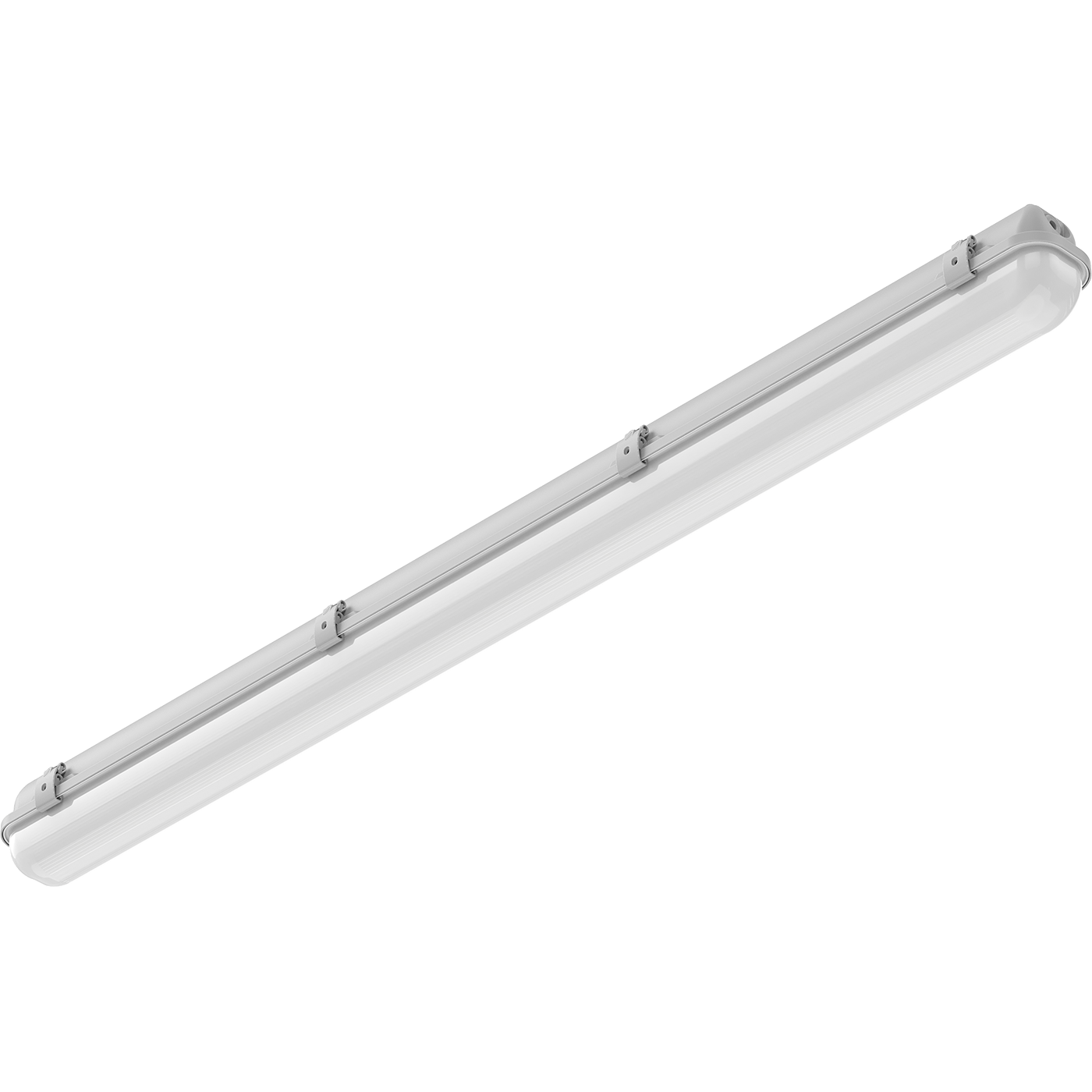

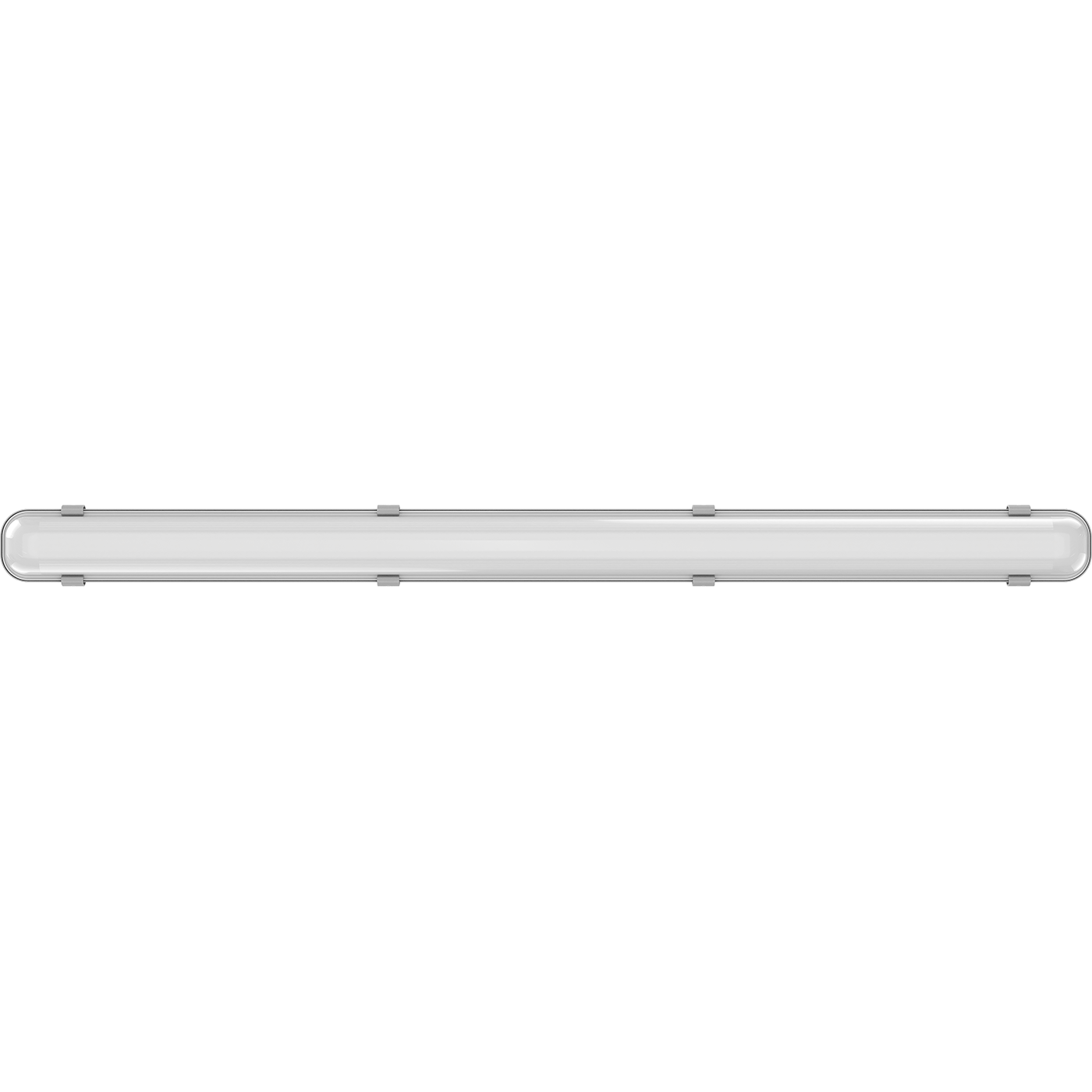

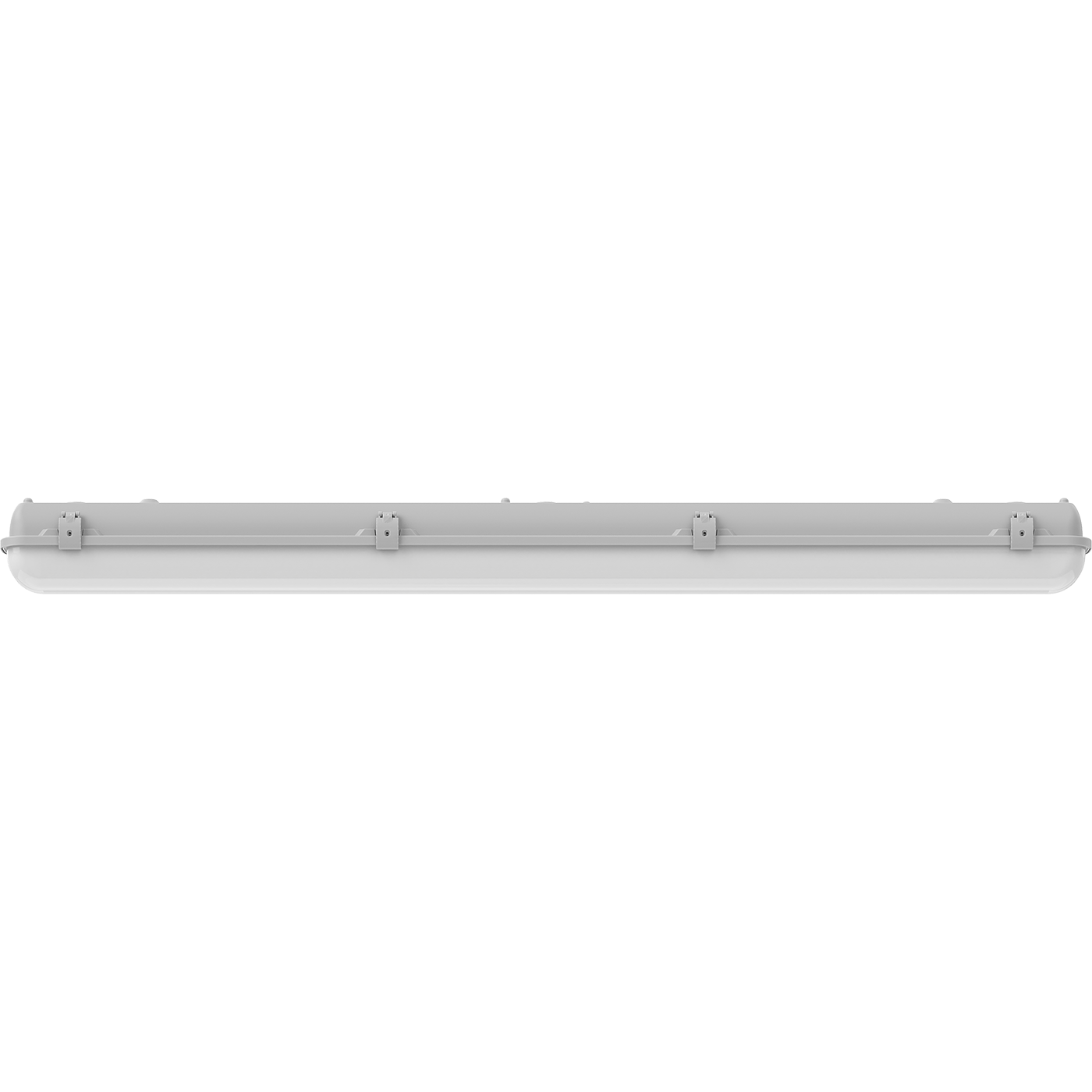

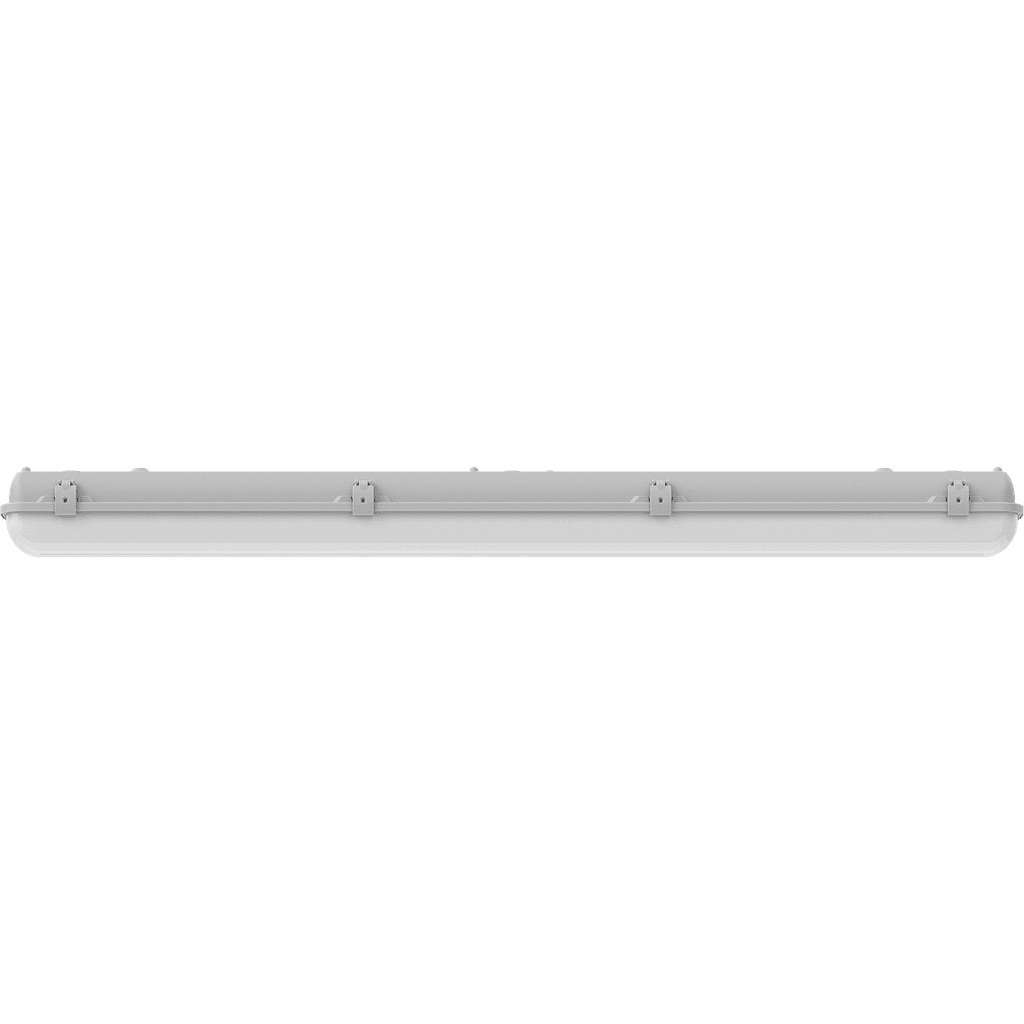

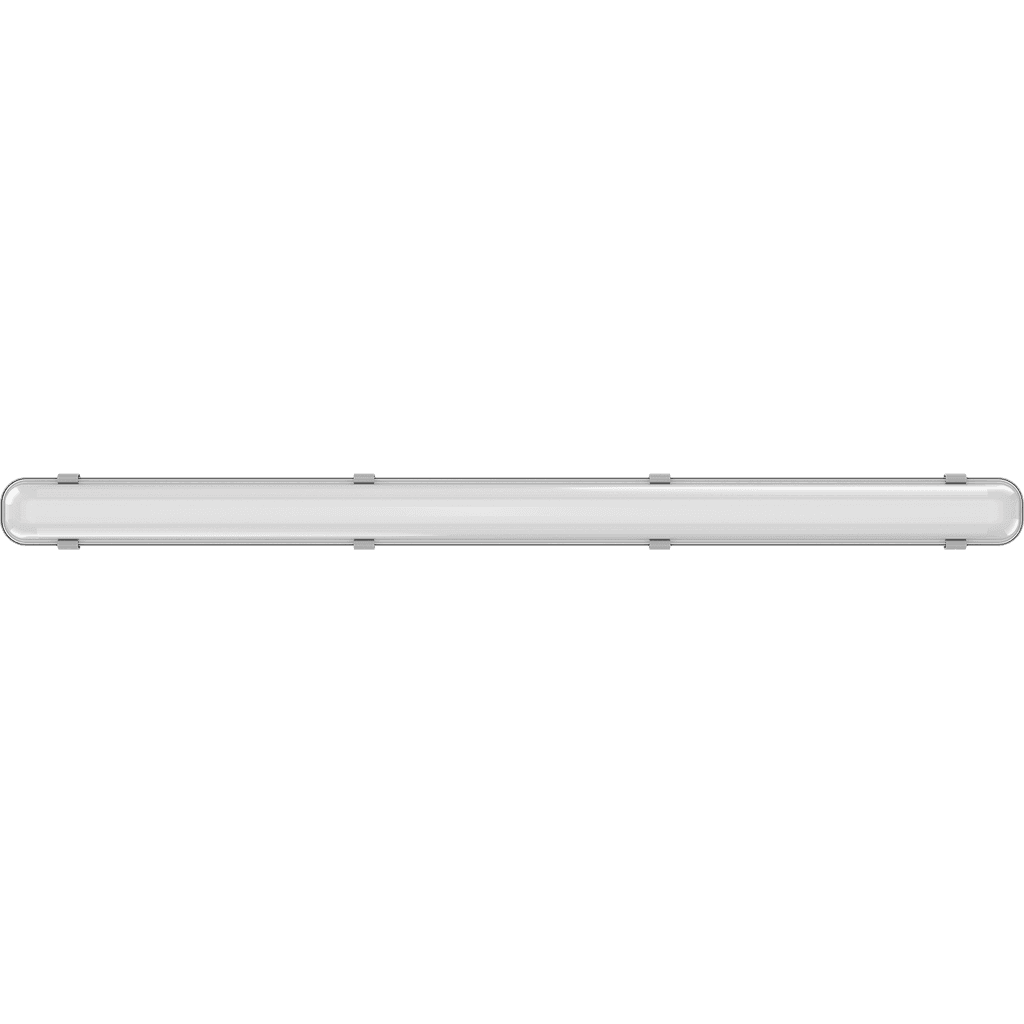

ARCTIC.OPL ECO LED 1500 TH 5000K
ARCTIC.OPL ECO LED 1500 TH 5000K
44 Wluminaire power
4600 lmlight flow
105 lm/Wenergy efficiency
code1088000020
color temperature5000
beam angleD120
weight3.2 kg
options
свернуть все
illuminatingelectricalconstructionalcommon
color rendition index (CRI)
>80light flow
4600 lmflickering factor
<1%energy efficiency
105 lm/Wbeam angle
D120color temperature
5000light source type
LEDemission color
Белыйilluminating
color rendition index (CRI)
>80
light flow
4600 lm
flickering factor
<1%
energy efficiency
105 lm/W

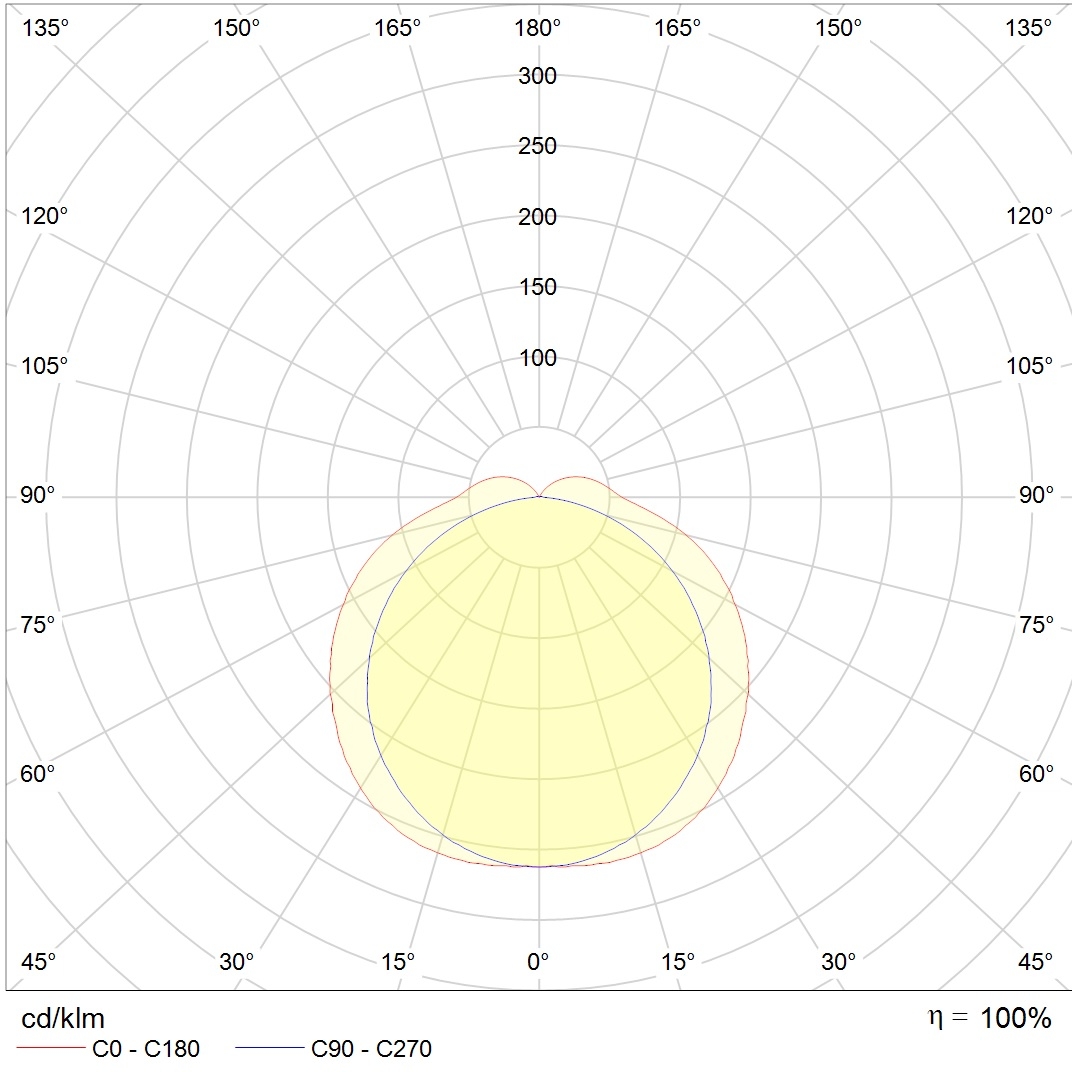

beam angle
D120
color temperature
5000
light source type
LED
emission color
Белый
electrical
power factor
> 0,98
luminaire power
44 W
electric shock protection
II
maximum cross-section of the connected cable, sq. mm
2.5
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
starting current
25 A
supply voltage
230 V
starting current pulse time, µs
250 mks
constructional
shock resistance (IK)
IK08/5 Дж
climatic performance
УХЛ2*
fire safety class
П-ІІ
material
Пластик
housing color
Серый
lamp socket
LED
number of lamps
1
ballast
Драйвер
ingress protection (IP)
IP65
weight
3.2 kg
length, mm
1578 mm
width, mm
96 mm
height, mm
110 mm
installation length, mm
1234 mm
common
ETIM class
Настенно-потолочный светильник
warranty
60 month
energy efficiency class
A+
service life, hour
50 000 h
temperature range
от -40 до +40 C
code
1088000020
model files
model files
CAD/BIM files
photometric files
documents
сертификаты
CAD/BIM files
model 3dMax2 mB
photometric files
ies134.1 kB
jpg168.2 kB
ldt108.3 kB
csv419 B
documents
passport1.5 mB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20113.2 mB
Declaration of Conformity EAEU TR 037/2016658.3 kB
Fire Safety Certificate2.5 mB
accessories

Cable mounting kit Arctic /2/0.01kgarticle: 2069000010

ARCTIC.OPL ECO LED Pipe mounting kit0.6kgarticle: 2069000740
