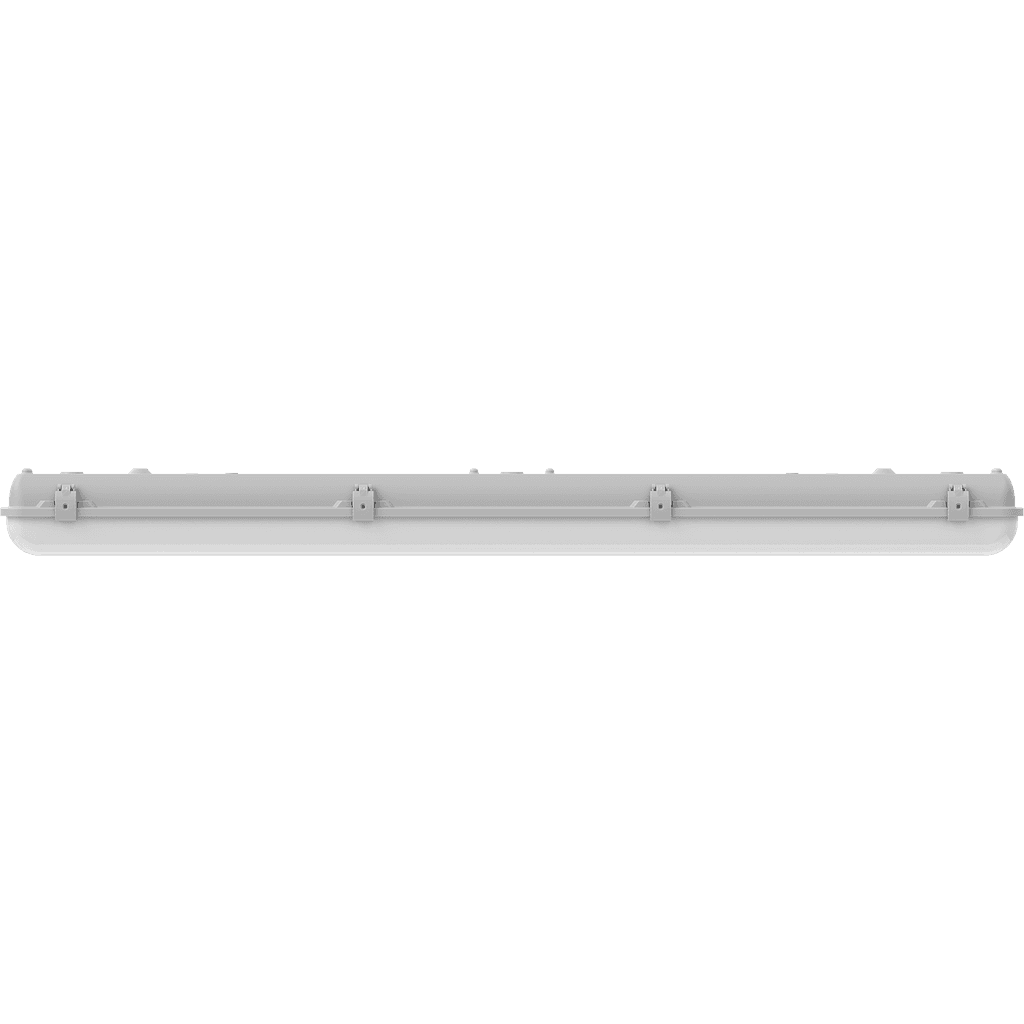

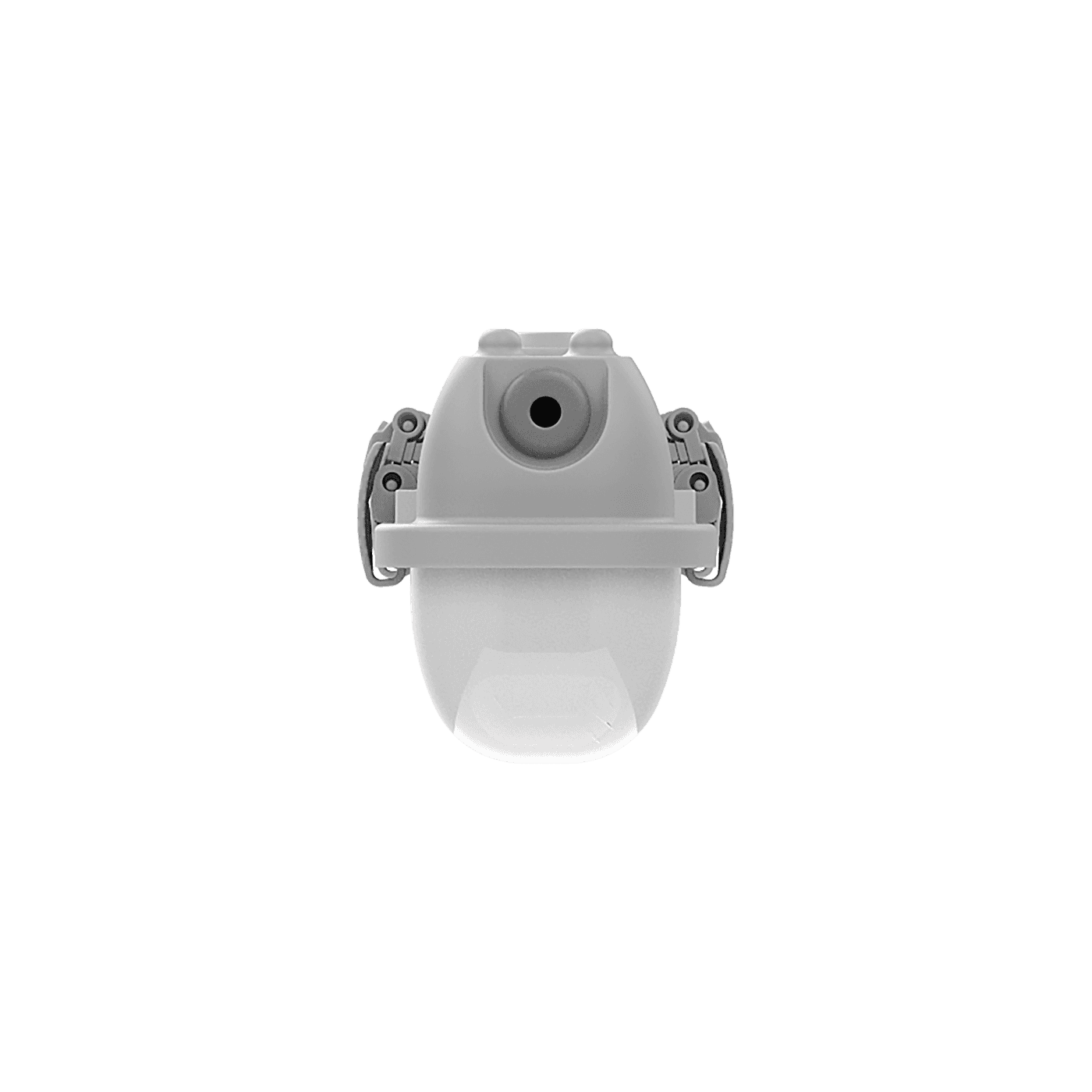

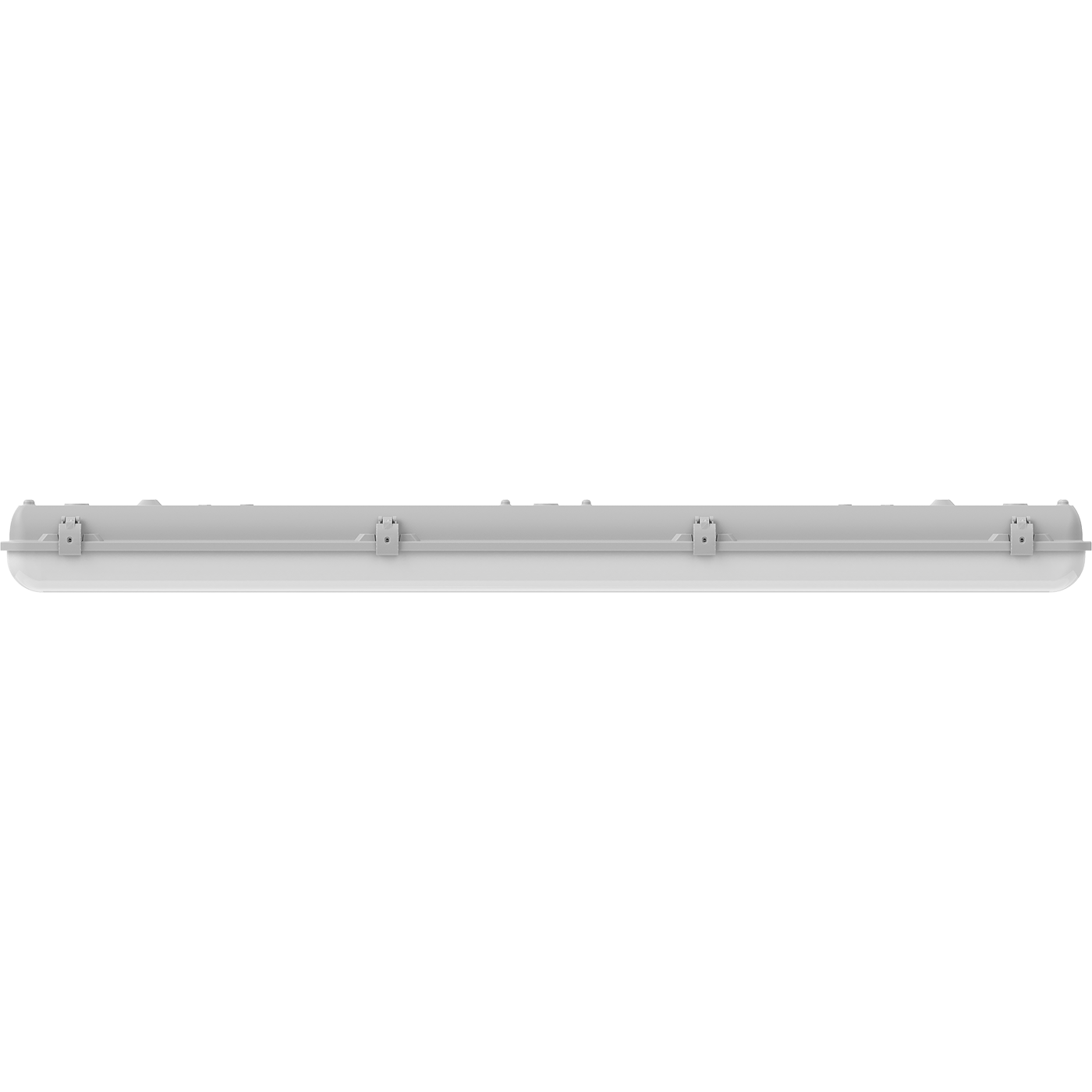

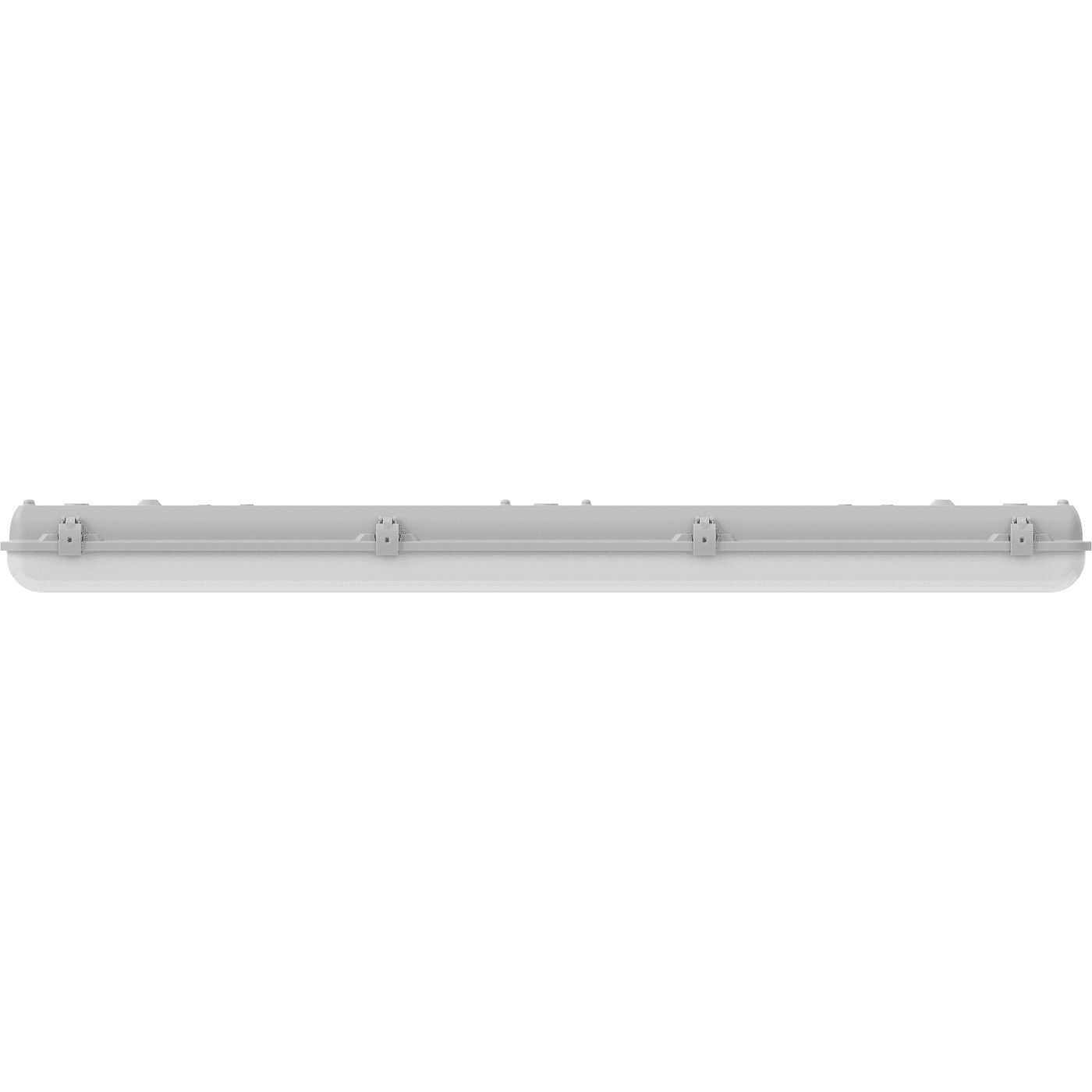

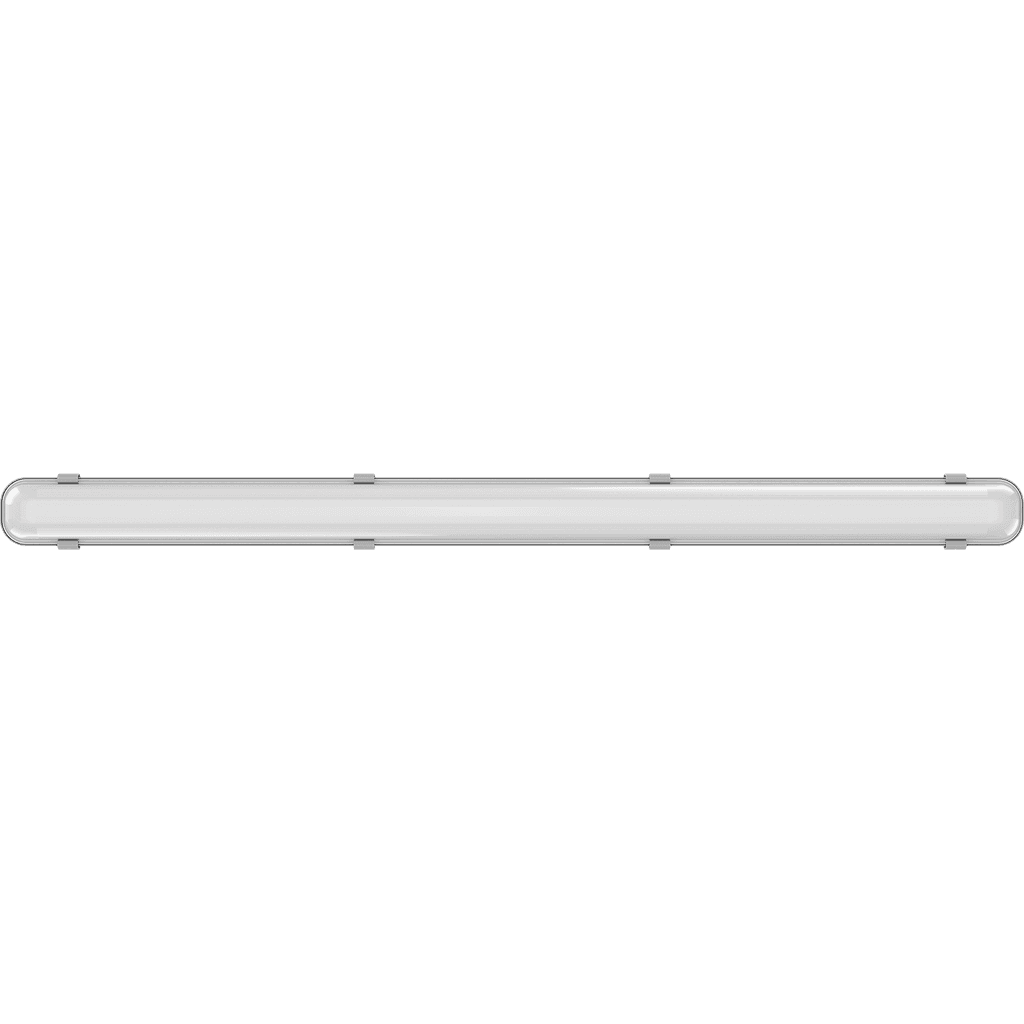

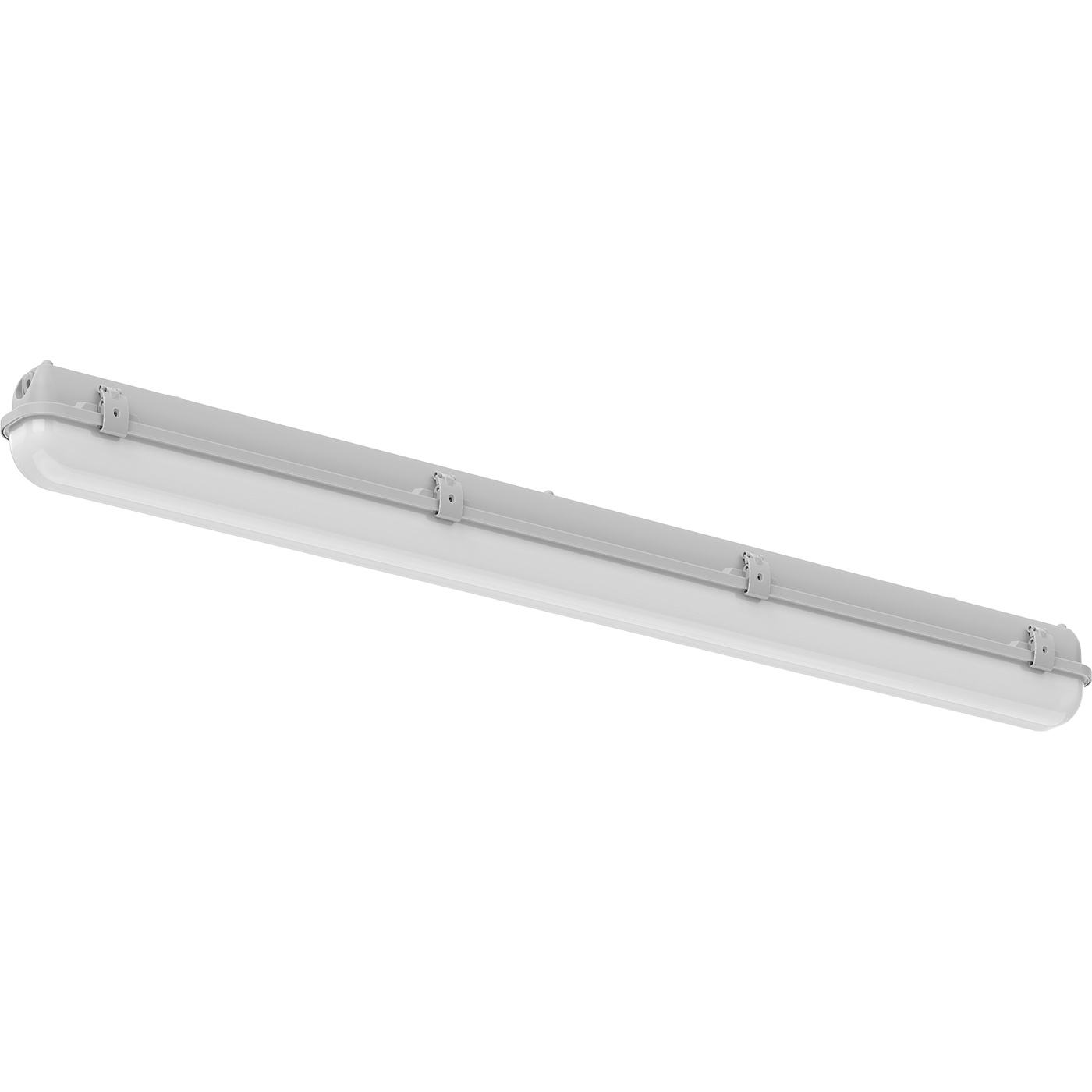

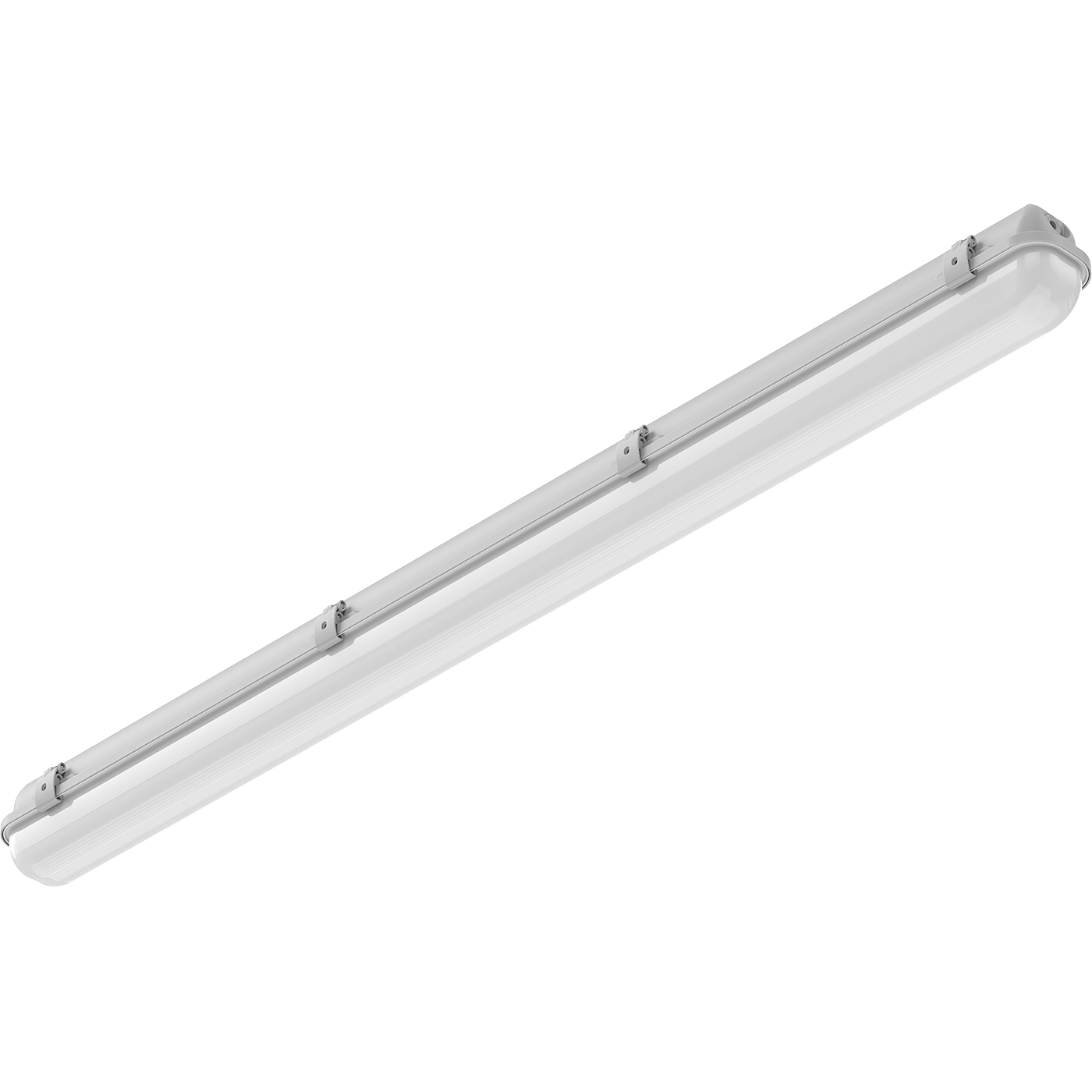

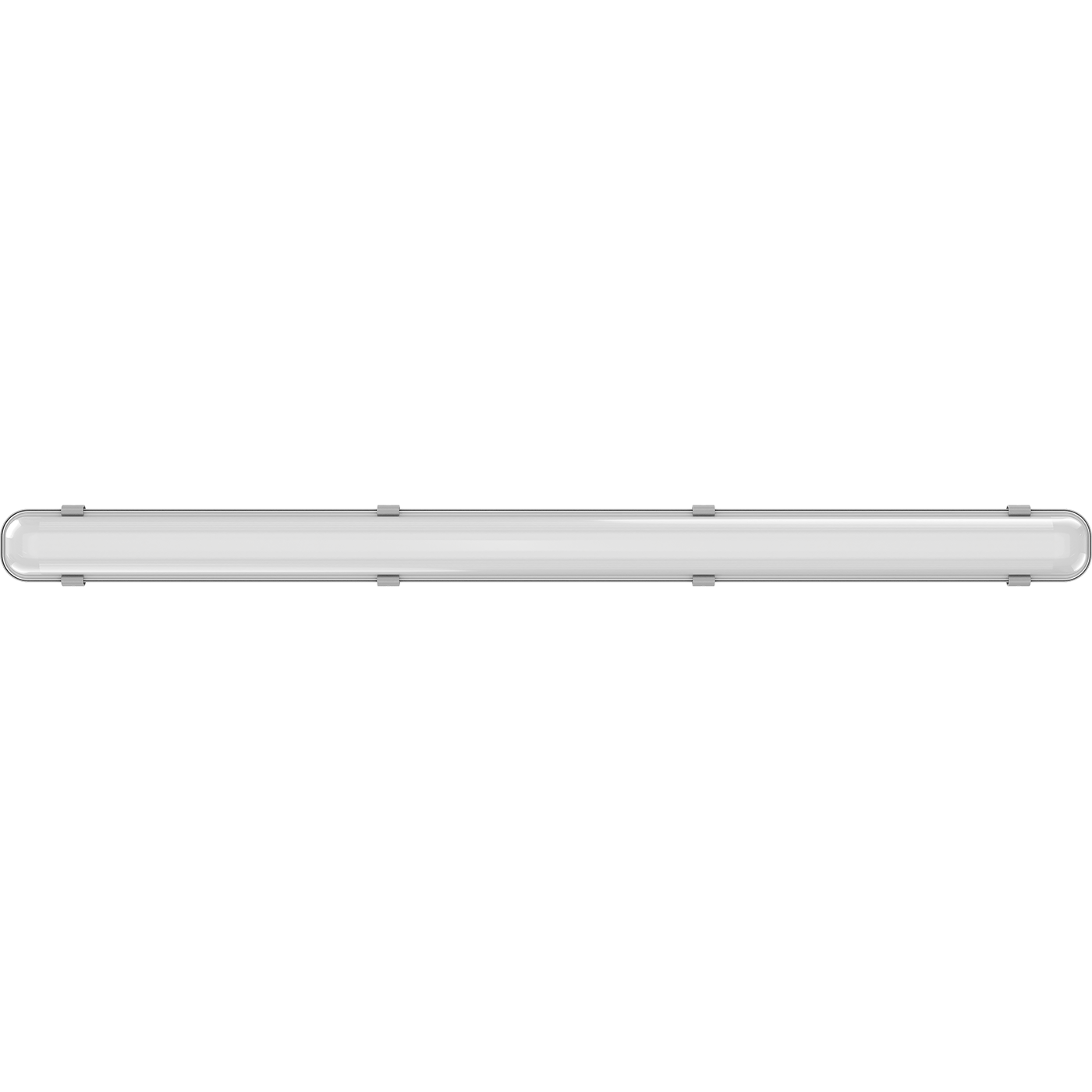

ARCTIC.OPL ECO LED 1500 TH 4000K

ARCTIC.OPL ECO LED 1500 TH 4000K
add to favorites
44 Wluminaire power
4500 lmlight flow
102 lm/Wenergy efficiency
code1088000890
color temperature4000
beam angleD120
weight3.2 kg
  1. main page
  2. catalog
  3. by product type
  4. industrial lighting
  5. up to 5 meters
  6. ARCTIC.OPL ECO LED TH
  7. ARCTIC.OPL ECO LED 1500 TH 4000K
options
свернуть все
electricalconstructionalcommonilluminating
starting current
25 A
starting current pulse time, µs
250 mks
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
supply voltage, alternating current
176-264 V
supply voltage, direct current
176-264 V
luminaire power
44 W
electric shock protection
II
power factor
> 0,98
supply voltage
230 V
electrical
starting current
25 A
starting current pulse time, µs
250 mks
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
supply voltage, alternating current
176-264 V
supply voltage, direct current
176-264 V
luminaire power
44 W
electric shock protection
II
power factor
> 0,98
supply voltage
230 V
constructional
ingress protection (IP)
IP65
fire safety class
П-ІІ
material
Пластик
weight
3.2 kg
housing color
Серый
climatic performance
УХЛ2*
maximum cross-section of the connected cable, sq. mm
2.5
length, mm
1578 mm
width, mm
96 mm
height, mm
110 mm
shock resistance (IK)
IK08/5 Дж
lamp socket
LED
number of lamps
1
ballast
Драйвер
installation length, mm
1234 mm
common
ETIM class
Настенно-потолочный светильник
warranty
60 month
temperature range
от -40 до +40 C
energy efficiency class
A+
service life, hour
50 000 h
code
1088000890
illuminating
light flow
4500 lm
flickering factor
<1%
energy efficiency
102 lm/W
beam angle
D120
color temperature
4000
light source type
LED
emission color
Белый
color rendition index (CRI)
>80
model files
model files

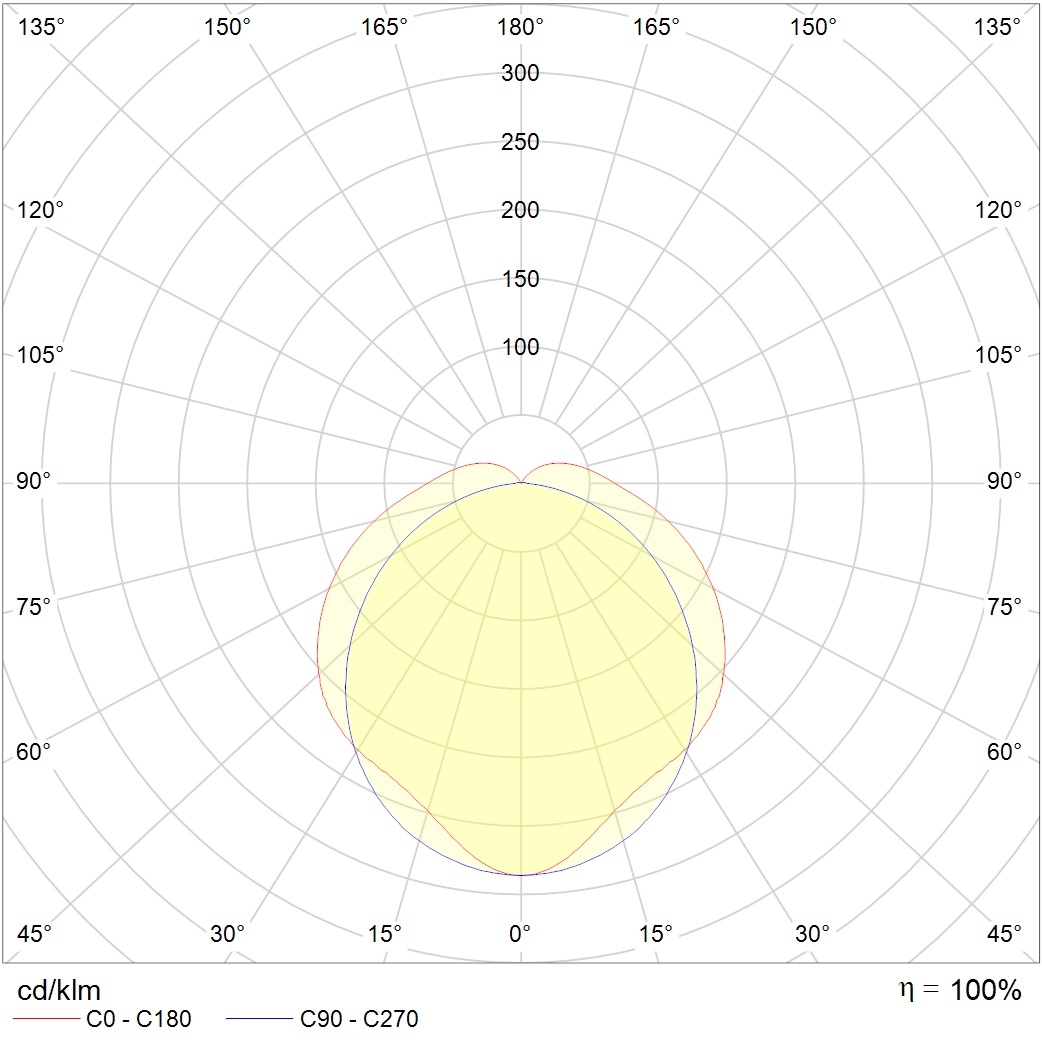

photometric files
ies134.1 kB
jpg166.8 kB
ldt108.3 kB
csv419 B
documents
passport1.5 mB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20113.2 mB
Declaration of Conformity EAEU TR 037/2016588 kB
Fire Safety Certificate2.5 mB
photometric files
ies134.1 kB
jpg166.8 kB
ldt108.3 kB
csv419 B
documents
passport1.5 mB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20113.2 mB
Declaration of Conformity EAEU TR 037/2016588 kB
Fire Safety Certificate2.5 mB
accessories
Cable mounting kit Arctic /2/0.01kgarticle: 2069000010
ARCTIC.OPL ECO LED Pipe mounting kit0.6kgarticle: 2069000740
